Sentera Controls MTV-1-CP User manual

MTV-1-CP 230 VAC POTENTIOMETER
WITH MIN & MAX SETTINGS,
DRY CONTACT
Mounting and operating instructions

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 2 - 8
back to the table of contents
Table of contents
SAFETY AND PRECAUTIONS 3
PRODUCT DESCRIPTION 4
ARTICLE CODES 4
INTENDED AREA OF USE 4
TECHNICAL DATA 4
STANDARDS 5
OPERATIONAL DIAGRAM 5
WIRING AND CONNECTIONS 5
MOUNTING INSTRUCTIONS IN STEPS 5
VERIFICATION OF INSTALLATION INSTRUCTIONS 7
TRANSPORT AND STORAGE 8
WARRANTY AND RESTRICTIONS 8
MAINTENANCE 8
MTV-1-CP
230 VAC POTENTIOMETER WITH MIN
& MAX SETTINGS, DRY CONTACT

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 3 - 8
back to the table of contents
SAFETY AND PRECAUTIONS
Read all the information, the datasheet, mounting and operating instructions and
study the wiring and connection diagram before working with the product. For
personal and equipment safety, and for optimum product performance, make sure you
entirely understand the contents before installing, using, or maintaining this product.
For safety and licensing (CE) reasons, unauthorised conversion and/ or modifications
of the product are inadmissible.
e product should not be exposed to abnormal conditions, such as: extreme
temperatures, direct sunlight or vibrations. Long-term exposure to chemical
vapours in high concentration can affect the product performance. Make sure the
work environment is as dry as possible; avoid condensation.
All installations shall comply with local health and safety regulations and local
electrical standards and approved codes. is product can only be installed by
an engineer or a technician who has expert knowledge of the product and safety
precautions.
Avoid contacts with energised electrical parts; always treat the product as if it is
live. Always disconnect the power supply before connecting, servicing or repairing
the product.
Always verify that you apply appropriate power supply to the product and use
appropriate wire size and characteristics. Make sure that all the screws and nuts
are well tightened and fuses (if any) are fitted well.
Recycling of equipment and packaging should be taken into consideration and these
should be disposed of in accordance with local and national legislation/regulations.
In case there are any questions that are not answered, please contact your
technical support or consult a professional.
MTV-1-CP
230 VAC POTENTIOMETER WITH MIN
& MAX SETTINGS, DRY CONTACT

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 4 - 8
back to the table of contents
PRODUCT DESCRIPTION
e potentiometer uses a supply of 230 VAC, and gives a stepless output signal
(1—10 VDC, 2—20 mA or 10—100 % PWM). e minimum output values can be
adjusted within 1—7 VDC / 2—14 mA / 10—70 % PWM, and the maximum values
- within 3—10 VDC / 6—20 mA / 30—100 % PWM. ere is an additional switch
on/off function (e.g. for controller remote on/off).
ARTICLE CODES
Article code Supply Output
MT V-1/010-CP 230 VAC ±10 % / 50—60 Hz Vmin—Vmax
INTENDED AREA OF USE
■Applications where a 0—10 VDC, 0—20 mA or PWM control signal is required
■For indoor use only
TECHNICAL DATA
■Power supply: 230 VAC ±10 % / 50—60 Hz
■Load:
►1—10 VDC mode: 2 kΩ (RL ≥ 2 kΩ)
►2—20 mA mode: ≤ 500 Ω (RL ≤ 500 Ω)
►10—100 % PWM mode: ≥ 2 kΩ (RL≥ 2 kΩ)
■Selectable output: 1—10 VDC / 2—20 mA / 10—100 % PWM
■Minimum output setting, Vmin: 1—7 VDC / 2—10 mA / 10—70 % PWM
■Maximum output setting, Vmax: 3—10 VDC / 6—20 mA / 30—100 % PWM
■Dry contact, CS:
►closed: ON
►open: OFF
■Enclosure:
►External: ASA, white-ivory (RAL 9010), IP54 (according to EN 60529)
►Internal: polyamide, white-ivory (RAL 9010), IP44 (according to IEC 60335)
■Operating ambient conditions:
►temperature: 0—40 °C
►rel. humidity: < 100 % rH (non-condensing)
■Storage temperature: -10—55 °C
MTV-1-CP
230 VAC POTENTIOMETER WITH MIN
& MAX SETTINGS, DRY CONTACT

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 5 - 8
back to the table of contents
STANDARDS
■Low Voltage Directive 2014/35/EC
■EMC Directive 2014/30/EC
■WEEE Directive 2012/19/EU
■RoHs Directive 2011/65/EU
OPERATIONAL DIAGRAM
MTV-1/010-CP
Analog output
100 %
70 %
Max
Min
Min Max
Potentiometer position
WIRING AND CONNECTIONS
L, N Power supply (230 VAC ±10 % / 50 —60 Hz)
CS Dry contact for remote ON / OFF switching
Out (+ -) Output voltage (0—10 VDC / 0—20 mA / PWM)
Connections Cable cross section: max. 1,5 / 2,5 mm2
MOUNTING INSTRUCTIONS IN STEPS
Before you start mounting your potentiometer, read carefully “Safety and Precautions”
and follow the steps:
For inset mounting
1. Remove the knob by turning it to the right until it pops out.
2. Unscrew the nut to remove the cover of the external enclosure.
3. Do the wiring according to the wiring diagram (see Fig. 1 Wiring and connections).
OFF position
MTV-1-CP
230 VAC POTENTIOMETER WITH MIN
& MAX SETTINGS, DRY CONTACT

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 6 - 8
back to the table of contents

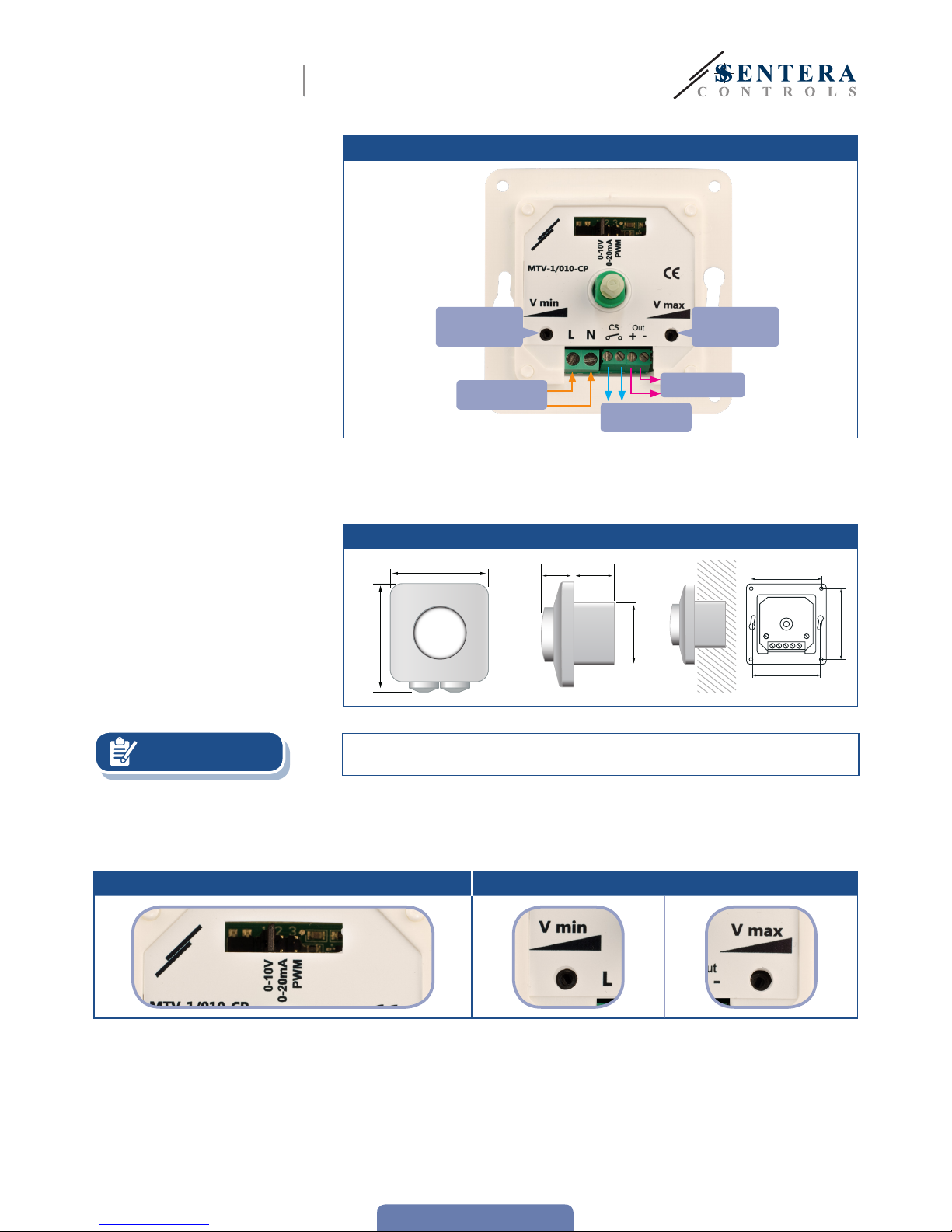

Fig. 1 Wiring and connections
Output voltage
Power supply
Dry contact for
remote ON/OFF
4. Mount the internal enclosure into the wall adhering to the mounting dimensions
shown in Fig. 2.
Fig. 2 Mounting dimensions - inset mounting
82
89
26 33
50x50
62
62
60
NOTE Mount the unit so that the terminal block and connections are at the lower side.
5. To select the output type, use the jumper shown in Fig. 3.
6. Adjust the minimum and maximum output speed trimmers using a screwdriver.
See Fig. 4.
Fig. 3 Output selection jumper Fig. 4 Trimmers
7. Mount back the cover and secure it with the nut.
8. Put back the knob and turn it to off position.
9. Turn on the power supply.
Vmin adjustment
trimmer
Vmax adjustment
trimmer
MTV-1-CP
230 VAC POTENTIOMETER WITH MIN
& MAX SETTINGS, DRY CONTACT

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 7 - 8
back to the table of contents
For inset mounting
1. Remove the knob by turning it to the right until it pops out.
2. Unscrew the nut to remove the cover of the external enclosure.
3. Mount the external enclosure onto the surface by means of screws and dowels
(notincluded) adhering to the mounting dimensions shown in Fig. 5 Mounting
dimensions - surface mounting.
Fig. 5 Mounting dimensions - surface mounting
62
62
4. Insert the cables through the grommets.
5. Do the wiring according to the wiring diagram (see Fig. 1 Wiring and connections).
6. Insert the internal enclosure into the external one and fix it using the screws and
washers included in the set.
NOTE Mount the unit so that the terminal block and connections are at the lower side.
7. To select the output type use the jumper shown in Fig. 3.
8. Adjust the minimum and maximum output speed trimmers using a screwdriver.
See Fig. 4.
9. Mount back the cover and secure it with the nut.
10.Put back the knob and turn it to off position.
11.Turn on the power supply.
NOTE A 5 mm hole can be drilled at the bottom of the external enclosure to drain the
condensed water.
VERIFICATION OF INSTALLATION INSTRUCTIONS
ATTENTION Use only tools and equipment with non-conducting handles when working on
electrical devices.
■In case of faulty operation, please check if:
►the right voltage is applied;
►all connections are correct;
►the regulated device is functioning.
MTV-1-CP
230 VAC POTENTIOMETER WITH MIN
& MAX SETTINGS, DRY CONTACT

www.sentera.eu
MIW-MTV-1-CP-EN-000-22/08/2018 8 - 8
back to the table of contents
TRANSPORT AND STORAGE
Avoid shocks and extreme conditions; stock in original packing.
WARRANTY AND RESTRICTIONS
Two years from the delivery date against defects in manufacturing. Any modifications
or alterations to the product after the date of publication relieve the manufacturer
of any responsibilities. e manufacturer bears no responsibility for any misprints or
mistakes in this data.
MAINTENANCE
In normal conditions this product is maintenance-free. If soiled, clean with a dry or
damp cloth. In case of heavy pollution, clean with a non-aggressive product. In these
circumstances the unit should be disconnected from the supply. Pay attention that
no fluids enter the unit. Only reconnect it to the supply when it is completelydry.
