SEP LEM022SJ User manual

1LEM022SJ 2015 V01
LEM022SJ DIGITAL DISPLAY KWH METER
DIRECT
230V | 400V | 5(80A) | 50Hz | class 1
DIN rail three phase four wire active energy meter
1.1 Safety instruction
1.2 Foreword
1.3 Performance criteria
1.4 Specifications
1.5 Intrinsic errors
1.6 Description
1.7 Dimensions
1.8 Installation
1.9 Operating
1.10 Troubleshooting
1.11 Technical support
User manual

2LEM022SJ 2015 V01
1.1 Safety instructions
Information for Your Own Safety
This manual does not contain all of the safety measures for operation of the
LEM022SJ, because special operating conditions, local code requirements or local,
national or international regulations may necessary to take further measures. It does
contain information which must be adhered to in the interests of your own personal
safety and to avoid material damages.
Warning
Means that failure to observe the instruction can result in death, serious injury or
considerable material damage.
Caution
Means hazard of electric shock and failure to take the necessary safety precautions
will result in death, serious injury or considerable material damage.
Qualified personnel
Commissioning and operation of SEP LEM022SJ described in this manual may only
be performed by qualified personnel. Qualified personnel in the sense of the safety
information contained in this manual are persons who are authorized to commission,
start up, ground and label devices, systems and circuits according to safety and
regulatory standards.
Use for the intended purpose
The SEP LEM022SJ may only be used for the application cases specified in the
catalog and the user manual and only in connection with devices and components
recommended and approved by SEP Europe.
Proper handling
The prerequisites for reliable operation of the product are proper transport, proper
storage, installation and assembly, as well as proper operation and maintenance.
When operating electrical equipment, certain parts of this equipment automatically
carry dangerous voltages. Improper handling can therefore result in serious injury or
material damage.
Use only isolated tools.
Do not connect while circuit is live (hot).
Place the meter only in dry surroundings.
Do not mount the meter in an explosive area or exposed to dust, mildew and
insects.
Make sure the used wires are suitable for the maximum current of this meter.
Make sure the AC wires are connected correctly before activating the
current/voltage to the meter.
Do not touch the meter connecting clamps directly with your bare hands, with
metal, blank wire or other material as you will have the chance of an electric
shock and a possible chance for health damage.
Make sure the protection cover is placed after installation.
Installation, maintenance and repair should only be done by a qualified
personnel.

3LEM022SJ 2015 V01
Never break the seals and open the front cover as this might influence the
functionality of the meter, and will be avoid any warranty.
Do not drop, or allow physical impact to the meter as there are high precision
components inside that may break or render the meter measure accurately.
Exclusion of liability
We have checked the contents of this publication and every effort has been made
to ensure that the descriptions are as accurate as possible.
However, deviations from the description cannot be completely ruled out, so that
no liability can be accepted for any errors or omissions contained in the
information given. The data in this manual are checked regularly and the
necessary corrections are included in subsequent editions. We are grateful for
any improvements that you care to suggest.
Copyright
Copyright (c) 2015 SEP EUROPE All rights Reserved.
It is prohibited to pass on or copy this document or to use or disclose its contents
without our express permission. Any duplication is a violation of the law and
subject to criminal and civil penalties. All rights reserved, particularly in the event
of a patent award or utility model registration.
Registered trademarks
SEP EUROPE is registered trademark of Schotman Elektro BV.
1.2 Foreword
Thank you for purchasing the LEM022SJ DIN rail three phase four wire energy
meter. The LEM022SJ energy meter is an advanced type electronic kWh meter
available at the market. With the our product range we have introduced a large
scale of energy meters on the market suitable for 110VAC to 400VAC (50 or
60Hz).
Although we produce the LEM022SJ meter according to IEC 62053-21 and our
accurate quality inspection there might always be a possibility that your product
shows a fault or failure for which we do apologize. Under normal conditions your
product should give you years of benefit and pleasure. In case there is problem
with the energy meter you should contact your dealer immediately. All energy
meters are sealed with a special seal. Once this seal is broken there is no
possibility to claim (for) warranty. Therefore NEVER open an energy meter or
break the seal of the energy meter. The warranty time is 12 months, after
purchase, and only valid for construction faults.

4LEM022SJ 2015 V01
1.3 Performance criteria:
Operating humidity ≤ 75%
Storage humidity ≤ 95%
Specified operating temperature -10°C - +40°C (3K5)
Limit operating temperature -25°C - +55°C (3K6)
Storage temperature -40°C - +70°C (1K5)
International standard IEC 62053-21
Accuracy class Class 1
Protection against penetration
of dust and water IP51
Insulating encased meter of
protective class Ⅱ
1.4 Specifications:
Reference voltage (Un) 230/400V AC (3~)
Operational voltage 161/279 –300/520V AC (3~)
Insulation capabilities:
- AC voltage withstand 2KV for 1 minute
- Impulse voltage withstand 6KV –1.2µS waveform
Minimum current (Imin) 0.25 A
Transitional current (Itr) 0.5 A
Reference current (Iref) 5 A
Maximum current (Imax) 80 A
Operational current range 0.25A - 80A
Over current withstand 3000A for 0.01s
Operational frequency range 50Hz ±10%
Internal power consumption ≤2W / 10VA per phase
Test output flash rate (PULSE LED) 400 pulses per kWh (2.5Wh/imp)
Pulse output rate (pins 26 & 27) 400 pulses per kWh (2.5Wh/imp)
Pulse supply current Ui max=27V / Ii max 27mA
Power supply indicator (L1, L2 &
L3 LED) Meter is connected and working OK.
Consumption indicator (PULSE LED) Flashing at load running
Reverse indication (REV. LED) lighten when load current flow is reverse.
Data display mode 7+1 digits for LCD display
Data save The data can be stored more than 20 years
when power cut.
1.5 Intrinsic errors:
With balanced loads
Imin ≤I < Itr Cosφ = 1 ±1.5%
Itr ≤I ≤Imax Cosφ = 1 ±1.0%
Cosφ = 0.5L ±1.0%
Cosφ = 0.8C ±1.0%
With single phase load
Itr ≤I ≤Imax Cosφ = 1 ±2.0%
Cosφ = 0.5L ±2.0%

5LEM022SJ 2015 V01
1.6Description
A Front panel
B Cover
C Base
D Protection cover
E Security hasp
F Indicator LED
Material
Front plate Transparent inflaming retarding polycarbonate
Cover Fiber-glass reinforced inflaming retarding polycarbonate
Base Fiber-glass reinforced inflaming retarding polycarbonate
Protection cover Fiber-glass reinforced inflaming retarding polycarbonate
B
D
C
D
E
B
A
B
E
L1
+ -
N L2 L3
L1 L2 L3 N
S O
2 6 2 7
Ui max = 27V / li max = 27mA
T h re e p h a s e 1 0 0 A k W h m e te r
RA=2.5 Wh/imp(ti=80ms)SO RL=2.5 Wh/imp EN 50470-3
NO.
3
RL = 2. 5Wh/imp RA=2.5Wh/imp
L1 L2 L3
PULSE
REV.
3 PHASE 4 WIRE ENERGY METER
EN50470-3
B
23 0 /4 0 0 V, 0.25 -5(1 00)A, 5 0 H z
1.7Dimensions
Height 140.mm
Width 70.mm
Depth 64.mm
Weight 0.53 Kg (net)
F
A

6LEM022SJ 2015 V01
U i m a x = 2 7 V / l i ma x = 27 m A Th ree phase 100A kWh meter
L1
+ -
N L2 L3
L1 L2 L3
N
SO
N O .
3
2 6 2 7
RL=2.5Wh/imp RA=2.5Wh/imp
R
A
=2. 5 Wh/ im p( t i = 80ms)S O
R
L
=2. 5 Wh/ i m p
L 1 L 2 L 3PUL S ER E V.
3PHASE 4 WIRE ENERGY METER
EN50470-3
EN50470-3
B
230/400V, 0 .25-5(100) A, 50Hz
1.8Installation
- We recommend that the connecting wire which is used to connect the meter
to the outside circuit should be sized according to local codes and regulations
for the ampacity of the circuit breaker or over current device used in the
circuit.
- An external switch or a circuit-breaker should be installed on the inlet wire,
which will be used as a disconnection device for the meter. And it is
recommended that the switch or circuit-breaker is near the meter.
convenience for the operator. The location of the switch or circuit-breaker
should comply with the specifications of the building electrical design and all
local regulations.
- An external fuse or thermal cut-off which is used as a overcurrent protection
device for the meter must be installed on the supply side, and it is
CAUTION
Turn off and lock out all power supplying the energy meter and the
equipment to which it is installed before working on it.
Always use a properly rated voltage sensing device to confirm that
power is off.
WARNING
Installation should be performed by qualified personnel familiar with
applicable codes and regulations.
Use isolated tools to install the meter.
Fuse or thermal cut-off or single-pole circuit breaker can’t be fitted on
the supply line and not the neutral line.
Case is sealed, failure to observe this instruction can result in damage for
meter.
No warranty if case is opened or removed seal or damage.
70

7LEM022SJ 2015 V01
recommended that the overcurrent protection device is near the meter so that
it is convenience for the operator. The overcurrent protection device should
comply with the specifications of the building electrical design and all local
regulations.
- This meter can be installed indoor directly, or in a meter box which is
waterproof outdoor, in compliance with local codes and regulations.
- The meter has to be installed in a good ventilated and dry place.
- The meter has to be installed in a protection box in dangerous or dusty
environment.
- The meter can be installed and used after being tested in concordance with
the specifications.
- The meter can be installed on a 35mm DIN rail.
- The best way to install the meter is in an available height so that it is easy to
read.
- When the meter is installed in an area with frequent surges due to e.q.
thunderstorms, welding machines, inverters etc., protect the meter with
applicable Surge Protection Devices.
- After finishing installation, the meter must be sealed to prevent tampering.

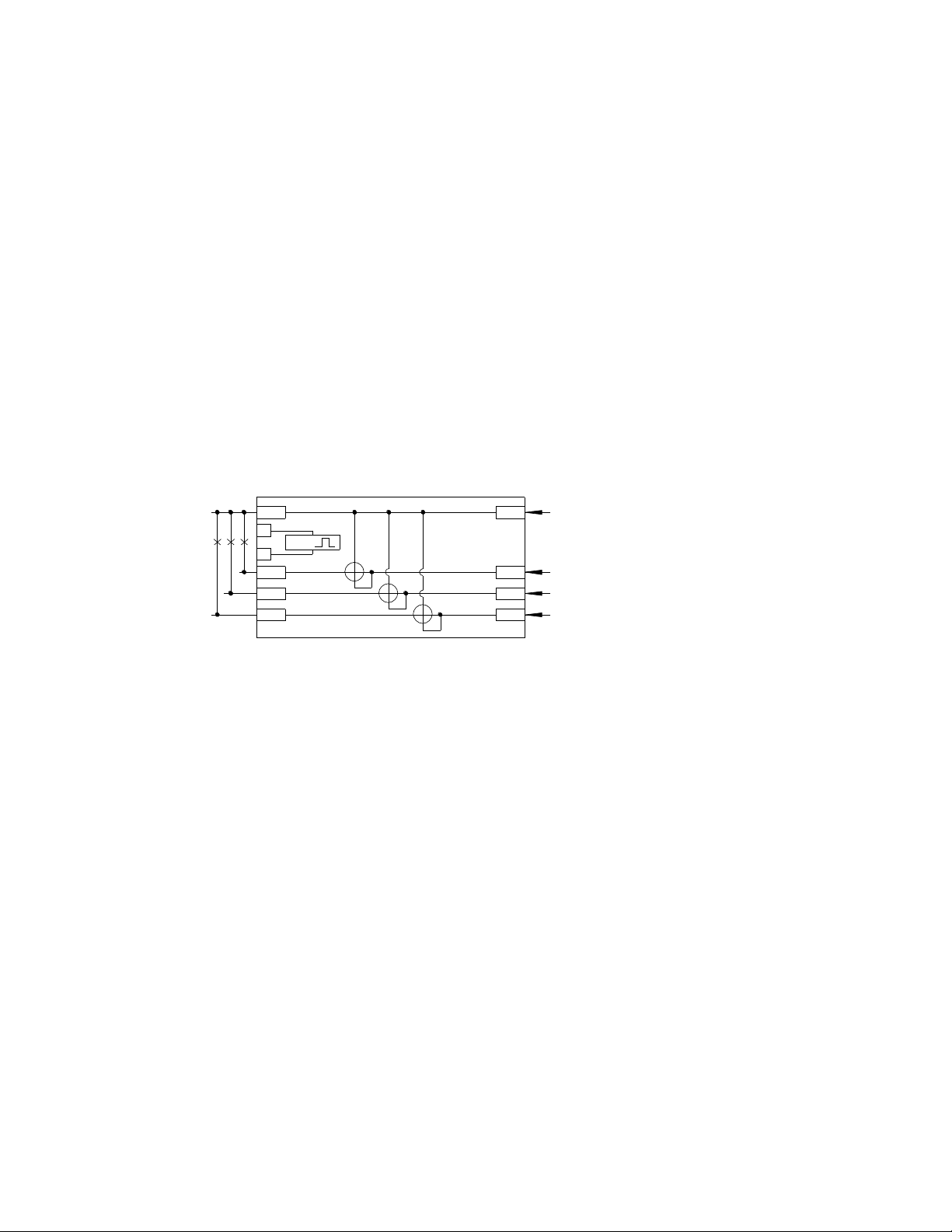

- Connection of the wires should be done in accordance with the underneath
connection diagram.
L1
+
-
N
L2
L3
L1
L2
L3
N
SO
26
27
L1 L1 phase wire
L2 L2 phase wire
L3 L3 phase wire
NNeutral wire
26 and 27 Pulse output contact
1.9 Operating
Working indication
On the LEM022SJ front panel, there are three power indicating LED which have
different color from each other. The yellow LED represent L1 phase; the green LED
represent L2 phase; the red LED represent L3 phase. When any phases work normally,
the LED representation will be on. When any phases have failure or no power, the LED
will turn off.
Consumption indication
There is a PULSE LED which is used as indicating power consumption in the front panel
of LEM022SJ. When consumption happens, the LED will flash. The more quickly LED
flash, the more consumption there is. For this LED, the flash rate is 400 impulses per
kWh (2.5Wh/imp).

8LEM022SJ 2015 V01
Reverse indication
There is REV. LED on LEM022SJ front plate. When meter load current flow is reverse,
the LED lighten. What does the indication do count down or still stay the same.
Reading the meter

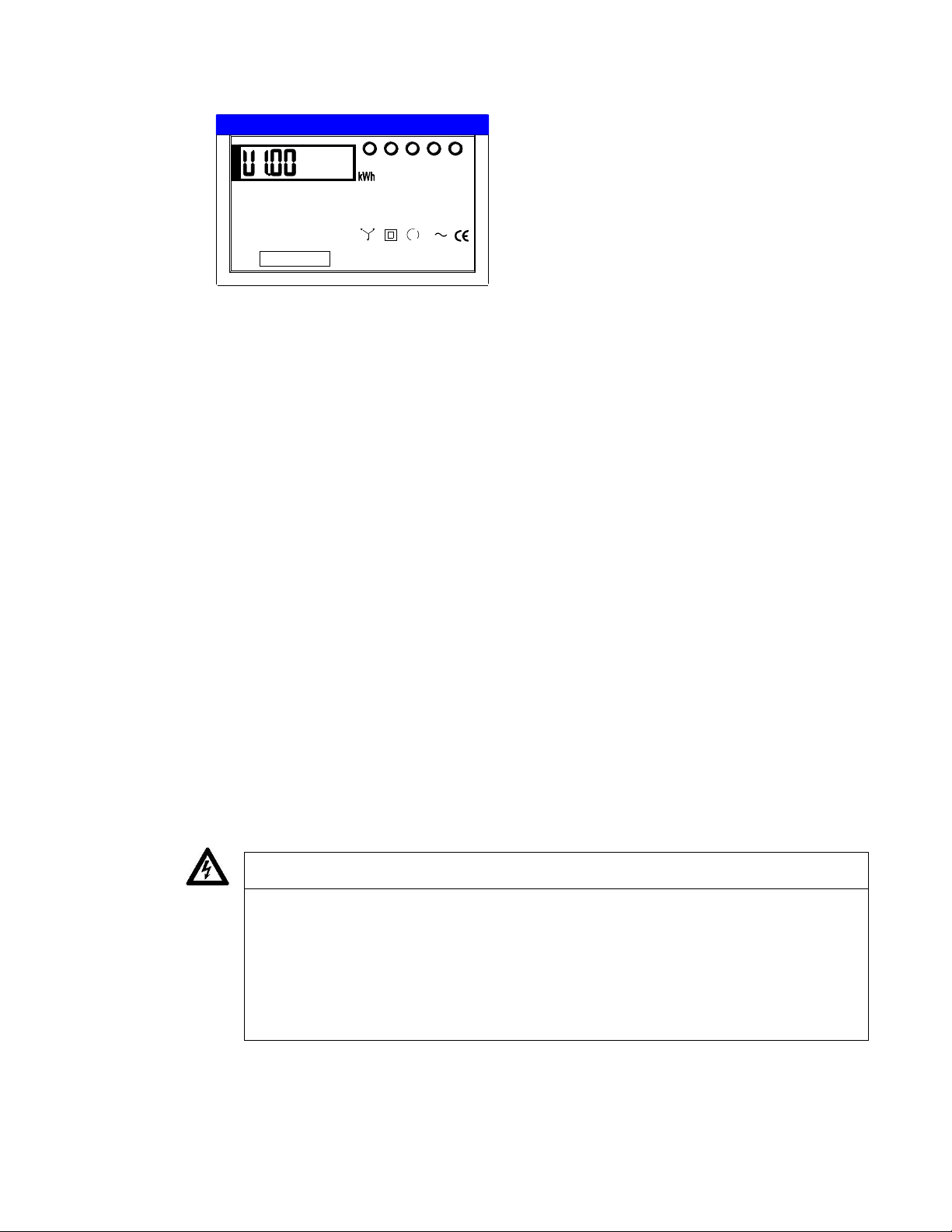

LEM022SJ is equipped with a white backlight LCD display. During the normal working
hours, the backlight will be on all the time. LCD display will show the following energy
data and indication message.

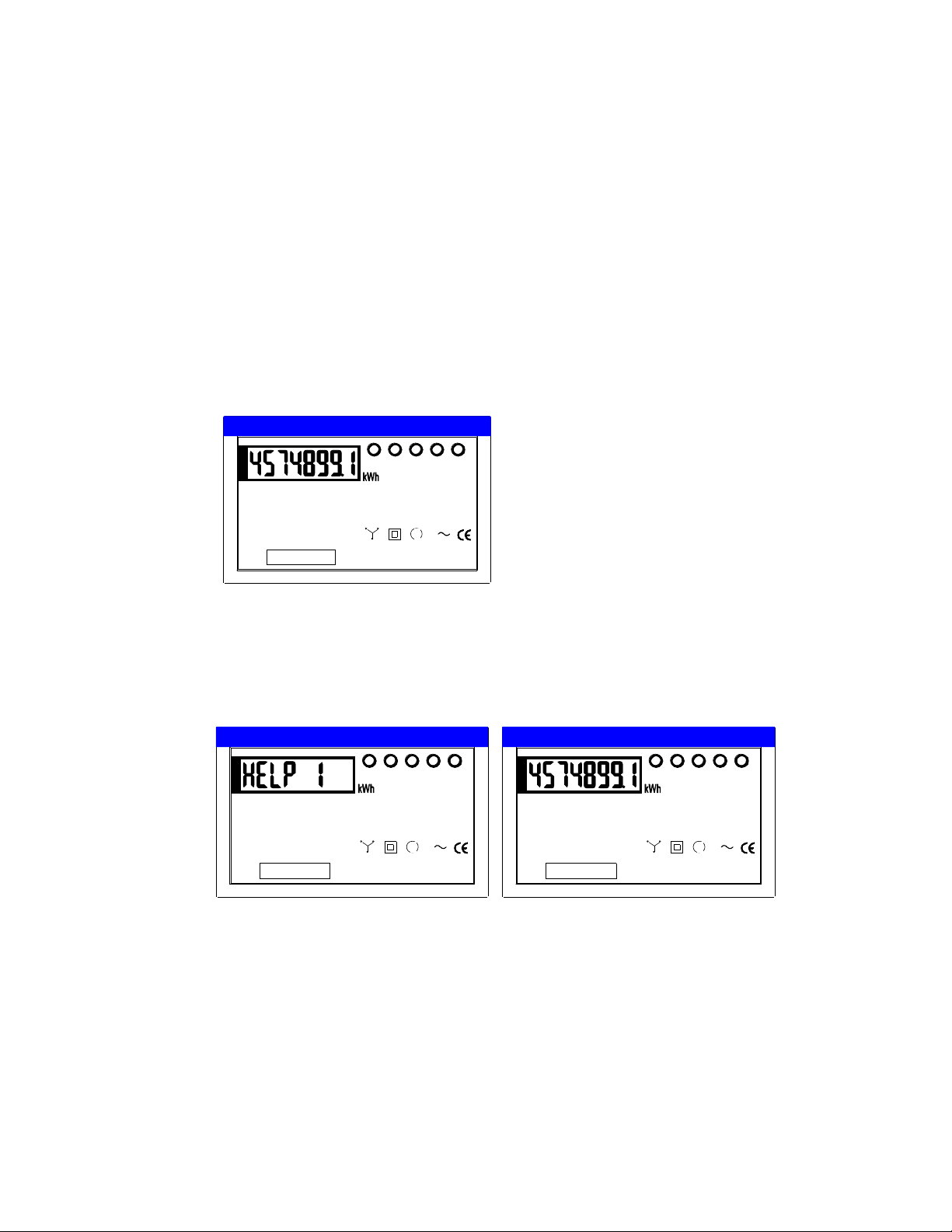

a) Current total energy
When the meter is in normal working, it will display only 7 +1 energy data with.
The unit is kWh. These data cannot be reset to zero by the user. Example: Total
energy is 4574899.1 kWh.
NO.
3
R
L
= 2.5 Wh/imp R
A
= 2.5 Wh/imp
L 1 L 2 L 3PU L S ER E V .
3 PHASE 4 WIRE ENERGY METER
EN 50470-3
B
230/400V, 0.25-5(100)A, 50Hz
b) Indication for reverse use
When the meter is connected with the incoming line and the outgoing line reversed.
The LCD display, will show every 3 seconds. HELP 1.
NO.
3
R
L
= 2.5 Wh/imp R
A
= 2.5 Wh/imp
L1 L2 L3PULSEREV.
3 PHASE 4 WIRE ENERGY METER
EN 50470-3
B
230/400V, 0.25-5(100)A, 50Hz
NO.
3
R
L
= 2.5 Wh/imp R
A
= 2.5 Wh/imp
L 1 L 2 L 3PU L S ER E V .
3 PHASE 4 WIRE ENERGY METER
EN 50470-3
B
230/400V, 0.25-5(100)A, 50Hz
c) Meter version
When the meter is turned on, it will display the meter version for 3 seconds.

9LEM022SJ 2015 V01
NO.
3
R
L
= 2.5 Wh/imp R
A
= 2.5 Wh/imp
L 1 L 2 L 3PU L S ER E V .
3 PHASE 4 WIRE ENERGY METER
EN 50470-3
B
230/400V, 0.25-5(100)A, 50Hz
Pulse output
The pulse led on the front of the meter is pulsing when the meter is in use (2,5Wh/inp.).
The LEM022SJ DIN rail energy meter is equipped with an pulse output which is fully
separated from the inside circuit. It generates pulses in proportion to the measured
energy for remote reading purposes and accuracy testing. The pulse output is a
polarity dependant, passive transistor output requiring an external voltage source for
correct operation. For this external voltage source, the voltage (Ui) should is 5-27V
DC, and the maximum input current (Iimax) is 27mA DC. To connect the impulse
output, connect 5-27V DC to connector 26 (anode), and the signal wire (S) to
connector 27 (cathode). The meter pulses 400 per kWh (2.5Wh/imp).
1.10 Troubleshooting
CAUTION
During repair and maintenance, do not touch the meter connecting
clamps directly with your bare hands, with metal, blank wire or other
material as you will have the chance of an electric shock and a possible
chance for health damage.
Turn off and lock out all power supplying the energy meter and the
equipment to which it is installed before opening the protection cover to
prevent the hazard of electric shock.

10 LEM022SJ 2015 V01
WARNING
Maintenance or repair should be performed by qualified personnel
familiar with applicable codes and regulations.
Use insulated tools to maintain or repair the meter.
Make sure the protection cover is in place after maintenance or repair.
Case is sealed, failure to observe this instruction can result in damage for
meter.
Problem
Check
Solution
No light for the
Power supply
indicator (L1, L2 &
L3 LED).
Is AC power supply
connected to the
meter ?
Is the L1, L2, L3
and N connecting
correct ?
Is the terminals 25,
24, 23, 22, 21 and
20 connecting
correct ?
Maybe there is a
fault in the inside
circuit.
Check switch or circuit-breaker
and fuse or thermal cut-off.
Reinstall terminal screws on the
L1, L2, L3 and N. Make sure all
screws are fixed. Than there
should be a 230V 50Hz AC
voltage between the terminal
screws on the N and L1 or L2 or
L3, when power supply is input.
Reinstall terminal screws on the
25, 24, 23, 22, 21 and 20. Make
sure all screws are fixed. Than
there should be a 230V 50Hz AC
voltage between the terminal
screws on the N and 24 or 22 or
20, when power supply is input.
Contact a qualified technician.
When necessary replace the
meter

11 LEM022SJ 2015 V01
Problem
Check
Solution
No light for the
consumption
indicator (PULSE
LED).
Is the load
running?
Is the operating
power too low?
Maybe there is a
fault in the inside
circuit.
Only when load is running, this
LED will flash.
If the operating power is too low,
the spacing interval of flashing
will be prolonged so that people
is under the delusion that LED
isn’t burning.
Contact a qualified technician.
When necessary replace the
meter
The register can’t
run.
Is there power
supplied to inside
the meter ?
Is the operating
power too low?
Maybe there is a
fault in the inside
circuit.
Check that the power supply
indicator ( L1, L2 & L3 LED ) is
burning.
If the operating power is too low,
the spacing interval of running
will be prolonged so that people
is under the delusion that
register can’t run.
Contact a qualified technician.
When necessary replace the
meter
LCD backlight can’t
lit.
Is there a power
supply inside the
meter?
Maybe there is a
fault in the inside
circuit.
Check that the power supply
indicator is burning.
Contact a qualified technician.
When necessary replace the
meter
No pulse output.
Is DC power supply
connected to the
meter?
Is the connecting
correct?
Maybe there is a
fault in the inside
circuit.
Check the external voltage
source (Ui) is 5-27V DC.
Check correct connecting:
connect 5-27V DC to connector
26 (anode), and the signal wire
(S) to connector 27 (cathode).
Please connect with technical
support to replace this meter.
Pulse output rate
wrong.
Maybe there is a
fault in the inside
circuit.
Contact a qualified technician.
When necessary replace the
meter

12 LEM022SJ 2015 V01
1.11 Technical support
For questions about our products please contact:
-SEP Europe dealer in your in your region
-Your local SEP Europe distributor
-Email: [e-mail]
www.sep-europe.nl
S.E.P. Europe
Weverstraat 4
9403 VJ Assen
Netherlands
Tel: [phone]
