Server Products 86080 User manual

01895-REVB-112311
Server Products Inc.
3601 Pleasant Hill Road
Richeld, WI 53076 USA

[phone]
[phone]
[phone]
[email protected]
www.server-products.com





CONDIMENT CHILLER 1/3
Series 10D
Stock No. 86080
Model: CC-1/3 CONDIMENT CHILLER 1/3 No Lid
Series 10D
Stock No. 86140
86080
86140

2 1882
2 01895
2
1
Cleaning (Continued)
4 Wipe external surfaces of base or shroud with a clean damp
cloth daily. Dry with a clean soft cloth. You may use a general
purpose, nonabrasive cleaner on hard to remove food deposits.
• Do not use abrasive cleansers, scrapers, steel pads,
steel wool, or other cleaning tools that can scratch
any polished surfaces.
• A nontoxic glass cleaner may be used for cleaning any
stainless steel parts.
5 Sanitize parts following your local sanitization requirements.
All parts in contact with food must be sanitized.
6 Allow parts to fully air dry after sanitization.
• Various elements and minerals, such as chlorides in
tap water, can accumulate on metal parts and create
corrosion.
• To prevent corrosion on metal parts, it is important to
fully air dry, as required after sanitization, or to fully
dry with a clean soft cloth regularly.
NOTE: If unit will not be used or powered up for an extended period
after cleaning, remove lid to allow unit to warm to room temperature
and air dry to prevent condensation.
Unit can remain assembled if powered up and cooling after cleaning
and sanitizing.
Cleaning
Before rst use and after use daily, remove product vessel to clean,
and wipe down unit. Metal parts can corrode. It is important to
clean, rinse, sanitize, and dry these parts daily and properly. Failure
to comply with any of these instructions may void unit warranty:
1 See Unit Take-Down.
2 Make sure unit is unplugged from power supply.
Warning: Never immerse base or shroud of unit into water. Never
use any water jet or pressure sprayer on base or shroud of unit.
Electrical shock could occur or electrical components inside the unit
base could be damaged from water exposure.
3 Wash product vessel and lid with dishwashing detergent and hot
water daily. (Lid can be removed by gently pulling hinge tabs
out and lifting off.)
Rinse thoroughly and dry with a clean soft cloth.
• You may use a mildly abrasive nylon or brass brush to
remove any food or mineral deposits on the interior
of the vessel.
• Do not use any highly alkaline or acidic solvents, steel
wool, or other harsh abrasives to clean vessel.
unit Set-up
ALWAYS CLEAN UNIT THOROUGHLY BEFORE EACH USE.
See Unit Take-Down, Cleaning and Safety Guidelines.
1 Power unit up allowing it to pre-cool for 20 minutes.
2 Lift lid and fill unit with pouched or boxed product.
Non-packaged products should be placed in optional accessory pan
(part # 90083). Do not overll. Maximum capacity is 5 quarts.
3 Close lid on unit 86080 to maintain maximum cold temperature.
Unit 86140 without a lid will not provide equivalent cooling of
the closed lid unit. Thermometer is located on front of the unit.
It is recommended to keep unit running 24-7 to prevent
pre-cool period and improve performance.
unit take-down
1 Detach power inlet cord from unit.
2 Lift up lid, remove any remaining product. Optional pan can be
removed for cleaning.

1882 3
01895 3
4
3
2
5
Cleaning and/or Changing FilterS
Changing out and/or cleaning of the lter at minimum once a
month–is for optimum cooling and performance.
1 Always unplug unit for maintenance and cleaning. See Unit
Take-Down for specics.
2 After cleaning turn unit over to access lter holder and lter. Lift
off lter holder by prying off one edge.
3 Remove lter and clean or replace. See lter pack #86067 for
replacement lters.
4If necessary wipe down fan cover and surrounding area on
underside of unit with cloth dampened with dishwashing liquid
or mild sanitizing detergent.
WARNING: Make sure to wring any excess water from cloth
between wipes. Dripping water into unit can cause electrical
damage to unit.
5 Place new/cleaned lter over fan cover and replace lter holder.
Following Unit Set-Up instructions, unit should now be ready
to return to service.
SaFety guidelineS
WHEN USING UNIT:
WARNING: This appliance must be earthed. Electrical shock could
occur if the unit is not earthed or grounded. This requires all three prongs
(terminals) on the cord plug to be plugged into the power source. According
to food and safety regulations, most foods must be stored and/or
served at certain temperatures or they could become hazardous.
Check with your local food and safety regulators for specic guidelines.
• Be aware of the product you are serving and the
temperature the product is required to maintain. Server
Products, Inc. can not be responsible for the serving of
potentially hazardous product.
Stainless steel is one of the best materials for food serving and
storage, but there are many products which can corrode it. If you
notice corrosion beginning on any stainless steel surface, you may
need to change the cleansing agent, sanitizing agent, or the cleaning
procedures you are using.
• Products containing: acids, alkalines, chlorine, or salt
can corrode stainless steel.
• Sauerkraut corrodes stainless steel. Server Products,
Inc. regrets that we can not honor warranty claims
on stainless steel parts that have been affected by
sauerkraut.
SaFety guidelineS (Continued)
• Au Jus sauces can corrode stainless steel. Server
Products, Inc. regrets that we can not honor
warranty claims on stainless steel parts that have
been affected by Au Jus sauces.
WHEN CLEANING UNIT:
Make sure unit is unplugged.
WARNING: Never immerse base or shroud of unit into water.
Never use any water jet or pressure sprayer on base or shroud of
unit. Electrical shock could occur or electrical components inside
the unit base could be damaged from water exposure.

4 01895
unit troubleShooting
Possible Problem:
Unit does not cool.
Solutions:
• Make sure cord is securely plugged in.
• Make sure fan is running.
• Make sure power is available from source.
• Make sure lter is clean and change if necessary.
ServiCe
Contact your dealer or Server Products Inc. Customer Service
Department for the following:
ORDERING REPLACEMENT PARTS
BE PREPARED TO GIVE THIS INFORMATION:
• Model Number
• Series Number
• Part Description
• Part Number
You can nd the unit model number, series number, and other specic
data on a label attached to bottom or back side of every unit.
Servicing Cord
Specic tools are required for safe and proper power supply
cord removal and installation. If cord must be replaced, only a
representative of the OEM (Original Equipment Manufacturer) or
a qualied technician may replace cord. Cord must meet code
designation H05 RN-F requirements.
general ServiCe, repair, or returnS
Before sending any item to Server Products for service, repair, or
return, contact Server Customer Service to request a RETURN
AUTHORIZATION NUMBER. Merchandise must be sent to Server
with this number.
Returned goods must be in new and unused condition and not more
than 90 days old and will be subject to a 20% (percent) restocking
charge. Electrical parts (thermostats, heating elements etc.) are not
returnable.
Server Products maintains a fully staffed service department with
highly skilled factory trained personnel.
Service is extremely prompt. Under normal circumstances, a repaired
unit is shipped out the day after it is received. Labor charges are
reasonable.
Server produCtS limited warranty
All Server Products equipment is backed by a two-year limited warranty
against defects in materials and workmanship.
SCOPE OF WARRANTY. Server Products Inc. (“Server Products”)
warrants that, for a period of two (2) years from the date of purchase
(the “Warranty Period”), the equipment manufactured by it will be free
from defects in workmanship and materials provided the equipment
is used in the manner and in the environment for which they were
manufactured.
DISCLAIMERS AND LIMITATIONS. OTHER THAN AS SET FORTH
ABOVE, SERVER PRODUCTS SPECIFICALLY DISCLAIMS ALL EXPRESS
AND IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO, WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR
A PARTICULAR PURPOSE OR USE.
This warrant does not extend to repairs or alterations undertaken
without the prior written consent of Server Products or for goods that
are misused, abused or neglected or if the goods are not properly
stored, maintained, installed or operated.
SERVER PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL, SPECIAL,
INDIRECT, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THE GOODS OR ARISING OUT OF
ANY BREACH OF THIS WARRANTY; INCLUDING BUT NOT LIMITED
TO DAMAGE TO PROPERTY OR LOSS OF PROFITS OR REVENUE.
CLAIMS ADMINISTRATION. All warranty claims must be made
by calling our customer service department for a return authorization
during the Warranty Period and any alleged defective unit must
be returned to Server Products factory, freight prepaid.
Upon receipt of any defective unit, Server Products, at its option, may
either: (i) replace any equipment proved to be defective, (ii) remedy
or repair such defect or (iii) refund the purchase price of the defective
equipment in the form of a credit applicable to future purchases.
Server Products obligation and Buyer’s sole remedy will be limited
to these options. In the case of units or parts purchased by Server
Products from a third-party supplier, Server Products’ obligation and
Buyer’s sole remedy against Server Products or Server Products’s
suppliers shall not exceed the settlement which Server Products
is able to obtain from its supplier.

CHILL 5
01895 5

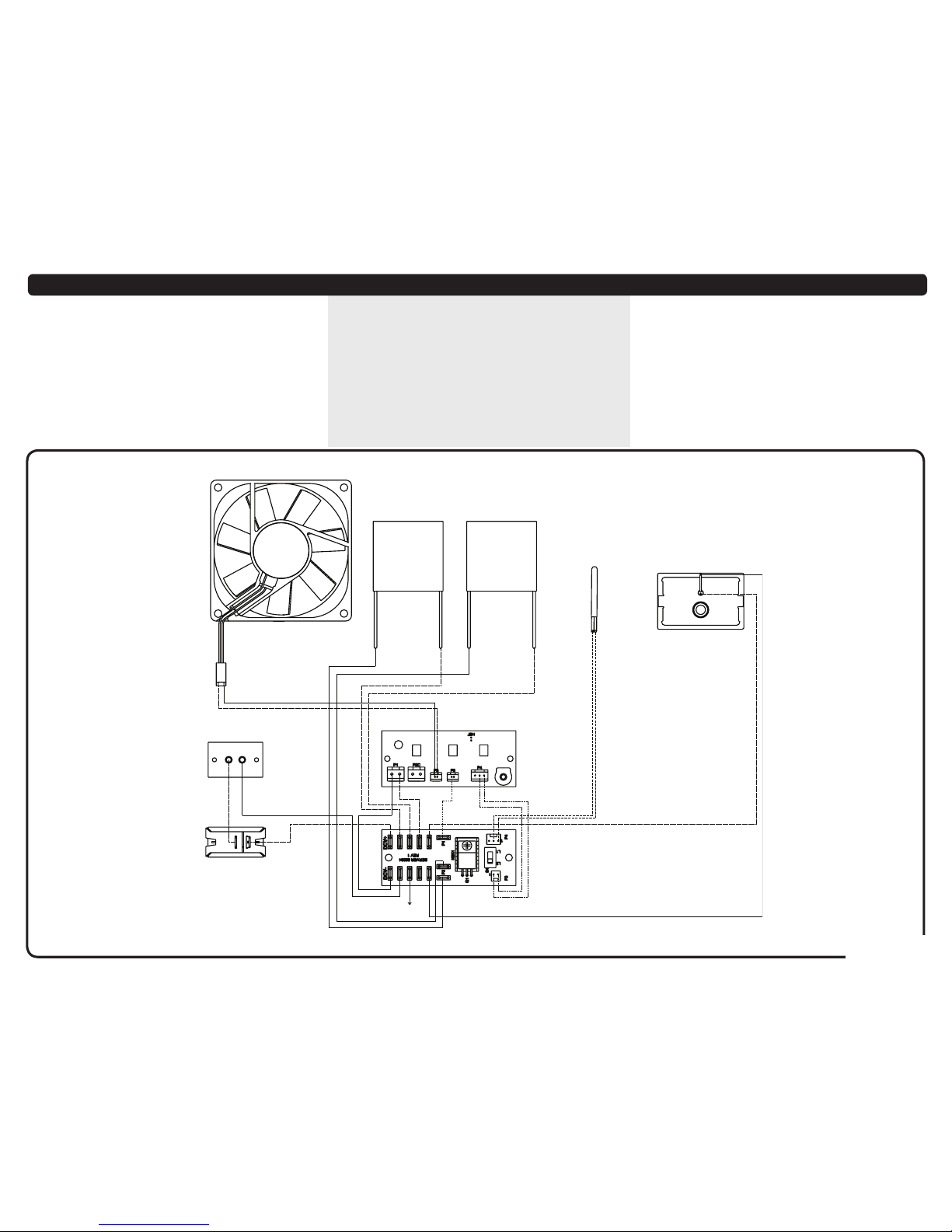

wiring diagram
1 Cord Assembly
ARed
BBlack
2 Thermometer
3 Thermistor
wiring diagram (Continued)
4 Bushing
5 Circuit Board
6 Chip
7 Fan
wiring diagram (Continued)
8 Power Inlet Board
9 Snap-In Rocker Switch
J Ground Wire - green
4
J
A B
A
B
2
3
5
5
6 6
7
8
9
1

6 CHILL
6 01895
86078
86501
86007
04544
86019/86080
86016
86013/86080
86146/86140
86502
86067
86068
81058 (4)
partS liSt
PART # MODEL # DESCRIPTION
04544 ALL SNAP-IN ROCKER SWITCH
81058 ALL RUBBER FEET (4)
86007 ALL FAN
86013 86080 HOUSING ASSEMBLY
86016 ALL BOTTOM ASSEMBLY
86019 86080 LID ASSEMBLY
86067 ALL REPLACEMENT FILTER PACK (5)
86068 ALL GUARD, FILTER
86078 ALL TOP
86146 86140 HOUSING ASSEMBLY
86501 ALL BASIN ASSEMBLY
86502 ALL THERMOMETER ASSEMBLY
86507 ALL POWER SUPPLY (NOT SHOWN)

01895 7
