SEVIC SBL0103MP4 User manual

BLUE LASER: SBL0103MP4
- User’s Manual

- 1 -
TABLE OF CONTENTS
Safety Information ….…………………………………………………………………….2
Features …………………………………………………………………………………...3
Accessories………………………………………………………………………………..4
Front Panel Description ………………………………………………………………….5
Remote Control …………………………………………………………………………...6
Installation …………………………………………………………………………………8
Unit Removal ……………………………………………………………………………..11
Wire Connection …………………………………………………………………………12
Disc Notes ………………………………………………………………………………..13
Disc Operation …………………………………………………………………………...14
Basic Operations …………………………………………………………………...……15
Radio Operations . ….. ............................................................................................18
DVD Player Operation. ….. .....................................................................................21
Card Operation . ….. .................................. …….....................................................22
IPOD Operation . ….. ...............................................................................................23
AV IN Operation . ….. ..............................................................................................23
Rear View Operation . ….. .......................................................................................23
DVD Setup Menu…………………………………………………………………....……24
Specifications ………………………………………………………………………..……27
Trouble Shooting …………………………………………………………………….…...28
Warranty ………………………………………………………………………………..….29

- 2 -
SAFETY INFORMATION
Please read the manual carefully before operating this unit and keep it for
future reference.
CAUTION: This unit is a class 1 laser product. To prevent direct exposure to the
laser system, do not open the unit. The laser beam may hurt your eyes.
If the unit requires adjustments, contact an authorized service centre.
USE THIS PRODUCT SAFELY
Be sure you fully understand the following safety information:
When driving
Keep the unit at an appropriate sound level. Driving with the sound at a level
preventing you from hearing sounds outside and around the car may cause an
accident.
When cleaning
Do not expose the product to water or excessive moisture. This could cause short
circuit, fire or other severe damage.
When parked
Parking in direct sunlight can result in very high temperature levels inside your car.
Let the interior and unit cool down before switching the unit on.
NOTE: Do not use and store the player in dusty, hot or humid environment.
FUSE REPLACEMENT – WARNING!
Never replace any fuse with one of a higher value than the fuse supplied
with your unit. Using a higher current rated fuse may cause damage to
your unit and/or electrical wiring.

- 3 -
FEATURES
- ISO/1-DIN Size (178 x 54 mm)
- DVD/DVD-R/DVD-RWVCD/CD/CD-R/CD-RW/MP3 Compatible
- 3.6" Wide-Screen TFT/LCD Display
- High Brightness: 300 cd/m2
- Colour, Contrast, Brightness, Tint controls
- Fully Motorized Slide Down Front Panel
- Motorized Viewing Angle Adjustment
- Last Angle Memory for Front Panel
- Car DVD Slot-in Mechanism
- Digital & Mechanical Anti-Shock with ESP Memory
- Built-In Dolby Digital Decoder
- Built-In Divx Decoder
- Last Position Memory
- OSD (On Screen Display)
- NTSC/PAL compatible
- Full Function Remote Control
- AM/FM PLL Synthesizer Tuner with Memory Presets
- RDS Function
- Auto Store Pre-set Scan
- Preset EQ (POP CLASS ROCK USER)
- Bass/Treble/Fader/Balance Controls
- Extending Amplifier Control
- Auto Antenna Control
- Telephone Mute Control
- Brake Reminder System
- Detachable Face
- Hi Power 55W x 4
- 4 RCA Audio Outputs
- 1 RCA Video Output
- 1 RCA Sub-Woofer Output
- 1 RCA Audio Video Input
- 1 RCA Rear View Camera Input
- Mini USB / SD Card
- IPOD Ready
NOTE:
This user's manual is only for reference.
Modifying rights are reserved.
Specifications are subject to change without notice.

- 4 -
ACCESSORIES
Mounting Sleeve x 1 Back Strap x 1 5X5 Screws x 4
Keys x 2 Main Wire Harness x 1 Faceplate Case x 1
Remote Control x 1 Operational Manual + Warranty x 1
Trim Bezel x 1 Rear Mounting Bolt x 1

- 5 -

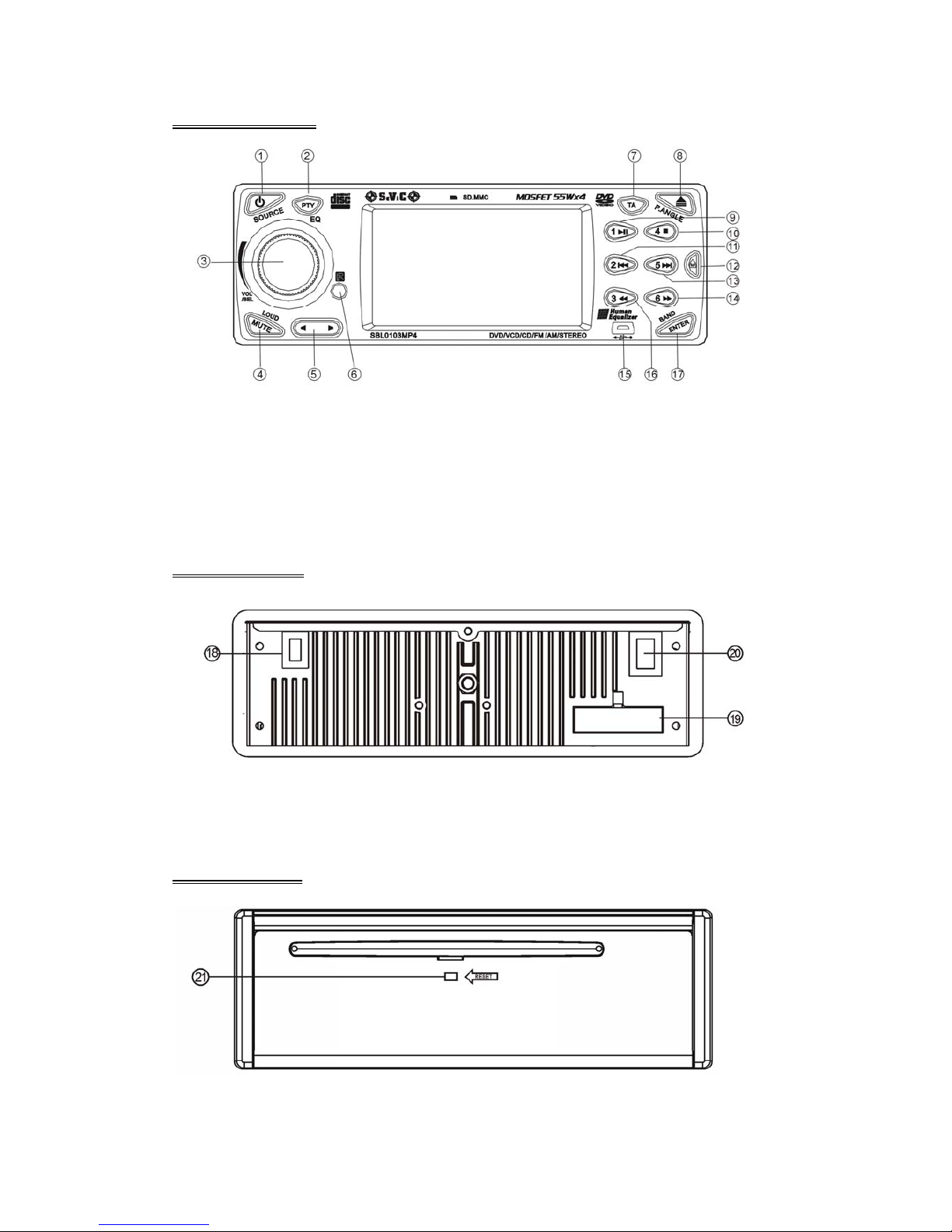

FRONT PANEL
1. POWER / SOURCE 7. TA(Traffic Announcement) 13. NEXT
2. EQ / PTY(Program Type) 8. EJECT / P.ANGLE 14. F.FWD
3. VOLUME+ / - / SEL 9. PLAY / PAUSE 15. MINI USB
4. LOUD / MUTE 10. STOP 16. F.R E W
5. LEFT / RIGHT 11. PREVIOUS 17. ENTER / BAND
6. REMOTE 12. REL
REAR PANEL
18. RADIO ANTENNA & IPOD MINI DIN ADAPTER 19. 16PIN SOCKET
20. VIDEO AUDIO OUTPUT & INPUT
BASE PANEL
21. RESET

- 6 -
REMOTE CONTROL
1. POWER/SOURCE 13. F.FWD 25. SUBTITLE
2. MUTE 14. SLOW 26. PREVIOUS
3. NUMBER BUTTONS 15. RANDOM 27. RIGHT(Seek up)
4. MENU 16. ZOOM 28. NEXT
5. AUDIO 17. SELECT 29. D.ANGLE
6. DISPLAY 18. EJECT / P.ANGLE 30. PLAY / PAUSE
7. UP(Tune up) / PTY 19. SETUP 31. STOP
8. LEFT(Seek Down) 20. VOLUME+ 32. A-B
9. ENTER / BAND 21. VOLUME- 33. REPEAT
10. PROGRAM 22. LOUD / EQ 34. PAL / NTSC
11. DOWN(Tune Down) / AF 23. PBC / AST 35. STEREO
12. F.REW 24. TITLE
SBL0103MP4

- 7 -

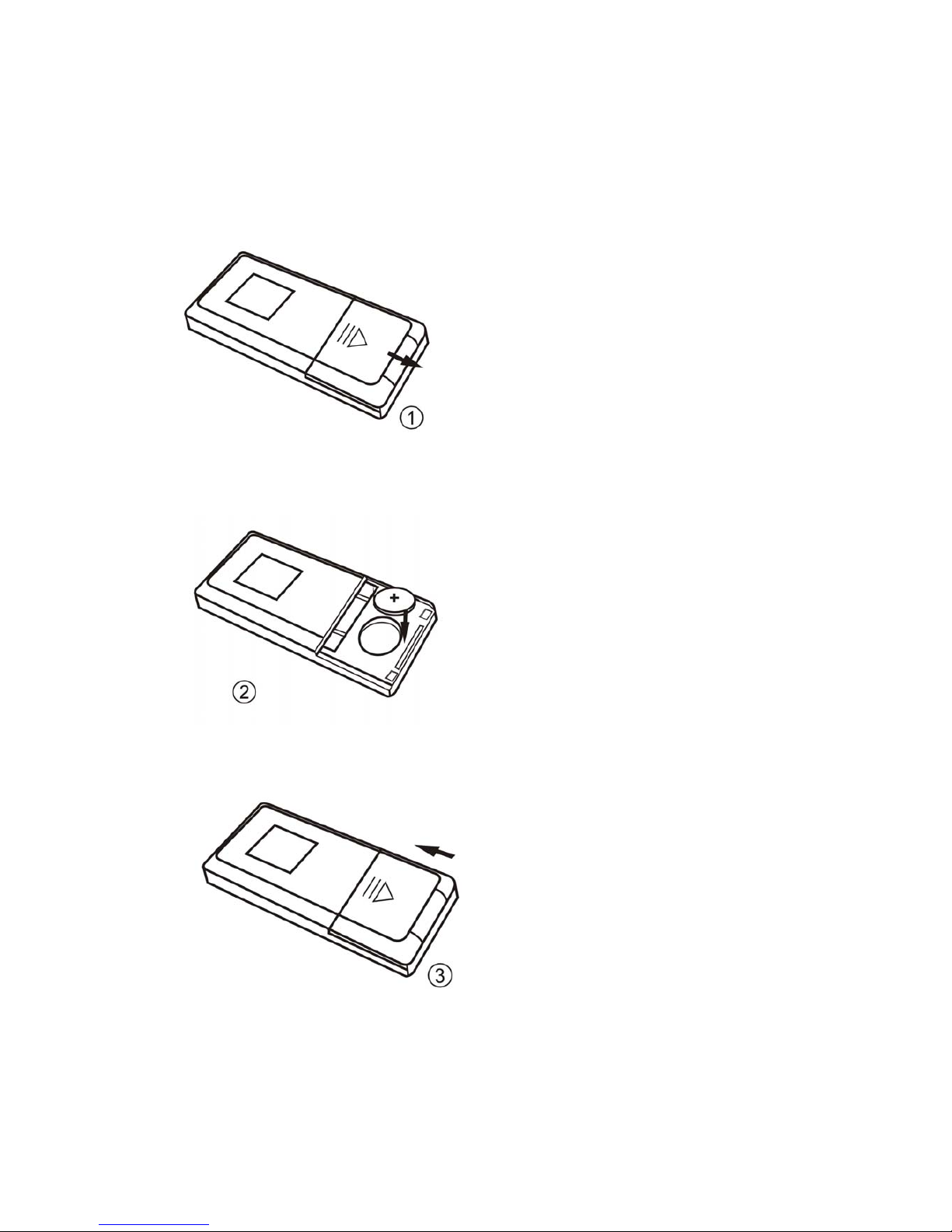

Replacing the Batteries
f the remote control has no function or if the operating range is reduced, replace
the old battery with new one.
1. Remove the battery cover. Follow the arrow (1) slide the tab to the right
while pulling the cover away at the same time.
2. Place the new battery in the tray and slide the cover back into place.
3. Make sure the cover is locked into place.

- 8 -

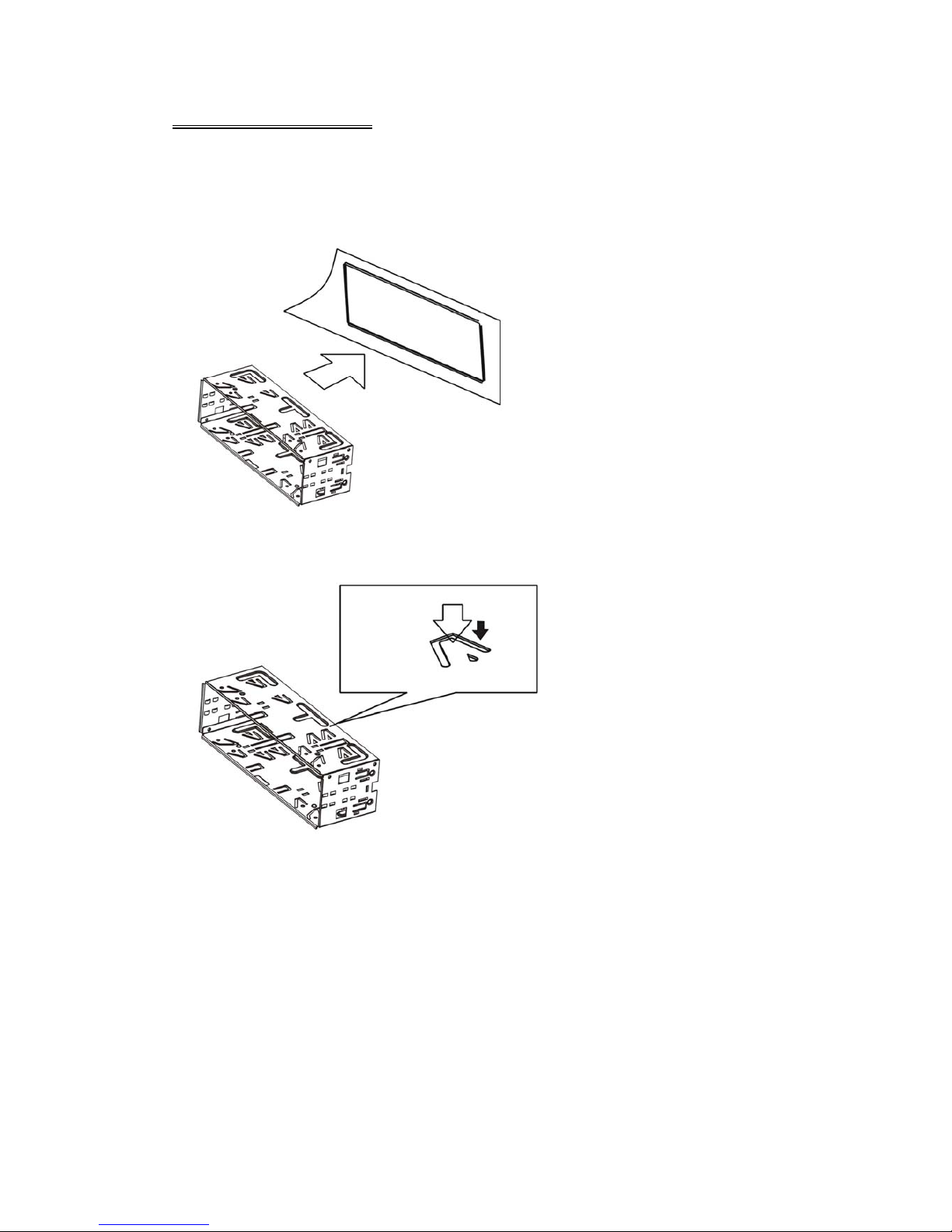

UNIT INSTALLATION
Installation Method 1: Din Front-Mount
Install the Mounting sleeve into the dashboard.
Bend as many claws outward for tight fit, to lock the sleeve into place.

- 9 -

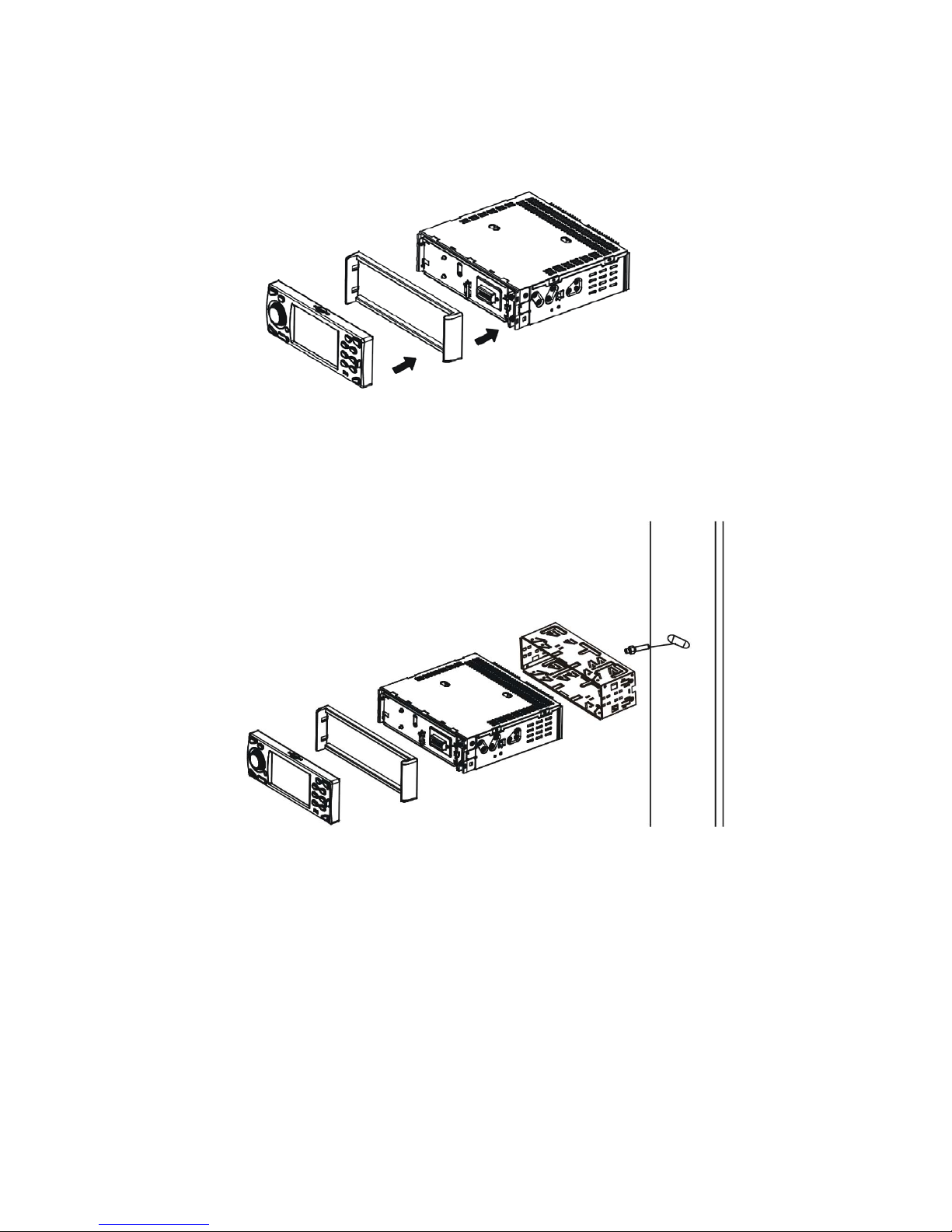

Install the trim bezel to the unit. (Arched surface toward the bottom).
Use the Rear Mounting Bolt to support the unit.

- 10 -
Installation Method 2:
Using the screw holes at the sides of the unit (ISO Mount).
1. Remove the hooks on both sides.
2. Select a position where the screw holes of the mounting bracket supplied with the
car and the screw holes of the main unit become aligned, tighten the screws on each
side, and re-mount the brackets with the factory hardware in the original location.
NOTE:
1 and 10 are not used for installation method2.

- 11 -

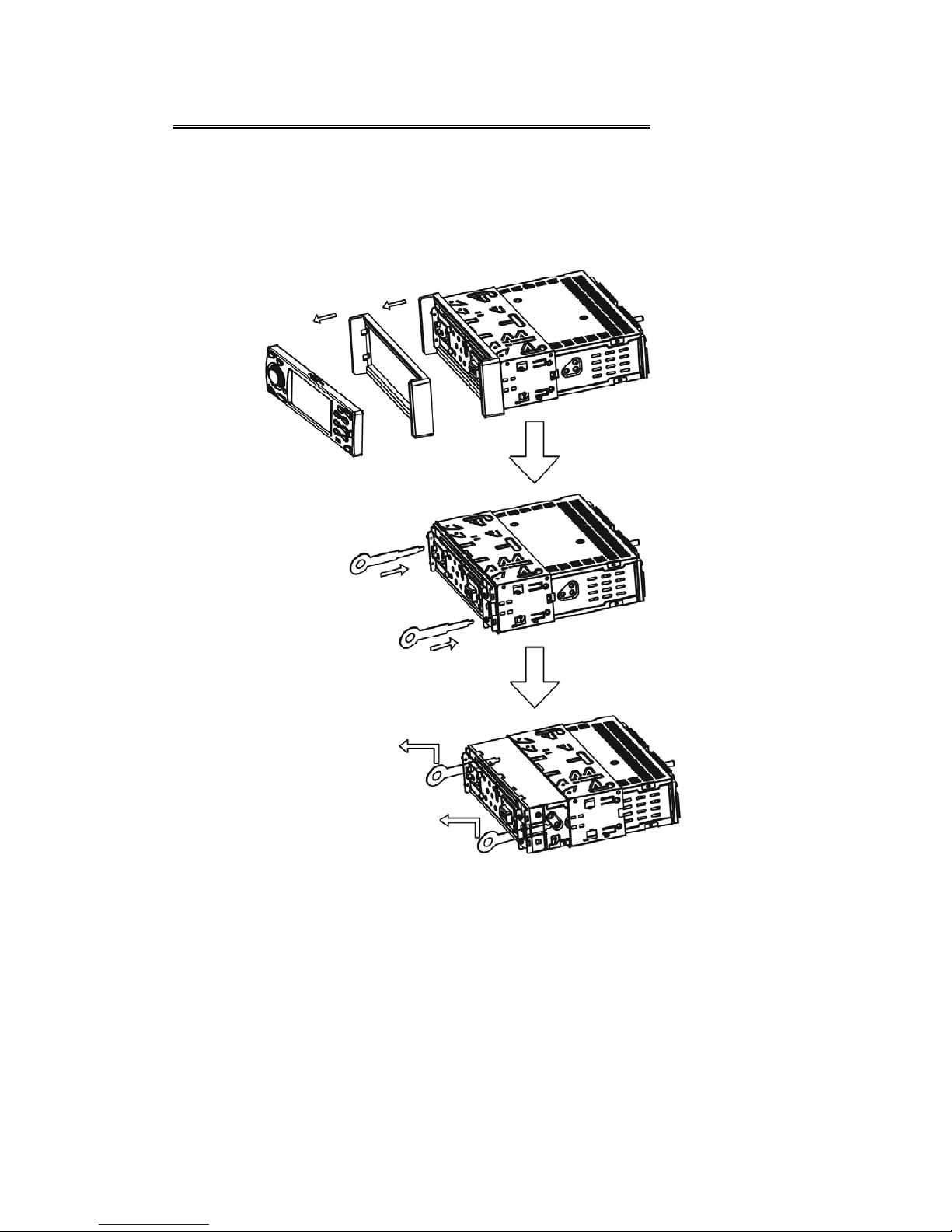

UNIT REMOVAL (when installed using the sleeve)
1. Detach the front panel.
2. Insert the keys supplied with the unit on both sides ( as illustrated) as this will
release the internal locks so you can slide the unit out.

- 12 -
WIRE CONNECTION

- 13 -
DISC NOTES
■Disc formats supported by this player
Handling and cleaning
•Dirty, dusty, scratched or warped discs may not play properly.
•Do not place stickers or make scratches on discs
•Do not warp discs.
•Store discs in their cases when not in use.
•Do not place discs in the following places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. High temperature places.
4. On the sets or dashboard.
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth
slightly moist with isopropyl (rubbing) alcohol.
Never use solvent such as benzene, thinner or conventional record cleaners which
may mar the surface of the disc.
Note: A disc may become somewhat scratched to a point which will skip
excessively or not play at all in your player. Have the disc resurfaced
or polished to reduce the issue or replace the disc with a new one.

- 14 -
DISC OPERATION
Repairing New Discs with Rough Spots
A new disc may have rough edges on its inside and outside edges. If a disc with
rough edges is used, the proper setting will not be performed and the player will not
play the disc. Therefore, remove the rough edges in advance by using a ballpoint pen
or pencil. To remove the rough edges, press the side of the pen or pencil against the
inside and outside edges of the disc.
