SGS SPW100 User manual
FOR YOUR SAFETY
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND RETAIN THEM FOR FUTURE USE.
OWNER’S MANUAL
SPW100
PARTS WASHER
PAGE 3
PAGE 2
SPECIFICATION
MODEL No SPW100
OVERALL HEIGHT 225mm
TANK HEIGHT 210mm
TANK DEPTH 290mm
TANK WIDTH 395mm
PUMP OUTPUT/hr 90 Litre
MOTOR POWER 26W
SUPPLY 230V
WEIGHT 6.88kg
MAXIMUM WORKING CAPACITY 15 Litres
MINIMUM WORKING CAPACITY 7 Litres
WARNING
Read and understand instructions before use.
Use only water soluble solvents, DO NOT use flammable
solvents.Keep ignition sources away from tank and DO
NOT smoke.
WARNING
Always wear eye/face and hand protection.
Use only in a well ventilated area. DO NOT use tank
where there is (or may be) flammable vapours.
• Clean tank and replace solvent regularly to avoid concentration of
contaminants.
• Ensure fusible link (in lid strut) is intact and NEVER prop lid open.
• DO NOT leave the cleaning tank operating unattended.
• This tank is NOT suitable for paint thinners, gun wash, or air drying.
• DO NOT operate the cleaning tank when you are tired, under the influ-
ence of alcohol, drugs, or intoxication.
• When not in use switch the cleaning tank off and remove plug from
power supply.
• DO NOT operate the cleaning tank if any parts are missing or dam-
aged.
WWW.SGS-ENGINEERING.COM
PAGE 5
PAGE 4

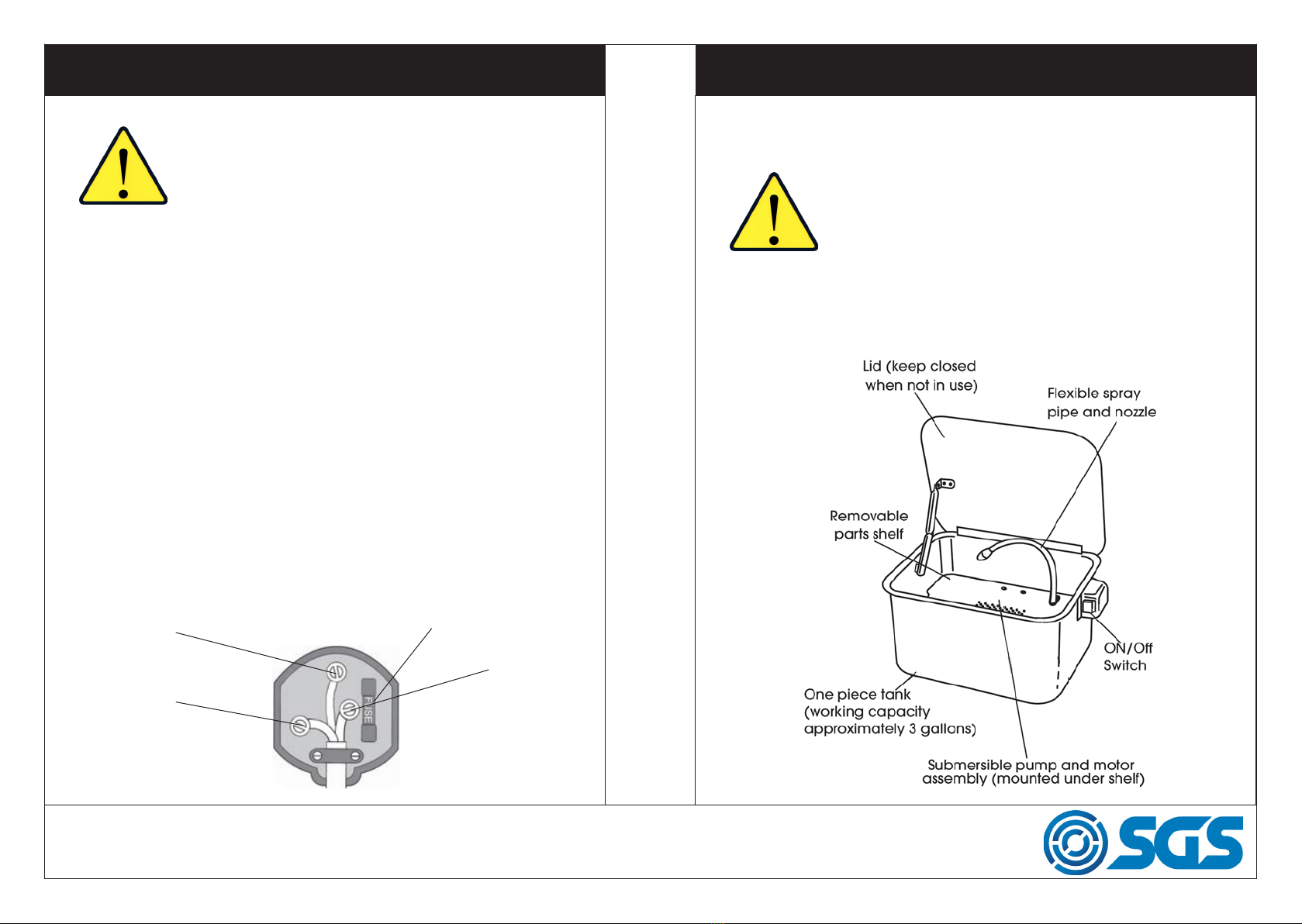

WARNING! READ THESE ELECTRICAL SAFETY IN-
STRUCTIONS THOROUGHLY BEFORE CONNECTING
THE PRODUCT TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your elec-
tricity supply is the same as that indicated on the rating plate. This product
is designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse
cover becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or
due to damage, it should be cut off and a replacement fitted, following the
wiring instructions shown below. The old plug must be disposed of safely,
as insertion into a mains socket could cause an electrical hazard.
We strongly recommend that this machine is connected to the mains sup-
ply via a Residual Current Device (RCD). If in doubt, consult a qualified
electrician. DO NOT attempt repairs yourself.
Plug must be BS1363/A
approved
OPERATION
1. Fill only with a non-flammable degreaser or cleaning agent, such as
parts washer fluid, to just below the level of the parts shelf.
DO NOT fill with solvents such as paraffin, thinners, etc.
2. Open the lid, switch the pump on and hold the part to be cleaned
under the nozzle, slowly rotate the component until clean.
3. When clean, leave to drain on a tray until dry.
ELECTRICAL CONNECTIONS
Earth
(Green & Yellow)
Blue
(Neutral)
Always fit a 3amp fuse
Live
(Brown)
WWW.SGS-ENGINEERING.COM
PARTS DIAGRAM
No. DESCRIPTION PART No.
1 TANK 902008
2 LID 902009
3 REMOVABLE WORK SHELF 902010
4 LID STAY c/w FUSIBLE LINK 902011
5 SAFETY PLATE 902012
6 PUMP 902013
7 RIVET 902014
8 PUMP HOLDER 902015
9 FLEXIBLE PIPE 902016
No. DESCRIPTION PART No.
10 PLASTIC PLATE 902017
11 SCREW M5 x 12 902018
12 NUT M5 902019
13 COVER 902020
14 SCREW M4 x 12 902021
15 SWITCH BOX COVER 902022
16 ON/OFF SWITCH 902023
17 STRAIN RELIEF 902024
18 POWER CABLE WITH PLUG 902025
EC Declaration of Conformity
This is an important document and should be retained
MANUFACTURER’S NAME:
TYPE OF EQUIPMENT:
PART NUMBER:
I, the undersigned, hereby declare that the equipment specied above
conforms to the above European Communities Directive(s) and
Standard(s).
PLACE:
DATE: (Signature)
Robert Wyatt
Company Secretary
Derby, UK
24th MAY 2018
SGS Engineering (UK) Ltd
SGS Engineering (UK) Ltd
West Side Park
Raynesway
Derby, DE21 7AZ
PARTS CLEANING TANK
SPW100
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2012/19/EU WEEE Directive
2011/65/EU RoHS Directive
APPLICATION OF EC COUNCIL DIRECTIVES / STANDARD:
FOR YOUR SAFETY
PLEASE READ THESE INSTRUCTIONS CAREFULLY
AND RETAIN THEM FOR FUTURE USE.
