Shade Depot Primo User manual

U.S. PATENTED: #6,439,249; #6,692,135; #6,598,990;
#6,966,667; #6,945,263 ；
；；
； #6,923,194;
#6,830,058; #D513,176 ；
；；
； #6,565,060
#6,511,033 ; #6,637,717; #6,488,254;
#6,585,219
Other Patents and Patent Pending are available upon request
For Help or Warranty Service Contact:
Customer Service Center
www.shadedepotcorp.com
Shade Depot, Inc.
Primo
11’ Aluminum Lighted Market Umbrella
OWNER’S MANUAL

Assembly Instructions

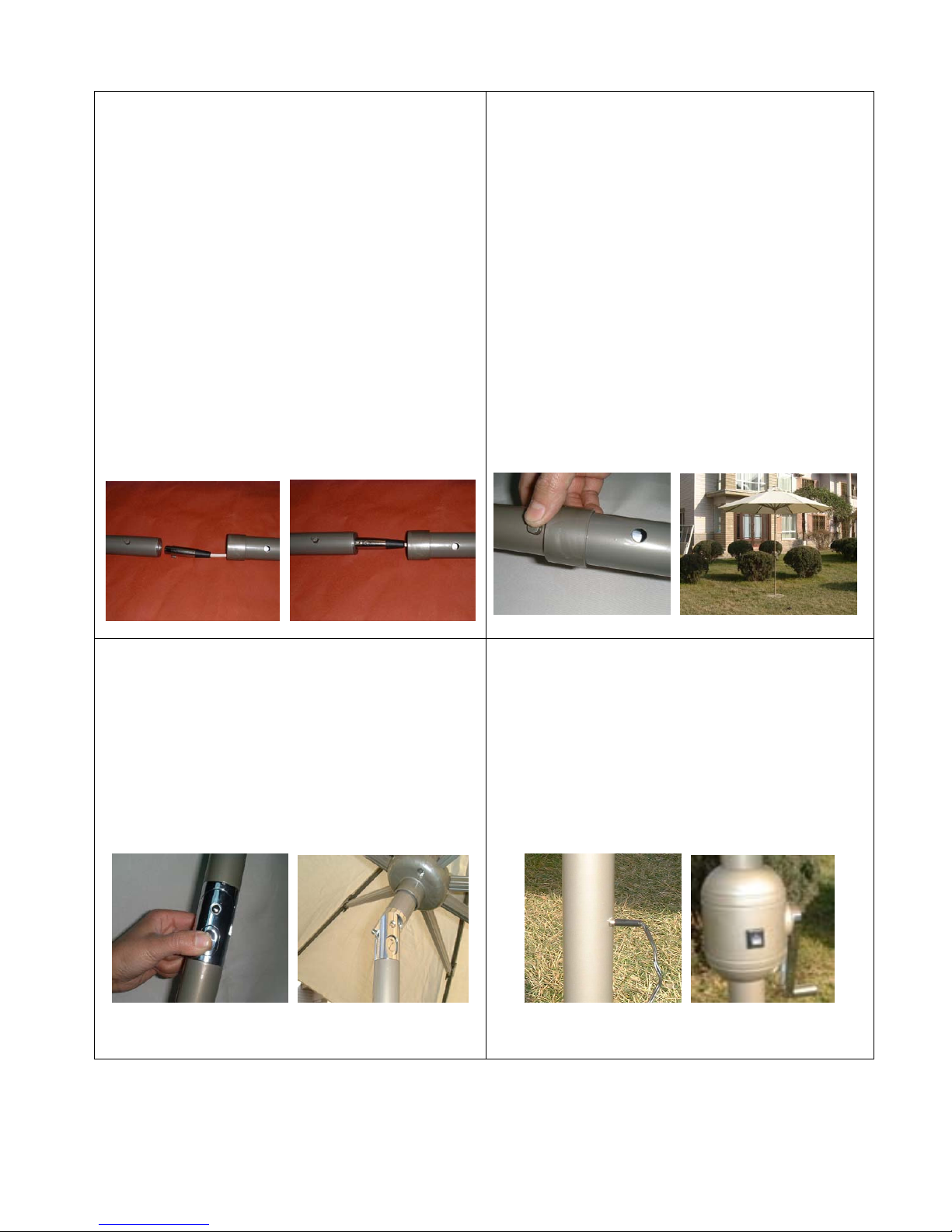

1. Connecting the socket inside
the poles
Insert the wire plug from the lower pole
into the upper pole socket. Note: make
sure the wire plug is fully inserted into the
socket.
2. Connecting the two poles,
Opening and closing the umbrella
Press the spring button on the upper
pole and slide the lower pole until the
push button snaps into position. Now,
insert the frame into the umbrella base
(sold separately) and tighten the
thumbscrew on the base tube.
To open the umbrella, turn the crank
clockwise; to close the umbrella, turn
counterclockwise.
3. Tilt functions
Press the button on the tilt control with
one hand; use the other hand to move
the frame to the right or left. See the
pictures below.
4.How to use the lighting system
Plug the transformer into the socket on
the lower pole (see photo). Push “---“on
the switch to turn on the star lights, press
“o” to turn off. (Note: for solar powered
lights, push “==” and the star lights will
flash).

11’ Primo Lighted Diagram

Parts List
Item No. Parts Name Diagram Qty (Pcs)
PRB01 Appliance mantle on upper hub 1
PRB02 Appliance mantle cover 1
PRB03 Self-tapping screw 4
PRB04 Upper hub 1
PRB05 Rib pin of hub
PRB06 Self-tapping screw for upper hub 4
PRB07 Long rib 8
PRB08 Rib(w/starlight’s) cap 8
PRB09 Star light string 8
PRB10 Rib connector 8
PRB11 Self-tapping screw for rib
connector
16
PRB12 nut 16
PRB13 Bolt 16
PRB14 Upper pole 1
PRB15 Switch 1
PRB16 pole 1
PRB17 Push button 1
PRB18 Twist spring 1
PRB19 Double hole socket 1
PRB20 Lower pole 1
PRB21 Lower pole cap 1
PRB22 Lower pole sleeve 1
PRB23 Crank handle 1
PRB24 Crank cover 1

PRB25 Tilt 1
PRB26 Lower hub holder 1
PRB27 Lower hub top 1
PRB28 Self-tapping screw for crank cover 4
PRB29 Short rib 8
PRB30 Stop point 1
PRB31 Self-tapping screw for stop point 1
PRB32 Rope 1
PRB33 Pulley 1
PRB34 Pulley pin 1
PRB35 Umbrella cap 1
PRB36 Two core wire 2.2m
PRB37 Wire clip 2
PRB38 Transformer 1
PRB39 Umbrella canopy
PRB40 Sleeve for socket 1
PRB41 Socket 1
PRB42 Securing screw 4
PRB43 Direction insert 1
PRB44 Sleeve for plug 1
PRB45 Plug 1
PRB46 Spring 1
PRB47 Self-tapping screw 4
PRB48 Connecting piece 1 for wire 1
PRB49 Connecting piece 2 for wire 1
PRB50 Self-tapping screw 8

Warranty
Warranty Coverage and Term of Period:
The manufacturer warrants that this umbrella, when subject to normal and proper use,
will be free from manufacturing defects for a period of one year from the date of
purchase. Should any defect occur during the specified time period, the manufacturer
will repair the defect product or provide replacement parts and components material, at
its own option. The manufacturer also reserves the right to issue a full refund of the
purchase price in lieu of repair or replacement.
Transferability: This warranty is not transferable.
Other Conditions:
This warranty replaces all other oral or written warranties, liabilities or obligations of the
manufacturer Pertinent state law shall control for what period of time following the
purchase a consumer may seek a remedy under the implied warranty of merchantability
or fitness for a particular purpose. In no event shall the manufacturer be liable for
consequential or incidental damages of any kind resulting from the breach of this
warranty. Some states do not allow limitations on, or the exclusion of, incidental or
consequential damages, so the above exclusions may not apply to you.
Please visit our website for detail: www.shadedepotcorp.com
For Help or Warranty Service Contact:
Customer Service Center
1-949-863-9288
