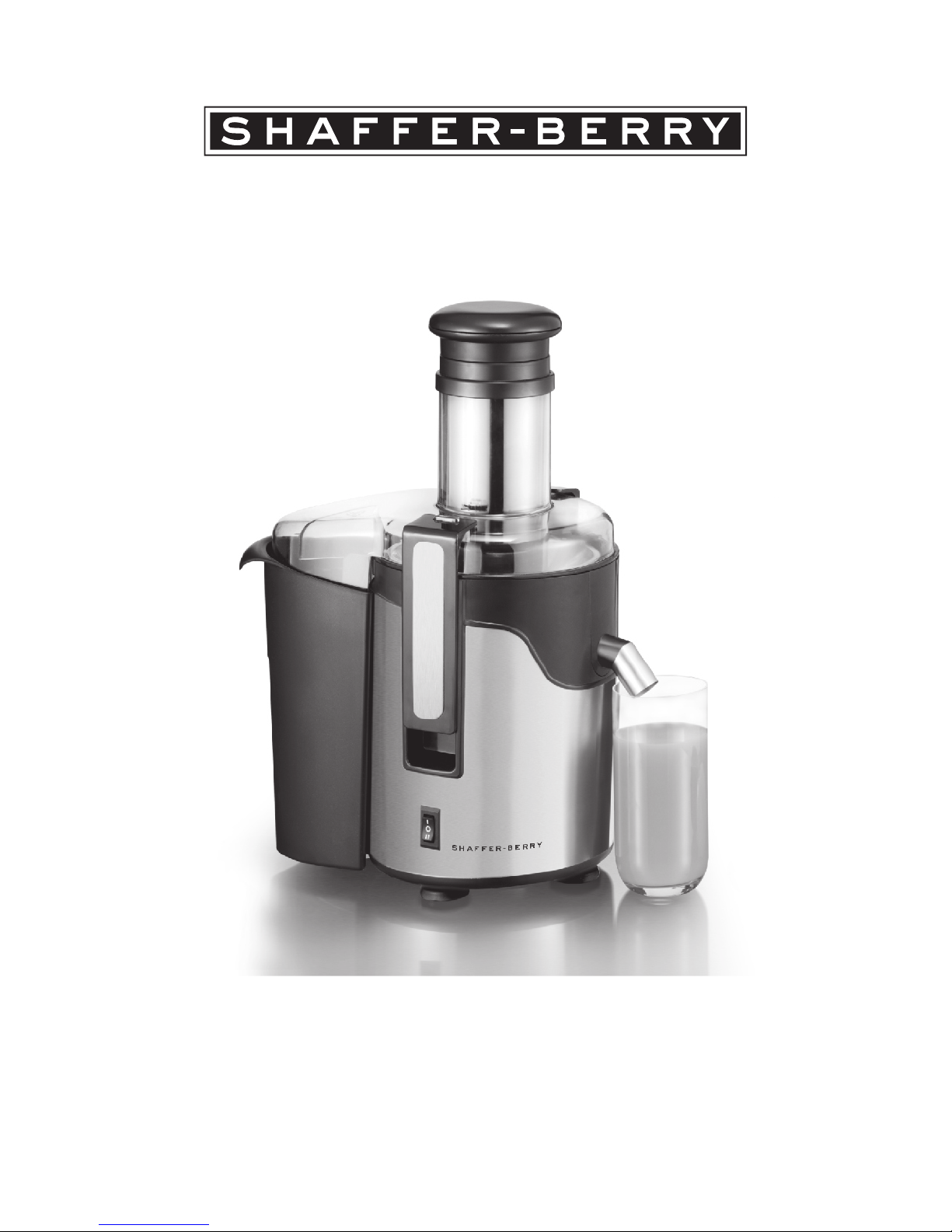

Shaffer-Berry SY2939EJ User manual

Electric Juicer
Instruction Manual
Model SY2939EJ
Read in full and retain for future use
Note. Separate cup as shown is not supplied with this appliance

Electrical Safety and You
Before using this appliance please read and fully understand the safety directions in this manual.
Ensure that you know how to operate the appliance. All electrical equipment presents a risk to the
end user. We ask that you use this appliance in a sensible safe manner in accordance with the
instructions supplied for your own safety. If for any reason the appliance does not function correctly
or shows signs of damage please return it immediately to the retailer or contact the help line.
New Zealand call toll free 0800 898580
Australia call toll free 1-800-858011
Email: [email protected]
Features
600 watt
Stainless steel housing
75mm feeding chute
2 Speed settings
2 Litre capacity pulp container
Removable stainless steel blade for easy cleaning
Double safety lock
Detachable parts are dishwasher safe
Operation Guide
Power Connection
Connect to a suitable 220-240V ~ 50Hz power supply only. This appliance is designed to operate
safely across both New Zealand and Australian power supplies safely.
Assembly and Safety
The appliance come's pre assembled and requires no tools. Note the appliance will not operate unless
assembled correctly. The parts of the appliance are assembled in this order after cleaning.
1.Place pulp residue bowl (7) in place
2.Fit the Middle Body and juice outlet (4) in place
3.Place filter blade (3) onto the motor drive (6)
4.Fit the main cover (2) and lock in place with the two safety locks (5)
5.Fit the feeder (1) to the main cover
Basic Operation
Note: Short term use only. Do not use this appliance for more than 1 minute continuously
without stopping and allowing the mixer to cool completely.
This appliance is designed to safely and efficiently extract juice from fruits and vegetables.
Place a suitable bowl or jug (not supplied) under the juice outlet.
Turn the appliance on Low Speed (l) and carefully feed selected food items into the feeder chute
using the feeder.
Juice will flow into the bowl and residual pulp material will exit into the pulp residue bowl.
When complete switch the power off and remove juice and drink immediately for best results.
Remove the residue bowl by pulling outwards from the bottom and discard residue.

Tips
·Do not press the food into the appliance too fast as this will reduce the amount of juice retrieved.
·Very soft fruit may not be suitable for juicing.
·Use fresh fruit and vegetables only as they contain more juice.
·Pineapples, beetroots, celery stalks, apples, cucumbers, carrots, spinach, melons, tomatoes, oranges
and grapes make ideal juice items.
·You do not have to remove thin skins or peels. Only thick skins e.g. oranges, pineapples, and
uncooked beetroots. Also remove the white pith of some fruits as they have a bitter taste.
·Apple juice depends very much on the type of apple used. Try various types until you find the type
that best suits you.
·Apple juice turns brown very quickly. To slow this process down add a few drops of lemon juice.
·Fruits that contain starch, such as bananas, papayas, avocados, figs, and mangos are not suitable
for juicing. Use a food processor or blender.· Drink the juice as soon as possible to retain all the
goodness.
·Remove seeds or pits if possible before juicing.
·Do not pour liquids into the juicer.
·Do not freeze juice for extended periods.
·We strongly advise not to juice the following items. Banana, coconut, figs, mango, papaya. Use a
food processor or blender.
Questions
·Do I need to prepare fruits and vegetables for juicing?
Yes but preparation is minimal. Simply wash thoroughly before use, peel any fruits with hard skins
and remove seeds and pits if possible.
·Is there any specific order for juicing when juicing a variety of items?
Yes always alternate between hard and soft items. Hard fruits such as apples clean out the
micromesh filter enabling the next item to be extracted efficiently. Always end with a hard item as this
cleans out the filter better and makes cleaning easier.
Cleaning
Always disconnect the appliance from the power supply when cleaning.
Do not use harsh abrasives, solvents or scouring material as they may damage the plastics. Warning!
Do not immerse the main appliance in any liquid.
Unlock the safety levers and remove all detachable parts. The detachable parts may be safely washed
in a dishwasher or normal hot soapy water.
Wipe the main unit clean with a hot damp cloth and dry with a dry towel only.
To remove the filter blade unit carefully grasp both sides and gently and carefully pull directly upwards.
Wear safety gloves if necessary.
Warning! Moisture
Do not immerse this appliance in any liquid. Do not operate with wet hands or near any vessel filled
with water. Do not splash the appliance with water
Moving parts and sharp edges
Do not touch moving parts. Keep hands, hair, clothing etc away from moving parts.
WARNING! Care must be taken when handling blade and sharp edges.
Switch off the appliance and disconnect from supply before assembly or disassembly.
Power cord
Do not abuse or damage the supply cord. If for any reason the cord is damaged, it must be replaced
by the manufacturer, its service agent or a similarly qualified person in order to avoid hazard. A
replaceable cord must be replaced with an authorised replacement from an authorized service agent.
Service
Refer all servicing to qualified personal. This appliance has no user servicing parts or requirements.
Return the appliance to the retailer if it is damaged in any way or not operating properly.

Specifications
220-240V~ AC 50Hz 600 Watts
Two Speeds
Safety Lock system

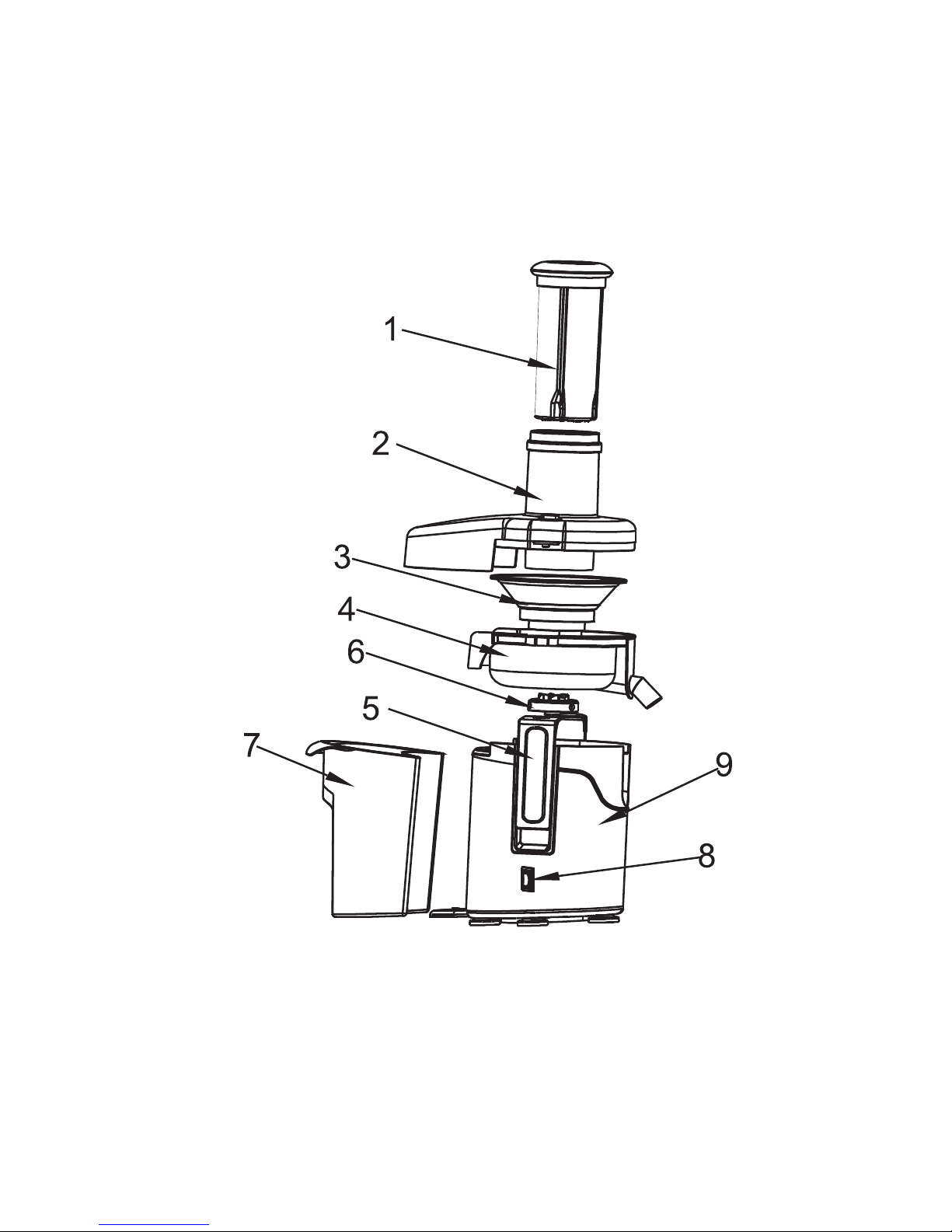

Parts Description
1. Feeder 2. Main Cover
3. Filter Blade 4. Middle Body and juice outlet
5. Safety Locks 6. Motor Drive
7. Residue Bowl 8.ON/OFF Switch
9. Main Appliance Body
