X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
MANUAL
VERSION

02
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
MACHINE SPECIFICATIONS
Introduction
VAC: 115/230 | Amps: 6-10 Amps | HZ: 50/60
Single Phase | Max operating pressure: 80 psi
Weight: 169 lbs
WARNING: To limit risk of potential injury and material damage, all users must read these instructions
in their entirety and follow them strictly.
Check our YouTube channel at youtube.com/goodnaturePro for video guides and how-to’s, which we update regularly.
The X-1 Mini Pro is a commercial cold-press juicer that allows you to serve your customer fresh, cold-pressed juice in
minutes. The patent pending Herbivore Grinder™ and Adaptive Pressing System™ work together in perfect harmony to
bring you the world’s greatest juice.
APPLICATION
WHOLEFRUIT
HOPPER™
ADAPTIVE
PRESSING
SYSTEM™
FRESHFILTER
PRESS BAGS™
PRESSAFE
INTERLOCKS™
HERIBVORE
GRINDER™
LUXURIOUS
DESIGN

03
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Table of Contents
SECTION 1
SECTION 2
SECTION 3
SECTION 4
SECTION 5
SECTION 6
SECTION 6A
SECTION 6B
SECTION 7
SECTION 8
SECTION 9
SECTION 10
SECTION 11
PAGE 04
PAGE 05
PAGE 06
PAGE 07
PAGE 16
PAGE 17
PAGE 20
PAGE 22
PAGE 23
PAGE 26
PAGE 27
PAGE 27
PAGE 27
Safety Precautions
Unpacking
Enclosed Parts List
Assembly
Produce Preparation
Operation
Grinder Operation
Press Operation
Cleaning
Maintenance
Warranty
Replacement Parts
Contact Information

04
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 1: Safety Precautions
DANGER: This machine is not intended for use by persons (including children) with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the machine by a person responsible for their safety.
WARNING: Disconnect all power before performing maintenance to avoid risk of serious electric shock.
WARNING: Always check with your local health department regarding procedures required to ensure proper
cleaning and sanitation in order to avoid serious food borne illness to consumers. For the US: FDA.gov/food.
WARNING: Discontinue use immediately and have machine serviced if any components are damaged or
malfunctioning to avoid risk of personal injury and damage to the machine.
WARNING: Never tamper with or override any of the safety features of the machine, including the press
chamber cover. Tampering with safety features can result in unsafe operating condition and can result in
harm to the operator.
WARNING: Be aware of all pinch points and moving parts, and take precautions to keep loose clothing, hair, or
foreign objects away from them to avoid personal injury and damage to the machine.
DANGER: Never place any body parts inside the unit while the machine is running. Failure to follow this
instruction could result in serious personal injury due to crushing or cutting. Never place hands, body parts,
clothing, hair or any foreign object in machine while it is operating. Failure to do so can result in bodily harm,
damage to the machine.
CAUTION: Only locate or set up machine on a sturdy counter or cart with locked casters.

05
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 2: Unpacking
Inspect the shipping container of your new press prior to opening. Ensure it is free of any handling damage that
may have occurred during shipping. Notify the shipping carrier of any damage to the shipping container as soon as
it is received.
Carefully open the shipping container, inspecting for any damage.
If any items are damaged, notify the freight carrier as soon as possible.
Review the enclosed parts list below. Inspect all enclosed parts carefully and make sure no parts are missing. If
any parts are missing or damaged, please contact Goodnature.
Machine comes bolted to the base of the packaging to prevent damage. With the supplied 9/16” wrench, remove
bolts from feet of machine by turning them counter-clockwise. These can be accessed from the side of the crate,
underneath the platform.
Once machine has been unbolted from the base, the feet can be attached to the machine by screwing them into the
legs.
Machine can be lifted onto the counter, table, or cart where it is intended to be used.
After unpacking, review the X-1 Mini Pro diagrams in section 3 to become familiar with the features and
components of the machine.
Prior to applying any electrical power to the equipment, complete the ASSEMBLY steps of the assembly section.
Machine should be lifted by a minimum of two able people. One person can lift from the front legs of the machine near
the feet, and one person can lift from the rear legs. We recommend removing all removable parts before lifting.








LIFT INSTRUCTIONS

06
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 3: Enclosed Parts List
Grinder Disc
Assembly
Press Chamber
Cleaning Brush
Hopper Pusher
Press Guard
Moving Platen
Juice Pitcher
Front Drain Screen
Vibration Pad
Grinder Ring
Splash Guard
Agitator Knob
Hopper Door
Bottom Drain
Screen
Juice Catch Tray

07
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly
Tip: The grinder can be rotated between the “up”
position, and “down” position by pressing the
release lever on the right side of the grinder and
lowering the grinder by hand.
PRESS ASSEMBLY

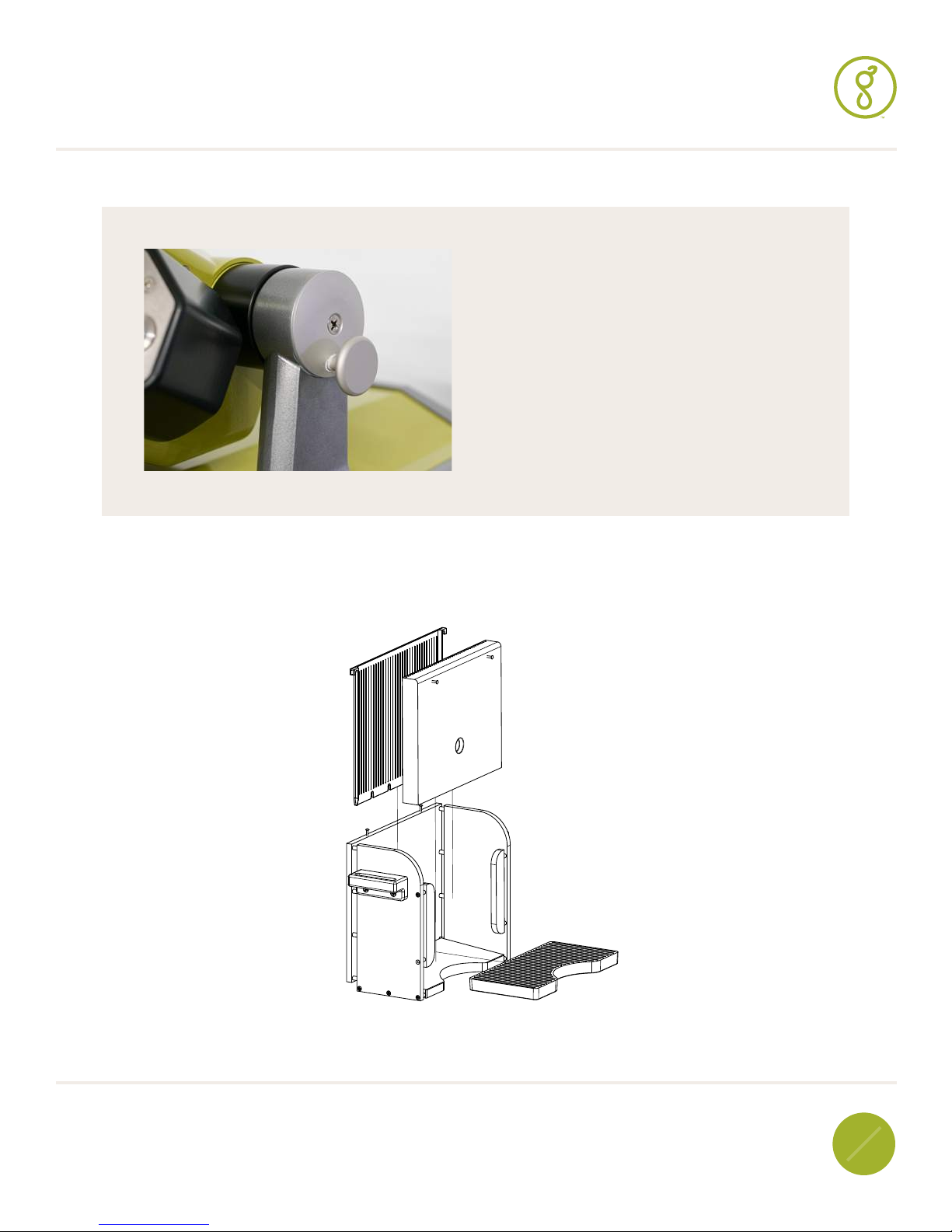

COMB AND PLATEN INSTALLATION
SCALE .5
PRESS CHAMBER INSTALLED
SCALE .5
PRESS CHAMBER INSTALLATION
SCALE .5

08
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly
Put the bottom drain screen into place by sliding
it along the bottom of the press chamber until it
drops into place.
Slide the front drain screen down from the top
with the flat (non-concave) side facing the front of
the chamber away from you.
Place the chamber into the press so the front of
the chamber sits snugly against the press plate.
1
2
3

09
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly
Place the moving platen into the press chamber.
The bag pins should be facing the back of the
press, at the top. The grooves of the platen should
be facing the front of the press.
Place a FreshFilter Press Bag™ into the chamber
with the open side facing up. Insert your hand
into the bag and push the bottom of the bag down
to the bottom of the chamber and into each of the
corners. Firmly push each side of the bag over the
bag pins, piercing the material at least 0.5 inch
from the edge of the bag.
4
5

10
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly

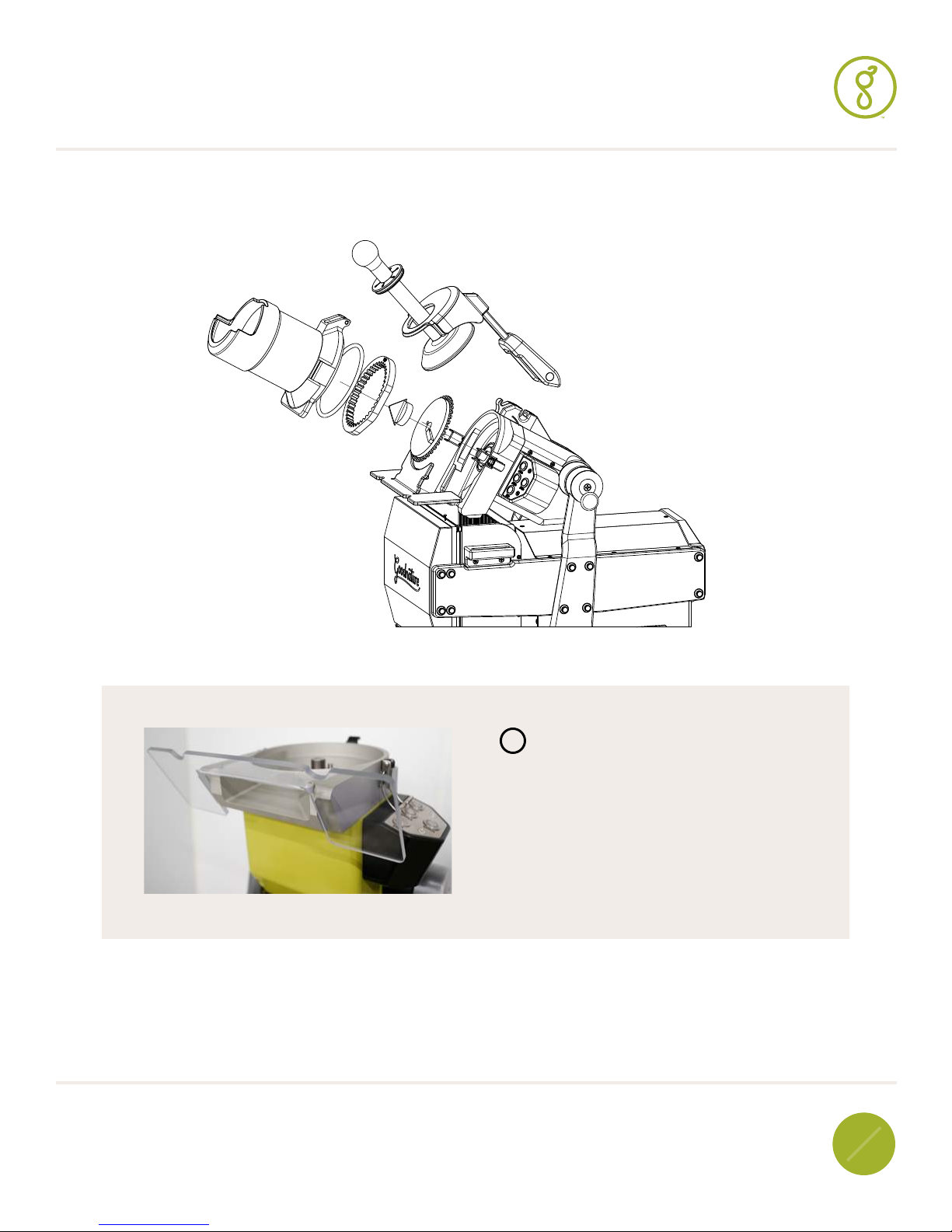

GRINDER ASSEMBLY
SHREDDER ASSEMBLED
SCALE .5
SHREDDER ASSEMBLY
SCALE .5
With the grinder in the “up” position, attach the
clear press guard.
1

11
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly
We recommend you now lower the grinder into
the “down” position and let it rest on the press for
the remainder of the grinder assembly.
Place the grinder disc into the grinder as shown.
Attach the agitator knob by screwing it onto the
threaded rod, turning it clockwise until it is snug.
No need to over-tighten.
2
3
4

12
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly

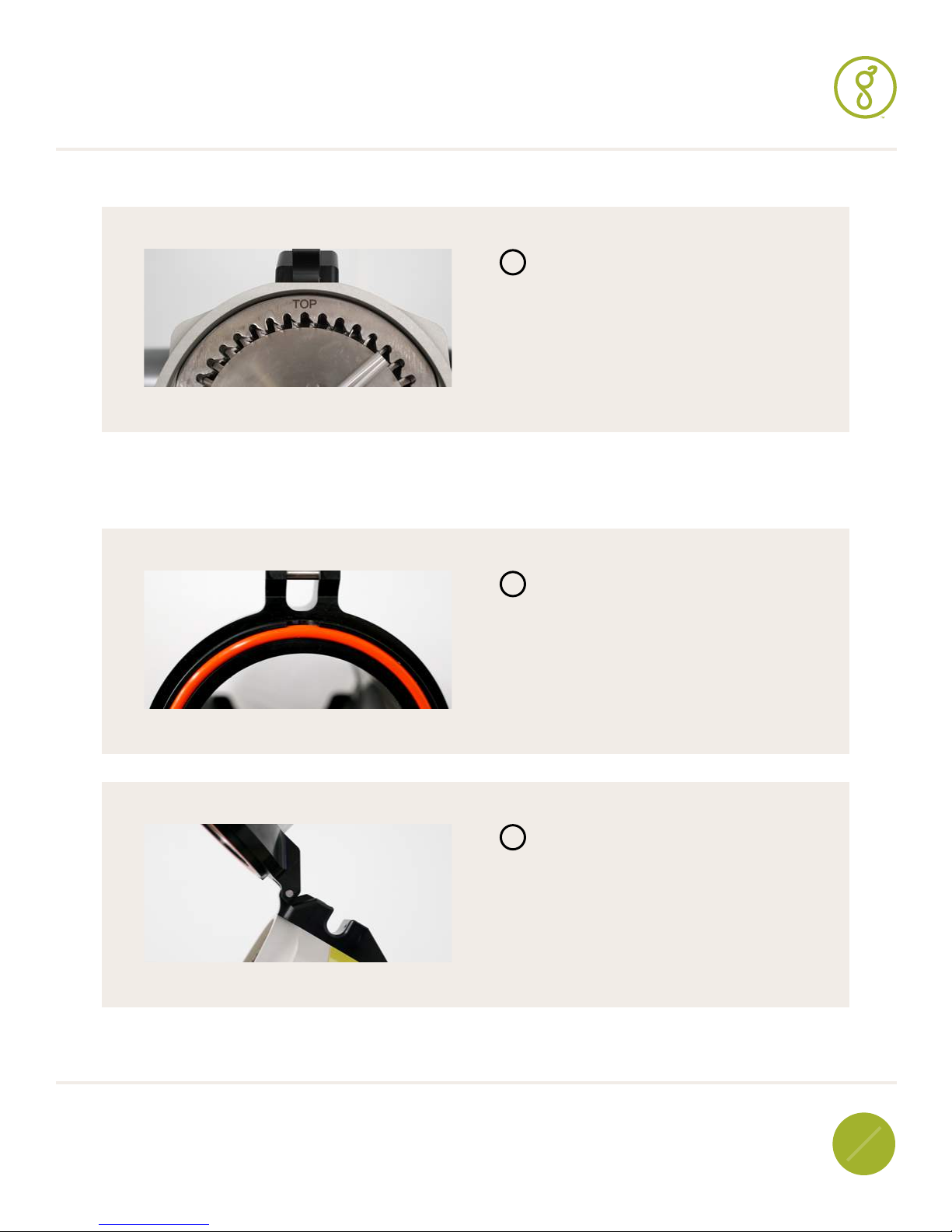

Place grinder ring into the grinder, placing the
word “TOP” at the top of the grinder.
If the orange hopper seal has been removed for
cleaning, insert the hopper seal into the groove on
the base of the hopper.
Attach the hopper to the grinder by aligning the
pin on the hopper with the black hook on the
grinder, and push down.
5
1
2
HOPPER ASSEMBLY

13
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly
Clamp the hopper in place using the clips on each
side.
If the rubber splash guard has been removed for
cleaning, insert it into the hopper door as shown.
Push handle of the pusher through the hopper
door.
3
4
5

14
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly
Firmly push the pin of the hopper door into top of
the grinder as shown. Use force if necessary.
Finally, lower the hopper door and pusher into
place, ready for operation.
6
7

15
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 4: Assembly

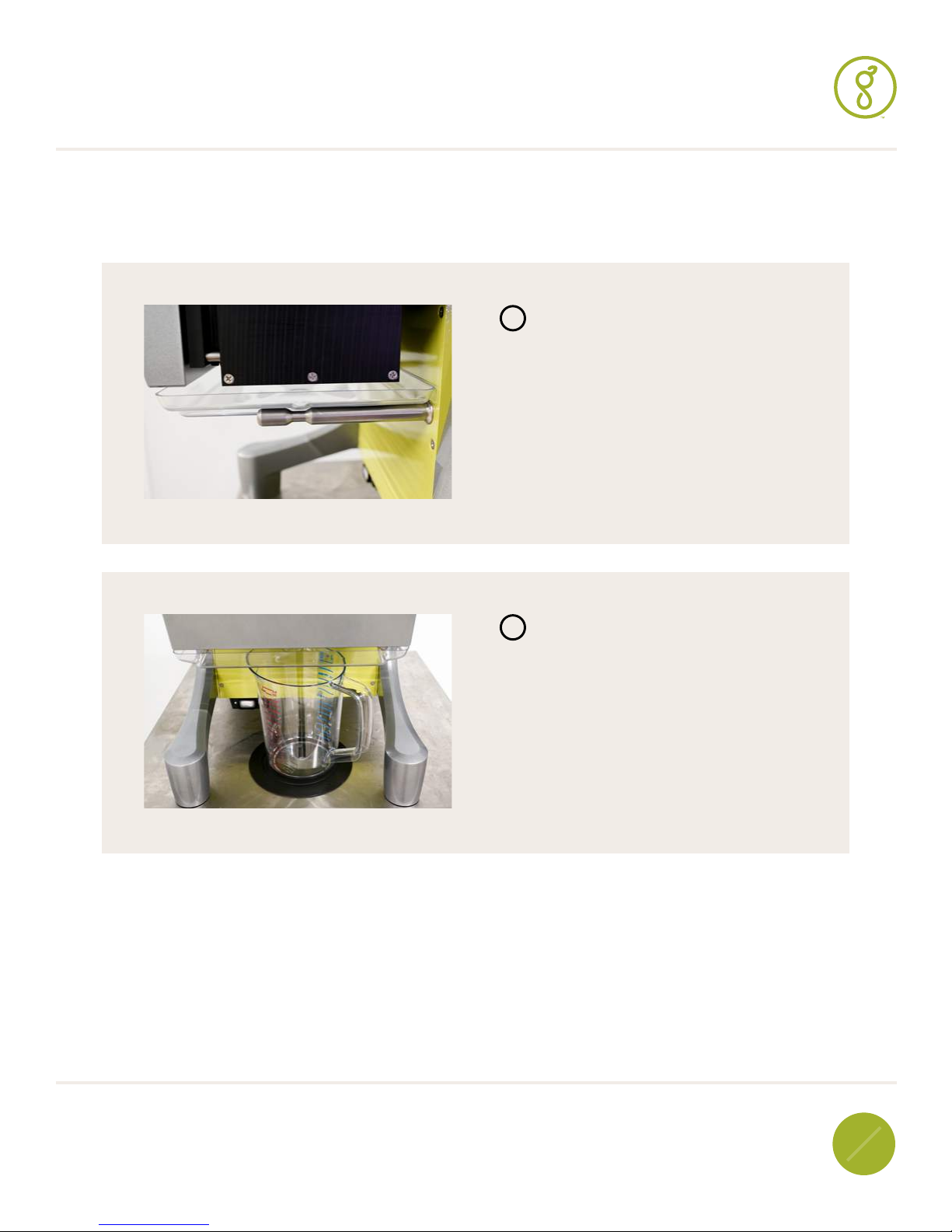

Place juice catch tray under the press as shown.
The vibration pad can be placed under a container
of your choosing.
1
2
JUICE COLLECTION

16
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 5: Produce Preparation
CAUTION: Only press produce that has been shredded. Never attempt
to press unshredded produce, pits, or large seeds, as doing so can put
uneven loading on the machine and cause damage.

17
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 6: Operation
Assemble press.
Assemble grinder.
Check that press bag, juice catch tray, vibration pad, and juice container are properly positioned.
Check that the press is in open position, and the platen pushed towards the back of the press.
Check that the machine is connected to power.





PRE-OPERATION CHECKS

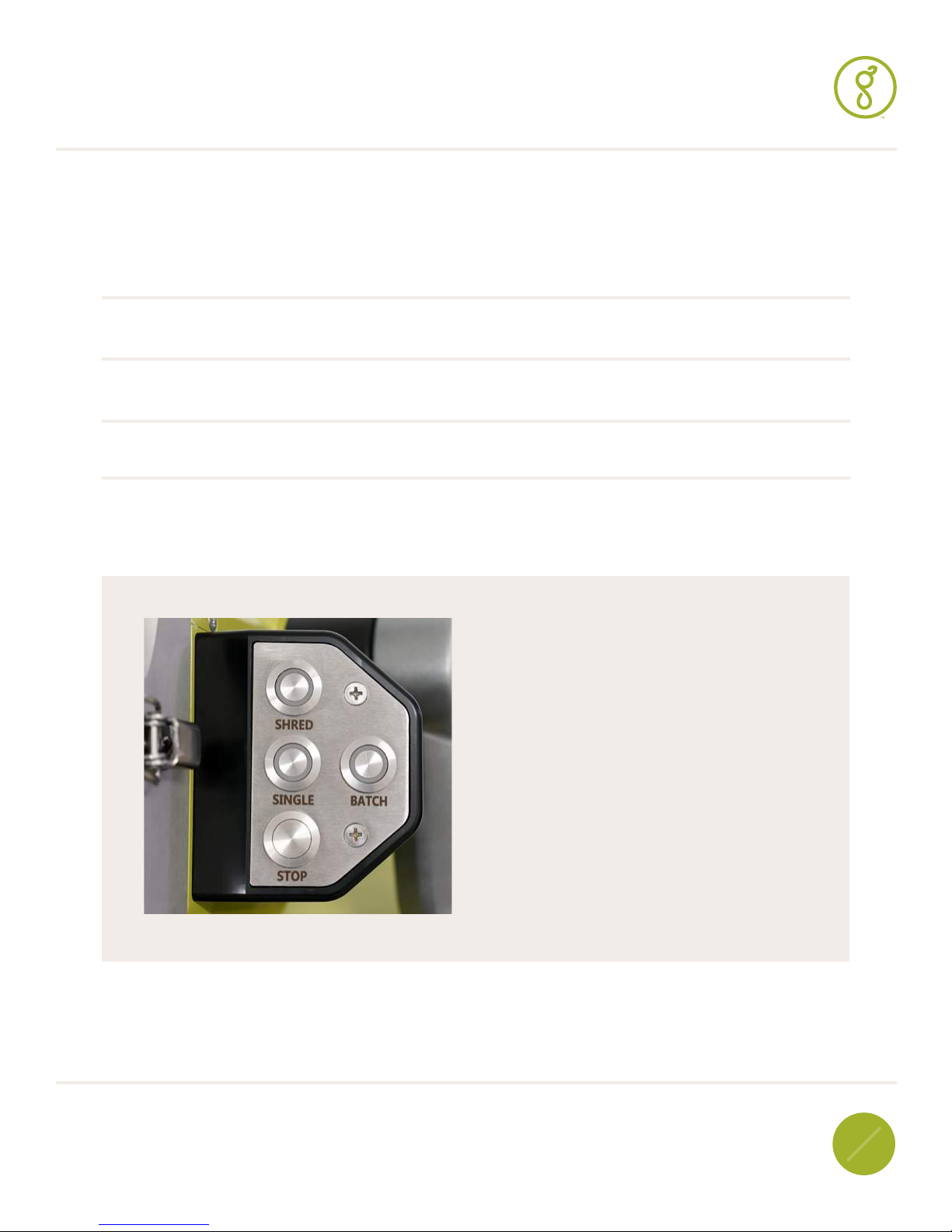

There are four buttons on the right side of the
upper housing that are used to operate the grinder
and press. Thes buttons are “SHRED”, “SINGLE”,
“BATCH” and “STOP”.
CONTROLS

18
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 6: Operation
The power switch is located on the bottom of the
machine towards the front.
Power switch controls power to both the grinder
and press.
Engage power switch by switching to the “on”
position.
POWER SWITCH
When grinder is fully assembled and in the “down” position, pressing the “Shred” button will engage the grinder.
As a safety feature, the grinder disc will stop spinning and the “Shred” button will flash while the hopper door is open.
When the hopper door is closed, the grinder disc will begin spinning again.
Press grinder button a second time to stop grind cycle. Alternatively, the “Stop” button can be pressed to stop the
grinder.
If the hopper is open for more than 45 seconds, the grind cycle will cancel automatically as a safety feature.
Solid lighted “Shred” button means that the disc is spinning.






SHRED

19
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 6: Operation
The “Single” press speed is intended for making a single serving of juice, up to 1.5 lbs of produce for most recipes.
The single press speed will take roughly ninety seconds.
Pressing the “Single” button once will engage the press cycle. The press will automatically relieve pressure and the
piston rod will retract at the end of the press cycle.
Pressing the “Single” button a second time during the press cycle, or pressing the “Stop” button, will relieve
pressure and the piston rod will retract early, canceling the press cycle.
The recommended maximum capacity of the ”Batch” press speed is five pounds of produce for most recipes.
The batch cycle will take roughly four minutes.
Pressing the “Batch” button once will engage the press cycle. The press will automatically relieve pressure and the
piston rod will retract at the end of the press cycle.
Pressing the “Batch” button a second time during the press cycle, or pressing the “Stop” button, will relieve
pressure and the piston rod will retract early, canceling the press cycle.
Pressing the “Stop” button while the grinder is running will turn o the grinder.
Pressing “Stop” once during any press cycle, or while the machine is idle will relieve pressure and retract the piston rod.
Pressing “Stop” twice will cancel all cycles and relieve all pressure. The piston rod will not retract.











SINGLE
BATCH
STOP

20
28
X-1 MINI PRO OWNER’S MANUAL
ASSEMBLY & OPERATOR INSTRUCTIONS
Section 6A: Grinder Operation
Ensure machine is properly assembled and ready for operation according to Section 4: Assembly.
Open the hopper door using the pusher handle and resting the pusher head on the cutout in the hopper tube.
Fill the hopper with desired amount of produce.
Close the hopper door using the pusher handle.
Press the “Shred” button. This will start the grind cycle.
1
2
3
4
5
