Shappell DX3000 User manual

3000.1DX
3000.5 3000.6
3000.8
3000.3A
3000.4
IMPORTANT SAFETY INFORMATION
CO
WARNING: Keep all Heat & Flame Sources away from the Shelter’s Fabric
Cover. The Fabric Cover is Fire Retardant, it is not Fire Proof. The use of any
heat source can be extremely dangerous, both for Fire Hazard and Carbon
Monoxide Emissions. The Shappell Corporation does not endorse the use of any
Heater. It is the user’s responsibility to follow the Instructions and Warnings
provided by the Heater Manufacturer for the safe use of a particular Heater.
CARBON MONOXIDE POISONING HAZARD: This shelter is nearly air tight
and must be ventilated if using an oxygen consuming heat source. An extra zipper
pull at the top of each door provides ventilation and can also be used to form a
window for viewing. DO NOT PACK SNOW AROUND SHELTER or in any
way prevent fresh air from entering shelter. Failure to Ventilate Shelter could
create a Serious Health Hazard or Death.
Towing of shelter with a motorized vehicle is not recommended.
Window can not be made to withstand temperatures below –15oF. (see warranty)
PREVENT DAMAGE TO HINGE JOINT: Always set shelter on a level flat
surface.
MAINTENANCE: After each use, set up shelter until fabric is completely dry.
Never leave shelter folded closed with a wet cover.
NOTICE: It is normal for fabric to have some pinholes. This does not affect
water repellency.
READ SETUP & TAKEDOWN INSTRUCTIONS BEFORE USING SHELTER

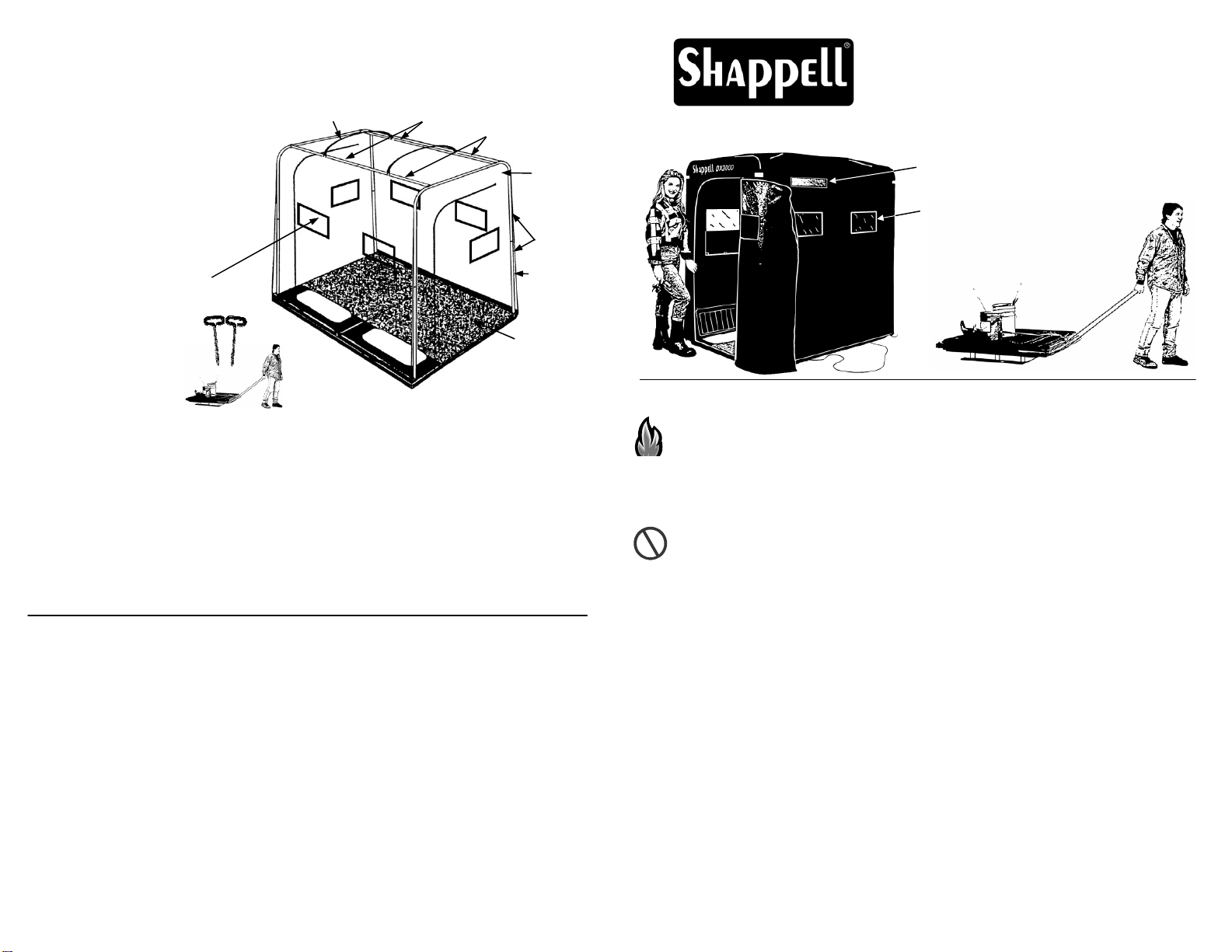

Model DX3000
PORTABLE ICE FISHING SHELTER
REPLACEMENT PARTS
NOTE: Small Holes, Tears and Cuts in Cover can be Repaired with Black Duct
Tape applied to Coated Side of Fabric.
To Order Parts, give Part No., Description and Qty Needed.
SHAPPELL CORP., 3562 W. Jefferson Hwy., Grand Ledge, MI 48837
[email protected]om
(USA) 1-888-571-1144
(Canada) 1-517-622-2700
CONSUMER WARRANTY
SHAPPELL CORPORATION warrants its products against defects in material
and workmanship for (1) YEAR from date of purchase. We will provide FREE
repair or replacement, in whole or in part, at our option, for any product, found
in our opinion to be defective. If return is required, freight must be prepaid.
This warranty does not cover Freight Damage, Ordinary Wear and Tear, Abuse,
Misuse or Altered Product.
WINDOWS ARE NOT GUARANTEED AT TEMPERATURES BELOW
–15 DEGREES FAHRENHEIT.
For warranty claim, send product model number, explanation of defect and
dated proof of purchase to: Shappell Corp., 3562 W. Jefferson Hwy, Grand
Ledge, MI 48837.
(10078) 1-01-07
Shown with Optional
Ski System.
3000.11
ID Holder
(6) Removable Windows
MODEL DX3000 (47” x 70” Floor)
Part No. Description
3000.1DX Fabric Cover
3000.3A Frame Assembly
3000.4 Floor Pole (only)
3000.5 Roof Tube (plain end)
3000.6 Roof Tube (formed end)
3000.7 Elastic Frame Cord
3000.8 Carpeting
3000.11 Roof Bow
10328 9” x 16” Window
Accessories
IA2 Ice Anchor
SK3000 Ski System

Fig. 7
Fig. 9
Fig. 8
Fig. 10
Fig. 11
Hold Down Frame
Fig. 2
Fig. 1
SET UP INSTRUCTIONS
1) Open floor on a flat, level surface, with a door end facing the
wind. Damage to Hinge Joint may occur if Floor is not evenly
supported.
2) Assemble Roof Tube sections.
4) Fig. 2, Raise second U Frame,
again keeping Frame about 24”
away from Corners of Fabric Top.
Assemble Frame and push into
Corners of Fabric Top and adjust
Seam in Fabric to follow Curve of
the Frame. Clip end of Roof Tube
Assembly to U Frame and slide
next to inside edge of nuts as
shown in Fig. 3 & 4. Clip second
Roof Tube Assembly into place
next to Nuts. With both Roof
Tubes next to inside edge of
Nuts...Install Roof Bows, Fig. 4.
3) Fig. 1, Raise one U Shaped Frame. Keep Frame about 24” away
from Corners of Fabric Top and Slip ends of U Frame over Crimped
ends of Floor Poles...Shock Cord will pull Frame together. Push As-
sembled Frame into Corners of Fabric Top and adjust Seam in Fab-
ric so that it follows the Curve of the Frame. Snap end of a Roof
Tube Assembly to U Frame and Support Frame as shown in Fig. 2.
TAKE DOWN INSTRUCTIONS
1) Fig. 5, Remove Roof Tubes from one U Frame and use one
Roof Tube to Support other U Frame as shown. Pull U Frame
away from Fabric Corners, then pull apart and Fold Frame to Floor
while keeping Fabric away from Frame. Do Not Wrap Fabric
Around Frame. NOTE: U Frame should lay inside of the Floor
Poles, not on top of them. Repeat for other U Frame, Fig 6.
Fig. 5 Fig. 6
2) Fold Tent as shown in Fig. 7,8,9,10 and11.
Fig. 4
Roof Bows
Fig. 3
Pull shock cord into
slot in fish door to
hold door open.
