SHELTER JIT-1333M Operation instructions

MODEL:JIT-1333M
www.vikre.no

1

2

3
Part List of Model#JIT-1333M (L10.0xW4.0xH3.7m)

4

Figure 3
As Figure 3 shows, each
base flange is equipped
with three stake pegs.
Begin by determining exact
location of the four (4) corners of
the building. Mark front edge and
side-to-side width of assembly on
ground. Drive alignment stakes into
the ground outside of the markings,
and draw alignment strings along
both ends and sides of the building
to the dimensions shown in Figure
2. The outline of the strings will
represent the final location of the
base flanges. The initial location of
each Corner Base Flanges is critical
to the alignment and fit of the frame
components and cover.
Step #1 --SECURING BASE FLANGES
Sit the building boxes in the chosen location. Remove all the components
from packaging to ensure all components are present by checking with the
Part List.
Locate the Left Corner Base Flange
and Right Corner Base Flange(part
#5). Secure the base flanges with
Stake Pegs (Part #40).
Measurements shown in Figure 2
are to the center of the upright
sockets on each Base Flange.
The Shelter must be secured to a
firm surface that can receive and
retain stake pegs firmly in position.
The shelter should be installed on
FIRM GROUND, not on SWAMP,
SOFT/WET GROUND. The Base
Flanges must be secured so they
cannot be moved. Arches are
tensioned at their base as they
insert into the Base Plate sockets.
40
6
10.0m
2.0m2.0m
8
7
5
0.5m3m
4.0m
2.0m2.0m2.0m

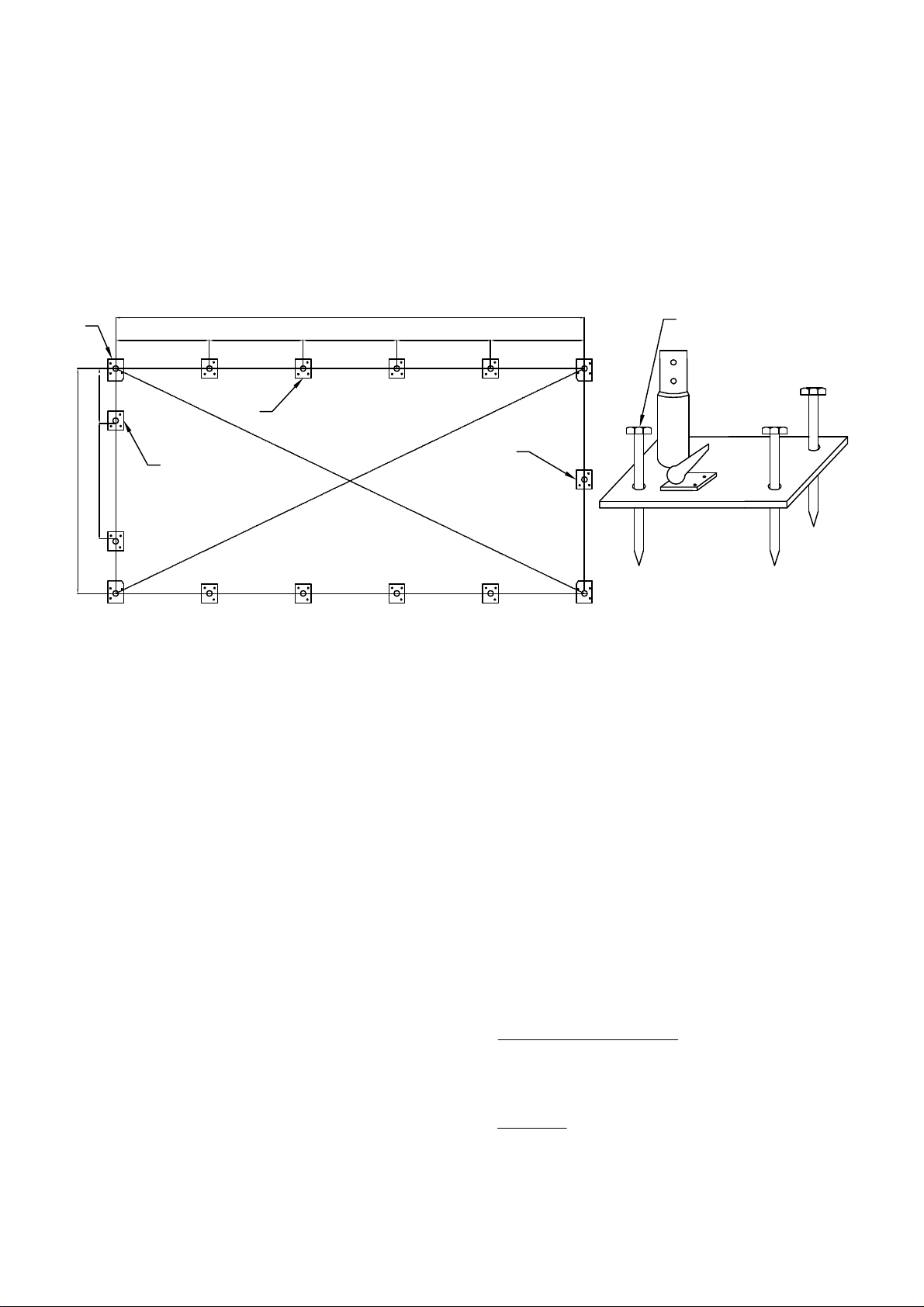

Figure 2 Position of Base Flanges
FRONT
Diagonals are equal

6

7

8

9
First circle the band for tieFirst circle the band for tieFirst circle the band for tie
down ratchet (part# )
around the tensioning tubearound the tensioning tubearound the tensioning tube
through the cuts on thethrough the cuts on thethrough the cuts on the
pocket of the roof cover.pocket of the roof cover.pocket of the roof cover.
Before inserting the cover tensioning
tube(part #22) into pocket of roof cover,
you need to make cuts for band of
Ratchet on the cover first. Firstly please
draw the outline of the cuts according to
the position of Ratchet. The position of
cuts should be right upon the ratchets.
draw the outline of cuts
Then make the cuts usingThen make the cuts using
forfex along the outlines.forfex along the outlines.
22
Then put the bands
through the reel of the
ratchet, and tension
the band by ratchet.
BB A
CCC D
23
24
24

10

11

12
