Sharp KH-6I19FT00-EU User manual

KH-6I19FT00-EU
Cooking
Home Appliances
DE Bedienunganleitung
EN User manual
FR Guide D’utilisatio
IT Istruzioni per l’uso

GB-Declaration of conformity
We declare that our products meet the applicable European Directives, Decisions and Regulations
and the requirements listed in the standards referenced.
DE-Konformitätserklärung
Wir erklären, dass unsere Produkte die geltenden europäischen Richtlinien, Entscheidungen und
Regularien sowie die
in den referenzierten Standards gelisteten Anforderungen erfüllen.
FR-Déclaration de conformité
Nous déclarons que nos produits sont conformes aux Directives, Décisions et Règlementations
européennes en vigueur et aux exigences visées dans les normes citées en référence.
IT-Dichiarazione di conformità
Dichiariamo che i nostri prodotti sono conformi a Direttive, Decisioni e Regolamenti europei e ai
requisiti elencati negli standard di riferimento.

GB: The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over the applicable collection point for recycling of
electrical and electronic equip-ment. By ensuring this product is disposed of correctly, you will help
prevent potential nega-tive consequences for the environment and hu-man health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling this product, please contact your local city of- ices, your household waste disposal
service or the shop where you purchased the product.
DE: Dieses Symbol auf dem Produkt oder der Verpackung besagt, dass das Produkt nicht als
Hausmüll behandelt werden darf. Statt-dessen sollte es einem Sammelpunkt für das Recycling von
elektrischen und elektronischen Geräten übergeben werden. Indem Sie dafür sorgen, dass dieses
Produkt korrekt verwertet wird, helfen Sie dabei, mögliche negative Fol-gen für die Umwelt und die
menschliche Ge-sundheit zu verhindern, die ansonsten durch die ungeeignete Beseitigung dieses
Produkts entstehen könnten. Weitere Informationen über die Verwertung diese Produkts erhalten Sie,
wenn Sie sich mit Ihrer örtlichen Behörde, der Hausmüllabfuhr oder dem Geschäft in Ver-bindung
setzen, bei dem Sie dieses Produkt erworben haben.
FR: Ce symbole sur le produit ou sur l’emballage indique que ce produit ne doit pas
être traité comme des déchets ménagers. Il doit plutôt être remis au point de ramassage concerné, se
chargeant du recyclage du maté-riel électrique et électronique. En vous confor-mant à une procédure
d’enlèvement correcte du produit, vous aiderez à prévenir tout effet nuisible à l’environnement et à la
santé, qu’une manipulation inappropriée pourrait autrement provoquer. Pour plus de détails
concernant
le recyclage de ce produit, veuillez contacter votre autorité locale, un centre de recyclage des déchets
domestiques ou la boutique où vous avez acheté le produit.
IT: Il simbolo sul prodotto o sulla confezione indica che questo prodotto potrebbe non es-sere
trattato come rifiuti domestici. Al contrario saranno trasmessi al punto di raccolta adegua-to per il
riciclo delle componenti elettriche ed elettroniche. Assicurando il corretto smalti-mento del prodotto,
si eviteranno potenziali conseguenze negative per l’ambiente e la salute dell’uomo, che potrebbero
verificarsi in caso di smaltimento non corretto del prodotto. Per maggiori informazioni sul riciclaggio
del prodotto, contattare l’ufficio locale, il servizio di smaltimento o il negozio in cui il prodotto è stato
acquistato.

EN
CONTENTS:
Safety instructions
Appliance description.
Cooking surface and control panel of heaters
Operation of the appliance
Switching the appliance on and off
Switching the cooking-zones on and off
Smart Pause
Residual heat indicator.
Safety switch off function
Child Lock
Timer function
Buzzer
Boost Function
Hints and tips
Installation of the appliance
Installation safety

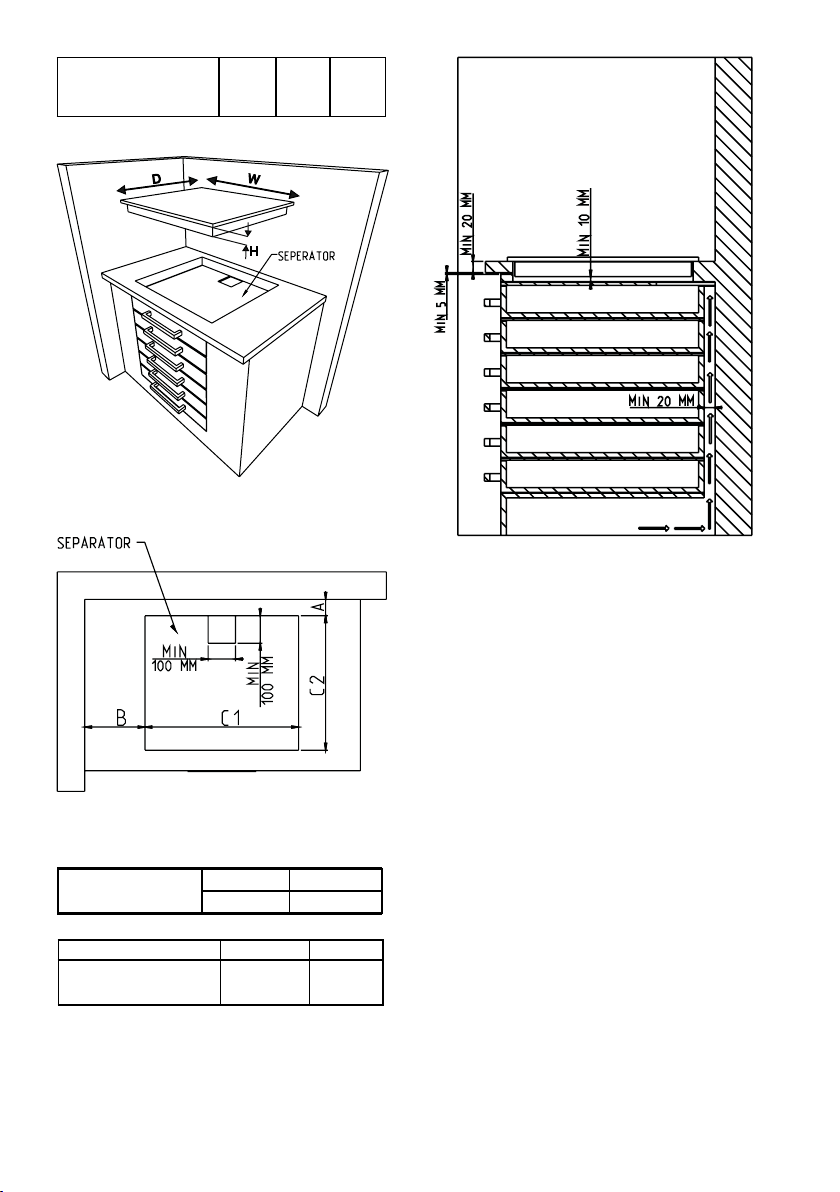

Fitting the hob into a worktop
Making an electrical connection
Electrical connection diagram

EN
SAFETY WARNINGS
READ THESE INSTRUCTIONS CA-
REFULLY AND COMPLETELY BEFO-
RE USING YOUR APPLIANCE, AND
KEEP THEM IN A CONVENIENT PLA-
CE FOR REFERENCE WHEN NECES-
SARY.
THIS MANUAL IS PREPARED FOR
MORE THAN ONE MODEL. YOUR
APPLIANCE MAY NOT HAVE SOME
OF THE FEATURES THAT ARE EXP-
LAINED IN THIS MANUAL. WHILE
YOU ARE READING THE OPERATING
MANUAL, PAY A SPECIAL ATTEN-
TION TO THE EXPRESSIONS THAT
HAVE IMAGES.
General Safety Warnings
•This appliance can be
used by children aged
from 8 years and abo-
ve and persons with
reduced physical, sen-
sory or mental capabi-
lities or lack of experi-
ence and knowledge if
they have been given
supervision or instruc-
tion concerning use of
the appliance in a safe
way and understand
the hazards involved.
Children should not
play with the applian-
ce. Cleaning and user
maintenance shall not
be done by children
without supervision.
•WARNING: The app-
liance and its acces-
sible parts become
hot during use. Care
should be taken to
avoid touching the he-
ating elements. Child-
ren under the age of
8 should stand away
from the appliance
unless continuously
supervised.
•WARNING: Unatten-
ded cooking on a hob
with fat or oil can be
dangerous and may
result in re. NEVER
trytoextinguishare
with water. Switch off
the appliance and co-
vertheamee.g.with
alidorareblanket.
•WARNING: Danger of
re:donotstoreitems
on the cooking surfa-
ces.
•WARNING: If the sur-

EN
face is cracked, switch
the appliance off to
avoid the possibility of
electric shock.
•For induction hobs,
metallic objects such
as knives, forks, spo-
ons and lids should
not be placed on the
hob surface since they
can become hot.
•For induction hobs, af-
ter use, switch off the
hob element by using
its control and do not
rely on the pan detec-
tor.
•For hobs incorpora-
ting a lid, any spillage
should be removed
from the lid before
opening. Additionally,
the hob surface sho-
uld be allowed to cool
before closing the lid.
•The appliance is not
intended to be ope-
rated by means of an
external timer or se-
parate remote-control
system.
•Do not use harsh ab-
rasive cleaners or
sharp metal scrapers
to clean the oven door
glass and other sur-
face since they can
scratch the surface,
which can cause the
glass to shatter or ca-
use damage to the
surface.
•Do not use steam
cleaners to clean the
appliance.
•Your appliance is produced in ac-
cordance with all applicable local
and international standards and
regulations.
•Maintenance and repair work must
be carried out only by authorized
service technicians. Installation
and repair work that is carried out
by unauthorized technicians may
endanger you. Altering or modif-
yingthespecicationsoftheapp-
liance in any way is hazardous.
•Prior to installation, ensure that
the local distribution conditions
(nature of the gas and gas pressu-
re or electricity voltage and frequ-
ency) and the requirements of the
appliance are compatible. The re-
quirements for this appliance are
stated on the label.
•CAUTION: This appliance is de-

EN
signed only for cooking food and is
intended for indoor domestic hou-
sehold use only and should not be
used for any other purpose or in
any other application, such as for
non-domestic use or in a commer-
cial environment or room heating.
•All possible security measures
have been taken to ensure your
safety. Since the glass may break,
you should be careful while clea-
ning it to avoid scratching. Avoid
hitting or knocking on the glass
with accessories.
•Ensure that the supply cord is not
wedged during the installation.
If the supply cord is damaged, it
must be replaced by the manufac-
turer, its service agent or similarly
qualiedpersonsinordertopre-
vent a hazard.
Installation Warnings
•Do not operate the appliance be-
fore it is fully installed.
•The appliance must be installed
by an authorized technician and
put into use. The manufacturer is
not responsible for any damage
that might be caused by defective
placement and installation by una-
uthorized persons.
•When you unpack the appliance,
make sure that it was not dama-
ged during transportation. In the
event of any defect; do not use
the appliance and contact a qua-
lied service agent immediately.
As the materials used for packa-
ging (nylon, staplers, styrofoam...
etc.) may cause harmful effects to
children, they should be collected
and disposed of immediately.
•Protect your appliance against
atmospheric effects. Do not expo-
se it to effects such as sun, rain,
snow etc.
•The surrounding materials of
the appliance (cabinet) must
be able to withstand a tem-
perature of a min. of 100°C.
The temperature of the bottom
surface of the hob may increase
during operation. Therefore, a bo-
ard must be installed underneath
the product.
•During use
• Donotputammableorcombus-
tible materials, in or near the appli-
ance when it is in operation.
•Do not leave the cooker while co-
oking with solid or liquid oils. They
maycatchreasaresultofofext-
reme heating. Never pour water
on to ames that are caused by
oil. Cover the saucepan or frying
panwithitscovertochokethea-
me that has arisen in this case and
turn the cooker off.
•Always position pans over the
centre of the cooking zone, and
turn the handles to a safe positi-
on so they cannot be knocked or
grabbed.
•If you are not going to use the
appliance for a long time, remove
the plug from the socket. Keep the
main control switched off. Additio-
nally, when not using the applian-
ce, shut the gas valve off.
•Make sure the appliance control
knobs are always in the “0” (stop)

EN
position when it is not being used.
•
During cleaning and main-
tenance
•Always turn the appliance off befo-
re operations such as cleaning or
maintenance. You can do it after
removing the plug for the applian-
ce off or turning the main switches
off.
•Do not remove the control knobs
to clean the control panel.
•TO MAINTAIN THE EFFICIENCY
AND SAFETY OF YOUR APP-
LIANCE, WE RECOMMEND
YOU ALWAYS USE ORIGINAL
SPARE PARTS AND ONLY CALL
OUR AUTHORIZED SERVICE
AGENTS SHOULD SUCH A
NEED ARISE.

EN
Induction heating element
Note: The appearance of your hob maybe different than the model shown above
duetoitsconguration.
DESCRIPTION OF THE HOB
Dear Customer,
Please read the instructions in this user guide before using the hob and keep
them for future reference.
Cooking Surface for 4 heaters:
Control panel

EN

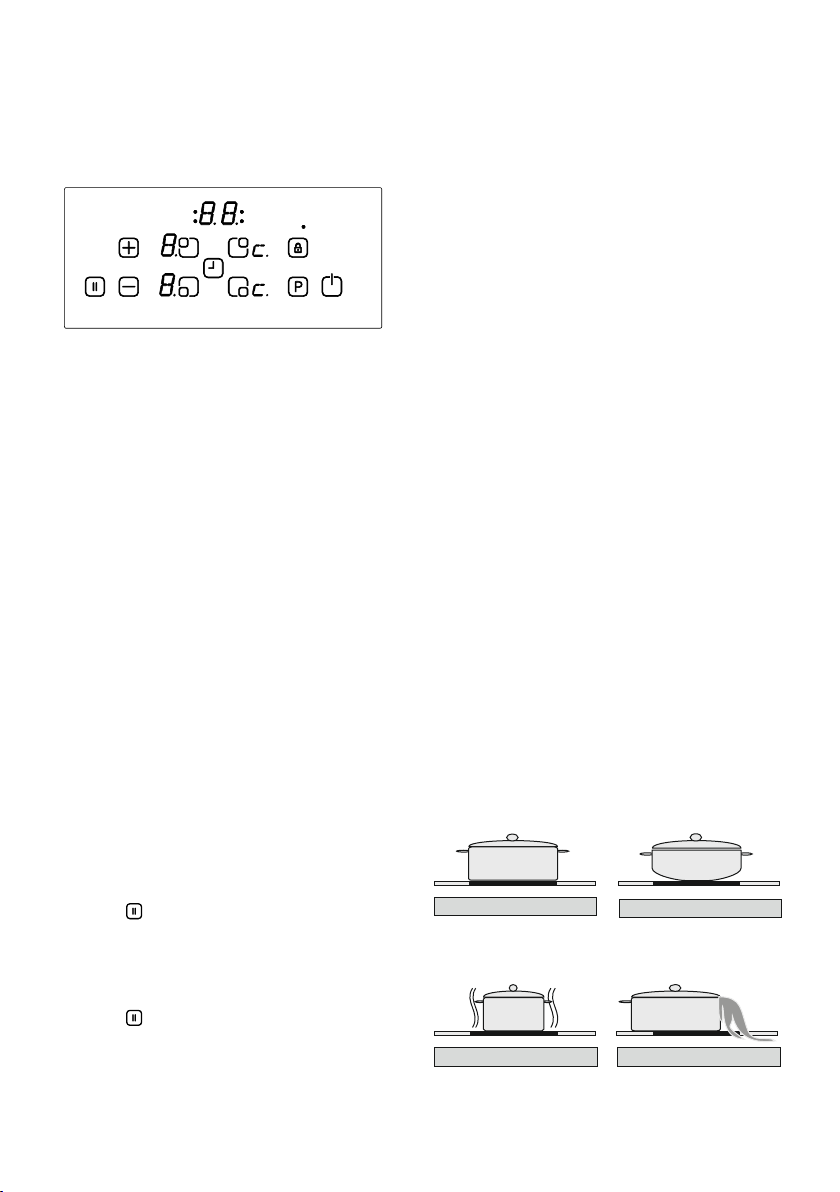

Control Panel for 4 heaters:
1- Increase heat setting/timer
2- Heater display
3- Upper left heater selection
4- Timer display
5- Upper right heater selection
6- Key lock
7- Key lock indicator
8- Smart Pause
9- Decrease heat setting/timer
10- Lower left heater selection
11- Timer
12- Lower right heater selection
13- Boost
14- On/Off
23
12
9 1310
7
6
14
8
15
11
4

EN
OPERATION OF THE
APPLIANCE
Use the induction cooking zones with
suitable cookware.
After the power supply is turned on, all
of displays light up for a moment. When
this time is over, the hob goes into stand-
by mode and is ready for operation.
The hob is controlled with electronic
sensors which are operated by touching
the related sensors. Each sensor
activation is followed by a sound signal
(buzzer).
Switching the appliance on:
Switch the hob on by pressing the ON/
OFF key All heater displays show a
static "0" and the bottom right dots blink.
(If no cooking-zone is selected within 20
seconds, the hob will automatically turn
off.)
Switching the appliance off:
Switch the hob off at any time by
pressing .
The ON/OFF key always has
priority in the switch off function.
Switching the cooking-zones
on:
Press the heater selection key you
wish to cook on. There is a static dot
indication on the selected heater display
and the blinking dot on all other displays
switch off.
Select the temperature setting by using
the increase heat setting key or
decrease the heat setting key
. The element is now ready to cook
on. For quickest boil times, select the
desired cooking level and then press
the P key to activate the Boost function.
Switching the cooking-zones
off:
Select the element you want to switch
off by pressing the related increase
heat setting key .
Using the key, turn the
temperature down to ''0''. (Additionally,
using the and keys
simultaneously turns the temperature
to ''0'')
If the cooking zone is hot, "H" will be
displayed instead of "0".
Switching all the cooking-zones
off:
To turn all the cooking zones off at once,
press the key.
In stand-by mode, an "H" appears on all
cooking zones which are hot.
Residual heat indicator:
Residual heat indicator indicates that
the ceramic glass has a dangerous
touch temperature in the circumference
of the cooking zone.
After switching off the cooking zone, the
respective display shows an "H" until
the assigned cooking zone temperature
is in an uncritical level.

EN
Safety switch off function:
Every cooking zone will be switched
offafteradenedmaximumoperation
timeiftheheatsettingisnotmodied.
Every change in the cooking zone puts
the maximum operation time back to
the initial value of the operating time
limitation. The maximum operation time
depends on the selected temperature
level.
Wait until ‘F’ disappears for all
zones,turn the hob on by touching
and continue to use.
Heat setting Safety switch
off after
1 - 2 6 Hours
3 - 4 5 Hours
5 4 Hours
6 - 9 1,5 Hours
Child Lock:
The child lock function can be activated
after switching the control on. To
activate the child lock, simultaneously
operate the front increase heat setting
key and the decrease heat
setting key and then operate the
increase heat setting key again.
"L" meaning LOCKED will appear in
all heater displays and the control can
not be changed. (If a cooking zone is
in the hot condition, "L" and "H" will be
displayed in alternation.)
The hob will remain in a locked
condition until it gets unlocked, even if
the control has been switched on and
off.
Todeactivatethechildlock,rstswitch
the hob on. Simultaneously operate
the front increase heat setting key
and the decrease heat setting key
and then operate the decrease heat
setting
key again. "L" will disappear in the
display and the hob will be switched
off.
Key Lock
Key lock functionality is for blocking
and setting the appliance into safe
mode during operation. Touch
modicationsas,forexample,
increasing heat settings and others
should not be possible. Only switching
the appliance off is possible.
The lock function becomes active if
the Key Lock button is pressed
for at least 2 seconds. This operation
is acknowledged by a buzzer. After
a successful operation of more than
2 seconds, the Key Lock Indicator
ashesandtheheaterbecomes
locked.
Timer function :
The timer function is carried out in two
versions:
Minute minder timer (1to 99
minutes):
The minute minder timer can be

EN
operated if the cooking zones are
switched off. The timer display displays
"00" with a blinking dot.
Press the timer setting key to
increase the time or press to
decrease the time. Adjustment range
is between 0 and 99 minutes. If there
is no operation in 10 seconds, the
minute minder timer will be set and
the blinking dot will disappear. After
the timer is set, the time runs down
according to the adjustment.
When the time is over, a signal sounds
and the timer display blinks. The sound
signal will be stopped automatically
after 30 seconds and/or by operating
any key.
The minute minder timer can be
changed or switched off anytime by
operating the increase timer key
and/or decrease timer key .
Switching off the hob by pressing
at any time will also switch off the
minute minder timer.
Cooking zone timer (1 to 99
minutes):
When the hob is switched on, an
independent timer can be programmed
for every cooking zone.
Select a cooking zone, then select the
temperaturesettingandnallyactivate
the timer setting
key , the timer can be programmed
as a switch off function for a cooking
zone. Four LEDs are arranged around
the timer. These indicate for which
cooking zone the timer has been
activated.
10 seconds after the last operation,
the timer display changes to the timer
that will run out next (in the event of
programming more than 1 cooking
zone).
When the timer has run down, a
signal sounds and the timer display
displays "00" statically, the assigned
cooking zone timer LED blinks.
The programmed cooking zone will
be switched off and the "H" will be
displayed if the cooking zone is hot.
The sound signal and the blinking
of the LED timer will be stopped
automatically after 30 seconds and/or
by operating any key.
Buzzer :
While the hob is in operation, the
following activities will be signalled by
means of a buzzer:
Normal key activation with a short
sound signal
Continuous operation of keys over a
longer period of time (10 seconds) with
a longer, intermittent sound signal.
Boost Function:
A cooking zone has to be selected,
cooking level set to the "desired
cooking level" and the P (Boost) key
has to be pressed again.
The Boost-Function can be activated
if the induction module accepts the

EN
setting on this cooking zone. If the
Boost Function is active, a "P" is
displayed on the corresponding
display.
Activating the booster can exceed the
maximum power and the integrated
power management will be activated.
The necessary power reduction
is shown by the blinking of the
corresponding cooking zone display.
Blinking is active for 3 seconds and
allows further adaptations of the
settings before power reduction.
Boiling function**
This function allows for the boiling of
water and keeping it near the boiling
point . To activate the boiling function
press the heater selection key twice.
When the boiling function is active,
the related display shows a 'b'. After
boiling the water, the hob gives a beep
signal. This signal shows that the
boilingisnished
simmering is taking place.
The rear right heater display indicates
the boiling function
Frying function
This function provides the frying of oil
at around 160°C. To activate the frying
function, press the
heater selection key three times. When
the frying function is active, the related
display shows an 'F'. The hob gives a
beep signal after a while. This signal
shows the oil is ready to fry.
Front right heater display indicates the
frying function
Keep warm function**
This function ensures the dish is
automatically kept at a temperature
near 50°C . To activate the keep warm
function, press the heater selection
key four times. When the keep warm
function, the active related display
shows a 'u'.
The rear right heater display indicates
the keep warm function
Chocolate melting function
This function allows for the
melting of chocolate or similar
things automatically kept near the
temperature of 40°C .To
activate the chocolate melting function,
presstheheaterselectionkeyve

EN
times. When the
chocolate melting function is active, the
related display shows 'c'.
Front right heater display indicates the
chocolate melting function
**These perform and time may vary
according to amount of food quantity
and pan quality.1.5 litre
water and 0.5 litre oil give the best
cooking performance with these
functions.
Smart Pause
The Smart Pause, when activated,
reduces the power of all burners that
have been switched on.
If you then deactivate the Smart
Pause, the heaters will automatically
return to the previous level.
If the Smart Pause is not de-activated,
the cooktop will turn off after 30
minutes.
Press ( ) to activate Smart Pause.
The power for the activated heater(s)
will reduce to level 1 and “II” will
appear on all the displays.
Press ( ) again to deactivate
Smart Pause. “II” will disappear and
the heaters will now run at the level
previously set.
HINTS AND TIPS
Cookware
· Usethick,at,smoothbottomed
cookware, that has the same diameter
as the element. This will help reduce
cooking times.
· Cookware made of steel, enamelled
steel, cast iron and stainless steel
(if appropriately labelled by the
manufacturer) will give you the best
results.
· Cookware made of enamelled steel
or aluminium or copper bottoms can
cause a metallic residue to remain on
thehob.Ifleft,thisbecomesdifcultto
remove. Clean the hob after every use.
· Cookware is suitable for induction if
a magnet sticks to the bottom of the
cookware.
· The cookware must be placed
centrally on the cooking zone. If it is
not placed correctly, is displayed.
· When using certain pans, you may
get various noises from the pans, this
is due to the design of the pans and
does not effect the performance or
safety of the hob.
CORRECT FALSE
FALSE FALSE

EN
Energy saving
· Induction cooking zones adapt
automatically to the size of the
cookware bottom up to a certain
limit. However, the magnetic part of
the cookware bottom must have a
minimum diameter depending upon the
size of the cooking zone.
· Place the cookware on the cooking
zone before it is switched on. If it is
switched on before putting any
cookware on it, the cooking zone will
not operate and the control display
shows.
· Use a lid to reduce cooking time.
· When liquid comes to the boil, reduce
the temperature setting.
· Minimize the amount of liquid or fat to
reduce cooking times.
· Select the proper temperature setting
for the cooking applications.
Examples of cooking
applications
The information given in the following
table is for guidance only.
Settings Use for
0Element off
1- 3 Delicate warning
4 - 5 Gentle simmering,
slow warning
6 - 7 Reheating and ra-
pid simmering
8Boiling, sauté and
searing
9Maximum heat
PBoost function
Cleaning tips
· Do not use abrasive pads, corrosive
cleaners, aerosol cleaners or sharp
objects to clean the surfaces of the
hob.
· To remove burnt food, soak it off with
a damp cloth and washing-up liquid.
· You may use a scraper for cleaning
food or residues. Sticky foods must be
cleaned immediately when they spill,
before the glass has cooled down.
· Be careful not to scratch the silicon
adhesive placed on the edges of the
glass whilst using a scraper.
· The scraper has a razor, therefore, it
must be kept away from children.
· Use a special ceramic hob cleaner
on the hob while it is warm to touch.
Rinse and wipe dry with a clean cloth
or paper towel.
INSTALLATION OF THE
APPLIANCE
WARNING:
The electrical connection of this hob
shouldbecarriedoutbyaqualied
electrician, according to the instructions
in this guide and in compliance with
the current regulations. In the event
of any damage that occurs as a result
of improper connection or installation,
the warranty will not be valid. This
appliance must be grounded.
Installation safety
·Any overhanging surface should be at

EN
least 65cm above the hob.
· Extractorfansmustbettedin
accordance with the manufacturer's
instructions.
· The wall in contact with the rear of
thehobmustbemadeofameproof
material.
· The power cable length should not
exceed 2 metres.
Fitting the hob into a work
surface
· The hob can be inserted into any
worktop provided it is heat resistant up
to at least 90ºC.
· Create an opening with the
dimensions shown in the picture below
and on the next page.
· The induction hob may be built in 25
to 40 mm thick worktops.
W (mm) D (mm) H (mm)
520
590 53
PRODUCT DIMENSION
CUT OUT DIMENSION C1 (mm) C2 (mm)
560 480
NEIGHBOUR HOOD WALLS MIN A (mm) MIN B (mm)
WOOD /
CONCRETE OR CERAMIC
TILED
50 50

EN
W (mm) D (mm) H (mm)
520
590 53
PRODUCT DIMENSION
·
CUTOUT DIMENSION C1 (mm) C2 (mm)
560 480
NEIGHBOUR HOOD WALLS MIN A (mm) MIN B (mm)
WOOD /
CONCRETE OR CERAMIC
TILED
50 50
Apply one-sided self-adhesive sealing
tape supplied all the way round the
lower glass edge of the cooking sur-
face along the outer edge of the glass
ceramic panel. Do not stretch it.

EN
· Screw the 4 worktop mounting brac-
kets on the side walls of the product.
Worktop mounting bracket
Making an electrical connecti-
on
Before making a connection, check
that:
The voltage power supply is the same
as that quoted on the rating plate which
is situated at the back of your hob.
The circuit can support the appliance
load (see the rating plate).
The power supply has a grounded
connection connection, which complies
with the provisions of current regulati-
ons and is in good working order.
The fused switch is easily accessible
once the hob has been installed.
If there is no dedicated hob circuit and
fused switch, they must be installed by
aqualiedelectricianbeforethehobis
connected.
An approved suitable cable must be
connected from the Consumer Unit
(main fuse box) and be protected by
its own 50amp fuse or Micro Circuit
Breaker (MCB). The electrician must
provide a fused all pole switch, which
disconnects both the line (live) and
neutral conductors with a contact sepa-
ration of at least 3.0 mm.
Thefusedswitchshouldbettedtothe
kitchen wall, above the work surface
and to the side of the hob, not above
it, in accordance with IEE regulations.
Connect the fused switch to a junction
boxwhichshouldbettedonthewall
about61cm(24inches)aboveoorle-
vel and behind the hob. The hob’s po-
wer supply cable can then be connec-
ted. Connect one end to the junction
box and connect the other end to the
hob’s power connection box which is
located at the back of the hob. Remove
the cover of the power connection box
and install the cable, in accordance
with the connection diagram.
The power supply cable must be posi-
tioned away from direct heat sources.
It should not be to a temperature rise
of more than 50°C above room tempe-
rature.

EN
For the induction hob, the cable must
be H05VV-F 5X2,5 mm² 60227 IEC 53
••.Youwillndtheconnectiondiagram
shown on the bottom of your appliance.
ERROR CODES
If there is an error, error code will be
showed at heater displays.
E1 : The cooling Fan is disabled, call
an authorized service agent.
E3 : The power supply voltage is over
the rated values, turn the hob off by
touching ,wait until “H” disappears
for all zones, turn the hob on by pres-
sing and continue
to use. If same error appears, call an
authorized service agent.
E4 : Supply frequency is different from
the rated values, turn the hob off by
touching , wait until “H” disappe-
ars for all zones, turn the hob on by
pressing and continue to use. If
same error appears, plug off/on turn
the hob on by pressing continue
to use it. If the same error appears, call
an authorized service agent.
E5 : The hob inside temperature is too
high, turn the hob off by pressing
to let the heaters cool down.
E6 : Communication error between
touch control and heater, call an aut-
horized
service agent.
E7 : The coil temperature sensor is
disabled, call an authorized service
agent.
E8: The cooler temperature sensor is
disabled, call an authorized service
agent.
E9 : Calibration error, call an authori-
zed service agent.
2L+2N 230V~ 400V 3N~
4
N1
5
N2
4
5
N
PE
L2
L2 L3
L1
L1
3
3
2
2
1
1
PE
