Sharp AQUOS LC-45LE280X User manual

1 2
Printed in Malaysia
TINS-G753WJZZ
16P12-MA-NF
LC-45LE280X
LED BACKLIGHT TV
OPERATION MANUAL
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many
years of trouble-free operation of your product, please read the Important Safety Precautions
carefully before using this product.
Contents
Page
Dear SHARP customer.........................1
Supplied accessories...........................2
Important Safety Precautions .............3
Trademarks...........................................4
Attaching the stand ..............................5
Antenna connection .............................6
Connecting external devices...............7
Remote control unit .............................9
Part names ..........................................10
Turning the TV on/off .........................12
Easy setup...........................................12
Digital setting......................................12
Analogue setting.................................13
Menu operation...................................13
Initial setup..........................................14
Information..........................................17
Picture settings...................................17
Page
Audio settings.....................................18
System options ...................................19
Programme Guide ..............................21
Info.......................................................21
ATV/DTV/RADIO buttons ...................21
Switching the analogue audio
format ..................................................22
EPG ......................................................23
SUPER ECO mode..............................23
Colour adjustment and still image....24
Using a Smartphone with the TV ......24
Teletext function.................................25
PC compatibility chart .......................26
USB Media Player...............................27
Appendix .............................................30
Specifications .....................................31

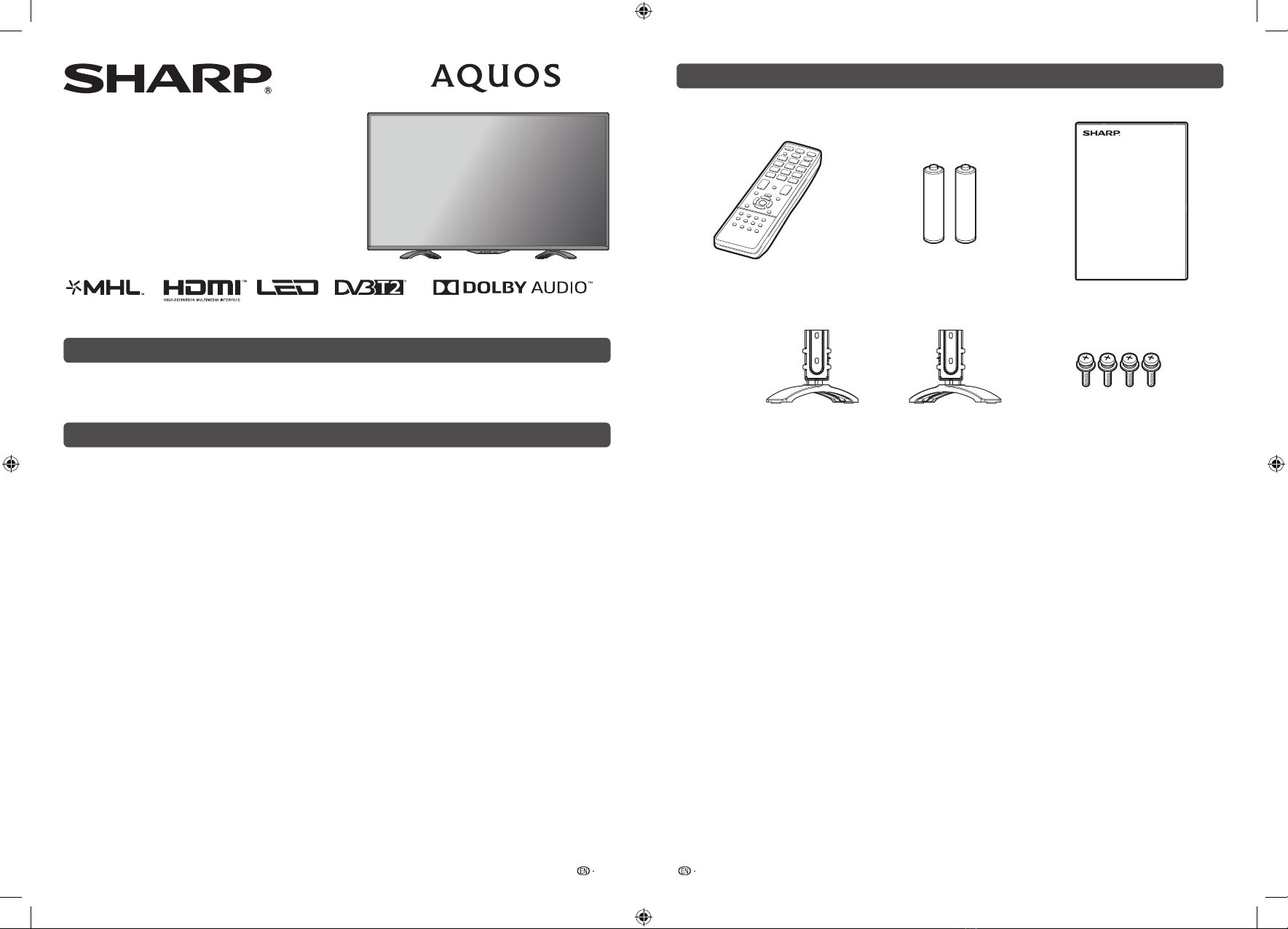

Supplied accessories
Remote control unit “AAA” size battery (g2) Operation manual
Stand unit
Stand base
with letter “R”
Stand assembly
Stand base
with letter “L”
Screws (g4)
LC-45LE280X_G753_EN.indd 1 11/15/2016 4:08:53 PM

3 4
Important Safety Precautions
•Stand base must be attached to prevent the TV set from falling down and cause injuries.
•Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a soft damp cloth to clean the
product. Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the
product.
•Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub,
swimming pool and in a wet basement.
•Do not place vases or any other water-filled containers on this product.
The water may spill onto the product causing fire or electric shock.
•Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall,
resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
•When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and
uneven floor surface can cause the product to fall from the cart.
•Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents
and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the
product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed
for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation
is provided or the manufacturer’s instructions are followed.
•The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a
sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.
•Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including amplifiers).
•To prevent fire, never place any type of candle or naked flames on the top or near the TV set.
•To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.
•Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take
special care near children and pets.
•The LCD panel is a very high technology product with 2,073,600 pixels, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of
blue, green or red.
This is within product specifications and does not constitute a fault.
•Precautions when transporting the TV
When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry
the TV by two people holding it with two hands — one hand on each side of the TV.
•Do not display a still picture for a long time, as this could cause an afterimage to remain.
•Install the product on the place where the AC cord can be unplugged easily from the AC outlet or from the AC INPUT
terminal on the rear of the product.
•If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture
and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
•Do not install the TV in a location in which it will be subject to water drops such as underneath an air conditioning unit or in
the vicinity of a humidifier.
• Water drops falling onto the TV and water entering inside it may result in fire, electric shock, or malfunctions.
• We recommend that you install the TV at least 1 m away from the outlet of an air conditioner.
Trademarks
•The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing, LLC in the United States and other countries.
•Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of
Dolby Laboratories.
•MHL, Mobile High-Definition Link and the MHL Logo are trademarks or registered trademarks of the MHL, LLC.
•LC_LCFONT+and LC logo mark are registered trademarks of SHARP Corporation. This product
is embedded with LC Font technology, which was developed by SHARP Corporation for clearly displaying easy-to-read
characters on an LCD screen. However, other non-LCD fonts are used for displaying some screen pages.
LC-45LE280X_G753_EN.indd 2 11/15/2016 4:08:53 PM

5 6
Attaching the stand
•Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.
•Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from
being damaged.
1Confirm the screws supplied with the TV.
Screws (× 4)
2Insert the stand assembly into the openings on the bottom of the TV. (1)
3Insert and tighten the screws into the holes on the rear of the TV. (2)
1
2
Soft cushion
Stand base with letter “L”
Stand base with letter “R”
NOTE
•To detach the stand, perform the steps in reverse order.
•Do not attach or detach the stand without holding it. Doing so can cause the stand to fall, resulting in serious personal
injuries as well as damage to the stand.
Antenna connection
Connect antenna cable to the antenna terminal
If your outdoor antenna uses a 75-ohm coaxial
cable with a standard DIN45325 plug
(IEC 169-2), plug it into the antenna jack at the
rear of the set.
CAUTION
•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH
THE AC CORD CONNECTED.
NOTE
•Place the TV close to the AC outlet, and keep the power plug within reach.
LC-45LE280X_G753_EN.indd 3 11/15/2016 4:08:54 PM

7 8
Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD
player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from
INPUT on the remote control unit or INPUT on the TV.
CAUTION
•To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV STB (Set Top Box), PC or other external equipment.
•Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.
Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected
using the INPUT 3 terminal.
When using composite cable (commercially available)
VCR/Game console/
Camcorder
INPUT 3
R - AUDIO - L VIDEO
Connecting a DVD player/Digital TV STB (Set Top Box)
You can use the INPUT 1 (HDMI/ARC)/INPUT 2 (HDMI/MHL) or INPUT 3 terminals when connecting to a DVD
player/Digital TV STB (Set Top Box) and other audiovisual equipment.
When using HDMI-certified cable (commercially available)
INPUT 1
ARC
DVD player/Digital TV STB
(Set Top Box)
Connecting a PC
You can use the INPUT 1 (HDMI/ARC)/INPUT 2 (HDMI/MHL) terminal when connecting to a PC.
INPUT 1
ARC
INPUT 2
MHL
(DC5V 0.9A)
PC
Connecting external devices (Continued)
Connecting a USB device
Connect a USB device to the TV.
USB
(DC5V 1.5A)
CAUTION
•Do not disconnect a USB device from the TV while transferring files, when a screen is in “USB” mode.
LC-45LE280X_G753_EN.indd 4 11/15/2016 4:08:58 PM

9 10

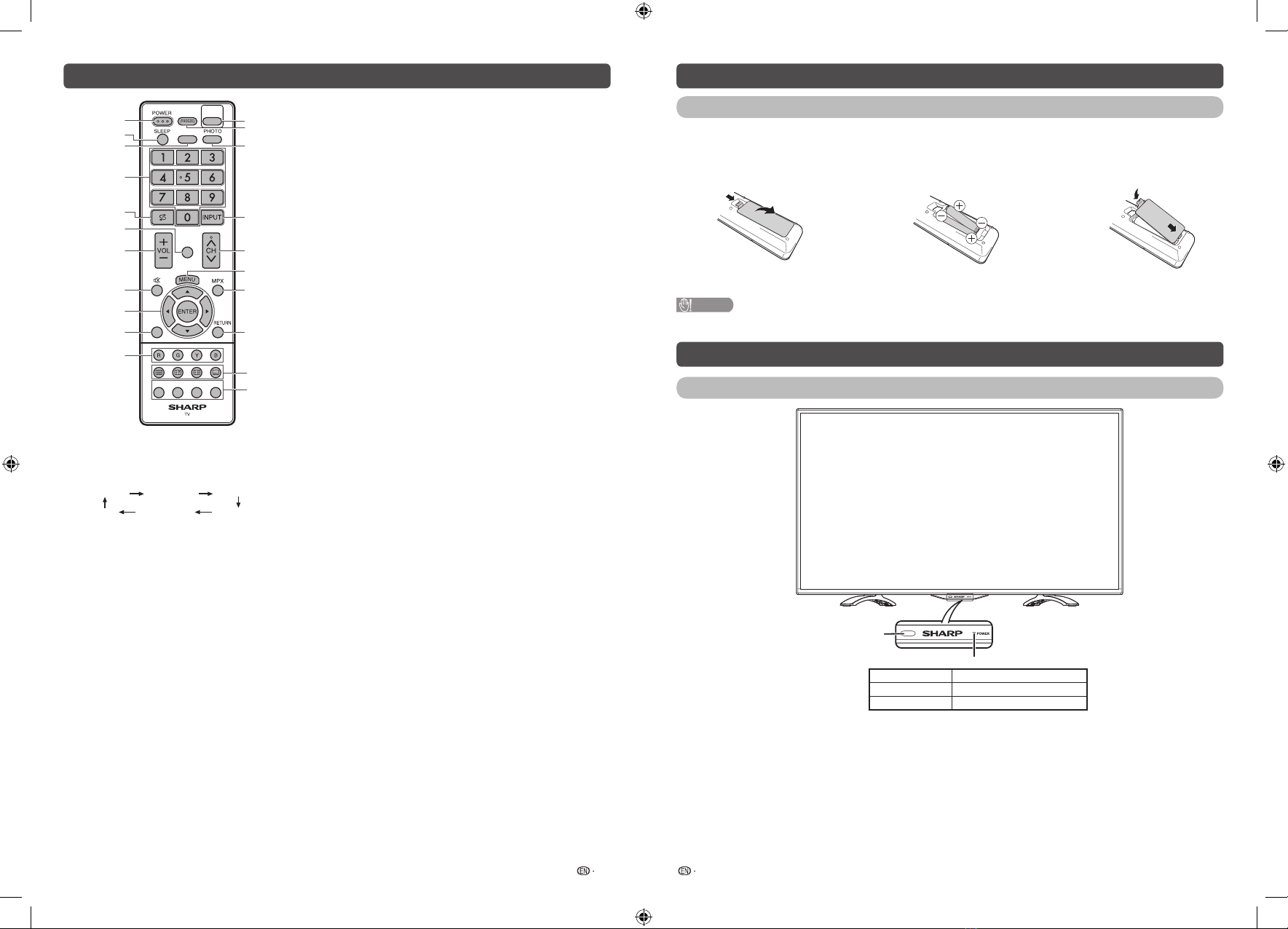

Remote control unit
DISPLAY
ATV/DTV
EPG
HDMI
SUPER
ECO
COLOUR
ADJ.
GUIDE INFO RADIO
1
2
5
7
8
9
11
6
3
4
12
13
14
15
16
17
18
10 19
20
21
8 e(Mute)
Press esMutes sound.
Press eagain sRestores sound.
Mute will be cancelled after 30 minutes. However, the TV will
not suddenly output loud sound as the volume level will be
set to 0 automatically. Increase the volume level by pressing
VOLk.
9 a/b/c/d(Cursor)
Select a desired item on the setting screen.
ENTER
Execute a command.
10 ATV/DTVATV/DTV
Press to access analogue and digital TV mode. (See page 21.)
11 Colour (Red/Green/Yellow/Blue)
The coloured buttons are correspondingly used to select the
coloured items on the screen.
TELETEXT mode: Select a page. (See page 25.)
12 SUPER ECO
Reduce overall power consumption based on user
preferences. (See page 23.)
13 COLOUR ADJ. (FREEZE)
Freeze a motion picture on the screen and adjust the colour
tone of the still image. (See page 24.)
14 PHOTO
Display your pictures directly on the TV screen. (See page 27.)
15 INPUT (INPUT SOURCE)
Select an input source.
16 CHr/CHs
TV input mode: Select the channel.
(CHr) Increase the channel number.
(CHs) Decrease the channel number.
TELETEXT mode: Select a page. (See page 25.)
17 MENU
Display the menu screen.
18 MPX
Select the sound multiplex mode.
19 RETURN
MENU mode: Return to the previous menu screen.
20 m(TELETEXT), k(Reveal hidden for TELETEXT),
3(Hold), [(SUBTITLE for TELETEXT)
Use for TELETEXT mode. (See page 25.)
21 EPG
DTV mode: To display EPG (Electronic Programme Guide)
screen. (See page 23.)
GUIDE
DTV mode: Display the programme channel list. (See page 21.)
INFO
DTV mode: Display the programme information. (See page 21.)
RADIO
Press to access RADIO mode. (See page 21.)
1 POWER (STANDBY/ON)
To switch the power on and off. (See page 12.)
2 SLEEP
Set the Sleep timer.
0 hr. 30 min. 1 hr. 00 min.
2 hr. 30 min.
1 hr. 30 min.
2 hr. 00 min.
Off
3 HDMI
Select the HDMI input mode.
4 0 – 9
Set the channel.
TELETEXT mode: Set the page. (See page 25.)
5 A(Flashback)
Press Ato return to the previous selected channel
or external input mode.
6 DISPLAY
Display the channel or input information.
7 VOLk/VOLl
Set the volume.
(VOLk) Increase the volume.
(VOLl) Decrease the volume.
Remote control unit (Continued)
Inserting the batteries
Before using the TV for the first time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.
1Open the battery cover. 2Insert the two supplied “AAA” size
batteries.
3Close the battery cover.
•Place batteries with their terminals corresponding to
the (e) and (f) indications in the battery compartment.
CAUTION
•Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Part names
TV (Front)
POWER indicator
Light off Power off.
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
Remote control sensor
LC-45LE280X_G753_EN.indd 5 11/15/2016 4:08:59 PM

11 12
Part names (Continued)
TV (Rear)
1
3
4
5
6
2
7
12
8
9
10
11
AUDIO OUT
(L/R)
SERVICE
ONLY
ANT
USB
(DC5V 1.5A)
INPUT 2
MHL
(DC5V 0.9A)
INPUT 1
ARC
INPUT 3
R - AUDIO - L VIDEO
1 /AUDIO OUT (L/R) terminal
2 SERVICE ONLY terminal**
3 Antenna input terminal
4 USB terminal*
5 INPUT 2 (HDMI/MHL) terminal
6 INPUT 1 (HDMI/ARC) terminal
7 POWER (On/Off) button
8 MENU button
9 INPUT button
10 Channel up (r)/down (s) buttons
11 Volume up (e)/down (f) buttons
12 INPUT 3 terminals
* USB terminal use for USB media player. (See page 27.)
** Usually do not connect anything to this terminal as it reserved only for service personnel.
•The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from
the actual operations.
•Some features differ depending on the selected country.
Turning the TV on/off
Turning on/off the power
•To turn on the power
Press POWER on the TV or remote control. (After a few
seconds, an image appears with sound.)
•To turn off the power
Switch it off by pressing POWER on the TV or remote
control.
NOTE
•If you are not going to use this TV for a long period of time,
be sure to remove the AC cord from the AC outlet.
•Minor power is consumed when the unit is in standby
mode.
Easy setup
When the TV powers on for the first time after
purchase, the initial auto installation wizard appears.
Follow the menu and make the necessary settings
one after another.
1Press POWER on the remote control.
•Theinitialautoinstallationwizardappears.
Press ENTER to start the wizard.
2Press a/bto select the desired language, and
then press ENTER.
Press a/bto select your country channels in
“Location”, and then press ENTER.
Press c/dto select “Home” or “Store”, and
then press ENTER.
Home:
•“STANDARD”willbethedefaultvalueforthe
“AV mode” setting.
Store:
•“DYNAMIC(Fixed)”willbethedefaultvalue
for the “AV mode” setting. If the “AV mode” is
changed, the TV will automatically switch back to
“DYNAMIC (Fixed)” when there is no further change
to TV setting for 30 minutes.
•TochangetheStoremodetoHomemode,please
refer to page 16 to reset the unit.
3Press a/bto select “DTV”, “ATV” or
“DTV + ATV” in “Search type”, and then press
ENTER.
•Autoinstallationwillbeexecuted.
•Youdonotneedtodoanythingduringtheauto
search.
•Ifyouselect“Others”country,someofDTVchannel
may not tune properly.
Press c/d to select “Start” or “Cancel”, and
then press ENTER for searching receivable
channels.
NOTE
•In the setting of some country, selecting of “DTV”, “ATV”
or “DTV + ATV” may not be shown.
•A region or service selection screen may display depending
on the country settings or cable providers selections.
Follow the screen prompts to make the selections.
Digital setting
You can reconfigure DTV services settings
automatically or manually.
1Press MENU and the MENU screen displays.
2Press c/dto select “Initial setup”.
3Press a/bto select “Digital setting”, and
then press ENTER. If you have already set the
password, enter it here.
•See“Childlock”tosetpassword.
4Press a/bto select the desired menu item,
and then press ENTER.
HAuto search
Use this menu to add new services automatically
after auto installation has been completed.
•Pressa/bto select “DTV” or “DTV+ATV”.
HManual search
Add new services within a specified channel band.
•Pressc/dto find the channel and then press ENTER.
HSignal information
Use this menu to check signal information depends
on receiving channel.
LC-45LE280X_G753_EN.indd 6 11/15/2016 4:09:00 PM

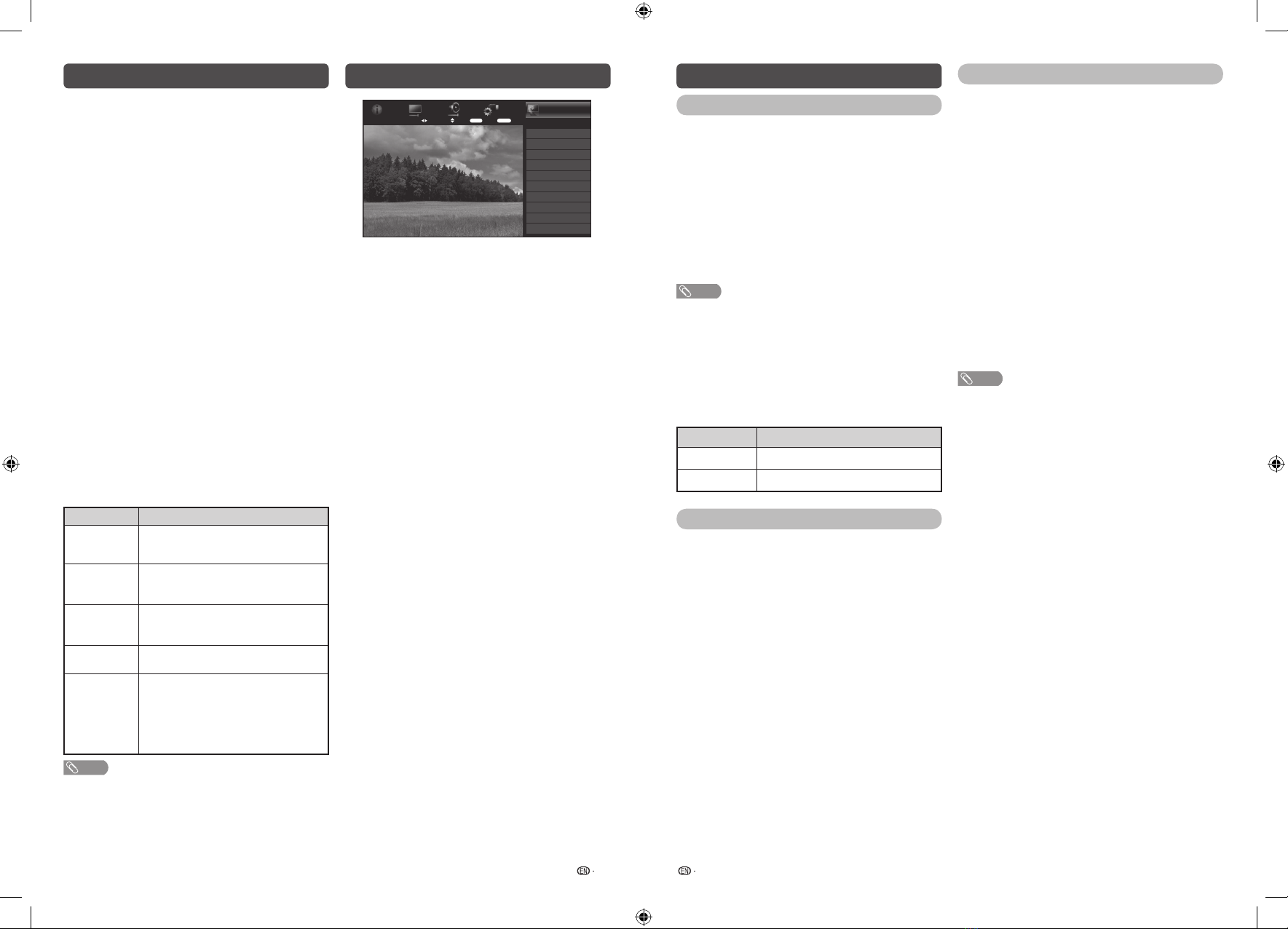

13 14
Analogue setting
You can reconfigure the TV channel settings
automatically or manually using Auto search or
Manual adjust.
HAuto search
You can also automatically search by performing
the procedure below. This is the same function as
programme auto search in auto installation.
1Press MENU and the MENU screen displays.
2Press c/dto select “Initial setup”.
3Press a/bto select “Analogue setting”, and
then press ENTER. If you have already set the
password, enter it here.
•See“Childlock”tosetpassword.
4Press a/bto select “Auto search”, and then
press ENTER.
You do not need to do anything during the auto
search. Press MENU to exit.
HManual adjust
You can set some channel items manually.
1Repeat steps 1 to 3 in Auto search.
2Press a/bto select “Manual adjust”, and then
press ENTER.
3Press a/bto select your desired item, press
ENTER,and then press a/bor c/dto adjust
the settings.
Item Description
Current CH Select the channel you want to edit.
• Selected channel will be automatically
reflected in the background.
Sound
system
Select the optimum sound system
(Broadcasting system) to receive.
(B/G, D/K, I, M)
Colour
system
Select the optimum colour system to
receive. (NTSC 3.58, NTSC 4.43, PAL,
SECAM)
Search Start searching from current channel.
• Press c/dto auto search.
Fine-tune Tune the frequency of the stored channel
to your desired position.
• Instead of pressing c/d, you can set by
directly entering the frequency number of the
channel with 0−9 and then press ENTER
to adjust while checking the background
picture as a reference.
NOTE
•ThefrequencyshownbelowtheOn-ScreenDisplayshows
the real-time frequency of the displayed channel.
Menu operation
Initial setup
Easy setup
Digital setting
Analogue setting
Time setting
Language
Child lock
Programme edit
Quick start mode
[English]
[Off]
Input settings
Reset
Menu
Initial
setup
System
options
Audio
settings
settings
Information
TV
Select menu Select
ENTER
Enter
RETURN
Exit
1Press MENU and the MENU screen displays.
2Press c/dto select the desired menu.
(Initial setup, Information, Picture settings, Audio
settings, System options)
3Press a/bto select the desired menu item.
Press ENTER to proceed if necessary.
4Press a/bor c/dto select the desired item
or adjust the item to the desired level. Press
ENTER if necessary.
5Press RETURN as necessary to return to
the previous MENU. Press MENU to exit the
MENU.
Initial setup
Time setting
This function can display the time, data on screen
and channel’s timetable with updated time info.
1Repeat steps 1 and 2 in Menu operation.
2Press a/bto select “Time setting”, and then
press ENTER.
3Press a/bto select the desired menu item,
and then press ENTER.
HTime adjustment
This function allows you to set the clock manually.
NOTE
•Ifyouselect“On”in“Autosynchronization”theTVwilltry
to get the time for the broadcast. It will only be selectable
when “Auto synchronization” is set to “Off”.
•“Timezone”enablesyoutoselectyourlocaltimezone.
It will only be selectable when “Auto synchronization” is set
to “On”.
HTime display
This function allows you to display the clock time in
the lower-right corner of the screen.
Selected item Description
Off Hides the clock time.
On Displays the clock time.
Language
Select from among 11 languages: English, Simplified
Chinese, Arabic, French, Portuguese, Russian,
Persian, Thai, Vietnamese, Indonesian and Hebrew.
Child lock
Allows you to use a password to protect certain
settings from being accidentally changed.
HLock system
If the password is not set, the “Lock system” is
invalid.
Please make sure the “Lock system” is set to “On”
before the Child lock is set. (Off, On).
HSet password
1Repeat steps 1 and 2 in Menu operation.
2Press a/bto select “Child lock”, and then
press ENTER.
3If you have already set the password, enter it
here.
4Enter the 4-digit number as a password using
0 – 9.
5Enter the same 4-digit number as in step 4 to
confirm.
NOTE
•Toviewalockedchannel,youmustenterapassword.
When you select a locked channel, “Child lock has been
activated” is displayed.
•PressENTER to display the password input window.
HBlock programme
The “Block programme” can be select after “Lock
system” is set to “On”.
LC-45LE280X_G753_EN.indd 7 11/15/2016 4:09:00 PM

15 16
Initial setup (Continued)
HParental rating
This function allows TV channels to be restricted.
It prevents children from watching violent or sexual
scenes that may be considered inappropriate.
1Repeat steps 1 to 3 in Set password.
2Press a/bto select “Parental rating”, and then
press ENTER.
3Press a/bto select your desired rating, and
then press ENTER.
Selected item Description
Off Cancel the blocking.
Age xx years
Select desired age to block.
(Example) If age 14 is selected,
programmes rated for ages of 15 or
more are blocked.
Programme edit
Use this menu to set up a channel individually.
1Repeat steps 1 and 2 in Menu operation.
2Press a/bto select “Programme edit”, and
then press ENTER. If you have already set the
password at “Child lock”, enter it here.
•Seepage14tosetpassword.
3Press a/bto select the channel you want to
edit, press a/bto select item, and then press
ENTER and press RETURN to exit.
Selected item Description
Erase
Channels can be erased individually.
Press a/b to select “Yes” or “No”,
and then press ENTER to erase the
selected channel.
Label
You can change channel names
individually.
Maximum 5 alphanumerics can be
input.
Press ENTER to start labelling.
Press a/b to select a character,
press c/d to select next character,
and then press ENTER to save.
Sort Channel position can be sorted freely.
Skip Channels can be skip by select “Off”
or “On”.
Quick start mode
When this function is activated, you can reduce
the TV’s start-up time or even let the TV in standby
mode start displaying images and so on via the
connected equipment on the network. (Off, On).
NOTE
•Setting “Quick start mode” to “On” consumes more
power.
Initial setup (Continued)
Input settings
HHDMI auto view (HDMI input mode only)
Selected
item Description
Enable/
Disable
Set whether or not to use the Auto Selection
of WIDE MODE based on signal recognition
received from the HDMI signal.
HDigital audio
This function allows you to select the digital audio
signal type. (Off, Bitstream, PCM)
HAudio output select
You can select which device is used for outputting
audio.
Option Description
Headphone Output audio through headphones.
Audio out Output audio through an A/V receiver or
surround audio controller.
NOTE
•If you select “Headphone” when a cable is inserted in the
AUDIO output terminal, the TV speakers are muted and all
Audio menu items cannot be adjusted.
•If you select “Audio out”, sound via the AUDIO output
terminal is not adjustable and constantly outputs.
Regarding the headphone jack
•Use headphones with a stereo mini plug ( 3.5 mm).
•Be sure to unplug headphones from the jack when they
are not in use.
Volume display when headphones are plugged in
30
CAUTION
•AUDIO output terminal is also used for headphones.
Reduce the volume before using headphones.
Overwhelming sound may damage your hearing.
HColour system
You can change the colour system to one that is
compatible with the image on the screen. (Auto,
PAL, SECAM, NTSC 3.58, NTSC 4.43, PAL-60)
NOTE
•If “Auto” is selected, colour system for each channel is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, NTSC 4.43).
•“Colour system” is selectable only when inputting a
composite signal.
HLink setup
Link operation
Using the HDMI CEC (Consumer Electronics Control)
protocol, with Link operation you can interactively
operate compatible system equipment (e.g. DVD),
by connecting the link operation-compatible devices
with HDMI-certified cables to the TV.
Link operation allows you to operate the HDMI-
connected equipment and the TV by using a single
remote control unit. (Off, On)
Auto power on
If this is activated, the one touch play function
is enabled. While the TV is in standby mode, it
automatically turns on and plays back the image
from the HDMI source. (Off, On)
Speaker select
You can select to listen to the TV sound only from
the LINK-compatible audio system.
(Internal speakers, External device)
Audio return channel
If this function is set to “Auto”, the TV can send
audio data for video content shown on the TV
to a connected audio device with just one ARC-
compatible cable. Using this function eliminates the
need to use a separate digital or analogue audio
cable. (Off, Auto)
Connection for using “Audio return channel”
You need to use ARC-compatible cables/devices
and connect to the INPUT 1 terminal to activate this
function.
NOTE
•The ARC (Audio return channel) function works only when
using the INPUT 1 terminal.
•When you use an audio system compatible with the ARC
function of the TV, you do not need to connect an optical
audio cable to the TV.
HReset
If complex adjustments are made and the settings
cannot be restored to normal, you can reset the
settings to the factory preset values.
NOTE
•If you execute “Reset”, all the settings such as “Picture
settings”, “Audio settings” and “Initial setup” will be reset
to the factory preset values.
LC-45LE280X_G753_EN.indd 8 11/15/2016 4:09:00 PM

17 18
Information
Identification
You can check the current version of the software on
the screen.
Software update
This is used to upgrade the system software to
enhance the TV functions.
HManual update
Updates the software using a USB memory device
containing the update file.
HAuto update setting
OAD update
•This function is for automatically download the
data for the version update software over digital
broadcasts when the “OAD update” is set to “On”.
•To download, follow the instructions when the
download message appears during a digital
broadcast.
•Once the software upgrade is done, the TV will
automatically go to standby state with Red LED.
OAD scan
•This function is for manually download the data for
the version update software over digital broadcasts.
CAUTION
•Do not disconnect the AC cord when the software
upgrade is in progress, as this may cause the
upgrade to fail. If problem arises ask a qualified
service personnel before the software upgrade
period expires.
Software license
You can read the software license on the screen.
Picture settings
Selecting a preset AV mode
“AV mode” gives you several viewing options to
choose from to best match the system environment,
which can vary due to factors like room-brightness,
type of programme watched or the type of image
input from external equipment.
1Press MENU and the MENU screen displays.
2Press c/dto select “Picture settings”.
3Press a/bto select “AV mode”, and then
press ENTER.
Selected item Description
STANDARD For a highly defined image in a normally
bright room.
MOVIE For a movie.
PC For PC (Available only when inputting an
HDMI or PC signal).
USER Allows you to customise settings as
desired. You can set the mode for each
input source.
DYNAMIC For a clear-cut image emphasising high
contrast for sports viewing.
DYNAMIC
(Fixed)
Changes the image and sound settings
to the factory preset values. No
adjustments are allowed.
SUPER ECO Reduce the backlight brightness.
NOTE
•You can select a different AV mode item for each input
mode. (For example, select STANDARD for TV input and
DYNAMIC for VIDEO input.)
Adjustment items
Selected item cbutton dbutton
Backlight The screen dims The screen
brightens
Contrast For less contrast For more contrast
Brightness For less brightness
For more brightness
Colour For less colour
intensity
For more colour
intensity
Tint Skin tones become
reddish
Skin tones become
greenish
Sharpness For less sharpness
For more sharpness
Picture settings (Continued)
Advanced
This TV provides various advanced functions for
optimising the picture quality.
HDigital noise reduction
Reduces noise on screen and produces a clearer
video image. (Off, Low, Medium, High, Auto)
HEagle View*
“Eagle View” technology produces a sharp picture
from the original moving picture. (Off, On)
HAquoMotion Lite*
“AquoMotion Lite” technology provides superior
solutions for display picture quality removing motion
blur. (Off, High, Advance)
NOTE
*This effect is greater on fast moving images.
*This function will have no effect in the following cases.
1) The type of signal received is a PC signal.
2) An OSD is being displayed.
3) Teletext is activated.
*If images appear blurred or flickering, set to “Off”.
•“Picture settings” cannot be changed during
“DYNAMIC (Fixed)” mode.
•Forresettingall“Picturesettings”itemstofactorypreset
values, press a/bto select “Reset”, press ENTER, press
a/b to select “Yes”, and then press ENTER.
Audio settings
You can adjust the sound quality to your preference
with the following settings.
Selected item cbutton dbutton
Treble For weaker treble For stronger treble
Bass For weaker bass For stronger bass
Balance
Decrease audio
from the right
speaker
Decrease audio
from the left
speaker
HSurround
The surround function produces surround effect from
the speakers. (Off, On)
HBass enhancer powered by SRS Labs, Inc.
This function allows you to enjoy bass-enhanced
sound.
Selected item Description
On Bass enhancer function is on.
Off Outputs the normal sound.
NOTE
•If distorted bass sound is heard, set to “Off”.
HAuto volume
Different sound sources, fairly often do not have the
same volume level, for example the changing from
movie to the advertisements. Auto volume solves this
problem and equalises the volume levels. (Off, On)
NOTE
•For resetting all “Audio setting” items to factory preset
values, press a/b to select “Reset”, press ENTER, press
a/b to select “Yes”, and then press ENTER.
LC-45LE280X_G753_EN.indd 9 11/15/2016 4:09:00 PM

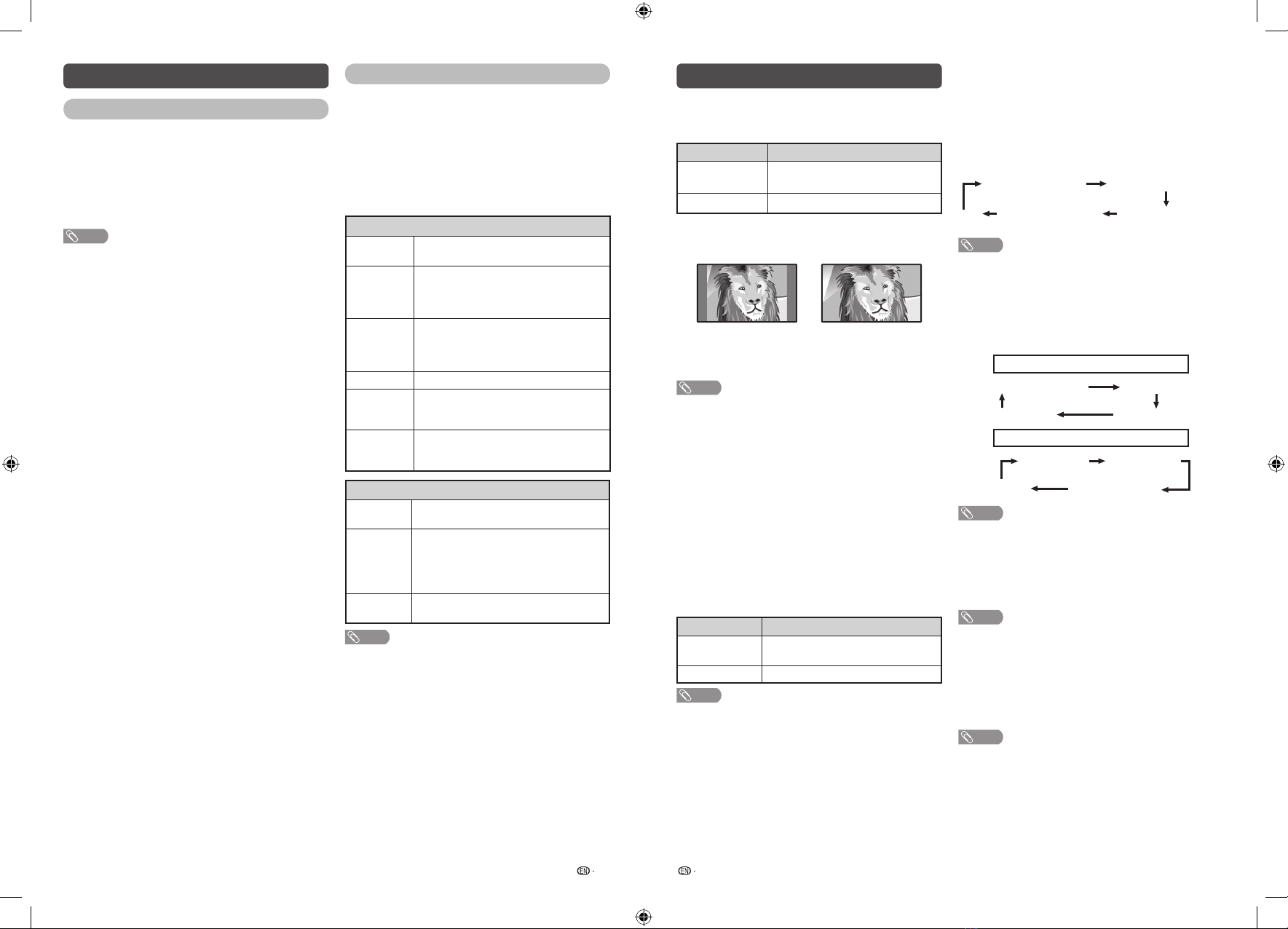

19 20
System options
Power control
Power control setting allows you to save energy.
HNo signal off
You can set the TV to automatically power off in
about 15 minutes after the TV goes into a state of
receiving no programme signals. (Enable, Disable)
•Five minutes before the power shuts down, the remaining
time displays every minute.
NOTE
•When a TV programme finishes, and the TV receives signal
input, this function may not operate.
HNo operation off
You can set the TV to automatically power off when
no TV operation is performed for more than 3 hours.
(Disable, 3 hours, 30 min.)
•Five minutes before the power shuts down, the remaining
time displays every minute.
View option
HWide mode
You can manually select the size of a picture
appeared on your screen.
Selectable picture size varies with the type of signal
received.
Press a/bwhile the wide mode menu displays on
the screen.
•As you toggle down the options, each mode is immediately
reflected on the TV.
Item (for SD [Standard-Definition] signals)
Normal Keeps the original aspect ratio in a full
screen display.
Zoom 14:9 For 14:9 letterbox pictures. A thin side bar
appears on each side, and you may also
see bars on the top and bottom with some
programmes.
Panorama In this mode, the picture is stretched
toward each side of the screen. The picture
may appear similar to “Full” depending on
broadcast signals.
Full For 16:9 squeeze pictures.
Cinema 16:9 For 16:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.
Cinema 14:9 For 14:9 letterbox pictures. Bars may
appear on the top and bottom with some
programmes.
Item (for HD [High-Definition] signals)
Full Displays with an overscan image. Crops all
sides of screen.
Underscan Display with an Underscan image only
when receiving a 720p signal. Display
with the High-Definition image adjusted
optimally. Noise may appear on the edge
of the screen with some programmes.
Dot by Dot Displays an image with the same number
of pixels on the screen.
NOTE
•“Zoom 14:9” and “Cinema 14:9” will appear only for TV
mode.
•Some items do not appear depending on the type of
received signal.
System options (Continued)
H4:3 mode (DTV input mode only)
The 4:3 mode allows you to select between “Normal”
and “Full”.
Selected item Description
Normal Normal range keeping 4:3 or 16:9
aspect ratio.
Full Wide image without side bars.
4:3 screen types
4:3 mode “Normal” 4:3 mode “Full”
HAuto wide (DTV input mode only)
The “Auto wide” allows the TV to switch automatically
among the different picture size. (Off, On)
NOTE
•Use “Wide mode” if an image does not switch to the
appropriate picture size. When the broadcast signal
contains no aspect ratio information, the function will not
work even if enabled.
HChange audio
MPX
Allows you to change the audio when multiple audio
is available for the programme you are watching.
(Auto, MONO)
Bilingual
Select from among 3 kinds of mode: DUAL I,
DUAL II and DUAL I + II.
Audio only
When listening to music from a music programme,
you can turn the screen off and enjoy audio only.
Selected item Description
Off Both screen images and audio are
output.
On Audio is output without screen image.
NOTE
•When you make operations that change the picture on the
TV such as by changing the input source, the “Audio only”
function is set to “Off”.
Audio description (DTV input mode only)
This function allows you to adjust volume output of
audio description if the TV receives a signal including
audio description.
Switching the multi audio languages
Each time you press MPX on the remote control, the
audio language switches.
1st audio language
1st audio language
+AD (if available)
2nd audio language
+AD (if available) 2nd audio language
••••
NOTE
•This function is valid only if broadcaster is transmitting
audio description.
Hearing impaired (DVB subtitle)
Each time you press [on the remote control,
the subtitle switches when the broadcast contains
subtitle information.
Set “Hearing impaired” to “On”
(Hearing impaired) 1st language
2nd language
Off ••••••••
Set “Hearing impaired” to “Off”
1st language 2nd language
(Hearing impaired)
Off ••••
NOTE
•This function is valid only if broadcaster is transmitting
multilingual subtitles.
Digital audio language
Set up to two preferred multi audio languages to
display if the audio languages are available.
(1st language, 2nd language)
NOTE
•If audio for the selected languages is not included in
a received broadcast, audio will not be output for that
language.
HChange subtitle
You can display subtitles for the hearing impaired in
the Teletext broadcast if the subtitle languages are
available. (1st language, 2nd language)
NOTE
•If subtitles for the selected language are not included in
a received broadcast, subtitles will not be shown for that
language.
LC-45LE280X_G753_EN.indd 10 11/15/2016 4:09:01 PM

21 22
System options (Continued)
Text language
Select from among 5 kinds of language: West
europe, East europe, Cyrillic, Arabic and Farsi.
NOTE
•Teletext can display only when it is sent by a network. Not
used to convert between languages.
HDemo (store mode only)
When “Store mode” is set to “On”, after all the
settings are completed, the Feature demo screen is
displayed if there is no operation for 30 seconds.
Programme Guide
You can check the current channel list of DTV/ATV
respectively.
1Press GUIDE to display the programme
channel list.
2Press a/bto select your desired programme,
and then press ENTER.
3Press RETURN or GUIDE to exit.
Info
While watching DTV you can check the extended
programme information on the screen using INFO
on the remote control.
General INFO screen
•Station name
•Title
•Date
•Time for the current programme
•Age
•Genre
•Programme info
NOTE
•If there is more information, pressing a/ballows you to
go to the next page or return to the previous page.
•You can cancel this info by pressing INFO.
ATV/DTV/RADIO buttons
Use the following buttons on the remote control to
operate the menu.
ATV/DTV: Press to switch between ATV and DTV
mode. After switching from ATV or DTV, radio or
external input mode to ATV and DTV mode, the TV
jumps to the most recently viewed ATV and DTV
channel.
RADIO: Press to switch from DTV to radio mode.
The TV will jumps to the most recently tuned radio
channel.
When you watch the TV for the first time
When the TV powers on for the first time after
purchase, perform the auto installation.
ATV (Analogue TV)
You can run the auto installation to set channels
automatically.
1To watch the analogue TV, select “ATV”
from “Search type” in Easy setup menu.
(See page 12.)
2After setting the channels, you can select a
channel using CHr/sor 0–9on the remote
control unit. (See page 9.)
DTV (Digital TV)
When the TV accesses to DTV mode for the first
time, you need to run the auto search. To scan all
available services in your area, follow the procedures
below.
1To watch the DTV broadcasts, select “DTV”
from “Search type” in Easy setup menu.
(See page 12.)
2After setting the channels, you can select a
channel using CHr/sor 0–9on the remote
control unit. (See page 9.)
Switching the analogue audio format
You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.
PAL broadcast signal
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between NICAM STEREO and MONO.
Stereo mode
NICAM STEREO MONO
When receiving a bilingual signal
Each time you press MPX, the mode switches
among NICAM DUAL I, NICAM DUAL II, NICAM
DUAL I + II and MONO.
Bilingual mode
NICAM DUAL I NICAM DUAL II
NICAM DUAL I + IIMONO
When receiving a monaural signal
Each time you press MPX, the mode switches
between NICAM MONO and MONO.
Monaural mode
NICAM MONO MONO
In the TV mode of A2 TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between STEREO and MONO.
Stereo mode
STEREO MONO
When receiving a bilingual signal
Each time you press MPX, the mode switches
among DUAL I, DUAL II and DUAL I + II.
Bilingual mode
DUAL I + DUAL II
DUAL I DUAL II
NTSC broadcast signal
When receiving a Stereo + SAP signal
Each time you press MPX, the mode switches
between ST (SAP), SAP (ST) and MONO.
Stereo + SAP mode
MONO
ST (SAP) SAP (ST)
When receiving a monaural signal + SAP signal
Each time you press MPX, the mode switches
between MONO and SAP.
MONO + SAP mode
MONO SAP
When receiving a stereo signal
Each time you press MPX, the mode switches
between STEREO and MONO.
Stereo mode
STEREO MONO
NOTE
•On-screen display in this operation manual are for
explanation purpose and may vary slightly from actual
on-screen display.
LC-45LE280X_G753_EN.indd 11 11/15/2016 4:09:01 PM

23 24
EPG
What is an EPG?
An “EPG (Electronic Programme Guide)” is a
programme schedule, which is displayed on the TV
screen. The EPG is broadcasted together with DTV.
The TV screen shows the EPG when the viewer
presses EPG on the remote control, provided that
the TV is receiving the digital broadcasting signal.
The EPG enables you to search for a programme, do
timer view the programme schedule in detail.
Basic Operation
HDisplay the EPG screen
1 Press EPG.
2 Press a/bto select different programme time
information.
3 Press c/dto change the day selection.
HClose the EPG screen
4 Press EPG again or RETURN to exit.
Reminder timer setting
You can schedule a reminder for future programmes.
Channel will automatically change on time as
scheduled.
1Press EPG.
2Press a/bto select the programme you want
to watch.
3Press Rto set reminder time.
4Press ENTER to save reminder timer.
•“Timer save success” will display.
NOTE
•“Timer overlay” will display if same time is set twice.
•“Timer past” will display if past time is set.
5Press Yto display the reminder schedule list.
6Press RETURN or EPG to exit.
Viewing the reminder schedule list
1Press EPG.
2Press Yto display the reminder schedule list.
3Press a/bto display next or previous screen.
4Press RETURN or EPG to exit.
Cancelling the reminder timer setting
1Press EPG.
2Press Yto display the reminder schedule list.
3Press a/bto select a programme you want to
cancel.
4Press Rto delete a programme from reminder
list.
5Press RETURN or EPG to exit.
SUPER ECO mode
This function enables you to reduce the backlight
brightness in order to decrease the power
consumption and increase the backlight life span as
shown in the following table.
Selected item Description
SUPER ECO
ON
Reduces the backlight brightness.
SUPER ECO
OFF
Normal setting of backlight brightness.
SUPER ECO status will be displayed on the channel
information window.
Colour adjustment and still image
Allows you to adjust the colour tone of a still image.
1Press COLOUR ADJ. (FREEZE), the moving
image will be captured and colour adjustment
screen displays.
2Press a/b/c/dto adjust the colour to your
desired setting.
Button Description
aWhite with greenish tone.
bWhite with reddish tone.
cWhite with bluish tone.
dWhite with yellowish tone.
RReveal/hide the setting screen.
GSet adjustment to last user setting.
BClose the setting screen and unfreeze
image.
ENTER Save/exit setting.
NOTE
•The colour adjustment screen and still image will
automatically goes out after 30 minutes.
•Freeze/Colour adjustment function does not work in USB
Photo/Movie playback. It works for HDMI and composite.
Using a Smartphone with the TV
This function enables you to connect the TV to a
smartphone that supports Mobile High-Definition
Link (MHL) using an MHL-compatible cable.
To connect the TV to your MHL-compatible
smartphone, be sure to use an MHL-compatible
cable (commercially available).
•Youcanviewpicturesandvideoonalargescreen.
•Youcanplaybackmusicles.
INPUT 2
MHL
(DC5V 0.9A)
MHL-compatible cable
INPUT 2 terminal (Rear side)
NOTE
•An MHL-compatible portable device is required to use this
function. Connect the device to the INPUT 2 terminal.
•This production incorporates MHL 2.
HAuto power on
When an MHL-compatible device is connected to
the TV, the TV turns on automatically.
•This function operates when “Link operation” is set to “On”.
(See page 16.)
HAuto input selection
When an MHL-compatible device is connected
while the TV is on, the input mode is selected
automatically.
•This function operates when “Link operation” is set to “On”.
(See page 16.)
HOperation using the remote control
The remote control of the TV can be used to operate
a portable device.
•a/b/c/d, ENTER, 0 – 9, etc.
•The operations vary depending on the connected
equipment and content being viewed.
•Colour (Red/Green/Yellow/Blue) may be available to
control play/pause/fast forward/back forward function.
LC-45LE280X_G753_EN.indd 12 11/15/2016 4:09:01 PM

25 26
PC compatibility chart
Resolution Horizontal
Frequency
Vertical
Frequency VESA Standard Analogue (D-Sub) Digital (HDMI)
VGA 640 g480 31.5 kHz 60 Hz 4 4 4
SVGA 800 g600 37.9 kHz 60 Hz 4 4 4
XGA 1024 g768 48.4 kHz 60 Hz 4 4 4
WXGA 1360 g768 47.7 kHz 60 Hz 444
1080P 1920 g1080 67.5 kHz 60 Hz 4 4
DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA, SVGA, XGA and WXGA are registered trademarks of International Business Machines Corporation.
Teletext function
What is Teletext?
Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
News, weather reports, sports information, stock
exchange prices and programme previews are
among the many services available.
Turning on and off Teletext
1Select a TV channel or external input source
providing the Teletext programme.
2Press mto display the Teletext.
3Each time you press m, the screen switches
as shown below.
TELETEXT
NOTE
•If you select a programme with no Teletext signal,
“No Teletext available.” is displayed.
•The same message displays during other modes if
no Teletext signal is available.
Button functions
Buttons Description
CH (r/s)Increase or decrease the page number.
Colour (Red/
Green/
Yellow/Blue)
You can select a group or block of
pages displayed in the coloured brackets
at the bottom of the screen by pressing
the corresponding Colour (Red/Green/
Yellow/Blue) on the remote control
unit.
0 – 9 Directly select any page from 100 to 899
by using 0 – 9.
k(Reveal
hidden for
TELETEXT)
To reveal hidden information such as an
answer to a quiz.
3(Hold) To stop updating Teletext pages
automatically or release the hold mode.
[(Subtitle
for
TELETEXT)
Display the subtitle during Teletext page.
• Subtitle will not be displayed when the
service does not contain subtitle information.
NOTE
•Teletext can display only when it is sent by a network. Not
used to convert between languages.
LC-45LE280X_G753_EN.indd 13 11/15/2016 4:09:01 PM

27 28
PHOTO slideshow
C:
Fireworks.jpg Switzerland.jpg Ski Action.jpg Ski Action.jpg Ski Action.jpg
Title: Switzerland.jpg
Resolution: 3648 X 2736
Date: Wed. 25 Sep 2013
Time: 21:11
When you press PHOTO, the TV screen will
automatically play the photo slideshow.
•If there is no USB drive, the TV will switch to Selecting
modes screen.
•Photo slideshows will autoplay only for the photos located
on the top layer of USB drive. To enable autoplay for
photos located in a subfolder, you need to manually select
the subfolder, and then press PHOTO.
You can select the duration for each photo to
display, and also the duration for the slideshow to
play.
Duration for photos to display
1 minute10 seconds5 seconds3 seconds
Duration for slideshow to play
Continuous3 hour1 hour
•The TV will automatically power off after the
selected playtime ends.
NOTE
•Background music will autoplay during a slideshow only if
the music file is located in the same folder with the photo
files.
•If you want to stop the photo slideshows, press RETURN
to exit.
USB Media Player
HSelecting modes
USB Media
MusicVideo
1Press INPUT to select the “USB” mode.
2Press c/dto select “Video”, “Music” or
“Photo”, and then press ENTER.
3Press c/dto select your USB directory, and
then press ENTER.
4Press a/b/c/dto select the desired folder,
and then press ENTER.
NOTE
•“Wide mode” is fixed during “Photo” and “Music”.
•Depending on the USB device, the TV may not be able to
recognise the contained data.
•A file name with more than 10 characters may not be
displayed all (depending on the character set).
•Files in USB 1.1 devices may not be played properly.
•Operation using USB hubs is not guaranteed.
•The compatibility of USB HDDs may not be guaranteed.
USB Media Player (Continued)
Control panel for photo/music/video mode operations
•Press Bto display the control panel below.
Button/menu Description Photo Music Video
ENTER
When selecting a folder icon: Enter this
directory.
When selecting a thumbnail: Play the selected
file.
4 4 4
Play/Pause. 4 4 4
Rewind. Each time you press rewind, the speed
will change (2x, 4x, 8x, 16x). –4 4
Fast-forward. Each time you press fast-forward,
the speed will change (2x, 4x, 8x, 16x). –4 4
*G/
Play the previous file. 4 4 4
*Y/
Play the next file. 4 4 4
RETURN/
Stop playback and return to the list of files. 4 4 4
Loop. Each time you press ENTER,
the mode will switch between
Repeat NoneRepeat AllRepeat 1
4 4 4
Play/cancel the background music. 4– –
Mute. Press ENTER to toggle between mute
and unmute. –4 4
Two loop. Press ENTER to set the current
playback time starting point. Press ENTER to
set the loop end of the current playing time and
start loop playback. Press ENTER button to
cancel the loop.
– – 4
Slow-forward.
Each time you press slow-forward, the speed
will change.
– – 4
Step forward.
Each time you press ENTER, the picture will
change to the next still picture.
– – 4
Rotate clockwise 90º. 4– –
Rotate counterclockwise 90º. 4– –
Zoom in an image. Select to display larger
image size. 4– –
Zoom out an image. Select to display smaller
image size. 4– –
Select playback length of a slideshow. 4– –
Select photo display interval. 4– –
Slide effect. 4– –
R
Select subtitle to On or Off subtitle. – – 4
NOTE
*The button Gand Ydoes not work during control panel display.
•Files in folder which are not related to a selected mode cannot be accessed.
•“Unsupported file” alert will pops up for a selected file of invalid format.
LC-45LE280X_G753_EN.indd 14 11/15/2016 4:09:03 PM

29 30
USB Media Player (Continued)
List of files compatible with USB mode
USB device/File system USB Memory/FAT32
Photo file format JPEG (.jpg)/PNG/BMP
Music file format (Files may not be
playable depending on the bitrate)
MP3 (.mp3) Bitrate: 32 k, 40 k, 48 k, 56 k, 64 k, 80 k, 96 k, 112 k, 128 k,
160 k, 192 k, 224 k, 256 k, 320 kbps
Video file format
File extension Container Video Audio
*.avi AVI
H.264
MPEG4
Motion Jpeg
Dolby Digital Plus
LPCM
ADPCM
Dolby Digital
*.mkv MKV H.264
MPEG4
Dolby Digital Plus
MPEG
Dolby Digital
*.mp4
*.mov MP4
H.264
MPEG4
Motion Jpeg
Dolby Digital Plus
MPEG
Dolby Digital
*.vob MPEG2 – PS MPEG2 LPCM
Dolby Digital
*.mpg/*.mpeg MPG
MPEG
MPEG2
MPEG1
LPCM
MPEG
Dolby Digital
*.ts/*.trp/*.tp TS H.264
MPEG2
Dolby Digital Plus
LPCM
MPEG
Dolby Digital
Appendix
Troubleshooting
The problems described below are not always caused by malfunctions. Check the TV again before having the
TV serviced.
Problem Possible Solution
•No power. •Check if you pressed POWER on the remote control unit. (See page 12.)
If the indicator on the TV lights up red, press POWER.
•Is the AC cord disconnected?
•Has the power been turned on? (See page 12.)
•Unit cannot be
operated.
•External influences such as lightning, static electricity, etc., may cause improper operation. In
this case, operate the unit after first turning the power off the TV or unplugging the AC cord
and re-plugging it in after 1 or 2 minutes.
•Remote control unit
does not operate.
•Is battery inserted with polarity (e, f) aligned? (See page 10.)
•Is battery worn out? (Replace with new battery.)
•Are you using it under strong or fluorescent lighting?
•Is a fluorescent light shining on the remote control sensor?
•Picture is cut off. •Are screen mode adjustments such as picture size made correctly? (See page 19.)
•Strange colour, light
colour, or dark, or colour
misalignment.
•Adjust the picture tone. (See page 17.)
•Is the room too bright? The picture may look dark in a room that is too bright.
•Check the colour system setting. (See pages 13 and 16.)
•Check the HDMI auto view setting. (See page 16.)
•Power is suddenly
turned off.
•The unit’s internal temperature has increased.
Remove any objects blocking the vent or clean.
•Check the “Power Control” setting. (See page 19.)
•Is the sleep timer set? (See page 9.)
•No picture. •Is the connection to external equipment correct? (See pages 7 and 8.)
•Is the correct input selected?
•Is the “Picture settings” correct? (See pages 17 and 18.)
•Is the antenna connected properly? (See page 6.)
•Is “On” selected in “Audio only”? (See page 20.)
•No sound. •Is the volume too low? (See page 9.)
•Make sure that headphones are not connected.
•The TV sometimes
makes a cracking
sound.
•This is not a malfunction. This happens when the cabinet slightly expands and contracts
according to changes in temperature. This does not affect the TV’s performance.
Cautions regarding use in high and low temperature environments
•When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly
delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
•Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near
a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: f20°C to e60°C.
Clearing the password
If you forget the password, clear the password using the following procedure.
1Press MENU to display the MENU screen, and then press c/dto select “Initial setup”.
2Press a/bto select “Child lock”, and then press ENTER and the password input screen display.
3If you enter “3001” using 0 – 9, the “Child lock” setting menu will be displayed.
4Enter the 4-digit number as a password using 0 – 9. The new password is now set.
LC-45LE280X_G753_EN.indd 15 11/15/2016 4:09:03 PM

31
Specifications
Item Model LC-45LE280X
LCD panel 113 cm
Resolution 2,073,600 pixels (1920 g1080)
Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV function TV-standard Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K1NTSC: M
Digital DVB-T2
Receiving
channel
VHF/UHF 44.25—863.25 MHz
CATV S1—S41 ch (including Hyperband)
TV-tuning system Auto Preset 99 ch
STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G MTS: M
Viewing angles H : 178º V : 178º
Audio amplifier/Speakers
10 W g2 / 5 g10 cm 2pcs
Terminals Antenna input UHF/VHF 75 qDIN type
INPUT 1 (HDMI/ARC) HDMI input
INPUT 2 (HDMI/MHL) HDMI input (DC5V 900mA output)
INPUT 3 VIDEO in, AUDIO in
AUDIO OUT AUDIO out, Headphone ( 3.5 mm stereo)
USB USB (DC5V 1.5A output)
OSD language English/Simplified Chinese/Arabic/French/Portuguese/Russian/Persian/
Thai/Vietnamese/Indonesia/Hebrew
Power requirement AC 110 — 240 V, 50/60 Hz
Power consumption 103 W (0.6 W Standby)
Dimensions without stand 1020 (W) g593 (H) g84 (D) mm
with stand 1020 (W) g616 (H) g255 (D) mm
Weight without stand (with stand) 11.5 kg (12.5 kg)
Operating temperature 0°C — 40°C
•As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
•Specification may differ depending on the selected country.
CAUTION
•Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
•Carefully read the instructions that come with the bracket before beginning work.
LC-45LE280X_G753_EN.indd 16 11/15/2016 4:09:03 PM
