Sharp R-352M Instruction Manual

900W (IEC 705)
R-352M
MICROWAVE OVEN
OPERATION MANUAL WITH COOKBOOK
E
R-352
1 Roast Beef/Lamb
2 Roast Pork
3 Roast Poultry
4 Chicken Portions
5 Casserole
1
Meat Joint
2 Poultry
3
Chicken Ptn,Steak,Chops
4 Minced Meat
5 Bread
LESS MORE
g ozKg Lb
POWER
LEVEL STOP/ CLEAR
START
AUTO MINUTE
TIMER Kg/Lb
AUTO START
CLOCK
KGTURNSTIR PCS MICRO COOK
10min. 1min. 10sec.

1
CONTENTS
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Oven and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Before Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Maff Heating Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Microwave Power Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Microwaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
How to operate the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Multiple Sequence Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Instant Cook / Instant Cook Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Auto Cook/Auto Defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Auto Cook/Auto Defrost Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Other Convenient Functions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-17
Cooking Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Suitable Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
Food Handling & Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-21
Advice for Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Advice for Reheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Aftercare:
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
To Replace the Mains Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Calling for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Cookbook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-51
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
IMPORTANT:
CAREFULLY READ THIS OPERATION MANUAL BEFORE INSTALLING OR USING THE
MICROWAVE OVEN. PAY SPECIAL ATTENTION TO THE IMPORTANT SAFETY
INSTRUCTIONS. ALWAYS USE THE MANUAL WITH THE OVEN AND KEEP IT NEAR TO
ENABLE EASY REFERENCE.

3
4
2
1
5
6
7
8
2
OVEN AND ACCESSORIES
9
10
11
1 Control Panel
2 Oven Lamp
3 Door opening button
4 Waveguide cover
5 Coupling
6 Oven cavity
7 Door seals and sealing
surfaces
8 Door latches
9 Ventilation openings
10 Outer cabinet
11 Power cord
12
13
14
ACCESSORIES:
Check to make sure the following accessories
are provided:
12 Turntable 13 Turntable support 14 Coupling
Place the turntable support in the centre of the oven
floor so that it can freely rotate around the coupling.
Place the turntable onto the turntable support so that
it locates firmly into the coupling.
To avoid turntable damage, ensure dishes or
containers are lifted clear of the turntable rim when
removing them from the oven.
NOTE: When you order accessories, please mention
two items: part name and model name to your dealer
or SHARP authorised service agent.

R-352
1 Roast Beef/Lamb
2 Roast Pork
3 Roast Poultry
4 Chicken Portions
5 Casserole
1
Meat Joint
2 Poultry
3
Chicken Ptn,Steak,Chops
4 Minced Meat
5 Bread
LESS MORE
g ozKg Lb
POWER
LEVEL STOP/ CLEAR
START
AUTO MINUTE
TIMER Kg/Lb
AUTO START
CLOCK
KGTURNSTIR PCS MICRO COOK
10min. 1min. 10sec.
3
CONTROL PANEL
1. Digital Display
2. TIME keys

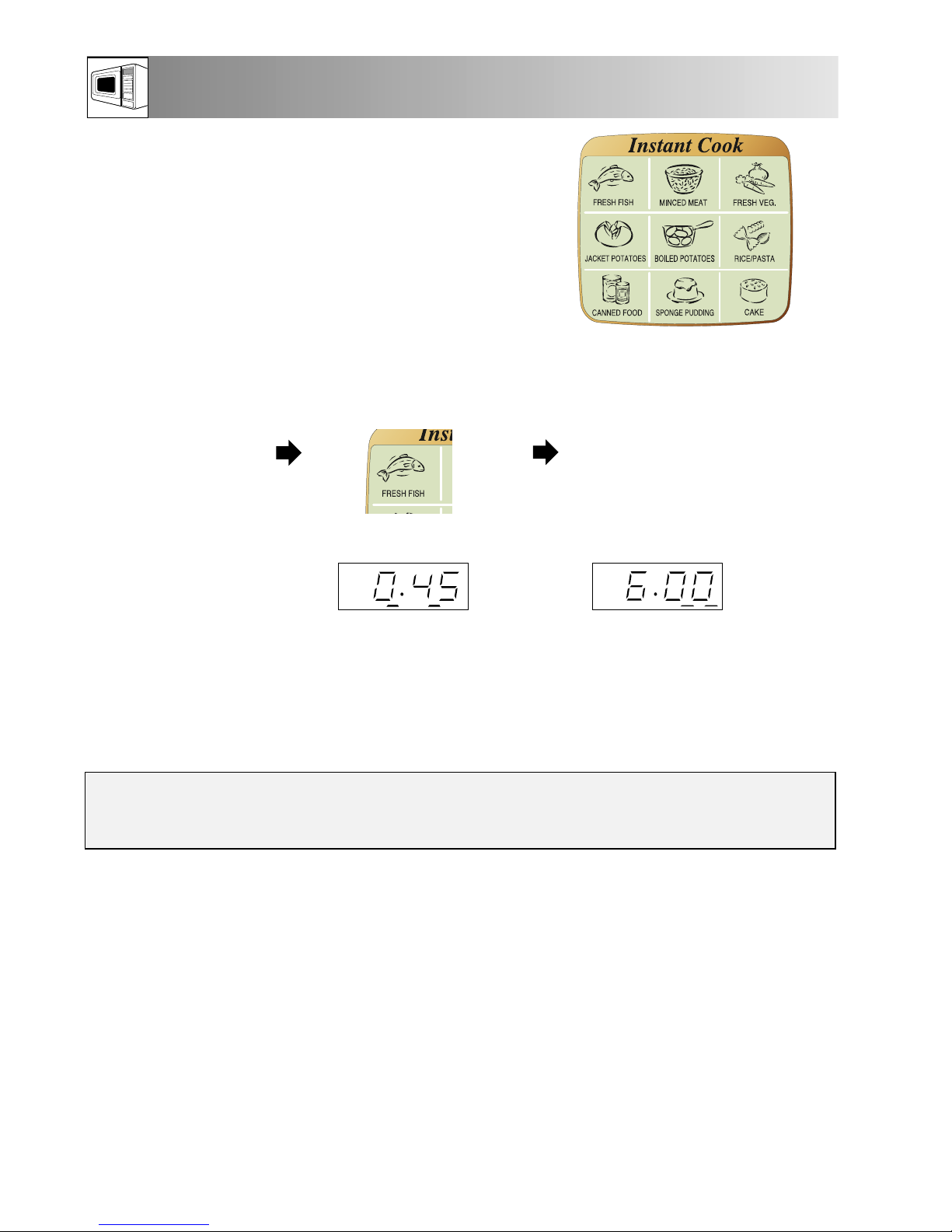

3. INSTANT COOK keys
4. AUTO COOK/DEFROST key
press to select 1 of 5 AUTO
COOK or 1 of 5 AUTO
DEFROST programmes.
5. LESS/MORE keys
6. START/AUTO MINUTE key
7. STOP/CLEAR key
8. AUTO START/CLOCK key
9. kg/lb key
10. TIMER key
11. POWER LEVEL key
12. WEIGHT keys
1
4
6
2
5
3
12
11
8
10
7
9

WARNING!
Inspect the Oven:
Check the oven carefully for damage
before and regularly after installation.
• Make sure the door closes properly,
that it is not misaligned or warped.
• Check the hinges and door safety
latches are not broken or loose.
• Ensure the door seal and sealing
surfaces are not damaged.
• Inspect the oven interior and door for
dents.
Important:
If any damage is apparent, do not
operate the oven in any way. Contact
your dealer or an authorised Service
Technician appointed by SHARP. (see
p. 26)
Pacemaker: If you have a heart pacemaker,
consult your doctor or the pacemaker manufacturer
prior to oven use.
Warning: Only allow children to use the oven
without supervision when adequate instructions
have been given so that the child is able to use the
oven in a safe way and understands the hazards
of improper use.
INSTALLATION
IMPORTANT SAFETY INSTRUCTIONS
4
Oven Use:
• The oven is for domestic food preparation only.
Never operate when empty.
• Do not leave or store anything inside the oven
when not in use.
• Never attempt to use the oven with the door open.
It is important not to force or tamper with the door
safety latches. This may result in exposure to
microwave energy.
• Never operate the oven with any object caught in
the door sealing surfaces, this again may cause
microwave leakage.
• Do not insert fingers or objects in the holes of the
door latches or air-vent openings as this may
damage the oven and cause an electric shock.
• If water or food drops inside the air vent openings
switch off the oven immediately, unplug it and call a
Service Technician appointed by SHARP.
(See page 26).
• Never attempt to move the oven while it is
operating.
1.Remove all packing materials including the feature
sticker. Do not remove the plastic film from the inside
of the oven window as this protects it from dirt.
2.Place oven on a secure, level surface, strong
enough to take the oven weight, plus the heaviest
item likely to be cooked in the oven.
3.Do not place the oven where heat, moisture or high
humidity are generated, (for example, near or
above a conventional oven) or near combustible
materials (for example, curtains). Do not block or
obstruct air vent openings, as obstructions may
ignite due to the emission of hot air.
4.Make sure the power supply cord is undamaged
(See Installation next page) and that it does not run
under the oven or over any hot or sharp surfaces.
5.The socket must be readily accessible so that it can
be easily unplugged in an emergency.
6.Do not use the oven outdoors.
Fire: If smoke is observed, switch off and
unplug the appliance and keep the door
closed in order to stifle any flames.
Liquids: Microwave heating of beverages.
can result in delayed eruptive boiling,
therefore care has to be taken when
handling the container.
IMPORTANT SAFETY INSTRUCTION READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

INSTALLATION
5
BUILDING-IN-KIT.
An installation frame is available which enables the
microwave oven to be integrated within a kitchen unit.
The microwave oven is not designed to be built above
or near a conventional oven.
SHARP recommend the use of the build in kit, EBR-
4500, available from your SHARP dealer. Only the
use of this frame will guarantee the quality and safety
of the oven. When building, follow installation
instructions supplied for A type models carefully.
IMPORTANT! ELECTRICAL CONNECTION.
• Do not allow water to come into contact with the
power supply cord or plug.
• Insert the plug properly into the socket as the plug
may otherwise overheat and catch fire.
• Do not connect other appliances to the same socket
using an adaptor plug as it may cause the house
wiring to overheat and catch fire.
• If the plug or socket is loose or the power supply
cord is damaged, it must be replaced with a
special cord. The exchange must be made by an
authorised SHARP service agent.
A defective plug, power supply cord or socket may
overheat and catch fire during operation or cause
an electrical shock.
• When removing the plug from the socket always
grip the plug, never the mains lead as this may
damage the power supply cord and the
connections inside the plug.
• This product is fitted with a re-wireable plug. Should
it not be suitable for the socket outlet in your home,
remove the plug and fit an appropriate type,
observing the wiring code given in `To replace the
mains plug’ on page 25.
If you wish to remove or replace the plug supplied,
ensure the plug is removed properly and not cut off.
When replacing the plug please ensure that you use a
BSI or ASTA approved plug to BS1363, this should be
fitted with a brown coloured 13 amp fuse approved
by BSI or ASTA to BS1362. If you have any doubt
about electrical connection seek the help of a
qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED
To wire an appropriate plug, follow the wiring code given in `To replace the mains plug’ on page 25.
BEFORE OPERATION
Plug in the oven.
1. The oven display will flash:
2. Press the STOP/CLEAR key:
3. The display will show:
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
1.
2. x1
STOP/
CLEAR
19cm
Do not use the
oven outdoors.
The minimum
height of free
space necessary
above the top
surface of the
oven is 19cm.
3.

NOTE:
1. If you press any of the time keys too many times, continue to press until
your desired time appears.
2. Press the STOP/CLEAR key if you make a mistake during programming.
3. If the electrical power supply to your microwave oven is interrupted, the
display will intermittently show: after the power is reinstated.
If this occurs during cooking, the programme will be erased. The time of
day will also be erased.
4. When you want to reset the time of day, follow the above example again.
6
SETTING THE CLOCK
1. To set the 12 hour-clock, press the
AUTOSTART/CLOCK key once,
will appear in the display.
2. To set the 24 hour-clock, press the AUTOSTART
/CLOCK key twice, will appear in the
display.
x2 x3
Select the
24-hour clock. To enter the hours press the 10 MIN
key twice.
Check the display:
STIR TURN KG PCS MICRO COOK
To set the time of day:
Example:
To set the 24 hour clock to 23:35:
x2
10min.
10min.
1min.
1min.
Then the 1 MIN
key 3 times.
x5 x1
x3
To enter the minutes
press the 10 MIN
key 3 times.
To change from hours to
minutes press AUTOSTART
/CLOCK key once.
Then press the
1 MIN key 5 times. To start the clock press AUTOSTART/CLOCK
key once.
x1
x1
AUTO START
CLOCK
AUTO START
CLOCK
AUTO START
CLOCK
AUTO START
CLOCK
AUTO START
CLOCK
x2
There are two setting modes: 12 hour clock and 24 hour-clock:

E
900W
7
MAFF HEATING CATEGORY
The heating category (a letter A to E) developed by
MAFF (Ministry of Agriculture, Fisheries and Food)
with microwave oven and food manufacturers
indicates the ability of the oven to heat small
quantities of food (up to 500g [1lb 2oz]). It does
not represent the general performance of the oven.
Microwave output power in
Watts (based on international
(IEC 705) standard.)
600 700 800 900 1000 Watts
OVEN
OUTPUT
POWER
Less heating time required
More heating time required
Letter representing the
oven heating category.
Microwave
Symbol.
A B C D E
OVEN
OUTPUT
CATEGORY
Less heating time required
More heating time required
MICROWAVE POWER LEVELS
Food packs carry cooking instructions for heating
categories A to E. Follow instructions for the letter
corresponding to the oven’s heating category. The
higher the output power and heating category of
the oven the less heating time is required. As
shown opposite.
There are 5 microwave power levels shown below (Example: Select cooking time of 1 minute):
Enter required time and select the power level:
POWER
LEVEL
POWER
LEVEL
POWER
LEVEL
POWER
LEVEL
POWER
LEVEL
x1
x2
x3
x4
x5
100P (HIGH)
70P (MEDIUM HIGH)
50P (MEDIUM)
30P (MEDIUM LOW)
10P (LOW)
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
IMPORTANT: The microwave power level will default
to 100P (HIGH) unless you press the POWER LEVEL
key to the desired setting. To help you decide which
power level is suitable, follow the advice given in the
charts; for defrosting see page 28-29, for cooking see
pages 30-34, for reheating see page 35.
Power level: The microwave power level is varied
by the microwave energy switching on and off.
When using power levels other than 100P (HIGH)
you will be able to hear the microwave energy pulsing
on and off as the food cooks or defrosts.
Stopping the oven: If you wish to stop the oven
during cooking press the STOP/CLEAR key or open
the oven door. To start the oven, close the door and press
the START key. If you wish to cancel the cooking
programme, press the STOP/CLEAR key twice.

8
MICROWAVING
Introduction:
Water, sugar and fat in food absorb microwaves
which causes them to vibrate. This creates heat by
friction, in the same way your hands get warm when
you rub them together.
Outer areas of food are heated by microwave energy,
and remaining portions by conduction. It is, therefore,
important to turn, rearrange or stir food to ensure
even heating. Where recommended allow food to
stand. This is not optional but necessary to ensure
thorough cooking and is particularly important for
dense food, such as joints of meat.
Microwaves pass through non-metallic dishes and
utensils and heat the food inside the dishes.
Microwaves are reflected by metal. The oven is lined
with metal and has a fine metallic mesh in the door to
prevent microwave leakage. Metallic dishes are not
suitable for microwaving. Only use utensils that are
suitable for microwave ovens.
(See suitable cookware, pages 18 - 19).
HOW TO OPERATE THE OVEN
Opening and closing the door:
To open the oven door, press the door opening button.
Stopping the oven:
If you wish to stop the oven during cooking press
STOP/CLEAR or open the oven door. To start the
oven, close the door and press START/AUTO
MINUTE. If you wish to cancel the cooking
programme, press STOP/CLEAR twice.
Prepare and place food in suitable container onto the
turntable or directly onto the turntable. Close the door.

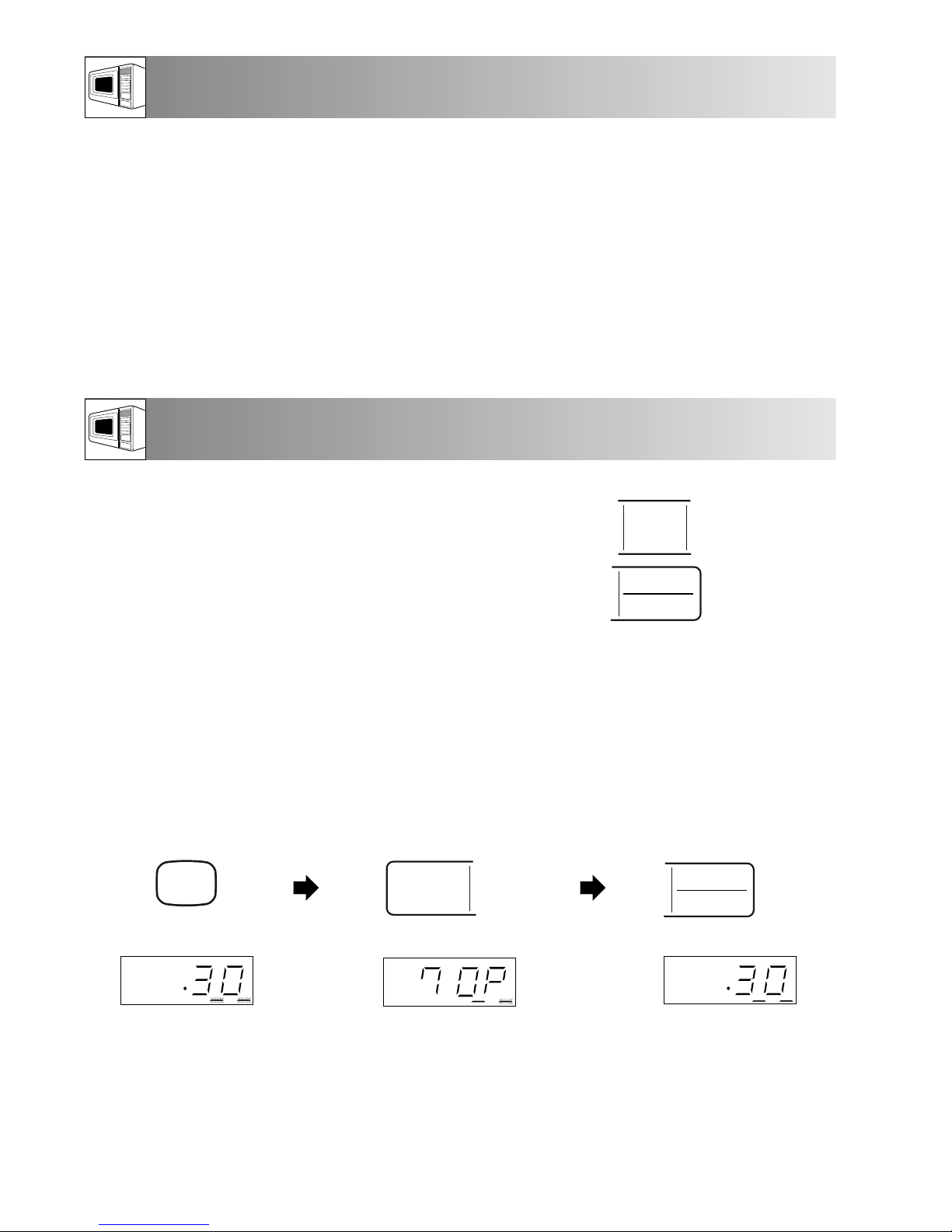

Example:
To cook on 70P (MEDIUM) for 30 seconds.
x2 x1
Press the 10 SEC key
3 times. To input the power level
press the POWER LEVEL
key twice.
x3
10sec.
START
AUTO MINUTE
Press the
START/AUTO
MINUTE key once.
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
STIR TURN KG PCS MICRO COOK
The display will count down
through the set heating time.
NOTE:
1. When the door is opened during the cooking process, the
cooking time on the digital display stops automatically. The
cooking time starts to count down again when the
door is closed and the START/AUTO MINUTE key
is pressed.
STOP/
CLEAR
START
AUTO MINUTE
2. If you wish to know the power level during
cooking, press the POWER LEVEL key. As long
as your finger is touching this button, the power
level will be displayed.
POWER
LEVEL
