Sharp R-743M Instruction Manual

R-743M
MICROWAVE OVEN WITH GRILL
OPERATION MANUAL WITH COOKBOOK
900W (IEC 60705)
E
Quartz Dual Grill
R-743
Poultry
Meat Joint
8
7
1
Roast Beef / Lamb
2
Roast Pork
3
Roast Poultry
4
Oven Ready Pizza
5
Crispy Crumb Foods
6
Oven Chips
KG/%TURNSTIR GRILL MICRO COOK
Auto Cook
Auto Defrost
STOP
CLEAR
START
AUTO MINUTE
AUTO COOK/
DEFROST
GRILL
DUAL
MICRO
10min. 1min. 10sec.
1.0KG 0.1KG PCS
OPERATION MANUAL
This operation manual contains important information which you should read carefully
before using your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not
followed or if the oven is modified so that it operates with the door open.
R-743M O/M 27/1/2000 10:19 Page A
Downloaded from: http://www.usersmanualguide.com/

R-743M O/M 27/1/2000 10:19 Page B
Downloaded from: http://www.usersmanualguide.com/

1
CONTENTS
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Oven & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Safety:
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5
Before Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Basic Operation:
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Microwaving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Microwave Power Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Dual Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Advanced/Auto Operation:
Auto Cook / Defrost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Auto Cook / Defrost Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Other Convenient Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 - 14
Maff Heating Category . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Cooking Advice: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Suitable Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 - 17
Food Handling & Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 - 18
Advice for Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Advice for Cooking & Reheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CookBook: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 - 47
Aftercare:
Cleaning & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 - 49
To replace the mains plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Calling for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
R-743M O/M 27/1/2000 10:19 Page 1
Downloaded from: http://www.usersmanualguide.com/

2
OVEN & ACCESSORIES
Door opening button
Waveguide cover
(distributing microwaves)
Oven cavity Turntable support system
Door seals
& sealing surfaces
Control panel
(see facing page
for detail)
Oven lamp
Turntable
Turntable
support
Coupling
Place the turntable support
in the centre of the oven
floor so that it can freely
rotate around the coupling.
Place the turntable onto
the turntable support so
that it locates firmly into
the coupling.
To avoid turntable damage, ensure dishes
or containers are lifted clear of the turntable
rim when removing them from the oven.
NOTE: When you order accessories, please
mention two details: part name and model
name to your dealer or SHARP authorised
service agent.
❏
❏
❏
Air vent openings
Outer cabinet
Power supply cord
Grill heating element
For use, see page 16.
❏
Low and High Racks
R-743M O/M 27/1/2000 10:19 Page 2
Downloaded from: http://www.usersmanualguide.com/

3
CONTROL PANEL
R-743
Poultry
Meat Joint
8
7
1
Roast Beef / Lamb
2
Roast Pork
3
Roast Poultry
4
Oven Ready Pizza
5
Crispy Crumb Foods
6
Oven Chips
KG/%TURNSTIR GRILL MICRO COOK
Auto Cook
Auto Defrost
STOP
CLEAR
START
AUTO MINUTE
AUTO COOK/
DEFROST
GRILL
DUAL
MICRO
10min. 1min. 10sec.
1.0KG 0.1KG PCS
1
2
3
4
6
1. DIGITAL DISPLAY.
2. AUTO COOK/DEFROST key: Press to
select one of six AUTO COOK menus and
two AUTO DEFROST menus.
3. MICRO/GRILL/DUAL key:
Press to select desired function.
4. STOP/CLEAR key: Press once to
stop a programme, and/or twice to cancel
a programme.
5. START/AUTO MINUTE key:
Press to start a programme. Press to cook
on 100P (HIGH) for 1 minute or increase
time during cooking in multiples of 1 minute.
6. TIME keys: Use to enter cooking time and
also the desired weights.
5
R-743M O/M 27/1/2000 10:19 Page 3
Downloaded from: http://www.usersmanualguide.com/

INSTALLATION
IMPORTANT SAFETY INSTRUCTIONS
4
Oven Use:
• This oven is for domestic food preparation only.
• Never operate when empty.
• Do not leave or store anything inside the oven when
not in use.
• Never attempt to use the oven with the door open. It
is important not to defeat or tamper with the door
safety latches. This may result in exposure to
microwave energy.
• Never operate the oven with any object caught in
the door sealing surfaces, this again may cause
microwave leakage.
• Do not insert fingers or objects in the holes of the
door latches or air vent openings as this may
damage the oven and cause an electric shock. If
water or food drops inside the air vent openings
switch off the oven immediately, unplug it and call a
Service Technician appointed by SHARP.
• Never attempt to move the oven while it is
operating.
Childcare: Only allow children to use the oven
without supervision when adequate instuctions have
been given so that the child is able to use the oven in a
safe way and understands the hazards of improper use.
Pacemaker: If you have a heart pacemaker, consult
your doctor or the pacemaker manufacturer prior to
oven use.
Inspect the Oven: Check the oven carefully for
damage before and regularly after installation.
• Make sure the door closes properly, that it is not
misaligned or warped.
• Check the hinges and door safety latches are not
broken or loose.
• Ensure the door seal and sealing surfaces are not
damaged.
• Inspect the oven interior and door for dents.
WARNING:
If the door or seals are damaged, the oven must not
be operated until it has been repaired by a competent
person.
Important:
If any damage is apparent, do not operate the oven
in any way. Contact your dealer or an authorised
Service Technician appointed by SHARP.
WARNING:
It is hazardous for anyone other than a competent
person to carry out any service or repair operation
which involves the removal of a cover which gives
protection against exposure to microwave energy.
1.Remove all packing materials and the feature label,
(if attached). Do not remove the plastic film from the
inside of the oven window as this protects it from dirt.
2.Place oven on a secure, level surface, strong
enough to take the oven weight, plus the heaviest
item likely to be cooked in the oven.
3.Ensure there is a minimum of free space above the
oven of 19.5cm.
4.Do not place the oven where heat, moisture or high
humidity are generated, (for example, near or
above a conventional oven) or near combustible
materials (for example, curtains). Do not block or
obstruct air vent openings, as obstructions may
ignite due to the emission of hot air.
5.Make sure the power supply cord is undamaged,
(See Installation next page), and that it does not run
under the oven or over any hot or sharp surfaces.
6.The socket must be readily accessible so that it can
be easily unplugged in an emergency.
7.The oven door becomes hot during cooking. To
prevent burning, the oven should be placed at least
85cm or more above the floor.
8.Do not use the oven outdoors.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
19.5cm
R-743M O/M 27/1/2000 10:19 Page 4
Downloaded from: http://www.usersmanualguide.com/

BEFORE OPERATION
INSTALLATION
5
BUILDING-IN-KIT.
An installation frame is available which enables the
microwave oven to be integrated within a kitchen unit.
The microwave oven is not designed to be built above
or near a conventional oven.
SHARP recommend the use of the build in kit, EBR-
4500, available from your SHARP dealer. Only the
use of this frame will guarantee the quality and safety
of the oven. When building, follow installation
instructions (for B type) supplied carefully.
IMPORTANT! ELECTRICAL CONNECTION.
•Do not allow water to come into contact with the
power supply cord or plug.
•Insert the plug properly into the socket as the plug
may otherwise overheat and catch fire.
•Do not connect other appliances to the same socket
using an adaptor plug as it may cause the house
wiring to overheat and catch fire.
•If the plug or socket is loose or the power supply
cord is damaged, do not operate the oven, it must
be replaced with a special power cord, by the
manufacturer or their service agent or a similarly
qualified person. A defective plug, power supply
cord or socket may overheat and catch fire during
operation or cause an electrical shock.
•When removing the plug from the socket always
grip the plug, never the power supply cord as this
may damage the power supply cord and the
connections inside the plug.
•The product is fitted with a re-wireable plug. Should
it not be suitable for the socket outlet in your home,
remove the plug and fit an appropriate type,
observing the wiring code given in ‘To replace the
mains plug’on page 49.
If you wish to remove or replace the plug supplied,
ensure the plug is removed properly and not cut off.
When replacing the plug please ensure that you use a
BSI or ASTA approved plug to BS1363, this should be
fitted with a brown coloured 13 amp fuse approved
by BSI or ASTA to BS1362. If you have any doubt
about electrical connection seek the help of a
qualified electrician.
WARNING
THIS APPLIANCE MUST BE EARTHED
To wire an appropriate plug, follow the wiring code
given in ‘To replace the mains plug’on page 49.
Plug in the oven.
1. The oven display will flash:
2. Press the STOP/CLEAR key the display will show:
(Heat the grill with the oven empty for 20 minutes. See
the NOTE and the instructions for grilling on page 9).
To set the clock, refer to the next page.
Use of the STOP/CLEAR key.
Use the STOP/CLEAR key to:
1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, touch twice.
STIR TURN KG/% GRILL MICRO COOK
STIR TURN KG/% GRILL MICRO COOK
1.
2.
x1
STOP
CLEAR
R-743M O/M 27/1/2000 10:19 Page 5
Downloaded from: http://www.usersmanualguide.com/

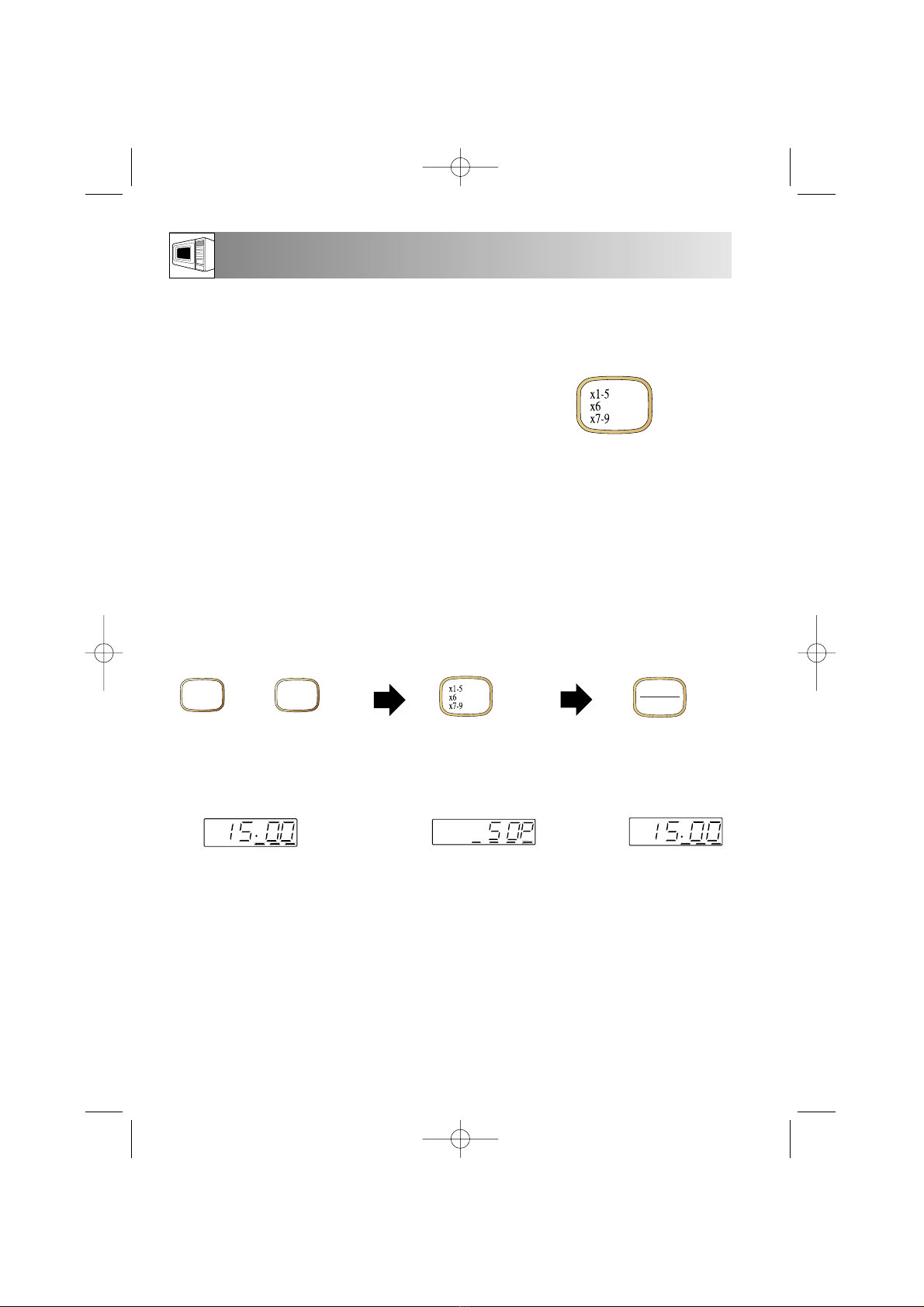

SETTING THE CLOCK
6
x1 x5 x9
Your oven is fitted with a clock which can be set to the time of day.
There are two setting modes: 12-hour clock and 24 hour-clock.
To set the 12 hour-clock, hold the
MICRO/GRILL/DUAL key for three seconds.
“12H”will appear on the display.
To set the 24 hour-clock, press the
MICRO/GRILL/DUAL key once more after step 1, in
the example below. “24H”will appear in the display.
Example:
To set the 24 hour clock to 22:59 :
x2x2
3. Press 10 MINUTE
key twice and the 1
MINUTE key twice to
enter the hours.
1. Press MICRO/GRILL/
DUAL key and hold for
three seconds.
4. Press MICRO/GRILL/
DUAL key once.
Check the display.
6. Press MICRO/GRILL/
DUAL key once to start
the clock.
5. Press 10 MINUTE key 5
times and the 1 MINUTE
key 9 times to enter
the minutes.
STIR TURN KG/ % GRILL MICRO COOK
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
x1 for three
seconds
GRILL
DUAL
MICRO
10min.
1min.
10min.
1min.
x1
x1 for three secs
2. Select the 24 hour clock.
GRILL
DUAL
MICRO
x1
NOTE:
1. If you press any of the time keys too many times, continue to press until
your desired time appears.
2. Press the STOP/CLEAR key if you make a mistake during programming.
3. If the electrical power supply to your microwave oven is interrupted, the
display will intermittently show after the power is reinstated.
If this occurs during cooking, the programme will be erased. The time of
day will also be erased.
4. When you want to reset the time of day, follow the above example again.
R-743M O/M 27/1/2000 10:19 Page 6
Downloaded from: http://www.usersmanualguide.com/

MICROWAVING
7
MICROWAVING
Introduction: Microwave energy causes the
particles in food to vibrate. This results in the food
being heated up due to the friction, in the same way
your hands get warm when you rub them together.
Outer areas of food are heated by microwave
energy, and remaining portions by conduction. It is,
therefore, important to turn, rearrange or stir food
to ensure even heating. Where recommended, allow
food to stand, this is not optional but necessary to
ensure thorough cooking and is particularly important
for dense food, such as joints of meat.
Microwaves pass through non-metallic dishes and
utensils and heat the food inside the dishes.
Microwaves are reflected by metal. The oven is lined
with metal and has a fine metallic mesh in the door to
prevent microwave leakage. Metallic dishes are not
suitable for microwaving. (Refer to suitable cookware
page 16-17)
Prepare and place food in suitable container onto
the turntable. Close the door.
Opening and closing the door: To open the
oven door, press the door opening button. The oven
lamp will come on while the door is open. Close the
door firmly and the oven lamp will go out.
Stopping the oven: If you wish to stop the oven
during cooking press STOP/CLEAR or open the
oven door. To start the oven, close the door and
press START/AUTO MINUTE. If you wish to
cancel the cooking programme, press
STOP/CLEAR twice.
1. Press the TIME
keys to enter the
cooking time.
2. Select power
level. (See Power
Levels, page 8).
3. Press
START/AUTO
MINUTE
once to
start cooking.
Press START/AUTO
MINUTE
once to start
cooking.
Enter heating time,
press the 10 SEC.
key three times.
Press MICROWAVE
POWER LEVEL once
for 100P (HIGH).
Display will count
down through
heating time.
Example:
To melt 50g (2oz) butter on 100P (HIGH) power for 30 seconds.
x3
GETTING STARTED:
Getting started in three simple steps:
Display will count down through cooking time.
WARNING
Always operate the oven with the turntable and
support fitted correctly, see page 2. This promotes
thorough even cooking.
A badly fitted turntable may rattle, may not rotate
properly and damage the oven.
The turntable rotates clockwise or counter
clockwise. The rotary direction may change each
time you start the oven. This does not affect
cooking performance.
STIR TURN KG / % GRILL MICRO COOK
10min. 1min. 10sec.
10sec.
x1
x1
START
AUTO MINUTE
START
AUTO MINUTE
x1
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
R-743M O/M 27/1/2000 10:19 Page 7
Downloaded from: http://www.usersmanualguide.com/

To defrost foods not included in the Auto Defrost menu, use microwave power levels 30P (MEDIUM LOW) or
10P (LOW). Stir or turn food at least 2-3 times during defrosting.
After defrosting, cover food or wrap in aluminium foil and leave to stand until thoroughly defrosted. Refer to the
defrosting charts in the cookbook section of this manual.
8
MICROWAVE POWER LEVELS
100P
(HIGH)
x1
70P
(MEDIUM
HIGH)
x2
50P
(MEDIUM)
x3
30P
(MEDIUM
LOW)
x4
10P
(LOW)
x5
STIR TURN KG / % GRILL MICRO COOK
STIR TURN KG / % GRILL MICRO COOK
STIR TURN KG / % GRILL MICRO COOK
STIR TURN KG / % GRILL MICRO COOK
STIR TURN KG / % GRILL MICRO COOK
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
GRILL
DUAL
MICRO
DEFROSTING
Power level: The microwave power level is varied
by the microwave energy switching on and off.
When using power levels other than 100P (HIGH)
you will be able to hear the microwave energy
pulsing on and off as the food cooks or defrosts.
IMPORTANT: The microwave power level will default
to 100P (HIGH) unless you press the
MICRO/GRILL/DUAL key to the desired setting.
Your oven has 5 power levels. To choose the power
level for cooking, follow the advice given in the
recipe section. Generally the following
recommendations apply:
HIGH - (100P output = 900W) used for fast
cooking or reheating e.g. for casseroles, hot
beverages, vegetables etc.
MEDIUM HIGH - (70P output = 630W) used for
longer cooking of dense foods such as roast joints,
meat loaf and plated meals, also for sensitive dishes
such as cheese sauce and sponge cakes. At this
reduced setting, the sauce will not boil over and
food will cook evenly without over cooking at the
sides.
MEDIUM - (50P output = 450W) for dense foods
which require a long cooking time when cooked
conventionally, eg. beef dishes, it is advisable to use
this power setting to ensure the meat will be tender.
MEDIUM LOW - (30P output = 270W Defrost
setting) to defrost, select this power setting, to
ensure that the dish defrosts evenly. This setting is
also ideal for simmering rice, pasta, dumplings and
cooking egg custard.
LOW - (10P output = 90W) For gentle defrosting,
eg. cream gateaux or pastry.
P = PERCENTAGE
To change the power level for cooking, enter the
required time and then press the
MICRO/GRILL/DUAL key.
For example:
R-743M O/M 27/1/2000 10:19 Page 8
Downloaded from: http://www.usersmanualguide.com/
