Sharp AQUOS LC-60LE550U User manual

SHARR AQUOS
LC-70LE550U
LC-60LE550U
LIQUID CRYSTAL
TELEVISION
4=TJ ,MPORTA.T:P,easereadthisoperat,onmanuo,
1245 L_,,_ before startingoperatingthe equipment.
NYCE
Supplied Accessories
Make sure the following accessories are provided with the product.
f
Remote control unit (x 1)
Page 9
[] Connection guide ( × 1)
"AA" size battery (× 2) Stand unit (× 1)
Page 10 Page 7
, Always use the AC cord supplied with the TV.
, The illustrations above are for explanation purposes and may vary slightly from the actual accessories.
, The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly
from the actual operations.
The examples used throughout this manual are based on the LC-60LE550U model.
1

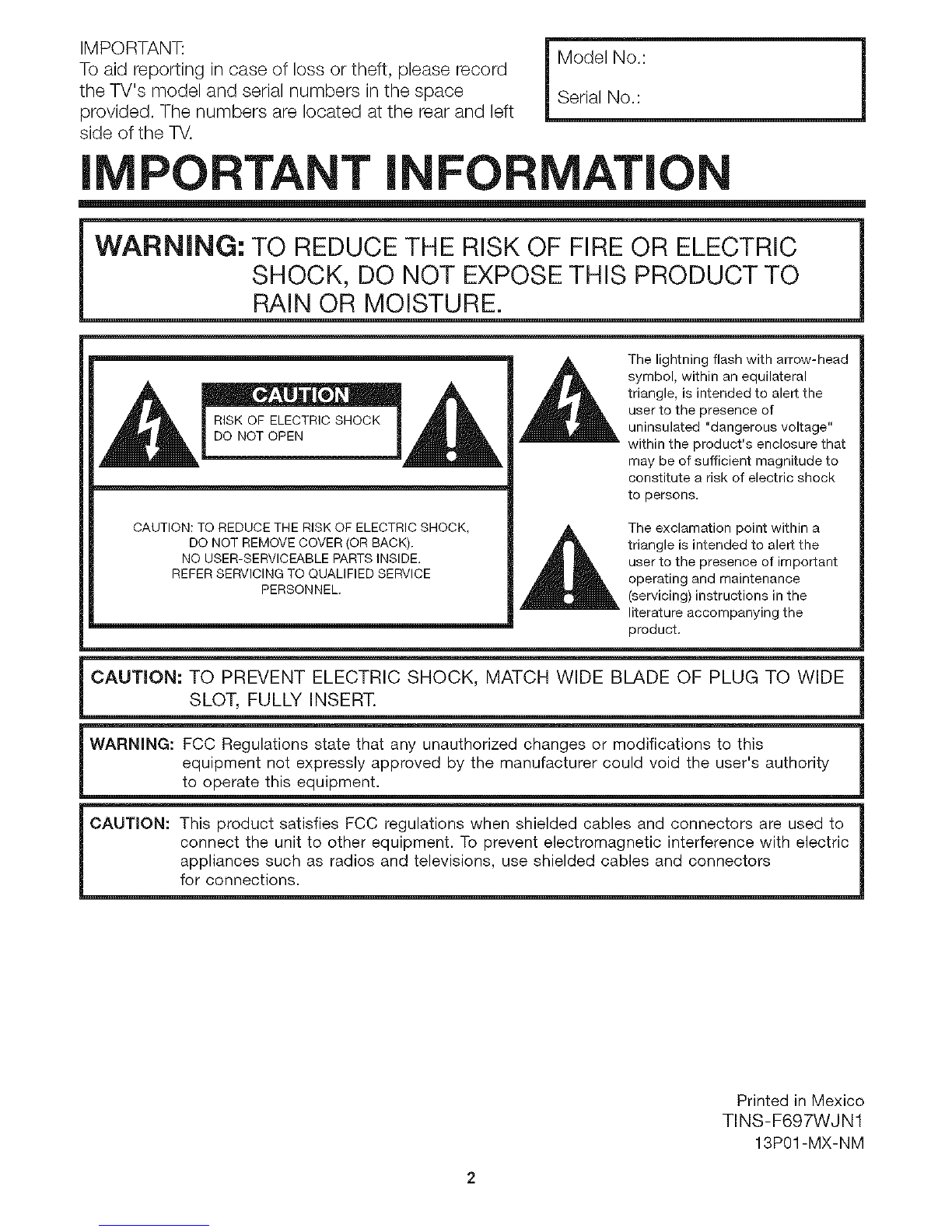

IMPORTANT: [ Model No.:
To aid reporting in case of loss or theft, please record I
the TV's model and serial numbers in the space Serial No.:
provided. The numbers are located at the rear and left
side of the TV.
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE,
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrow-head
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of
uninsulated "dangerous voltage"
within the product's enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within a
triangle is intended to alert the
A L tothep.... ........ f important
ill operating and maintenance
i
,_ (servicing) instructions in the
literature accompanying the
product.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this
equipment not expressly approved by the manufacturer could void the user's authority
to operate this equipment.
CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to
connect the unit to other equipment. To prevent electromagnetic interference with electric
appliances such as radios and televisions, use shielded cables and connectors
for connections.
Printed in Mexico
TINS-F697WJ N1
13P01-MX-NM

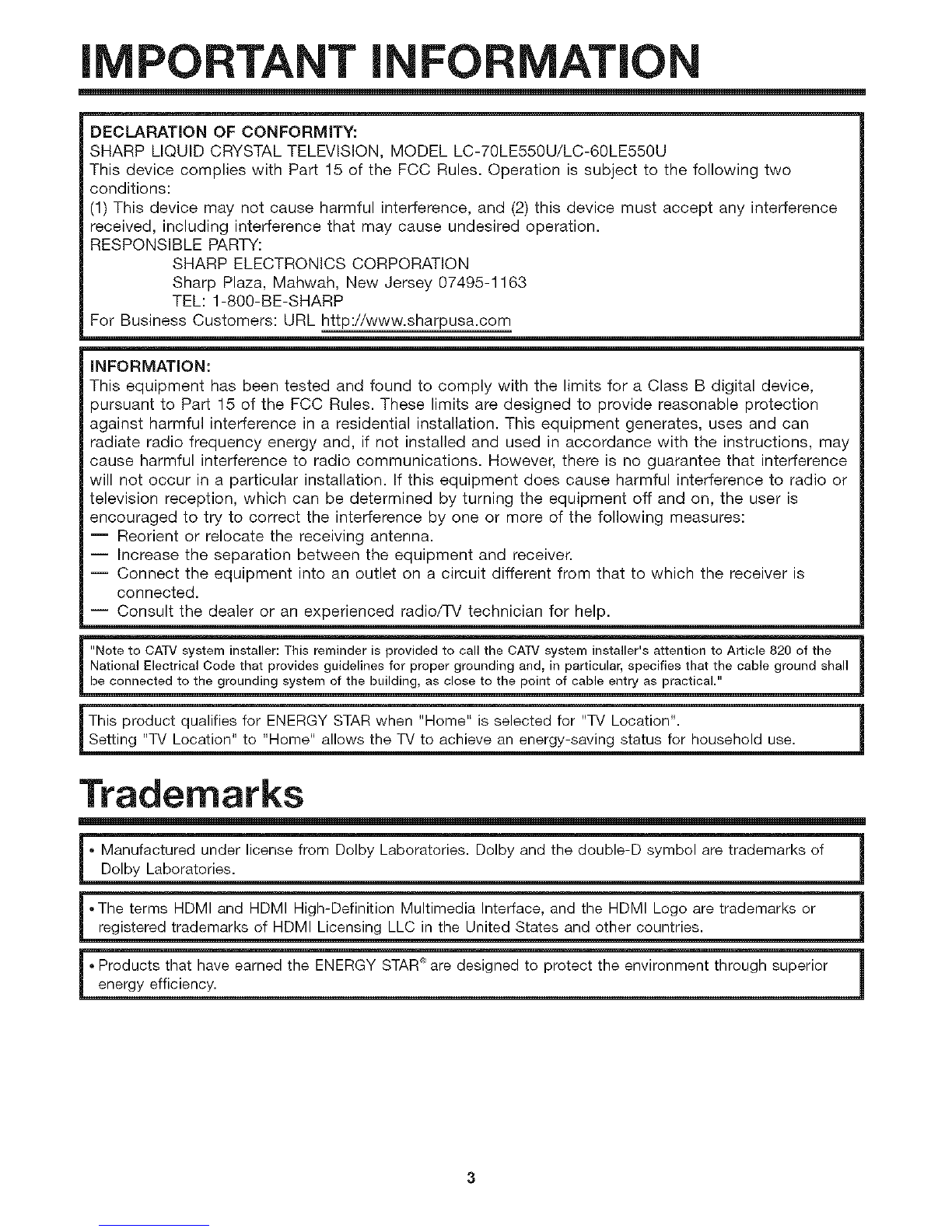

iMPORTANT iNFORMATiON
DECLARATION OF CONFORMITY:
SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-70LE550U/LC-60LE550U
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
RESPONSIBLE PARTY:
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07495-1163
TEL: 1-800-BE-SHARP
For Business Customers: URL http://www.sharpusa.com
INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
i Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
i Consult the dealer or an experienced radio/TV technician for help.
"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820 of the
National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to the point of cable entry as practical."
This product qualifies for ENERGY STAR when "Home" is selected for "TV Location".
Setting "TV Location" to "Home" allows the TV to achieve an energy-saving status for household use.
Trademarks
L Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of i
Dolby Laboratories. I
-High-Definition Interface, Logo are or ]
.The terms HDMI and HDMI Multimedia and the HDMI trademarks
__ registered trademarks of HDMI Licensing LLC in the United States and other countries.
- are designed protect through superior ]
*Products that have earned the ENERGY STARc_ to the environment
[ energy efficiency.

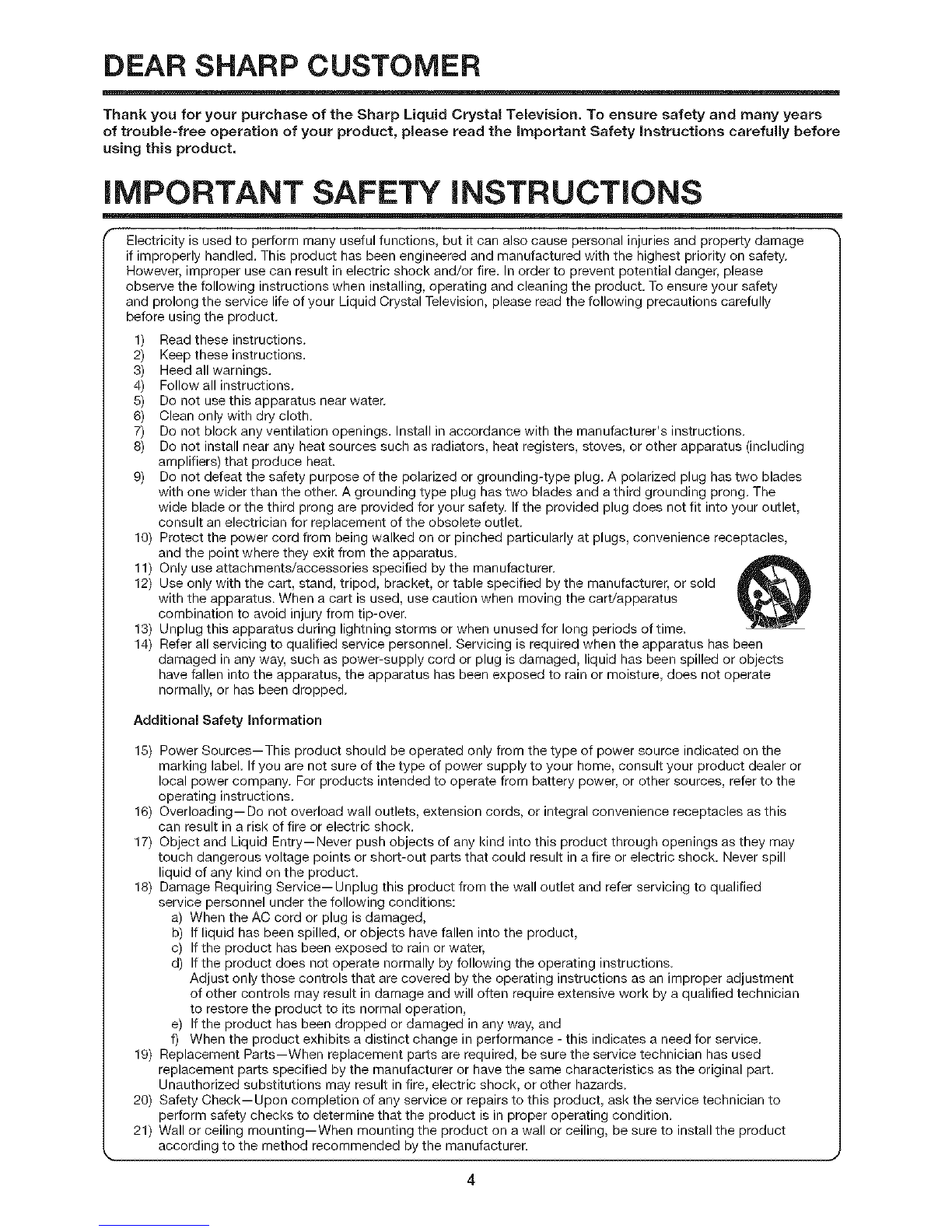

DEAR SHARP CUSTOMER
Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years
of trouble-free operation of your product, please read the Important Safety Instructions carefully before
using this product,
IMPORTANT SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage
if improperly handled. This product has been engineered and manufactured with the highest priority on safety.
However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please
observe the following instructions when installing, operating and cleaning the product. To ensure your safety
and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully
before using the product.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time+
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Additional Safety tnformation
15) Power Sources--This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery power, or other sources, refer to the
operating instructions.
16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock.
17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a) When the AC cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an improper adjustment
of other controls may result in damage and will often require extensive work by a qualified technician
to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicates a need for service.
19) Replacement Parts--When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
20) Safety Check--Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in proper operating condition.
21) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product
according to the method recommended by the manufacturer+

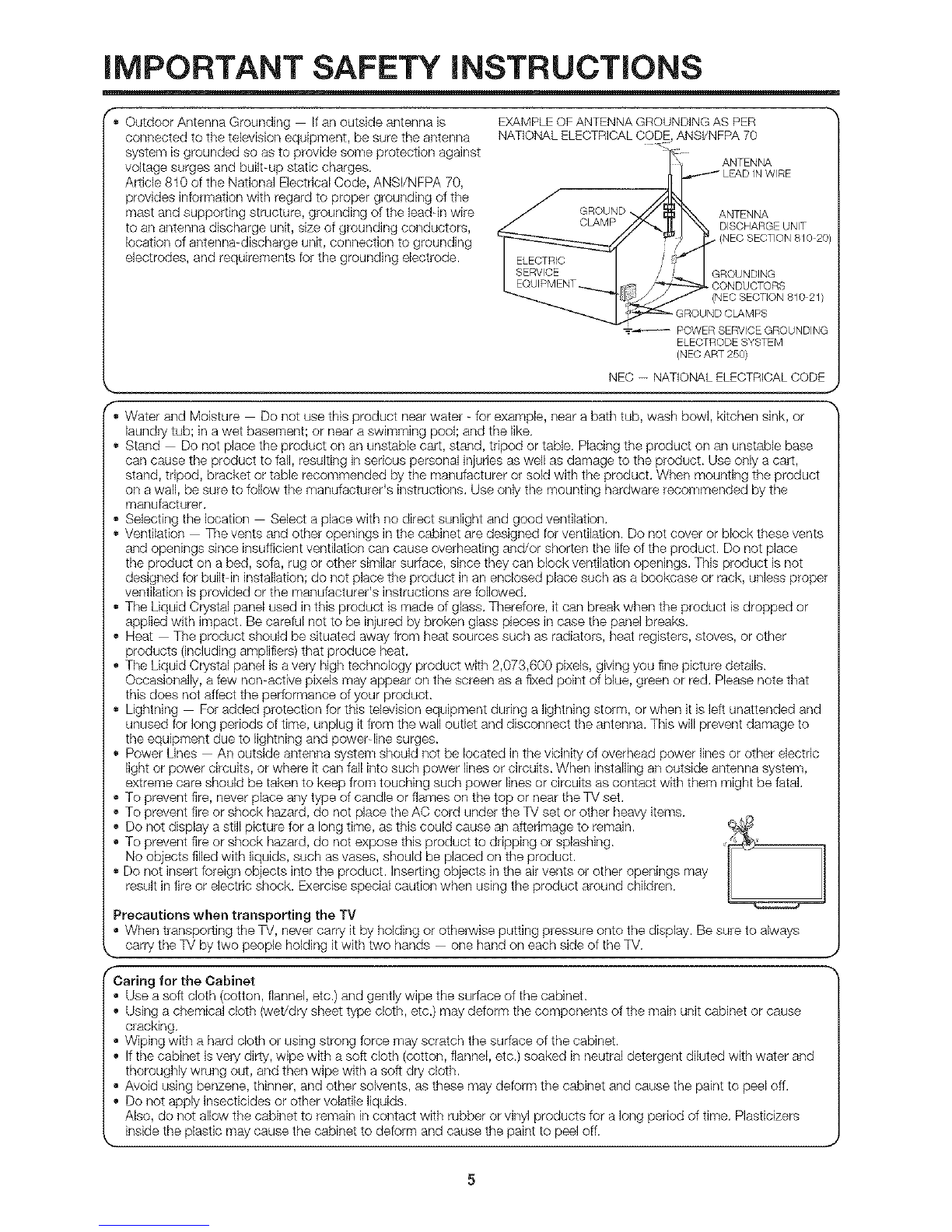

iMPORTANT SAFETY iNSTRUCTiONS
• Outdoor Antenna Grounding If an outside antenna is
connected to the television equipment, be sure the antenna
system is grounded so as to provide some protection against
voltage surges and builbup static charges.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper grounding of the
mast and supporting structure, grounding of the lead/in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ELECTRODESYSTEM
(NEOART250}
NEC -- NATIONAL ELECTRICAL CODE
fo Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or
laundry tub; in a wet basement; or near a swimming pool; and the like.
• Stand Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base
can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product
on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the
manufacturer.
• Selecting the location Select a place with no direct sunlight and good ventilation.
• Ventilation The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents
and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place
the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not
designed for buNtdn installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper
ventilation is provided or the manufacturePs instructions are followed.
• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or
applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.
• Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
• The Liquid Crystal panel is a very high technology product with 2,073,600 pixels, giving you fine picture details.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that
this does not affect the performance of your product.
• Lightning For added protection for this television equipment during a lightning stom_, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to
the equipment due to lightning and powerdine surges.
• Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
• To prevent fire, never place any type of candle or flames on the top or near the TV set.
• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.
• Do not display a still picture for a long time, as this could cause an afterimage to remain.
• To prevent fire or shock hazard, do not expose this product to dripping or splashing.
No objects filled with liquids, such as vases, should be placed on the product.
• Do not insert foreign objects into the product. Inserting objects in the air vents or other openings may
result in fire or electric shock. Exercise special caution when using the product around childien.
Precautions when transporting the
• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always
_, carry the TV by two people holding it with two hands one hand on each side of the TV.
aring for the Cabinet
Use a soft cloth (cotton, flannel, etc.) and gently wipe the surface of the cabinet.
Using a chemical cloth (wet!dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause
cracking.
Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.
If the cabinet is very dirty, wipe with a soft cloth (cotton, flannel, etc.) soaked in neutral detergent diluted with water and
thoroughly wrung out, and then wipe with a soft dry cloth.
Avoid using benzene, thinner, and other solvents, as these may deform the cabinet and cause the paint to peel off.
Do not apply insecticides or other volatile liquids.
Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers
inside the plastic may cause the cabinet to deform and cause the paint to peel off.

iMPORTANT SAFETY iNSTRUCTiONS
fCaring for the Liquid Crystal panel
• Turn offthe main power and unplug theAC cord from the wall outlet before handling.
• Gently wipe the surface of the display panel with a soft cloth (cotton, flannel, etc.).
To protect the display panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet!dry _ _. _ _
sheet type cloth, etc.). This may damage the sur[ace of the display panel.
• Wiping with a hard cloth or using strong force may scratch the surface of the display panel.
Use a soft damp cloth to gently wipe the display panel when it is really dirty.
(It may scratch the surface of the display panel when wiped strongly.)
• If the display panel is dusty, use an anti-static brush, which is commercially available, to clean it.
• To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are
available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-CLOTH-3) packs. Call 1-800-BE-SHARP for
_. ordering, or VISIT http://www.sharpusa.com/SharpDirect.
fCHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
Manutacturers, retailers and the rest of the consumer electronics industry are committed to making
home entertainment sate and enjoyable.
As you enjoy your television, please note that all televisions new and old _ must be supported on
proper stands or installed according to the manufacturer's recommendations. Televisions that are
inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may
fall over, resulting in injury.
TUNE IN TO SAFETY
ALWAYS tollow the manufacturer's recommendations for the sate installationof your television.
ALWAYS read and follow all instructions for proper use o1your television.
NEVER allow children to climb on or play on the television or the furniture on which the television is
placed.
NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
ALWAYS route cords and cables connected to the television so that they cannot be tripped over,
pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
ALWAYS contact your retailer about protessional installation if you have any doubts about your
ability to safely mount your television.
ALWAYS use a mount that has been recommended by the television manutactarer and has a satet
certification by an independent laboratory (such as UL, CSA, ETL).
ALWAYS tollow all instructions supplied by the television and mount manufacturers.
ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be moanted to walls and ceilings with steel studs or cinder block
construction. Ifyou are unsure, contact a protessional installer.
Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.
MOVING AN OLDER TELEVISION TO ANEW PLACE IN YOUR HOME
Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a flat panel television. Special care should be made in the placement of older CRT
televisions.
ALWAYS place your older CRT television on furniture that is sturdy and appropriate tor itssize and
weight.
NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CE.org/safety

QUICK REFERENCE
o Before attaching the stand, make sure to turn off the TV
and unphJg the AC cord.
o Before performing work spread cushioning over the base
area to laythe TV on. This will prevent it from being
damaged.
o Attach the stand in the correct direction.
o Do not remove the stand from the TV unless using an
optionam wall mount bracket to mount it.
o Be sure to follow the instructions. Incorrect installation
of the stand may result in the TV falling over.
oAfter attaching the stand to the TV, do not hold the
stand when you put up, set up, move or lay down the TV.
1 Confirm that there are 12 screws (8 long screws
and 4 short screws) supplied with the stand unit.
2 @ Set the post for the stand unit onto the
polystyrene foam.
Attach the base to the post.
Insert and tighten the 8 screws into the 8 holes
on the bottom of the base.
o Hold the stand unit securely with one hand, and then
tighten the screws.
[] LC-70LE550U
®,_ Long
screw_
3_ Insert the stand into the openings on the bottom
of the TV.
o Make sure that the stand is limply inserted into the
TV. Improper installation may result in tilting of the
TV set.
Insert and tighten the 4 screws into the 4 holes
on the rear of the TV.
o Before detaching the stand, make sure to turn off the TV
and unplug the AC cord.
o Do not remove the stand from the TV unless using an
optional wall mount bracket to mount it.
1 Unfasten the four screws used to secure the stand
in place.
@
[] LC-60LE550U
®
2 Detach the stand from the TV.
ft
® j¢<1 _
o Inthe installation procedure, be careful not to catch your
fingers between the TV set and the floor.
7

QUICK REFERENCE
" • |" e| I" A .
o This TV should be mounted on the wall only with the
wall mount bracket AN-52AG4 (SHARP), The use of
other wall mount brackets may result in an unstable
installation and may cause serious injuries.
, Installing the TV requires special skill that should
only be performed by qualified service personnel.
Customers should not attempt to do the work
themselves, SHARP bears no responsibility for
improper mounting or mounting that results in
accident or injury.
Using an optional bracket to mount the TV
• You carl ask a qualified service professional about
using an optional AN-52AG4 bracket to mount the TV
to the wall.
Carefully read the instructions that come with the
bracket before beginning work.
Hanging on the wall
AN-52AG4 wall mount bracket.
(See the bracket instructions for details.)
Vertical mounting Angular mounting
About setting the TV angle
AN-52AG4 LC- 70LE550U
The center of the display:
2s/e4inch (10 mm) above
the "c" position.
LC-60LE550U
The "e" position is at the
center of the display.
Refer to the operation
manual of AN-52AG4 for
details.
o Due to the terminal confFguratJonon this TV, when you
wall mount this model, make sure there is enough space
between the wall and the TV for the cables.
o To use this TV mounted on a wall, remove the AC cord
holder on the rear ot the TV, and then use the screws
supplied with the wall mount bracket to secure the bracket
to the rear of the TV.
Q • • o " -
The listed optional accessory is available for the Liquid
Crystal Television. Please purchase them at your
nearest shop.
• Additional optional accessories may be available in the near
tuture. When purchasing, please read the newest catalogue
tot compatibility and check the availability.

QUICK REFERENCE
1 Attach your antenna to the back of the television.
(See page 10.)
2 Connect the AC plug for the television into the AC
outlet.
o Place the TV close to the AC outlet, and keep the power
phJg within reach.
o TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT
TOUCH UN-INSULATED PARTS OF ANY CABLES
WITH THE AC CORD CONNECTED.
3 When turning on the TV for the first time, press
POWER on the television.
POWER
4 Insert the batteries into tile remote control unit. (See
page 10.)
o Speakers cannot be detached from the TV.
o TV angle cannot be adjusted.
e- - • m._ -
An HD'I'V without an HD source is just an ordinary "iV.
To enjoy HD images an the TV, you should get HD
programming from the following:
o Over the-air broadcasting via HD quality antenna
o HD cable/satellite subscription
o HD compatible external equipment
o For intormation on updating to HD programming, ask your
cable/satellite service provider.
• I" _'Ho "ol • I|
Use the remote control unit by pointing it towards the
remote control sensor on the TV. Objects between the
remote control unit and the remote control sensor may
prevent proper operation.
Remete__ _
The angle is 8° when the stand is attached.
[] Cautions regarding the remote controE unit
o Do not expose the remote control unit to shock. In addition,
do not expose the remote control unit to liquids, and do not
place in an area with high humidity.
o Do not install or place the remote control unit under direct
sunlight. The heat may cause detorrnation of the remote
control unit.
o The remote control unit may not work properly if the remote
control sensor on the TV is under direct sunlight or strong
lighting. Insuch cases, change the angle of the lighting
or the TV, or operate the remote control unit closer to the
remote controE sensor.
IMPORTANT:
IF THE UNIT DOES NOT POWER ON UNPLUG THE
TELEVISION FROM THE OUTLET AND REPEAT THE
INSTALLATION STEPS.
IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT
US AT 1-800 BE-SHARP.

Preparation
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,
plug it into the antenna terminal at the rear of the TV set.
fl.A 75 ohm system is generally a round cabb with F type connector _F type connector
that can easily be attached to a terminal without toob (Commercially _- 75 ohm coaxial cable (round)
available).
2. A 300 ohm system is a fiat "twin-bad" cabb that can be attached
to a 75 ohm terminal through a 300/75 ohm adapter (Commercially
availabb). 300 ohm twin lead cable (fiat)
F-type connector should be finger-tightened only.
When connecting the RF cable to the TV set, do not tighten F-type
connector with tools.
If tools are used, it may cause damage to your TV set. (The breaking 75-ohm coaxial cable
fConnecting Antenna Cable
• connect the antenna cable to the TV using one of the methods in the illustration as shown (_1), (2), _,3or 4h)
Home Antenna
,_1) Cable without a CATV terminaE(75-ohm)
converter
(2) VHF/UHF antenna
(3) Combination VHF/
UHF antenna
,_) Separate VHF/UHF
antenna
If the remote control fails to operate TV functions, replace the batteries in the remote control unit.
I Open the battery cover. 2 Insert two "AA" size batteries 3 Close the battery cover.
(supplied with the product).
o Place the batteries with their terminals
corresponding to the ( ) and (-)
_ indications in the battery compartment.
Improper use ot batteries can result in chemical leakage or explosion. Be sure to tollow the instructions below.
o Do not mix batteries of different types. Different types ot batteries have different characteristics.
o Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage
in old batteries.
o Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a
rash. If you find any chemical leakage, wipe thoroughly with a cloth.
o The batteries supplbd with this product may have a shorter life expectancy due to storage conditions.
o Ifyou will not be using the remote control unit tor an extended period ot time, remove batteries from it.
10

Part Names
m
•I| • " I
"1
POWER button [i _
MENU button '' I_il-
,NPUT button J_H
_Hnn/' buttonsJ
til [ ::::.......
"1 See pages 13 and 18 for button operations.
•20PC: Optical Picture Control (See page 19.)
E
PC IN terminal
AUDIO iN terminal
(shared for HDMI iN 1
and PC IN) *2
HDMI IN 1 terminal
HDMI IN 2 terminal
AUDIO OUT terminals
-- Antenna!Cabb in
A_I/CABLE
COMPONENT IN
terminals
-- DIGITAL AUDIO OUT terminal
j
"1 See page 12 for external equipment connection.
*2 See page 21 for details on the PC Audio Select function. 11
_-- HDMI IN 3 terminal
-- VIDEO IN terminals

Connecting to External Equipment
You can connect many types of external equipment to your TV. To view external source images, select the input
source from INPUT on the remote control unit or on the TV. (See page 16.)
For connecting the TV to external equipment, use commercially available cables.
, The illustrations of the terminals are for explanation purposes and may vary slightly from tile actual products.
• To protect equipment, always turn off the TV before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefWly before making connections.
[] Connecting a Blu-ray Disc Player, DVD Player, Cable/Satellite Set-top Box, VOR, Game Console or Cameorder
Terminalon external Cable Terminalon the TV
equipment
HD
Quality
®
DV_OUT AUD]OOUT
co_pONENT0_f
L® ®.
AUDIO OUT
iiiiiiiiiiiiiiiii!i_
® L® ®R
VIDEO OUT AUDIO OUT
Standard
Quality
;q_c_--,_ HDMI certified cable
DVI HDMI conversion cable
o 3.5 mm stereo minijack cable
Component video cable
_q_-_ Audio cable _<:d"P
AV cable
NDMmmN1,2or 3 Hi.rift1 IN "1
*2
*3
_,o
AUDIO [N ®
COMPONENT mN *3
®_
AUDIO
VIDEO mN @
AUDI / IN
@L
@VIDEO IN
"1 Supported Audio format: Unear PCM, sampling rate32/44.t/48kHz.
*2 When using a DVFHDMI conversion cable, you should make an analog audio connection. In this case, in addition to
connecting a DVl HDMI conversion cable to the HDMI IN I terminal, connect a e 3.5 mm stereo minijack cable to the AUDIO
iN terminal and set "PC Audio Select" to "HDMI1 ".(See page 21.)
*3 To enjoy 1080p display capability, connect your external equipment using an HDMI certified cable or a component cable and
Cable
Optical fiber cable
Audio cable
:°_,h
Terminalon the TV
DIGmTALAUDIO *4
OUT
IGI;A
AUDIO
*5
AUDIO OUT AUDIOOm
@ @
set the equipment to 1080p output.
[] Connecting an Audio Amplifier
Terminalon external
equipment
AUDIO iNPU1
*4 The DIGITAL AUDIO OUT terminal does not output the audio signals from external equipment connected to the HDMI IN
terminals. Inthis case, make analog audio connections to the AUDIO OUT terminals.
*5 See page 25 for details on the Output Select function.
[] Connecting a PC
Terminal on PC
ANALOGRGB
®
AUDIO OUT
i,,li311rl i
®
DV] OUT AUDIO OUT
Cable
Analog RGB cable (D-sub15-pin cable orVGA cable)
o3.5mm stereo minijack cable
_m m_
/_/J:L:,_-_ HDMI-certified cable
;:i_"" "" DVI-HDMI conversion cable
e 3.5 mm stereo minijack cable
Terminal on the TV
_,o
AUDIO IN ®
HDMI IN 1,2 or 3 _mn IN
*_,o
AUDIO IN ®
*6 When connecting a PC to the PC IN, set "PC Audio Select" to "PC iN". (See page 21.)
*7 Depending on the board, only video signals may be output. [n this case, in addition to connecting an HDMI certified cable
to the HDM[ IN I terminal, connect a e 3.5 mm stereo minijack cable to the AUDIO iN terminal and set "PC Audio Select" to
"HDMI1 ". (See page 21.)
The HDM[ [N terminals one/support digital signal.
Refer to page 28 for a list of PC signals compatible with the TV.
12

Watching "iV
POWER--_
POWER
(OrVStandby)
Press POWER on the TV or on the remote control unit to turn the
power on.
o The Initial Installation starts when the TV powers on for the first time. if the
TV has been turned on before, the Initial Installation will not be invoked. For
changing the settings of the Initial Installation, perform "EZ setup" on the Setup
menu on page 21.
Press POWER on the TV or on the remote control unit again to turn the
power off.
o The TV enters standby and the image on the screen disappears.
o If you are not going to use this TV tot a long period of time, be sure to remove
the AC cord from the AC outbt.
o Weak electric power is still consumed even when the TV is turned o_.
When you turn on the TV for the first time, it will Air/Cable (Antenna setting)
automatically memorize the broadcasting channels available Make sure what kind of connection is made with your TV
in the region where you live. Perform the following steps when selecting "Air" or "Cable".
before you press POWER on the remote control unit. 3 Press _1/_ to select "Air" or "Cable", and then
1. insert the batteries into the remote control unit. (See page press ENTER.
to,)
2. Connect the antenna cable to the TV. (See page 10.)
3. Plug in the AC cord to the AC outlet. (See page 9.)
j I
Language (Language setting)
Select from among 3 languages: English, French and Spanish.
1 Press 41/1_ to select the desired language listed on
the screen, and then press ENTER.
CH Search (Channel search)
Channel auto search makes the TV look tot all channels
viewabb in the set area,
4 After "Air/Cable" has beet set, the cursor moves to
"CH Seareh".
Press _,, or ENTER to start channel search.
TV Location
Select "Home" or "Store" for the location where you plan to
install the TV. This product qualifies for ENERGY STAR in
Home mode default setting.
2 Press _/_- to select "Home" or "Store", and then
press ENTER.
o If no channel is found, confirm the type of connection made
with your TV and try "EZ Setup" again. (See page 21.)
o For changing the settings of the Initial Installation, perform
"E7 setup" on the Setup menu on page 21.
Home: AV Mode is set to "STANDARD (ENERGY STAR)".
Store: AV Mode is set to "DYNAMIC (Fixed)".
o ENERGY STAR qualification is based on AV Mode
"STANDARD (ENERGY STAR)". 13

Direct Button Operation
You can turn on the TV or put it on standby by
pressing POWER on the TV or on the remote control
unit. (See page 13.)
You can change channels by pressing CHA/V or 0-9,
(DOT).
Examples:
To select a 1 or 2=digit channel number (e.g,, Channel 5):
Press 5 _ ENT.
To select a 3=digit channel number (e,g., Channel 115);
Press 1 _ 1 > 5 _ ENT.
To select a 4-digit channel number (e,g., Channel 22.1):
Press 2 2 o (DOT) 1 _ENT.
o When selecting a 1-digit channel number, it is not
necessary to press 0 before the number,
o When you enter C_9 only, channel selection will be made if
there is no operation within a few seconds.
o If you push "0" by itself, nothing will happen.
o Complete the above steps within a few seconds.
o When you enter C_9 and • (DOT), channel selection will be
made if there is no operation within a few seconds.
You can select 4 preset favorite channels in 4 different
categories.
Press A, B, C or D.
While watching the TV, you can toggle the selected
channels by pressing A, B, C and D.
See page 25 for details of favorite channel settings.
You can change the volume by pressing VOL +/- on
the TV or on the remote control unit.
To increase the volume, press VOL +.
To decrease the volume, press VOL -.
@}
Audio status
When "Output Select" is set to "Variable", the indicator on
the screen changes as shown below.
See page 25 for details on the Output Select function.
Mutes the current sound output.
Press MUTE.
"(_" will be displayed on the screen for 40 seconds,
and the sound is silenced. The Mute function will not be
canceled even atter the icon has disappeared.
Press MUTE or VOL +/- to cancel the function.
When the Mute function is canceled, the volume returns to
the previous level.
Allows you to set a time when the TV automatically
switches to standby.
Press SLEEP.
The remaining time displays when the sleep timer has been
set.
Each time you press SLEEP, the remaining time switches
as shown below.
Off -'_ 5 -'_ 10 -'_ 15 -_ 30 -'_ 45
240 _ 180 _ 120 _ 90 _ 60
When set, the time automatically starts counting down,
Ifyou want to adjust the sleep timer, you can press SLEEP
twice then change the time setting.
When it is I minute before the time expires, the remaining
time will start to appear.
Select "Off" by pressing SLEEP to cancel the sleep timer.
The %/will enter standby when the remaining time reaches 0.
Press FLASHBACK to switch to the previously tuned
channel.
Press FLASHBACK again to switch back to the currently
tuned channel.
FLASHBACK will not work if no channel has been changed
after the TV is turned on.
This function is available only when the input source is TV.
14

Direct Button Operation
AV Mode gives you several viewing options to choose
from to best match the surrounding environment of the
TV, which can vary due to factors like room brightness,
type of program watched or the type of device
connected.
There are seven pre-set AV Modes: STANDARD
(ENERGY STAR), MOVIE, GAME, PC, USER,
DYNAMIC and DYNAMIC (Fixed). You can use USER
Mode to create customized settings for each TV input.
These settings will be automatically saved on each
input for convenience.
Press AV MODE. Current AV Mode displays.
o Press AV MODE again before the mode displayed on the
screen disappears. The mode changes as shown below:
Example:
When using the VIDEO IN or COMPONENT IN
terminals
SfANDARD (ENERGY SfAR) _ MOVIE _ GAME
lI
DYNAMIC iDYNAMIC (Fixed)i USER
ExampNe:
When using the HDMI IN terminals
s fANDARD (ENERGY SfAR) iMOVIE i GAME
t !
PC_ DYNAMIC _ DYNAMIC (Fixed)_USER
ExampNe:
When using the PC IN terminal
STANDARD(ENERGY STAR)_ USER _ PC
t H
STANDARD (ENERGY STAR): For a highly defined
image in normal lighting.
MOVIE: For a movie,
GAME: Lowers image brightness for easier viewing.
PC: For PC.
USER: Allows the user to customize settings as
described above.
DYNAMIC (Fixed): Changes the image and sound
settings to the factory preset values. No adjustments
are allowed.
DYNAMIC: For a clear cut image emphasizing high
contrast, useful for sports viewing.
o You can select a different AV Mode for each input, allowing
you to optimize your picture quality for different devices. (For
example, select STANDARD (ENERGY STAR) for watching
TV in a normal lighting environment.)
o If power is lost, USER Mode settings may need to be reset.
[] MTS/SAP stereo mode
The TV has a feature that allows reception of sound
other than the main audio for the program. This feature
is called Multi-channel Television Sound (MTS). The TV
with MTS can receive mono sound, stereo sound
and Secondary Audio Programs (SAP). The SAP
feature allows a TV station to broadcast other
information, which could be audio in another language
or something completely different like weather
information.
You can enjoy Hi-Fi stereo sound or SAP broadcasts
where available,
o Stereo broadcasts: View programs like live sporting
events, shows and concerts in dynamic stereo sound.
o SAP broadcasts: Receive TV broadcasts in either MAIN or
SAP sound, MAIN sound: The normal program soundtrack
(either in mono or stereo). SAP sound: Listen to a second
language, supplementary commentary or other information.
(SAP is mono sound.)
If stereo sound is difficult to hear.
o Obtain a clearer sound by manually switching to fixed
mono sound mode.
You can change MTS as shown below to match the television
broadcast signal.
Press AUDIO to toggle between audio modes.
Examples: when receiving MTS and SAP
STEREO mode: STEREO_ MONO
STEREO + SAP mode: STEREO_SAP_ MONO
m
MONO mode: MONO
[] DigitaE broadcasting audio mode
The types ot audio transmitted ina digital broadcast include
SURROUND as well as MONO and STEREO. In addition, it
is possible for multiple audio tracks to accompany a single
video track.
1 Press AUDIO.
• A list ot selectable audio is displayed,
2 Press A/T" to select audio.
o MTS only operates while in TV mode.
15

Direct Button Operation
Allows you to capture and freeze a moving image that
you are watching.
Press FREEZE.
o A moving image is captured.
o Press FREEZE again to cancel the function.
o When this function is not available, "No displaying still
image availabb." will display.
o The still image automatically goes out after 30 minutes.
o Ifyou are using the freeze function and a broadcast
activates the V CHIP BLOCK, the freeze function will be
canceled and a V CHIP BLOCK message will appear.
To view external source images, select the input source by
pressing INPUT on the remote control unit or on the TV.
1 Press iNPUT.
• A list of selectabb sources appears.
2 Press INPUT again or press A/_' to select the
input source.
o Each time INPUT is pressed, the input source toggles.
HDMI1 _, HDMI2 _ HDMI3
t l
rv _,,,,,m POiN_m,,,,,_ COMPONENT _VlDEO
o An image from the selected source automatically
displays.
o If the corresponding input is not plugged in, you cannot
change the input. Be sure to connect the equipment
beforehand.
o See page 12 for external equipment connection.
o Press PC to switch to an image from the PC.
Displays channel information being viewed.
Press DISPLAY.
Your TV is equipped with an internal Closed Caption
decoder. It allows you to view conversations, narration
and sound effects as subtitles on your TV. Closed
Captions are available on some TV programs and on
some VHS home video tapes at the discretion of the
program provider.
Digital Closed Caption service is a new caption service
available only on digital TV programs (also at the
discretion of the service provider). It is a more flexible
system than the original Closed Caption system,
because it allows for a variety of caption sizes and font
styles. When the Digital Closed Caption service is in
use, it will be indicated by the appearance of DTVCC.
Not all programs and VHS videotapes offer closed
captions. Please look for the "[_]" symbol to ensure
that captions will be shown.
In the Closed Caption system, there can be more
than one caption service provided. Each is identified
by its own number. The "CC1 ", "CC2", "CC3" and
"CC4" services display subtitles of TV programs
supenmposed over the program's picture.
In the Closed Caption system, the TEXT1, TEXT2,
TEXT3 or TEXT4 services display text that is unrelated
to the program being viewed (e.g., weather or news).
These services are also superimposed over the
program currently being viewed.
Press CC.
On: Displays the closed caption.
Off: Does not display the closed caption.
o You can adjust the closed caption screen appearance to
your preference. (See page 25.)
Allows you to gain quick access to PC mode.
Press PC.
You can operate the on-screen display menu by using
the following buttons.
MENU: Displays the menu screen.
,i,/Y/,,9/l_, ENTER: Select a desired item on the
screen.
RETURN: Returns to the previous menu screen.
EXIT: Turns off the menu screen.
o For operating the on-screen display menu, see "Menu
Operation Buttons" on page 18.
16

Direct Button Operation
You can select the screen size.
Press ViEW MODE to toggle between view modes.
[] For HD programs
Stretch
Suitable tot viewing wide-
screen 1.78:1 aspect ratio
program, stretch mode will still
show very thin black bands
at the top and bottom ot the
screen,
Dot by Dot (Fall Screen)
Dot by Dot (1080i/p only):
Detects the resohJtion ot the
signal and displays an image
with the same number of pixels
on the screen.
Full Screen (720p enmy):
You can select "Full Screen"
only when receiving a 720p
signal.
Zoom
Suitable for viewing wide-
screen 2.35:1 aspect ratio
programs in full screen.
S,Stretch (Smart stretch)
Suitable for stretching 4:3
programs to fill the screen.
o When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please
change view mode to correct this.
Zoom
[] For 4:3 programs
Example: Screen size images
Side Bar
Suitable tor viewing
conventional 4:3 programs in
their normal format.
S.Stretch (Smart stretch}
Suitable for stretching 4:3
programs to fill the screen. Suitable for viewing wide- screen 2.35:1 anamorphic
DVDs in full screen.
Stretch
This mode isusefulfor 1.78:1
DVDs.Whenviewing 1.85:1
DVDs,stretch mode will stillshow
very thinblack bands atthe top
andboltom 01thescreen.
[] For PC input mode
, Connect the PC before making adjustments. (See page 12.}
o Sebctabb screen size may vary with input signal type.
Example: Screen size images
Normal Stretch
FOq
Keeps the original An image fully fills the
aspect ratio in a full screen.
screen display.
Dot by Dot
El
Detectsthe resolution
ofthe signaland
dispbys an image with
thesame number of
pkels on the screen.
17

On-Screen Display Menu
Example
Example
®
®
®
The bar above is an operational guide for
the remote control. The icon of the button |
operated by the remote control will turn white. J
1 Press MENU to display the MENU screen.
2 (t_ Press _/_. to select the desired menu.
(25 Press A/Y to select a specific adjustment item.
:_3_Press 4/1_ (or ,_,/_') to select or adjust the
desired setting, and then press ENTER.
3 Press MENU to exit.
Item displayed in light blue
• This indicates the item currently selected.
® This indicates the current setting for the item.
® Item displayed in white
• This indicates that the item can be selected.
Item displayed in gray
o This indicates that the item cannot be selected.
There are various reasons why the items cannot be
selected, but the main reasons are as follows:
--Nothing is connected to the selected input terminal.
--The function is not compatible with the current input
signal.
o Menu options differ inthe selected inputmodes, but the
operating procedures are the same.
o The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.
o The order of explanations for each menu item in the
following pages is not necessarily in accordance with the
alignment of the items on the screen.
II iiii_:,
Using the remote control
Use the following buttons on the remote control to
operate the menu.
Using the control panel of the main unit
You can also operate the menu with the control panel
of the main unit.
Button operations on the control panel correspond to
the ones on the remote control as shown below.
MENU: Press to open or close the menu screen.
A/T/41/D,-: Press to select a desired item on the screen or
adjust a selected item.
ENTER: Press to confirm the settings of Reset.
RETURN: Press to return to the previous step. _i_ MENU: MENU on the
rer_ote control.
INPUT: ENTER on the
remote control
CHA/V: Cursor A/T
on the remote
control.
VOL +I- :Cursor _II_
on the remote
control.
18

On-Screen Display Menu
Adjusts the picture to your preference with the
following picture settings.
Example
Backlight The screen dims The screen
brightens
Contrast For less contrast For more contrast
Brightness For less For more
brightness brightness
Color For less color For more color
intensity intensity
Tint Skin tones Skin tones
become reddish become greenish
Sharpness For less For more
sharpness sharpness
For resetting all Picture adjustment items to the factory
preset values, press A/T to select "Reset", press ENTER,
press 4/i_ to sebct "Yes", and then press ENTER.
The current setting of AV Mode is displayed. (See page
15 for details of AV Mode settings.)
Automatically adjusts the brightness of the screen.
On:Display: Displays the OPC effect on the screen whib
adjusting the brightness of the screen.
On: Automatbaliy adjusts.
Off: The brightness is f_xedat the value set in "Backlight".
o When set to "On", the Optical Pbture Control (OPC) senses
the surrounding light and automatically adjusts the backlight
brightness. Make sure nothing obstructs the OPC sensor,
which could affect its ability to sense surrounding light.
o When set to "On:Display", OPC effect displays on the
screen while the OPC adjusts the screen brightness.
o The OPC effect on the screen will not be displayed when
"Closed Caption" is set to "On", even if you set "OPC" to
"On:Display"
[i II
This TV provides various advanced functions for
optimizing tlqe picture quality.
For a better white balance, use color temperature
correction.
High: White with bluish tone
Mid-High:
Middle:
Mid-Low:
Low: White with reddish tone
Use Motion Enhancement to view fast-action video
more clearly.
On(High)/On(Low}: For obtaining a clearer image.
Off: Normal image.
o "Motion Enhancement" may cause image noise. If this
occurs, turn the function "Off".
o When AV MODE is set to "GAME" or "PC", or PC format is
being input, "Motion Enhancement" is not available.
a
This function provides high-quality playback of images
originally encoded at 24 frames/second, such as films.
Advanced(High)/Advanced(Low): Select a desired level
to remove jerkiness from film contents.
Standard: Detects, analyzes, converts film soume.
Off: Normal viewing mode.
o "Film Mode" does not function depending on input signal type.
"Film Mode" does not function when you set AV MODE to
"GAME" or "PC".
"Standard" does not function depending on input signal type.
Automatically adjusts the image contrast according to
the scene.
On: Automatically adjusts the image contrast.
Off: No adjustment.
Produces a clearer video image.
Off: No adjustment
High/Middle/Low: Sebct a desired bvel for viewing a
chafer video image.
The brightness level range of the OPC sensor's automatic
adjustments can be set according to your preferences.
The adjustment range of the ()PC sensor can be set to
a maximum of 16 and a minimum of -16.
Max.: -15 through 16
Min,: 16 through 15
o The maximum setting cannot be set to a smaller number
than the minimum setting.
o The minimum setting cannot be set to a bigger number
than the maximum setting.
o Depending on the brightness of the surrounding light, the OPC
sensor might not operate if the adjustment range is small
a
You can display the product feature on screen.
o This function will be cancebd when you press EXIT or
RETURN on the remote control unit.
• To enable this function, set "TV Location" to "Store".
19

On-Screen Display Menu
• • •- =e - • •-
You carl adjust the sound quality to your preference Power control setting alows you to save energy.
with the following settings. Example
Example
Treble For weaker treble For stronger treble
Bass For weaker bass For stronger bass
Balance Decrease audio Decrease auclo
from the right from the left
speaker speaker
, Audio menu is grayed out when "Output Select" is set to
"Variable". (See page 25.)
, For resetting all Audio adjustment items to the factory
preset values, press _./T to select "Reset", press ENTER,
press _/1_ to select "Yes", and then press ENTER.
The current setting of AV Mode is displayed. (See page
15 for details of AV Mode settings.)
The surround function produces Surround effect from
the speakers.
On: Makes it possible to enjoy natural, realistic surround
sound.
Off: Outputs the normal sound.
, Audio menu is grayed out when "Output Select" is set to
"Variable". (See page 250
, For some discs, setup may be required on your BD/DVD
player. Inthis case, please refer to the operation manual of
your BD/DVD player.
This function allows you to enjoy bass-enhanced sound.
On: Bass Enhancer function is on.
Off: Normal sound.
, Audio menu is grayed out when "Output Select" is set to
"Variable". (See page 25.)
This function allows the TV to automatically shut the
power down when there is no signal received.
Enable: The power will automatically shut down if there is
no signal for 15 minutes.
Disable: This function does not work.
o When it is I minute before the power shuts down, the
remaining time will start to appear.
o When a TV program finishes, this function may not operate.
You can set the time length the TV takes to automatically
shut the power down when there is no operation.
30 rains/3 hours/Disable
o When itis 1 l_inute before the power shuts down, the
remaining time will start to appear.
2O
