Sharp 29K-FM5M User manual

ENGLISH
MELAYU
OPERATION MANUAL
COLOUR TELEVISION
29K-FH5M
Please read this operation manual
carefully before using the colour
television.
E1
[ SAFETY
PRECAUTIONS ]
E2
[ ACCESSORIES ]
E3
[ ANTENNA
CONNECTION ]
• Connecting to an antenna
• Connecting to an antenna
via a VCR
E4
[ CONNECTING TO
OTHER EQUIPMENTS ]
E5
[ CONNECTING AND
WATCHING DVD ]
• Connecting to a DVD
player
• Watching DVD
E6
[ PART NAMES ]
• TV set
• Remote control
• Installing batteries
TINS-C611WJZZ
06P08-MSM
E7
[ BASIC OPERATION ]
• Turn on the power
• On-screen display
language selection
• Channel selection
• Adjusting volume
E8
[ CHANNEL SETTING ]
E9
[ PICTURE OR SOUND
ADJUSTMENT ]
E10
[ TIMER SETTING ]
• On timer
• Off timer
• Reminder on-screen timer
• Beep reminder
E11
[ FEATURES ]
• Blue back
• Auto select
• Power save
• 16:9 mode
• Child lock
E12
[ USEFUL FEATURES ]
• Channel/Timer display
• Channel recall
• TV/Video selection
• Surround sound
• Mute
• Sound mode
• Equalizer
• Favourite channels
E13
[ NICAM/A2 STEREO
SYSTEM
BROADCASTS ]
E14
[ TELETEXT
BROADCASTS ]
E15
[ TROUBLESHOOTING ]
E16
[ SPECIFICATIONS ]
E17
[ DEFINITION OF
TERMS ]
Contents
27/04/2006, 3:46 PM1

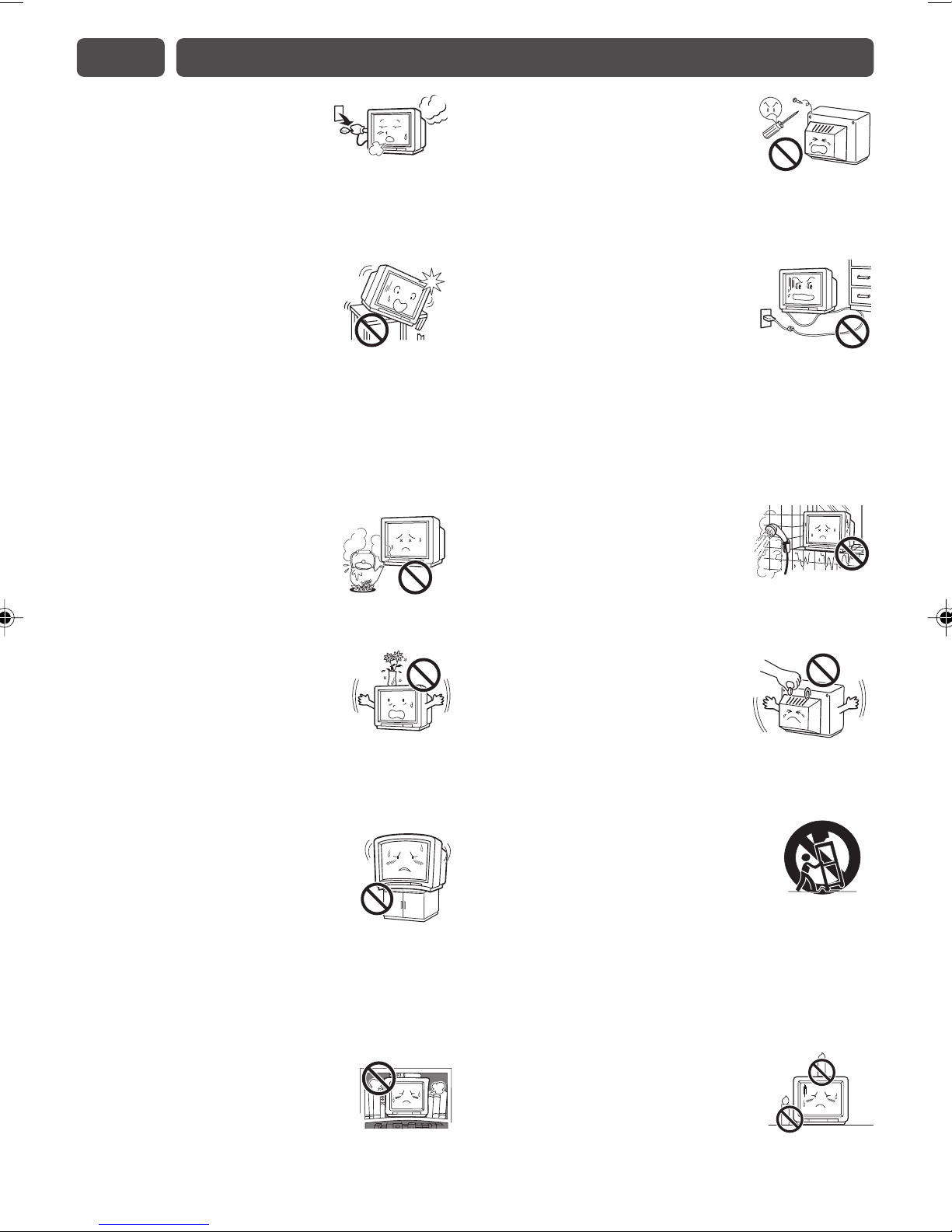

Damage
Turn off the power and unplug
the power cord from the wall
outlet immediately if the TV set begins to make
any unusual noises or gives off smoke or an
unusual smell. Then call your dealer for service.
Unstable surface
and shocks
Do not place this TV set on an
unstable cart, stand, shelf, or table. The TV set
may fall, causing serious injury to a child or
adult, and serious damage to the set. Sharp
recommends securing the TV set to a stable
surface or wall to prevent the set from falling due
to sudden shocks or impact.
Moisture
To prevent electrical shock, do
not use the TV set in an
excessively damp place.
Liquid entry
Do not place a flower vase
or anything else containing liquid
on the TV set, as liquid spilt on the TV set can
cause electrical shock or failure.
TV Set position
Do place the TV set onto an even
stand, table or rack which size is
bigger than the TV set.
If the TV set is put onto a smaller
size or uneven stand, table or rack may cause
the TV cabinet to distort.
Do not put or insert anything between TV set
and the stand, table or rack.
Ventilation
Do not place this TV set in a
confined area, such as on a
bookshelf or in a built-in case. Leave adequate
space behind the TV for proper ventilation.
Servicing
To reduce the risk of electric
shock, do not remove the back
of the cabinet. This TV set
contains dangerous voltage.
Power-cord
protection
To prevent electrical shock, do
not subject the AC power cord to damage by
bending or twisting it, or by placing heavy items
on top of it and do not place the AC power cord
under the TV set. If the AC power cord becomes
damaged, unplug it from the wall outlet
immediately and call your dealer for service.
Water
To prevent fire or electrical
shock, do not place the TV set
near a bathroom, swimming pool or other area
where it may become wet.
Object entry
Never insert or drop any metallic
or inflammable objects into the
ventilation openings of the TV set, as this can
cause fire, electrical shock, or electrical failure.
Uneven surface and
excessive force
Television equipment and cart
combination should be moved with care. Quick
stops, excessive force, and uneven surfaces
may cause the equipment and cart combination
to overturn.
Fire prevention
To prevent fire, never place any
type of candle or naked flames on
the top or near the TV set.
E1 SAFETY PRECAUTIONS
24/04/2006, 8:43 AM2

Enjoy playback from a video disc player, VCR or other video equipment by connecting them
to this TV set using the Audio/Video in terminals.

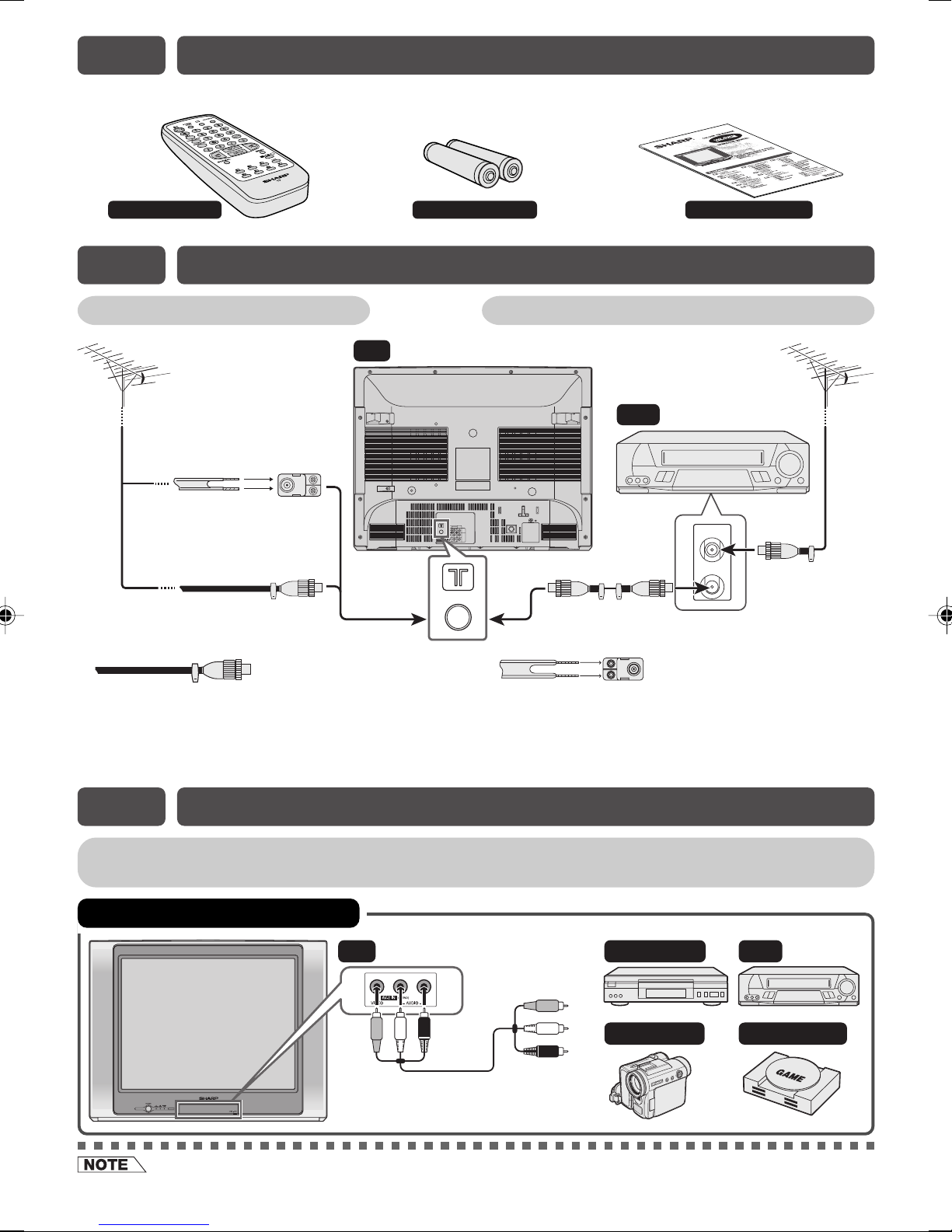

E2 ACCESSORIES
E4 CONNECTING TO OTHER EQUIPMENTS
The following accessories are included with this television.
Remote Control Size-AA batteries Operation manual
E3 ANTENNA CONNECTION
Connecting to an antenna Connecting to an antenna via a VCR
COMPONENT
L
ı
AUDIO
ı
R
VIDEO
AV-1 IN OUT
(MONO)
Y
P
B (C B )
P
R (C R )
Standard DIN45325
plug (IEC 169-2)
75-ohm
coaxial cable
(round cable)
(not supplied)
300-ohm
twin-lead
flat feeder
(not supplied)
75-ohm
impedance
converter
(not supplied)
Antenna in
VCR
TV
To antenna
in terminal
To RF out
terminal
If your outdoor antenna uses a 75-ohm coaxial
cable with a standard DIN45325 plug (IEC 169-2),
plug it into the antenna jack at the rear of the set.
If your outdoor antenna uses a 300-ohm twin-lead
flat feeder, connect a 300-ohm to 75-ohm
impedance converter and plug it into the antenna
jack at the rear of the set.
Example of front terminal usage
•When using the RF terminal connection, set the TV to channel zero to make initial adjustments for the VCR.
Yellow : To VIDEO
White : To AUDIO (L)
Red : To AUDIO (R)
TV VCR
DVD Player
Camcorder Video Game
To Audio/Video
out terminals
27/04/2006, 3:46 PM3

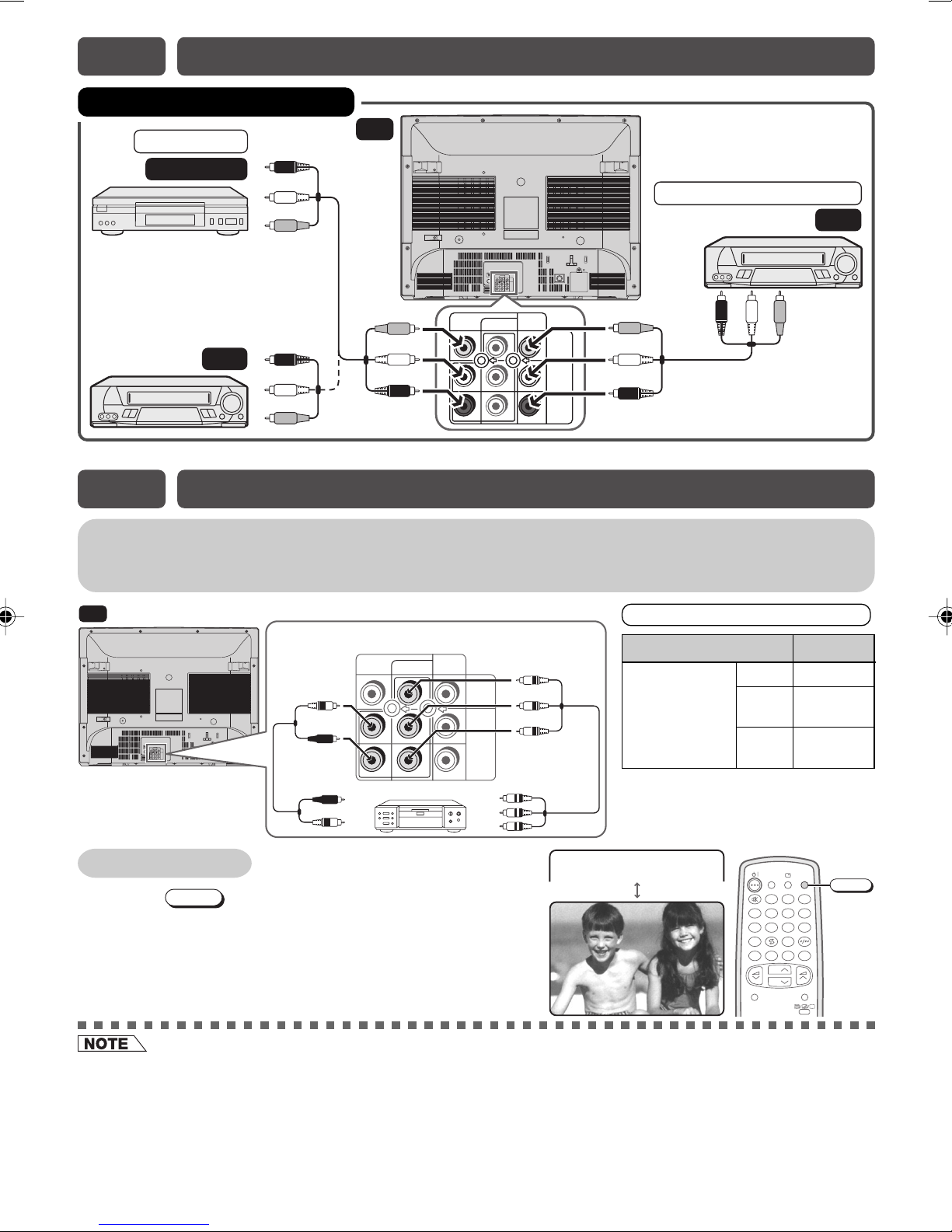

E4 CONNECTING TO OTHER EQUIPMENTS (Continued)
Example of rear terminal usage
COMPONENT
L
ı
AUDIO
ı
R
VIDEO
AV-1IN OUT
(MONO)
Y
P
B (C B )
P
R (C R )
TV
COMPONENT
L
ı
AUDIO
ı
R
VIDEO
AV-1 IN OUT
(MONO)
Y
PB(CB)
PR(CR)
For Playback
DVD Player
VCR
For Recording and Editing
VCR
To Audio/Video
out terminals
To Audio/Video
out terminals
To Audio/Video
in terminals
Yellow: To VIDEO
White : To AUDIO (L)
Red : To AUDIO (R)
E5 CONNECTING AND WATCHING DVD
Connecting to a DVD player
The DVD input terminals (COMPONENT-IN) on the rear of the TV can be used to input high-
quality images from a DVD player.
Connecting the video terminals
DVD input terminals DVD player
COMPONENT-IN
VIDEO
Y Y or Y/Y
PB(CB)PB(CB) or
B-Y/Pb
PR(CR)PR(CR) or
R-Y/Pr
COMPONENT
L
ı
AUDIO
ı
R
VIDEO
AV-1IN OUT
(MONO)
Y
P
B (C B )
P
R (C R )
DVD input terminals
TV
COMPONENT
L
ı
AUDIO
ı
R
VIDEO
AV-1 IN OUT
(MONO)
Y
P
B (C B )
P
R (C R )
DVD player
Red : To AUDIO IN (R)
White : To AUDIO IN (L)
Green : To Y
Blue : To PB(CB)
Red : To PR(CR)
To audio out
(L/R) terminals
To colour-difference
(component video)
out terminals
Watching DVD
!Press
TV/VIDEO
to select “COMPONENT”, DVD input
screen.
@Turn on the DVD player and begin playback.
•For playback of monaural audio, connect the external source to the audio input left terminal on the front or rear of
the TV set (MONO) to hear the same sound from both speakers.
•The audiovisual cords required to connect the TV set with video equipment may differ from those shown in the
above diagram. See the operation manual of your video equipment for connection details.
•The above recording and editing connections are intended solely for personal use and not for the illegal copying of
audiovisual material protected by copyright laws.
•The rear COMPONENT-IN terminals have the priority over the rear AV1-IN terminals.
If 2 equipments are connected to the TV set from the rear COMPONENT-IN terminals and rear AV1-IN terminals at
the same time, COMPONENT-IN picture will be automatically displayed.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
MPX
CH
CH
TV/VIDEO
TNENOPMOC
24/04/2006, 9:32 AM4

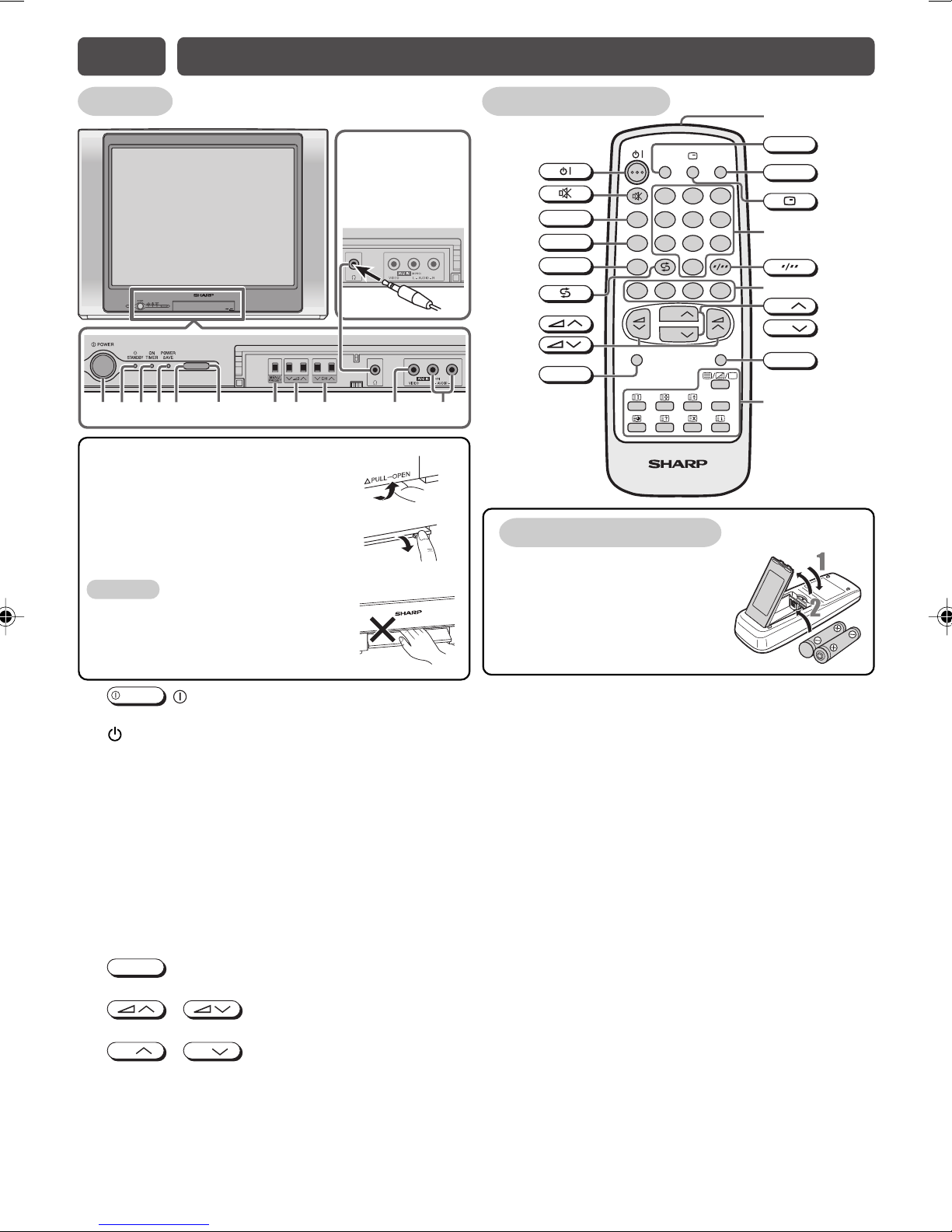

TV set
E6 PART NAMES
0
Headphone jack
•
Insert headphone
plug into headphone
jack to listen to audio
with headphone.
17892345 6 q w
1
POWER
POWER switch
Turns on and off the main power.
2STANDBY indicator
Power can be turned on by the remote control
when the indicator is lit red.
3ON TIMER indicator
Lights up red when the On Timer is set.
4POWER SAVE indicator
Lights up red when Power Save mode is on.
5Infrared sensor window
Receives the infrared wave from the remote control.
6POWER SAVE sensor
Room brightness sensor
7
MENU/PRESET
MENU/PRESET button
Tunes the channels. Used for MENU setup.
8/ Volume up/down buttons
Adjusts the volume.
9
CH
/
CH
Channel up/down buttons
Selects the channels. Tunes or sets the channels.
0Headphone jack
Use to listen to the audio with headphone.
qVideo input terminal (AV-2 IN)
Connects to a camcorder, video game, etc.
wAudio input terminals (AV-2 IN)
Connects to a camcorder, video game, etc.
Remote control
! Turns the TV on or to Standby mode.
@ Mutes the sound and restores sound to previous level.
# Switches between main and sub sound, and stereo
and monaural sound.
$ Switches between MOVIE, MUSIC, NEWS and CUSTOM.
% Switches between “OFF”or “ESS”(during receiving
signal stereo) and “OFF”or “EPS”(during receiving
signal monaural).
^ Returns to previously viewed channel.
& Adjusts the volume. Used for MENU setup.
* Resets all settings.
( Switches POWER SAVE mode on or off.
) Switches between TV broadcasts and AV input
programmes.
Q Displays the channel and timer settings on the screen.
W Number buttons
E Switches between one- or two-digit mode channel selection.
R Colour buttons
Operate the Favourite Channel and Teletext functions.
T Selects the channel. Used for MENU setup.
Y Calls the MENU screen.
U Teletext buttons
Operate the Teletext functions.
I Infrared transmitter window
Aim this window at the infrared sensor window on your
TV set.
Installing batteries
1Pull up or replace back the
battery cover.
2Insert two batteries (size
AA). Be sure to match the
battery j/kterminals.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
TV/TEXT
123
456
78
0
9
MENU
LIST
BACD
MPX
CH
CH
SURROUND
SOUND MODE
MPX
MENU
NORMAL
CH
CH
TV/VIDEO
POWER SAVE
!
(
)
Q
E
W
R
U
I
T
Y
@
#
$
%
^
&
*
To open the door
Using the projection located under
the “√PULL-OPEN”indication,
pull and lift the door open.
To close the door
Using the projection, lower the
door until closed.
Caution:
•When opening or closing the door,
do not insert your fingers into the
gap between the door and front
panel. This may result in an injury.
27/04/2006, 3:56 PM5

[ TV Set (Bottom) ]
Standby indicator
POWER
Turn on the power
• When the standby indicator is off, press the POWER .
• When the standby indicator is red, press on the remote control. The
standby indicator changes to green and a picture appears.
On-screen display language selection
TV set
• Press
MENU/PRESET
for more than two seconds, the
language select mode appears.
• Press CH / CH to select desired language.
• Pressing
MENU/PRESET
changes the screen as shown below.
MENU screen
• Press MENU to call MENU screen.
• Press CH / CH to select “CH-SETTING”.
• Press / to display CH-SETTING menu.
• Press CH / CH to select “LANGUAGE”.
• Press / to select desired language.
• Press MENU until normal screen appears.
[ Behind the door ]
Channel selection
!Using
CH
/
CH
• Press CH and channels change as shown below.
1 /2 /... /98 /99 /AV1 (or COMPONENT) /AV2 /0 /1 /2 ...
• Press CH and channels change as shown below.
1 /0 /AV2 /AV1 (or COMPONENT) /99 /98 /... /2 /1 /0 ...
@With the number buttons (on remote control)
• To select a one-digit channel, such as 5, press
5. If “5-” is indicated, press to
select one-digit input, and then press 5
again.
• To select a two-digit channel, such as 15,
press to select the two-digit input.
Press 1, and then press 5.
Adjusting volume
!Adjust volume using / .
• The volume bar disappears approximately five
seconds after the volume has been adjusted.
• When the standby indicator is red, either CH / CH on the TV can be pressed to turn on the power.
• Channels that have been skipped cannot be selected by CH / CH .
• The AV1 (or COMPONENT) and AV2 input channels can be selected using TV/VIDEO .
E7 BASIC OPERATION
HENGL I S
M ELAYU
IFRANCA S
SELECT : CH
MENU/PRESET
CH
CH
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
MPX
CH
CH
LISTLIST
CH
CH
5
1
51
–1
––
VOLU M E19
ENGLISH MELAYU
FRANCAIS
Language CH-Setting Normal screen
M ENU
SOUND
FEATURE
TI
M ER
CH - SE TT I NG
AUT
12
O
AUTO
OFF
168 . 25
M Hz
CH - SE TT I NG
COLOUR- SYST E
M
POS I T I ON
SOUND - SYST E
M
SK I P
AUTO
M ANUAL
LANGUAGE ENGL I SH
29K-FH5M(05-08)EN 09/05/2006, 2:25 PM6

Enables individual channel setting.
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “CH-SETTING”.
If you press
MENU/PRESET
on TV set for more than two
seconds during normal screen, the LANGUAGE
mode screen will appear.
Press
MENU/PRESET
again to display CH-SETTING menu.
•Pressing
MENU/PRESET
changes the screen as shown
below.
#Press / to display CH-SETTING
menu.
$Press
CH
/
CH
to select desired setting.
%Each time you press / , setting
for individual items changes as follows:
•POSITION
The channel position changes to the higher or lower number.
•COLOUR-SYSTEM
•SOUND-SYSTEM
•SKIP
ON OFF
When set “SKIP”to “ON”, the channel number are set to SKIP. To turn off SKIP, press the number
buttons to select the desired channel and then set “SKIP”to “OFF”.
•AUTO
Press / and Auto Channel Tuning
is started. Auto tuning bar will shown during
Auto Search only.
•MANUAL (FINE tuning)
i) Each time / is pressed, the
frequency changes to allow fine tuning and
the colour of channel number changes to
yellow to indicate fine tuning.
ii) Press / for more than 2
seconds, the “Manual Channel Tuning”will
start. If a signal is found, the Manual Channel
Tuning will stop searching.
^Press
MENU
until normal screen appears.
[ Behind the door ]
•Switching COLOUR-SYSTEM:
Set the system to “AUTO”for normal TV reception. The AUTO mode automatically detects the receiving signal
system and changes the reception system of the TV set. When the picture is not stable, switching to an appropriate
system may improve the picture quality.
•Switching SOUND-SYSTEM:
Set the system to “AUTO”for normal TV reception. The AUTO mode automatically detects the receiving signal
system and changes the reception system of the TV set. When the sound is not stable, switching to an appropriate
system may improve the sound quality.
•When using FINE, the channel number changes from green to yellow.
E8 CHANNEL SETTING
MENU/PRESET
CH
CH
Language CH-Setting Normal screen
M ENU
SOUND
FEATURE
TI
M ER
CH - SE TT I NG
SELECT : CH ENTER: RETURN :
M ENU
AUTO
AUTO
12
OFF
168 . 25
M Hz
CH - SE TT I NG
COLOUR- SYST E
M
POS I T I ON
SOUND - SYST E
M
SK I P
AUTO
M ANUAL
LANGUAGE ENGL I SH
SELECT : CH ADJUST : RETURN :
M ENU
AUTO SECAM
PA L
B/G NICAM B/GB/G A2AUTO
D/K D/K NICAM I I NICAM
AUTO
AUTO
12
OFF
168 . 25
M Hz
CH - SE TT I NG
COLOUR- SYST E
M
POS I T I ON
SOUND - SYST E M
SK I P
AUTO
M ANUAL
LANGUAGE ENGL I SH
SELECT : CH ADJUST : RETURN:
M ENU
12
OFF
168 . 25
M Hz
CH - SE TT I NG
COLOUR- SYST E
M
POS I T I ON
SOUND - SYST E M
SK I P
AUTO
M ANUAL
LANGUAGE ENGL I SH
SELECT : CH ADJUST : RETURN:
M ENU
AUTO
AUTO
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
CH
CH
MENU
24/04/2006, 8:44 AM7

CONTRAST 50
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “PICTURE”or “SOUND”.
#Press / to display PICTURE or SOUND menu.
$Press
CH
/
CH
to select adjustment items.
%Adjust using / .
•Wait for approximately five seconds to return to PICTURE/SOUND menu.
^Repeat steps 4 and 5 above to adjust other items.
&Press
MENU
until normal screen appears.
The following table lists the adjustment items shown in the PICTURE/SOUND menu
and how they change as you press / .
PICTURE menu table
•Pressing NORMAL while a PICTURE/SOUND selection is displayed, only the selected mode is reset to the standard
(factory-setting) position.
•Pressing NORMAL while the PICTURE/SOUND menu screen is displayed will reset all the items of PICTURE/SOUND
menu to the standard (factory-setting) position.
•Pressing NORMAL will reset all the items of PICTURE menu and SOUND menu to the standard (factory-setting) position.
E9 PICTURE OR SOUND ADJUSTMENT
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
CH
CH
MENU
NORMAL
M ENU
SOUND
FEATURE
TI
M ER
CH - SE TT I NG
–+
–+
–+
Selected item Press Press
VIDEO MODE
CONTRAST To decrease contrast To increase contrast
COLOUR For less colour intensity For more colour intensity
BRIGHTNESS For less brightness For more brightness
TINT To move tint toward red To move tint toward green
WHITE TEMP To more reddish To more bluish
background background
SHARPNESS For less sharpness For more sharpness
PICTURE NR (see note below)
ON OFF
DYNAMIC SOFT CUSTOMSTANDARD SOFT CUSTOM
•TINT can only be selected and adjusted when receiving NTSC broadcasts. (AV input)
•Picture Noise Reduction
Noise might be generated on images when playing deteriorated video tapes or
when receiving broadcasts with relatively weak signals. In these cases, set
PICTURE NR to “ON”to reduce the noise. However, when receiving good images
without noise, you can get better image quality by turning OFF this feature.
•WHITE TEMP can only be adjusted on PICTURE menu.
•If any items is adjusted, VIDEO MODE will automatically change to CUSTOM.
SOUND menu table
Selected item Press Press
AVL*2The AVL is ON The AVL is OFF
BASS+ The BASS+ is ON The BASS+ is OFF
ON OFF
ON OFF
EQUALIZER (Refer to for details on Equalizer)E12
SURROUND*1(Please see note below)
BALANCE To shift balance To shift balance
toward left toward right
•AVL is advised to be set to “ON”when compact disk (CD) is being playback.
*1: SURROUND mode can be set between
(i) OFF ESS (during receiving sound signal is stereo)
(ii) OFF EPS (during receiving sound signal is monaural)
*2: Please see
E17
for details on Definition of Terms.
→
←
→
←
M ENU
SOUND
FEATURE
TI
M ER
CH - SE TT I NG
[ PICTURE menu screen ]
50
–10
CUST
O M
+25
20
–20
ON
CONTRAST
COLOUR
VIDEO
M ODE
BR I GHTNESS
TINT
SHARPNESS
PICTURE NR
W HITE TE M P
SELECT : CH ADJUST : RETURN:
M ENU
BALANCE 15
[ SOUND menu screen ]
SOUND
SURROUND EPS
EQUAL I ZER
BALANCE 15
AVL ON
BASS+ON
SELECT : CH ADJUST : RETURN:
M ENU
24/04/2006, 8:44 AM8

On timer
Automatically turns power on after a set length of time has passed.
!Press
MENU
to call MENU screen.
@Press
CH
/
CH
to select “TIMER”.
#Press / to display TIMER menu.
$Press
CH
/
CH
to select “ON ”.
%Press / to set time for TV to
turn on.
• Maximum time that can be preset is 12 hours
and 50 minutes. Timer start to count down after
setting.
^Press
CH
/
CH
to select “POSITION”.
&Press / to set the channel.
*Repeat step 6 to 7 above to select and set the
“VOLUME”.
(Press
MENU
until normal screen appears.
)Press to put TV set into Standby mode.
• The ON TIMER indicator lights up Red.
• When the preset length of time setting has
passed, the power turns on and a picture
appears on the screen.
• The ON TIMER speaker volume gradually
increases from zero to preset volume.
E10 TIMER SETTING
[ TV Set (Bottom) ]
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
CH
CH
MENU
ON TIMER indicator
(Red)
M ENU
SOUND
FEATURE
TI
M ER
CH - SE TT I NG
SELECT : CH ENTER : RETURN :
M ENU
TI M ER
ON 8 : 0 0
POS I T I ON ––
VOLU
M E––
OFF –– :––
––:––
BEEP RE
M INDER OFF
SELECT : CH ADJUST : RETURN :
M ENU
TI M ER
ON 8 : 0 0
POS I T I ON 78
VOLU
M E––
OFF –– :––
––:––
BEEP RE
M INDER OFF
SELECT : CH ADJUST : RETURN :
M ENU
TI M ER
ON 8 : 0 0
POS I T I ON 78
VOLU
M E23
OFF –– :––
––:––
BEEP RE
M INDER OFF
SELECT : CH ADJUST : RETURN :
M ENU
Off timer
Automatically turns power off after a set length of time has passed.
!Repeat step 1 to 3 of ON TIMER.
@Press
CH
/
CH
to select “OFF ”.
#Press / to set time for TV to
turn off.
• Maximum time that can be preset is 12 hours
and 50 minutes. Timer start to count down after
setting.
$Press
MENU
until normal screen appears.
• Five minutes before the preset length of time
expires, the remaining time appears on the
screen.
• A flashing display of the remaining time appears
during the last few seconds. When the preset length of time has passed, the
TV set enters the Standby mode.
• The On Timer is cancelled if the power is turned off using POWER .
• If the TV set is turned on by the On Timer, then the TV set will be automatically turned off in two hours if no buttons
are pressed on the TV set or remote control.
• The Off timer is cancelled if the power is turned off or set to the Standby mode using on the remote control
or POWER on the TV set, or if the power is otherwise interrupted.
TI M ER
ON ––:––
POS I T I ON ––
VOLU
M E––
OFF –– :––
––:––
BEEP RE
M INDER OFF
SELECT : CH ADJUST : RETURN :
M ENU
TI M ER
ON ––:––
POS I T I ON ––
VOLU
M E––
OFF 2 : 30
––:––
BEEP RE
M INDER OFF
SELECT : CH ADJUST : RETURN :
M ENU
OFF 0 : 05
OFF 0 : 04
OFF 0 : 03
OFF 0 : 02
OFF 0 : 01
OFF 0 : 00
Flashing
29K-FH5M(09-12)EN 03/05/2006, 5:13 PM9

Reminder on-screen timer
Lets you know when a preset length of time has passed by displaying a countdown timer on
the screen. This is useful for timer cooking while you watch TV.
! Repeat step 1 to 3 of ON TIMER.
@ Press
CH
/
CH
to select “ ”.
# Press / to set time.
• Maximum time that can be preset is 12 hours
and 50 minutes.
• The example at right shows that the Reminder will be activated after one
hour and 50 minutes.
$ Press
MENU
until normal screen appears.
• Five minutes before the preset length of time
expires (in the example, after one hour and 45
minutes) and each minute thereafter, the
remaining time appears on the screen for several
seconds with the beeping sound. (When BEEP REMINDER is set to “ON”)
• When the preset length of time has passed, “ 0:00” flashes in red with the
beeping sound. (When BEEP REMINDER is set to “ON”)
0:05
0:04
0:03
0:02
0:01
0:00
Flashing
Beep reminder
It is a function to alert with beeping sound that the Reminder is expiring
soon with the remaining time OSD displays.
! Repeat step 1 to 3 of ON TIMER.
@ Press
CH
/
CH
to select “BEEP REMINDER”.
# Press / to select “ON”or “OFF”.
•ON: To alert users with beeping sound that the
timer are expiring soon.
•OFF: The beeping sound is off.
$ Press
MENU
until normal screen appears.
E10 TIMER SETTING (Continued)
TI M ER
ON –– :––
POS I T I ON ––
VOLU
M E––
OFF –– :––
––:––
BEEP RE
M INDER OFF
TI M ER
ON ––:––
POS I T I ON ––
VOLU
M E––
OFF –– :––
1:50
BEEP RE
M INDER OFF
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
CH
CH
MENU
TI M ER
ON ––:––
POS I T I ON ––
VOLU
M E––
OFF –– :––
––:––
BEEP RE
M INDER ON
E11 FEATURES
Blue back
Automatically turns the screen blue if a broadcast signal is not received.
! Press
MENU
to call MENU screen.
@ Press
CH
/
CH
to select “FEATURE”.
# Press / to display FEATURE menu.
$ Press
CH
/
CH
to select “BLUE BACK”.
% Press / to select “ON”or “OFF”.
^ Press
MENU
until normal screen appears.
When BLUE BACK is set to “ON”:
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
CH
CH
MENU
M ENU
SOUND
FEATURE
TI
M ER
CH - SE TT I NG
FEATURE
AUTO SELECT ON
PO
W ER SAV E OFF
BLUE BACK ON
CH I LD LOCK
16: 9
M ODE OFF
after 3 seconds
after 15 minutes
No signal Blue back TV off (Indicator)
Standby mode Standby indicator
lights up red
•The Reminder also works in the Standby mode. Power is automatically turned on five minutes before the preset
length of time expires. The TV set automatically returns to the Standby mode approximately 1 minute after the timer
expired if no buttons are pressed on the TV set or remote control.
•The Reminder is cancelled if POWER on the TV set is pressed or if the power is otherwise interrupted.
•Poor reception due to weak signals and too much noise may activate BLUE BACK, despite the presence of a
broadcast signal. To continue watching TV under these conditions, switch “BLUE BACK”to “OFF”.
•When Off timer is set, the OFF TIMER setting has priority over BLUE BACK.
27/04/2006, 4:20 PM10

Auto select
When video equipment, such as a video game system or camcorder, is
connected to the front (AV-2 IN) terminals, this TV set automatically selects
the input mode (AV2).
!Repeat step 1 to 3 of BLUE BACK.
@Press
CH
/
CH
to select “AUTO SELECT”.
#Press / to select “ON” or “OFF”.
$Press
MENU
until normal screen appears.
To use the Auto Select function, confirm the following:
• The TV set is turned on. ( Standby indicator lights
up green.)
• The video equipment, such as a video game system or
camcorder, is connected to the front (AV-2 IN) terminals.
Power save
This function reduces the picture brightness to create a softer image while saving electricity.
MENU screen
! Repeat step 1 to 3 of BLUE BACK.
@ Press
CH
/
CH
to select “POWER SAVE”.
# Press / to select “ON”or “OFF”.
• When POWER SAVE is set to “ON”, the POWER
SAVE indicator on the TV set lights up red.
• When POWER SAVE is set to “OFF”, the
POWER SAVE indicator on the TV set turns off.
$ Press
MENU
until normal screen appears.
Remote Control
! Press
POWER SAVE
directly enter to the POWER SAVE mode screen.
@
Each time you press
POWER SAVE
, the mode switches between “ON”and “OFF”.
• When POWER SAVE is set to “ON”, the POWER SAVE indicator on the TV set lights up red.
• When POWER SAVE is set to “OFF”, the POWER SAVE indicator on the TV set turns off.
# The POWER SAVE mode screen disappear approximately five seconds.
E11 FEATURES (Continued)
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
CH
CH
MENU
POWER SAVE
FEATURE
AUTO SELECT ON
PO
W ER SAV E OFF
BLUE BACK OFF
CH I LD LOCK
16: 9
M ODE OFF
Example
Connect the video equipment
to the front (AV-2 IN) terminals.
Input mode (AV2)
is automatically selected.
8AV2
FEATURE
AUTO SELECT ON
PO
W ER SAV E ON
BLUE BACK OFF
CH I LD LOCK
16: 9
M ODE OFF
OFF
POWER
ON
POWER
AVES
AVES
FEATURE
AUTO SELECT ON
PO
W ER SAV E OFF
BLUE BACK OFF
CH I LD LOCK
16: 9
M ODE ON
SELECT : CH ADJUST : RETURN :
M ENU
•If the video equipment is connected to the rear terminals on the TV set, the video mode will not be automatically selected.
•When TV is power on with AV2 jack plug in, even video equipment is off, the AV2 mode is still selected. Use the
remote control to return to a TV channel.
16:9 mode
Selects the width of the picture.
!Repeat step 1 to 3 of BLUE BACK.
@Press
CH
/
CH
to select “16:9 MODE”.
#Press / to select “ON”or “OFF”.
Format of signal Input Mode set to “OFF”Mode set to “ON”
16:9 format signal
4:3 format signal
$Press
MENU
until normal screen appears.
POWER SAVE indicator
(Red)
29K-FH5M(09-12)EN 09/05/2006, 3:03 PM11

E11 FEATURES (Continued)
Child lock
Preventing children from watching TV or certain channels.
Setting the CHILD LOCK mode (For the first time)
!Repeat step 1 to 3 of BLUE BACK.
@Press
CH
/
CH
to select “CHILD LOCK”.
#Press / to display CHILD LOCK
menu.
$Press
CH
/
CH
to select desired individual setting as follow:
•LOCK TV
Press / to select “LOCK TV”to
“ON”or “OFF”.
•ON: LOCK TV will lock the entire TV for
viewing.
•OFF: LOCK TV deactivated.
•POSITION/LOCK STATUS
i) Press / or Number buttons
(0~9) to set the position. (e.g. 25)
ii) Press / to select “LOCK
STATUS”to “ON”or “OFF”.
•ON: Channel position set above (e.g. 25) will
be locked. You may not able to view the
channel position set above.
•OFF: Channel position set above (e.g. 25) will not be locked.
•PASSWORD
Enter 4 digits PASSWORD using Number
buttons (0~9) on the remote control.
(For example: 0000)
•Press NORMAL to reset the entered number to
“0000”.
%Press
MENU
until normal screen appears.
•The CHILD LOCK mode will be activated after the TV is turned off and on again.
To turn OFF or to change setting of CHILD LOCK mode
!While “CHILD LOCK ON”screen appear.
@Enter 4 digits PASSWORD using Number
buttons (0~9) on the remote control. (For
example:0000)
•Press to clear the entered number.
•If the wrong PASSWORD is entered,
“PASSWORD INCORRECT”screen will appear.
Input the PASSWORD again in this case.
•If you forget your PASSWORD, please input “2398”to enter, then change to new PASSWORD.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
LISTLIST
CH
CH
Number
buttons
MPX
NORMAL
MENU
FEATURE
AUTO SELECT ON
PO
W ER SAV E OFF
BLUE BACK OFF
CH I LD LOCK
16: 9
M ODE OFF
CH I LD LOCK
POS I T I ON ––
LOCK STATUS OFF
LOCK TV ON
PASS
W ORD 00 00
S
W ITCH OFF TV TO ACTIVATE CHILD LOCK
SELECT : CH ADJUST : RETURN :
M ENU
CH I LD LOCK
POS I T I ON 25
LOCK STATUS ON
LOCK TV OFF
PASS
W ORD 0 0 00
S
W ITCH OFF TV TO ACTIVATE CHILD LOCK
SELECT : CH ADJUST : RETURN :
M ENU
CH I LD LOCK
POS I T I ON ––
LOCK STATUS OFF
LOCK TV OFF
PASS
W ORD 0 0 00
S
W ITCH OFF TV TO ACTIVATE CHILD LOCK
SELECT : CH ADJUST : 0
– 9RETURN: M ENU
CH I LD LOCK ON
PLEASE INPUT PASS
W ORD
*
25
*––
PASS W ORD I NCORRECT
25
24/04/2006, 8:45 AM12

E12 USEFUL FEATURES
Channel / Timer display
Displays the current channel number, the timer, and other settings on the screen.
!Press .
• The time remaining on the On timer, Off timer,
and Reminder appears on the screen.
@Press again.
• The channel number appear on the screen.
#Press once again.
• The display disappears.
OFF 2 : 30
ON 8 : 0 0
1:50
5
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BAC
D
CH
CH
MPX
LISTLIST
Number
buttons
TV/VIDEO
SURROUND
•The surround effect can be adjusted using SOUND menu.
Channel recall
Switches back to the channel you were watching just before the current
channel.
Press .
•The channel previously viewed returns to the screen.
Example:
After switching from channel 5 to channel 7, is
pressed, the channel will change to channel 5. Press
again to return to channel 7.
5
7
5
7
TV / Video selection
Switches between TV broadcasts and AV input programmes.
•Each time you press the TV/VIDEO , the input switches
between AV1 (or COMPONENT), AV2 and TV
programme.
or
1VA
2VA
52
TNENOPMOC
Surround sound
Produces a virtual surround sound from the TV’s speakers.
Each time you press
SURROUND
, the mode changes in the following order:
•Receiving signal stereo
•Receiving signal monaural
SURROUND
OFF
SURROUND
ESS
SURROUND
OFF
SURROUND
EPS
25/1/06, 2:19 PM13

E12 USEFUL FEATURES (Continued)
Mute
Silences the sound.
!Press .
•“ ”appears on the screen, and the sound is silenced.
@Press again, the volume returns to its previous level.
•Mute will be cancelled if the is pressed at any time.
Equalizer
!Repeat step 1 to 3 of PICTURE OR SOUND ADJUSTMENT.
@Press
CH
/
CH
to select “EQUALIZER”.
#Press /
to display EQUALIZER menu.
$Press
CH
/
CH
to select “MOVIE”, “MUSIC”, “NEWS”or
“CUSTOM”.
•When “MOVIE”, “MUSIC”or “NEWS”is adjusted, EQUALIZER will
automatic change to “CUSTOM”mode.
%Press / to display CUSTOM screen.
^Press / to select EQUALIZER bar.
&Press
CH
/
CH
to adjust higher or lower.
*Press
MENU
until normal screen appears.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BAC
D
CH
CH
LIST
LIST
Colour
buttons
MPX
SOUND MODE
CH
CH
MENU
Sound mode
Each time you press the
SOUND MODE
, the mode
switches between MOVIE, MUSIC, NEWS and
CUSTOM.
MOVIE: Movie mode
MUSIC: Music mode
NEWS: News mode
CUSTOM: Custom mode
OV I EM
US I CM
EWSN
+
USTOMC
–
100 300 1K 3K 8K
SOUND
SURROUND OFF
EQUAL I ZER
BALANCE 0
AVL ON
BASS+ON
EQUAL I ZER
M US I C
NE
W S
M OV I E +
CUSTO
M
–
100 300 1K 3K 8K
+
USTOMC
–
100 300 1K 3K 8K
SELECT : CHADJUST : RE TURN : M ENU
Favourite channels
The colour buttons can be used to select up to four favourite channels.
!Press
CH
/
CH
to select your favourite channel.

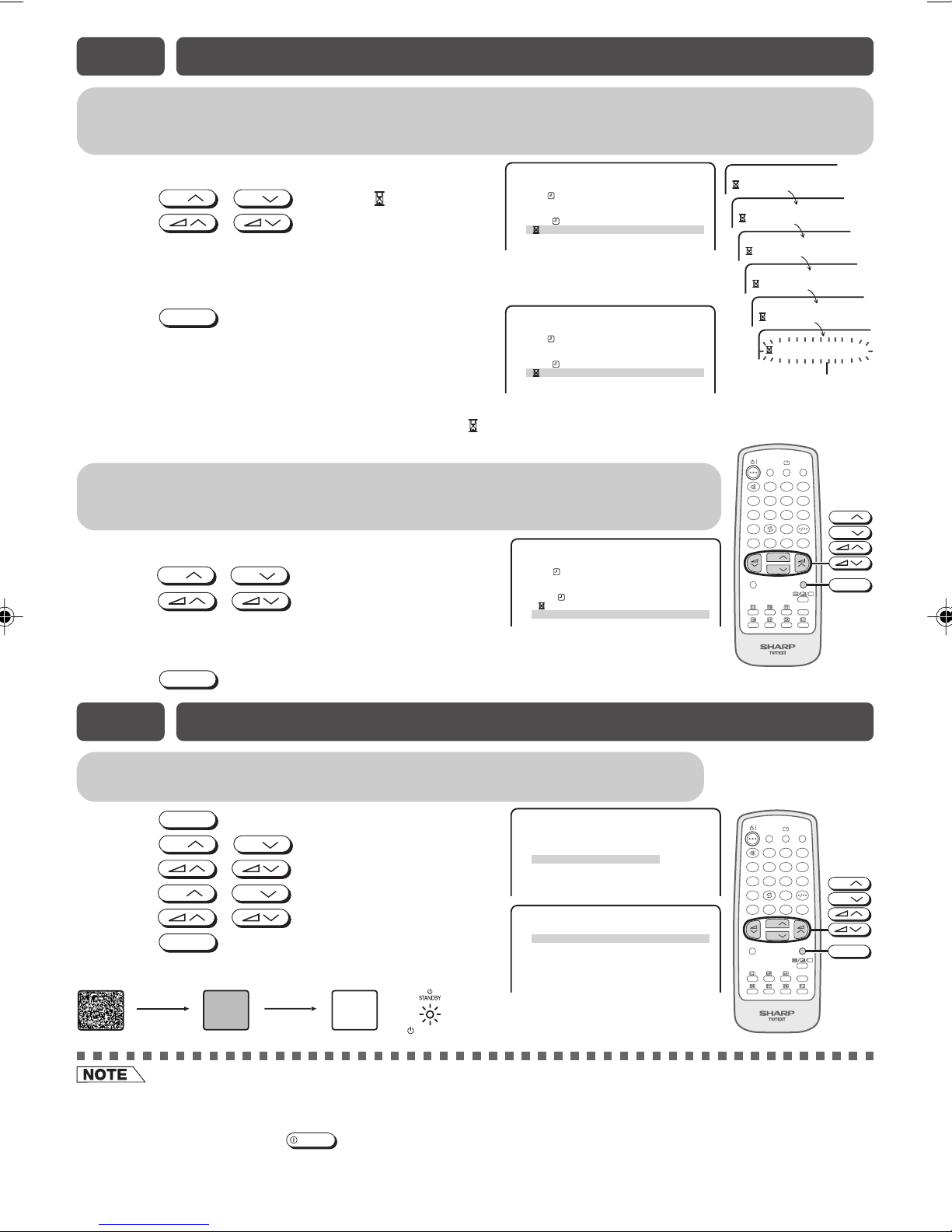

(e.g. Channel 12)
@Press
A
for example, until channel number turns white.
•The display will disappear after three seconds, and then the
selected channel is preset.
#To watch favourite channel, press
A
.
•The preset favourite channel will be displayed. (e.g. Channel 12)
$To preset another favourite channel, repeat steps 1 and 2
above.
•To change a preset favourite channel, repeat steps 1 and 2 above.
1
2
1
2
12
Displayed in
green or yellow
Turns to white
11/1/06, 1:24 PM14

E13 NICAM/A2 STEREO SYSTEM BROADCASTS
Enables selection of reception mode when receiving a NICAM, STEREO
signal, NICAM BILINGUAL signal or NICAM MONO signal
•Stereo
Each time you press MPX , the mode switches
between NICAM STEREO and MONO.
•Bilingual
Each time you press MPX , the mode switches
between M1 (main sound), M2 (sub sound), and
MONO.
•Monaural
Each time you press MPX , the mode switches
between NICAM MONO and MONO.
Enables selection of reception mode when receiving an A2 STEREO signal
or A2 BILINGUAL signal
•Stereo
Each time you press MPX , the mode switches
between STEREO and MONO.
•Bilingual
Each time you press MPX , the mode switches
between MAIN and SUB.
AMCIN
EORETS
9 4
NOOM
9 4
AMCIN
1M
9 4
AMCIN
2M
9 4
NOOM
9 4
EORETS
9 4
NOOM
9 4
•The setting can be selected individually for each channel position.
•NICAM-I: National and regional broadcast system used in the UK and Hong Kong.
•NICAM-B/G: National and regional broadcast system used in Singapore and New Zealand.
•A2 stereo-B/G: National and regional broadcast system used in Malaysia, Thailand and Australia.
AMCIN
NOOM
9 4
NOOM
9 4
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
MPX
CH
CH
LIST
MPX
INAM
9 4
UBS
9 4
11/1/06, 1:24 PM15

E14 TELETEXT BROADCASTS
Teletext is an information service, organised like a magazine, which is provided by some
television stations in addition to regular television broadcasting. Your television receives special
Teletext signals broadcast by a TV station, processes the information and displays it graphically
on the screen. News, weather and sports information, stock exchange prices, programme
previews and closed captioning for the deaf are among the many services available through
Teletext.
Teletext information is organised much like a magazine: according to pages and sub-pages. The
basic unit of displayed information is the page. A sub-page is one of a series of pages.
Teletext reception is controlled by using the remote control. Refer to the appropriate button
descriptions for operation of the Teletext functions.
FLOF and LIST
Depending on the TV programme, the
Teletext pages are transmitted using different
systems. Your SHARP TV is adjusted to
receive two Teletext systems, namely FLOF
and LIST, which are automatically identified
by the receiver.
You can easily identify them by the manner in
which they appear on the screen.
Teletext
100F 200 300 400
FLOF
News Sports Movie Weather
Teletext
LIST
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
Number
buttons
Colour
buttons
CH
CH
Entering and leaving Teletext mode
!Select a TV channel which is broadcasting the Teletext programme you
wish to watch.
@Press to select Teletext mode.
•Teletext information will appear on the screen.
#Press twice to exit Teletext mode.
Page selection
•Fast page selection
Select an appropriate programme channel.
Press to select Teletext mode.
To recall a page number displayed in the coloured brackets, simply press the
corresponding Colour button ( A, B, Cor D).
•Number buttons (0~9)
Enter a desired page number with Number buttons (0~9). (Ex. Press 1,
0, 5to select page 105.)
•Page selector
You can sequentially select page numbers by pressing CH / CH .
11/1/06, 1:24 PM16

E14 TELETEXT BROADCASTS (Continued)

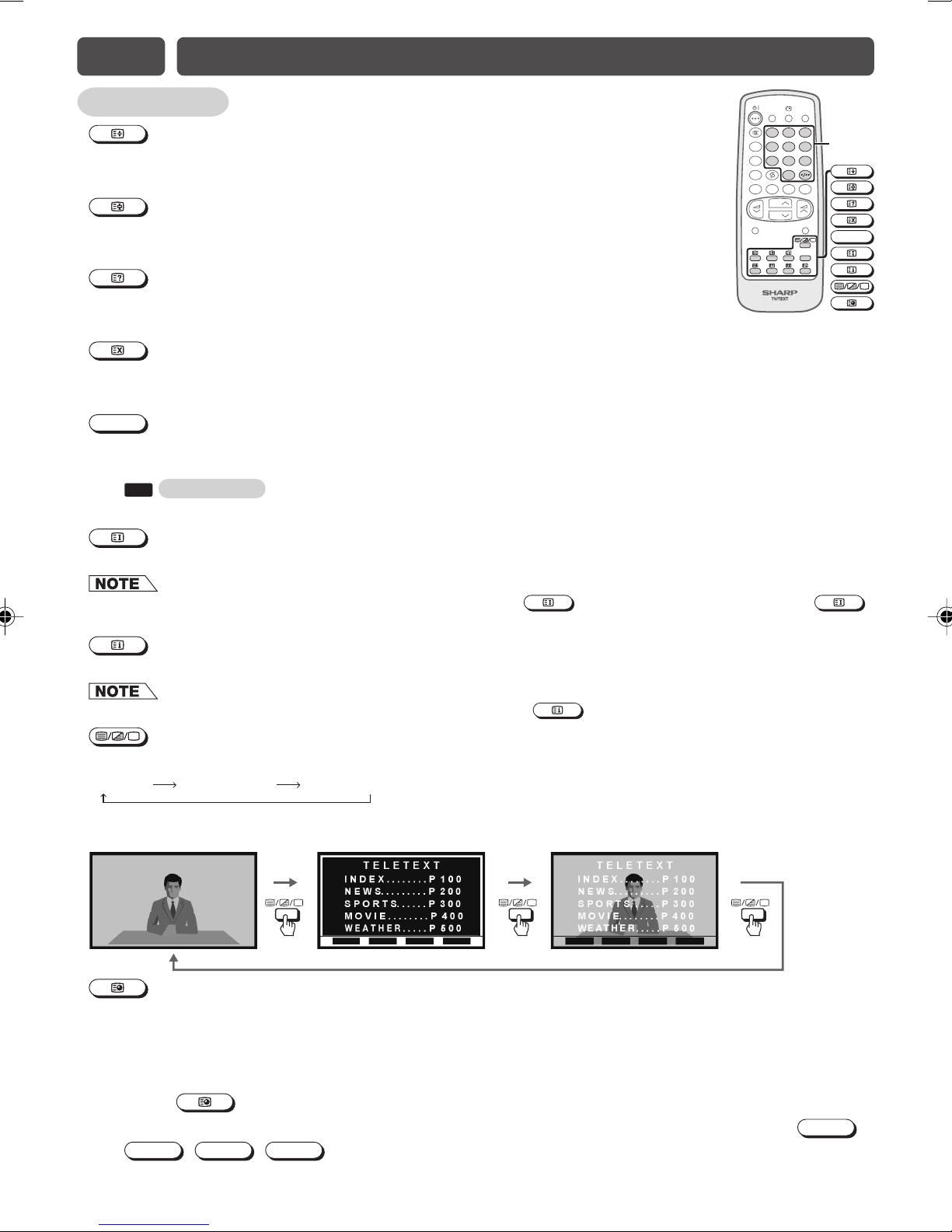

TV mode Teletext mode Mixed mode
TV mode: Current TV
programme screen.
Current Programme
Teletext mode: Teletext
screen.
Mixed mode: The Teletext
broadcast is superimposed onto
the current TV programme screen.
Other features
•(Half page)
Each time you press the button, the upper/lower half of the Teletext page is
magnified and displayed on the screen.
•(Hold)
Press to hold a Teletext page or sub-page on the screen.
Press again to cancel the Hold mode.
•(Reveal)
Press to reveal hidden information such as the answer to a quiz.
Press again to hide the information.
•(Cancel)
Press to cancel the Teletext mode and restore the normal TV screen. Indication is shown on the screen.
In this position, the TV programme cannot be changed, being in Teletext/Cancelled mode.
•
LIST
(LIST)
Press to force the Teletext to LIST mode. It means that row 24 (bottom row of Teletext) will not have
transmitter information, only the pages that you have previously stored in the memory.
See
E14
LIST mode for more information on Teletext page memory list.
Press again to switch from LIST mode to FLOF system.
•(Index)
Press to return to the index page.
•If the Teletext transmission data contains HITLIST signal, press will enter to HITLIST screen. Press
again will exit HITLIST screen.
•(Reset)
Press to return to the index page and exit Teletext mode.
•If the Teletext transmission data contains HITLIST signal, press will exit Teletext mode.
•(Text/Mix/Picture)
Each time you press the button, the display mode changes as shown below.
•(Clock)
In TV mode: When a TV signal with Teletext data is received, press to display the real time
information on the top right area of the screen.
In Teletext mode: When a selected Teletext page has hidden sub-pages, you can see them by
performing the following procedure:
!Press .
@Enter a desired sub-page number (4 digits) with Number buttons (0~9). (Ex. Press
0
,
0
,
2
,
1
to select sub-page 21.)
#Wait until the selected sub-page appears.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BAC
D
CH
CH
MPX
LIST
LIST
Number
buttons
LIST
16/1/06, 10:31 AM17

E14 TELETEXT BROADCASTS (Continued)
LIST mode

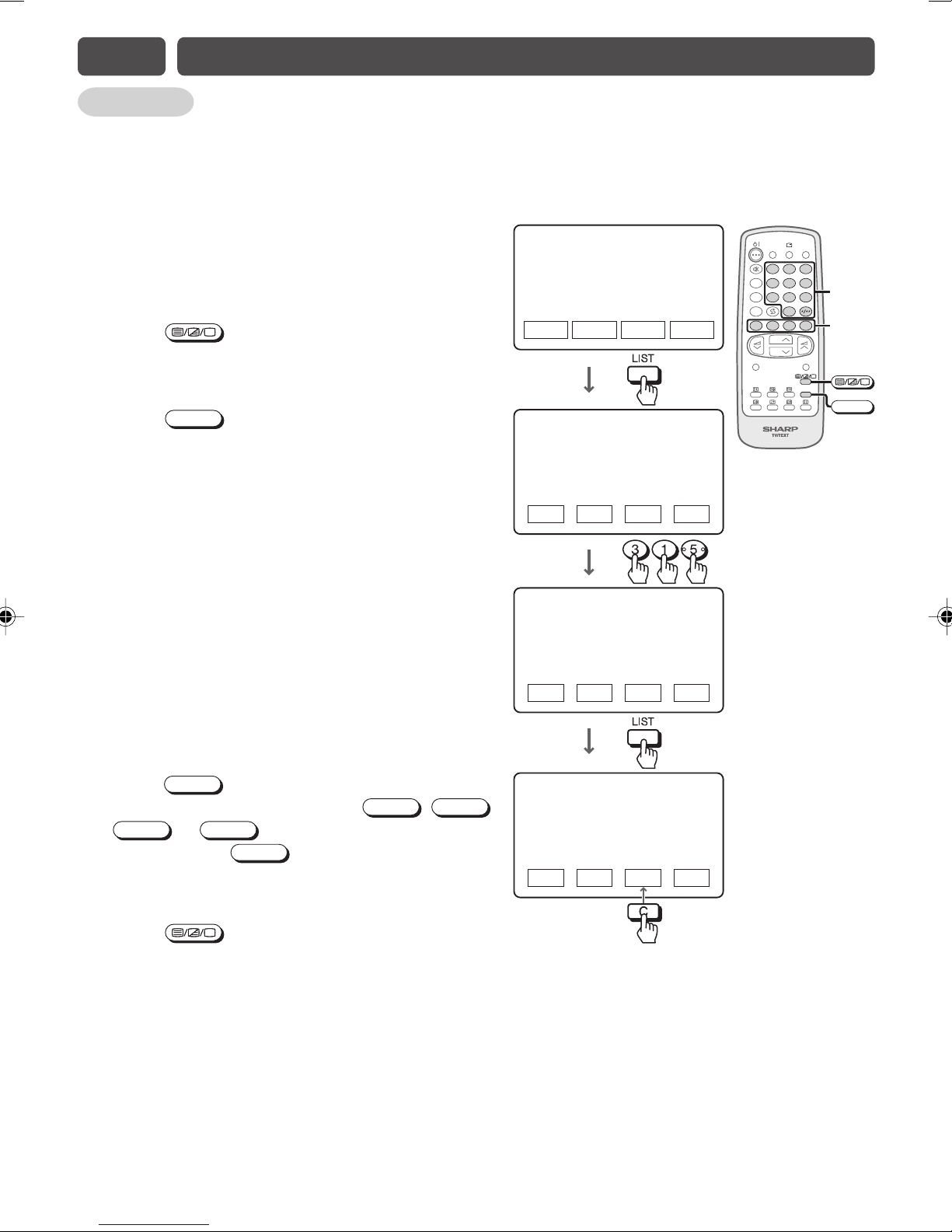

Teletext page memory list
Your TV has 400 Teletext page number memories for fast recall of Teletext information.
In programme positions 0 through 99, four Teletext page numbers can be stored in each position; a total
of 400 pages.
Page memory operation
!Select the programme channel number into
which you want to store Teletext page
numbers.
@Press to select the Teletext mode
(FLOF).
#Press
LIST
to change from FLOF system to
LIST mode.
$Enter the Teletext page number (3 digits) using
the Number buttons (0~9).
(For example: To select page 315)
%Press
LIST
for more than 2 seconds,
followed by the Colour button (
A
,
B
,
C
or
D
) for page number storage.
(For example:
C
)
^Repeat steps 4 and 5 to store other page
number.
&Press twice to exit the Teletext mode.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
Number
buttons
Colour
buttons
LIST
FLOF Teletext
100
100
315
315
News Sports Movie Weather
LIST Teletext
100 200 300 400
LIST Teletext
100 200 300 400
LIST Teletext
100 200 315 400
F
F
F
11/1/06, 1:25 PM18

E14 TELETEXT BROADCASTS (Continued)
Fast page selection (LIST mode)
!Select an appropriate programme channel.
@Press to select the Teletext mode.
#Press
LIST
to change from FLOF system to
LIST mode.
$To recall a page number displayed in the
coloured brackets, simply press the
corresponding colour button (
A
,
B
,
C
or
D
).
%Press
LIST
again to return to FLOF mode.
POWER
SAVE
TV/VIDEO
SOUND MODE
SURROUND
NORMAL
123
456
78
0
9
MENU
BACD
CH
CH
MPX
LISTLIST
Colour
buttons
LIST
100
100
315
LIST Teletext
100 200 315 400
LIST Teletext
100 200 315 400
FLOF Teletext
News Sports Movie Weather
F
F
How colour buttons work in FLOF mode
•If link-page data are transmitted from the TV station,
each link-page can be viewed by pressing the
Colour buttons ( A, B, Cand
D
).
•If no link-page data are transmitted, pressing each
Colour button ( A, B, Cand D)
selects the following pages.
RED A:Current page No. plus 1.
GREEN B:Current page No. plus 2.
YELLOW C:Current page No. plus 3.
CYAN D:Current page No. minus 1.
News Sports Movie Weather
101
102 103 104 100
11/1/06, 1:25 PM19

E15 TROUBLESHOOTING
The following problems do not always indicate a hardware failure. Therefore, please use the
troubleshooting guide below before calling for repair service.
If, after following the guide none of the remedies work, unplug the TV set and call for service.
Quick
Service
Check List
Try a new channel to check for possible station
trouble.
TV not plugged in.
Outlet power OFF.
Antenna not connected to terminal at the back
of the TV set.
If outside antenna is used, check for broken
wires.
Check for local interference.
Adjust COLOUR control.
Check batteries in the remote control.
Try fine tuning to correct.
Contrast setting in picture mode might be all
the way to the minus side. Press the
NORMAL button on the remote control to
correct.
Increase the volume.
Problems
Remote control does not work. Bars on screen. Picture distorted. Picture rolls vertically. No colour. Poor reception on some channels. Picture weak. Picture lines or streaks. Picture ghosting. Picture blurred. Sound OK, picture poor. Picture OK, sound poor. No picture or sound.
Possible Causes/Remedies
POWER switch of TV not ON.
Turn OFF using the
POWER switch,
then turn ON again after a minute.
This unit is equipped with a microprocessor. Its performance could be adversely affected by external
electrical noise or interference. If this should happen, unplug the unit and plug it in again after a few
minutes.
11/1/06, 1:25 PM20
