Sharp LC-70LE735M User manual

Printed in Malaysia
TINS-F357WJZZ
1
11P11-MA-NG
LC-70LE735M OPERATION MANUAL
LC-70LE735M
LCD COLOUR TELEVISION
OPERATION MANUAL
ENGLISH ภาษาไทย

Cover2_19A33X.indd 1Cover2_19A33X.indd 1 2007/07/11 16:51:172007/07/11 16:51:17

1
OPERATION MANUAL ENGLISH
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free
operation of your product, please read Important safety precautions carefully before using this product.
Contents
Introduction.................................................................3
Precautions For Daily Use .......................................3
Important safety precautions...................................3
Supplied accessories..............................................5
Optional accessories ..............................................5
Preparation .................................................................6
Attaching the stand unit ..........................................6
Fixing the TV to the table ........................................7
Connecting the TV..................................................7
Using the remote control unit ..................................8
Inserting the batteries......................................... 8
Angle of the remote control unit.......................... 8
Cautions regarding the remote control unit .........8
Part names and functions..........................................9
TV (front/side view) ................................................. 9
TV (rear view) .......................................................... 9
Remote control unit ..............................................10
Quick guide ...............................................................11
What is the HOME? .............................................. 11
Basic operation ................................................11
Initial auto installation ............................................ 13
Watching TV ..............................................................14
Daily operation......................................................14
Turning on/off the power—
using the TV...................................................14
Turning on/off the power—
using the remote control unit.......................... 14
Selecting an external video source ...................15
Switching the analogue audio format................ 15
Teletext ................................................................. 16
Connecting external devices................................... 17
Video connections ................................................18
HDMI connection .............................................18
Component connection....................................18
VIDEO connection............................................ 19
Audio connections................................................19
Speaker/amplifier connection ...........................19
AQUOS LINK .............................................................20
Controlling HDMI devices using AQUOS LINK.......20
AQUOS LINK connection......................................21
Operating an AQUOS LINK device........................ 21
Basic adjustment......................................................23
Picture settings..................................................... 23
Audio settings....................................................... 25
Power save settings.............................................. 26
Channel settings ................................................... 27
Additional search..............................................27
Manual adjust................................................... 27
Sort.................................................................. 28
Erase programme ............................................28
Useful viewing functions..........................................29
TV Start-up time setting ........................................29
Individual setting—password ................................29
Individual setting—time......................................... 29
Individual Setting—language.................................30
Optional features settings .....................................30
Selecting the picture size manually ...................30
Selecting the WSS picture size automatically....30
Setting audio input ...........................................31
Skipping specified inputs..................................31
Selecting the HDMI picture size automatically...32
Adjusting image position ..................................33
Additional features ................................................33
Network function...................................................... 34
Connecting to the network....................................34
Specifications (Wireless LAN USB adapter)...........36
Optional accessories (Wireless LAN USB adapter) ... 36
Using AQUOS.NET...............................................37
Clear browser setting............................................ 38
About links............................................................ 38
Other useful features ...............................................40
USB media/Home network ................................... 40
Photo mode .....................................................41
Music mode .....................................................42
Video mode......................................................43
USB device compatibility ......................................44
Home network server compatibility .......................44
Connecting a PC....................................................... 45
Connecting a PC ..................................................45
Displaying a PC image on the screen.................... 45
Selecting the picture size.................................. 45
Adjusting the PC image automatically...............46
Adjusting the PC image manually ..................... 46
PC control of the TV .............................................47
Command list...................................................48
ENGLISH

2
Appendix ...................................................................49
Troubleshooting ....................................................49
Reset....................................................................50
Updating your TV via USB/Network ......................50
Getting information ...............................................50
Information on the software licence for
this product ........................................................51
Software licence...............................................51
Specifications .......................................................52
Removing the stand..............................................53
Mounting the TV on a wall.....................................54
Dimensional drawings........................................... 55

3
Precautions For Daily Use
Observe the following items
Maintenance of the cabinet
• When cleaning the cabinet, use a soft cloth (made of cotton, floss, etc.) to clean gently.
• Do not use a dry or damp rag mixed with chemicals, as this could cause the ingredients of the cabinet body to deteriorate or
crack.
• Be careful not to use an abrasive cloth for cleaning or clean with excessive force, as this could scratch the surface of the
cabinet.
• If the cabinet is greatly soiled, clean with a soft cloth (made of cotton, floss, etc.) soaked with a small amount of diluted neutral
detergent and wrung out, and then clean with a soft dry cloth.
• Solvents such as benzene or thinner could cause the cabinet to deteriorate, or make its coating come off. Therefore do not use
such solvents to clean the cabinet.
• Because plasticizer is included in the plastics, deterioration or the coating peeling off could occur when the cabinet comes into
contact with some substances. Therefore keep it away from volatile substances such as insecticide. In addition, do not let it
come into contact with objects made of rubber, resin, etc. for a long time.
Maintenance of the LCD panel
• Before cleaning the LCD panel, be sure to turn off the TV set and unplug the power cord from the outlet.
• When cleaning the LCD panel, use a dry and soft cloth (made of cotton, floss, etc.) to clean the surface of the LCD panel gently.
For protecting the LCD panel, do not clean with a dirty cloth, detergent, or a dry or damp rag mixed with chemicals, as this
could cause peeling of the panel surface.
• Be careful not to clean with an abrasive cloth or with excessive force, as this could cause the panel surface to be scratched.
• If the LCD panel is greatly soiled, clean it gently with a soft cloth (made of cotton, floss, etc.) soaked with a small amount of
water (Do not clean with excessive force, so as to avoid the scratch of the panel surface).
• If dust sticks on the surface of the LCD panel, clean the panel with a commercially available cleaning brush (anti-static brush).
Important safety precautions
Caring for the cabinet
• Use a soft cloth (cotton, flannel, etc.) and gently wipe the
surface of the cabinet.
• Using a chemical cloth (wet/dry sheet type cloth, etc.) may
deform the components of the main unit cabinet or cause
cracking.
• Wiping with a hard cloth or using strong force may scratch
the surface of the cabinet.
• If the cabinet is very dirty, wipe with a soft cloth (cotton,
flannel, etc.) soaked in neutral detergent diluted with water
and thoroughly wrung out, and then wipe with a soft dry
cloth.
• The cabinet is primarily made of plastic. Avoid using
benzene, thinner, and other solvents, as these may deform
the cabinet and cause the paint to peel off.
• Do not apply insecticides or other volatile liquids.
• Also, do not allow the cabinet to remain in contact
with rubber or vinyl products for a long period of time.
Plasticizers inside the plastic may cause the cabinet to
deform and cause the paint to peel off.
• When relocating the product
placed on a cart, it must be moved
with utmost care. Sudden stops,
excessive force and uneven floor
surface can cause the product to fall
from the cart.
Caring for the front panel
• Turn off the main power and unplug
the AC cord from the wall outlet
before handling.
• Gently wipe the surface of the front
panel with a soft cloth (cotton,
flannel, etc.).
• To protect the front panel, do not
use a dirty cloth, liquid cleaners, or
a chemical cloth (wet/dry sheet type
cloth, etc.). This may damage the
surface of the front panel.
• Wiping with a hard cloth or using
strong force may scratch the surface
of the front panel.
• Use a soft damp cloth to gently wipe
the front panel when it is really dirty
(It may scratch the surface of the
front panel when wiped strongly).
• If the front panel is dusty, use
an anti-static brush, which is
commercially available, to clean it.
• Water and moisture—Do not use the
product near water, such as bathtub,
washbasin, kitchen sink, laundry
tub, swimming pool and in a wet
basement.
Introduction

4
Introduction
• Do not place vases or any other
water-filled containers on this
product.
The water may spill onto the product
causing fire or electric shock.
• Stand—Do not place the product
on an unstable cart, stand, tripod
or table. Doing so can cause the
product to fall, resulting in serious
personal injuries as well as damage
to the product. Use only a cart,
stand, tripod, bracket or table
recommended by the manufacturer
or sold with the product. When
mounting the product on a wall, be
sure to follow the manufacturer’s
instructions. Use only the mounting
hardware recommended by the
manufacturer.
• Ventilation—The vents and other
openings in the cabinet are designed
for ventilation. Do not cover or block
these vents and openings since
insufficient ventilation can cause
overheating and/or shorten the life
of the product. Do not place the
product on a bed, sofa, rug or other
similar surface, since they can block
ventilation openings. This product is
not designed for built-in installation;
do not place the product in an
enclosed place such as a bookcase
or rack, unless proper ventilation
is provided or the manufacturer’s
instructions are followed.
• In case the product is dropped and
the cabinet is damaged, be sure to
turn off the power of the product,
and unplug the power cord. If you
continue to use the product, it may
cause fire or electric shock. Contact
your dealer.
• Do not open the rear cover of the
cabinet to reconstruct the circuits.
There exists high voltage within the
cabinet and it may cause electric
shock and injury. If maintenance is
required, contact your dealer.
• The LCD panel used in this product
is made of glass. Therefore, it can
break when the product is struck
forcefully or with a sharp object. If
the LCD panel is broken, be careful
not to be injured by broken glass.
• Heat sources—Keep the product
away from heat sources such as
radiators, heaters, stoves and other
heat-generating products (including
amplifiers).
• To prevent fire, never place any type
of candle or naked flames on the top
or near the TV set.
• To prevent fire or shock hazard, do
not place the AC power cord under
the TV set or other heavy items.
• Do not place heavy objects
on this product or stand on it.
Doing so could cause injury if the
product overturns. Take special
care near children and pets.
• Unplug the power cord before you
move the TV set. If not unplugged
beforehand, the power cord may
become damaged and cause
electric shock.
The LCD panel is a very high technology product with
2,073,600 pixels, giving you fine picture details.
Due to the very large number of pixels, occasionally a few
non-active pixels may appear on the screen as a fixed point
of blue, green, red or yellow.
This is within product specifications and does not constitute
a fault.
Precautions when transporting the TV
• When transporting the TV, never
carry it by holding or otherwise
putting pressure onto the display.
Be sure to always carry the TV
by two people holding it with two
hands—one hand on each side of
the TV.
• Do not display a still picture for a long time, as this could
cause an afterimage to remain.
• Install the product on the place where the AC cord can
be unplugged easily from the AC outlet, or from the AC
INPUT terminal on the rear of the product.
NOTE
• The above are pictures for reference only; the actual item
might be different.

5

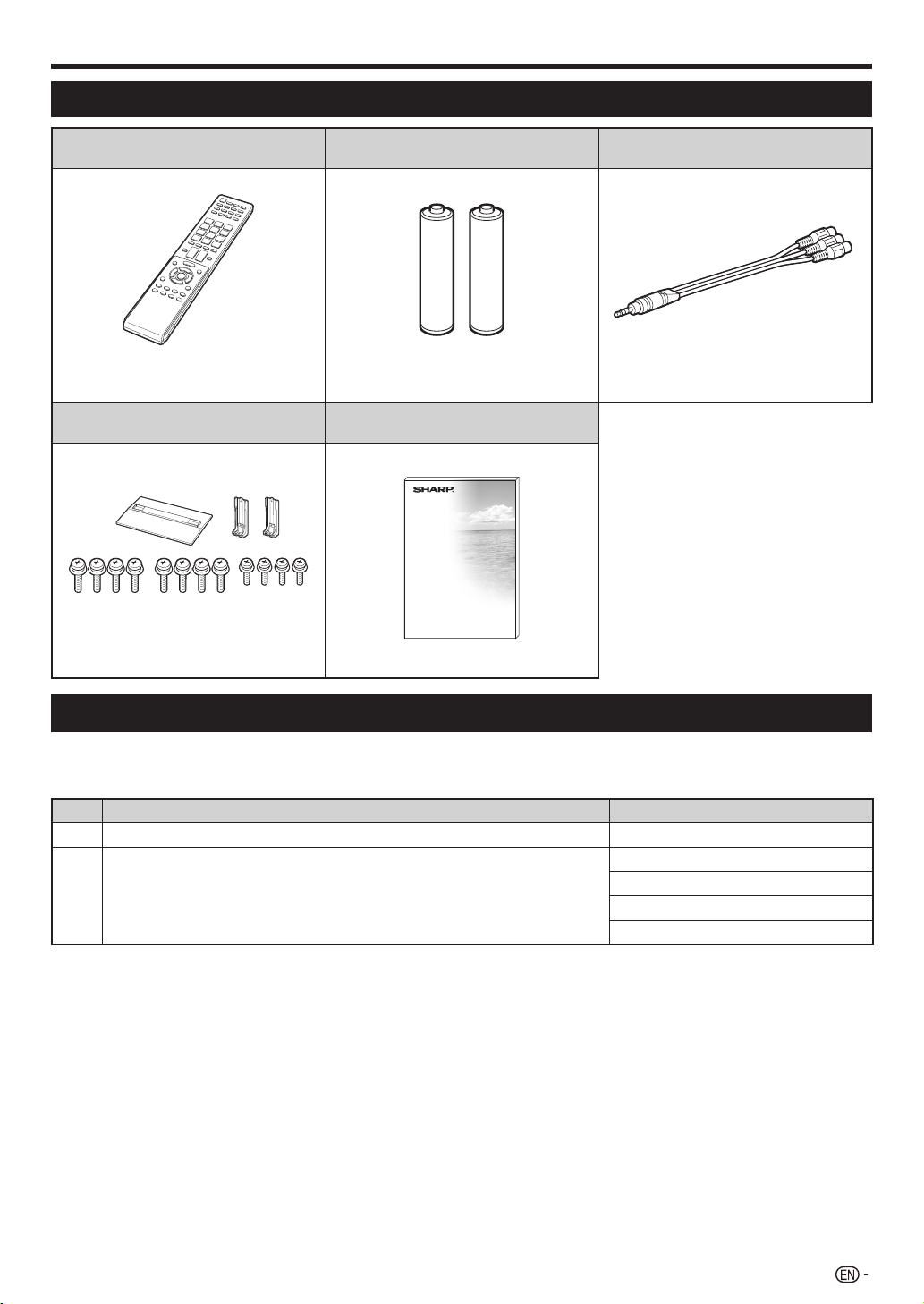

Supplied accessories
Remote control unit ( x 1) “AAA” size battery ( x 2) AV cable ( x 1)
Pages 8 and 10 Page 8 Page 19
Stand unit Operation manual
Page 6
Optional accessories
The listed optional accessories are available for this LCD colour TV. Please purchase them at your nearest shop.
• Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for
compatibility and check the availability.
No. Part name Part number
1 Wall mount bracket AN-52AG4
2 Wireless LAN USB adapter
KI-OUA004WJN1*1
KI-OUA004WJN2*1
KI-OUA004WJN3*1
KI-OUA004WJN4*1
IRefer to page 36 for details on sales areas.
Introduction

6
Preparation

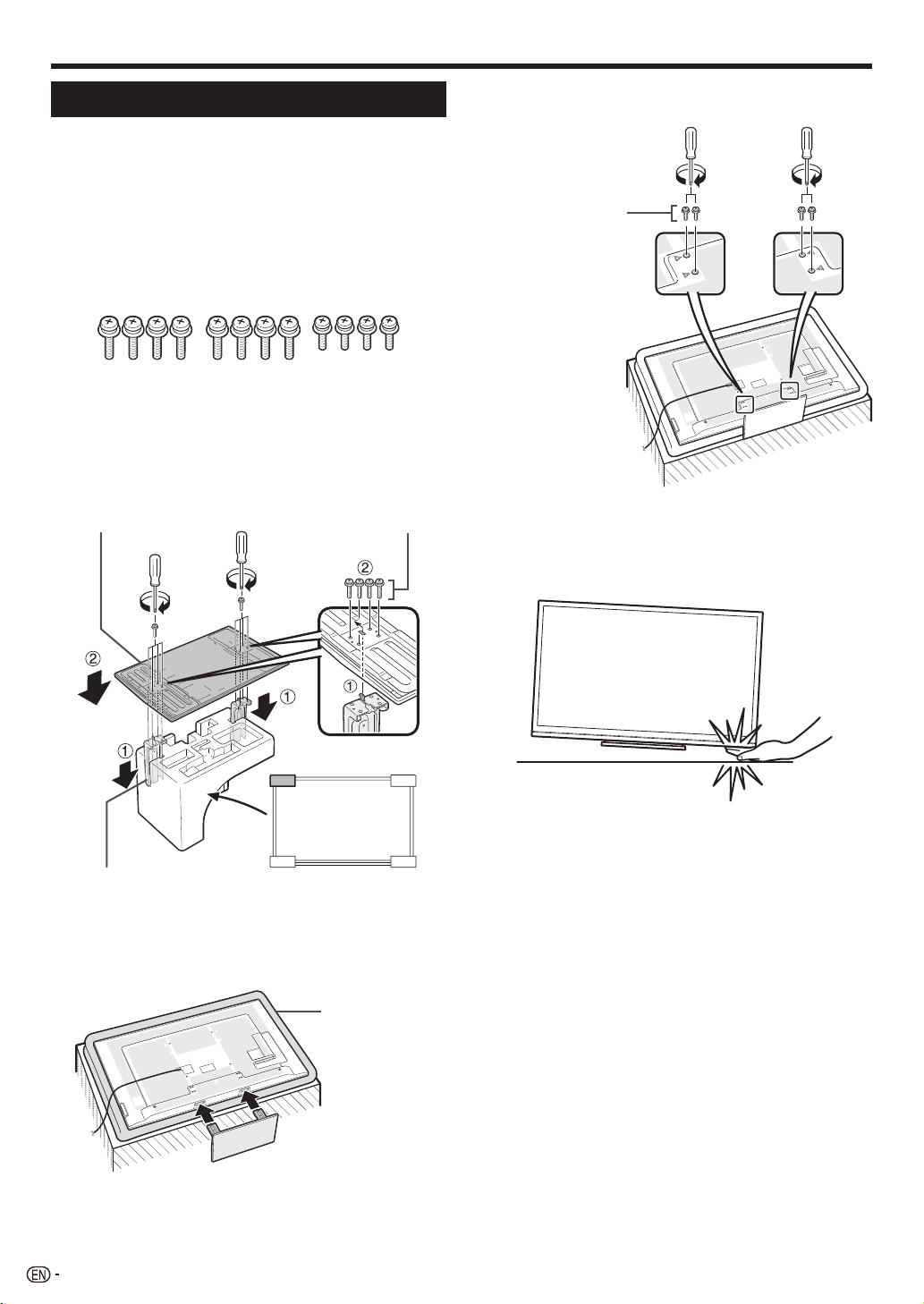

Attaching the stand unit
• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation
of the stand may result in the TV falling over.
1Confirm that there are twelve screws (eight long
screws and four short screws) supplied with the
stand unit.
21Set the supporting post for the stand unit onto
the polystyrene foam.
2Attach the stand base to the supporting post.
3Insert and tighten the eight screws into the
eight holes on the bottom of the stand base.
• Hold the stand unit securely with one hand, and
then tighten the screws.
Stand base Long screws
TV front
Supporting post
3Insert the stand into the openings on the bottom
of the TV (hold the stand so it will not drop from
the edge of the base area).
• Make sure that the stand is firmly inserted into the TV.
Improper installation may result in tilting of the TV set.
Soft cushion
4Insert and tighten the four screws into the four
holes on the rear of the TV.
Short screws
NOTE
• To detach the stand unit, perform the steps in reverse order.
• A screwdriver is not supplied with this product.
• In the installation procedure, be careful not to catch your
fingers between the TV set and the floor.

7
Preparation
Fixing the TV to the table
1Place the TV on the table.
2Pull the attached restraining bracket out so that it
is at a 90 degrees angle.
3Insert commercially available screws in the holes
of the restraining bracket and tighten the screws
to secure the TV to the table.
• Use commercially available screws to firmly secure the
TV.
Restraining bracket (attached)
Screws (commercially available)
CAUTION
• As this product is heavy, use a table that is wide
enough to support the product and capable of
withstanding the product’s weight. The table should be
set where it will not be overturned.
• Be sure to use at least two people when moving the TV.
Connecting the TV
Notes on installing the TV
• Avoid direct sunlight and place the TV in a well-ventilated
location.
• Place the TV in a level location.
• Do not turn on the power of the TV before connecting the AC
cord.
1Connect the antenna cable.
n
o
p
Standard DIN45325 connector (IEC169-2)
Antenna cable (75-ohm coaxial type: commercially
available)
Room antenna terminal (75-ohm type)
2Connect external devices.

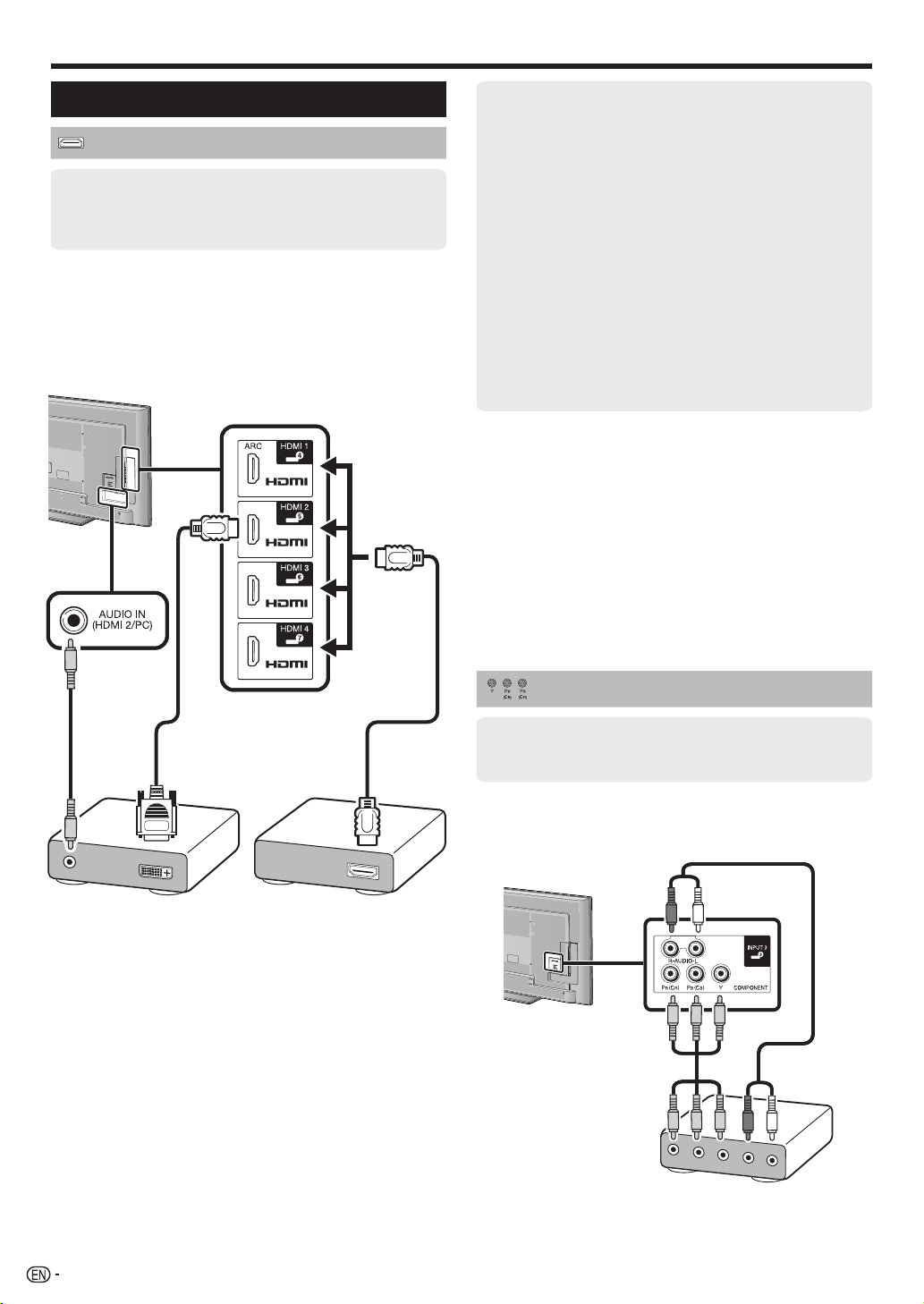

See pages 17 to 19 for connecting external equipment, such
as a VCR and DVD player.
3Plug the AC cord in to the AC outlet (product
shape varies in some countries).
TV (rear view)
Detach the cable tie on the
rear of the TV. Press cable
tie clip (1) and completely
pull out cable tie (2) to
release.
• Place the TV close to the AC outlet, and keep the power
plug within reach.
• Disconnect the AC cord from the AC outlet if the TV will
not be used for a long period of time.
4Bundle the cables.
CAUTION
TO PREVENT RISK OF ELECTRIC SHOCK, DO
NOT TOUCH UN-INSULATED PARTS OF ANY
CABLES WITH THE AC CORD CONNECTED.

8
Using the remote control unit

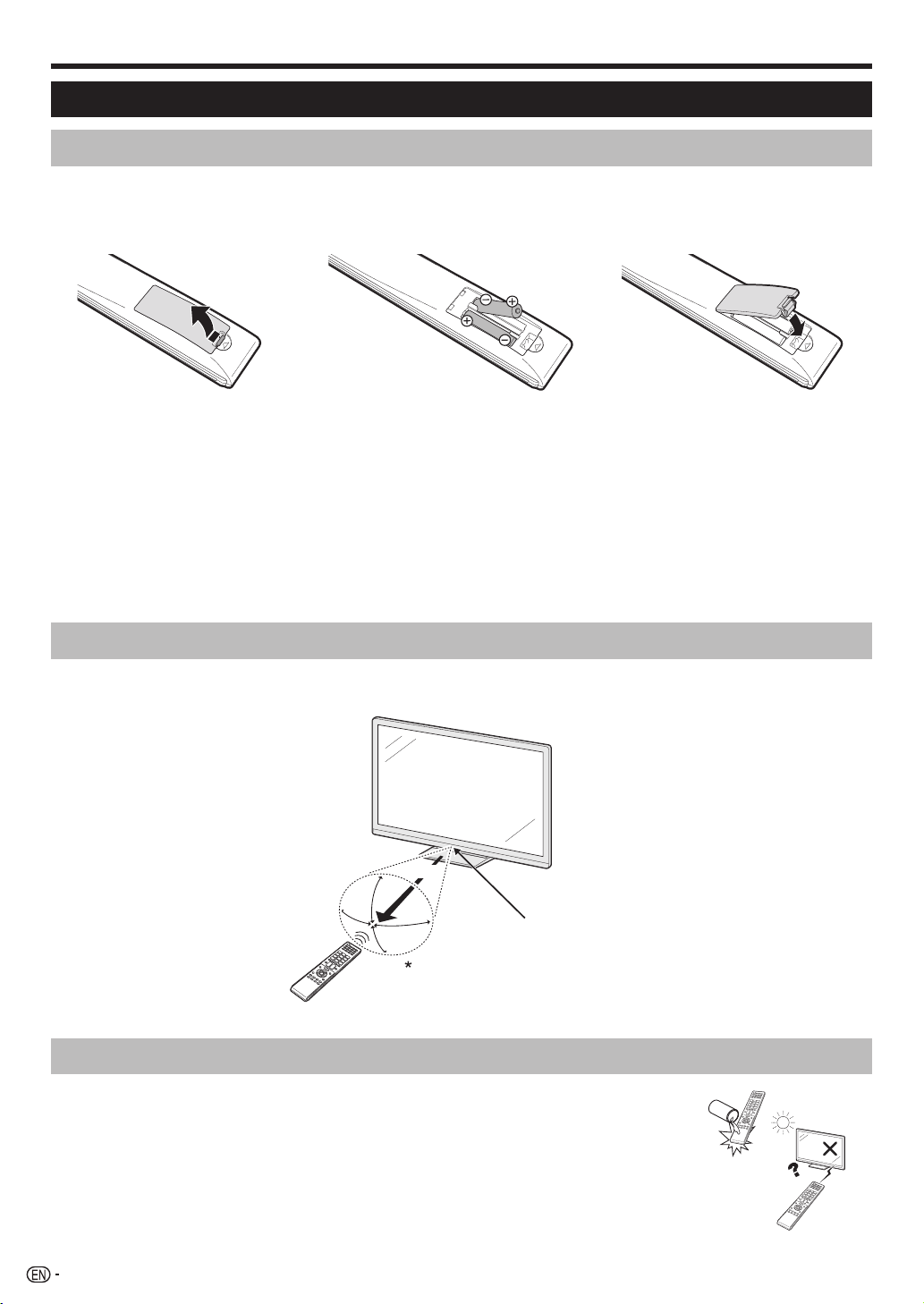

Inserting the batteries
Before using the TV for the first time, insert two supplied “AAA” size batteries. When the batteries become depleted
and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries.
1Open the battery cover. 2Insert the two supplied “AAA”
size batteries.
3Close the battery cover.
• Place batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in
old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical
leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Angle of the remote control unit
Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote control unit
and sensor may prevent proper operation.
30° 5 m
30°
30°
30°
Remote control sensor
* When mounting the TV on the wall
Cautions regarding the remote control unit
• Do not expose the remote control unit to shock. In addition, do not soak the remote
control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the unit.
• The remote control unit may not work properly if the remote control sensor of the TV is
under direct sunlight or strong lighting. In such cases, change the angle of the lighting or
the TV, or operate the remote control unit closer to the remote control sensor.
Preparation

9
TV (front/side view)
OPC sensor*1
Remote control sensor OPC indicator
SLEEP indicator
POWER indicator
IOPC: Optical Picture Control (Page 23)

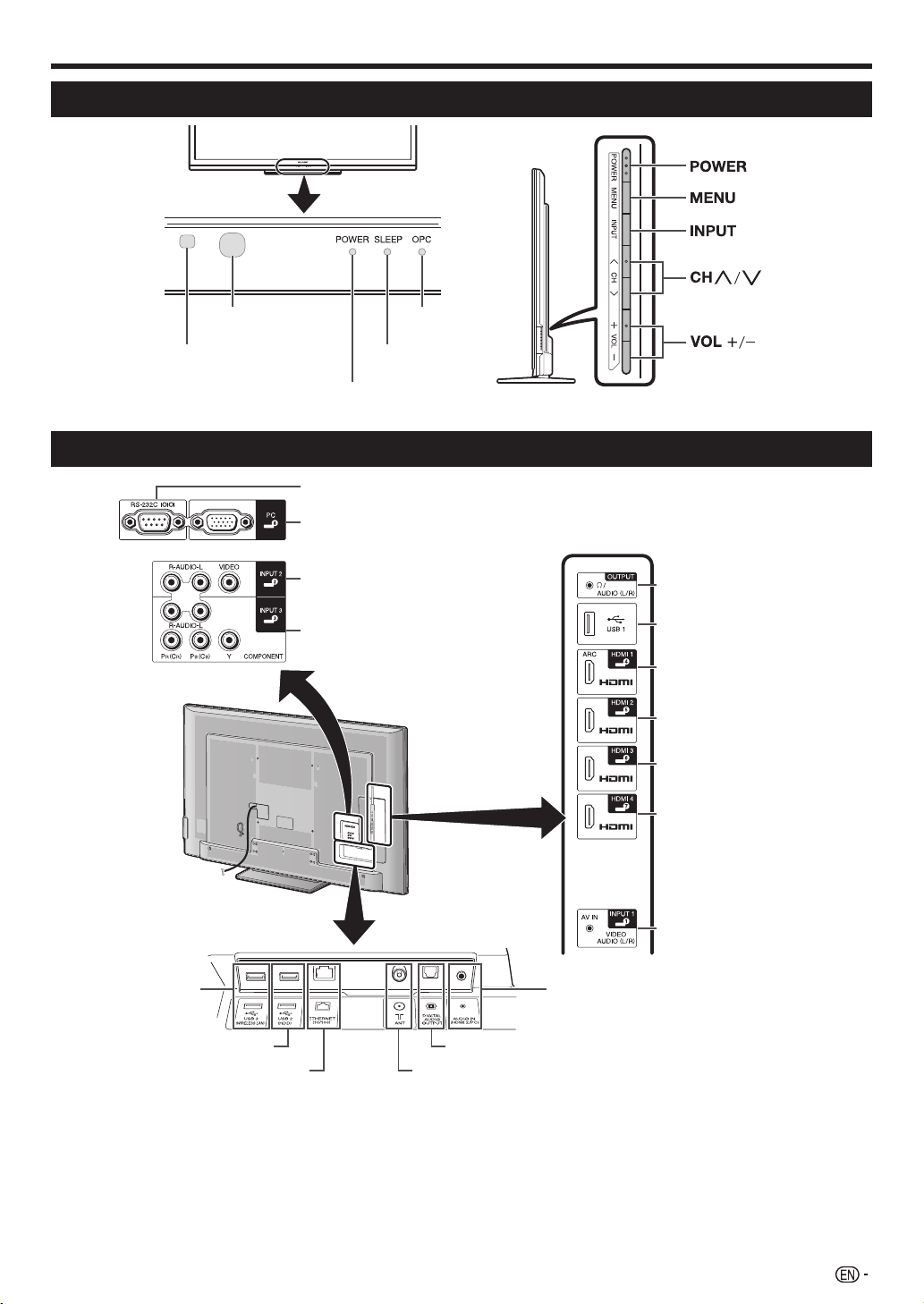

TV (rear view)
RS-232C terminal
PC terminal
INPUT 2 (VIDEO/AUDIO (L/R))
terminal
INPUT 3 (Component/
AUDIO (L/R)) terminal
OUTPUT (Headphones/
AUDIO (L/R)) terminal
USB 1 port
HDMI 1 (HDMI/ARC)
terminal (INPUT 4)
HDMI 3 (HDMI) terminal
(INPUT 6)
HDMI 2 (HDMI) terminal
(INPUT 5)
HDMI 4 (HDMI) terminal
(INPUT 7)
INPUT 1 (AV IN) terminal
USB 2 (HDD) port
ETHERNET (10/100) terminal Antenna terminal
DIGITAL AUDIO OUTPUT terminal
AUDIO IN (HDMI 2/PC) jack*1
USB 3
(WIRELESS LAN)
port
IThe HDMI 2 and PC terminals can both use the same audio input terminal (AUDIO IN (HDMI 2/PC)). However, the proper item must be selected in the
“Audio select” menu (refer to page 31 for details).
WARNING
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.
Part names and functions

10
Part names and functions
Remote control unit
5
6
4
7
8
3
9
10
12
13
11
2
114
16
17
18
19
20
21
22
23
24
15
1POWER (Standby/On)
To switch the power on and off (Page 14).
2OPC
To switch the optical picture control on and off (Page 23).
3SLEEP
Set the sleep timer (Page 26).
4CONTROL
Press to display the panel to operate some functions on the
screen.
50_9
Set the channel (Page 14).
6A(Flashback)
Press to return to the previously selected channel or
external input.
7MPX
Select a sound multiplex mode (Page 15).
8WIDE
Change a wide image mode (Pages 30, 44 and 45).
9e(Mute)
Mute the sound.
0Y+/-
Set the volume.

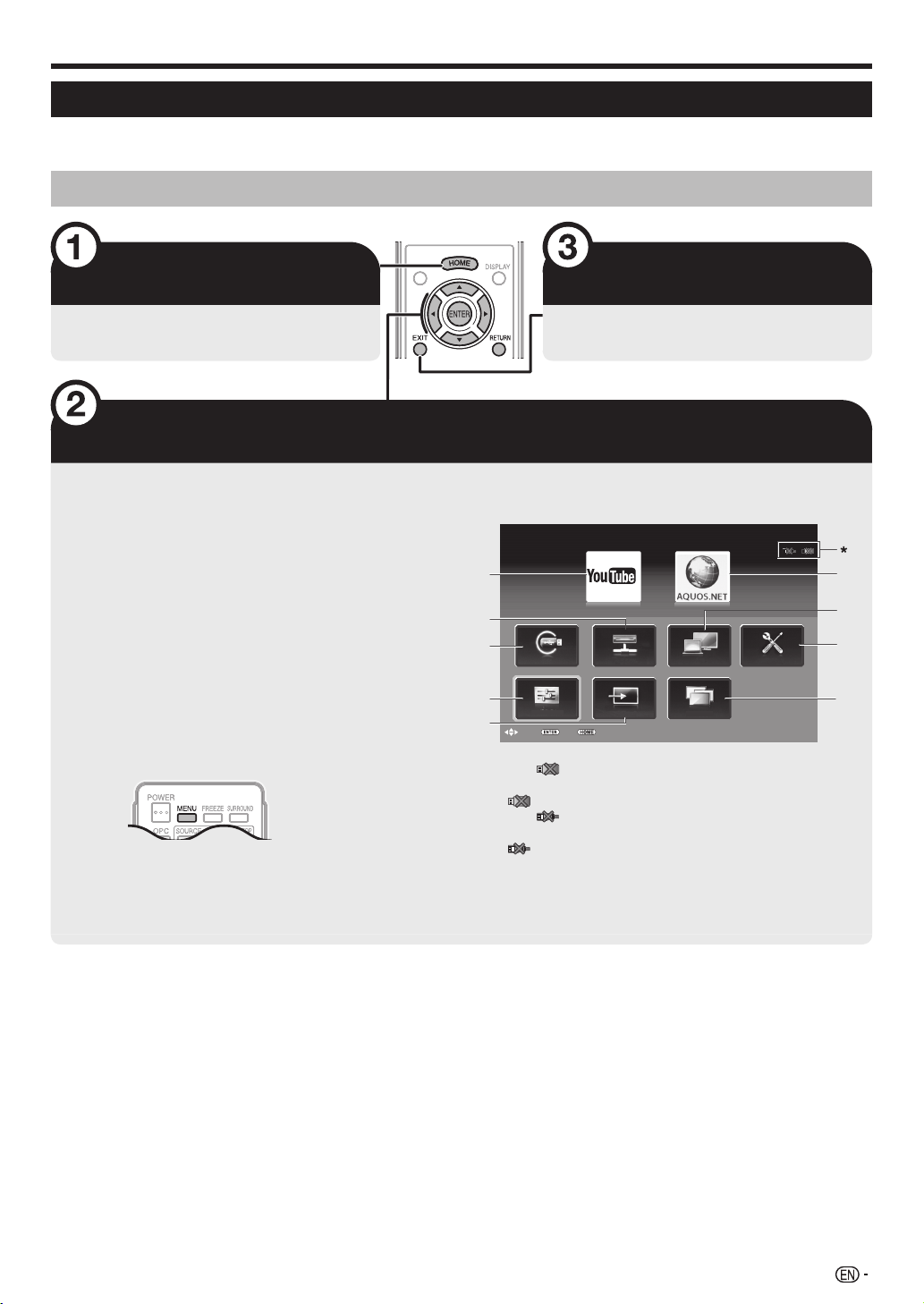

QHOME
Display the “HOME” screen for enjoying Internet connection,
Home network functions and to perform settings for the TV
(Page 11).
Wa/b/c/d (Cursor)
Select a desired item on the setting screen.
ENTER
Execute a command.
EEXIT
Turn off the On-Screen Display (Page 11).
R@
Displays the menu screen (Page 11).
FREEZE
Freeze a motion picture on the screen.
SURROUND
Select surround settings (Page 25).
TAQUOS LINK buttons
If external equipment such as a AQUOS BD player
is connected via HDMI cables and is AQUOS LINK
compatible, you can use these AQUOS LINK buttons. See
pages 20 and 22 for details.
YINPUT (INPUT SOURCE)
Select an input source (Pages 18, 31, 32 and 45).
UECO
Select “Energy save” setting (Page 26).
I#
Select audio/video settings (Page 23).
Om(Teletext)
Select the teletext mode (All TV image, all text image and
TV/text image) (Page 16).
PCHr/s
TV input mode: Select the channel (Page 14).
AQUOS.NET: Select the page (Page 37).
ADISPLAY
Display the channel or input information.
Reveal/hide the guide display for USB media mode (Pages
41–43).
SRETURN
Menu mode: Return to the previous menu screen (Page 11).
DButtons for useful operations
[(Subtitle)
Switch subtitle languages on/off (Page 16).
k(Reveal hidden teletext)
Teletext mode: Display hidden characters (Page 16).
1(Subpage)
Display the teletext subpage directly (Page 16).
3(Hold)
Teletext mode: Stop updating teletext pages automatically.
Press 3again to release the hold mode (Page 16).
FR/G/Y/B (Colour) buttons
The coloured buttons are correspondingly used to select
the coloured items on the screen (e.g., AQUOS LINK, USB
media, Home network, teletext).
* This button does not work on this model.

11
What is the HOME?
You can easily launch to enjoy Internet connection and Home network functions and to perform settings for the TV
from this “HOME” screen.
Basic operation
Display the HOME screen
Press HOME and the “HOME” screen
displays.
Exit the HOME screen
The operation will exit the “HOME” screen
if you press Bbefore it is completed.
Select an item
Selecting in the HOME.
Press a/b/c/d to select the desired service or menu, and then press A.
1YouTube™
You can enjoy YouTube on your AQUOS (Page 37).
2AQUOS.NET
You can connect to the internet through AQUOS.NET
(Page 37).
3Home network (Page 40)
4USB media (Page 40)
5TV Menu
Call up the OSD (On-screen Display) to perform settings
for the TV. The OSD (On-screen Display) for the settings
is called “TV Menu”. The “TV Menu” enables various
settings and adjustments.
NOTE
You can call up “TV Menu” screen by pressing @.
6Input change
7IP Control (Page 47)
8Network setup (Pages 34–35)
9Programme guide (CH list) (Page 15)
TM
HOME
:End
:Enter
:Select
USB
LAN
CH list
IP Control
Home network
Input change
Network setup
USB media
TV Menu
9
1
6
3
8
2
7
4
5
* When “ ” is displayed, you cannot connect to USB
devices.
If “ ” is displayed, check your USB device’s connection.
* When “ ” is displayed, you cannot connect to your TV’s
network.
If “ ” is displayed, check your TV’s network settings and
connection.
Regarding the instruction on the manual
On this manual, the following expression is often used in order to simplify instructions.
• Go to “HOME” > “TV Menu” > “Setup” > ...
This indicates how to navigate through the HOME screen using a/b/c/d and Abuttons.
Quick guide

12
Quick guide
Using software keyboard
Use the software keyboard when you need to input text.
Char.Set
Caps
Cancel
Done
Delete
Clear
Cursor Left Caps Char.Set Cursor Right
1Char. Set
Changes character set into the
alphabet, numbers, symbols, etc.
2Caps
Changes characters to capital/lower
case.
3Done
Confirm the entry.
4Cancel
Abort input and close the software
keyboard.
5R/G/Y/B (Colour) buttons
Selects the coloured items on the
screen.
6Input cursor
Press c/d to move the cursor when
highlighted.
7Input field
The text you enter is displayed as you
type it in.
8Character
Input characters by using these
buttons.
9?
Put a line break.
0Clear
Erases the character string.
• When the cursor is somewhere in a
line: the character string to the right
of the cursor will be erased.
• When the cursor is at the right
end of a line: the entire line will be
erased.
QDelete
If the cursor is at the right end of a
line, this erases text one character at
a time.
• You can also delete text by
pressing Con the remote
control unit.
NOTE
• Depending on the application, there may be a different software keyboard than the one indicated above.

13
Initial auto installation
When the TV is powered on for the first time after
purchase, the initial auto installation wizard appears.
Follow the menus and make the necessary settings one
after another.
Confirm the following before turning on the
power
EIs the antenna cable connected?
EIs the AC cord plugged in?
1Press <on the TV.
• The initial auto installation
wizard appears.
2Setting the OSD language.
Press a/b/c/d to select the desired language, and then
press A.
3Selecting the location of the TV.
Press c/d to select where you will use this TV, and then
press A.
HOME:
• Settings are optimised for normal home viewing and
energy efficiency.
• “STANDARD” will be the default value for the “AV mode”
setting.
STORE:
• Settings are designed for maximum impact in retail store
displays.
• “DYNAMIC (Fixed)” will be the default value for the “AV
mode” setting. If the “AV mode” is changed, the TV will
automatically switch back to “DYNAMIC (Fixed)” when
there is no operation using the TV or remote control unit
for 30 minutes.
• The confirmation screen pops up only when selecting
“STORE”. Press c/d to select “Yes” or “No”.
NOTE
• STORE: A demonstration image will be displayed after initial
auto installation is completed. If you have chosen “STORE”
by mistake, go to “Setup” > “View setting” > “Reset” > select
“HOME” again.
4Setting the country.
Press a/b to select your country or area, and then press
A.
• This setting screen only appears during the initial auto
installation.
5The TV searches for and stores all the receivable
TV stations according to their settings and the
connected antenna.
• To abort the initial auto installation in progress, press
C.
NOTE
• If you turn off the power on the TV while performing a channel
search in Step 5, the initial auto installation wizard may not
appear. The auto installation function allows you to execute
the installation again from “Setup” > “View setting” (Page 27).
• The initial auto installation wizard will abort if you leave the TV
unattended for 30 minutes before searching for channels in
Step 5.
Quick guide

14
Daily operation
Turning on/off the power—using the TV
Turning on/off the power
1Turn on the power.
Press <on the TV (after a few seconds, an image appears with
sound).
• Wait more than five seconds until you press <on the TV after inserting the
power plug.
2Turn off the power.
Switch it off by pressing <on the TV.
Turning on/off the power—using the remote control unit
Standby mode
1To standby mode
If the TV is turn on, you can switch it to standby by pressing <
on the remote control unit.
2Switch on from standby.
From standby, press <on the remote control unit.
NOTE
• If you are not going to use this TV for a long period of time, be sure to remove the AC
cord from the AC outlet.
• A small amount of electric power is still consumed even when the TV is in standby
mode.
Changing channels
1Turn on the power.
2Select a programme using 0–9 numeric buttons or !r/s on the
remote control unit.
NOTE
• You can also select a programme using !r/s on the TV.

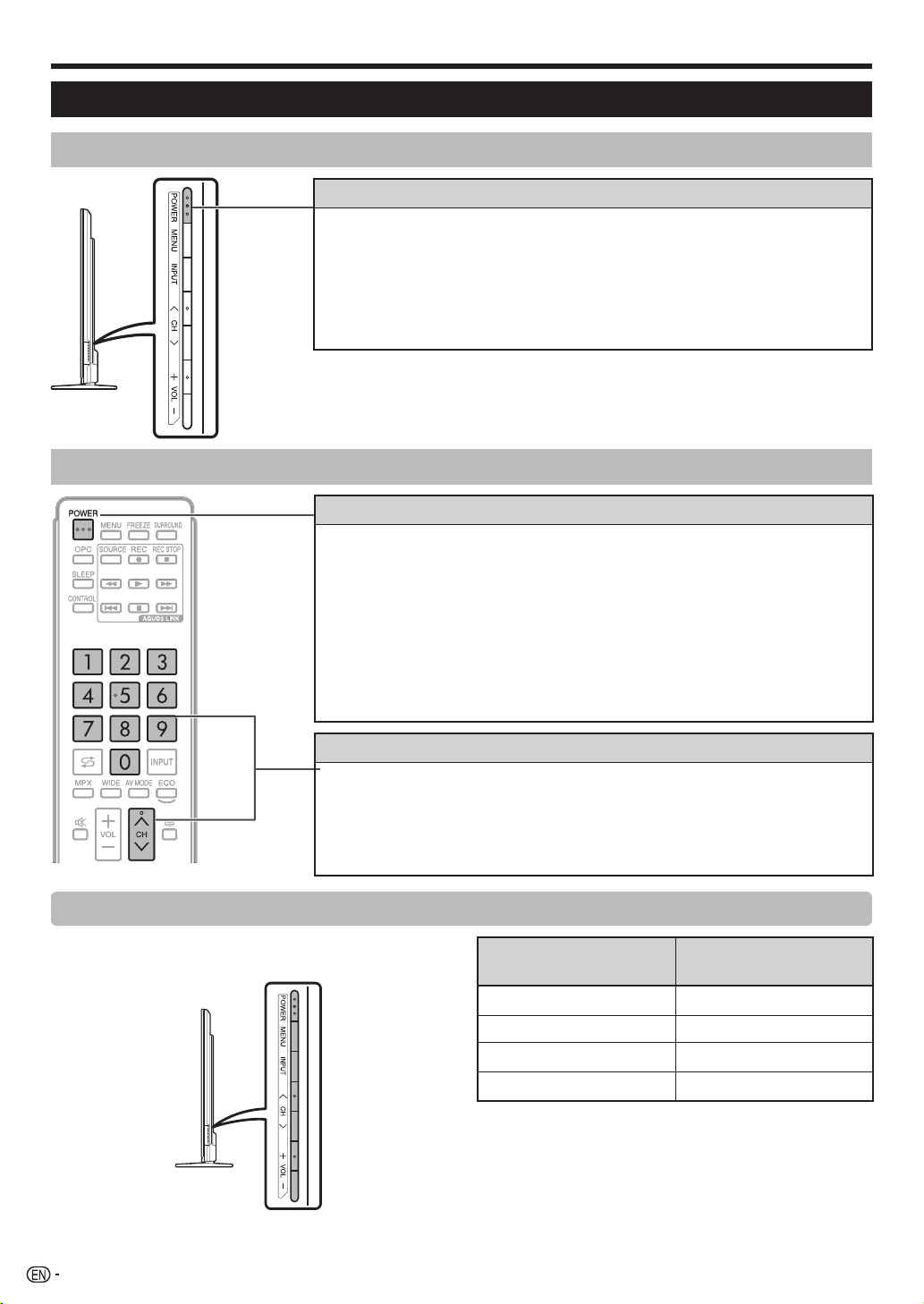

Operation without a remote control unit
You can operate the menu settings using the TV control
buttons. TV control buttons Remote control
buttons
@@
INPUT ENTER
CH r/CH sa/b
VOL k/VOL l d/c
Watching TV

15
Selecting an external video source
Once the connection is made, press #to display
the “INPUT” screen, and then press #or a/b
to switch over to the appropriate external source with
A.
TV
INPUT
Switchable
CH list
NOTE
• You can also select an external video source from “CH list” >
“INPUT”.
• Only HDMI inputs which are not set for “Input skip” (Page 31)
and properly connected inputs can be selected.
• You can select an external video source for an HDMI
connections as shown below.
Connected terminal Selectable item
HDMI 1 INPUT 4
HDMI 2 INPUT 5
HDMI 3 INPUT 6
HDMI 4 INPUT 7
Switching the analogue audio
format
You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches between
NICAM STEREO and MONO.
Stereo mode
TV
STEREO
TV
MONO
When receiving a bilingual signal
Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and MONO.
Bilingual mode
TV
MONO
TV
CH AB
TV
CH A
TV
CH B
When receiving a monaural signal
Each time you press MPX, the mode switches between
NICAM MONO and MONO.
Monaural mode
TV
MONO
TV
MONO
In the TV mode of A2 TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches between
STEREO and MONO.
Stereo mode
TV
MONO
TV
STEREO
When receiving a bilingual signal
Each time you press MPX, the mode switches among
CH A, CH B and CH AB.
Bilingual mode
TV
CH A
TV
CH B
TV
CH AB
When receiving a monaural signal
When you press MPX, “MONO” displays.
Monaural mode
TV
MONO
NOTE
• “BBC1”, “01” and “PAL” are tentative network name, channel
and colour system.
Watching TV

16
Teletext
What is teletext?
Teletext broadcasts pages of information and
entertainment to specially equipped TV. Your TV receives
teletext signals broadcast by a TV network, and decodes
them into graphical format for viewing. News, weather
and sports information, stock exchange prices and
programme previews are among the many services
available.
Turning teletext on/off
1Select a TV channel or external source providing a
teletext programme.
2Press mto display the teletext.
3Press magain to display the teletext on the right
screen and the normal image on the left screen.
• Many stations use the TOP operating system, while some use
FLOF (e.g., CNN). Your TV supports both these systems. The
pages are divided into topic groups and topics. After switching
on the teletext, up to 2,000 pages are stored for fast access.
• If you select a programme with no teletext signal, “No Teletext
available” displays.
• The same message displays during other modes if no teletext
signal is available.
TELETEXT TELETEXT
• Each time you press m, the screen switches as shown above.
Buttons for teletext operations
Buttons Description
!r/s Increase or decrease the page number.
Colour (R/G/Y/B)
Select a group or block of pages displayed
in the coloured brackets at the bottom of the
screen by pressing the corresponding colour
(R/G/Y/B) on the remote control unit.
Numeric buttons
0_9
Directly select any page from 100 to 899 by
using the 0_9numeric buttons.
k(Reveal
hidden teletext)
Reveal or hide hidden information such as an
answer to a quiz.
3(Freeze/Hold) Stop updating teletext pages automatically or
release the hold mode.
[(Subtitle for
teletext)
Display the subtitle or exit the subtitle screen.
Subtitles will not be displayed when the service
does not contain subtitle information.
1(Subpage)
Reveal or hide subpages.
Selects directly the desired subpage (0–9).
• Move to the previous subpage (R).
• Move to the following subpage (G).
• These two buttons are shown on the screen
by the symbols “e” and “f”.
A
Display the top menu.
• The top menu will not be displayed when the
service does not support top menus.
View setting
Text language
If Teletext information does not display correctly, perform
the procedure below.
Select from among six kinds of language tables: West
Europe, East Europe, Greek/Turkish, Cyrillic, Arabic and
Farsi.
Each table is compatible with the Teletext languages
listed below.
1Go to “HOME” > “TV Menu” > “Setup” > “View
setting” > “Individual setting” >“Text language”.
BackSelect
West Europe
Text language
East Europe
Farsi
Greek/Turkish
Cyrillic
Arabic
Teletext language settings
• West Europe—English, French, Scandinavian, Turkish,
German, Spanish, Italian
• East Europe—Polish, French, Scandinavian, Czech,
German, Slovenian/Croatian, Italian, Rumanian
• Greek/Turkish—English, French, Scandinavian, Turkish,
German, Spanish, Italian, Greek
• Cyrillic—English, Russian, Estonian, Czech, German,
Slovenian/Croatian, Ukrainian, Lettish
• Arabic—English, French, Scandinavian, Turkish, German,
Hebrew, Italian, Arabic
• Farsi—English, French, Scandinavian, Turkish, German,
Hebrew, Italian, Farsi
NOTE
• Teletext can display only when it is sent by a network. Not
used to convert between languages.
Watching TV

17
EBefore connecting ...
• Be sure to turn off the TV and any devices before making any connections.
• Firmly connect a cable to a terminal or terminals.
• Carefully read the operation manual of each external device for possible connection types. This also helps you get the best possible
audiovisual quality to maximise the potential of the TV and the connected device.
• Refer to page 45 for connecting a PC to the TV.
Connection cable
(Connection code)
Image quality/
Audio quality Connectable devices Reference
page
HDMI cable
Excellent in both
image quality
and audio
quality Reproduction devices such as a DVD player
Game console
18
DVI/HDMI cable/3.5 mm stereo
minijack cable
Good image
quality
Component cable
Audio cable
Average in both
image quality
and audio
quality Reproduction devices such as a DVD player
18
AV cable (Supplied)
AV cable
Average in both
image quality
and audio
quality
Reproduction devices such as a DVD player
Game console
19
Optical audio cable Excellent in
audio quality
Audio equipment
19
Stereo conversion cable
Average in
audio quality
Connecting external devices

18
Connecting external devices
Video connections
HDMI connection
Example of connectable devices
EDVD player/recorder
EBlu-ray player/recorder
EGame console
The HDMI connections permit digital video and audio
transmission via a connection cable from a player/
recorder. The digital picture and sound data are
transmitted without data compression and therefore lose
none of their quality. Analogue/digital conversion is no
longer necessary in the connected devices, which also
would result in quality losses.
n
op
ø 3.5 mm stereo minijack cable (commercially available)
DVI/HDMI cable (commercially available)
HDMI-certified cable (commercially available)
DVI/HDMI conversion
Using a DVI/HDMI cable, the digital video signals of
a DVD can also be played via the compatible HDMI
connection. The sound must be fed in additionally.
• When connecting a DVI/HDMI cable to the HDMI terminal, the
image may not come in clearly.
• Both HDMI and DVI use the same HDCP copy protection
method.
EWhen using the HDMI 2 terminal
You must set the audio signal input source depending
on the type of HDMI cable connected (refer to page 31 for
details).
HDMI-certified cable
1Press #to select “HDMI2” from the
“INPUT” menu, and then press A.
2Go to “HOME” > “TV Menu” > “Setup” >
“Option” > “Terminal setting” > “Audio select”
> select “HDMI (Digital)”.
DVI/HDMI cable
1Press #to select “HDMI2” from the
“INPUT” menu, and then press A.
2Go to “HOME” > “TV Menu” > “Setup” >
“Option” > “Terminal setting” > “Audio select”
> select “HDMI + Analogue”.
NOTE
• If a connected HDMI device is AQUOS LINK
compatible, you can take advantage of versatile
functions (Pages 20–22).
• Video noise may occur depending on the type of HDMI cable
used. Make sure to use a certified HDMI cable.
• When playing the HDMI image, the best possible format for
the picture will be detected and set automatically.
• An ARC (Audio Return Channel) compatible audio receiver
must be connected to the HDMI 1 terminal with an ARC-
compatible cable.
Supported video signal
576i, 576p, 480i, 480p, 1080i, 720p, 1080p
See page 46 for PC signal compatibility.
Component connection
Example of connectable devices
EVCR
EDVD player/recorder
You will enjoy accurate colour reproduction and high
quality images through the INPUT 3 terminal when
connecting a DVD player/recorder or other device.
n
o
Component cable (commercially available)
Audio cable (commercially available)
