Sharper Image 204435 User manual

Item No. 204435
SLIDE AND NEGATIVE CONVERTER
User’s Guide

- 1 -
CONTENTS
•Preface
•Safety Precautions
•Checking package contents
•Product Structure Diagram
•Slide and negative holder loading method
•Operation Guided
•Product Specification
•Declaration
Thank you for purchasing this product.
Please read this user's manual carefully before using this product.
Please retain this manual for future reference.
Please use this product correctly.
•Do not disassemble this unit.
•Do not touch inner part of the scanner after dropping or other
damage suffering.
•Do stop using it if there is any problem with the scanner, such as
smoke or smell while using.
•Do not clean the scanner with alcohol, gasoline, diluent and other
organic solvent.
•Do not use it in many dusts with the damp environment.
•Do not overload the USB connections on your computer to avoid
poor working of the scanner for overloading.
•Please use films of standard size.
•Cleaning: Please make sure the scanner is clean before using so
as to produce a clean image.
•To protect the machine and save energy, 30 minutes without
continuous operation will automatically shut down in the state
of power-on . Press the power button to turn again to normal use.
PREFACE
SAFETY PRECAUTIONS

- 2 -

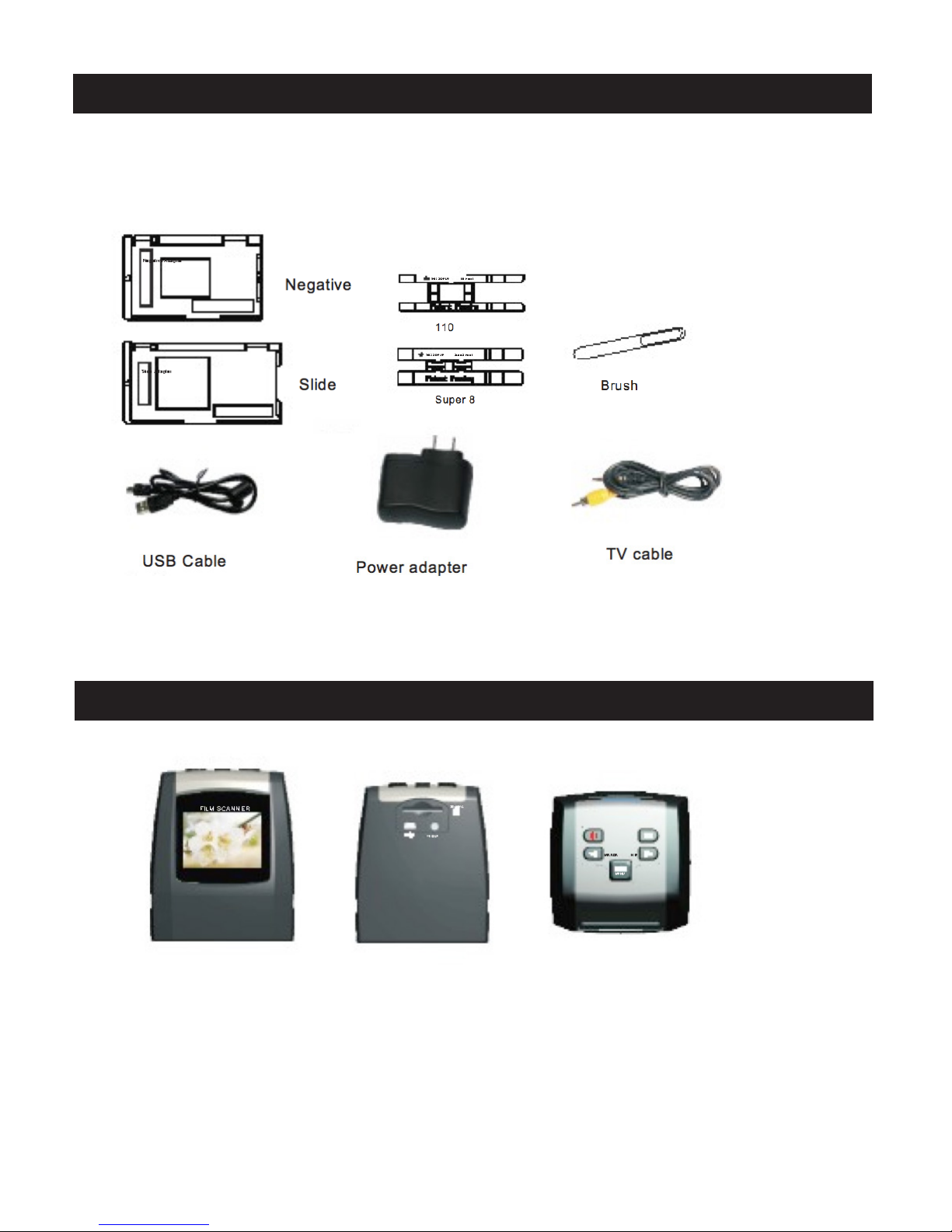

CHECKING PACKAGING CONTENTS
PRODUCT STRUCTURE DIAGRAM
Please check your scanner package whether it contained as followed
objects, if lack of any object, please contact with retailers whom you
buy the product from.
WARNING: Please stretch into clean from product side, when you use cleaning brush to clean backlight.

Loading Negatives
a. Hold up the negative toward the light. Face the right
side of the negative to yourself.
b. Take out negative holder out. Let the side with “open”
logo face yourself, and let the side with “”logo face
down. Open the negative holder, then place
negative into recessed area in the holder.
Close the negative holder and press the edges so
that it locks in place.
c. Insert the negative holder into the slot on the right
side of the film scanner.
Loading Slides
a. Hold up the slide toward the light. Face the righ side of
the slide to yourself. (we don't provide white small holder).
b. Take out slide holder out. Let the side with “open” logo face
yourself, and let the side with “”logo face down.
Open the slide holder, then place slides into recessed area in
the holder. (films also could be loaded as a strip into the slide
holder, forming drawer type as below picture)
Close the slide holder and press the edges so that
it locks in place.
c. Insert the slide holder into the slot on the right side of the film
scanner as shown.
WARNING: Handle films with care to avoid scrathesor finger prints (for the best use cotton gloves when handling films)
It is recommended to use compressed cotton to remove any dust on the films.
SLIDE AND NEGATIVE HOLDER LOADING METHOD
- 3 -

OPERATION GUIDE
Introduction of Menu
Capture Picture
a. Before scanning please make sure the inner backlight panel
is clean. Note: You can use the provided brush to clean the screen.
b. In main Menu mode press OK/Enter enter capture mode, then press
SCAN/OKMode then press OK/Enter the picture would be captured.
- 4 -

OPERATION GUIDE [CONT.]
- 5 -
c. Before pressing Mode to capture picture, you can press left
button to mirror and press right button to flip the current picture.
And you can press OK button to set Exposure. Then press
Convert/Mode button again back to main menu.
Press left key, the image position be altered from left to right.
Press right key, the image position be altered from up to down.
Press ENTER to set exposure compensation.

- 6 -
OPERATION GUIDE [CONT.]
a. In main menu, press, until, then press OK/Enter you can chose negative
(110, 135, 126KPK) slide (110, 135, 126KPK, Super8) B&W (110, 135, 126KPK).
b. How to playback captured picture, press OK/Enter in main menu, press, until
picture auto-playback mode press again to stop auto playback and you can view captured
pictures manually, you can press to view, press OK/Enter again enter picture editing mode,
you can rotate: delete, exit, save, and “home” back to main menu.
The current picture rotate 90 degree clockwisely
TOOL BAR
The current picture rotate 90 degree anticlockwisely
Deleting the current picture from memory card
Exit the submenu edit mode, back
Saving the current edited picture
Exit the submenu edit mode, back to scan

- 7 -
OPERATION GUIDE [CONT.]
Setting Language
Resolution Choosing
Formatting
Press OK/Enter under main menu mode, press chose language, then press and OK/Enter,
one of following 8 language can be set, English, Franch, German, Italian,
Spanish, T-Chinese, S-Chinese, Japanese.
Under main menu mode, press OK/Enter to enter into Resolution Choosing Mode:
you can choose 14M or 22M (interpolation)
In the main menu, press right and left arrows, press "OK/Enter" button
to enter. Note: After using this function, all the information in the Micro SD card
will be deleted, please note it !

- 8 -
OPERATION GUIDE [CONT.]
Connect to Computer
Under main menu mode right or left arrows, press OK/Enter. After successfull connectting to computer, you can view and
edit captured pictures.
Product Specification
Function
Interface
Image Sensor
Display
Exposure Control
White Balance
Resolution
Film type
Picture Effects
File format
TV-OUT type
Built-in memory
External memory card
Power Supply
Language
Support system
Product Size
Weight
Film scanner/USB MSDC
USB2.0
14.0 Mega pixels 4416*3312
1/2.33” CMOS sensor
Color 2.4, TFT LCD
Automatic / Manual (-2.0 EV~ +2.0EV)
135 Film(36*24mm)
126KPK Film(27*27mm)
110 Film(17*13mm)
Super8 Film(4.01*5.79mm)
Monochrome, SlideB&W, Slides, Negatives
Picture, JPEG
NTSC/PAL
128M
SD card up to 32GB
DC 5V Adapter/ USB Port
S-Chinese / T-Chinese / English /
French /German / Italian / Spanish /
Japanese
Windows XP/vista/Windows7/8/
Mac10.7.3 and above
L87XW86.5XH102.5mm
250g

The SHARPER IMAGE® name and logo are registered trademarks.
©Sharper Image. All Rights Reserved.
CUSTOMER SERVICE
Sharper Image branded items purchased
from SharperImage.com include a 1-year
limited replacement warranty. If you require
any assistance with your Slide and Negative
Converter, please call 1 [phone].
DECLARATION
Please note products spec is subject to improvement.
Any changes of product will not make additional specify.
