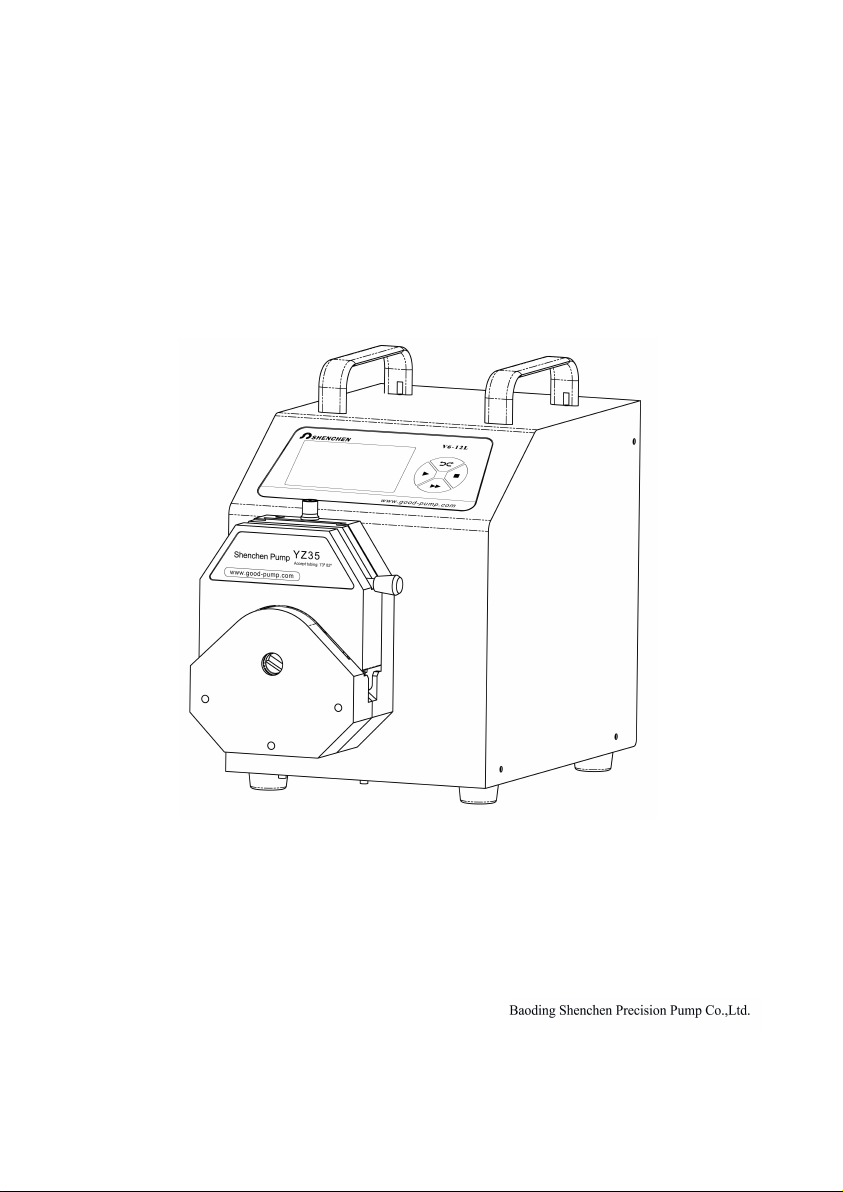

Shenchen V6-12L Series User manual

Shenchen Peristaltic Pump
Manual of V6-12L Series

Important Information
Please read the manual carefully before operating the product.
Warning
Tubing may have crack due to wear. It results in the overflow of fluid
from tubing. In that time human body and instruments may be
damaged. So user must check usually and change tubing in time.
Connect directly the power line to the wall socket, and avoid using
the extense electric line.
If the power line or plug had wear and other damage, please hold
the plug to unplug it, not hold the line.
If following situations happened, please turn off the electric power
and unplug the plug, holding the plug and not the line.
1. Fluid splash on the pump.
2. You think the pump need to maintain or amend.
The user’s power socket must have ground wire, and have reliable
grounding

Catalogue
V6-12L Series Product Introduction:............................................- 1 -
V6-12L Series Product Appearance..............................................- 1 -
V6-12LSeries Keyboard Instruction.............................................- 2 -
V6-12L Series Operation Interface Structure:..............................- 3 -
V6-12L Series Operation Interface Instruction......................... - 3 -
V6-12L Series Technical Specification...................................... - 16 -
V6-12L Series Function and Features........................................ - 16 -
External Control Interface Instruction：....................................- 18 -
Product Dimension (mm):.......................................................... - 22 -
Maintenance................................................................................- 23 -
Warranty and After Service.........................................................- 24 -

Shenchen Peristaltic Pump V6-12L Series
- 1 -
V6-12L Series Product Introduction:
4.3 inch color touch screen control; dynamic display working status; flow data,
setted parameters and system settings displays in the same screen. Intelligent
calibration and online micro adjusting function; three measurement mode; fixed
volume measurement, fixed time and volume, timer start and stop. It can load YZ35
pump head. It is the ideal choice for industrial production and equipment
supporting.

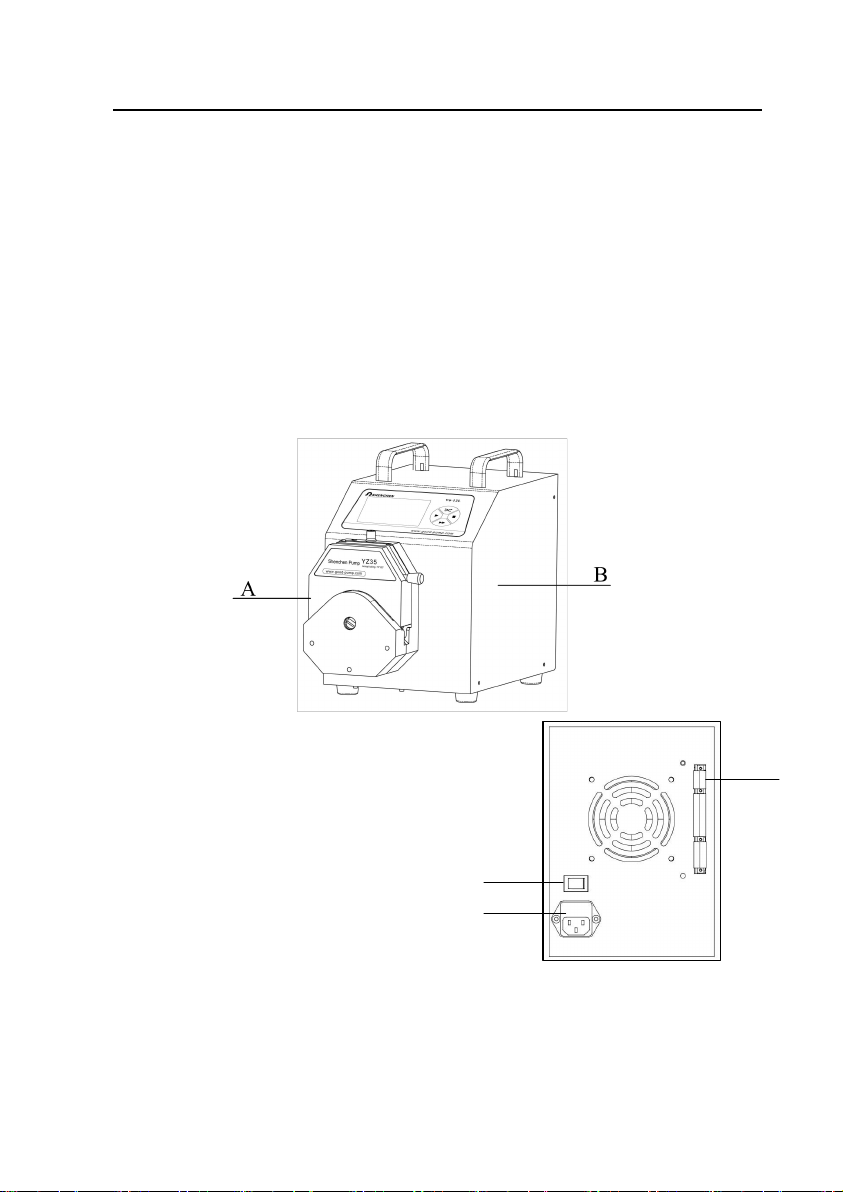

V6-12L Series Product Appearance
A——Pump Head
B——Drive
C——Power Switch
D——Power Port
E——External Control Input Port
C
D
E

Shenchen Peristaltic Pump V6-12L Series
- 2 -
V6-12LSeries Keyboard Instruction
Stop Button：Press stop button, stop working. Forbidden buttons can be used on
the main interface.
Full Button：When stop state or transferring state, press this button, the pump will
running with highest speed. This button can be used for wash tube or fast
filling liquid.
CW/CCW Button: Press this button, the motor will change running direction.
When the pump working with fixed volume measurement function or
fixed time and volume function, this button does not work.
Start Button: Press this button, the motor start running. When fixed volume
measurement function or fixed time and volume function turn on, press
this button, the pump will start work with the function.

Shenchen Peristaltic Pump V6-12L Series
- 3 -

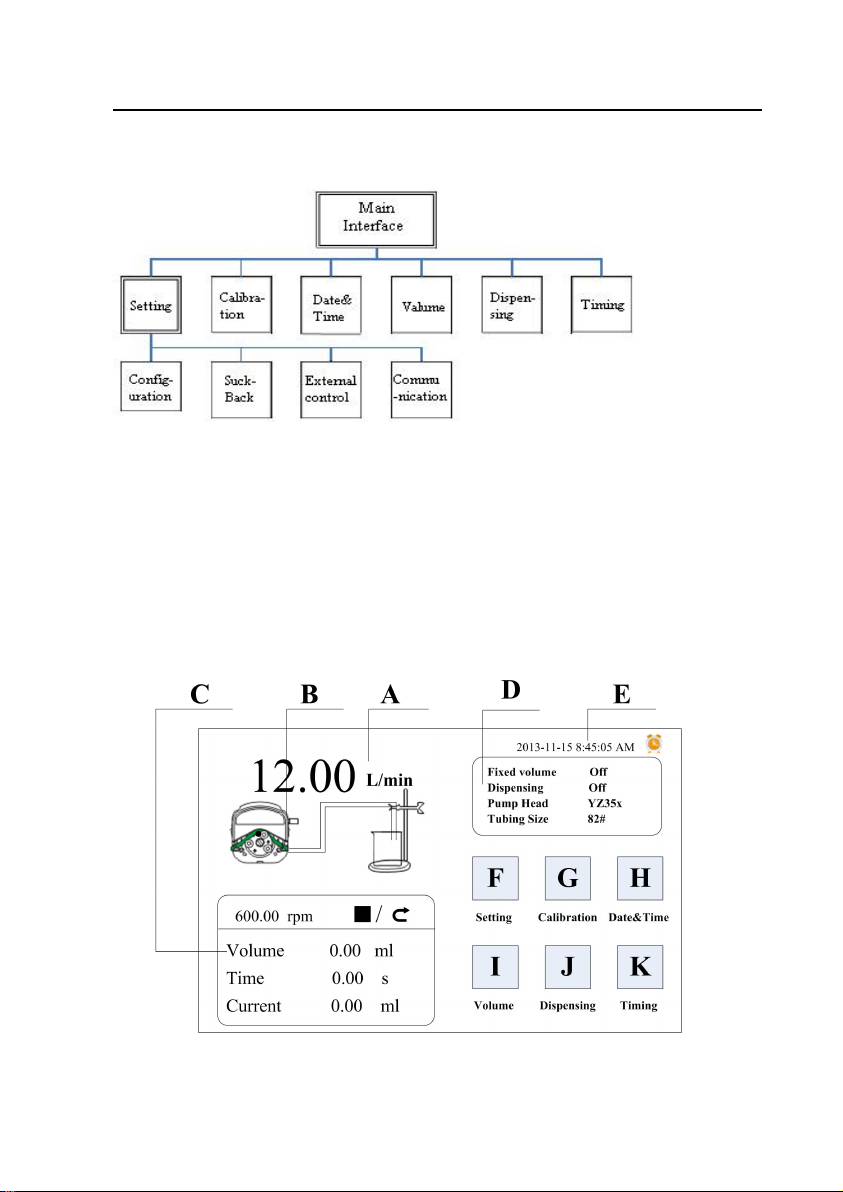

V6-12L Series Operation Interface Structure:
V6-12L Series Operation Interface Instruction
1. Boot Interface:
After power on the system, enter the welcome interface, choose system language,
Chinese/English. If do not choose, it will enter the English main interface after 2.5
seconds automatically.
2. Main Interface:
Main Interface Composition as below:

Shenchen Peristaltic Pump V6-12L Series
- 4 -
Speed/Flow Rate Display: Under the flow rate mode, display the current set up
flow rate, the motor speed display at the C frame. Under the
rotating speed mode, display the current set up speed, flow rate
display at the C frame. Click A to amend the flow rate or speed.
When fixed time and volume function turn on, A is forbidden, not
allowed to amend the flow rate or speed.
Real-time Dynamic Display：Display the current running state.
Real-time Parameter Display ：Display the current running state and set up
parameter. When the fixed volume measurement turn on, display
the fixed volume measurement parameter; when the fixed time and
volume function turn on, display the fixed time and volume
parameter. When these two functions turn off, display the
parameter is all 0.
Set Parameter Display ：Display the fixed volume measurement, fixed time and
volume state information, the model of pump head and tube size.
Date and Time Display：Display the current data and time, you can change it in the
system setting. When it display an alarm clock on the right side, it
means the timer start and stop function is turn on.
System Setting Button：Click this button, set up other parameters.
Flow Calibration Button： Click this button enter the flow rate calibration interface.
Date & Time Button：Click this button enter set up current date and time interface.
Fixed Volume Measurement Button: Click this button, enter the fixed volume
measurement interface.
Fixed Time and Volume Button: Click this button, enter fixed time and volume
interface.
Timer Start and Stop Button: Click this button, enter timer start and stop
interface.

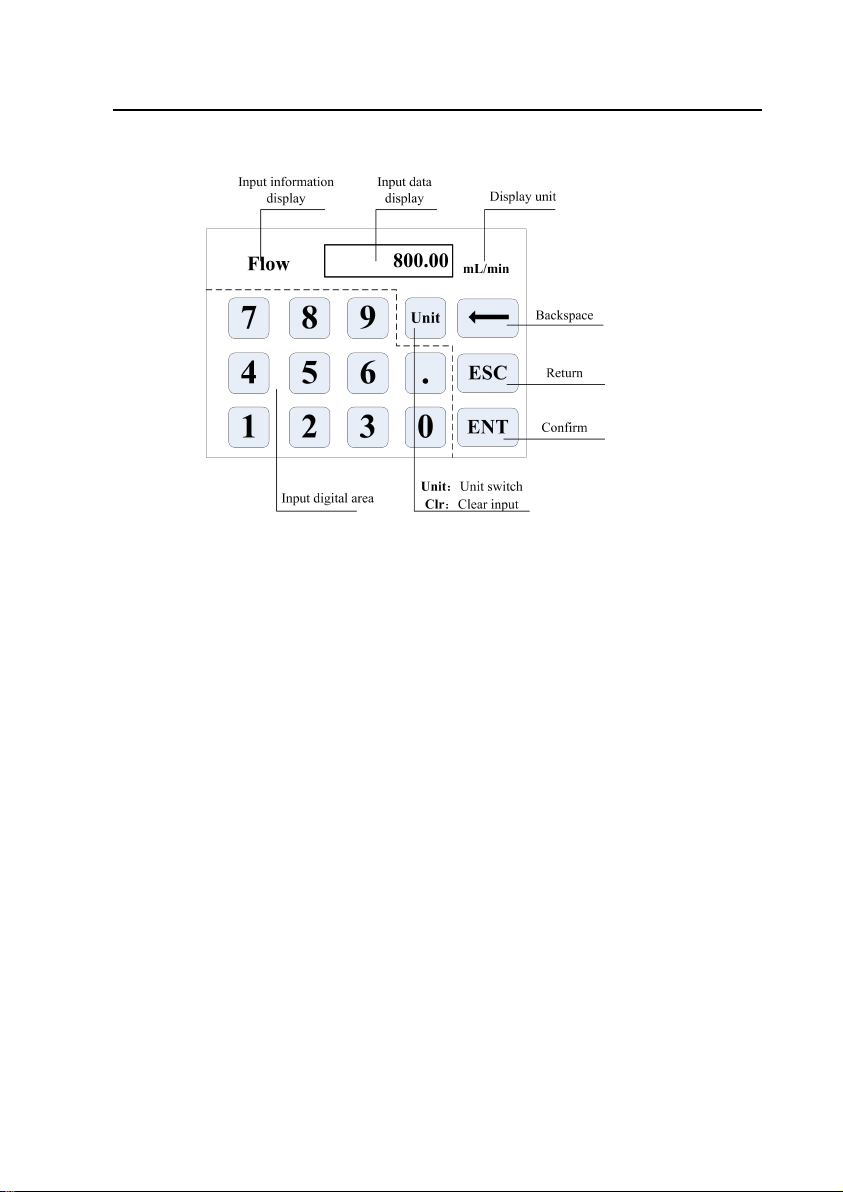

3、Numeric Keypad Input Interface:

Shenchen Peristaltic Pump V6-12L Series
- 5 -
Numeric keypad input interface as below:
Input Information Display ：The information displayed is the current operation
object.
Input Data Display: Display the current input data, range is 0.01-9999.
Unit Display: Display input units when input flow rate or volume.
Input Digital Area: Numeric keypad.
Unit/Clr Button：When input flow rate or volume, this button is unit switch, you
can choose different unit. When it is Clr, you can clear the current
input data.
Backspace Button: Delete an input digital.
ESC Button: Cancel the current input, back to prev interface.
ENT Button: Confirm the current input.
4、The Basic Configuration Interface:
The basic configuration interface:

Shenchen Peristaltic Pump V6-12L Series
- 6 -
Click the pump head and tubing size to choose the pump head and tubing.
Reference flow rate display the max. and min. flow rate with the current pump
head and tubing.
Click the flow rate mode or rotating speed mode button to choose the working
mode. When you choose the flow rate mode, the flow rate is adjustable, the
speed will change with the flow rate. When you choose the rotating speed
mode, the speed is adjustable, the flow rate will change with the rotating
speed.
Click the confirm button back to the main interface.
5. Back Suction Angle Interface:
The back suction angle interface as below:

Shenchen Peristaltic Pump V6-12L Series
- 7 -
Click the Setting button in the main interface, then click Suck-Back button to
enter the back suction angle setting interface. Click angle button, enter
suck-back angle then click ENT. This can set all suck-back angle when motor
stop running, except dispensing is ON.

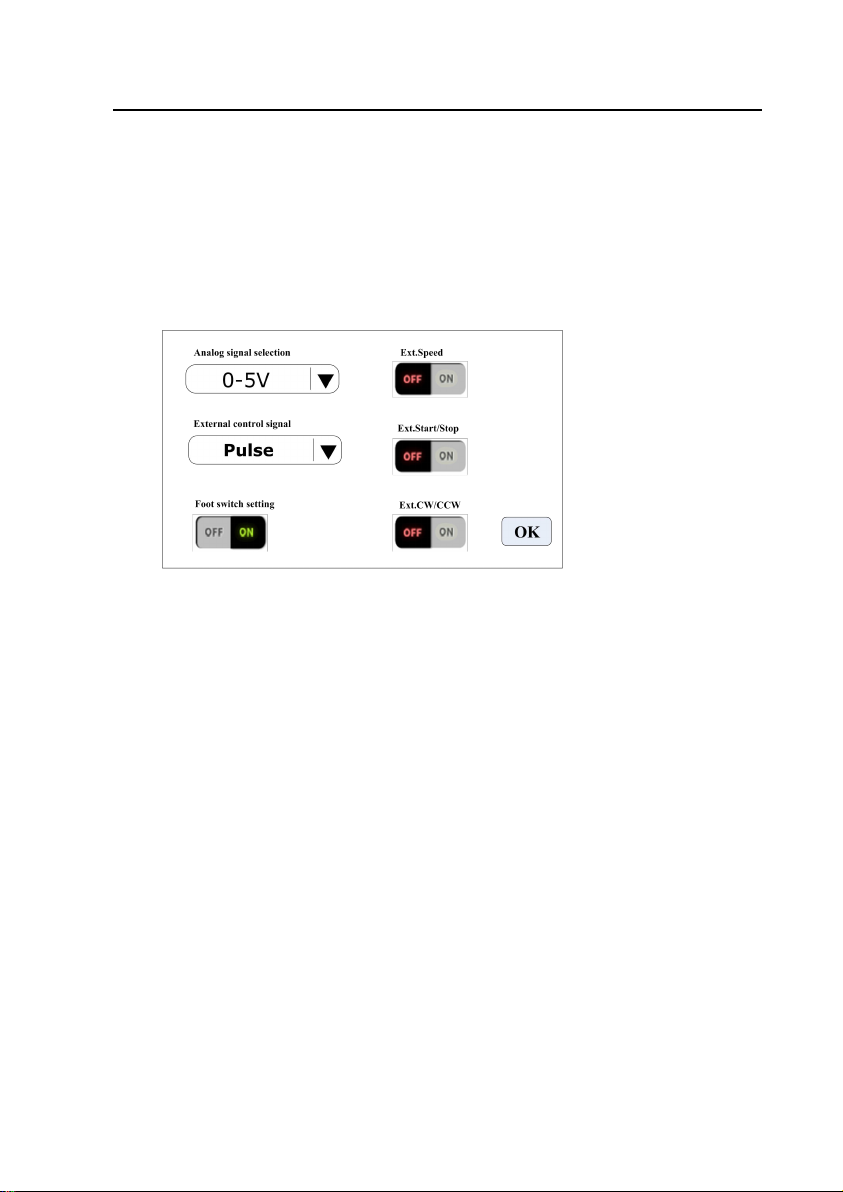

6. External Setting Interface:
External Setting Interface as below:
Click Setting button in the main interface, then click External control to enter
Extrocontrol Settings interface.
A. According to the external port speed analog input signal to select signal ,
0-5V , 0-10V ,4-20mA analog signal three kinds of optional analog signal.
voltage range and the motor speed is linear.
B. External control and commutation of the motor start-stop signal is divided
into two kinds : level mode and pulse mode.
Specific interface, see details in describes external control interface .
C. Various independent external control mode setting switch work only
when the corresponding external control function is turned on.
7. Communication Setting Interface:
Communication Setting Interface as below:

Shenchen Peristaltic Pump V6-12L Series
- 8 -
Click Setting button in the main interface, then click Communication button to
enter Communications Settings interface.
This pump support MODBUS--RTU Mode. Please select baud rates and
communication interface (RS485/RS232). Click Slave No. button to enter peristaltic
pump address No.(range:1-32 ), select communication enable is ON. Then this
pump can be communication with master, receiving master signal.
NOTE: Peristaltic pump only under communication control when in the main
interface, it’s out of communication control when in other interface.
8、Flow Rate Calibration Interface:
Flow Rate Calibration Interface as below:
The top left corner display the function, when fixed volume measurement turn
on, display fixed volume; when fixed time and volume turn on, display fixed

Shenchen Peristaltic Pump V6-12L Series
- 9 -
time and volume. Others display transferring mode.
If fixed time and volume turn on, the target volume and running time is set up
parameter, unable to amend. Other modes, the running time is 60s, you can
click the run time button to amend the running time.
Before the pump working, need to calibrate the flow rate to ensure the
transferring or dispensing accuracy
Process as below:
A、 Confirm the running time, if fixed time and volume function, the running time is
set up time, unable to change.
B、Click Start button to test, countdown display the run time, it will stop
automatically, and display numerical keyboard, input the actual volume, then it
will ask whether continue test ( suggest more than 3 times), choose Yes, the
pump will test again, choose No, back to the calibration interface.
C、After click the Start button, during the pump running, you can click the Stop
button to stop the test.
D、After finish the tests, the actual volume area display the average data, click the
CAL button, the calibration is finished. Now the request flow rate or volume is
close to theoretical data.
E、If request higher accuracy, you can click Add and Dec button to micro adjust the
flow rate, to reach high accuracy transferring and dispensing.
F、Click Cancel button, cancel the test data, the actual volume return to 0.
Online Micro Adjust Volume Process:
Flow Rate Transferring Mode: If the actual flow rate is big or small than the set
up flow rate, you can micro adjust the flow rate online without affect the product
line.
Fixed Time and Volume Mode: If the dispensing volume is big or small than the
set up volume, you can micro adjust the volume online, no need to stop the pump.
Fixed Volume Measurement Mode: Do not support online micro adjust function.

Shenchen Peristaltic Pump V6-12L Series
- 10 -
①.Click the Calibration button from the main interface, enter the flow rate
calibration interface.
②. Now only the Add,Dec and Esc button is usable, other buttons are forbidden.
③. Click Add or Dec button to adjust the flow rate or volume.
9、Date & Time Interface:
Setting Date & Time Interface as below:
Click the System Setting button from the main interface, click Date and Time
button, enter date and time setting interface. The date and time will display on
the top right corner of main interface.
Click Set Date button, come out the Set year numeric keypad, the range of the
year is 1970-2099. After set up the year, then set the month and date.
Click Set Time button, come out the numeric keypad, set the hour, minute and
second.
10、Fixed Volume Measurement Interface:
Fixed Volume Measurement Interface as below:

Shenchen Peristaltic Pump V6-12L Series
- 11 -
After turn on this function, the peristaltic pump will measure the volume
automatically, when the volume reach set up volume, the pump will stop
working automatically. The flow rate can be changed during the pump working.
Click the Fixed Volume button, set ON to turn on this function. Click Set Volume,
to input volume, the unit can be mL or L, range is 0.01mL to 9999L. The
prompting frame display the needed time to finish the volume with set up flow
rate. The maximum time is 9999min, when more than 9999min, the system will
warn.
11、Dispensing Interface:
Dispensing Interface as below:
After turn on this function, the peristaltic pump will transfer fixed volume within
set up time. This function can be used for one time liquid dispensing. Click the

Shenchen Peristaltic Pump V6-12L Series
- 12 -
Start button again, start dispensing again.
Click Dispensing button, set ON to turn on this function. Click Set Volume to
input the volume, unit is mL. Click Suck-back Angle,input the suck-back angle,
range is 0-360 °. Click Run time, input working time. The prompting frame
display the flow rate and motor speed with the set up parameters.
12、Timer Start And Stop Interface：
Timer Start And Stop Interface as below:
This function can set the start and stop time. When the current time meet the set up
time, the pump will start or stop automatically.
When fixed volume measurement or fixed time and volume function turn on, the
timer stop function is forbidden.

Shenchen Peristaltic Pump V6-12L Series
- 13 -
Main Functions Operation Process

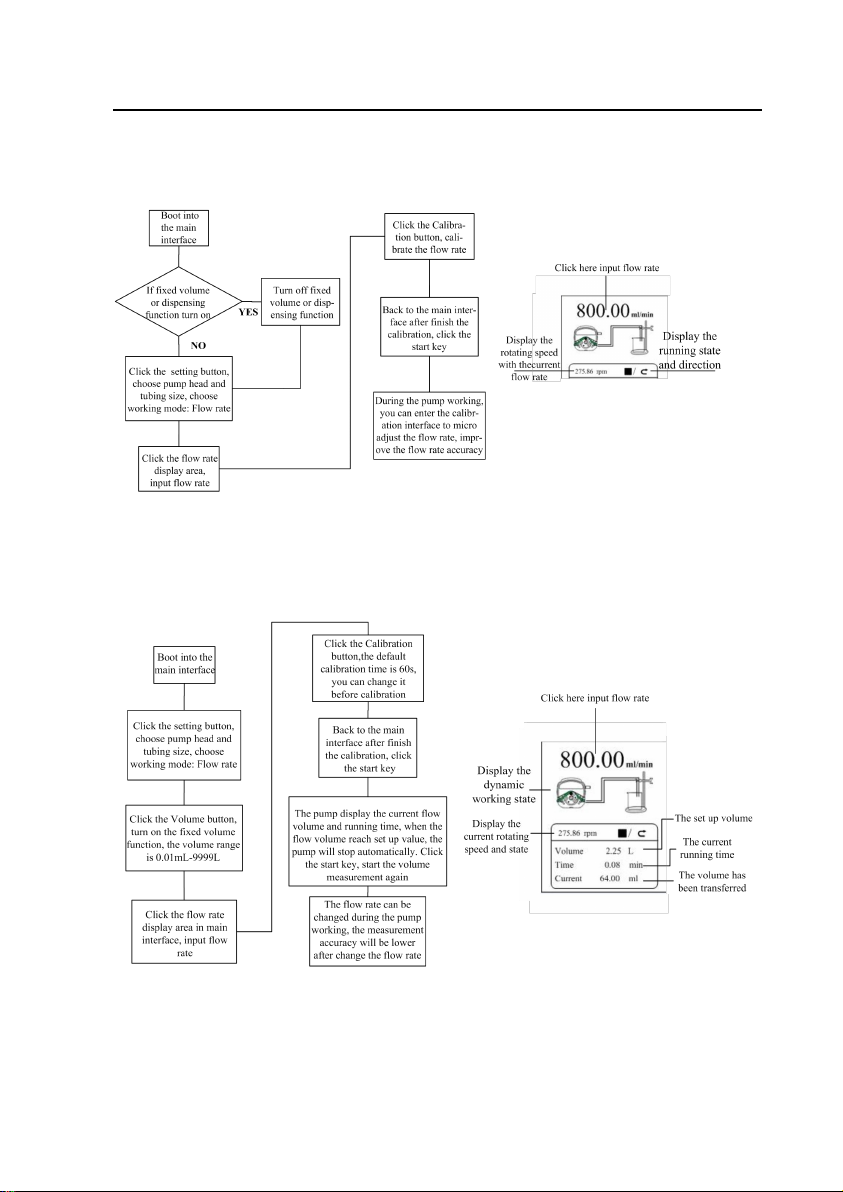

1、Flow Rate Transferring Function
Note: Flow rate calibration process please refer the flow rate calibration
interface instruction.
2、Fixed Volume Measurement Function
Note: Flow rate calibration process please refer the flow rate calibration
interface instruction.

Shenchen Peristaltic Pump V6-12L Series
- 14 -

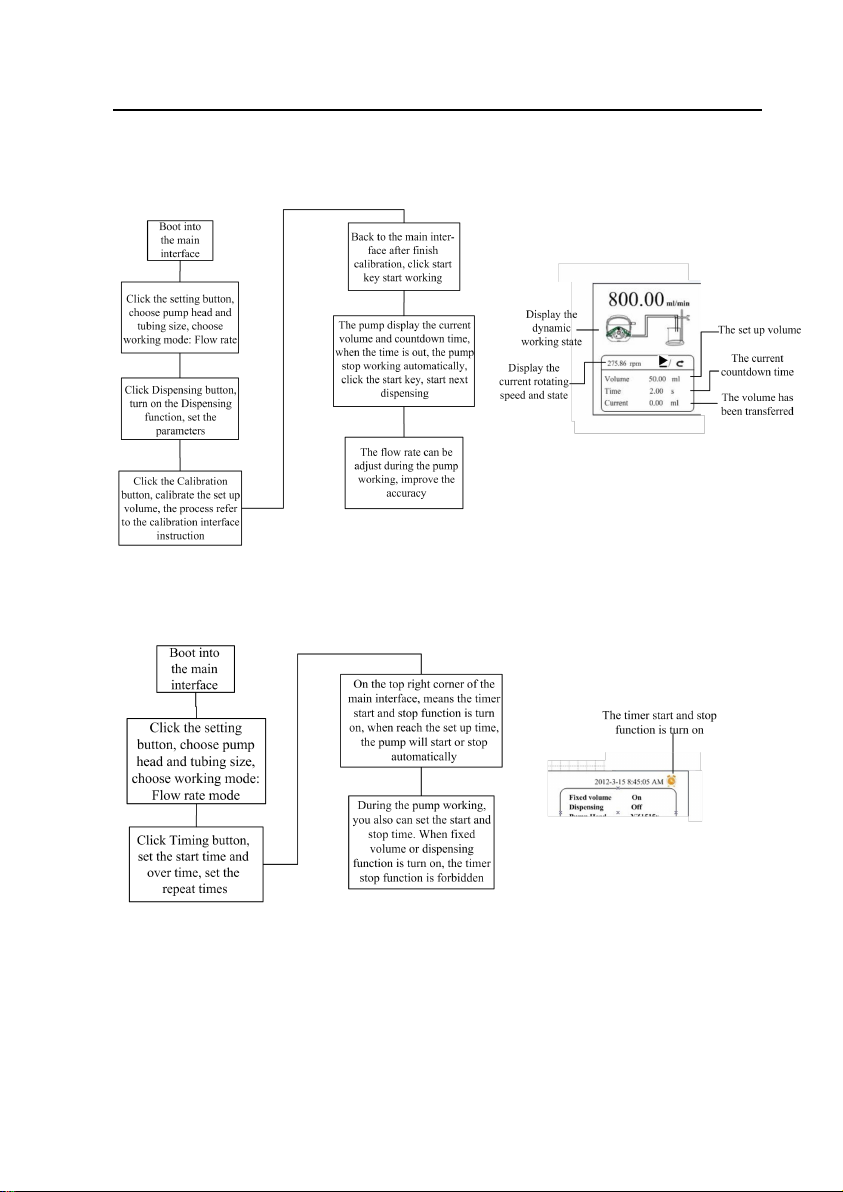

3、Dispensing
Note: Flow rate calibration process please refer the flow rate calibration
interface instruction.
4、Timer Start And Stop Function
Under the flow rate transferring mode, set the pump start at 8:30 a.m. from
Monday to Friday, stop at 5:30 p.m., the process as below:

Shenchen Peristaltic Pump V6-12L Series
- 15 -

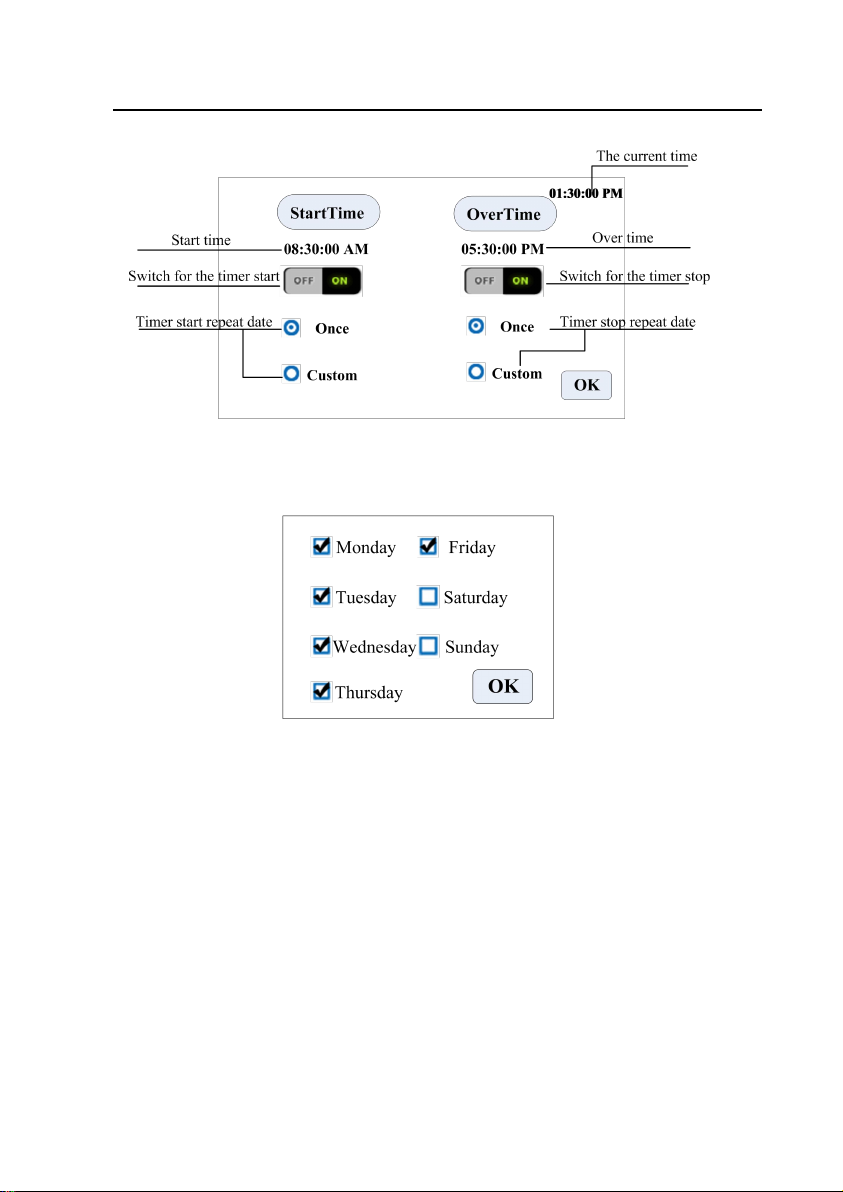

Click Start Time, set the start time is 8:30 a.m., turn the button to ON.
Click Custom, come out the repeat date window, as below:
Timer stop setting process is same with the timer start.

Shenchen Peristaltic Pump V6-12L Series
- 16 -
V6-12L Series Technical Specification
Speed range
0.1-600rpm
Power supply
AC220V±10%，50Hz/60Hz(standard)
AC110V±10%，50Hz/60Hz(optional
Power consumption
<300W
Speed resolution
0.01rpm/min
Temperature
0-40℃
Flow rate
resolution
0.01ml
Relative humidity
<80%
Operation mode
Touch screen and
membrance keypad
Dimensions
(L*W*H)
302*222*275mm
Display
4.3 inch true color
display screen
Weight
13.54Kg
External control
TTL level
Protection rating
IP31
V6-12L Series Function and Features
4.3 inch color touch screen control, dynamic display working status,
the flow volume and motor speed display in the same screen.
Intelligent calibration function, it can calibrate the flow rate and
dispensing volume, ensure the flow accuracy, suitable for high
accuracy transferring liquid.
On-line micro adjusting function, it can adjust the flow rate during
production progress, to avoid the filling errors because of tubing
fatigue and elasticity decreased.
Accurate angle control technology, reach high precision dispensing
and measurement.
Fixed volume measurement function: After turn on this function, the
peristaltic pump will measure the liquid volume automatically, it will
stop automatically after the volume reaches the set value. During

Shenchen Peristaltic Pump V6-12L Series
- 17 -
this process, the volume can be changed. It is suitable for laboratory
liquid dosing and chemical reaction process.
Fixed time and volume function: After turn on this function, the
peristaltic pump will transfer fixed volume within set time. It is
Suitable for liquid dispensing in laboratory and industrial production.
Timer start and stop function: Can set the pump start and stop time
freely, reach automation control.
Load-shedding memory function, store the running parameters in
time, safe and reliable.
Fast fluid-filled function, can wash the tubing and also fill fluid int the
tubing.
High torque and low power loss, it can load several pump heads or
multichannel pump head, meet different application requests.
External control start and stop, convenient for equipment
supporting.
304 stainless steel housing, resist corrosion, no rust.
