Macnaught HVOP3 User manual

Instruction Manual
REV 07/04/23
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
Heavy Duty Oil Pump
HVOP3 & HVOP5

GENERAL SAFETY REGULATIONS
WARNING: The warnings, cautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions or situations that could occur. It
must be understood by the operator that common
sense and caution are factors that cannot be built into
this product, but must be supplied by the operator.
1. Keep the work area clean and dry. Damp or wet work areas can result in
injury.
2. Keep children away from work area. Do not allow children to handle this
product.
3. Use the right tool for the job. Do not attempt to force small equipment to do
the work of larger industrial equipment. There are certain applications for
which this equipment was designed. It will do the job better and more safely
at the capacity for which it was intended. Do not modify this equipment, and
do not use this equipment for a purpose for which it was not intended.
4. Check for damaged parts. Before using this product, carefully check that it
will operate properly and perform its intended function. Check for damaged
parts and any other conditions that may affect the operation of this product.
Replace damaged or worn parts immediately.
5. Do not overreach. Keep proper footing and balance at all times to prevent
tripping, falling, back injury, etc.
6. DO NOT use the equipment when tired or under the influence of drugs,
alcohol, or medication. A moment of inattention while operating this
equipment may result in serious personal injury.
WARNING SYMBOL: This manual contains important warnings and
information.Read and keep for reference.
CAUTION SYMBOL: This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
CAUTION: This symbol alerts you to the possibility of damage to or
destruction of equipment if you do not follow the instructions.
SUMMARIZE
Mainly propose
These pumps mainly provide power during oil transportation. Any other use
maybe cause un-safety problems and parts damage, fire explosion, and oil
spark even serious fluid injection.

TECHNICAL DETAILS
Pneumatic Oil Pumps Technical Data:
SAFETY INSTRUCTIONS
WARNING: No complying with below requests will result in severely harm to your
body even death.
Oil pump misuse hazard: Oil pump misuse can cause the to rupture, malfunction
• Read all instruction manuals, tags, and labels before operating the equipment.
• Use the equipment only for its intended purpose. If you are not sure, call your distributor.
• Do not alter or modify this equipment. Use only genuine parts and accessories.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not exceed the maximum working pressure of the lowest rated component in your system.
• Use fluids and solvents which are compatible with the equipment wetted parts. Refer to the
Technical Data section of all equipment manuals. Read the fluid and solvent manufacturer's
warnings.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon
solvents, or fluids containing such solvents in pressurized aluminum equipment. Such use
could result in a chemical reaction, with the possibility of explosion.
• Handle hoses carefully. Do not pull on hoses to move equipment.
• Route hoses away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not lift pressurized equipment.
• Wear adiabatic glove when operate pump.
• Do not move or lift pump during use.
• Comply with all applicable local, state, and national fire, electrical, and safety regulations.
SKIN INJECTION HAZARD
Fluid from the dispensing valve, leaks, or ruptured components can inject fluid into your body
and cause extremely serious injury, including the need for amputation. Fluid splashed in the
eyes or on the skin can also cause serious injury. If a fluid injection injury occurs, GET
IMMEDIATE SURGICALTREATMENT. Do not treat as a simple cut.
• Do not point the dispensing valve at anyone or at any part of the body.
• Do not put your hand or fingers over the end of the dispensing valve.
• Do not stop or deflect leaks with your hand, body, glove or rag.
• Use only extensions and no-drip tips which are designed for use with your dispensing valve.
• Do not use a low pressure flexible nozzle with this equipment.
E1
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
Item No.
Drum Application
Pressure Ratio
Air Inlet Pressure
Max. Fluid Pressure
Air Motor Effective Diameter
Air Consumption (Per Minute)
Max.free Flow Rate (Per Minute)
Suction Tube Diameter
Oil Outlet Connection
Accessory
Air Inlet
Suction Tube Diameter
Suction Tube Length
Suction Tube Material
HVOP5
Stub pump
5:1
43-175psi
870psi
3"
8.6CFM @115psi
10.6gallon
2"
3/4"F
3/4"M - 1/2"F reducer
1/4"NPT
2-1/8"
10-5/8"
Carbon Steel
HVOP3
Stub pump
3:1
43-175psi
520psi
3"
7.6CFM @115psi
11.9gallon
2"
3/4"F
3/4"M - 1/2"F reducer
1/4"NPT
2-1/8"
10-5/8"
Carbon Steel

• Follow the Pressure Relief Procedure if the dispensing valve clogs before you clean, check or
service the equipment.
• Tighten all fluid connections before operating the equipment.
• Check the hoses, tubes, and couplings daily. Replace worn or damaged parts immediately.
• Do not repair high pressure couplings; you must replace the entire hose.
MOVING PARTS HAZARD
Moving parts can pinch or amputate your fingers.
• Do not operate the pump with the air motor plates removed.
• Keep clear of all moving parts when starting or operating the pump.
• Before servicing the equipment, follow the Pressure Relief Procedure to prevent the
equipment from starting unexpectedly.
FIRE AND EXPLOSION HAZARD
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition
and result in a fire or explosion and serious injury.
• Ground the equipment and the object being lubricated.
• If there is any static sparking or you feel an electric shock while using this equipment, stop
dispensing immediately. Do not use the equipment until you identify and correct the problem.
• Provide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid
dispensed
• Keep the dispensing area free of debris, including solvent, rags, and gasoline.
• Do not smoke in the dispensing area.
GROUNDING AND INSTALLATION
Grounding
WARNING: Before use the pump, check grounding of the whole system to prevent
fire and explosion
To reduce the risk of static sparking, each device should ground effectively.
Pump:
Use a ground wire and clamp as the Fig.2. Get rid of the grounding
screw, put the end of the grounding wire into the grounding hole.
Lock the bolt to the pump safety.
Air and Fluid hoses:
Grounding effectively.
Air compressor:
Follow manufacturer's recommendations.
Oil control valve:
Connect the pump with proper grounding wire, always hold a
metal part of the valve firmly to the side of a grounded metal
pail, then trigger the valve.
Barrel:
Use local applicable trolley. If it is metal barrel, put on the
device which is electric, can not put on insulative device
surface, such as paper or carton board which without
grounding.
Other parts:
Operated with local regulation for grounding.
Fluid supply container:
Follow the local code.
Fig.2: Grounding guide
E2
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED

INSTALLATION
Standard installation
1: cut-off valve
2: Filter
3: Regulator
4: Lubricator
5: Control valve
6: Locking adapter
7: Hose reel
The above installation is not the integrated oil supply system, just contact the manufacture or
distributor if you need. Installation for air circle.
Note: Do not hang any device at the air inlet, as there maybe dropping and damage.
Process
• Put the pump into lock adapter (Fig .3 Parts 6), Install to the trolley.
• Install cut-off valve (Fig3. Part1).
• Install filter (Fig 3. Part 2).
• Install regulator which control the speed and adjust the air pressure (Fig3. Part3).
• Install lubricator which with self-lubricate (Fig3. Part 4).
• Install control valve which control flux，When the speed is too fast, pump will be self-close
automatic to avoid pump be damaged (Fig.3 Parts5).
• Connect oil output.
OPERATION
Pressure Relief
Injury for skin: Before pressure relief by manual，Pump is under pressure。To reduce the
risk of serious injury from pressurized fluid, accidental spray from the valve, or splashing fluid,
follow this procedure whenever you
• Are instructed to relieve pressure
• Stop dispensing
• Check, clean, or service any system equipment
• Install or clean dispensing devices
Pressure Relief procedure
• Turn off the cut-off valve, shut off air
• Put the pump to the waste equipments, switch oil valve ,relief pressure
• Turn the air supply and oil fluid.
• Turn off the oil valve.
When occurs：
• Problems on control valve, flexible hose, rigid tube or manual tip, auto tip.
• Pressure not relieve thoroughly according to above relief procedure.
• Pressure relieved very slowly until relieved thoroughly. Please clear obstruction of oil system.
Note: After initialize work, open the oil valve, pump start to work. Close the oil valve, pump
stop working.
Fig.3: Oil supply system installation
E3
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED

WARNING: Each device with different max working pressure. To reduce the risk
of exceed pressure. Make sure the max work pressure for each device. Rated
pressure in the system can not exceed the max pressure of any device. Or there
will be burst, explosion, malfunction, serious damage.
Remind: Pump can not operate with empty load. Or the speed will be very fast which will
self-damage.
If acceleration is too fast or running very slow, Should stop operation and check that if there is
enough oil in the barrel. If there is insufficient oil, change the trolley and initialize the whole
system.
Startup
• If there is several pump in the whole system, please use control valve to dispatch the air.
• Open the main control valve.
• Open the oil valve which with effective grounding with the trolley. Keep the connecting of the
metal forboth oil valve and trolley. Open the cut-off valve, pump start to work. When the pump
is stable. Close theoil valve.
• If there are several pumps in the whole system, startup for each pump step by step with
above instruction.
• To get perfect result, set up the min air pressure for each device.
• Pump can not operate under empty load.
• Relief pressure before close the pump.
TROUBLE SHOOTING
WARNING: To reduce the risk of serious injury whenever you are instructed to
relieve pressure. Do not remove silencer, or it may cause finger be injury.
Before check and maintain, pay more attention of the relieve of pressure.
Ordinary problems, reason and solution
E4
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
Problem
Pump fails to operate
Continuous air exhaust
Erratic pump operation
Pump operates, but output
low on both strokes
Leakage from silencer
Solution
Cause
Inadequate air supply pressure or
restricted air lines
Closed or clogged dispensing valve
Clogged fluid lines, hoses, valves, etc
Damaged air motor
Exhausted fluid supply
Worn or damaged air motor gas-kit,
packing, seal, etc.
Exhausted fluid supply
Held open or worn intake valve or
piston packing
Hose damaged
Piston damaged
Seal O-ring damaged
Hose, valve or other device block
O-ring damaged
Increase air supply; clear
Open; clear
Clear
Service air motor
Refill and re-prime or flush
Service air motor
Refill and re-prime or flush
Clear; service
Change hose
Change piston
Change O-ring
Relieve pressure
Change O-ring

E5
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
LIMITED WARRANTY
1. The manufacturer warrantees this product against defects in material and craftsmanship, for
a period of 36 months from date of purchase, but not including wearing parts.
2. Manufacturer’s liability is limited to replacement or repair of defective material within the
warranty period, when returned freight prepaid to the distributor or their designated service
depot.
3. The warranty does not cover damage caused by accident, misuse or faulty installation.
4. The product must be installed and maintained in compliance with the instructions.

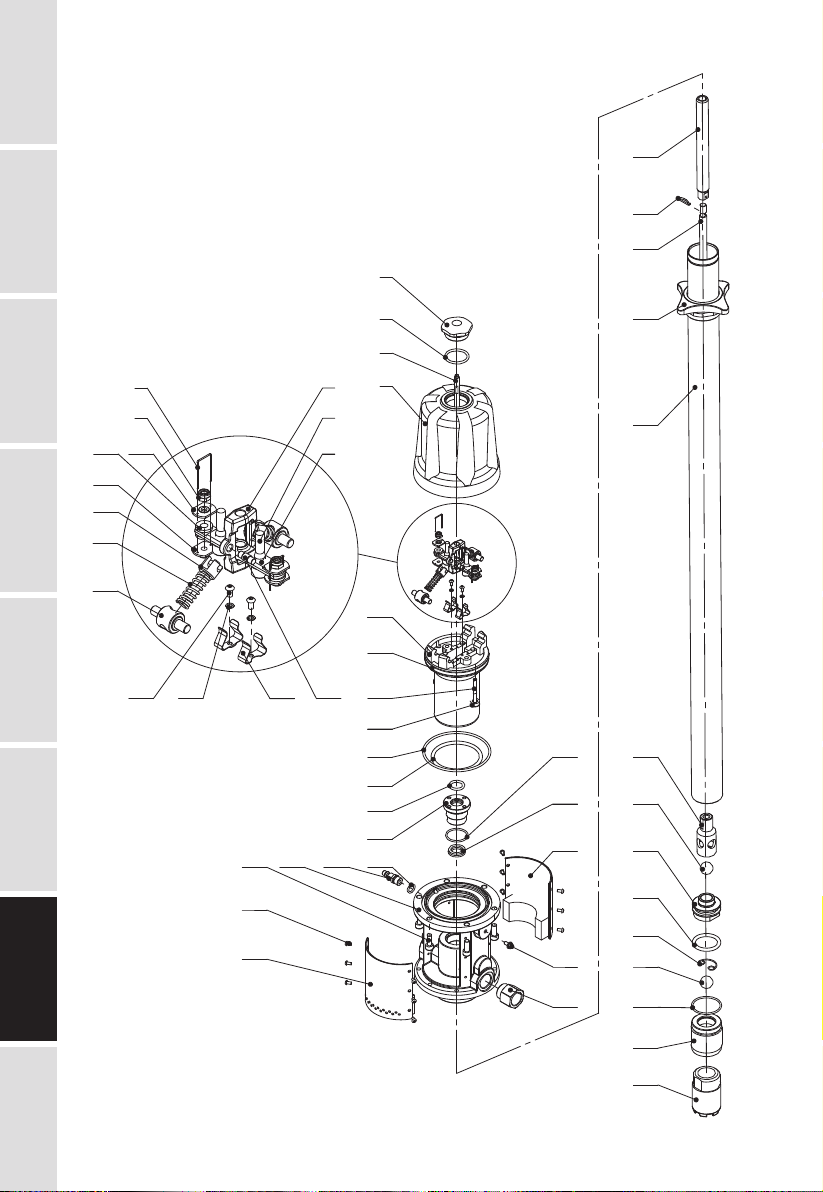

EXPLODED AND PARTS LIST FOR HVOP3 SERIES
E6
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
37
1
2
3
4
20
22
23
21
24
25
26
28293031
32
33
34
35
36
27
38
39
40
41
42
43
44
45
46
47
48
45
49
50
51
I
7
8
9
1011
12
13
14
15
16 17
6
1918
5

E7
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
QTY
1
1
1
1
1
2
1
2
2
2
2
2
2
2
2
2
2
2
2
1
1
2
2
1
1
1
Description
Cover Plate
O-ring
Rod
Pump Body
Bracket
Sealing
Rod
Steel Wire
Lock nut
Nut
Shock Pad
Nut
Shaft
Compression Spring
Rod
Screw
Washer
Gasket
Pin
Piston
O-ring
Rod
Sealing
O-ring
O-ring
O-ring
Part No.
27
28*
29
30
31
32
33
34
35
36
37*
38*
39
40
41
42
43
44
45
46
47*
48*
49*
50
51*
Description
Fixed Block
O-ring
Quick Connector
Pump Body
Screw
Screw
Silencer
Oil inlet
Hex Flange Bolt
Silencer Component
Lip Seal
O-ring
Piston rod
Pin
Shaft
Locking Sleeve,
Tube fitting
Tube fitting
Rolling Bearing
Piston
O-ring
Clevis
O-ring
Fixed seat
Fliter assembly
QTY
1
1
1
1
6
12
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
Part No.
1
2*
3
4
5
6*
7
8*
9
10
11*
12
13
14*
15
16
17
18*
19
20
21*
22
23*
24*
25*
26*
Note: The Part No. with “*” are the wearing parts.

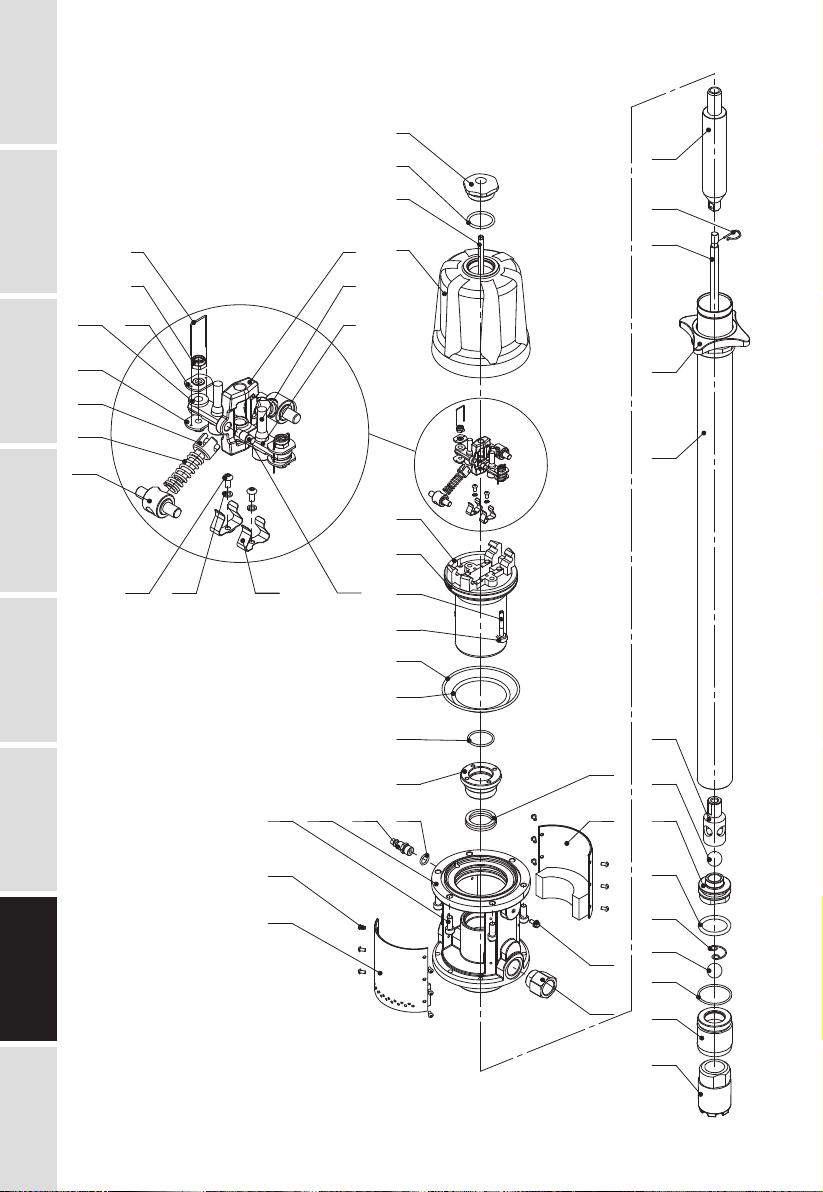

EXPLODED AND PARTS LIST FOR HVOP5 SERIES
E8
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
1
2
3
4
20
21
22
23
24
25
26
27
28293031
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
44
48
49
50
I
18
5
6
7
8
9
1011
12
13
14
15
16 17 19

E9
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
QTY
1
1
1
1
1
2
1
2
2
2
2
2
2
2
2
2
2
2
2
1
1
2
2
1
1
Description
Cover Plate
O-ring
Rod
Pump Body
Bracket
Sealing
Rod
Steel Wire
Lock nut
Nut
Shock Pad
Nut
Shaft
Compression Spring
Rod
Screw
Washer
Gasket
Pin
Piston
O-ring
Rod
Sealing
O-ring
O-ring
Part No.
26*
27
28*
29
30
31
32
33
34
35
36
37*
38
39
40
41
42
43
44
45
46*
47*
48*
49
50*
Description
O-ring
Fixed Block
O-ring
Quick Connector
Pump Body
Screw
Screw
Silencer
Oil inlet
Hex Flange Bolt
Silencer Component
Lip Seal
Piston rod
Pin
Shaft
Locking Sleeve,
Tube fitting
Tube fitting
Rolling Bearing
Piston
O-ring
Clevis
O-ring
Fixed seat
Fliter assembly
QTY
1
1
1
1
1
6
12
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
Part No.
1
2*
3
4
5
6*
7
8
9
10
11*
12
13
14*
15
16
17
18*
19
20
21*
22
23*
24*
25*
Note: The Part No. with “*” are the wearing parts.

E10
TECHNICAL
DETAILS
EXPLODED AND
PARTS LIST INSTALLATION
TROUBLE
SHOOTING
SAFETY
INSTRUCTIONS
OPERATION
LIMITED
WARRANTY
WALL
INSTALLED
Size: 145x210mm REV 07/04/23 6.02.00085157克双铜
WALL INSTALLED
Part List
Proceed As Follows
1. Secure the bracket to the wall using the dowels at about 1200mm height appropriate for the
tank’s dimensions. Make sure that the wall is soild and thick enough for the dowels. Do not
interfere with hydraulic tubes or electric lines.
2. Secure the pump to the bracket 4.
3. Connect the flexible suction tubes 6 to the pump using the clamp provided.
4. Cnnect the rigid suction 8 to the end of the flexible suction tube 6 using the elastic clamp
provided.
5. Put the bung adapter 7 into the drum hole.
6. Put the rigid suction tube 8 into the pump and secure it in place.
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Description
Oil Pump
Bolt
Nut
Wall bracket
Pump adapter
Flexible suction hose
Bung adapter
Rigid suction tube
Spring circlip
Ball
Valve seat
Filter
Washer
Washer
Suction hose adapter
Q'ty
1
6
6
1
1
1
1
1
1
1
1
1
6
6
1
11
4
5
7
6
1
3
8
10
9
14
13
15
2
12
Macnaught Americas
[phone] | [email protected]
* Read Manual Before Use!
