Sherwin-Williams 824101 User manual

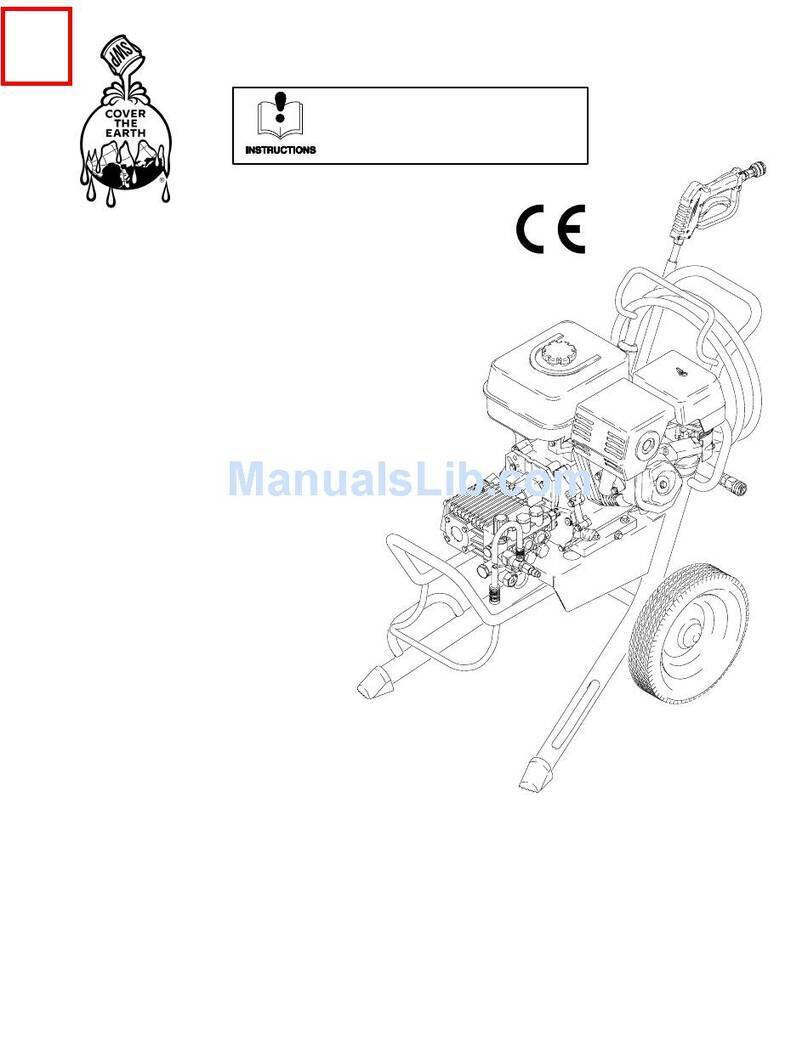

OWNER’S
MANUAL
824111
Rev C
Pressure Washer
Model 824101, Series A
2030 Pressure Washer on Upright cart with
hose and gun
2400 psi (165 bar, 16.5 MPa ) Maximum Working Pressure
Model 824102, Series A
2835 Pressure Washer on Upright cart with
hose and gun
3200 psi (221 bar, 22.1 MPa ) Maximum Working Pressure
Model 824103, Series A
3040 Pressure Washer on Upright cart with
hose and gun
3400 psi (234 bar, 23.4 MPa ) Maximum Working Pressure
Model 824104 Series A
3340 Pressure Washer on Upright cart with
hose and gun
3700 psi (255 bar, 25.5 MPa ) Maximum Working Pressure
U.S. PATENT NO.
PATENTED 1983, CANADA
AND OTHER PATENTS PENDING
Related Manuals
Spray Gun 308511. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The SHERWIN–WILLIAMS COMPANY, CLEVELAND, OHIO 44115
ECOPYRIGHT 1998, GRACO INC.
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
MODEL 824102
8777B
8777B

2824111
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
824101 Pump Service 11. . . . . . . . . . . . . . . . . . . . . . . . .
824102, 824103, 824104 Pump Service 13. . . . . . . . .
Accessories 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts List & Drawing
2030 Pressure Washer 16. . . . . . . . . . . . . . . . . . . . . . .
2835, 3040, 3340 Pressure Washer 18. . . . . . . . . . . .
Sherwin-Williams Warranty 20. . . . . . . . . . . . . . . . . . . . .
Graco Phone Number 20. . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INJECTION HAZARD
Spray from the gun, leaks or ruptured components can inject fluid into your body and cause serious
injury. Fluid splashed in the eyes or on the skin can also cause serious injury.
DFluid injected into the skin may look like just a cut, but it is a serious injury. Get emergency medi-
cal attention.
DDo not point gun at anyone or at any part of body.
DDo not stop or deflect leaks with hand, body, glove or rag.
DDo not put hand or fingers over spray tip.
DTighten fluid connections before starting equipment.
DEngage the gun trigger safety whenever you stop spraying.
DFollow Pressure Relief Procedure on page 5 if spray tip clogs and before cleaning, checking or
servicing equipment.
DRepair or replace worn or damaged parts immediately.
DCheck hoses, tubes, and coupling daily. Do not repair high pressure couplings: replace entire hose.
Fluid hoses must have spring guards on both ends to prevent kinks and rupture.

3824111
WARNING
HAZARDOUS FLUIDS
Improper handling of hazardous fluids can cause serious injury, even death, due to splashing in eyes,
ingestion or bodily contamination.
DKnow specific hazards of fluid being used.
DStore hazardous fluids in approved containers. Dispose of hazardous fluids per local, state and
national guidelines.
DWear protective eyewear, gloves, clothing, and respirator as recommended by the fluid manufac-
turer.
FUEL HAZARD
The fuel used in this unit is combustible and when spilled on a hot surface can ignite and cause a fire.
DDo not fill the fuel tank while the engine is running or hot.
EXHAUST HAZARD
The exhaust contains poisonous carbon monoxide which is colorless and odorless.
DDo not operate this equipment in a closed building.
EQUIPMENT MISUSE HAZARD
Misuse of the pressure washer or accessories may cause them to rupture and result in fluid injection,
splashing in the eyes or on the skin, or other serious injury.
DDo not alter or modify any part or factory-set adjustment of this equipment.
DDo not exceed the maximum working pressure of any component or accessory in the system.
DDo not use any chemicals that are incompatible with the wetted parts as stated in the Technical
Data.
DDo not alter throttle setting.

4824111
Installation
8777B
Typical Installation –Pressure Washer
Fig. 1
HIGH PRESSURE
HOSE CONNECTION
HOSE
RACK
INLET WATER
CONNECTION
3/4”GARDEN
HOSE
SPRAY
GUN
SPRAY
HOSE
Check for Shipping Damage
Check the unit for any damage that may have occurred in
shipping. Notify the carrier immediately if there is any
damage.
Set Up
Connect the high pressure hose between the pump outlet
and the gun inlet. Both of these connections are made
with quick couplers.
CAUTION
Up to 100 ft (30 m) of high pressure hose may
be used. Longer hoses may affect sprayer perform-
ance, and chemical injector performance, if used.
Install the appropriate spray tip on the wand. See Install-
ing and Changing Spray Tips. If you are using a
sandblaster kit, see its separate manual for installation
instructions.
Connect to Water Supply
CAUTION
Before attaching to the water supply, check your
local plumbing code regarding cross–connection to
the water supply. If required, a backflow preventer
may be installed.
If inlet water pressure is over 60 psi (4.1 bar), a
regulating water valve must be installed at the gar-
den hose connection.
Do not exceed 160_F (70_C) inlet water tempera-
ture.
Connect a hose with at least a 3/4 inch (19 mm) ID from
the water supply to the unit’s 3/4 inch garden hose inlet.
The supply hose should not be more than 50 ft (15 m)
long
NOTE: The water source at the unit must have a mini-
mum flow rate equal to that of the unit (see Tech-
nical Data, inside back cover).

5824111
Operation
Pressure Relief Procedure
WARNING
INJECTION HAZARD
The system pressure must be manually
relieved to prevent the system from
starting or spraying accidentally. Fluid
under high pressure can be injected through the
skin and cause serious injury. To reduce the risk of
an injury from injection, splashing fluid, or moving
parts, follow the Pressure Relief Procedure
whenever you:
Dare instructed to relieve the pressure,
Dstop spraying for more than 10 minutes,
Dcheck or service any of the system equipment,
Dor install or clean the spray nozzle.
Pressure Relief Procedure
1. Engage the trigger safety latch.
2. Turn the sprayer off.
3. Remove the ignition cable from the spark plug.
4. Shut off the water supply.
5. Disengage the trigger safety latch and trigger the
gun to relieve pressure, and then engage the
trigger safety latch again.
6. If you suspect that the spray tip or hose is
completely clogged, or that pressure has not been
fully relieved after following the steps above:
Disengage the trigger safety latch and trigger the
gun to relieve pressure. Wrap a rag around the
hose end coupling and VERY SLOWLY loosen the
coupling to relieve pressure gradually, then loosen
completely. Now clear the tip or hose.
Startup
Always use this start–up procedure to ensure that the
unit is started safely and properly.
1. Check oil levels:
NOTE: All units are equipped with a low-oil sensor that
shuts the engine off if the oil level falls below a
certain level. If the unit stops unexpectedly,
check both the oil and the fuel levels. Check the
oil level each time the unit is refueled.
2. Check fuel level.
WARNING
FIRE HAZARD
Do not refuel a hot engine. Refueling a
hot engine could cause a fire. Use only
fresh, clean regular or unleaded gaso-
line. Close the fuel shutoff valve during refueling.
CAUTION
Never run the unit dry. Costly damage to the pump
will result. Always be sure the water supply is
completely turned on before operating.
3. Turn on the water supply.

6824111
Operation
4. Trigger the gun until water sprays from the tip
indicating that the air is purged from the system.
5. Open the fuel shutoff valve. Be sure the spark plug
ignition cable is pushed firmly onto the spark plug.
Put the switch in the “on”position and put the
throttle in the “run”position.
CAUTION
Do not allow the pressure washer to idle for more
than 10 minutes. Doing so may cause the recir-
culating water to overheat and seriously damage
the pump. Turn off the pressure washer if it will not
be spraying or cleaning at least every 10 minutes.
If heated inlet water is used, reduce this time
further. Do not operate the pressure washer with
the inlet water screen removed. This screen helps
keep abrasive sediment out of the pump, which
could clog the pump or damage the cylinders. Keep
this screen clean. Do not pump caustic materials;
such materials may corrode the pump components.
CAUTION
Do not allow the starter rope to snap back against
the engine. Return it gently to prevent damage to
the recoil.
6. Start the engine.
NOTE: For easier starting, have one person start the
pressure washer while another person triggers
the spray gun.
If the engine is cold, completely close the engine
choke. Grasp the starter rope, brace one foot on
the pressure washer chassis and pull rope rapidly
and firmly. Continue holding the rope as it returns.
Pull and return the rope until the engine starts. In
cool weather, the choke may have to be kept
closed for 10 to 30 seconds before opening it to
keep the engine running. Otherwise, open the
choke as soon as the engine starts.
If the engine is warm, leave the choke open, or
just partly close it. Start the engine as described in
the preceding paragraph. When it starts, be sure
to open the choke completely.
7. Always engage the gun’s trigger safety latch
whenever you stop spraying, even for a moment,
to reduce the risk of fluid injection or splashing in
the eyes or on the skin if the gun is bumped or
triggered accidentally.
8. Always observe the following CAUTIONS to avoid
costly damage to the pressure washer.
9. See the sandblaster kit manual for detailed clean-
ing information if this accessory is used.

7824111
Operation
Trigger Safety Latch
WARNING
To reduce the risk of serious bodily injury, including
fluid injection, splashing in the eyes or on the skin,
always engage the trigger safety latch whenever
spraying stops, even for a moment.In the engaged
position, the trigger safety latch prevents the gun
from being triggered accidentally by hand or if it is
dropped or bumped. Be sure the latch is pushed
fully down when engaging it or it cannot prevent the
gun from being triggered. See Figure 2.
Figure 2
ENGAGED DISENGAGED
04612
TRIGGER SAFETY LATCH
Chemical Injector Operation
WARNING
To reduce the risk of serious bodily injury, including
fluid injection or splashing in the eyes or onto the
skin, use extreme caution when changing spray
tips. always follow the procedure below.
1. Follow the Pressure Relief Procedure.
2. Insert the chemical filter (attached with clear tubing
to the chemical injector) into the container of
chemical.
3. Install the black large orifice chemical tip (see
Installing and Changing Tips).
This causes a drop in pressure that actuates the
chemical injector. Changing back to a small diameter
spray tip deactivates the chemical injector and pro-
duces high pressure for rinsing. The chemical filter can
be left in the chemical container during high pressure
use. The flow rate of the chemical may be regulated+
by turning the chemical adjustment knob on the injec-
tor. Maximum chemical flow is a full two turns counter-
clockwise from the closed (clockwise) position.
Installing and Changing Spray Tips
WARNING
To reduce the risk of serious bodily injury, including
fluid injection or splashing in the eyes or onto the
skin, use extreme caution when changing spray
tips. always follow the procedure below.
1. Follow the Pressure Relief Procedure.
2. Point the gun and wand away from yourself and
anyone else.
3. Spray tips have a 4–or 5–digit number on them.
The first two digits are the spray angle. Select the
spray tip appropriate for your application.
Spray Tip Number Spray Pattern Fan Angle
00XXX 0_, blaster (red)
15XXX 15_(yellow)
25XXX 25_(green)
40XXX 40_(white)
NOTE: The chemical injector tip is brass, has a large
opening and a black plastic cap.
4. Without holding your hand over the spray tip (A),
pull back the quick coupler ring (B). Remove the
current tip and/or install a different one, and then
push back the ring. See Figure 3.
5. Pull on the tip to be sure the tip is secure before
starting to spray again.
6. Tip holding holes are provided on the chassis.
CAUTION
To avoid blowing the o-ring out of the quick coupler,
due to the high pressure in the system, never
operate the pressure washer without a tip securely
mounted in the quick coupler.
04929
Figure 3
A
B

8824111
Operation
Shutdown, Flushing and Storage
NOTE: An anti–freeze flush kit 802327 is available to
make flushing easier.
CAUTION
If water does freeze in the pressure washer, thaw it
in a warm room before trying to start it. Do not pour
hot water on or into the pump; it may crack the
ceramic plungers!
1. If the pressure washer will be exposed to freezing
temperatures, drain all water out of the pump. If it
must be stored in freezing temperatures, flush the
unit with a 50% anti–freeze solution. Relieve pres-
sure. Flush the pressure washer before using it
again to remove the anti–freeze.
2. Before long-term (overnight) storage or transport-
ing of unit, disconnect the water supply, and turn
off the fuel supply valve.
3. After each use, wipe all surfaces of the pressure
washer with a clean, damp cloth.
4. Perform the appropriate maintenance. See mainte-
nance chart.
Maintenance
Observing regular maintenance intervals helps ensure
that you get maximum performance and life from the
pressure washer.
There is a break-in period for the engine and pump.
After changing the oil in these components following
their respective break-in periods, the interval between
required changes is longer.
If the unit is operating in dusty conditions, these main-
tenance checks should be made more often.
WARNING
To reduce the risk of serious bodily injury, including
fluid injection, splashing in the eyes or on the skin
or injury from moving parts, always follow the
Pressure Relief Procedure on page 5 before
proceeding.
Interval What to do
Daily Clean water inlet screen and filter.
Check engine and pump oil levels.
Fill as necessary. Check gasoline
level. Fill as necessary.
After first 5
hours of opera-
tion
Change engine break–in oil. Drain
oil when warm. Use SAE 30 or
10W–30 detergent oil.
After first 25
hours of opera-
tion
Re-torque exhaust manifold nuts
to 20 ft-lb (27 NSm). Do not over
tighten.
Each 25 hours
of operation
Clean and remove air cleaner
foam. Wash with water and deter-
gent. Dry thoroughly. Rub with oil
and squeeze to distribute oil.
After first 50
hours of opera-
tion
Change pump break-in oil. Use
SAE 20 or 30 non-detergent oil.
Each 100
hours of opera-
tion
or 3 months
Clean or replace paper air cleaner
cartridge. Tap gently to remove
dirt. Change engine oil. Use SAE
30 or 10W–30 detergent oil.
Re-torque exhaust manifold nuts
to 20 ft-lb (27 NSm). Do not over
tighten.
Each 500
hours of opera-
tion
or 6 months
Change pump oil. Use SAE 20 or
30 non-detergent oil.

9824111
Troubleshooting
WARNING
To reduce the risk of serious injury, including fluid injection and splashing in the eyes, or on the skin, always
follow Pressure Relief Procedure on page 5 before proceeding.
Problem Cause Solution
Engine will not
start or is hard to
start
No gasoline in fuel tank or carburetor. Fill the tank with gasoline, open fuel shut off valve.
Check fuel line and carburetor.
Low oil. Add to proper level.
Start/Stop switch in Stop position. Move switch to start position.
Water in gasoline or old fuel. Drain fuel tank and carburetor. Use new fuel and dry
spark plug.
Choked improperly. Flooded engine. Open choke and pull engine several times to clear out
gas. Use a dry spark plug.
Dirty air cleaner filter. Remove and clean.
Spark plug dirty, wrong gap or wrong
type.
Clean, adjust the gap or replace.
Spray gun closed. Trigger spray gun while spraying.
Engine misses or
lacks power
Partially plugged air cleaner filter. Remove and clean.
Spark plug dirty, wrong gap or wrong
plug type.
Clean, adjust the spark plug gap or replace.
Low pressure and/or
pump runs rough
Worn or wrong size tip. Replace with tip of proper size.
Inlet filter clogged. Clean. Check more frequently.
Worn packings, abrasives in water or
natural wear.
Check filter. Replace packings. See PUMP SERVICE,
page 13.
Inadequate water supply. Check water flow rate to pump.
Fouled or dirty inlet or discharge valves. Clean inlet and discharge valve assemblies. Check
filter.
Restricted inlet. Check garden hose, may be collapsed or kinked.
Worn inlet or discharge valves. Replace worn valves. See PUMP SERVICE, page 13.
Leaking high pressure hose. Replace high pressure hose.
Water leakage from
under pump mani-
fold
Worn packings. Install new packings. See PUMP SERVICE, page 13..
Water on oil side of
pump
Humid air condensing inside crankcase. Change oil as specified in Maintenance, page 8.
Worn packings. Install new packings. See PUMP SERVICE, page 13.
Oil seals leaking. Install new oil seals. See PUMP SERVICE, page 13.

10 824111
Troubleshooting
Problem Cause Solution
Frequent or prema-
ture failure of the
packings
Scored, damaged or worn plungers. Install new plungers. See PUMP SERVICE, page 13.
Abrasive material in the fluid being
pumped.
Install proper filtration on pump inlet plumbing.
Inlet water temperature too high. Check water temperature; may not exceed
160_F(70_C).
Over pressurizing pump. Do not modify any factory–set adjustments. See
EQUIPMENT MISUSE HAZARD on page 3.
Excessive pressure due to partially
plugged or damaged tip.
Clean or replace tip. See Installing and Changing
Spray Tips on page 7.
Pump running too long without spraying. Never run pump more than 10 minutes without spray-
ing.
Running pump dry. Do not run pump without water.
Strong surging at in-
let and low pressure
on discharge side
Foreign particles in the inlet or discharge
valve or worn inlet and/or discharge
valves.
Clean or replace valves. See PUMP SERVICE, page
13.

11824111
824101 Pump Service
WARNING
To reduce the risk of serious bodily injury, including
fluid injection, splashing in the eyes or on the skin
or injury from moving parts, always follow the
Pressure Relief Procedure on page 5 before
proceeding.
NOTE: The following metric wrenches are needed: 5
mm, 13 mm and 22 mm. Repair kits are
available. Refer to the individual repair
sections and the pump parts page for more
details. For the best results, use all parts in
the kits.
NOTE: There is a tool kit to aid in servicing the
pump. Tool kit 800271 includes tools to aid in
the removal of packing retainers.
Valves
NOTE: For a set of six valves, order 801472.
1. Remove the hex plug from the manifold using a 22
mm socket.
2. Examine the o–ring under the hex plug and
replace it if it is cut or distorted.
3. Remove the valve assembly from the cavity; the
assembly may come apart.
4. Install the new valve. Install the o–ring and hex
plug; torque to 33 ft–lb (45 N@m).
NOTE: Retorque the plug after 5 hours of operation.
Pumping Section
1. Remove the eight capscrews and lockwashers
from the manifold using a 5 mm wrench.
2. Carefully separate the manifold from the
crankcase.
NOTE: It may be necessary to tap the manifold
lightly with a soft mallet to loosen.
CAUTION
Keep the manifold properly aligned with the ce-
ramic plungers when removing to avoid damage to
the plunger or seals.
3. Carefully examine each plunger for any scoring or
cracking and replace as necessary.
Servicing the Plungers
NOTE: Plunger repair kit (page 15) is available to
replace retainers, o–rings, washers and
backup rings for three cylinders.
1. Loosen the plunger retaining nut five to six turns,
using a 13 mm wrench. Push the plunger towards
the crankcase to separate the plunger and
retaining screw.
2. Remove the nut from the plunger and examine the
o–ring, backup ring and copper bearing/gasket
washer. Replace these parts, if necessary, using
kit 801474.
3. Remove the plunger and flinger from the plunger
shaft. Clean, examine and replace parts as
necessary.
4. Inspect the plunger shaft for oil leakage from the
crankcase. If leaking is obvious, replace the oil
seals. Otherwise, DO NOT remove these seals as
they cannot be reused. An oil seal kit is available
to replace the seals.
5. Lightly grease the flinger and oil seal, if it is being
replaced and replace them on the plunger shaft.
Then install the plunger.

12 824111
824101 Pump Service
6. Lightly grease the retaining screw and the outer
end of the plunger. Place the washer, o–ring and
backup ring around the screw and install the nut
through the plunger. Torque to 11 ft–lb (15 N@m).
NOTE: If you plan to replace the packings, refer to
Servicing the V–Packings.
7. Lubricate the outside of each plunger. Slide the
manifold onto the crankcase, being careful not to
damage the seals.
8. Install the capscrews and washers finger–tight.
Torque the screws to 8.8 ft–lb (12 N@m) following
the tightening pattern (Figure 4). Uneven tightening
may cause the manifold to bind or jam.

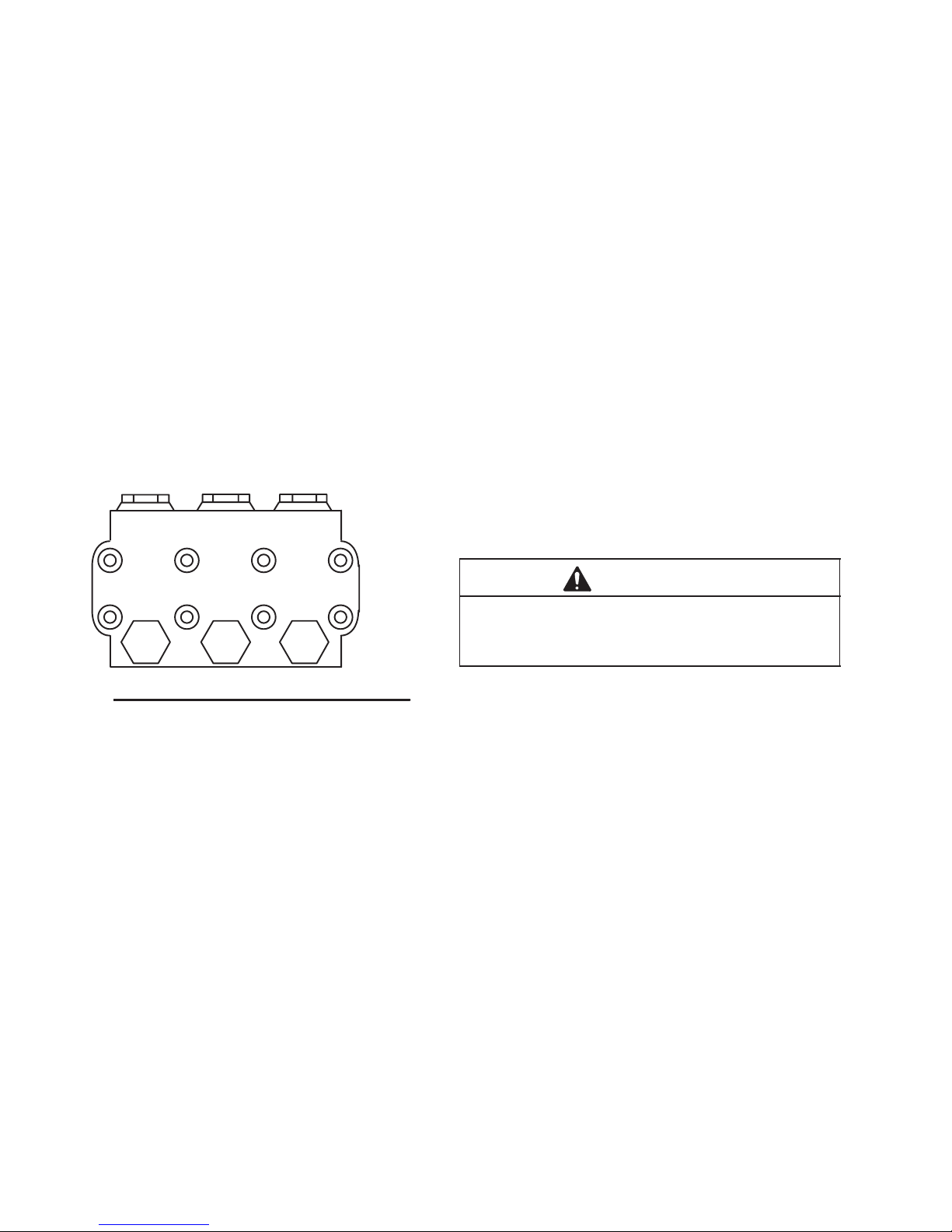

Figure 4
14
2
3
5
8
7
6
Servicing the V-Packings
NOTE: There are two types of packing kits: one is
packings only, the other includes the
packings, rings and retainers.
1. Remove the manifold as outlined in the Pumping
Section.
2. Carefully pull the packing retainer from the
manifold. Examine the o-ring and replace it if it is
cut or damaged.
3. Remove the v-packing and head ring. Pull out the
intermediate retainer ring. Remove the second
v–packing and second head ring.
4. Inspect all parts and replace as necessary.
5. Thoroughly clean the packing cavities and
examine for debris or damage.
6. Lightly grease the packing cavities and then
replace the packings in the following order: head
ring, v-packing, intermediate ring, head ring,
v-packing and packing retainer with the o-ring
installed in the retainer groove.
CAUTION
Install the parts in the proper order and facing the
correct direction. Improperly installed parts will
cause a malfunction.
7. Reassemble the manifold as instructed in
Servicing the Plungers.

13824111
824102, 824103, 824104 Pump Service
WARNING
To reduce the risk of serious bodily injury, including
fluid injection, splashing in the eyes or on the skin
or injury from moving parts, always follow the
Pressure Relief Procedure on page 5 before
proceeding.
NOTE: The following metric wrenches are needed: 6
mm, 13 mm and 27 mm. Repair kits are
available. Refer to the individual repair
sections and the pump parts page for more
details. For the best results, use all parts in
the kits.
NOTE: There is a tool kits to aid in servicing the
pump. Tool kit 800271 includes tools to aid in
the removal of packing retainers.
Valves
NOTE: For a set of six valves, order 801472.
1. Remove the hex plug from the manifold using a 27
mm socket.
2. Examine the o–ring under the hex plug and
replace it if it is cut or distorted.
3. Remove the valve assembly from the cavity; the
assembly may come apart.
4. Install the new valve. Install the o–ring and hex
plug; torque to 73 ft–lb (99 N@m).
NOTE: Retorque the plug after 5 hours of operation.
Pumping Section
1. Remove the eight capscrews and lockwashers
from the manifold using a 6 mm wrench.
2. Carefully separate the manifold from the
crankcase.
NOTE: It may be necessary to tap the manifold
lightly with a soft mallet to loosen.
CAUTION
Keep the manifold properly aligned with the ce-
ramic plungers when removing to avoid damage to
the plunger or seals.
3. Carefully examine each plunger for any scoring or
cracking and replace as necessary.
Servicing the Plungers
NOTE: Plunger repair kit (page 15) is available to
replace retainers, o–rings, washers and
backup rings for three cylinders.
1. Loosen the plunger retaining nut five to six turns,
using a 13 mm wrench. Push the plunger towards
the crankcase to separate the plunger and
retaining screw.
2. Remove the nut from the plunger and examine the
o–ring, backup ring and copper bearing/gasket
washer. Replace these parts, if necessary, using
kit 801474.
3. Remove the plunger and flinger from the plunger
shaft. Clean, examine and replace parts as
necessary.
4. Inspect the plunger shaft for oil leakage from the
crankcase. If leaking is obvious, replace the oil
seals. Otherwise, DO NOT remove these seals as
they cannot be reused. An oil seal kit is available
to replace the seals.
5. Lightly grease the flinger and oil seal, if it is being
replaced and replace them on the plunger shaft.
Then install the plunger.

14 824111
824102, 824103, 824104 Pump Service
6. Lightly grease the retaining screw and the outer
end of the plunger. Place the washer, o–ring and
backup ring around the screw and install the nut
through the plunger. Torque to 14.4 ft–lb (19.5
N@m).
NOTE: If you plan to replace the packings, refer to
Servicing the V–Packings.
7. Lubricate the outside of each plunger. Slide the
manifold onto the crankcase, being careful not to
damage the seals.
8. Install the capscrews and washers finger–tight.
Torque the screws to 22 ft–lb (30 N@m) following
the tightening pattern (Fig. 4). Uneven tightening
may cause the manifold to bind or jam.
Figure 4
14
2
3
5
8
7
6
Servicing the V-Packings
NOTE: There are two types of packing kits: one is
packings only, the other includes the
packings, rings and retainers.
1. Remove the manifold as outlined in the Pumping
Section.
2. Carefully pull the packing retainer from the
manifold. Examine the o-ring and replace it if it is
cut or damaged.
3. Remove the v-packing and head ring. Pull out the
intermediate retainer ring. Remove the second
v–packing and second head ring.
4. Inspect all parts and replace as necessary.
5. Thoroughly clean the packing cavities and
examine for debris or damage.
6. Lightly grease the packing cavities and then
replace the packings in the following order: head
ring, v-packing, intermediate ring, head ring,
v-packing and packing retainer with the o-ring
installed in the retainer groove.
CAUTION
Install the parts in the proper order and facing the
correct direction. Improperly installed parts will
cause a malfunction.
7. Reassemble the manifold as instructed in
Servicing the Plungers.

15824111
Accessories
Anti–freeze Flush Kit 802327
For flushing system with 50% anti-freeze solution prior
to transporting or storing pressure washer in below
freezing temperatures.
Pump Repair Kits
Repair Kit Description Qty. Entire
Pump
One
Cyl
Model 824101 Model s 824102
and 824103
Model 824104
804033
Oil Seal
801658
Oil Seal
801658
Oil Seal
SEAL, Oil 3
*
801472
Valve Assembly
804402
Valve Assembly
804402
Valve Assembly
O-RING
SEAT, Valve
VALVE
SPRING
CAGE, Valve
6
6
6
6
6
*
804034
Valve Cap
804403
Valve Cap
804403
Valve Cap
O-RING
CAP
6
6 *
804036
Packing
Assembly
804404
Packing
Assembly
114793
Packing
Assembly
O-RING
RETAINER, Packing
RING, Intermediate
PACKING
PACKING
RING, Head
1
1
1
1
2
2
*
801474
Plunger
Assembly
243430
Plunger
Assembly
241325
Plunger
Assembly
WASHER
O-RING
BACK UP
SCREWS, retaining
FLINGER
3
3
3
3
3
*
804011
Plunger
804415
Plunger
804415
Plunger Plunger 1 *
* Designates whether kit contains parts for entire pump or for only one cylinder.
Technical Data
Model 824101 Model 824102 Model 824103 Model 824104
Engine
(4 cycle, air cooled)
5.5 HP Honda
OHV
9 HP Honda OHV 11 HP Honda
OHV
13 HP Honda
OHV
Gasoline Tank Capacity 3.8 quarts
(3.6 liter)
6.2 quarts
(6.1 liter)
6.9 quarts
(6.5 liter)
6.9 quarts
(6.5 liter)
Water Pump Maximum Working Pressure 2400 psi (165 bar) 3200 psi (193 bar) 3400 psi (234 bar) 3700 psi (255 bar)
Water Pump Maximum Flow 3 gpm (11 lpm) 3.5 gpm (13 lpm) 4 gpm (15 lpm) 4 gpm (15 lpm)
Inlet Hose Connection 3/4”garden hose
(f)
3/4”garden hose
(f)
3/4”garden hose
(f)
3/4”garden hose
(f)
Weight (without gun and hose) 103 lb (47 kg) 142 lb (64 kg) 151 lb (69 kg) 151 lb (69 kg)
Dimensions
Length
Width
Height
36.5”(927mm)
22”(533mm)
31.5”(788mm)
36.5”(927mm)
22”(533mm)
31.5”(788mm)
36.5”(927mm)
22”(533mm)
32.5”(813mm)
36.5”(927mm)
22”(533mm)
32.5”(813mm)
Maximum Inlet Water Temperature 160_F (70_C) 160_F (70_C) 160_F (70_C) 160_F (70_C)
Sound Data in dB(A)
Sound Pressure
Sound Level
93.1
103.5
94.3
104.7
95.8
106.3
97.4
111.6
Wetted Parts
High Pressure Hose
Bypass Hose
Pressure Washer
(including fittings)
Acrylonitrile and Buna-N cover and tube
Synthetic yarn and EPDM
Anodized aluminum, Aluminum or bronze alloys, Brass Copper, Nylon–r
composite, Ceramic, Buna-N, Cotton phenolic, 303, 304, and 316 Stainless
steel, Polymide–12 thermoplastic, , Carbon steel, Zinc with or without
yellow chromate plate
PTFE
PTFE
PTFE

16 824111

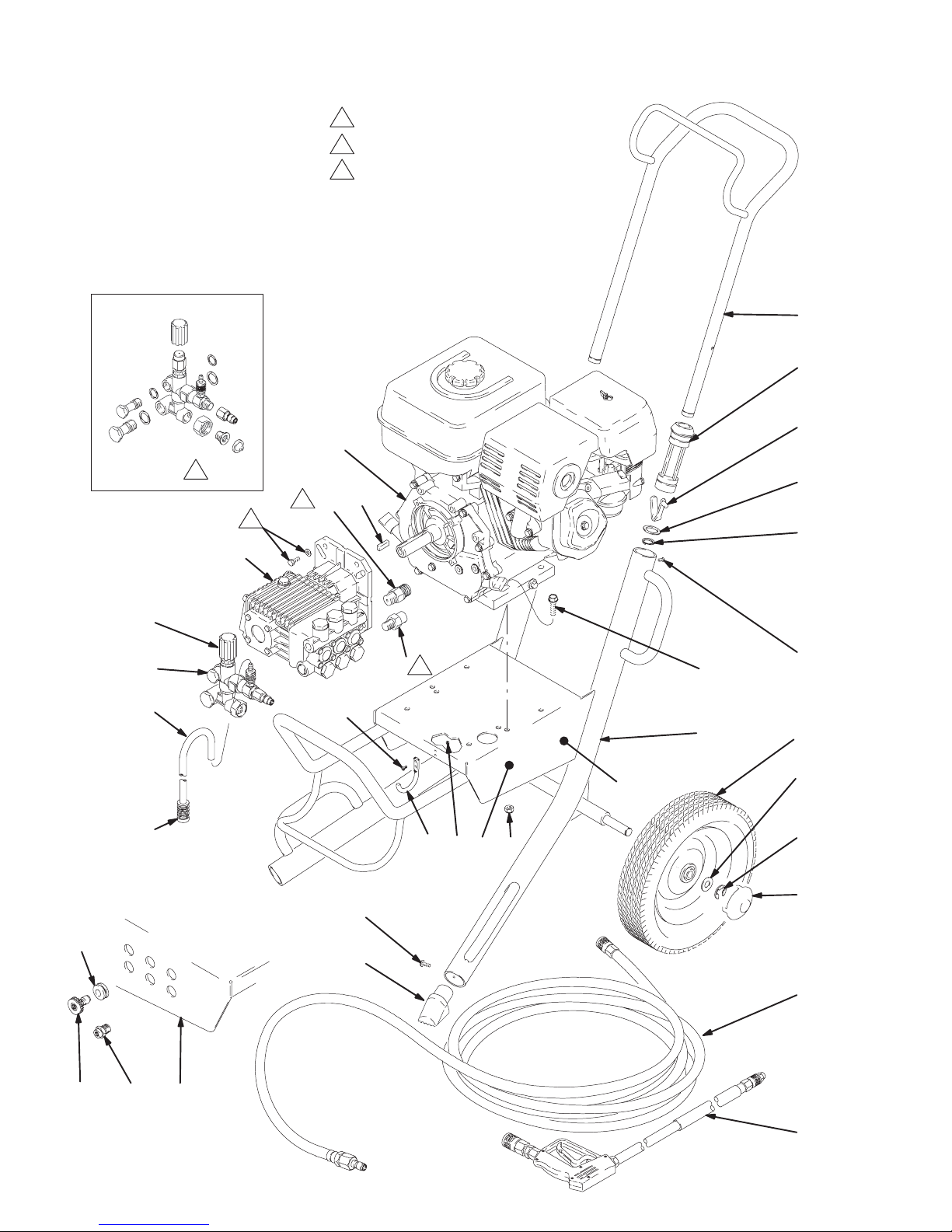

2030 Pressure Washer –Parts
Detail 1
Detail 1
3
14
16
7
6
9
5
4
13
12
11
27
26
8
50
15
31
30
2
49
25
24
23
3 Ref18
19
20
21
22
17
Model 824101, Series A 1Apply sealant to threads
3Supplied with engine
4All parts supplied with unloader
3
10
40
39
47
48 1
1
1
4
2Supplied with pump
2
8779B
39

17824111
2030 Pressure Washer –Parts
USE ONLY GENUINE GRACO PARTS AND ACCESSORIES
Model 824101, Series A
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 802264 ENGINE, 5.5 hp 1
2 804531 PUMP ASSEMBLY 1
3 240998 FRAME, cart 1
4 239998 HANDLE, cart 1
5 191084 SLEEVE, cart 2
6 183350 WASHER 2
7 110243 RING, retaining 2
8 115481 FOOT, cart 2
9 112827 BUTTON, snap 2
10 179811 WHEEL, semi-pneumatic 2
11 154636 WASHER 2
12 101242 RING, retaining. ext 2
13 104811 CAP, hub 2
14 110837 SCREW, flange, hex hd, 5/16 in. 4
15 111040 NUT, lock, nylock 5/16–18 in. 4
16 108795 SCREW, mach, pan hd 4
17 801012 GROMMET, rubber 6
18 805543 TIP, spray, Q-type, (0_- red), 0004 1
19 805544 TIP, spray, Q-type, 1
(15_- yellow), 1504
20 805545 TIP, spray, Q-type, 1
(25_- green), 2504
21 805546 TIP, spray, Q-type, 1
(40_- white), 4004
22 805520 TIP, spray, chemical injector, (black)1
23 114801 HOOK, pail 1
24 112380 SCREW, mach, fil hd, 1/2 in. 2
25 109466 LOCKNUT 2
26 804381 GUN & WAND ASSEMBLY 1
27 804592 HOSE, high pressure 3/8 x 50 ft 1
30 801683 STRAINER, chemical 1
31 194188 TUBING, chemical 1
39Y290013 LABEL, danger 1
40Y290131 LABEL, warning 1
46 190781 TUBE, polyethylene 1
47 804543 KIT, unloader/injector 1
48 800742 VALVE, thermal relief 1
49 804542 VALVE, relief 1
50 115496 SCREW, thread forming, pnhd 2
YExtra warning labels available free of charge.

18 824111

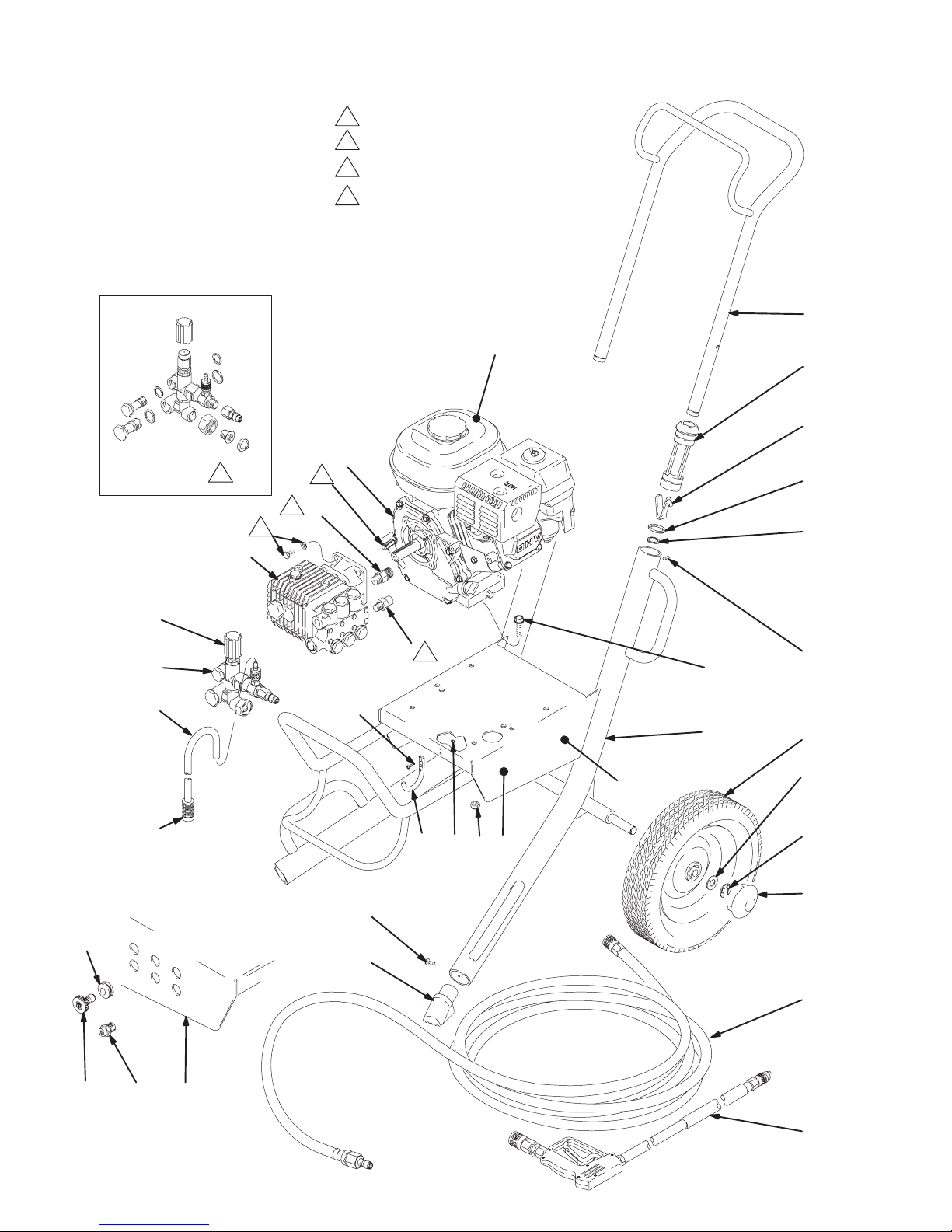

2835, 3040, 3340 Pressure Washer –Parts
Detail 1
Detail 1
3
14
16
7
6
9
5
4
13
12
11
26
8
51
15
31
30
2
1
25
24
23
3 Ref18
19
20
21
22
17
Model 824102, Series A
Model 824103, Series A
Model 824104, Series A
1Apply sealant to threads
2
8778B
50
49
48 1
1
2
All parts supplied with unloader
47
3Supplied with pump
3
27
10
40
39

19824111
2835, 3040, 3340 Pressure Washer –Parts
USE ONLY GENUINE GRACO PARTS AND ACCESSORIES
Models 824102, Series A; 824103, Series A; 824104, Series A
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 ENGINE 1
803900 Model 824102, 9 hp 1
803158 Model 824103, 11 hp 1
114703 Model 824104, 13 hp 1
2 PUMP ASSEMBLY 1
804559 Model 824102, 2835 1
804503 Model 824103, 3040 1
114707 Model 824104, 3340 1
3 240998 FRAME, cart 1
4 239998 HANDLE, cart 1
5 191084 SLEEVE, cart 2
6 183350 WASHER 2
7 110243 RING, retaining 2
8 115481 FOOT, cart 2
9 112827 BUTTON, snap 2
10 179811 WHEEL, semi-pneumatic 2
11 154636 WASHER 2
12 101242 RING, retaining. ext 2
13 104811 CAP, hub 2
14 110837 SCREW, flange, hex hd, 5/16 in. 4
15 111040 NUT, lock, nylock 5/16–18 in. 4
16 108795 SCREW, mach, pan hd 4
17 801012 GROMMET, rubber 6
18 TIP, spray, Q-type, (0_- red)
805543 Models 824102 and 824104 (0004) 1
805547 Model 824103 (00045) 1
19 TIP, spray, Q-type, (15_- yellow)
805544 Models 824102 and 824104 (1504) 1
805548 Model 824103 (15045) 1
20 TIP, spray, Q-type, (25_- green)
805545 Models 824102 and 824104 (2504) 1
805549 Model 824103 (25045) 1
21 TIP, spray, Q-type, (40_- white)
805546 Models 824102 and 824104 (4504) 1
805550 Model 824103 (45045) 1
22 805520 TIP, spray, chemical injector,(black) 1
23 114801 HOOK, pail 1
24 112380 SCREW, mach, fil hd, 1/2 in. 2
25 109466 LOCKNUT 2
26 804381 GUN & WAND ASSEMBLY 1
27 HOSE, high pressure 3/8 x 50 ft
804592 Model 824102 1
800747 Models 824103 and 824104 1
30 801683 STRAINER, chemical 1
31 194188 TUBING, chemical 1
39Y290013 LABEL, danger 1
40Y290131 LABEL, warning 1
46 190781 TUBE, polyethylene 1
47 KIT, unloader/injector 1
804567 Model 824102, 9 hp 1
804528 Model 824103, 11 hp 1
114706 Model 824104, 13 hp 1
48 804397 VALVE, thermal relief 1
49 VALVE, relief 1
804536 Model 824102, 9 hp 1
804547 Model 824103, 11 hp 1
114705 Model 824104, 13 hp 1
50 801137 KEY, square 1
51 115496 SCREW, thread forming, pnhd 2
YExtra warning labels available free of charge.

20 824111
Sherwin-Williams Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from
defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the
exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of
sale, repair or replace any part of the equipment determined by Graco to be defective. This warranty applies only when the equipment
is installed, operated and maintained in accordance with Graco’s written recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-
stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD
BUT NOT MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches,
hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in mak-
ing any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnais-
sent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés àla suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
ADDITIONAL WARRANTY COVERAGE
Graco does provide extended warranty and wear warranty for products described in the “Graco Contractor Equipment Warranty
Program”.
Phone Number
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1–800–690–2894 Toll Free
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
The SHERWIN–WILLIAMS COMPANY, 101 PROSPECT AVENUE, CLEVELAND, OHIO 44115
PRINTED IN U.S.A. 824111 December 1998, Revised 12/1999
