Section 1: Safety
General Safety Rules
For your own safety, please read and understand this instruction manual before installing
and operating the machine.
Electrical Equipment Injury Risk: You can
be shocked, burned or killed by touching live
electrical components or improperly grounded
machinery. To reduce this risk, only allow a
qualified service professional to complete
electrical installation or repair work. Always
disconnect the power before accessing or
exposing electrical equipment.
Owners Manual: Read and understand this
owners manual before using the machine.
Failure to Read This Manual: Failure to adhere
to the safety instructions in this manual will
have a higher risk of serious personal injury or
injury to others. Only allow competent users
and supervised people to use the machine.
Always Disconnect the Power: When the
machine is not in use, disconnect the power,
remove the switch keys or lock the machine
to prevent any unauthorised use - especially if
children are around. Child proof your workshop!
Dangerous Environments: Do not use
machinery in areas that are wet, cluttered,
or have poor lighting. Operating machinery
in these areas greatly increase the risk of
accidents and injury.
Mental Alertness Required: Full mental
concentration is required at all times for the
safe operation of machinery. Never operate a
machine under the influence of drugs or alcohol,
when tired or when distracted.
Disconnect the Power First: Always disconnect
the machine from the power supply before
making adjustments, changing tooling or
servicing the machine. This prevents an injury
from unintended start-up or contact with live
electrical components.
Eye Protection: Always wear ANSI approved
safety glasses or face shield when operating
or observing machinery to reduce the risk eye
injury or blindness from flying particles. Your
everyday eye glasses are NOT approved safety
protection.
Wearing Proper Apparel: Do not wear clothing,
apparel or jewelery that can become entangled
in moving parts. Always tie back or cover long
hair. Wear non-slip footwear to reduce risk
of slipping and losing control or accidentally
contacting the cutting tool or moving parts.
Hazardous Dust: Dust created by machinery
operation can cause cancer, birth defects or
long-term respiratory damage. Be aware of
dust hazards associated with each workpiece
material. Always wear a AS/NZS-approved
respirator to reduce risk.
Hearing Protection: Always wear hearing
protection when operating or observing
loud machinery. Extended exposure to this
noise without hearing protection can cause
permanent hearing damage or loss.
Remove Adjusting Tools: Tools left on
machinery can become dangerous projectiles
upon start-up. Never leave chuck keys,
wrenches or any other tools on the machine.
Always verify removal before starting!
Safety
7
General Safety Rules
Use Correct Tool for the Job: Only ever use
the machine for its intended purpose. Do not
force it or use any attachment to complete a
job for which it was not designed. Never make
any unapproved modifications - modifying the
machine or using it differently that it is intended
may result in malfunction or mechanical failure
that can result in personal injury or death!
Awkward Positions: Keep proper footing
and balance at all times when operating the
machine. Do not overreach! Avoid awkward
hand positions that make workpiece control
difficult or increase the risk of accidental injury.
Children and Bystanders: Keep children and
bystanders at a safe distance from the work
area. Stop using the machine if they become a
distraction.
Guards and Covers: Guards and covers reduce
accidental contact with moving parts and flying
debris. Make sure they are properly installed,
undamaged and working correctly before
operating the machine.
Forcing Machinery: Do not force the machine. It
will do the job more safely and more efficiently
at the rate for which it was designed.
Never Stand on the Machine: Serious injury
may occur if the machine is tipped or if contact
is unintentionally made with the cutting tool.
Stable Machine: Unexpected movement during
operation greatly increases the risk of injury
loss of control. Before starting, verify that the
machine is stable. If a mobile base is used,
ensure this is locked.
Use Only Recommended Accessories: Consult
this owner’s manual or the manufacturer for
the recommended accessories. Using improper
accessories will increase the risk of serious
injury.
Unattended Operation: To reduce the risk of
accidental injury, turn the machine OFF and
ensure all moving parts are completely stopped
before walking away. Never leave a machine
running while unattended.
Maintain with Care: Follow all maintenance
instructions and lubrication schedules to keep
the machine in good working condition. A
machine that is improperly maintained could
malfunction, leading to personal injury or death.
Damaged Parts: Regularly inspect machine
for damaged, loose or mis-adjusted parts - or
and condition that could effect safe operation.
Immediately repair or replace before operating
the machine. For your own safety , DO NOT
operate a machine with damaged parts.
Maintain Power Cords: When disconnecting
cord-connected machines from the power
supply, hold and pull the plug and not the cord.
Pulling the cord may damage the wires inside.
Do not handle the cord or the plug with wet
hands. Avoid cord damage by keeping it away
from heated surfaces, high traffic areas, harsh
chemicals and wet or damp locations.
Experiencing Difficulties? If at any time
you experience difficulties performing the
intended operation, stop using the machine
immediately! Contact our Technical Support on
Safety
8
Specific Rules For The Belt &
Spindle Sander
1. This sander is designed to sand wood or
wood-like products only. Sanding or grinding
other materials could result in fire, injury, or
damage to the workpiece.
2. Use the sander on horizontal surfaces only.
Operating the sander when mounted on non-
horizontal surfaces may result in motor damage
or injury.
3. Make sure the sanding belt is installed in the
correct direction. See directional arrow on back
of belt. Feed workpieces against the direction of
the rotation for maximum safety.
4. Keep hands away from the drum and belt
during operation. Do not touch moving pieces.
If cleaning is necessary, use a brush to remove
sawdust and chips instead of your hands.
5. Do not use sanding belts or drums that are
damaged, torn, or loose. Use only the correct
size sanding belt.
6. Always hold the workpiece firmly when
sanding. Keep hands away from sanding belt or
spindle. Sand only one workpiece at a time.
7. Always hold the workpiece firmly on the table
when using the sander.
8. Allow spindle to reach full speed before
sanding. Do not forcefully jam a workpiece into
the sanding surface. Firmly hold the workpiece
and lightly ease it against the spindle.
9. Always maintain a minimum clearance of
1/16 inch (1.6 mm) or less between the table
and the sanding belt.
10. Replace worn or damaged belts before
operation. Always unplug the unit before
making adjustments or changing sandpaper or
drums.
11. When sanding a large workpiece, provide
additional support. Do not sand with the
workpiece unsupported.
12. Inspect the workpiece for imperfections,
nails, staples, etc. before sanding. Never sand
stock that has questionable imperfections or
embedded foreign objects.
13. Always remove scrap pieces and other
objects from the table, backstop, or belt before
turning the sander ON.
14. Never perform layout, assembly or set-up
work on the table while the sander is operating.
15. Never use solvents to clean plastic parts.
Solvents could dissolve or otherwise damage
the material. Use only a soft damp cloth to clean
plastic parts.
16. Should any component of your sander be
missing/damaged or fail in any way, shut off
switch and remove plug from power supply
outlet. Replace the missing, damaged, or failed
parts before resuming operation.
17. Keep cords away from heat, oil, and sharp
edges. Have an electrician replace or repair
damaged or worn cords immediately.
18. Always use the table insert that fits the
diameter of the drum to minimize the gap and
reduce risk of injury.
19. Only sand workpieces sturdy enough to
withstand the force of the sanding belts and
spindles.
Safety
9
Section 2: Electrical Information
Electrical Requirements
Power Supply And Motor Specifications:
Warning: To avoid electrical hazards, fire
hazards, or damage to the tool, use proper
circuit protection. Use a separate electrical
circuit for your tools. To avoid shock or fire, if
power cord is worn or cut, or damaged in any
way, have it replaced immediately.
Grounding Instructions:
Warning: This tool must be grounded while
in use to protect the operator from electrical
shock.
In The Event Of A Malfunction Or Breakdown,
grounding provides a path of least
resistance for electric current and reduces
the risk of electric shock. This tool is equipped
with an electric cord that has an equipment-
grounding conductor and a grounding plug.
The plug MUST be plugged into a matching
receptacle that is properly installed and
grounded in accordance with ALL local codes
and ordinances.
Do Not Modify The Plug Provided. If it will not
fit the receptacle, have the proper receptacle
installed by a qualified electrician.
Improper Connection of the equipment-
grounding conductor can result in risk of
electric shock.
Do Not connect the equipment-grounding
conductor to a live terminal.
Check with a qualified electrician or service
person if you do not completely understand the
grounding instructions, or if you are not sure the
tool is properly grounded.
Electrical Information
Extension Cords
Grounded Tools require a three wire
extension cord.
Double Insulated Tools can use either a two or
three wire extension cord.
As the distance from the supply outlet
increases, you must use a Heavier Gauge
Extension cord.
Using extension cords with Inadequately
Sized Wire Causes A Serious Drop In Voltage,
Resulting In Loss Of Power And Possible Tool
Damage. Refer to the table shown to determine
the required minimum wire size.
The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 1.628mm(14 gauge) cord can carry a higher
current than a 1.291mm(16 gauge) cord.
When using More Than One Extension Cord
to make up the total length, be sure each
cord contains at least the minimum wire size
required.
If you are using One Extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum wire size.
10
Guidelines & Recommendations
for Extension Cords
When Using An Extension Cord, be sure to
use one heavy enough to carry the current
your product will draw. An undersized cord will
cause a drop in line voltage resulting in loss of
power and overheating. The table below shows
the correct size to be used according to cord
length and ampere rating. When In Doubt, Use
A Heavier Cord. The smaller the gauge number,
the heavier the cord.
Make sure your extension cord is Properly
Wired And In Good Condition. Always replace a
damaged extension cord or have it repaired by
a qualified person before using it. Protect your
extension cords from sharp objects, excessive
heat and damp/wet areas.
Amperage 7.5 Metres 15 Metres 30 Metres 45 Metres
3.0A 18 Gauge 16 Gauge 16 Gauge 14 Gauge
Electrical Information
Guidelines for Using Extension
Cords
If you are Using An Extension Cord outdoors,
be sure it is marked with the suffix “W-A” to
indicate that it is acceptable for outdoor use.
Be sure your extension cord is Properly Wired
and in good electrical condition.
Always Replace A Damaged Extension Cord or
have it repaired by a qualified person
before using it.
Protect Your Extension Cords from sharp
objects, excessive heat and damp or wet areas.
11
Section 3: Specifications
Motor 120 V, 60 Hz, 3.5A, 1/2 HP, 11,500 RPM
Belt Speed: 1575 FPM
Spindle Speed: 2000 RPM
Oscillations: 58 OPM
Spindle Travel: 5/8 in.
Table Tilt: 0 to 45°
Sanding Drum Sizes: 3/4, 1, 1-1/2, & 2 in.
Sanding Sleeve Sizes: 1/2, 3/4, 1, 1-1/2, 2 in.
Dust Port: 1-1/2 in.
Net Weight: 27 lb
Product Dimensions: 18-1/2 x 16-1/2 x 18 in.
BOS-450-T
Oscillating Belt & Spindle Sander
Specifications
12
Section 4: Set Up
Key Features
A. Work Table
B. Sanding Belt
C. Belt Tracking Adjustment Knob
D. Belt Tensioning Lever
E. Work Stop
F. Spindle
G. Spindle Nut
H. Sanding Drum w/ Sleeve
I. Table Insert
J. Dust Port
K. Throat Plate Storage
L. Table Tilt Locking Knob
M. ON/OFF Switch
N. Sanding Drum Storage
O. Spindle Knob
P. Circuit Breaker
Set Up
A
B
CDO
E
FG
H I
J
K
P
LM
N
13
Inventory
A. Belt Sanding Attachment
B. 80-Grit Sanding Belt
(4 x 24 in.)
C. Spindle Nut Wrench
(13 mm/10 mm)
D. Sanding Drums
(3/4, 1, 1-1/2, & 2 in.)
NOTE: There is no 1/2 in. drum the 1/2 in.
sleeve fits directly on the spindle.
E. 80-Grit 4-1/2 in. Sanding Sleeves
(1/2, 3/4, 1, 1-1/2, & 2 in. diameter)
F. Table Insert
G. Throat Plates
(1/2, 3/4, 1, 1-1/2, & 2 in.)
H. Spindle Washers
(5/8, 7/8, & 1-3/4 in. outer diameter)
I. Hex Nut
(M8 - 1.25)
J. Spindle Knob
Set Up
AB
CDE
FG
H
I
14
Set Up
(Fig. A-B)
WARNING: To avoid injury from accidental
startups, turn switch OFF and remove the plug
from the power source outlet before making
any adjustments.
NOTE: The table insert is only to be used with
the sanding drums, not with the sanding belt
attachment.
Place the spindle nut, table inserts, sanding
drums, sanding sleeves, spindle washers, belt-
sanding attachment and spindle nut wrench in
the appropriate storage slots beneath the table
(Fig. A & Fig. B). A sanding drum does not need
to be installed until after the initial test startup.
Mounting The Unit
(Fig. C-D)
The base of this machine has four 1/4 inch
mounting holes on the corners of the base.
Mount to a benchtop surface to maximize
safety and minimize vibration, walking, tipping
and wobbling.
The strongest mounting option is a through
mount, where the bolts go all the way through
the work surface (Fig. C). The other option is
a direct mount, where the sander is mounted
using screws that go directly into the work
surface (Fig. D).

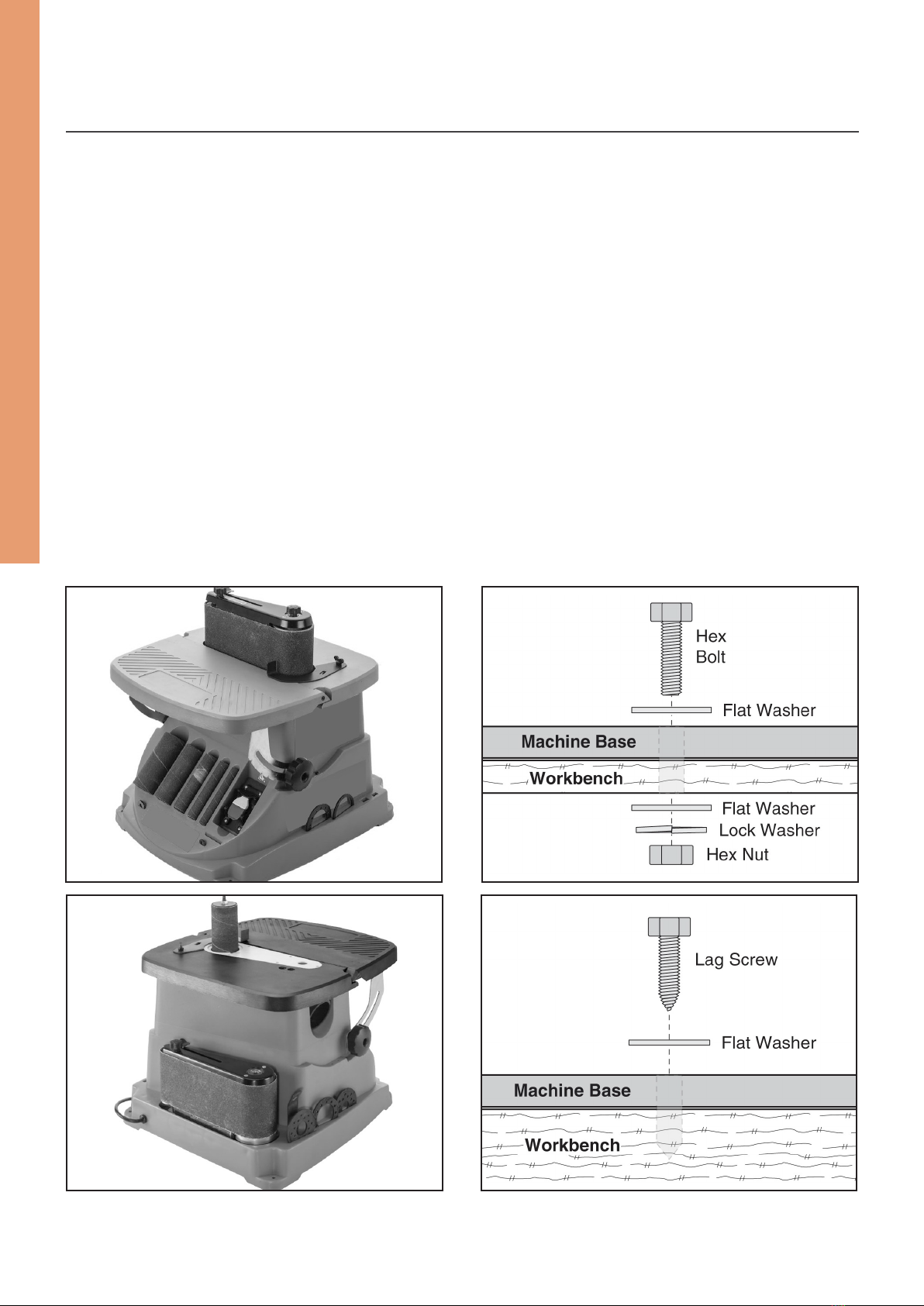

Fig. A. Fig. C.
Fig. B. Fig. D.
Set Up
15
Dust Collection
(Fig. D1)
WARNING: This machine creates a lot of dust.
Inhaling said dust on a regular basis can cause
permanent respiratory illness. Minimize your
exposure by wearing a respirator and using a
dust collector. If you do not use some method
of dust extraction or collection, the motor could
overheat and fail. Failure to use some method
of dust extraction or collection will void the
warranty.
To connect a dust collection system to the
machine:
1. Fit a 1-1/2 in. dust hose over the dust port
and secure in place with a hose clamp as
needed.
2. Tug the hose to make sure that puppy is
tight. A tight fit is necessary for proper
performance.
Fig. E1.
Fig. D1.
Initial Test Run
(Fig. E1)
WARNING: This machine creates a lot of dust.
Inhaling said dust on a regular basis can cause
permanent respiratory illness. Minimize your
exposure by wearing a respirator and using a
dust collector.
Once assembly has been completed, run the
machine to ensure proper connection.
1. Clear all setup tools away from the machine.
2. Connect the machine to a power supply.
3. Turn the machine ON to make sure the
motor runs correctly. Once verified, turn
the machine OFF. The motor should run
smoothly without any unusual problems or
noises.
4. Remove the yellow safety tab and try to
start the machine (Fig. E). The sander should
not power up without this tab.
Once all of these steps have been checked
and completed, the sander is ready for
operation. If you have a question about
your Sherwood product that isn’t covered
in this manual, please email us directly at
Section 5: Opperation
Operation
16
Spindle Sanding
Spindle sanding is the preferred method of
removing material from inside curves and
irregular edges. The oscillating spindle moves up
and down as it rotates to help smooth surfaces
more quickly and evenly than a non-oscillating
sander.
To use the spindle sander, you must first
configure the machine for spindle sanding by
installing the appropriate sanding drum/sleeve
for your operation.
Installing A Sanding Drum And
Sleeve (Fig. F)
To ensure the workpiece is supported during
spindle sanding operations, make sure to use
the table insert and throat plate that best
matches the drum and sleeve that you’ll be
working with.
The following table can help ensure that you are
using the proper sizes of throat plates, drums
and washers for each respective sanding sleeve.
Keep in mind the smallest size sanding sleeve
does not include a drum. It instead goes directly
onto the bare spindle.
1. Disconnect the machine from the power
source.
2. Use the table to the right to select the
required size of components for the sanding
drum and sleeve size you have chosen.
3. Place the table insert into the table opening.
Install the preferred drum onto the spindle
shaft, followed by the corresponding
sanding sleeve and throat plate (Fig. F).
4. Secure the sanding drum in place with
the corresponding washer and nut (Fig.F).
Tighten the nut until the sanding drum
creates equal pressure to all sides of the
sanding sleeve. The sleeve should not be
able to freely rotate without also rotating
the sanding drum.
Fig. F.
Fig. G.
Operation
Using Spindle Sander
(Fig. F-G)
1. Turn the sander ON and allow it to reach full
speed.
2. Maintain a firm grip with both hands on the
workpiece for maximum control. Guide it
against the rotation of the spindle as shown
in Fig. G.Do not force the workpiece against
the sanding sleeve. Allow the machine to do
the work.
3. When you are finished, turn off the sander.
17
Belt Sanding Outside Curves
(Fig. J)
1. Turn sander ON and allow it to reach full
speed before applying a load.
2. Using both hands, slowly guide the
workpiece against the sanding belt. Maintain
downward pressure on the workpiece
against the table, gently working it along the
sanding belt until the desired curve has been
created (Fig. J).
3. When finished, turn the sander OFF.
Belt Sanding Inside Curves
(Fig. L)
To belt sand any inside curves, use the rounded
surface of the large or the small sanding drum
wheel. Removing the workstop may be required
in order to do so. Make sure to unplug the
sander when making any adjustments.
1. Set table tilt to 0° and remove the work
stop.
2. Power on the sander and allow it to reach
full speed before applying a workpiece.
3. Using both hands, slowly guide the
workpiece against the drum wheel portion
of the sanding belt. Maintain downward
pressure on the workpiece against the table,
gently working it along the sanding belt until
the desired curve has been created (Fig. L).
Changing Sanding Belts
(Fig. M)
To replace the 4 x 24 inch sanding belt,
disconnect the machine from its power source
and slide the belt tensioning lever (Fig. M) to
the right to release the tension. Remove the
sanding belt and put on the grit of your choice
before re-tightening the belt tensioning lever.
Belt Rotation
Direction
Fig. J.
Fig. L.
Fig. M.
Operation
18
Adjust The Tracking Of The
Sanding Belt
1. Install the belt sanding attachment and
remove all tools from the sander.
2. Connect the sander to a power source and
turn it ON. Immediately turn the machine
OFF, checking to see if the sanding belt rides
centered on the drums, and does not move
toward the top nor the bottom edge of the
belt sanding attachment.
3. If the sanding belt moves toward the top
of the belt sanding attachment, rotate
the tracking control knob (see Fig. M)
counterclockwise a quarter of a turn.
4. If the sanding belt moves toward the bottom
of the belt sanding attachment, rotate the
tracking knob clockwise a quarter of a turn.
5. Turn the machine ON, then immediately turn
the machine OFF. The sanding belt should
be centered on the drums. If it is, then the
belt is tracking properly and no further
adjustments need to be made. Otherwise,
repeat steps 3 or 4 as necessary.
Bevel Sanding
(Fig. N)
The work table has the capacity to tilt from
0 to 45 degrees for sanding bevels on your
workpiece. The table tilt stop bracket has stops
for quickly setting the most common angles: 0°,
15°, 22.5°, 30°, and 45°.
1. Unplug the sander from its power source.
2. Install the spindle sander or the belt-sanding
attachment.
3. Loosen both table tilt lock knobs.
4. Tilt table to the desired angle.
5. Tighten both lock knobs to secure the table’s
tilt.
Overload Protection
To protect the motor, your sander is equipped
with a circuit breaker, located on the right side
of the unit near the power switch. If the motor
is overloaded, the circuit breaker will trip.
To reset the breaker, wait a moment and then
press it in to reset it. Do not press too hard on
the sandpaper, or the motor may overload.
Replacement Sandpaper
Replacement sandpaper can be purchased from
timbecon.com.au, or by calling 1300 880 996.
Fig. N.
Operation
19
WARNING: For your own safety, turn the
switch OFF and remove the plug from the
electrical outlet before adjusting or performing
maintenance on the belt/spindle sander.
Check Parts: Before use, check to make sure
parts are not damaged, missing, or worn.
Check for alignment of moving parts, binding
of moving parts, improper mounting, or any
other conditions that may affect the sander’s
safe operation. If any of these conditions exist,
do not use the sander until parts are replaced
or the sander is properly repaired. Frequently
blow or vacuum dust from all sanding parts and
motor housing.
WARNING: This machine creates a lot of dust.
Inhaling said dust on a regular basis can cause
permanent respiratory illness. Minimize your
exposure by wearing a respirator and using a
dust collector. If you do not use some method
of dust extraction or collection, the motor could
overheat and fail. Failure to use some method
of dust extraction or collection will void the
warranty.
Maintenance
Section 6: Maintenance & Care
WARNING: Any attempt to repair or replace
electrical parts on this tool may be hazardous.
Repairs should be done by a qualified service
technician.
Clean The Machine Regularly: vacuuming
excess wood chips and saw dust and wiping
down the remaining dust with a cloth. If resin
accumulates, clean it with a resin-dissolving
cleaning agent.
Check The Drive Belts: for damage and wear
once a month. Make sure they are properly
tensioned, especially after times of heavy
usage.
Maintenance & Care
20
PROBLEM CAUSE SOLUTION
Sanding grains easily
rubs off.
1) Sanding belt/sleeve has been stored in the wrong environment.
2) Sanding belt/sleeve has been damaged or folded.
1) Store sanding accessories away from extremely hot/dry temperatures.
2) Store sanding accessories properly, without bends, folds, or crushing.
Deep sanding grooves or scars in
workpiece.
1) Sanding belt/sleeve grit is too coarse for the desired finish.
2) Workpiece sanded across the grain.
3) Too much sanding force on workpiece.
4) Workpiece held still against sanding surface for too long.
1) Use a finer-grit sanding accessory.
2) Sand with the grain of the wood.
3) Reduce pressure on workpiece while sanding.
4) Keep workpiece moving while sanding on the sanding accessory.
Sanding surface clogs quickly. 1) Too much pressure against belt/spindle.
2) Sanding softwood.
1) Clean sanding belt/sleeve and then reduce pressure on workpiece while sanding.
2) Use different stock/sanding accessories, or accept that this will happen and plan on cleaning or
replacing belts/sleeves frequently.
Burns on workpiece. 1) Use a sanding grit that is too fine.
2) Using too much pressure.
3) Work held still for too long.
4) Sanding belt/sleeve loaded with debris.
1) Use a coarser-grit sanding accessory.
2) Reduce sanding pressure on workpiece.
3) Do not keep workpiece in one place for too long.
4) Clean or replace the sleeve or belt.
Sander does not turn on. 1) Not plugged in to an electrical outlet.
2) Defective power switch.
3) Onboard circuit breaker tripped.
4) Motor or wiring problem.
1) Connect the unit to an outlet.
2) Replace the switch.
3) Press circuit breaker to reset.
4) Have a qualified technician make repairs.
Motor will not start—fuses or
circuit breakers tripping/blowing.
1) Short circuit in line, cord or plug.
2) Short circuit in motor or loose connections.
3) Incorrect fuses or circuit breakers in power line.
4) Carbon brushes worn down.
1) Inspect cord or plug for damaged insulation and shorted wires.
2) Inspect all connections on motor for loose or shorted terminals and/or worn insulation.
3) Install correct fuses or circuit breakers or switch tool to an appropriately sized circuit.
4) Call customer service for 1300 880 996 assistance.
Motor overheats. 1) Motor overloaded.
2) Extension cord too long with an insufficient gauge.
1) Reduce load on motor (pressure on object being sanded).
2) Utilize an extension cord of appropriate gauge and length or plug tool directly into outlet.
Sander vibrates excessively or
has noisy operation.
1) Sanding belt/sleeve out of balance/loose.
2) Motor or component loose.
3) Pulley loose.
4) Machine incorrectly mounted to bench.
5) Faulty motor bearings.
1) Ensure sleeve/belt is properly installed.
2) Inspect/replace damaged bolts/nuts and retighten with thread-locking fluid.
3) Re-align/replace shaft, pulley set screw and key.
4) Adjust feet. Tighten mounting hardware.
5) Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.
Troubleshooting
Maintenance & Care
Table of contents
Other Sherwood Sander manuals
