Sherwood WA-240 User manual

OPERATING INSTRUCTIONS
STYLISH AUDIO SYSTEM
WA-240
❏STEREO INTEGRATED AMPLIFIER
❏STEREO FM TUNER & TIMER
❏COMPACT DISC PLAYER
❏STEREO CASSETTE DECK
SP-240
❏BASS REFLEX TYPE 2 WAY-
2 SPEAKER SYSTEM
POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
SOUND RETRIEVAL SYSTEM
STYLISH AUDIO WA-240
MUTE
POWER
VOLUME
INPUT SURROUND T/PMODE MEMO/SET
WA-240

Congratulations on Your Purchase!
Your new stylish personal audio system is designed to deliver
maximum enjoyment and years of trouble free service.
Please take a few monments to read this manual thoroughly.
It will explain the features and operation of your system and
help ensure a trouble free installation.
Please unpack your system carefully. We recommend that
you save the carton and packing material. They will be
helpful if you ever need to move your system and may be
required if you ever need to return it for service. Your system
is designed to be placed in a horizontal or vertical position.
To avoid early damage, never place the system near radiators,
in front of heating vents, in direct sunlight, or in excessively
humid or dusty locations. Connect your complementary
components as illustrated in the following section.
2
Introduction
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
This symbol is intended to alert the user
to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
This symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.
ENGLISH
WARNING
FOR U.S.A.
󳥎Note to CATV System Installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
󳥎FCC INFORMATION
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
󳢯Reorient or relocate the receiving antenna.
󳢯Increase the separation between the equipment and receiver.
󳢯Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
󳢯Consult the dealer or an experienced radio/TV technician for
help.
CAUTION: Any changes or modifications in construction of this
device which are not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
UNPACKING AND INSTALLATION
CLASS 1
LASER PRODUCT
CAUTION
Invisible laser radiation when the unit is open. Do not
stare into beam.
CAUTION:USE OF ANY CONTROLS, ADJUSTMENTS,OR
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

ENGLISH
READ THIS BEFORE OPERATING YOUR UNIT
3
FOR THE U.S.A. AND CANADA ......................... 120 V
Units shipped to the U.S.A. and Canada are
designed for operation on 120 V AC only.
Safety precaution with use of a polarized AC plug.
However, some products may be supplied with a
nonpolarized plug.
CAUTION : To prevent electric shock, match wide
blade of plug to wide slot, insert fully.
ATTENTION : Pour eviter les choc electriques,
introduire la lame la plus large de la borne
correspondante de la prise et poussre jusqu’au
fond.
FOR YOUR SAFETY
FOR EUROPE AND AUSTRALIA ............. 230 V/240 V
Units shipped to Australia are designed for
operation on 240 V AC only.
To ensure safe operation the three-pin plug supplied
must be inserted only into a standard three-pin
power point which is effectively earthed through the
normal household wiring. Extension cords used with
the equipment must be three-core and be correctly
wired to provide connection to earth.
Improper extension cords are a major cause of
fatalities. The fact that the equipment operates
satisfactorily does not imply that the power point is
earthed and that the installation is completely safe.
For your safety, if in any doubt about the effective
earthing of the power point, consult a qualified
electrician.
PAN-EUROPEAN UNIFIED VOLTAGE
All units are suitable for use on supplies 230-240 V
AC.
FOR YOUR SAFETY

1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
MUTE
INPUT
POWER
SURROUND T/PMODE MEMO/SET
VOLUME
WA-240

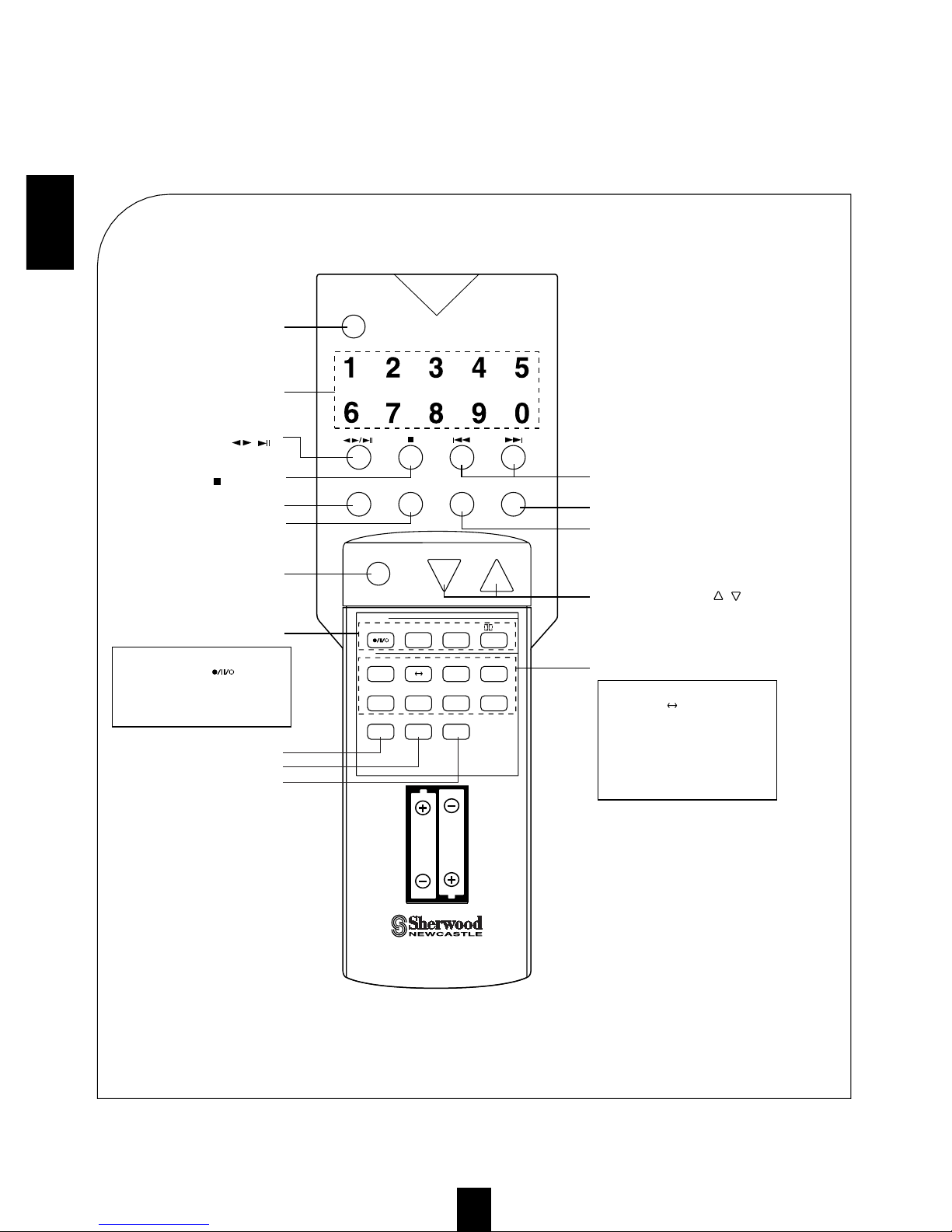

Remote control unit(1)
Speaker cords(2) Double-sided tape
Batteries(2) FM indoor antenna(1) FM adapter(1)
* For installing accessories,
refer to "Installation" on page 5.
4
ACCESSORIES
CONTENTS
Introduction
󳢯UNPACKING AND INSTALLATION ..................... 2
󳢯READ THIS BEFORE OPERATING YOUR UNIT 3
󳢯ACCESSORIES ......................................................... 4
Installation ....................................................................... 5
󳢯BEFORE INSTALLATION ....................................... 6
󳢯DESK-TOP INSTALLATION ................................... 7
󳢯WALL-MOUNT INSTALLATION ...........................8
System Connections ...................................................... 10
Controls............................................................................11
Before Operations

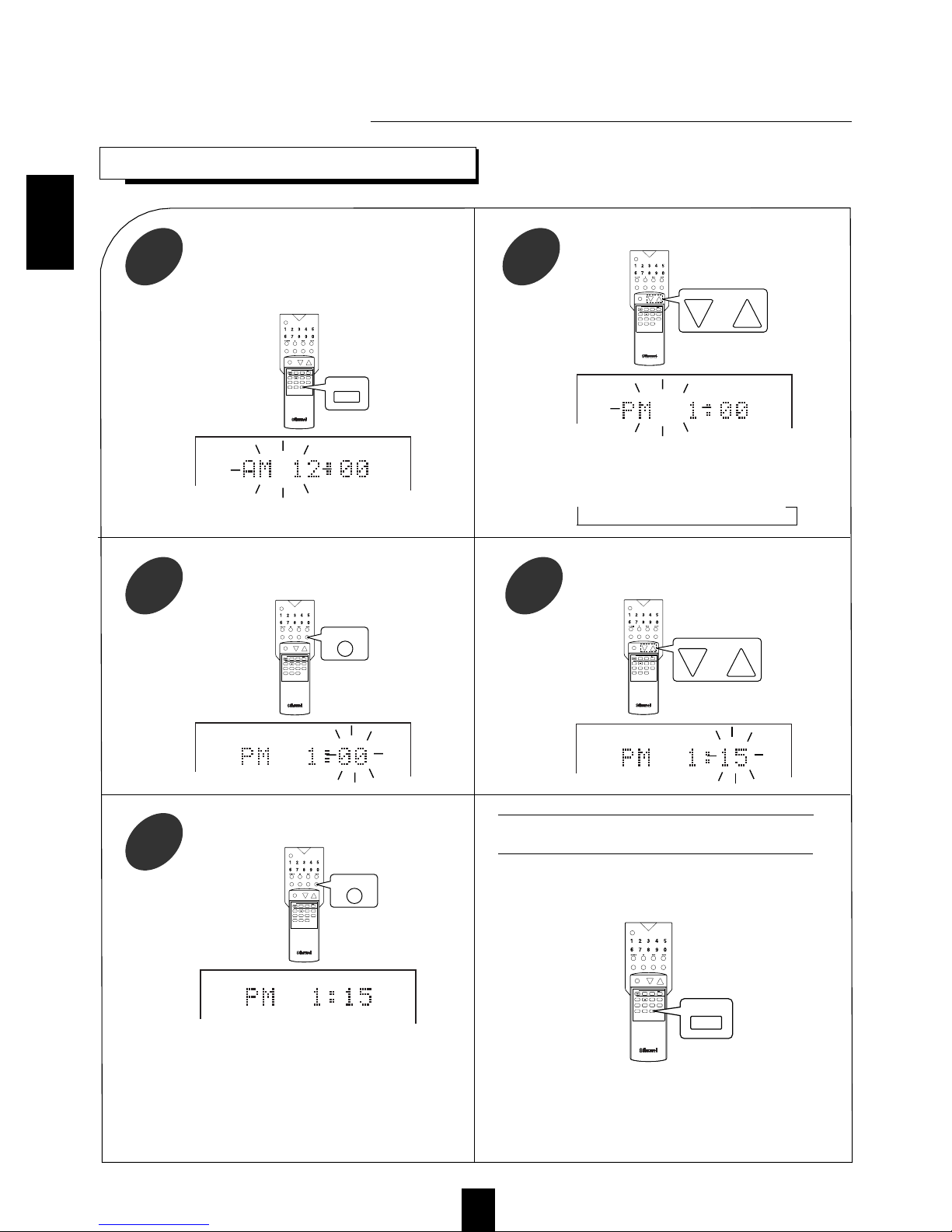

󳢯SETTING THE CLOCK ........................................... 14
󳢯BEFORE LISTENING TO MUSIC ..........................15
Operation of the Tuner
󳢯LISTENING TO FM BROADCASTS
(TUNING MODE) .................................................... 16
󳢯PRESETING RADIO STATIONS............................ 16
󳢯LISTENING TO PRESET STATIONS
(PRESET MODE) ..................................................... 17
Operation of the Compact Disc Player

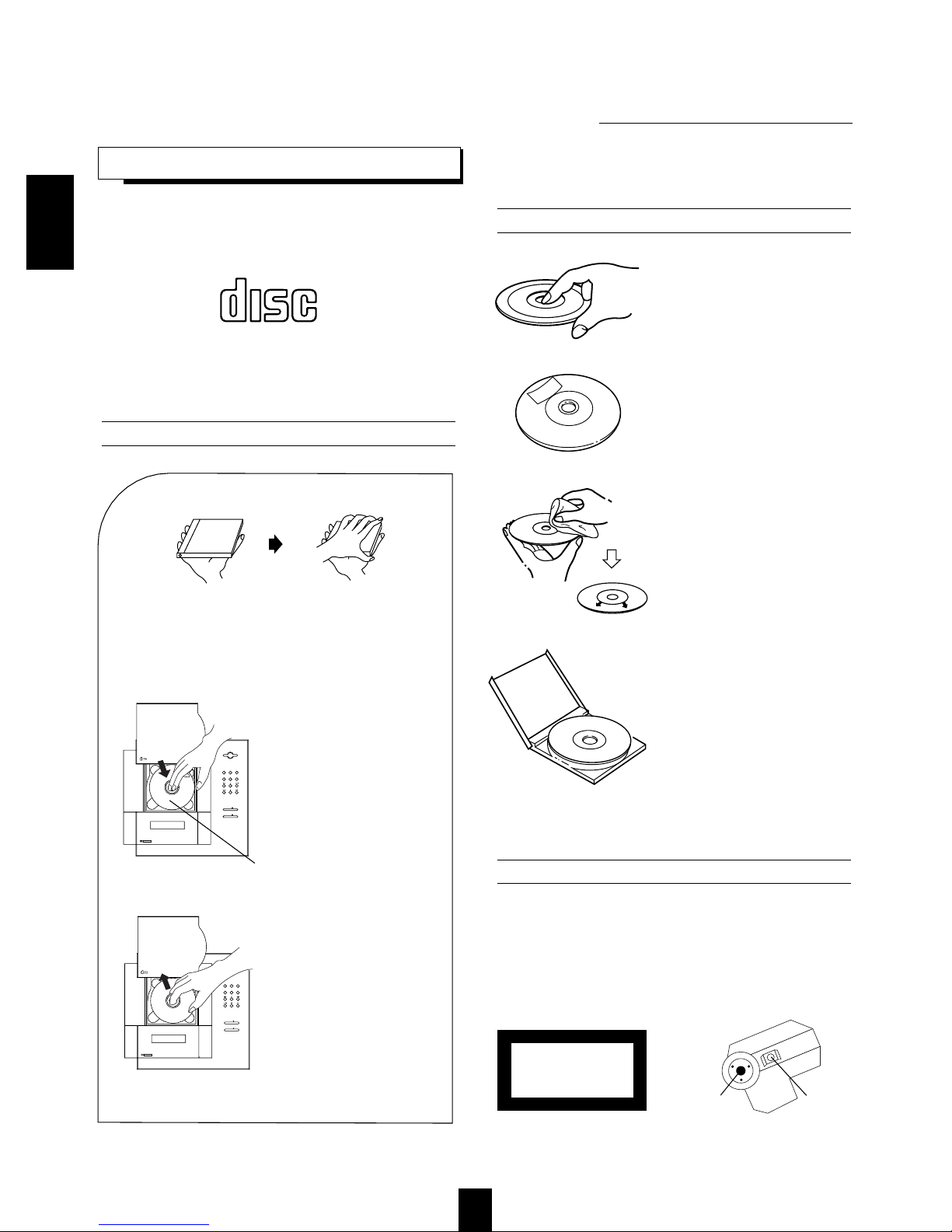

󳢯BEFORE OPERATION ............................................ 18

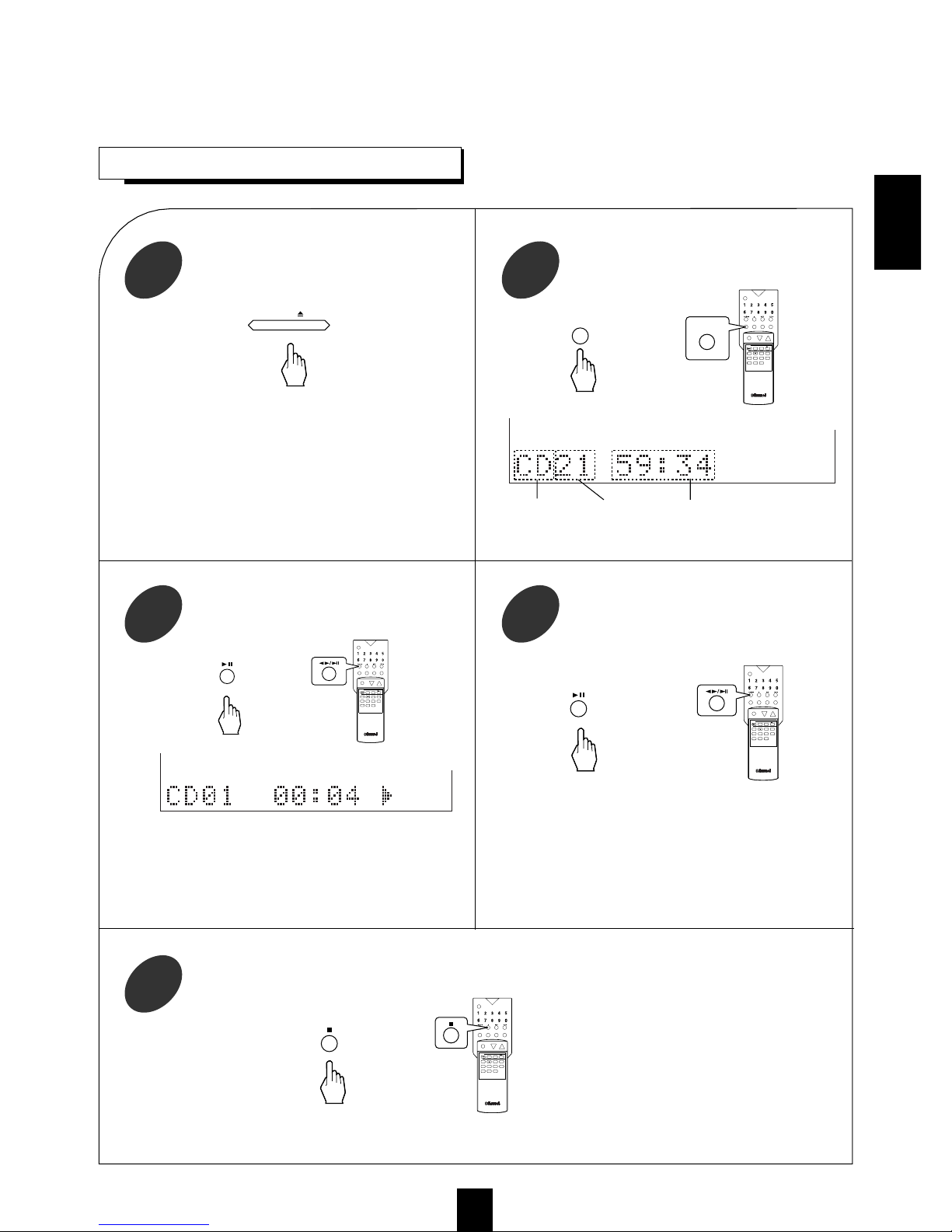

󳢯PLAYING A DISC.................................................... 19

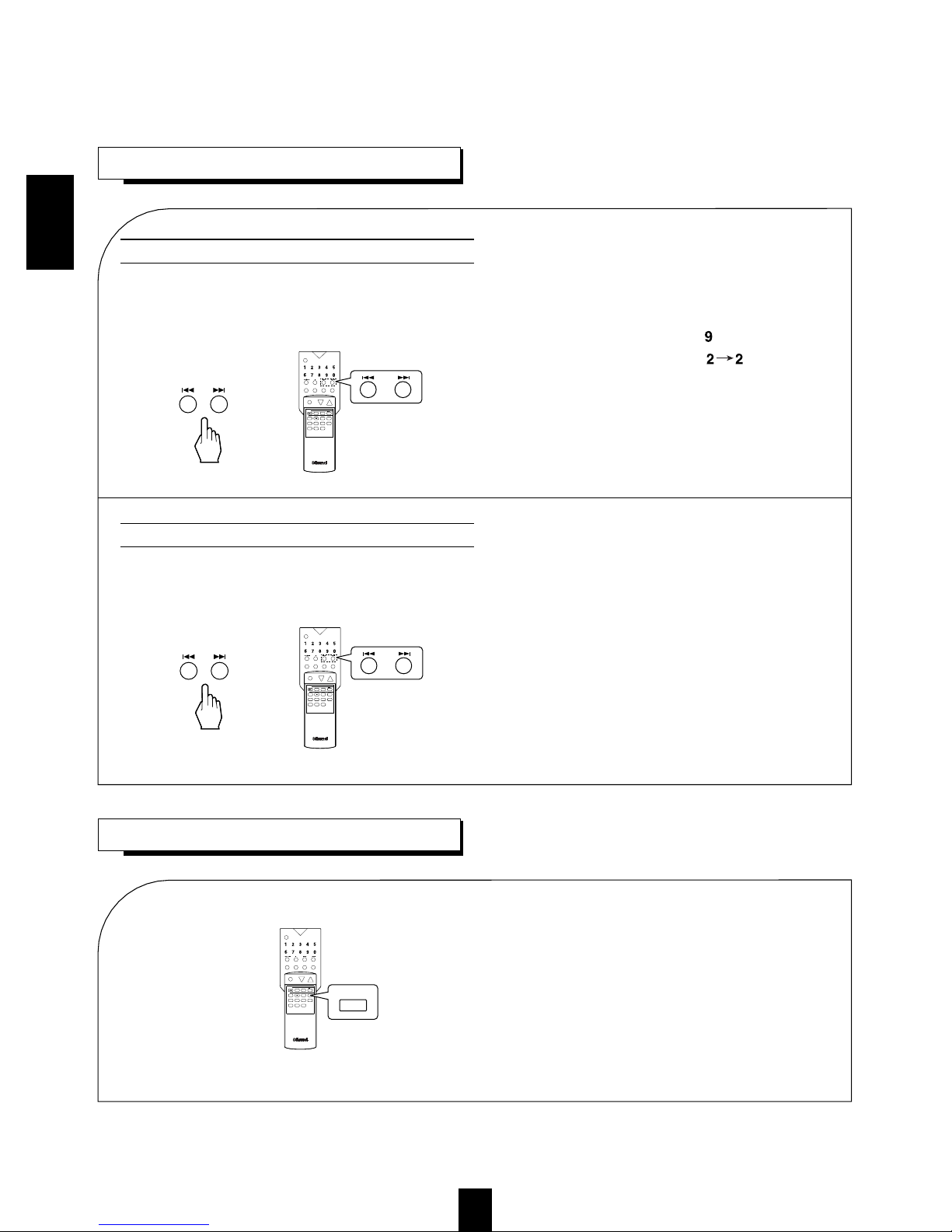

󳢯SKIP AND SEARCH PLAY..................................... 20
󳢯RANDOM PLAY...................................................... 20
󳢯REPEAT PLAY......................................................... 21
󳢯PLAYING THE FIRST 10 SECONDS OF EACH
TRACK(INTROSCAN PLAY)................................. 21
󳢯PLAYING TRACKS IN ANY SEQUENCE
(PROGRAMMED PLAY) ........................................ 22
󳢯SELECTING A TIME DISPLAY............................. 24
Operation of the Cassette Deck
󳢯BEFORE OPERATION ............................................ 25
󳢯PLAYING BACK A TAPE ...................................... 26
󳢯SEARCHING FOR NEXT OR PREVIOUS MUSIC
(AMS PLAYBACK) ................................................ 27
󳢯RECORDING............................................................ 28
󳢯CD SYNCHRO RECORDING ................................. 29
󳢯EDITING FOR RECORDING.................................. 30
Other Operations
󳢯OPERATING THE TIMER ...................................... 33
󳢯OPERATING THE SLEEP TIMER ......................... 37
󳢯LISTENING TO AUXILIARY INPUT ................... 37
Troubleshooting Guide ................................................. 38
Specifications ................................................................. 40
ENGLISH

Wall-mount
hole
Desk-top
hole
Wall-mount
hole
Wall-mount
hole
Desk-top
hole
Wall-mount
hole

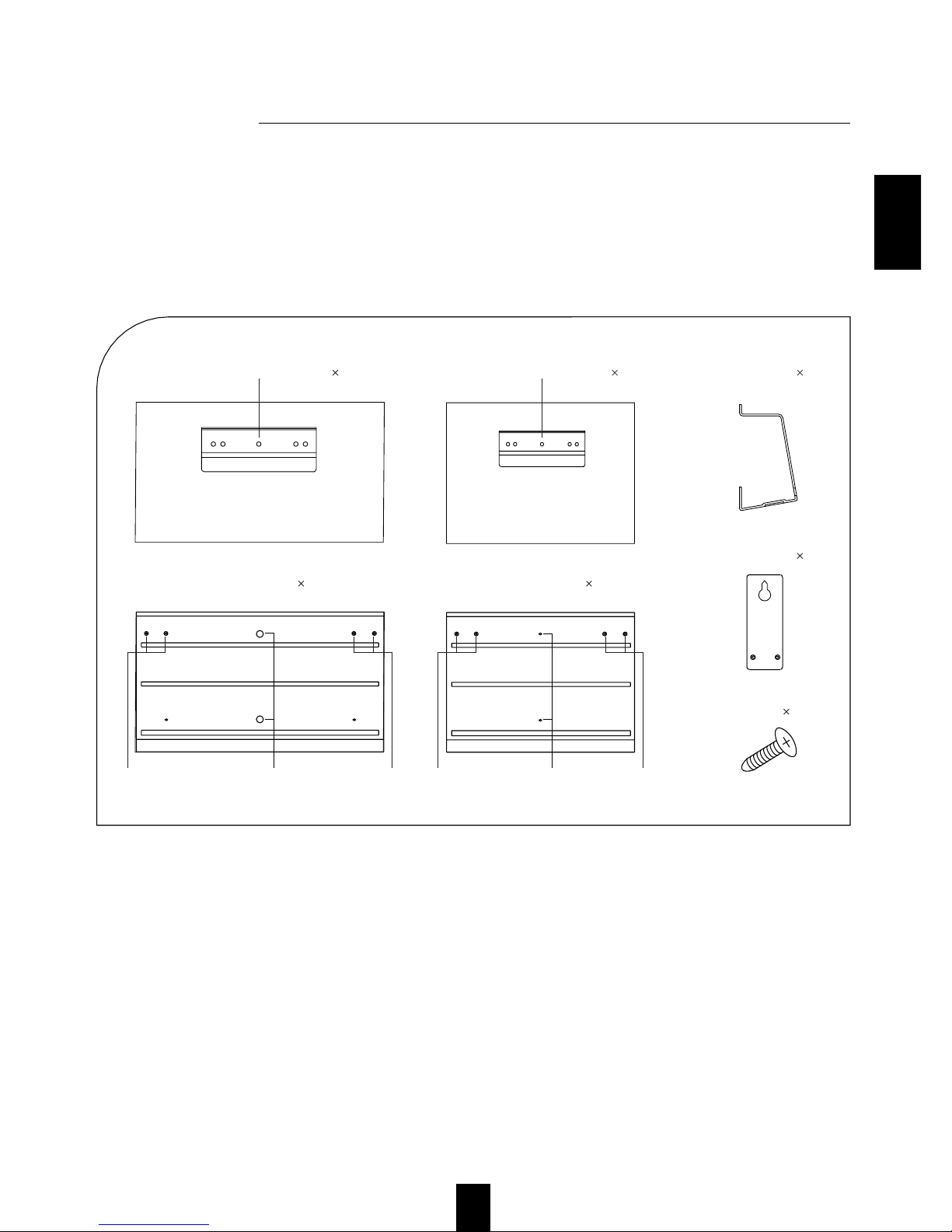

Main unit bracket(built-in) 1 Speaker bracket(built-in) 2 Desk-top stand 3
Wall-mount stand 6
Speaker stand 2Main unit stand 1
Screws 18
5
Installation
󳢯This system can be properly installed by either desk-top or wall-mount installation
󳥎Notes:
󳢯Install this system firmly on a flat and stable place where children cannot reach it and where it cannot injure children even
if there is a sudden fall.
󳢯Because the CD door opens upward, leave a sufficient space above this system for safe operation.
󳢯The supplied installing accessories are as follows.
󳢯When installing by the wall-mount method, the screws or nails necessary are not supplied.
󳢯To ensure proper installation use only the accessories supplied. The use of unauthorized parts may damage this system.
ENGLISH

6
BEFORE INSTALLATION
Remove the protective covers from the main
unit and the speakers.
2
Attach the speaker grills by changing the
position as illustrated.
3
Before installation, connect the speaker cords to the speakers, first.
4
Speaker grill
When it is packed.
Left speaker Right speaker
Detach the speaker grills from the speaker.
1
󳢯Changing the grills position will improve the
appearance.
A. Remove the insulation and twist the wire tip.
C. Insert the wire.
B. Fit the speaker cord into the groove on the bottom
of the speaker.
󳢯Make sure to connect the printed wire(+) to the red
terminal(+) and the plain one(-) to the black
terminal(-).
POWER
ON/OFF
INPUT
PRESET FMMODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
SOUNDRETRIEVAL SYSTEM
STYLISHAUDIO WA-240
Protective
cover
Speaker terminals
Bottom of the speaker
Speaker cord
ENGLISH

7
Turn the supplied screws clockwise to attach
the desk-top stand.
2
In the same manner, attach the desk-top stand to the speaker stand with
the supplied screws.
3
Insert the main unit bracket into the groove
of the main unit stand and slide it in place.
4
Align the desk-top holes of the main unit
stand and the holes of the desk-top stand as
illustrated.
1
In the same manner, insert the speaker
bracket into the groove of the speaker stand
and slide it in place.
5
Install this system firmly on a flat and stable
surface.
6Connect the corresponding components to
the main unit.(Refer to “System
Connections” on page 10.)
7
DESK-TOP INSTALLATION
󳢯Arrange the connection cords properly.
󳢯You can arrange the connection cords by passing
them into the space between the main unit and the
main unit stand.
󳢯The double-sided tape(supplied) may be used to
hold the speaker wire in place.
POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
DOLBYB NR
COMPACT
DIGITALAUDIO
Speaker cord
Speaker cord
ENGLISH

8
WALL-MOUNT INSTALLATION
Make marks on the position to fix and hammer the nails firmly into the wall,
or drill holes for wall anchors.
3
Turn the supplied screws clockwise to attach the wall-mount brackets.
2
Align the wall-mount holes on each side of the main unit stand and the holes of the wall-mount brackets.
1
󳥎Notes:
󳢯For safe and easy wall-mount installation, contact your dealer or our technical support organization.
󳢯Make sure to install this system firmly on a hard and flat wall such as solid concrete.
If not, this system may fall suddenly and it can cause this system and children to be injured.
For plasterboard walls, expansion anchors or toggle bolts are recommended.
󳢯Use nails with 6~7 mm diameter head. These are not supplied.
ENGLISH

9
Insert the main unit bracket into the groove
of the main unit stand and slide it in place.
5Install the speakers on the wall performing
the above steps 1~5.
6
󳢯Arrange the connection cords properly.
󳢯You can arrange the connection cords by passing them into the space between the main unit and the main unit stand.
󳢯The double-sided tape(supplied) may be used to hold the speaker wire in place.
Insert the nails into the holes of the wall-mount stands and fix them.
4
Connect the corresponding components to the main unit.(Refer to “System
connections” on page 10)
7
POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
DOLBYB NR
COMPACT
DIGITALAUDIO
Speaker cord
Speaker cord
ENGLISH

10
System Connections
󳥎Notes:
󳢯Do not plug the AC input cord into the AC outlet when plugging and unplugging connection cords.
󳢯Make connections firmly and correctly according to the channel(Left and Right), polarity(+ and -).
If not, it can cause loss of sound, noise or damage to the unit.
󳢯If the electricity fails or the AC input cord is left unplugged for more than 1 week, any memorized settings will be lost.
You will then need to memorize them again.
󳥎CONNECTIONS
󳢯Use the AUX jacks to connect any additional component such as TV, CD player or cassette deck, etc.
󳢯Change the position of the FM indoor antenna until you get the best reception of your favorite FM stations.
󳢯If the sound quality is poor with the FM indoor antenna, connect an FM outdoor antenna.
󳢯Be sure to use speakers of impedance 6 Ω.
󳢯The speakers(SP-240) are not shielded magnetically. Place the speakers as far as possible from TV to avoid interference
with the TV picture.
󳢯Place the FM antenna as far as possible from this system, TV, speaker cords and AC input cord.
󳢯To emphasize deep bass sounds, connect the “PREOUT” jacks to a powered subwoofer. At that time, connect one or both
channels as required by the powered subwoofer.
󳢯To operate speakers at higher power(over 30 W), connect the PREOUT jacks to a power AMP.
POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
SOUND RETRIEVAL SYSTEM
STYLISH AUDIO WA-240
AUX INPUT
RL
TV, CD player, etc.
AUX INPUT JACKS
1
FM ANTENNA TERMINAL
2
SPEAKER TERMINALS
3
PREOUT JACKS
4
AC INPUT CORD
5
ANTENNA FM 75Ω
FM INDOOR ANTENNA Left
Left
Right
Right
Powered
Subwoofer
Supplied Adapter
SPEAKERS
LR
R
PREOUT
L
POWER AMP.
120V
~60Hz
FUSE
401
SB2A
250V
F
U
S
E
Plug this cord into a wall
AC outlet.
FUSE HOLDER
6
If you need to replace the
fuse, be sure to use only fuse
of the same type and
rating("SB" type, 2A/250V)
and unplug the power cord
before replacing the fuse.
Close Open
ENGLISH

POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
PROGRAM REPEAT 1 B REC CD SYNC EDIT TUNED STEREO PRESET
RANDOM SURR INTRO TRACK TIME TIMER
SOUND RETRIEVAL SYSTEM
STYLISH AUDIO WA-240
CD DOOR TUNING/PRESET
MODE BUTTON
POWER BUTTON
INPUT SELECTOR BUTTON
VOLUME UP/DOWN( / ) BUTTONS
[TUNING, PRESET UP/DOWN],
<BACKWARD, FORWARD SKIP/SEARCH>,
(FAST FORWARD/REWIND)( / )
BUTTONS
(RECORD/RECORD PAUSE/RECORD
MUTE)( ) BUTTON
(FORWARD/REVERSE PLAY)( ) BUTTON
STOP( ) BUTTON
<PLAY/PAUSE>( ) BUTTON
<CD OPEN/CLOSE>( ) BUTTON
(DECK OPEN/CLOSE)( ) BUTTON
TAPE DOOR
PROGRAM REPEAT 1 B REC CD SYNC EDIT TUNED STEREO PRESET
RANDOM SURR INTRO TRACK TIME TIMER
■FLUORESCENT DISPLAY
REMOTE SENSOR
RANDOM INDICATOR
PROGRAM INDICATOR
REPEAT INDICATOR
SURROUND INDICATOR
INTROSCAN INDICATOR
DOLBY B NR INDICATOR RECORD INDICATOR
TRACK INDICATOR
TIME INDICATOR
TUNED INDICATOR
TIMER INDICATOR
STEREO INDICATOR
PRESET
INDICATOR
CD SYNC.
INDICATOR
TAPE EDIT
INDICATOR
FREQUENCY, CHARACTERS, OPERATING INFORMATION DISPLAY
FM MODE BUTTON
SURROUND BUTTON
11
Controls
󳥎FRONT PANEL CONTROLS
※The functions in“[ ]”are available for tuner only and the functions in “< >”are available for CD player only
and the functions in “( )”are available for cassette deck only.
ENGLISH

WA-240
1/ALL A B
CD SYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
MUTE
INPUT
POWER
SURROUND T/P MODE MEMO/SET
VOLUME
POWER BUTTON
NUMERIC BUTTONS
STOP( ) BUTTON
INPUT SELECTOR BUTTON
SURROUND BUTTON
MUTE BUTTON
SLEEP BUTTON
TIMER BUTTON
CLOCK BUTTON
■CASSETTE DECK SECTION
(FORWARD/REVERSE PLAY),
<PLAY/PAUSE>( / )
BUTTON
● RECORD/RECORD PAUSE/
RECORD MUTE( ) BUTTON
● CD SYNCHRO BUTTON
● REVERSE MODE BUTTON
● DOLBY B NR BUTTON
● REPEAT 1/ALL BUTTON
● REPEAT A B BUTTON
● INTROSCAN BUTTON
● RANDOM PLAY BUTTON
● TIME BUTTON
● EDIT BUTTON
● TAPE SIZE BUTTON
● PROGRAM/REVIEW BUTTON
[TUNING, PRESET UP/DOWN],
<BACKWARD FORWARD SKIP/SEARCH>,
(FAST FORWARD/REWIND) BUTTON
MEMORY/SET(COUNTER RESET) BUTTON
[TUNING/PRESET MODE] BUTTON
VOLUME UP/DOWN( / ) BUTTONS
■CD PLAYER SECTION
12
󳥎REMOTE CONTROLS
※The functions in “[ ]”are available for tuner only and the functions in “< >”are available for CD player only
and the functions in “( )”are available for cassette deck only.
ENGLISH

13
■REMOTE CONTROL OPERATION RANGE ■LOADING BATTERIES
󳢯Use the remote control unit within a range of
about 7 meters(23 feet) and angles of up to 30
degrees. Aim the remote at the remote sensor.
■NOTES:
󳢯Remove the batteries when not using the remote
control unit for a long time.
󳢯Replace the batteries with new ones if the remote
control unit does not operate even from a short
distance.
󳢯Do not use rechargeable batteries(Ni-Cd type).
Press and slide down the cover in the
direction of the arrow to remove the battery
compartment cover.
1
Load two size “AAA”batteries matching
the polarity.
2
POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DECK
SOUND RETRIEVAL SYSTEM
STYLISH AUDIO WA-240
7m
30
30
1/ALL A B
CDSYN REVMODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
MUTE
INPUT
POWER
SURROUND T/P MODE MEMO/SET
VOLUME
WA-240
MUTE
INPUT
POWER
SURROUND T/P MODE MEMO/SET
VOLUME
WA-240
1/ALL A B
CD SYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
MUTE
INPUT
POWER
SURROUND T/P MODE MEMO/SET
VOLUME
WA-240
ENGLISH

SETTING THE CLOCK
14
Press the “CLOCK”button for more than 3
seconds.
Example) When it is 1:15 P.M.
󳢯The time is displayed in the 12-hour mode.
󳢯In the standby mode, each time the “CLOCK”
button is pressed, the clock display mode changes as
follows;
󳥕12-hour mode 󳥕24-hour mode
1
Press the“MEMO/SET ”button to
memorize.
3
Press the “MEMO/SET”button to
memorize.
5
Set the hour.
2
Set the minutes.
4
󳢯The clock starts from “00”second.
󳢯The clock will not operate if the minutes are not
memorized.
󳢯If the electricity fails or the AC input cord of this
system is left unplugged for more than 1.5 seconds,
set the clock again.
when checking the time while
displaying other functions
Before Operations
Press the “CLOCK”button.
󳢯The time display shows for 3 seconds then the
previous display shows.
󳢯In the standby mode, the time display is lit dimly.
MUTE
POWER
VOLUME
WA-240
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
CLOCK
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
VOLUME
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
MEMO/SET
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
VOLUME
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
MEMO/SET
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CD SYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
CLOCK
WA-240
ENGLISH

15
BEFORE LISTENING TO MUSIC
󳢯Each time this button is pressed, the input source
changes as follows;
→TUNER →CD →TAPE →AUX
(Frequency display)
󳢯Each time this button is pressed, this unit changes
as follows;
󳥤
Operating mode : “hello”lights up.
󳥤
Standby mode : “good-bye”lights up.
󳢯In the standby mode, the time is displayed.
󳢯In the standby mode, this unit is not disconnected
from the AC mains and a small amount of current is
retained to support the memorized contents and
operation readiness.
󳢯If the input source is the CD or TAPE and more than
30 minutes elapses in the stop mode, this unit will
turn off automatically. (power - saving function)
󳢯When a powered subwoofer is connected, adjust the
subwoofer level as desired, referencing the sound
from the front speakers. (For details, refer to the
operating instructions of the subwoofer)
To turn the power
To adjust the volume
To temporarily silence the sound
To enjoy surround sound
To select the desired function as
input source
󳢯“mute”is flickering.
󳢯To resume the previous sound level, press again.
󳢯The word “SRS”and the SRS symbol(󳢯) are
registered trademarks of SRS Labs, Inc.
󳢯SRS technology under license from SRS Labs, Inc.
󳢯Each time this button is pressed, the surround mode
changes as follows ;
SRS: For continuous three dimensional sound field
󳥤effect.
movie: For the movie sound style.
󳥤
simulated: For concert hall sound style.
󳥤
music: For jazz music style.
󳥤
surround off: For no surround effect.
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
POWER
POWER
ON/OFF
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
INPUT
INPUT
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
VOLUME
VOLUME
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
MUTE
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
SURROUND
SURROUND
WA-240
or
or
ENGLISH

Listening to FM stereo broadcasts
16
Select the TUNER.
󳢯Each time this button is pressed, the FM mode
changes as follows;
→Stereo mode: “STEREO”lights up
Mono mode: “STEREO”goes off
󳢯When FM stereo broadcasts are poor because of
weak broadcast signals, select the FM mono mode
to reduce the noise. Then FM broadcasts are
reproduced in monaural sound.
󳢯“PRESET”lights up, then the preset number (“01”)
flickers for 5 seconds.
󳥎 ◀◀ : To decrease frequency
▶▶
󳥎 : To increase frequency
󳢯When pressing the buttons for more than 0.5 seconds,
the frequency changes continuously in sequence.
󳢯When a station is received, the “TUNED”indicator
lights up.
󳢯You can store up to 30 preferred stations in the memory.
󳢯Each time this button is pressed, the mode changes
as follows;
→Tuning mode : “PRESET”goes off
Preset mode : “PRESET”lights up ←
■Note: This unit will receive “FM”broadcasts only.
1
Select the tuning mode.
(“PRESET ”goes off)
2
Tune in the desired station frequency.
3
Tune in the desired station, performing the
steps 1 to 3 in “LISTENING TO FM
BROADCASTS (TUNING MODE)”.
1Press the “MEMO/SET”button. 2

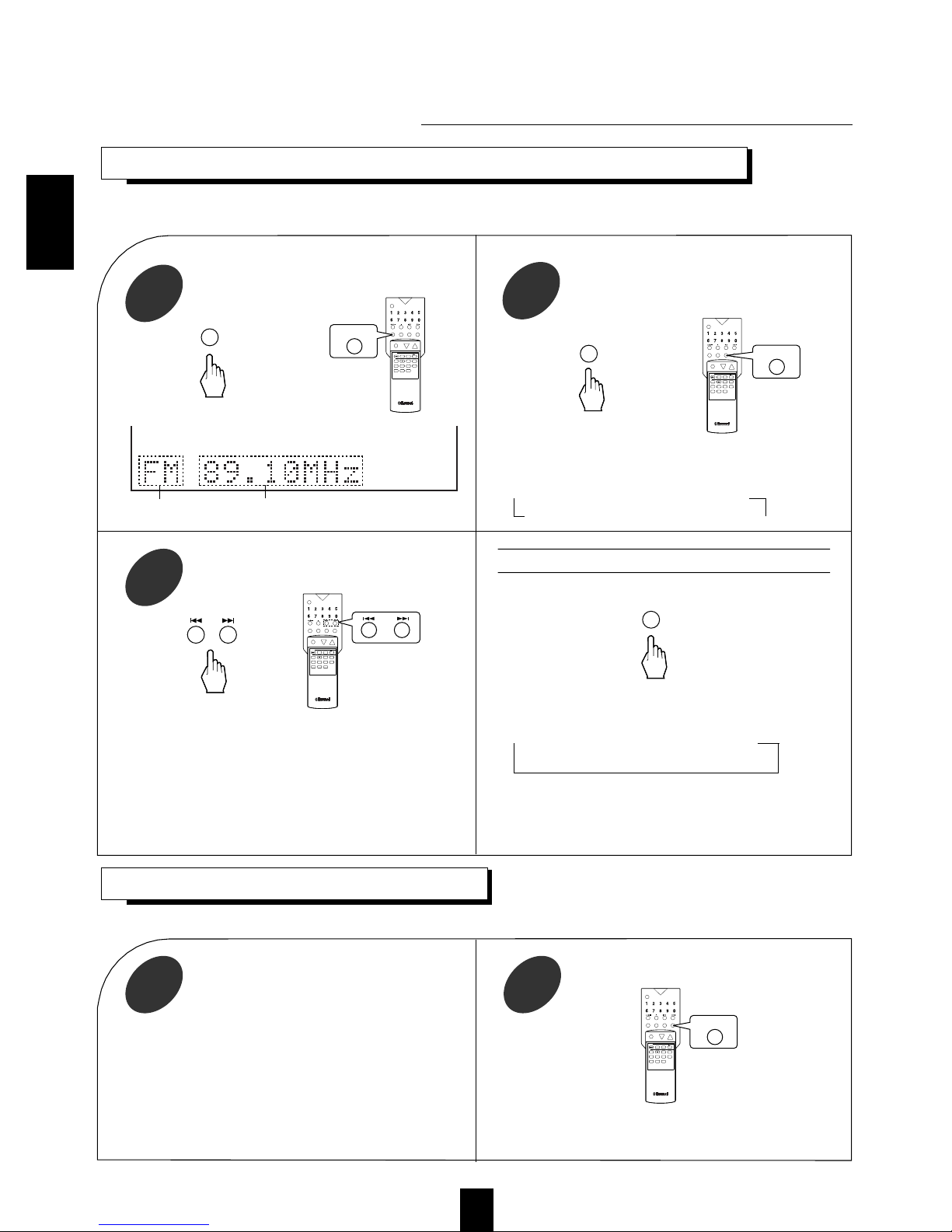

LISTENING TO FM BROADCASTS (TUNING MODE)
PRESETING RADIO STATIONS
Operation of the Tuner
BAND FREQUENCY
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
INPUT
INPUT
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
T/P MODE
PRESET
TUNING/
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
WA-240
or
FM MODE
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
MEMO/SET
WA-240
ENGLISH

17
󳢯When using the NUMERIC buttons on the remote
control,
Example) When selecting “9 ”:
When selecting “12 ”:
Note : When pressing the “0 ”button, the “30 ”is
selected automatically
󳢯If “PRESET”goes off, start from step 2 again.
Select the desired preset number.
3
Press the “MEMO/SET”button to
memorize.
󳢯When selecting the NUMERIC buttons, the station is
memorized automatically without the “MEMO/SET”
button.
󳢯A stored frequency is erased from the memory by
storing another frequency in its place.
󳢯If the electricity fails or the AC input cord is
disconnected for about 1 week, the memorized
contents will be lost. Should this happen, memorize
them again.
4
Select the TUNER.

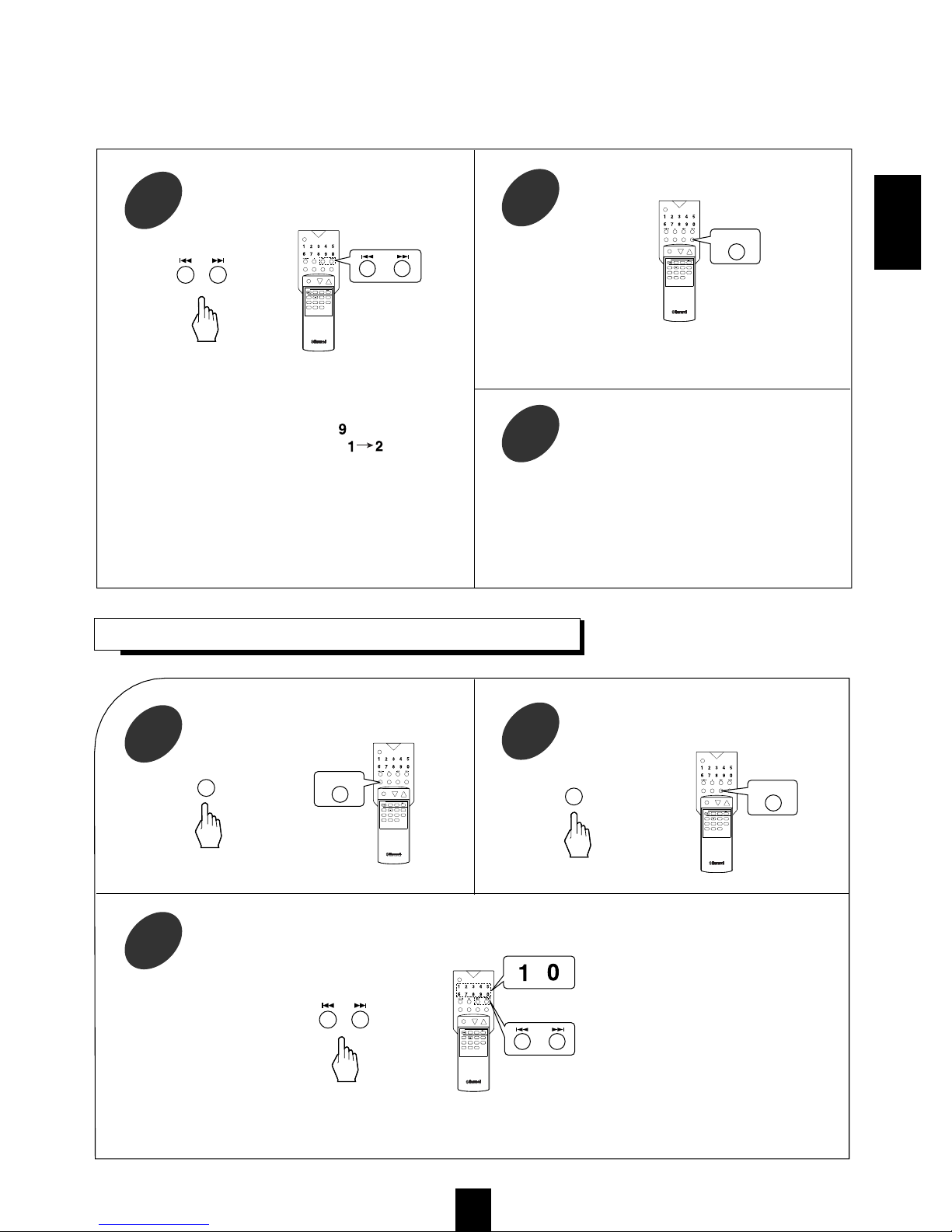

1
Select the desired preset number.
3
Select the preset mode
( “PRESET”lights up)
2
Repeat steps 1~4 to memorize other
stations
5
LISTENING TO PRESET STATIONS (PRESET MODE)
󳢯When selecting the desired preset number with the NUMERIC button, the desired preset station will be tuned in
automatically without selecting the preset mode.
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
MEMO/SET
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
INPUT
INPUT
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
T/P MODE
PRESET
TUNING/
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
~
WA-240
or
or
within 2 seconds
ENGLISH

18
BEFORE OPERATION
󳢯Only compact discs bearing this mark can be reproduced.
󳢯When opening a case cover, grasp the both side of the
cover with your fingers, then lift gently it.
󳢯When loading a disc
on the CD table,
always place it with
the printed side up.
󳢯When unloading a
disc on the CD table,
grasp the outer edge
of the disc with your
fingers and lift the
disc, pressing the
center hole.
Operation of the Compact Disc Player
How to load or unload a disc
About handling a disc
About a pick-up device
printed side
󳢯In handling a disc, hold it
carefully with edges.
󳢯Do not stick paper or write
anything on the printed
surface.
󳢯Fingermarks and dust on the
recorded surface should be
carefully wiped off with a
soft cloth. Wipe straight from
center to edge of the disc.
󳢯Always keep the discs in
their cases after use to protect
them from dust and scratches.
※Note : Do not expose discs to
direct sunlight, high
humidity or high
temperature for a long
time.
󳢯When opening the CD door, a pick-up device is shown
as follows. At this time, do not touch the pick-up
device with your fingers. If so, it may be damaged.
󳢯Do not stare into the laser-beam directly. If you do so,
your eyes may be injured.
COMPACT
DIGITAL AUDIO
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DOLBYB NR
DIGI TA L AUDIO
COMPACT
POWER
ON/OFF
INPUT
PRESET FM MODE SURROUND
TUNING/
CD
CD DECK
VOLUME
DOLBYB NR
DIGITALAUDIO
COMPACT
CD table pick-up
CLASS 1
LASER PRODUCT
ENGLISH

19
PLAYING A DISC
Open the CD door to load a disc.
1Select the CD. 2
To stop play.
5
To interrupt play temporarily.
4
󳢯When the CD door is kept opened over 60 seconds
or enters the standby mode, the CD door will close
automatically.
󳢯8 cm(3 inch) CDs can be loaded, too.
󳢯Note : Do not open or close the CD door by force.
Doing so may damage it.
󳢯When pressing the PLAY/PAUSE (▶
󳥎󳥎 ) , RANDOM
PLAY button, etc. without selecting the CD, the CD
will be selected automatically and play starts.
Selected input Total tracks Total playing time
󳢯“ 󳥎󳥎 ”lights up.
󳢯Press this button again to restart play.
CD
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REVMODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
CD
WA-240
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
CD
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
WA-240
or
Start play.
3
PLAY MODE
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/P MODE MEMO/SET
INPUT
INPUT
REPEAT 1 B REC CD SYNC EDIT TUNED STEREO PRESET
RANDOM SURR INTRO TRACK TIME TIMER
WA-240
or
STOP MODE
ENGLISH

20
SKIP AND SEARCH PLAY
RANDOM PLAY
󳢯Press the button momentarily and repeatedly until
the desired track is selected.
󳢯When using the NUMERIC buttons on the remote
control,
Example) When selecting “9 ”:
When selecting “22 ”:
󳢯Press and hold down the button until the desired passage is reached.
󳢯“RANDOM”lights up.
󳢯The unit automatically selects and plays tracks on
the disc in random sequence.
󳢯Press it again to cancel the random play.
Selecting a desired track
Searching for a passage during play
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
WA-240
or
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
RANDOM
WA-240
within 2 sec.
MUTE
POWER
VOLUME
1/ALL A B
CDSYN REV MODE
REPEAT INTRO RANDOM
NR
EDITTIME T.SIZE PROG/REV
TIMERSLEEP CLOCK
DECK
CD
INPUT SURROUND T/PMODE MEMO/SET
WA-240
or
ENGLISH
