Shindaiwa 78704 Owner's manual

Model: 78704
MULTI-PURPOSE
TILLER/CULTIVATOR TOOL
SHINDAIWA OWNER’S/OPERATOR’S MANUAL
X7502882901
Minimize the risk of injury to yourself and others!
Read this manual and familiarize yourself with the
contents. Always wear eye and hearing protection
when operating this unit.
WARNING!
02/13

2
Model: 78704
MULTI-PURPOSE
TILLER/CULTIVATOR TOOL
SHINDAIWA OWNER’S/OPERATOR’S MANUAL
X7502882900
Minimize the risk of injury to yourself and others!
Read this manual and familiarize yourself with the
contents. Always wear eye and hearing protection
when operating this unit.
WARNING!
08/11

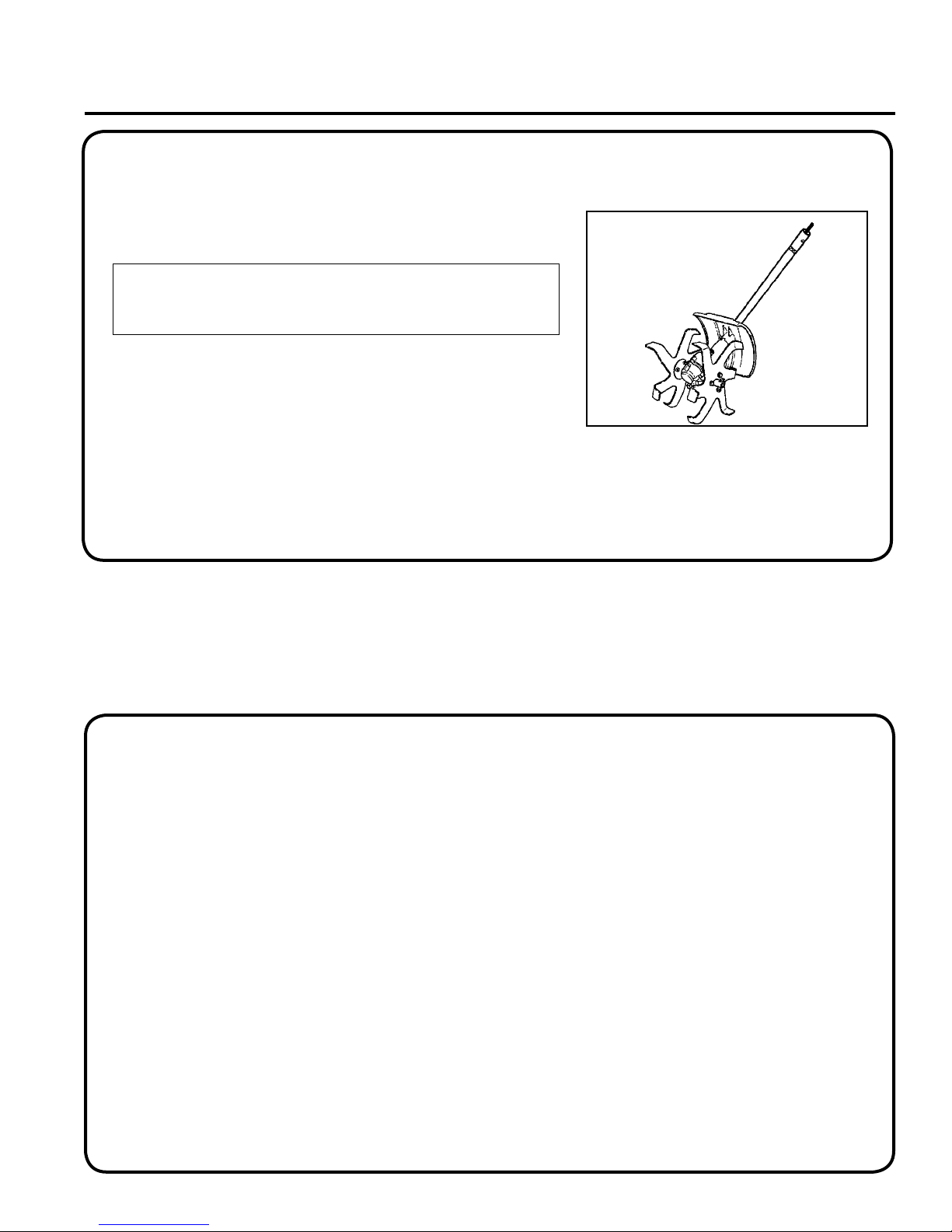

the operator'smanual
Contains specications and information for operation, starting,
stopping, maintenance, storage and assembly specic to this product.
table of Contents
Introduction ................................................................2
- The Operator's Manual ........................................2
Safety .........................................................................3
- Manual Safety Symbols & Important Information3
- International Symbols .........................................3
- Personal Condition and Safety Equipment .........3
- Equipment ..............................................................6
Description .................................................................7
Contents .....................................................................8
Assembly....................................................................8
- Installing a Tool Attachment ...............................8
- Removing the Pole Sections ................................8
Operation ....................................................................8
- Resetting Tines for Deep Cultivation ................10
Maintenance ............................................................. 11
- Skill Levels ........................................................ 11
- Maintenance Intervals ....................................... 11
- Lubrication ........................................................12
Storage .....................................................................13
Specications ...........................................................13
Warranty Statement .................................................. 14
Servicing Information ..............................................16
- Parts/Serial Number .......................................... 16
- Service ...............................................................16
- Shindaiwa Consumer Product Support ............. 16
- Warranty Registration .......................................16
- Additional or Replacement Manuals .................16
Specications, descriptions and illustrative material in this
literature are as accurate as known at the time of publica-
tion, but are subject to change without notice. Illustrations
may include optional equipment and accessories, and may
not include all standard equipment.
IntroduCtIon
Welcome to the Shindaiwa family. This Shindaiwa product was designed and manufactured to provide long life and
on-the-job-dependability. Read and understand this manual included with your attachment. You will nd this manual
easy to use and full of helpful operating tips and SAFETY messages.

Multipurpose tiller / Cultivator attaChMent
operator'sManual 3

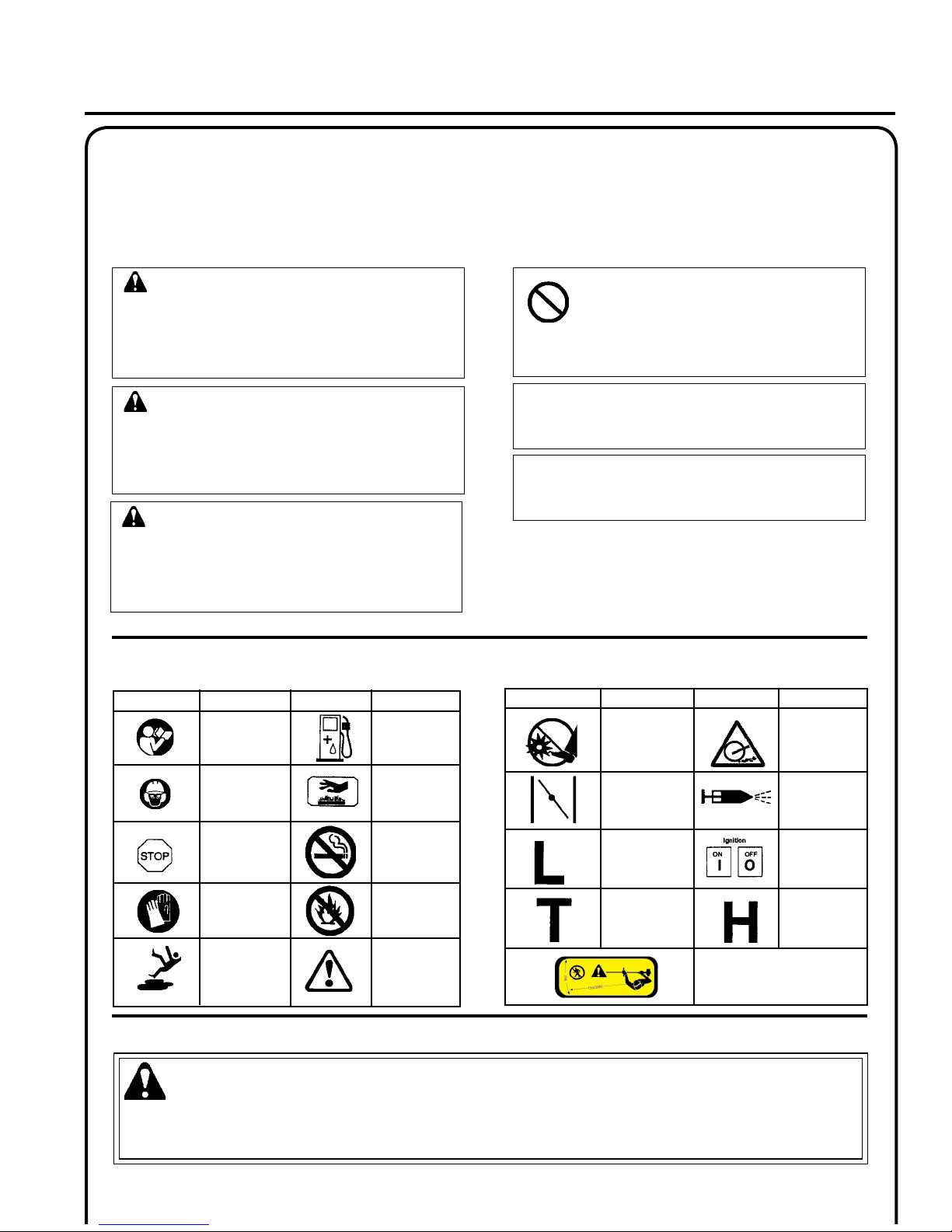

InternatIonal symbols
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Read and under-
stand Operator's
Manual.
Fuel and oil
mixture
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjust-
ment
- Idle speed
Carburetor adjust-
ment
- High speed
mixture
Wear eyes, ears
and head protec-
tion
Emergency stop Carburetoradjust-
ment
- Low speed
mixture
Safety/Alert
Wear hand
protection. Use
two handed.
DO NOT smoke
near fuel.
DO NOT allow
ames or sparks
near fuel.
Wear slip resis-
tant foot wear.
Engine choke
control.
Ignition
ON/OFF
Primer bulb
Keep bystanders and helpers
away 15 m (50 ft.).
Keep feet away
from rotating
attachment
Thrown objects
safety
manual safety symbols and Important InformatIon
Throughout this manual and on the product itself, you will nd safety alerts and helpful, informational messages pre-
ceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean
to you.
personal CondItIon and safety equIpment
WARNING
Cultivator users risk injury to themselves and others if the cultivator is used improperly and or safety precautions
are not followed. Proper clothing and safety gear must be worn when operating a cultivator.
CAUTION
The safety alert symbol accompanied by the word
“CAUTION” calls attention to an act or condition
which may lead to minor or moderate personal
injury if not avoided.
WARNING
The safety alert symbol accompanied by the word
“WARNING” calls attention to an act or condi-
tion which CAN lead to serious personal injury or
death if not avoided.
CIRCLE AND SLASH SYMBOL
This symbol means the specic action
shown is prohibited. Ignoring these prohi-
bitions can result in serious or fatal injury.
NOTE
This enclosed message provides tips for use, care and
maintenance of the unit.
IMPORTANT
The enclosed message provides information neces-
sary for the protection of the unit.
DANGER
The safety alert symbol accompanied by the word
“DANGER” calls attention to an act or condition
which WILL lead to serious personal injury or
death if not avoided.

4
Physical Condition
Your judgment and physical dexterity may not be good:
• if you are sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection
Wear eye protection that meets ANSI Z87.1 or CE requirements whenever you operate the unit.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your grip on the handles. Gloves also reduce the transmission of ma-
chine vibration to your hands.
Hearing Protection
Shindaiwa recommends wearing hearing protection whenever unit is used.
Proper Clothing
Wear snug tting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• Wear hair covering to contain long hair.
• DO NOT WEAR SHORTS,
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or hanging items that could become entangled
in moving parts or surrounding growth.Wear sturdy work shoes with non-skid soles;
• DO NOT WEAR OPEN TOED SHOES,
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Hot Humid Weather
Heavy protective clothing can increase operator fatigue which may lead to heat stroke. Schedule heavy work for early
morning or late afternoon hours when temperatures are cooler.
Vibration and Cold --
It is believed that a condition called Raynaud’s Phenomenon, which affects the ngers of certain individuals may be
brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sen-
sations followed by loss of color and numbness in the ngers. The following precautions are strongly recommended
because the minimum exposure which might trigger the ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles,
hands and wrists.
• Maintain good blood circulation by performing vigorous arm exer-
cises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to ll each day with jobs where
operating the unit or other hand-held power equipment is not
required.
• If you experience discomfort, redness, and swelling of the ngers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.

Multipurpose tiller / Cultivator attaChMent
operator'sManual 5
Repetitive Stress Injuries --
It is believed that overusing the muscles and tendons of the ngers, hands, arms, and shoulders may cause soreness,
swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high
risk for developing a Repetitive Stress Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome (CTS), which
could occur when your wrist swells and squeezes a vital nerve that runs through the area. Some believe that prolonged
exposure to vibration may contribute to CTS. CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position. In-
stead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index nger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force in which you do the repetitive move-
ment.
• Do exercises to strengthen the hand and arm muscles.
• See a doctor if you feel tingling, numbness or pain in the ngers,
hands, wrists or arms. The sooner RSI/CTS is diagnosed, the more
likely permanent nerve and muscle damage can be prevented.
DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and
Safety Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 15 m (50 ft.) while the
unit is in use.
Keep a Firm Grip
• Hold the front and rear handles with both hands, with thumbs and
ngers encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on lad-
ders. Do not over reach.
Avoid Hot Surfaces
• Keep exhaust area clear of ammable debris. Avoid contact during
and immediately after operation.

6
equIpment
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or replace as needed.
• Inspect shield for damage and that it is securely in place. Replace if shield is damaged or missing.
• Check that the cutting tines are rmly attached and in safe operating condition.
• The cultivator gear housing is designed for Shindaiwa recommended tines. Do not modify the gear housing for any
other purpose or replace tines with other type or size.
Parts
• Do not use cultivator attachment if any part is missing or damaged.
• Have repairs done only by an authorized Shindaiwa Service dealer.
• Do not use any attachment, accessory, or replacement part unless it is recommended in this Operator's Manual.
WARNING
Use only Shindaiwa approved attachments. Serious injury may result from the use of a non approved attachment
combination. Read and comply with all safety instructions listed in this manual and safety manual. Shindaiwa will
not be responsible for the failure of cutting devices or accessories which have not been tested and approved by Shin-
daiwa for use with this unit.
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings.
• ALWAYS stop engine, disconnect spark plug, and make sure all moving parts have come to a complete stop
before removing obstructions, clearing debris, or servicing unit.
• DO NOT start or operate unit unless all guards and protective covers are properly assembled to unit.
• NEVER reach into any opening while the engine is running. Moving parts may not be visible through openings.

Multipurpose tiller / Cultivator attaChMent
operator'sManual 7

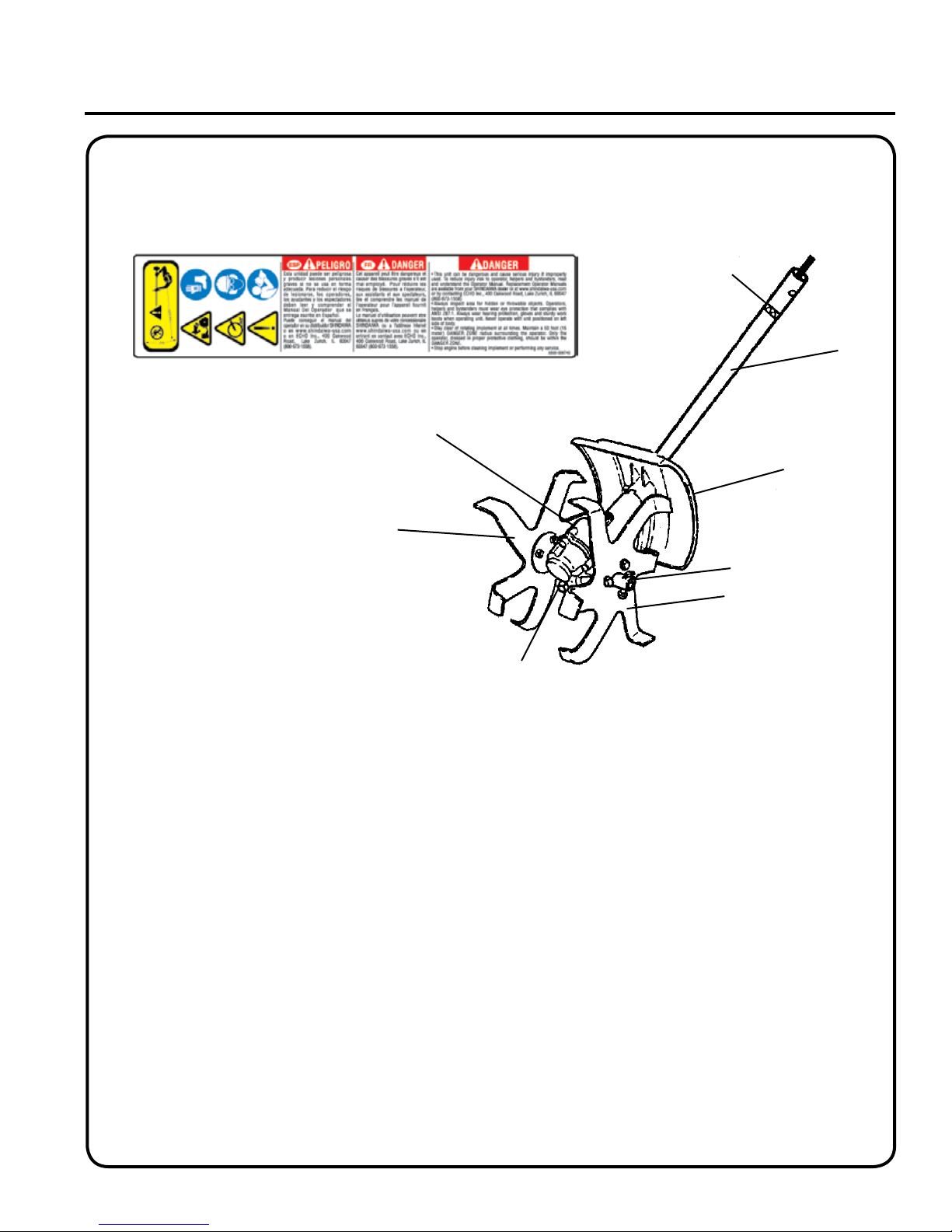

desCrIptIon
Locate this safety decal on your unit. Make sure the decal is legible and that you understand and follow the instructions.
If the decal cannot be read, a new one can be ordered from your Shindaiwa Dealer. See PARTS ORDERING instructions
for specic information.
1
2
3
4
5
4
6
7
1. DRIVE SHAFT ASSEMBLY - Contains a specially designed liner and the exible drive shaft.
2. SHIELD - Attached to deect debris away from operator and reduce accidental contact with tines.
3. HUB - Separately attached to axle ends by clevis pin and spring pin. Tines bolt to hubs.
4. TINES - Identical on right and left side from operator's position. See page 10 for optional settings.
5. GREASE ACCESS BOLT - Apply grease to gear housing every 25 hours of use.
6. GEAR HOUSING - Houses gears and ball bearings for driving tines.
7. SERIAL NUMBER LABEL - Also serves as insertion line when drive shaft is properly engaged.

8
Contents
The Shindaiwa product you purchased has been factory pre-assembled for your convenience. After opening the carton,
check for damage. Immediately notify your retailer or Shindaiwa Dealer of damaged or missing parts. Use the contents
list to check for missing parts.
1 - Tiller / Cultivator Attachment
- Operator's Manual
Model: 78704
MULTI-PURPOSE
TILLER/CULTIVATOR TOOL
SHINDAIWA OWNER’S/OPERATOR’S MANUAL
X7502882900
Minimize the risk of injury to yourself and others!
Read this manual and familiarize yourself with the
contents. Always wear eye and hearing protection
when operating this unit.
WARNING!
08/11
1. Place the Multipurpose Tool Carrier (A) and the Tool Assembly (B)
on a clean, at surface so that both assemblies t end to end. The
powerhead assembly should be facing up, and the tool assembly
should be positioned with the locking hole in the tube (C) end facing
up.
CAUTION!
Keep the open ends of the tubes clean and free of Debris!
2. Slip off the protective cover from the end of the tool, and loosen the
coupler screw knob (D).
3. Insert the tool assembly into the coupler (E), with the tool decal fac-
ing up, until the line of the decal is ush with the end of the coupler.
Twist the tool back and forth until you are sure it snaps in place by
the coupler latch (F).
4. When the two tube halves are locked together, press down on the
spring-loaded latch protector (G) and tighten the coupler screw knob.
assembly
InstallIng atool attaChment
M23004
A
B
C
D
E
F
G
M23005
G
D
E
M23006
removIng atool attaChment
1. Place the Multipurpose Tool Carrier and the Tool Assembly on a
clean, at surface, loosen the coupler screw knob (D). The spring-
loaded coupler protector (G) should pop up.
2. Press down on the latch (F) with your nger or thumb. This releases
the coupler latch.
3. Pull the tool assembly (B) out of the coupler (E).

Multipurpose tiller / Cultivator attaChMent
operator'sManual 9

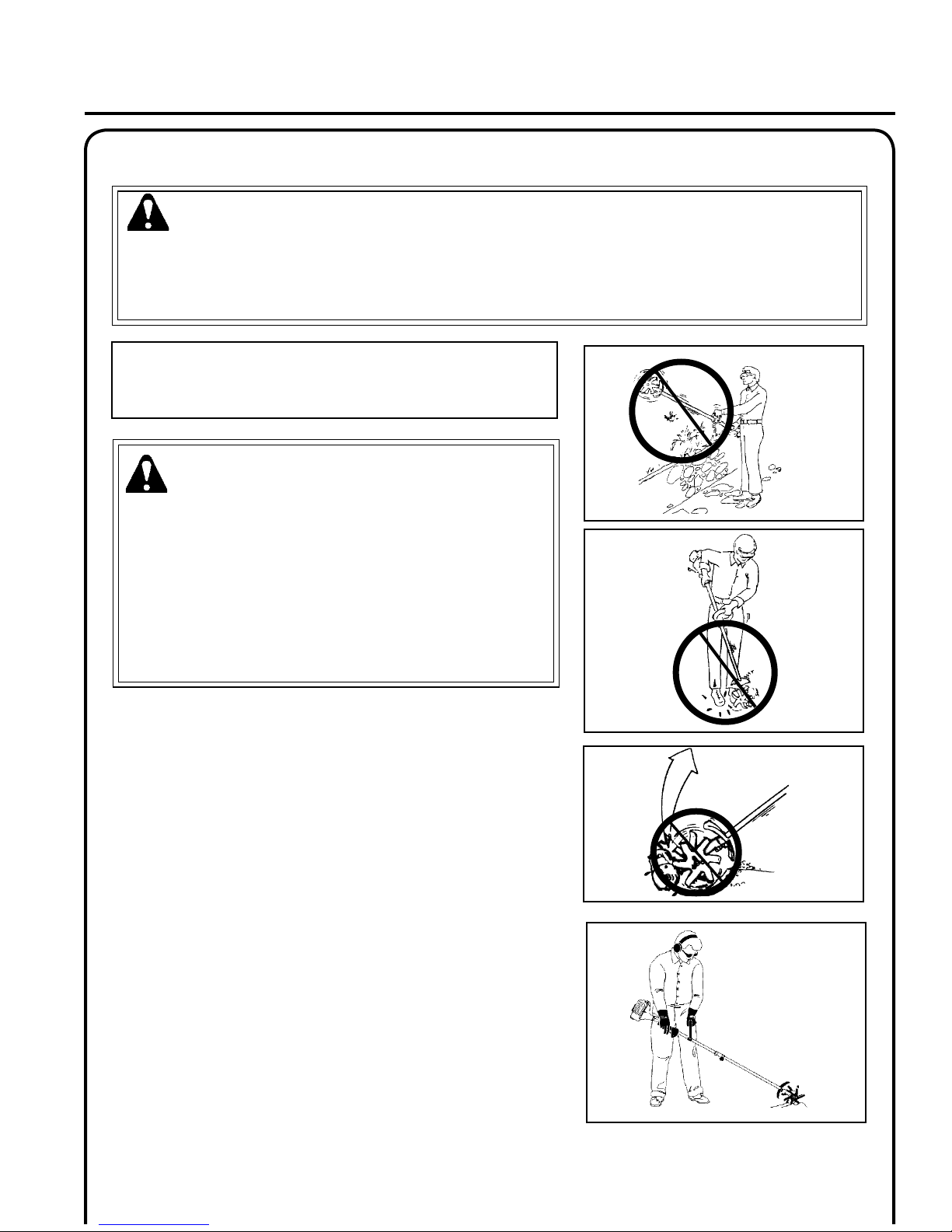

NOTE
Refer to your Multipurpose Tool Carrier Operator's Manuals for
correct engine fueling, starting and stopping instructions.
WARNING
• When engine starts tines may rotate. Warn fellow workers and
keep children and pets from coming nearer than 4.5 m (15 ft.).
• Always operate cultivator with both hands.
• Always stop engine when transporting unit to or between work
areas.
• Do not perform maintenance procedures, unclog or clean cultiva-
tor tines while engine is running.
• Do not operate the cultivator above ground level or near feet.
• Do not allow the tines to contact large obstructions which may
cause kickback and loss of control.
• Failure to follow these warnings may result in serious injury.
operatIon
Operating Techniques
1. The tilling width of the cultivator is approximately 165 mm (6.5
in.). Place cultivator in area to be tilled, hold unit rmly with left
hand on front grip and right hand on rear grip and gradually engage
throttle trigger. Guide the cultivator allowing the tines to pull
forward. The soil hardness will control tilling speed.
WARNING
Moving parts can amputate ngers or cause severe injuries. Keep hands, clothing and loose objects away from all
openings. Always stop engine, disconnect spark plug, and make sure all moving parts have come to a complete
stop before removing obstructions, clearing debris, or servicing unit. Allow unit to cool before performing service.
Wear gloves to protect hands from sharp edges and hot surfaces.

10
3. To raise or aerate the soil, tilt engine closer to the ground which
will raise cultivator tines higher relative to the soil surface.
IMPORTANT
Do not operate cultivator underwater. The gear housing is not
sealed and water will wash away lubrication, damaging gears,
bearings, and seals.
A

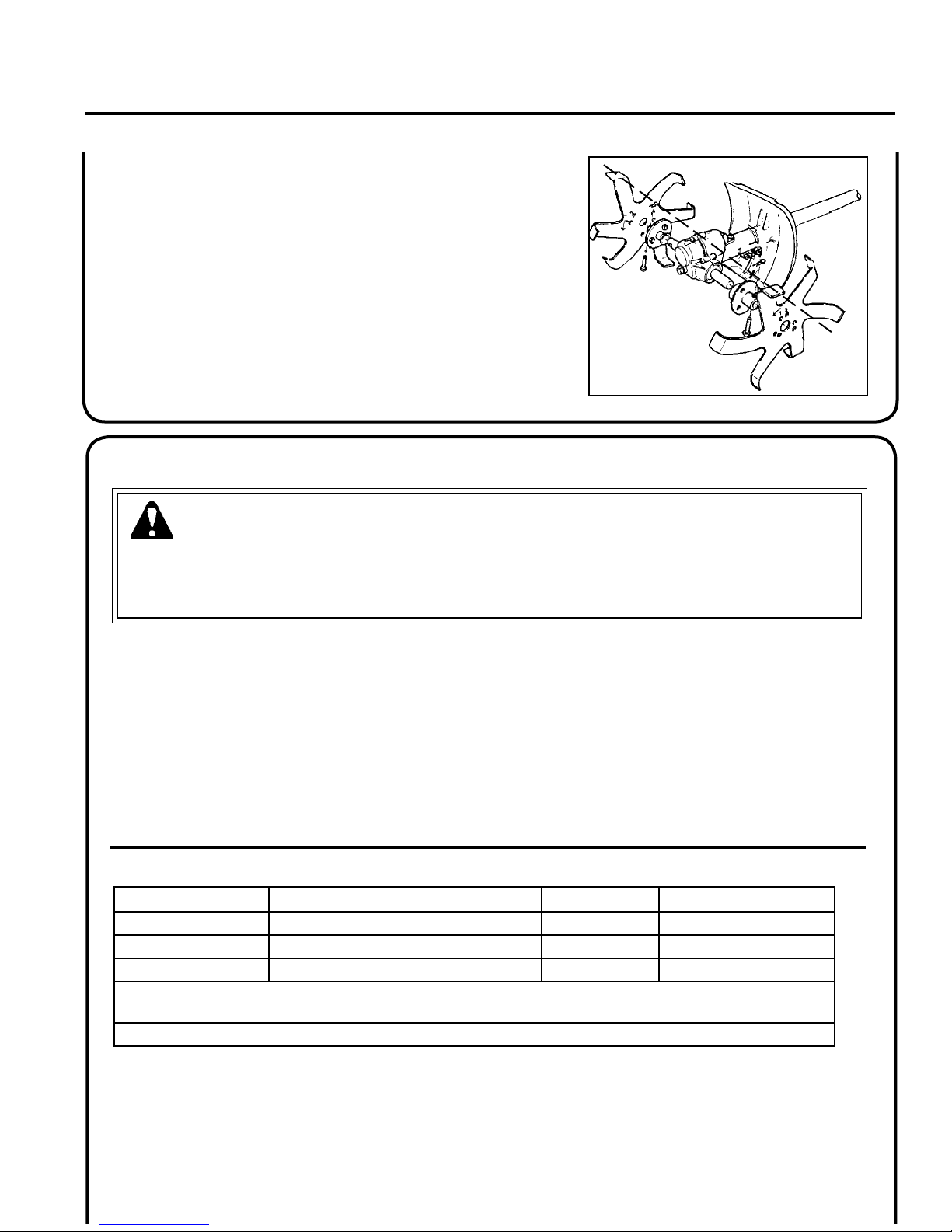

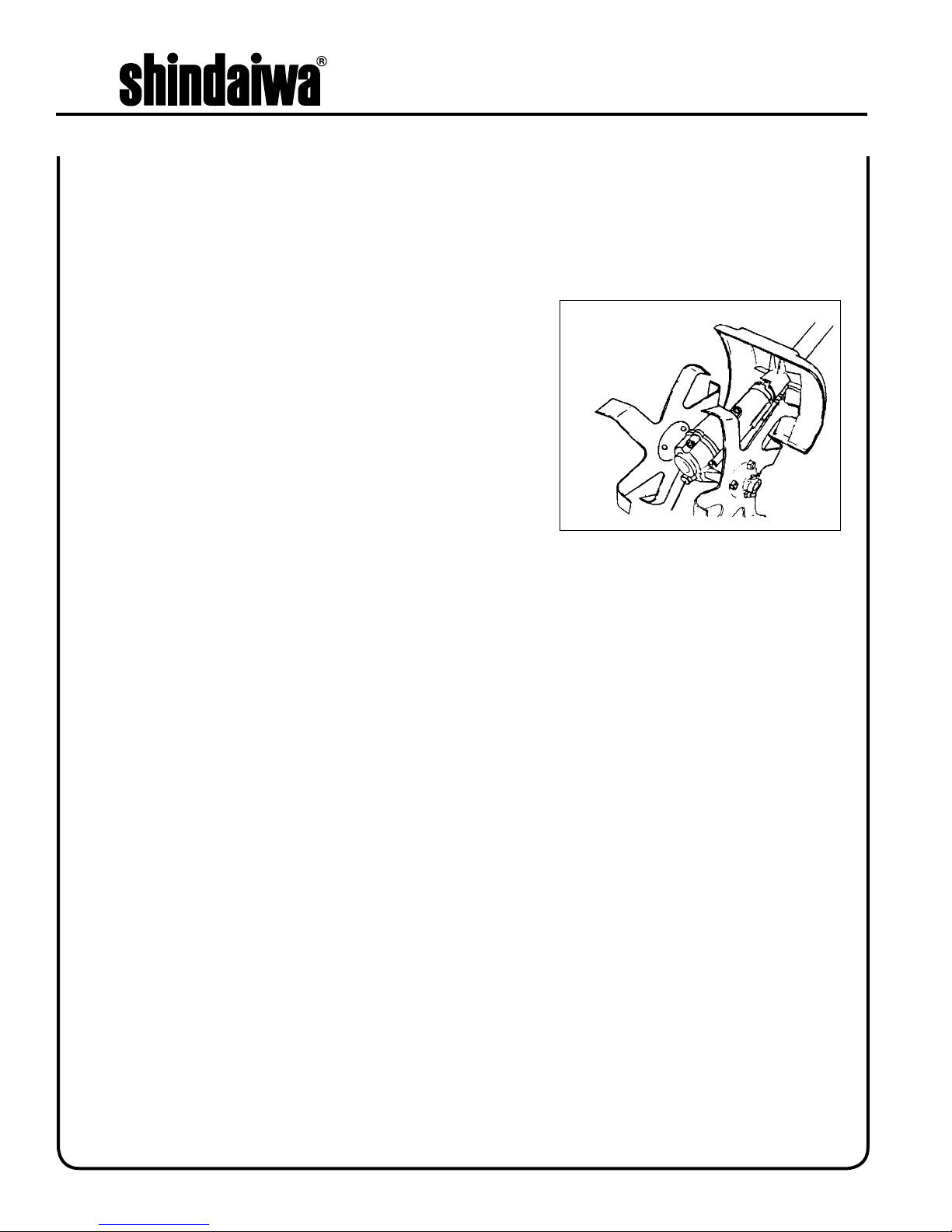

resettIng tInes for deep CultIvatIon
Tools Required: 10 mm Wrench
The tines are factory assembled with blade ends offset for standard cul-
tivation. For deep cultivation, the left tine (viewed from the operator's
position) must be repositioned on the hub aligning the left and right tine
blade ends directly across from each other.
1. Remove three (3) bolts (A) mounting left tine to hub. The bolts
will be mounted in hole labeled (1).
2. The cultivator attachment is capable of tilling in the forward or
reverse direction. For deep soil tilling, till forward then lightly pull
unit rearward allowing the tines to make a deeper cut into the soil.
Deep soil cultivating can also be enhanced by repositioning the
tines. (Refer to Tine Setting).
