Shindaiwa M262 User manual

X7712093501
© 8/2017 ECHO Inc.
ENGLISH
Operator’s Manual
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change without
notice. Illustrations may include optional equipment and accessories, and may
not include all standard equipment.
66003
Multi-Tool Articulating
Hedge Trimmer
Attachment
FOR MODELS: M262, M235
Users of this equipment risk injury to themselves and
others if the unit is used improperly and/or safety pre-
cautions are not followed. ECHO provides an opera-
tor’s manual. It must be read and understood for
proper and safe operation. Failure to do so could result in seri-
ous injury.

TABLE OF CONTENTS 66003
2 X7712093501
© 8/2017 ECHO Inc.
TABLE OF CONTENTS
Introduction ................................................................................................. 3
The Operator’s Manual ........................................................................ 3
Servicing Information .................................................................................. 3
Parts/Serial Number ............................................................................ 3
Service................................................................................................. 3
Consumer Product Support ................................................................. 4
Product Registration ............................................................................ 4
Additional or Replacement Manuals .................................................... 4
Safety .......................................................................................................... 4
Manual Safety Symbols and Important Information ............................. 4
International Symbols .......................................................................... 5
Personal Condition and Safety Equipment .......................................... 6
Equipment.......................................................................................... 11
Description ................................................................................................ 12
Contents.................................................................................................... 13
Assembly................................................................................................... 13
Power Head Shaft to Lower Shaft Assembly ..................................... 13
Operation .................................................................................................. 14
Hedge Trimming................................................................................. 15
Adjusting Cutting Angle ..................................................................... 15
Rotate Cutter Assembly ..................................................................... 16
Maintenance ............................................................................................. 17
Skill Levels ......................................................................................... 18
Maintenance Intervals........................................................................ 18
Lubrication ......................................................................................... 18
Blades................................................................................................ 20
Storage...................................................................................................... 22
Storage Hook Installation................................................................... 22
Specifications............................................................................................ 23
Product Registration.................................................................................. 24
Notes......................................................................................................... 26

66003 INTRODUCTION
X7712093501 3
© 8/2017 ECHO Inc.
ENGLISH
INTRODUCTION
Welcome to the SHINDAIWA family. This SHINDAIWA product was
designed and manufactured to provide long life and on-the-job dependabil-
ity. Read and understand this manual. You will find it easy to use and full of
helpful operating tips and SAFETY messages.
The Operator’s Manual
Keep it in a safe place for future reference. Contains specifications and
information for safety, operation, maintenance, storage and assembly spe-
cific to this product.
SERVICING INFORMATION
Parts/Serial Number
Genuine SHINDAIWA Parts and
Assemblies for your SHINDAIWA
products are available only from an
Authorized SHINDAIWA Dealer.
When you do need to buy parts
always have the Model Number and
Serial Number of the unit with you.
You can find these numbers on the
engine housing. For future refer-
ence, write them in the space pro-
vided below.
Model No. _________________
Serial No. _________________
Service
Service of this product during the
warranty period must be performed by an Authorized SHINDAIWA Service
Dealer. For the name and address of the Authorized SHINDAIWA Service
Dealer nearest you, ask your retailer or call: 1-877-986-7783. Dealer infor-
mation is also available on WWW.SHINDAIWA-USA.COM. When present-
ing your unit for Warranty service/repairs, proof of purchase is required.

SAFETY 66003
4 X7712093501
© 8/2017 ECHO Inc.
Consumer Product Support
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the SHINDAIWA Con-
sumer Product Support Department at 1-877-986-7783 from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Product Registration
To ensure trouble free warranty coverage it is important that you register
your SHINDAIWA equipment on-line at WWW.SHINDAIWA-USA.COM or by
filling out the product registration sheet included in this manual. Registering
your product confirms your warranty coverage and provides a direct link
between you and ECHO if we find it necessary to contact you.
Additional or Replacement Manuals
Replacement Operator and Parts Catalogs are available from your SHIN-
DAIWA dealer or at WWW.SHINDAIWA-USA.COM or by contacting the
Consumer Product Support Department (1-877-986-7783). Always check
WWW.SHINDAIWA-USA.COM for updated information.
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.

66003 SAFETY
X7712093501 5
© 8/2017 ECHO Inc.
ENGLISH
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the pro-
tection of the unit.
Note: This enclosed message provides tips for use, care and main-
tenance of the unit.

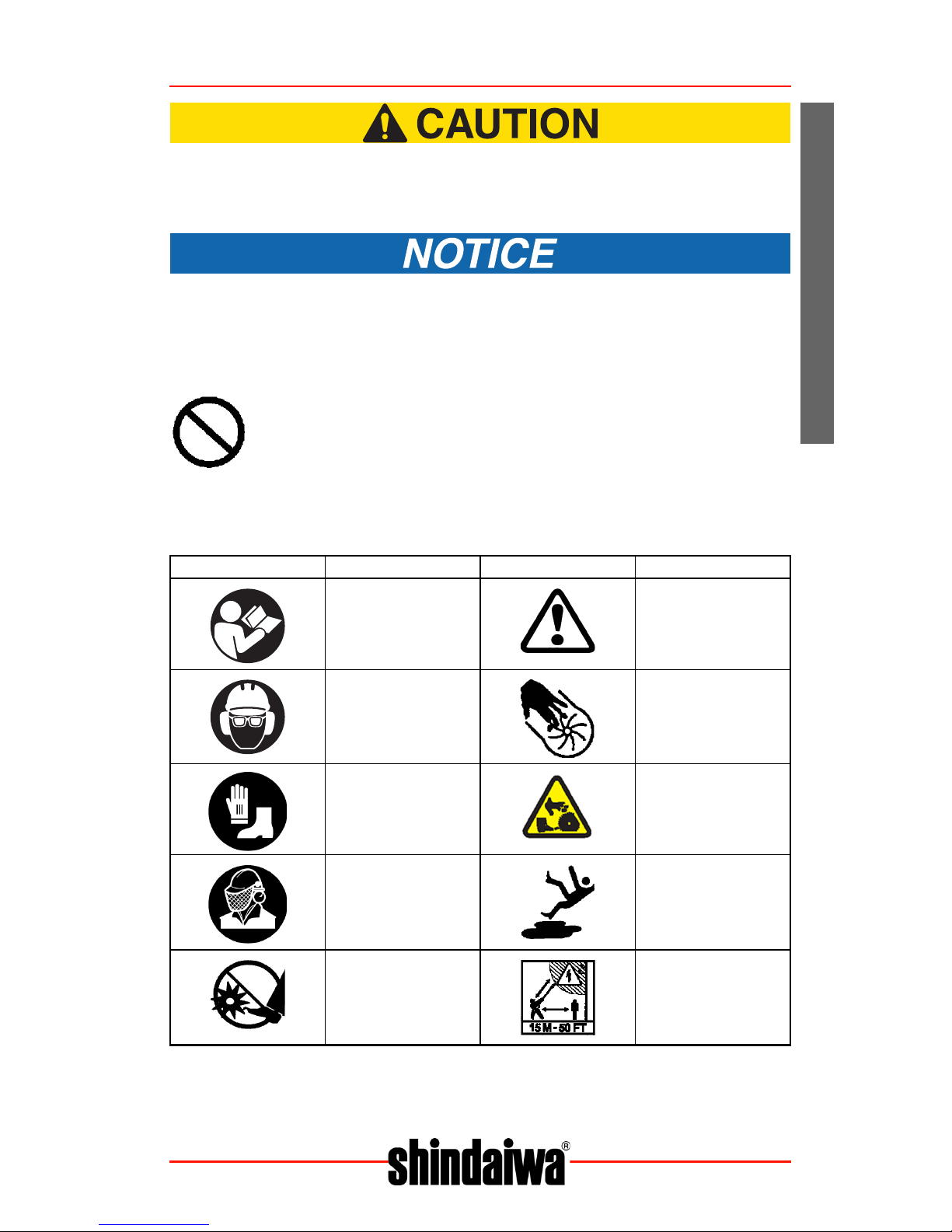

CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
International Symbols
Symbol Description Symbol Description
Warning, See
Operator’s Manual Safety / Alert
Wear Eye, Ear and
Head Protection Finger Severing
Wear Hand and Foot
Protection
Rotating Cutting
Attachment
Wear Face Shield Wear Slip Resistant
Footwear
Keep Feet Away From
Blade
Do not operate closer
than 15 m (50 ft.) from
electrical hazards.
Keep bystanders at
least 15 m (50 ft.)
away.

SAFETY 66003
6 X7712093501
© 8/2017 ECHO Inc.
Personal Condition and Safety Equipment
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not fol-
lowed. Proper clothing and safety gear must be worn when op-
erating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick
• If you are taking medication
• If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well.

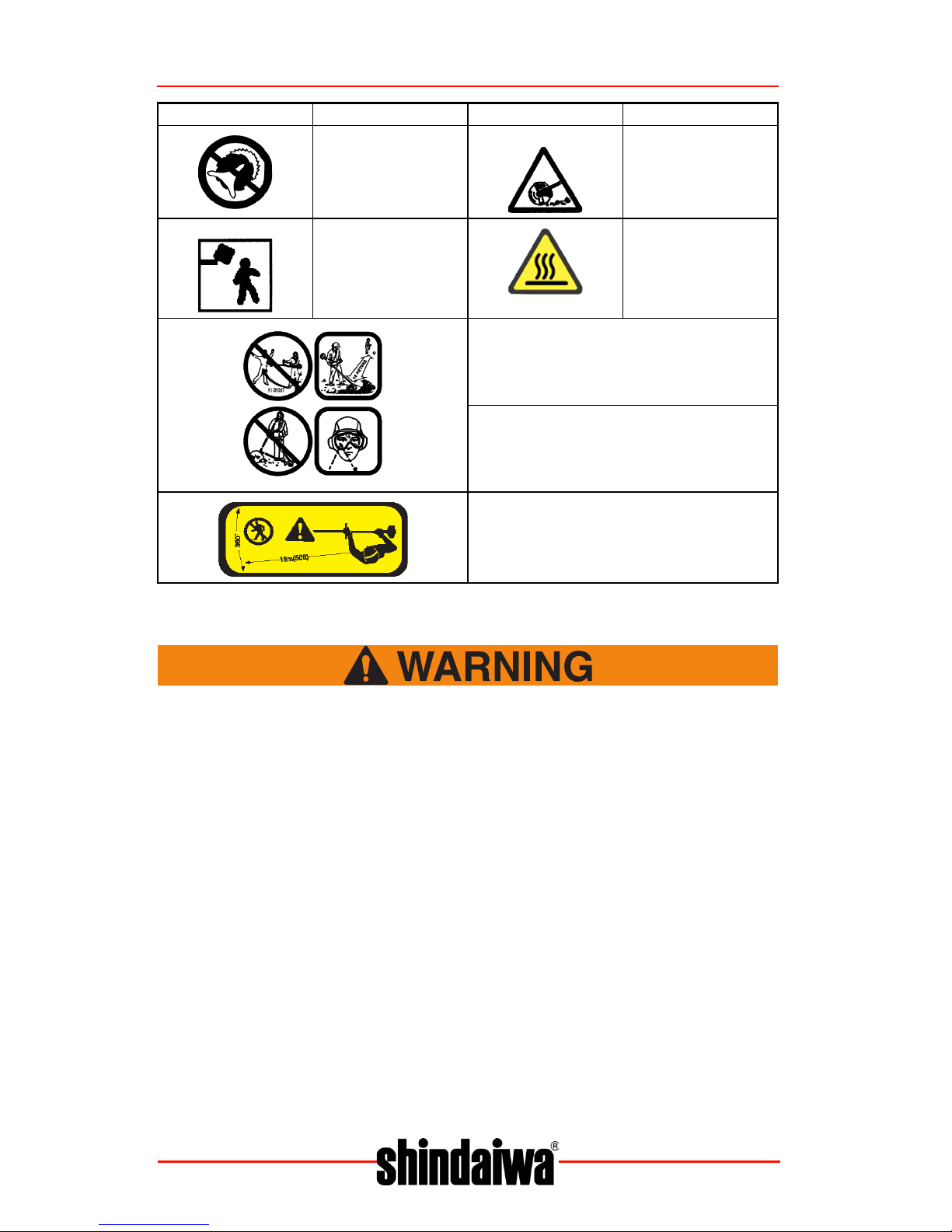

DO NOT USE
BLADES - Line Head
Only
Thrown Objects
Plan retreat path from
falling objects. Hot Surface
AVOID KICKOUT
Keep Bystanders At Least
15 m (50 ft.) Away
Beware Thrown Objects
Wear Eye Protection
Keep Bystanders and Helpers
Away 15 m (50 ft.)
Symbol Description Symbol Description

66003 SAFETY
X7712093501 7
© 8/2017 ECHO Inc.
ENGLISH
Eye Protection
◆Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
◆For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the han-
dles. Gloves also provide protection against cuts and scratches, cold envi-
ronments, and reduce the transmission of machine vibration to your hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or surround-
ing growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.

SAFETY 66003
8 X7712093501
© 8/2017 ECHO Inc.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.
The components of this machine generate an electromagnetic
field during operation, which may interfere with some pacemak-
ers. To reduce the risk of serious or fatal injury, persons with
pacemakers should consult with their physician and the pace-
maker manufacturer before operating this machine. In the ab-
sence of such information, ECHO does not recommend the use
of this machine by anyone who has a pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in inju-
ry. Read and follow all safety and operation instructions to min-
imize risk of injury. Failure to follow instructions may result in
painful wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the mini-
mum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially
the head, neck, feet, ankles,
hands, and wrists.
• Maintain good blood circulation by
performing vigorous arm exer-
cises during frequent work
breaks, and also by not smoking.
• Limit the hours of operation. Try to
fill each day with jobs where oper-
ating the unit or other hand-held
power equipment is not required.
• If you experience discomfort, red-
ness, and swelling of the fingers followed by whitening and loss of feeling,
consult your physician before further exposing yourself to cold and vibra-
tion.

66003 SAFETY
X7712093501 9
© 8/2017 ECHO Inc.
ENGLISH
Repetitive Stress Injuries
(RSI)
It is believed that overusing the
muscles and tendons of the fingers,
hands, arms, and shoulders may
cause soreness, swelling, numb-
ness, weakness, and extreme pain
in those areas. Certain repetitive
hand activities may put you at a high
risk for developing a Repetitive
Stress Injury (RSI). An extreme RSI
condition is Carpal Tunnel Syn-
drome (CTS), which could occur
when your wrist swells and
squeezes a vital nerve that runs
through the area. Some believe that
prolonged exposure to vibration may contribute to CTS. CTS can cause
severe pain for months or even years.
To reduce the risk of RSI/CTS, do the following:

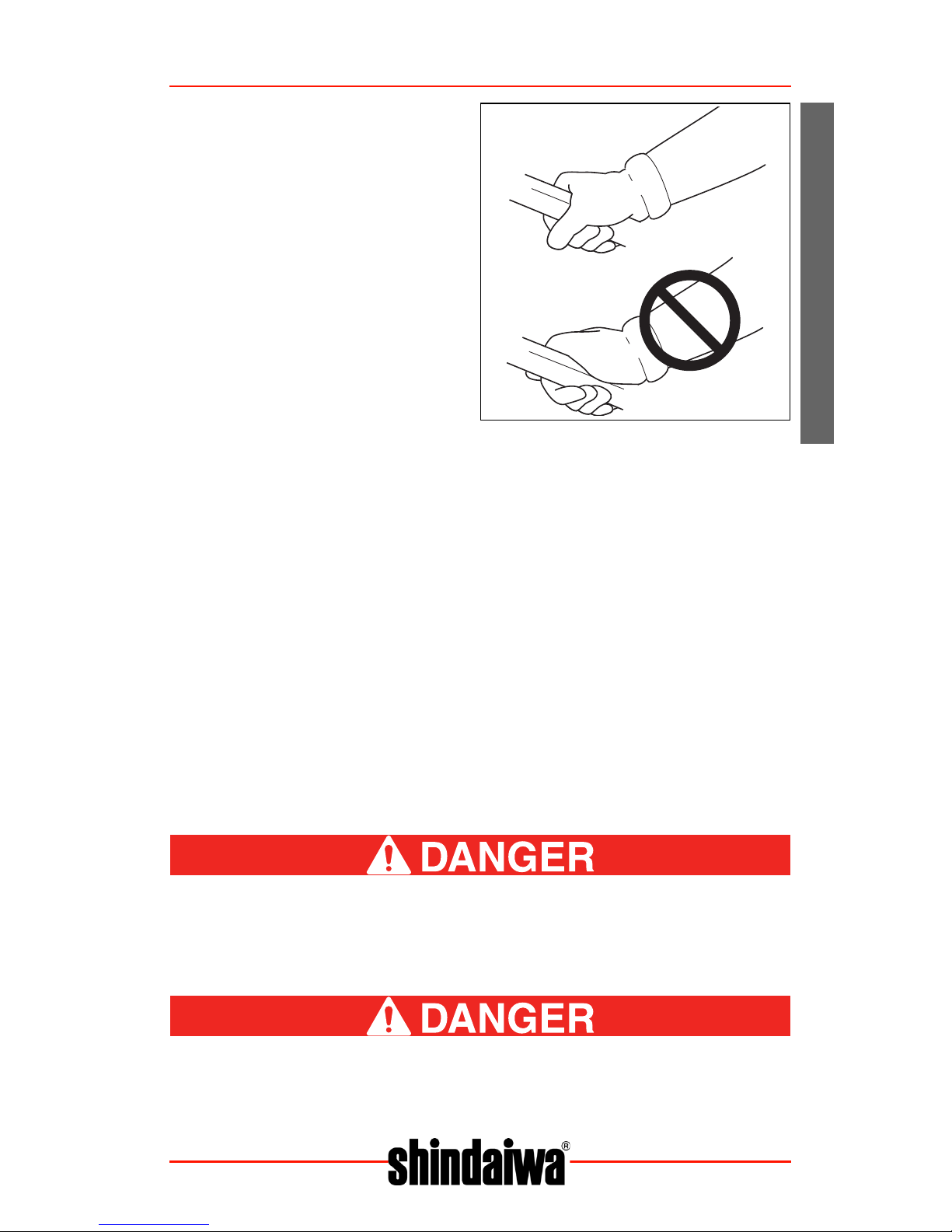

• Avoid using your wrist in a bent, extended, or twisted position. Instead try
to maintain a straight wrist position. Also, when grasping, use your whole
hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and mus-
cle damage can be prevented.
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not in-
sulated against electrical current. Never touch wires directly or
indirectly, otherwise serious injury or death may result.
Do not operate this product indoors or in inadequately ventilat-
ed areas. Engine exhaust contains poisonous emissions and
can cause serious injury or death.

SAFETY 66003
10 X7712093501
© 8/2017 ECHO Inc.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual and Safety
Manual for instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and animals
prevented from coming nearer than 15 m (50 ft.) while the unit is in use.
Keep a Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders.
Do not over reach.
Cutting Angle Adjustments
• Only adjust cutting blade angle
with unit flat on the ground, with
the engine stop switch in the
“STOP” position. Never adjust
cutting angle with unit standing
upright.
Avoid Contact With Gear Box Assembly During Use
• Gear box assembly becomes hot during use. Avoid
contact with gear box assembly when using unit or
making cutting angle adjustments.
Avoid Hot Surfaces
• Keep exhaust area clear of flammable debris. Avoid contact during and
immediately after operation.

66003 SAFETY
X7712093501 11
© 8/2017 ECHO Inc.
ENGLISH
Never perform blade maintenance procedures while engine is
running.
Equipment
Use this attachment with SHINDAIWA approved models only.
Serious injury may result from the use of this attachment com-
bined with a non approved SHINDAIWA product.
◆Check unit for loose/missing nuts, bolts, and screws.
Tighten and/or replace as needed.
◆Check that the cutting attachment is firmly attached and in
safe operating condition.
Note: ECHO, INC. will not be responsible for the failure of cutting
devices, attachments or accessories which have not been
tested and approved by SHINDAIWA.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
◆ALWAYS stop engine, disconnect spark plug, and make
sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
◆DO NOT start or operate unit unless all guards and
protective covers are properly assembled to unit.
◆NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.

DESCRIPTION 66003
12 X7712093501
© 8/2017 ECHO Inc.
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be
read, a new one can be ordered from your SHINDAIWA dealer. Safety label
is for example only. Your label may appear slightly different.
1. Cutting Blades
2. Lower Drive Shaft Assembly
3. Flexible Drive Cable
4. Support Handle
5. Hand Guard/Blade Lock
6. Blade Adjustment Handle
7. Blade Cover
8. Shoulder Harness
15 m
50 ft
1
8
4
7
2
3
65

66003 CONTENTS
X7712093501 13
© 8/2017 ECHO Inc.
ENGLISH
CONTENTS
The SHINDAIWA product you purchased has been factory pre-assembled
for your convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or SHINDAIWA Dealer of damaged or missing parts. Use the contents list to
check for missing parts.
ASSEMBLY
Power Head Shaft to Lower Shaft Assembly
Do not perform maintenance or assembly procedures with en-
gine running.
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locater pin (A) out, and turn counter-clockwise ¼ turn to lock-out
position.
3. Remove vinyl cap from attachment drive shaft.
4. Remove cardboard spacer, if necessary.
Note: Your coupler may appear different than coupler shown.
1Multi-Tool Hedge Trimmer Attachment
1Operator's Manual
1Warranty Sheet
1Blade Cover
1Storage Hook Assembly
Parts Required: Multi-Tool Power Head Shaft and Coupling

OPERATION 66003
14 X7712093501
© 8/2017 ECHO Inc.
5. Carefully fit attachment drive
shaft assembly into coupler (B)
to decal assembly line (C),
making sure that the inner
lower drive shaft engages the
square upper drive shaft
socket.
Note: Earlier model power
heads may have shorter
couplings.
Note: Lower bearing housing
and head assembly must be in line with the engine.
6. Rotate locater pin (A) ¼ turn
clockwise to engage lower shaft
hole. Insure locater pin is fully
engaged by twisting lower drive
shaft. Locater pin should snap
flush in coupler. Full engage-
ment will prevent further shaft
rotation.
7. Secure lower shaft assembly to
coupler by tightening clamping
knob (D).
OPERATION
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service.
Note: Refer to your Multi-Tool power source Operator's Manuals for
correct engine fueling, starting and stopping instructions.
B
A
C
D
A

66003 OPERATION
X7712093501 15
© 8/2017 ECHO Inc.
ENGLISH
Hedge Trimming

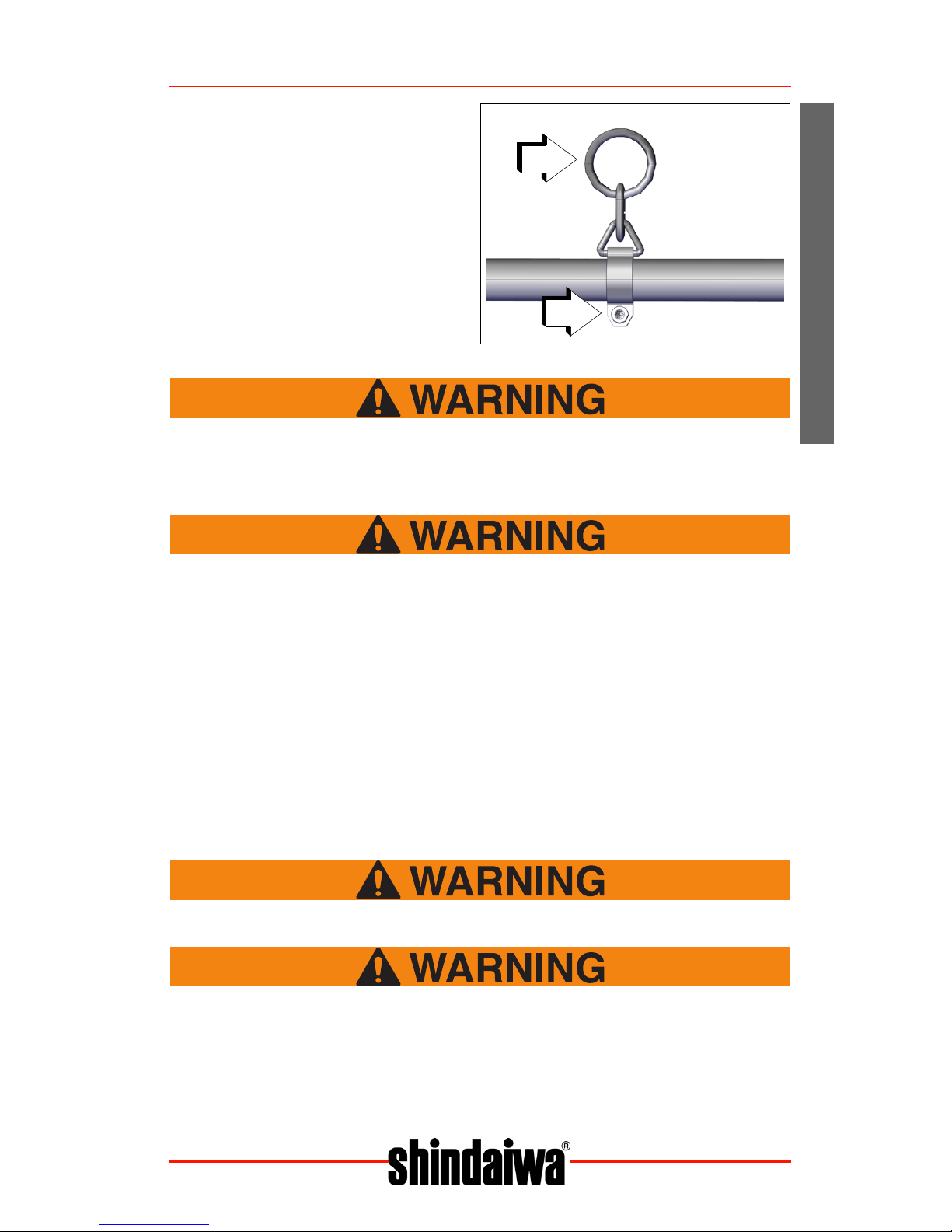

Shoulder Harness (if included)
1. Loosen harness clamp screw
(A).
2. Put harness on and attach it to
harness clamp ring (B).
3. Adjust harness for comfortable
operation.
4. Tighten harness clamp screw
(A).
Hedge Trimmer blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever pos-
sible, and always wear gloves to protect hands.
Never remove hands from unit when blades are moving. The en-
gine continues running even when the blades have stopped due
to an obstruction. If this occurs, stop the engine, disconnect ig-
nition cable and remove the obstruction.
1. Always grip throttle handle with right hand and support handle with left
hand.
2. Hold trimmer firmly and squeeze throttle trigger to accelerate engine.
3. Tilt trimmer so cutting teeth are angled slightly toward the hedge or
shrub and proceed to cut.
Adjusting Cutting Angle
Never adjust cutting assembly with engine running.
Hedge Trimmer blades are sharp. Always wear gloves when ad-
justing cutting assembly.
A
B

OPERATION 66003
16 X7712093501
© 8/2017 ECHO Inc.
DO NOT stand hedge trimmer on end when adjusting cutting an-
gle, otherwise serious injury may result.

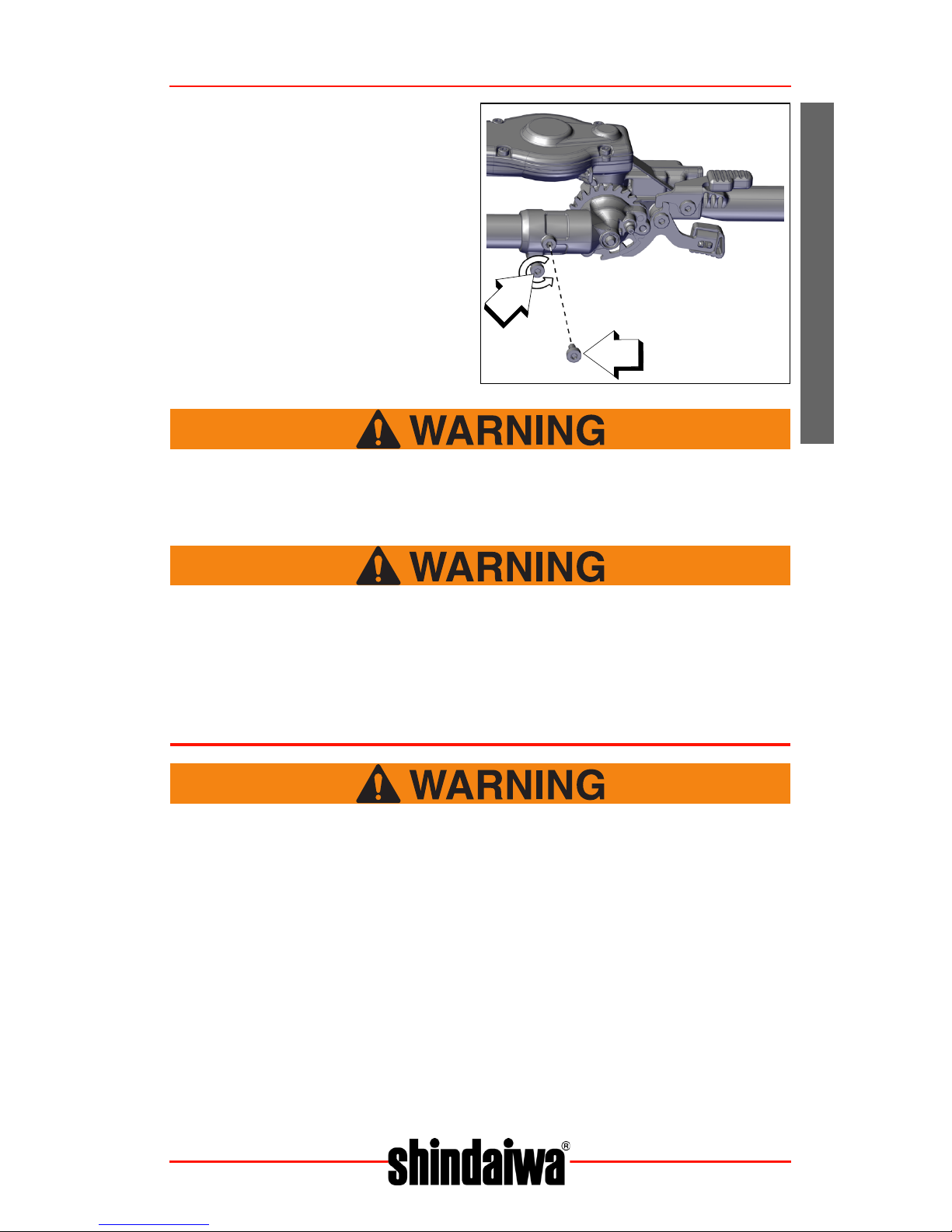

1. Place unit on a flat surface with
blade guard (A) facing up.
Assure stop switch is in the
“STOP” position.
2. Grab blade adjustment handle
(B) and compress blade lock
levers (C) and (D) together.
Rotate blade to desired posi-
tion. Release the levers to lock
the blade.
Gear case assembly becomes HOT during use. Always grip
assembly at blade-adjustment handle when making cutting
angle adjustments, otherwise serious injury may result.
Always install the blade cover and place the cutter assembly in
the folded / locked position for storage or transportation.
Rotate Cutter Assembly
Always use the unit from the right-hand side of your body – NEVER from the
left side. Rotate cutter assembly 180° on drive shaft in order to avoid cutting
directly above your head, and to avoid contact with hot muffler.
A
B
C
D

66003 MAINTENANCE
X7712093501 17
© 8/2017 ECHO Inc.
ENGLISH

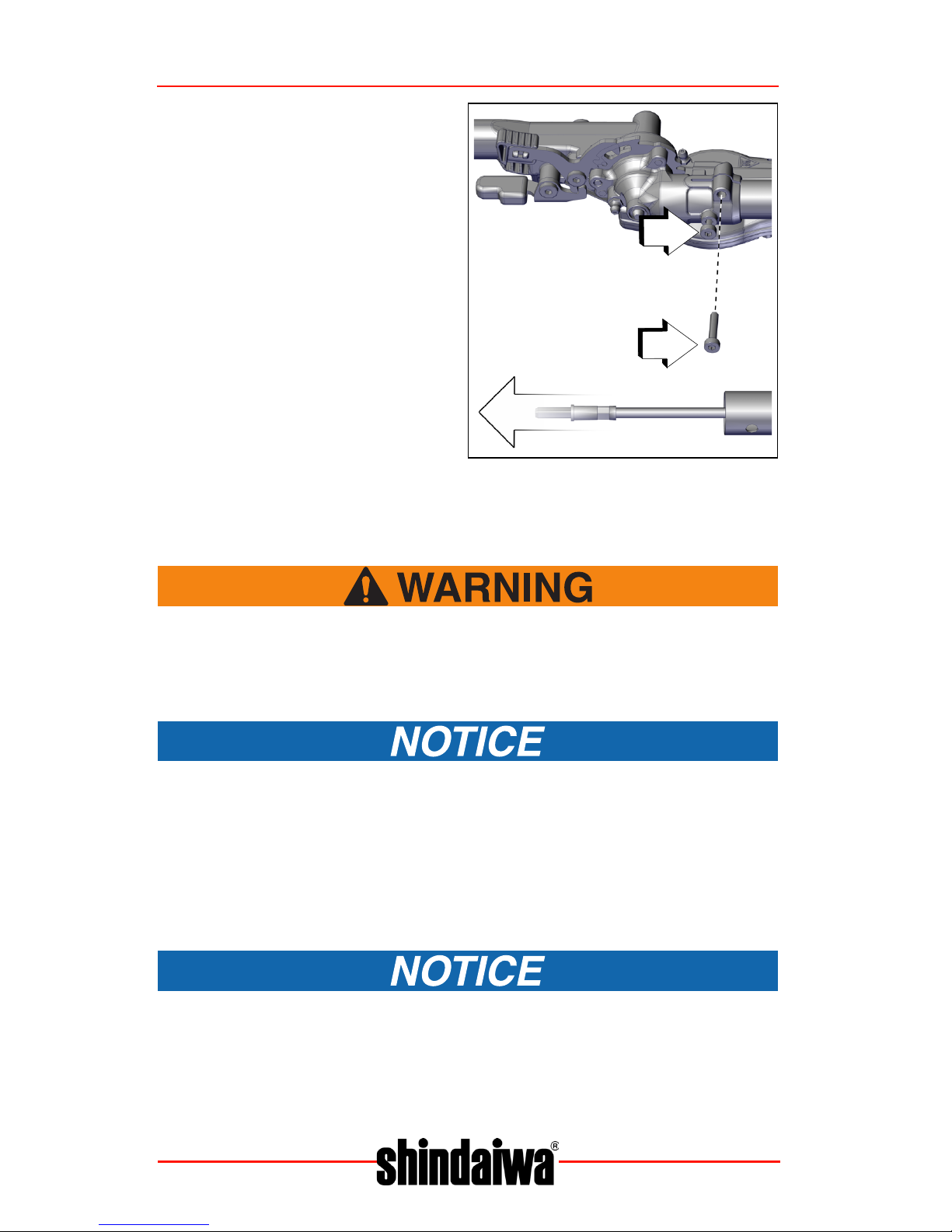

1. Loosen gear case clamping
screw (A) and remove gear
case locating screw (B).
2. Rotate cutter assembly 180° on
drive shaft until locating hole in
drive shaft is visible through
locating hole in gear case.
3. Install gear case locating screw
(B), and securely tighten all
hardware.
Hedge Trimmer blades are very sharp. Wear gloves to protect
hands when rotating cutter assembly or serious personal injury
may result.
During operation, the complete unit, especially the drive shaft
housing and gearcase may become too hot to touch. Avoid
contact when rotating cutter assembly.
MAINTENANCE
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service. Wear gloves to protect hands
from sharp edges and hot surfaces.
B
A

MAINTENANCE 66003
18 X7712093501
© 8/2017 ECHO Inc.
Your SHINDAIWA unit is designed to provide many hours of trouble free ser-
vice. Regular scheduled maintenance will help your unit achieve that goal. If
you are unsure or are not equipped with the necessary tools, we recom-
mend that you take your unit to an SHINDAIWA Servicing Dealer for mainte-
nance. To help you decide whether you want to DO-IT-YOURSELF or have
the SHINDAIWA Dealer do it, each maintenance task has been graded. If
the task is not listed, see your SHINDAIWA Dealer for repairs.
Skill Levels
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = See your dealer.
Maintenance Intervals
IMPORTANT - Time intervals shown are maximum. Actual use and your
experience will determine the frequency of required maintenance.
1Apply lithium based grease.
Lubrication
Blades
Level 1.
Component/
System
Maintenance
Procedure
Skill
Level Interval
Drive Shaft Grease 1 Every 25 hours of use1
Gear Housing Every 15-25 hours of use1
Blades
Lubrication Every 15-25 hours of use
Sharpen 2As needed
Adjust Every 40 hours of use
Screws/Nuts/Bolts
Inspect/
Tighten/
Replace
1Before each use
Parts Required: 20W Engine Oil (blade lubrication), 50-50 mixture of
kerosene and 20W oil (blade cleaning)

66003 MAINTENANCE
X7712093501 19
© 8/2017 ECHO Inc.
ENGLISH
Hedge Clipper blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever pos-
sible, and always wear gloves to protect hands.
1. Brush loose debris from blade
and coat both sides of blade
with the 50-50 cleaning mixture.
2. Allow cleaning mixture to soften
the remaining gummy residue
then wipe it from the blade.
3. Apply clean oil to the entire
length of the blade. Be certain
the blade bolts are lubricated.
4. Wipe excess oil from the blade before putting the unit back in service.
Gear Case
Level 1.
1. Clean dirt from grease fittings
(A).
2. Carefully pump grease into fit-
tings (A). DO NOT force
grease. Too much pressure will
force grease past seals and
cause damage. Apply 1-2
pumps of grease every 15-25
hours of operation.
3. Wipe excess grease from
around grease fitting.
Drive Shaft Assembly
Level 1.
Hedge Clipper blades are very sharp. Touching them may lead
to severe personal injury. Avoid touching blades whenever pos-
sible, and always wear gloves to protect hands.
Parts Required: Lithium Base Grease.
Parts Required: Lithium Base Grease.
A
A

MAINTENANCE 66003
20 X7712093501
© 8/2017 ECHO Inc.
1. Carefully remove locating
screw (A) and loosen clamping
screw (B). Remove the flex
drive shaft assembly from the
gear housing.
2. Pull the drive shaft (C) from the
drive shaft assembly, and wipe
clean. Apply 15 ml (0.5 oz.) of
grease.
3. Slide the flex shaft back into the
drive shaft assembly, being
careful not to get dirt on the flex
shaft.
4. Align the locating screw hole in
gear case with the locating hole
in drive shaft assembly, install
and tighten locating screw (A),
and tighten clamping screw (B).
Blades
Hedge trimmer blades are very sharp, touching them may lead
to severe personal injury. Use long hex wrenches and sockets
with extensions when tightening blade screws and blade lock
nuts to keep hands at a safe distance from sharp blades.
Blades should only be removed and reinstalled by an authorized
servicing dealer, otherwise premature wear or internal damage may
occur.
Sharpening
Level 2.
If a power grinder is used DO NOT allow blade to over heat.
A
