Shinkawa VZ-35A User manual

MANUAL NO. 29405E2.2
Published in Feb.1988
Revised in Apr. 2008
Model VZ-35A(4986-009)
Calibration Kit
INSTRUCTION MANUAL

FOREWORD VZ-35A (4986-009)
i
For Use in Safety.....
Thank you for your using our VZ-35A(4986-009) Calibration Kit.
SHINKAWA Sensor Technology applies strict quality control and inspections to ensure the high reliability of
its products.
The Calibiration Kit Instruction Manual contains descriptive information , specifications, principle of
operation, installation procedures and field wiring with monitor.
Please study contents of this manual and related manuals thoroughly before installing or operating the
equipment, and keep it handy for future reference.
! CAUTION
1. This unit is designed for use by specialists or persons thoroughly familiar with the field.
2. Make sure that the end user receives the Instruction Manual delivered with this unit.
Before Use.....
When the unit is received, inspect it for damage suffered in transport and check whether it is the item you
ordered. In the unlikely event that it was damaged in transport or does not function according to specifications,
please contact the SHINKAWA Office or dealer nearest you.
Store the unit under the ambient conditions given in the specification.
Avoid places where it is exposed to high humidity or corrosive gases.

TABLE OF CONTENTS VZ-35A (4986-009)
ii
1. GENERAL
·································································································································· 1
2. SPECIFICATIONS
·································································································································· 2
3. DESCRIPTION OF EACH SECTION
3-1 LAYOUT DRAWING························································································· 3
3-2 DESCRIPTION OF EACH SECTION······························································· 4
4. CALIBRATION
4-1 LAYOUT DRAWING BLOCK DIAGRAM·························································· 6
4-2 STATIC CHARACTERISTIC CHECK
OF RIVERNEW VK VIBRATION TRANSDUCER············································ 7
4-3 VIBRATION CALIBRATION ············································································· 9
4-4 THRUST CALIBRATION ················································································ 10
5. INSTALLATION OF PHASE MARKER
5-1 INSTALLATION OF PHASE MARKER SENSOR ············································ 11

1. GENERAL VZ-35A (4986-009)
-1-
The model VZ-35A(4986-009) calibration kit is a device to mechanically
generate standard vibration and displacement necessary for calibration of
RIVERNEW VK Vibration Monitoring System. The kit consists of two basic
units: one has The functions of static characteristic check of RIVERNEW VK
type vibration transducers and of thrust monitor calibration, while the other
has the functione of dynamic characteristic check of RIVERNEW VK
vibration transducers by a built-in rotary plate (WOBBLE plate) to generate
accurate vibraion and of vibration monitor calibration.
A Phase marker can also be installed on this device.

2. SPECIFICATIONS VZ-35A (4986-009)
-2-
Model VZ-35A Calibration Kit is a calibration device that provides the mechanical reference vibration and displacement inputs for
RIVERNEW monitoring system.
This kit consists of two basic units.
(1) Static characteristic check for Model VK series transducer and calibration function for thrust monitor by spindle micrometer.
(2) Dynamic characteristic check for Model VK series transducer and calibration function for vibration monitor by motor-driven
wobble plate.
Additionally, a phase marker sensor can be installed to this kit.
Model Code No. Model VZ-35A
Power Supply
115V/95 to 130VAC, 50/60Hz
230V/190 to 250VAC, 50/60Hz
Micrometer Range 0 to 25,000µm
Wobble Plate Calibration
Range
0 to 300µm pk-pk
0 to 5,000rpm±1,000rpm
Target Material JIS SCM440
Enclosure Box Portable type FRP case
Dimensions
Width Approx. 366mm
Depth Approx. 200mm
Heigh Approx. 228mm
Mass Approx.6.5kg
Accessories
Dial indicator 1 piece
Fuse (1A) 1 piece
Sensor Adaptor 10 pieces
1/4-28UNF 2 pieces
M8 2 pieces
3/8-24UNF 2 pieces
M10 2 pieces
M12 2 pieces
GENERAL
SPECIFICATIONS
39723E1.4

3. DESCRIPTION OF EACH SECTION VZ-35A (4986-009)
-3-
3-1 LAYOUT DRAWING
1 Thrust sensor holder 8 Power supply switch
2 Spindle micrometer 9 Voltage select switch
3
Target for static
characteristic check 10 Fuse holder
4 Wobble plate 11 Dial indicator
5 Slide arm 12 Sensor adapter
6 Phase marker sensor holder 13 Power Supply Cable
7 Speed controller
CAUTION
Wobble plate high-speed rotates.
Please do not touch while rotating.

3. DESCRIPTION OF EACH SECTION VZ-35A (4986-009)
-4-
3-2 DESCRIPTION OF EACH SECTION
1 Thrust sensor holder:
Fix a sensor with sensor adapter 12
2 Spindle micrometer:
Measuring range ; 0 to 25,000µm
Minimum reading ; 10µm
3 Target for static characteristic check:
This is moved by the spindle micrometer.
In addition to the standard target material of JIS SCM440,other target
materials such as copper, aluminium,brass, titanium, etc. are available.
However, accuracy guarantee of measuring is limited when
the material of a subject is SCM440.
4 WOBBLE plate:
This is a disc with slight inclination and made of the same mateial as that of
the target for static characteristic check.
This is driven by electric motor to obtain vibration with accurate amplitude.
5 Side arm:
The sensor can be moved with a dial indicator attached.
6 Phase marker sensor holder:
Fix a phase marker sensor using a sensor adaptor 12 .
7 Speed controller:
Turning to the right increases rotating speed of the WOBBLE plate.
8 Power supply switch:
Thie is a power supply switch.
9 Voltage select switch:
This switch selects either one of 115VAC or 230VAC.
Select the voltage with a scerwdriver.
10 Fuse holder:
A fuse with a capacity of 0.5A is used.
CAUTION
Please do not touch while rotatin
g

3. DESCRIPTION OF EACH SECTION VZ-35A (4986-009)
-5-
11 Dial indicator:
Measures WOBBLE plate amplitude.
Measuring range ; 5,000µm
Minimum reading ; 1µm
Scale ; 0 to 100 to 0
12 Sensor Adapters:
Two adapters for each sensor suitable for its thread size are available.

4. CALIBRATION VZ-35A (4986-009)
-6-

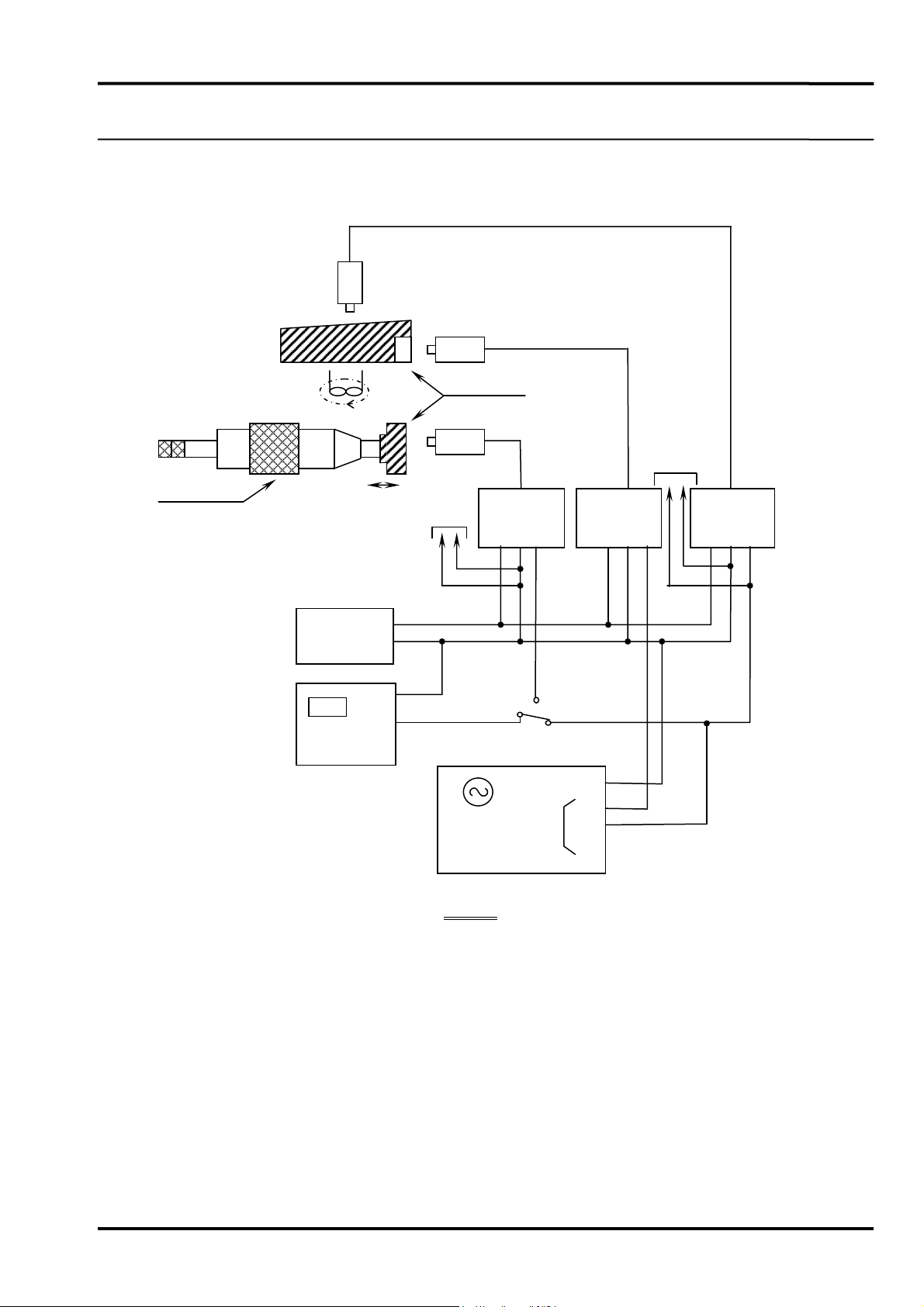

4-1 BLOCK DIAGRAM
Vibration Sensor
Phase Marker Sensor
Wobble plate Target
Spindle Micrometer
Moving
Thrust Senso
r
VK Driver
COM
-24V OUT
VK Driver
COM
-24V OUT
-24V
Power Supply
COM
COM
DMM
IN
VK Driver
COM
-24V OUT
To Thrust
Monitor
COM
IN
Oscilloscope
CH1
CH2
Fig 4-1
To Vibration
Monitor

4. CALIBRATION VZ-35A (4986-009)
-7-
4-2 STATIC CHARACTERISTIC CHECK OF RIVERNEW VK VIBRATION TRANSDUCER
(1) Fix a sensor on the holder using an adapter suitable for sensor thread size.
(2) Set spindle micrometer scale to zero.
(3) Position the sensor into the spindle micrometer so that the sensor tip lightly
contacts the target.
(To position the sensor into the spindle micrometer, adjust holder position or
loosen the screw located at the slide arm and move the target.)
Secure the sensor in position. Fix the holder and micrometer mounting screws
so that the sensor tip and the target are in parallel.
(4) Connect the calibration kit as shown Fig. 4-1.
(5) Connect the sensor with a VW extension cable and VK driver.
(6) Connect the “-24V” terminal on the VK driver with the power supply minus
output and the “COM” terminal on the VK driver with the power supply
“COMMON”, respectively.
(7) Connect a digital multimeter (hereinafter called DMM) with “OUT” and
“COM” on the VK driver as shown in Fig. 4-1.
(8) Supply power to the VK driver.
(9) Adjust the spindle micrometer 250 more µm away from the sensor face.
The DMM should indicate 2 volts more for a 200mV/25µm calibration scale
factor.

4. CALIBRATION VZ-35A (4986-009)
-8-
(10) Thus, a static characteristic curve can be drawn.
Graduate the axis of ordinates by dividing it into 2V/cm.
Also graduate the axis of abscissas by dividing it into 100µm/cm.
Set the zero position of sensor set gap so that it may correspond to the zero
position on the curve.
Turn the spindle micrometer and gradually widen sensor set gap.
Then, draw a voltage change curve until the voltage change will exceed the
sensor measuring range.
(11) In accordance with the procedures described above, the
Statie characteristic of a RIVERNEW VK vibration transducer in the
specific connection loop has been checkd.
•The voltage change curve up to about 100 to 200µm does not become
perfectly linear. An obvious gradient change may start from the
neighbourhood of 150µm. This starting point may slightly differ
depending on a sensor and a driver to be calibrated and a target
material to be used.
•The linear range is assured up to 2,000µm (target material: JIS
SCM440).
•Draw The curve until it may deviate from the linear range.
•Store The perfectly calibrated curve for future reference.
For a target with a different material, re-check of the RLVERNEW
VK vibration transducer is required.

4. CALIBRATION VZ-35A (4986-009)
-9-
4-3 VIBRATION CALIBRATION
The WOBBLE calibration unit is a device to generate accurate standard
vibration necessary for calibration of vibration monitors and for dynamic
characteristic check of RIVERNEW VK vibration transducers.
Perform setting of vibration calibration in accordance with the following
procedures:
(Refer to Fig. 4-1 for device connection.)
(1) Install the dial indicator on the slide arm using an adapter for M8.
(2) Manuallty rotate the WABBLE plate and then move the slide arm until the
dial indicator indicates a appropriate peak-to-peak vibration range. (amplitude
of an equipment actually measured).
Rotating the spindle micrometer moves the slide arm.
(3) Check the slide arm position for every 10µm just before and behind the
appropriate peak-to-peak vibration range by the micrometer scale.
(4) Remove the dial indicator and install a sensor. Pay attention so that slide arm
position may not change at this time.
(5) Determine the sensor set gap from the set gap voltage measured by the
vibration monitor or from the curve drawn in Item
4-2 afrer voltage measurement by DMM.
When the monitor is used, refer to the instruction manual of each
monitor.
CAUTION
To prevent damage to the dial indicator, do not turn on
the monitor switch while the dial indicator is mounted in
the slide arm.
For the appropriate peak-to-peak vibration range, refer to technical
manual of an equipment measured.

4. CALIBRATION VZ-35A (4986-009)
-10-
(6) Check that the power supply switch on this calibration kit is turned
off. Select the voltage by the voltage select switch.
Check that the speed controller is off. Connect a power supply
cable. Set the speed controller to the MIN. position and then
gradually turn it to a clockwise (right turn) direction.
The WOBBLE plate starts rotating.
(7) Check that monitor indicator scale matches with dial
indicator scale.
If not, adjust monitor gain (Refer to Instruction Manual of each
monitor).
4-4 THRUST CALIBRATION
(1) Install a sensor in accordance with the same procedures as those
in 4-2.
(Refer to Fig.4-1 for device connection.)
(2) Set the appropriate set gap to “ZERO” (set gap of the sensor installed on an
equipment actually measured) and then check that the thrust direction from
“ZERO” matches with the thrust direction polarity of thrust monitor.(For
the
thrust direction polarity, refer to the specifications for thrust monitor.)
(3) Check that monitor indicator scale matches with spindle micrometor scale.
If not, adjust monitor gain. (Refer to Instruction Manual for thrust monitor.)
CAUTION
To avoid circuit damage, connect the power supply after
checking that the voltage select switch is in the position
of either 115V or 230V.

5. INSTALLATION OF PHASE MARKER VZ-35A (4986-009)
-11-
5-1 INSTALLATION OF PHASE MARKER SENSOR
(1) Connect the devices as shown in Fig.4-1.
(2) Install the phase marker sensor on the holder with a sensor adapter.
(3) Turn on the power supply switch on the calibration kit to rotate the
WOBBLE plate.
(4) Adjust sensor set gap while watching a waveform on oscilloscope so that
suitable pulse signal may be output.
Firmly install the sensor.

Warranty
The warranty period for the delivered product shall be 3 years from the date of delivery from
our factory. But the warranty period for the special order product and software shall be 1 year,
and for the repairing parts shall be 6 months. In the event that the delivered product develops
any defects within the warranty period for which Shinkawa Electric is liable, the defective part
will be replaced or repaired in our factory at our own expense.
In the event that an engineer needs to be dispatched for repair purposes during the warranty
period, travel expenses for the said engineer will be changed in accordance with the above
item. The cost of repair will be borne by Shinkawa Electric.
However, the following are excluded from our warranty:
(1) Any defects due to improper handling or operation by the user.
(2) Any defects, the case of which is not attributable to Shinkawa Electric.
(3) Any modifications or repairs made by others then Shinkawa Electric or persons
commissioned by Shinkawa Electric.
(4) Any handling, storage and operation under severe environmental conditions that exceed
the design specifications.
(5) Any defects due to fire, flood, earthquake, lightning and other Acts of God.
(6) The consumables
(7) Other defects considered not to be attributable to Shinkawa Electric.
This warranty applies exclusively to the delivered product units.
Shinkawa Electric will not be held liable for consequential damage caused either directly or
indirectly through a defect of the delivered product.
The warranty period and scope of machinery and equipment made by manufacturers other
than Shinkawa Electric shall be in accordance with the conditions of the respective
manufacturer, regardless of the provisions made above.

Hiroshima Factory
4-22 Yoshikawa-kogyodanchi, Higashi-hiroshima 739-0153, Japan
Tel. [phone] Fax. [phone]
[Field support & Repair Dept] E-Mail : [email protected]
