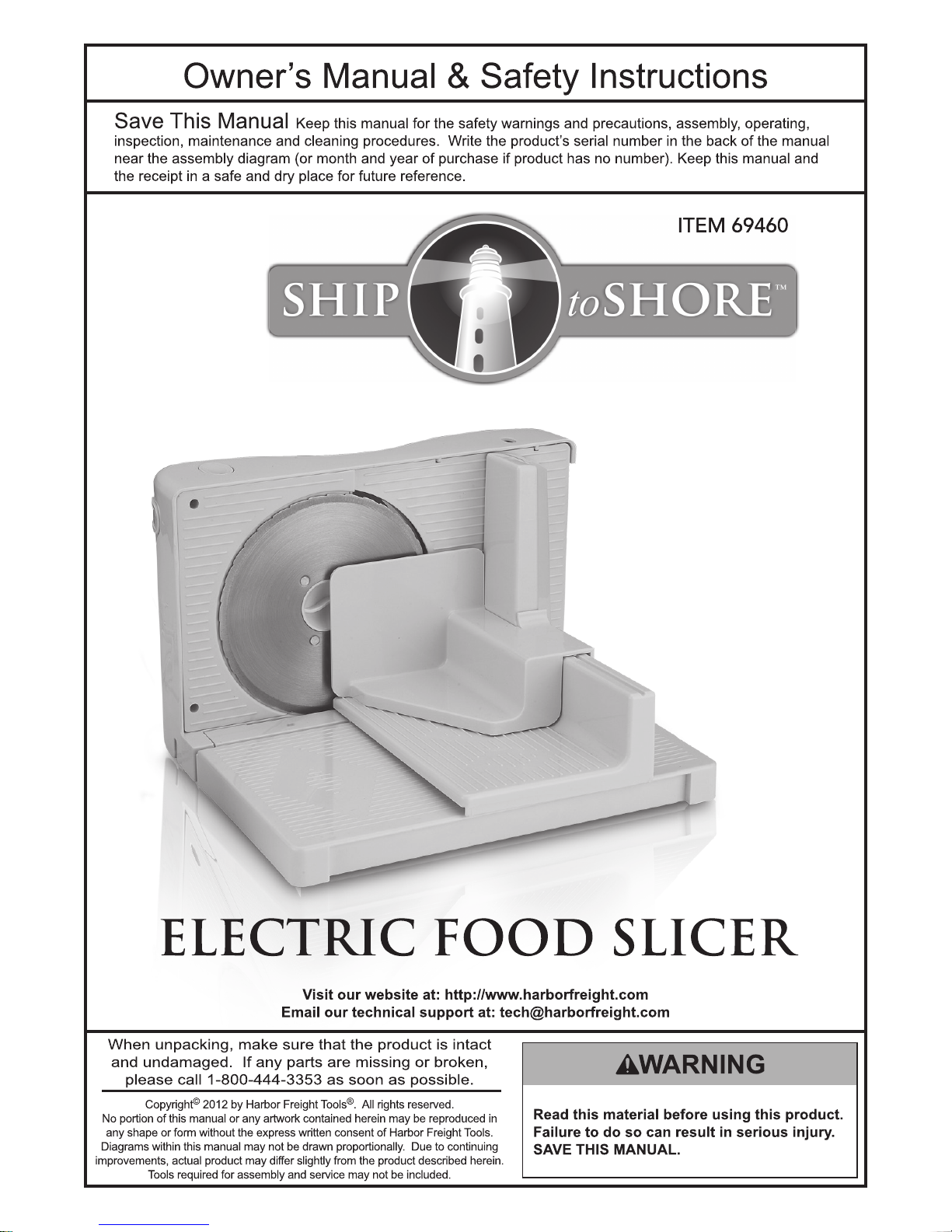

Ship To Shore 69460 Assembly instructions

Page 2 For technical questions, please call 1-800-444-3353. Item 69460
Table of Contents
Safety ......................................................... 2
Specifications ............................................. 4
Assembly.................................................... 4
Operation.................................................... 5
Maintenance............................................... 6
Parts List and Diagram............................... 6
Warranty ..................................................... 8

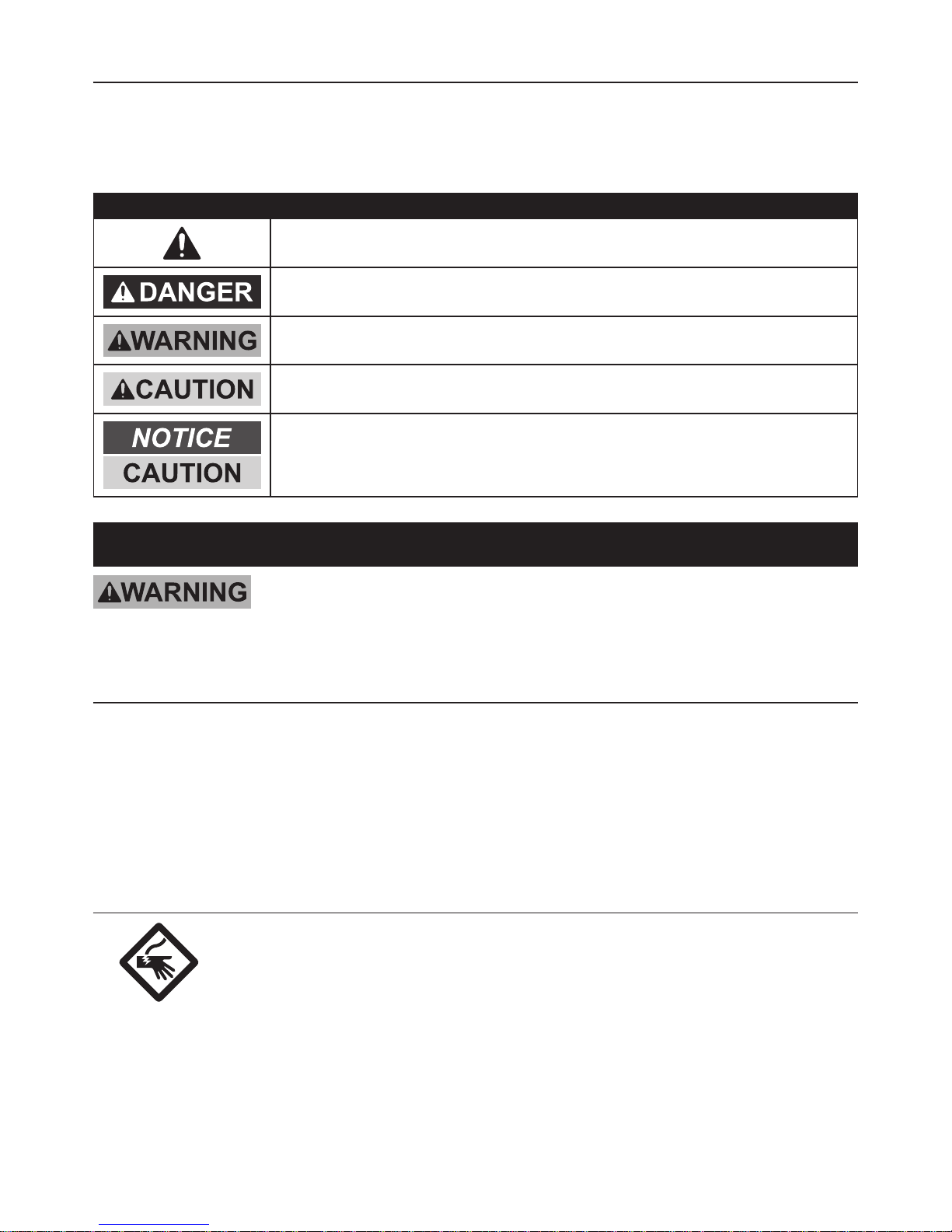

WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
READ AND UNDERSTAND ALL INSTRUCTIONS.
When using electrical appliances, safety precautions should always be followed including the following:
Work Area Safety
1. Do not use outdoors.
2. Close supervision is necessary when any
appliance is used by or near children.
3. Do not let cord hang over edge of table
or counter, or touch hot surfaces.
4. Do not place on or near a hot gas or
electric burner, or in a heated oven.
5. Extreme caution must be used
when moving an appliance.
6. Keep the work area well lit. Make sure there is
adequate surrounding workspace. Keep the work
area free of obstructions and other debris.
Electrical Safety
1. To protect against electrical shock
do not immerse cord, plugs, or the main
unit in water or other liquid.
Only the non-electrical parts of the unit
may be immersed for cleaning.
Thoroughly clean and dry these parts prior to first use
and before every subsequent use.
2. Unplug from outlet when not in use and
before maintenance or cleaning.
3. Do not operate any appliance with a damaged
cord or plug or after the appliance malfunctions
or has been damaged in any manner.
Return appliance to the nearest authorized service
facility for examination, repair, or adjustment.

Page 3For technical questions, please call 1-800-444-3353.Item 69460
4. This appliance has a polarized plug (one blade
is wider than the other). To reduce the risk of
electric shock, this plug is intended to fit into
a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician.
Do not change the plug in any way.
5. Do not use this product in a damp or wet location.
6. Do not clean with metal scouring pads.
Metal pieces can break off the pads and touch
electrical parts involving risk of shock.
Power Cord Safety
1. A short power supply cord is provided to
reduce risks resulting from becoming entangled
in, or tripping over, a longer cord.
2. Longer extension cords are available and may
be used if care is exercised in their use.
3. If a long extension cord is used,
a. the marked electrical rating of the
(detachable power supply cord or) extension
cord should be at least as great as the
electrical rating of the appliance, and
b. the longer cord should be arranged so that it will
not drape over the counter top or tabletop where
it can be pulled on by children or tripped over.
Blade Safety
1. Do not push food by hand,
use pusher at all times.
2. Wear heavy-duty work gloves
when handling blade.
3. Do not slice bone-in meats.
General Safety
1. The use of accessory attachments not recommended
by the appliance manufacturer may cause injuries.
2. Do not use appliance for other than intended use.
3. Maintain labels and nameplates on the
appliance. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
4. Do not store anything other than the
manufacturer’s recommended accessories
in this unit when not in use.
5. This product is not a toy.
Keep it out of reach of children.
6. Before every use, thoroughly clean the
appliance (see “Cleaning” section for
instructions) and wash your hands.
7. WARNING: Handling the cord on this product will
expose you to lead, a chemical known to the State
of California to cause cancer, and birth defects or
other reproductive harm. Wash hands after handling.
(California Health & Safety Code § 25249.5, et seq.)
8. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
9. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
Electrical Safety (cont.)

Page 4 For technical questions, please call 1-800-444-3353. Item 69460
Specifications
Electrical Rating 120V~ / 60Hz
Blade Diameter 6-1/2″
Slice Thickness 1/16″ to 1/2″
Assembly
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION AND ELECTRIC SHOCK:
Turn the Power Switch of the appliance to its “OFF” position and unplug the appliance from
its electrical outlet before assembling or making any adjustments to the appliance.
TO REDUCE RISK OF FOOD BOURNE ILLNESS:
Before assembling the Food Slicer, thoroughly wipe off all parts with a clean rag using
warm soapy water and a mild chlorine bleach solution, and clean the Food Pusher, Blade,
and Food Tray in a dishwasher. Clean the Food Slicer after every use. Failure to follow all
cleaning instructions and warnings may result in serious illness due to food poisoning.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
1. Unfold the Platform from the Main Body.
2. Slide the Food Pusher onto the Food Tray.
The arm of the Food Pusher fits over
the fence on the Food Tray.
3. The Food Tray with the attached Food Pusher
slides into the slot on the Platform.
4. After assembling the unit (see directions below),
test the Food Slicer by running several slices
of day-old bread through the Food Slicer to
ensure that all parts are working properly.

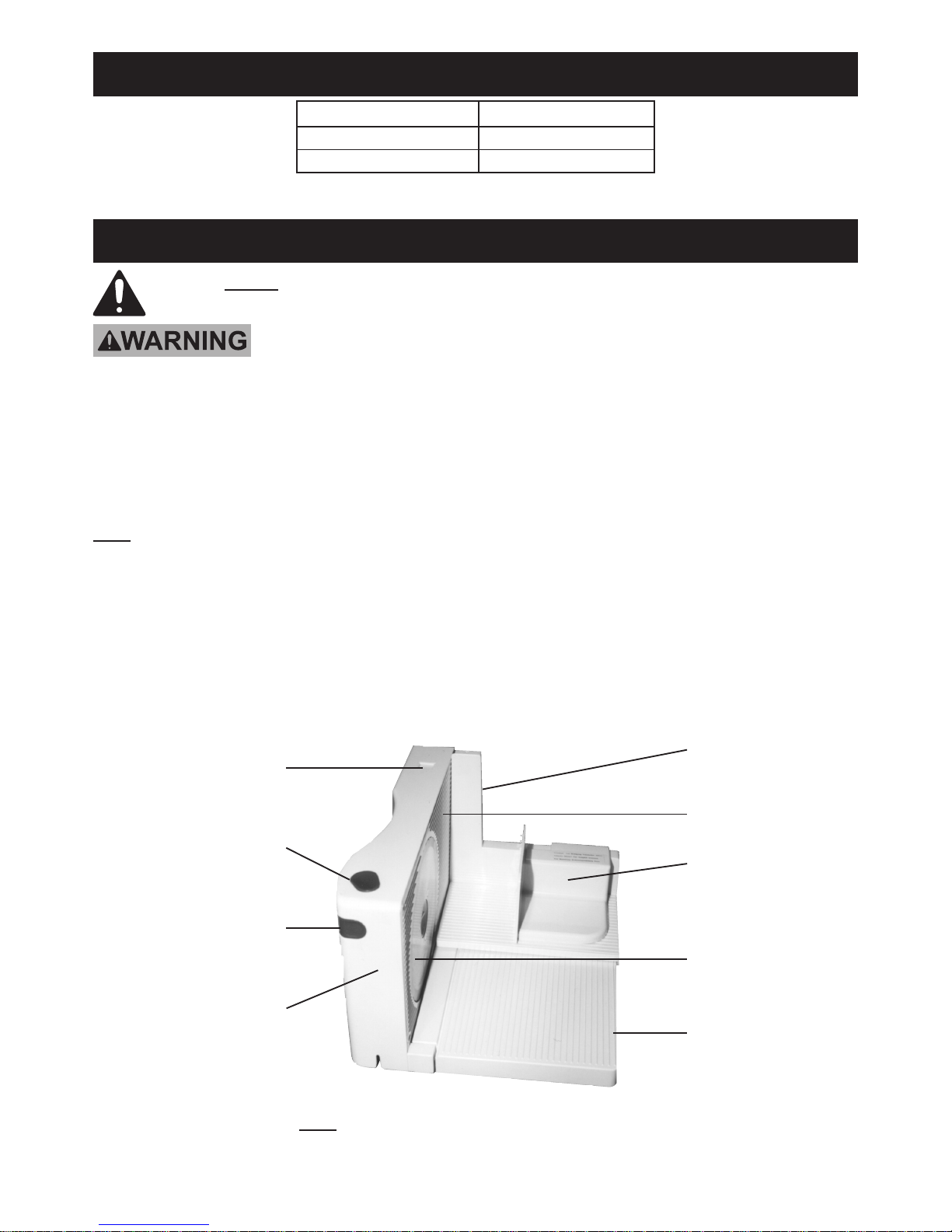

Figure A: Features
Note: Thickness Knob shown on Figure B instead.
Platform (31)
Food Pusher (36)
Blade (26)
Power Button
Safety Button
Slice Thickness Gauge
Thickness Guide
Food Tray (35)
Housing (23)

Page 5For technical questions, please call 1-800-444-3353.Item 69460
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the appliance to its “OFF” position and unplug the appliance from
its electrical outlet before assembling or making any adjustments to the appliance.
TO PREVENT SERIOUS INJURY:
DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR REMOVED.
1. Locate the Food Slicer on a non-slip counter surface.
The operator stands behind the Food Tray.

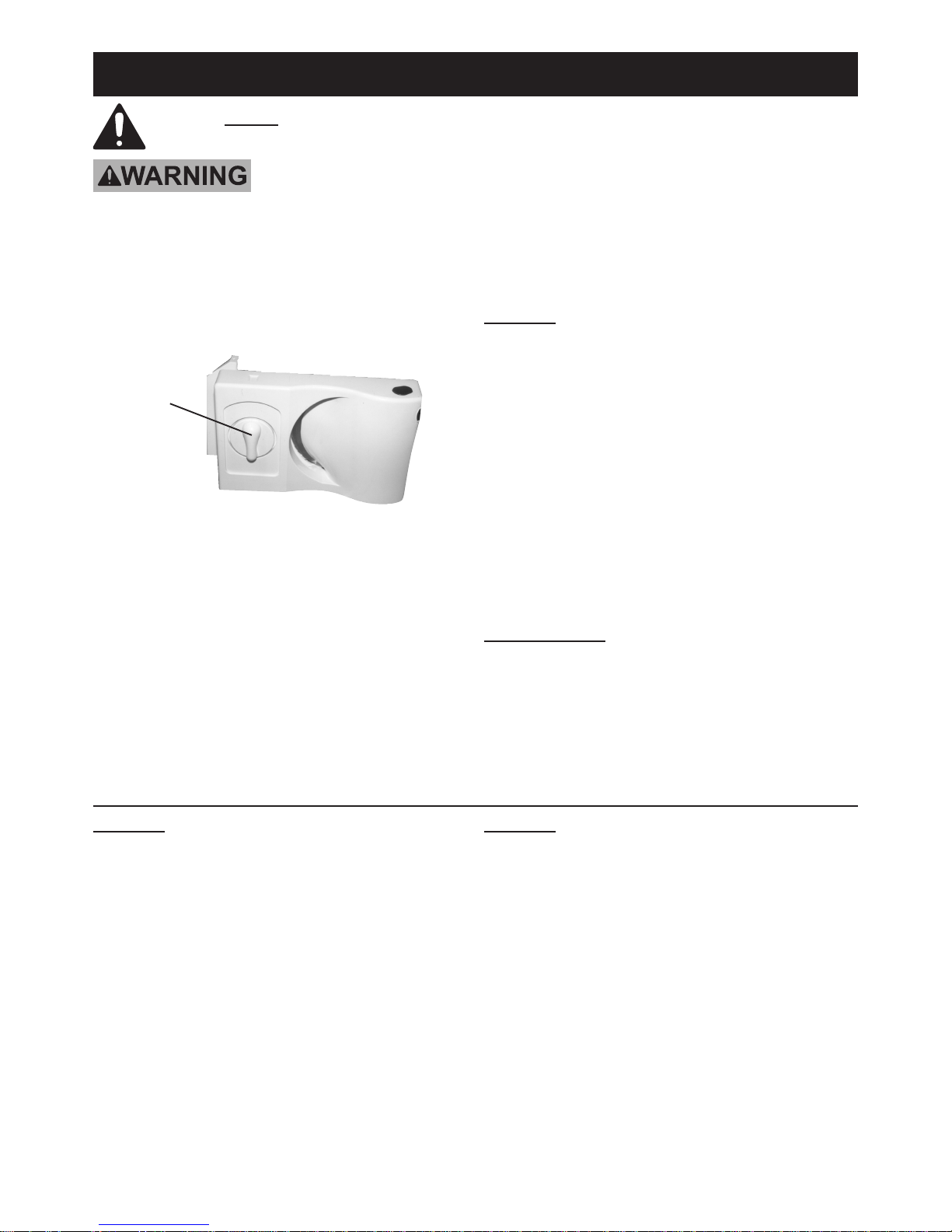

Figure B: Thickness Knob
Thickness
Knob (27)
2. Set the Thickness Knob for the desired slice
thickness. Turn the Thickness Knob clockwise
for thicker slices and counterclockwise
to for thinner slices.
3. Slide the Food Tray out away from the Blade
and towards the operator. Place the food to
be sliced on the Food Tray. Position the Food
Pusher so that it can hold the food to be sliced
as the Food Tray is moved towards the Blade.
CAUTION! KEEP FINGERS AWAY FROM
THE BLADE AT ALL TIMES.
4. To start the Food Slicer, push both the Power
Button and the Safety Button at the same time.
If either is not pushed down, the Food Slicer
will not operate. Use your left hand to operate
the Power Button and the Safety Button.
5. Place your right hand on the outer edge
(farthest from the Blade) of the Food Pusher with
your thumb protected behind thumb guard.
6. Slide the Food Tray back and forth, allowing the
Food Pusher to push the food towards the Blade.
7. To turn off the Food Slicer,
release the Power Button and the Safety Button.
For Best Results:
• Chill foods thoroughly before slicing.
• Fish and thin steaks will slice better if partially frozen.
• Remove strings before slicing roasts.
Blade Removal
CAUTION! WHEN REMOVING AND REPLACING
BLADE, BE ALERT TO SHARP BLADE TEETH!
1. Turn off and unplug the Food Slicer.
2. Turn the Blade (26) counterclockwise to unlock it.
3. Pull out the Blade.
CAUTION! BEFORE FIRST USE AND AFTER
EVERY USE, CLEAN THE BLADE.
4. To replace the Blade (26), line up the tabs
on the Blade (26) with the slots.
5. Once the Blade is seated, turn the Blade
clockwise to lock it in position.

Page 6 For technical questions, please call 1-800-444-3353. Item 69460
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the appliance to its “OFF” position and unplug the appliance from its
electrical outlet before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM APPLIANCE FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning and Maintenance
1. BEFORE EACH USE, inspect the general
condition of the appliance. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts,
• damaged electrical wiring, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of the
appliance with clean cloth. Do not use Steel Wool
or scouring powder on any part of the Food Slicer.
3. After every use, thoroughly wipe off all parts with
a clean rag using warm soapy water and a mild
chlorine bleach solution, and clean the Food Pusher,
Blade, and Food Tray in a dishwasher.
Failure to follow all cleaning instructions and warnings
may result in serious illness due to food poisoning.
4. WARNING! If the supply cord of this
appliance is damaged, it must be replaced
only by a qualified service technician.
Storage
1. Set the thickness to 0".
2. Remove the Food Pusher (36) and Food Tray (35).
3. Fold up the Platform (31) against the Housing (23).
4. Wrap up the Power Cord (6) and store it underneath.
5. Store the entire unit in a sealed clean plastic bag.
6. Store in a location out of reach of children.
Parts List and Diagram
Parts List
Part Description Qty
1 Motor 1
2Fiberglass Tube Ø2×50mm 1
3Fiberglass Tube Ø2×130mm 1
4 Down-Lead 1
5 Motor Bracket 1
6 Power Cord 1
7 Capacitor 0.1K 275V~ 1
8 Bushing 1
9Shrinkable Tube Ø1×12mm 2
10 Connector 2
11 Shrinkable Tube Ø3×25mm 2
12 Switch 1
13 Spring Ø0.6 ×Ø6×20mm 1
Part Description Qty
14 Push Button Frame 1
15 Push Button 1
16 Cord Clamp 1
17 Screw T3×12 2
18 Motor Cover 1
19 Spring Ø0.6 ×Ø6×20mm 1
20 Switch Lever 1
21 Screw T3×10 4
22 Screw T3×10 4
23 Housing 1
24 Square Cushion 2
25 Thickness Guide Stopper 1
26 Blade 1
Part Description Qty
27 Thickness Knob 1
28 Thickness Adjusting Gear 1
29 Screw T3×12 1
30 Thickness Guide 1
31 Platform 1
32 Round Cushion 5
33 Screw T3×12 5
34 Washer Ø3mm 5
35 Food Tray 1
36 Food Pusher 1
37 Choke Coil (Double) 1

Page 7For technical questions, please call 1-800-444-3353.Item 69460
Assembly Diagram

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
