Shire Rose Arbour Manual

Version 01 Sasha Leney 28/05/2020
These instructions are for your safety. Please read through them thoroughly before use.
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE
© Rose Arbour
Mass: 56.1 kg

Let’s
get started...
GB
IE
Important information...
Safety 03
Preparation of base 04
Warranty 04
Care, maintenance & Recycling 05
[e-mail]
Brigstock Road Wisbech Cambridgeshire PE13 3JJ
Tel [phone]
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisaćna adres podany poniżej.
RUS Для получения копии инструкции или копия на другом языке, пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatlarıveya bir kopyasınıbir kopyasıiçin bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
I Per richiedere una copia del libretto di istruzioni, in italiano, o in un’altra
lingua, per favore, invia una e-mail o scrivi a l’indirizzo sottostante.
02
In more detail...
Parts List 06
Fascia & Nail List 07
Detailed Technical Drawing 08-09
Hardware Chart 10
Before you start 11
Assembly Instructions 12-27

We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process.
We advise the use of protective headwear and safety
goggles throughout the assembly process.
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions.
We advise the use of a scaffold tower when fitting the roof
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area.
Follow any safety precautions quoted by the manufacturer
for any equipment you use.
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place.
Check all parts before assembly.
Only use child and animal safe wood preservative.
Do not use creosote.
Allow the wood preservative to fully dry before use.
Regularly check the building for wear and tear.
Getting Started…..
GB
IE
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/SCREW/PIN HEADS PROUD: Tap home to be flush with surface of
timber.
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF
METAL: Replace.
(4) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and Reposition.
(5) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and Refit.
(6) ENSURE THERE ARE NO LOOSE PARTS: Remove and Refit/Discard.
Important!
Safety
IMPORTANT ! For your safety please read
carefully the safety warnings
Check that you have noted all the following instructions:
03

Getting Started…..
GB
IE Base and Warranty
The following are also excluded:
 Damage resulting from poor assembly.
 Poor treatment application.
 Poor care and maintenance.
 Changes to the design.
 Misuse.
 General wear and tear.
Warranty...
10 Year anti-rot warranty subject to the following:
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass).
 This can be achieved using a timber, concrete or slab base.
 When using a concrete or slab base use damp proofing strips
under the bearers.
 The building must have been completely treated and sealed
immediately prior to assembly.
 The building must have been re-treated and re-sealed annually.
NOTE: Wood is a natural product, and therefore the following are
excluded from the warranty:
- Colour change.
- Warping.
- Splitting.
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 1236mm x 654mm
Total height clearance: 2235mm
Roof size: 1421mm x 746mm
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, onto which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.
04

Care, Maintenance and Recycling
1. Pallet and timber widely recycled.
2. Cardboard widely recycled.
3. Plastic strapping subject to local regulations.
4. Plastic sheeting subject to local regulations.
(1) Visually check for weather damage.
(2) Check and replace if necessary any silicone sealant if used on your
building.
(3) Check the roofing material for wear.
(4) The doors and windows may require periodical adjustment.
(5) Ensure your building is well ventilated especially during hot weather.
(6) During extremely hot periods, humidify your building to prevent the timber
from drying out.
The 5 golden rules of care:
The 6 golden rules of maintenance:
1. Timber widely recycled.
2. Metal fixings widely recycled.
3. Glass widely recycled.
packaging
Building
(1) Ensure your base is level and firm.
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly, is treated with a top quality wood preservative at least twice
(before assembly). Turn the panels upside down whilst painting so the
treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore we recommend you seal
between all the panels with a silicone based sealant.
Getting Started…..
GB
IE
05
Recycling and disposal:

Stacked Parts List
Description
(part No ) - Qty
06

Stacked and Nail Bag Parts List
Description
(part No ) - Qty
07

In more detail…..
GB
IE
08

In more detail…..
GB
IE
09

Hardware Chart
Scale 1:1
(A0035) x 45
60mm Posi-Drive Screw
Nail bag contents
Building
Photographs
It will be greatly
appreciated if you could
forward images of your
completed building to -
[email protected].
Description
(part No ) - Qty
10
(A0032) x 03
25mm Posi-Drive Screw
(A0033) x 13
40mm Posi-Drive Screw 40
(A0025) x 14
40mm Round Head Nail

11

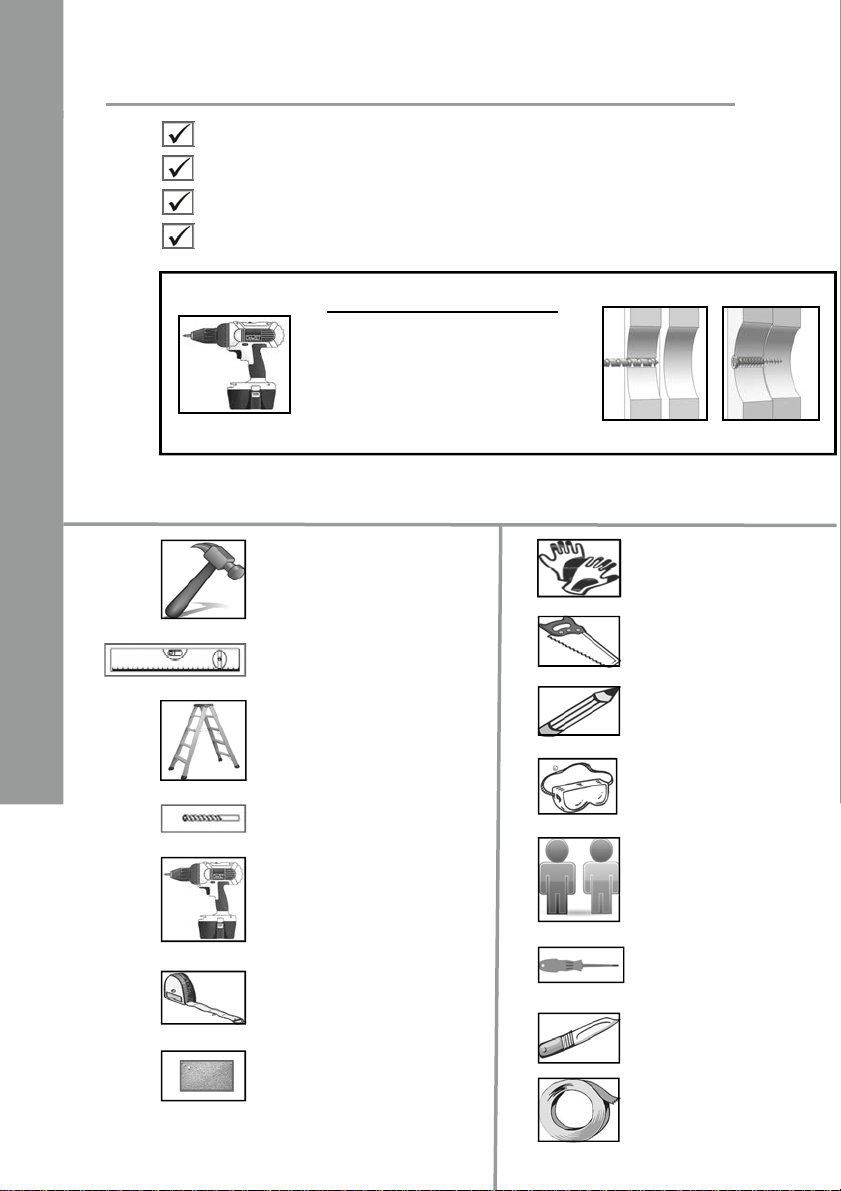

Before you start...
Things to check before you start:
Check all parts as listed in the parts lists.
Read the instructions fully before starting work.
Follow all the health and safety guidelines.
Ensure your base is ready – See page 4.
You will need:
Hammer
Spirit level
Ladder
1mm + 5mm drill bit
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some
tasks
 Screwdriver
 Sharp knife
Masking tape
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
5mm
In more detail…..
GB
IE

GB-IE
01
Assembly instructions:
These instructions are for your safety. Please read through them thoroughly before use.
Treat all the parts before assembly – see page 5!
GB-IE The “Panel layout” is showing you how to position the panels.
The Panels FIT INBETWEEN THE CORNER POSTS!
Large Window Panel
(A5910)x01 Panel Layout
A5912
Drill the Large Window Panel (A5910) as above.
12
5mm
NOTE
Some holes
drilled for
later use
A5910
If using a drill or
electric screwdriver
carefully but firmly
push the opposite end
to the screwdriver bit
into the screw head and keep the
pressure on to prevent the
screwdriver spinning in the screw.
A5911
A5911
A5921 A5921
A5921
A5921

GB-IE

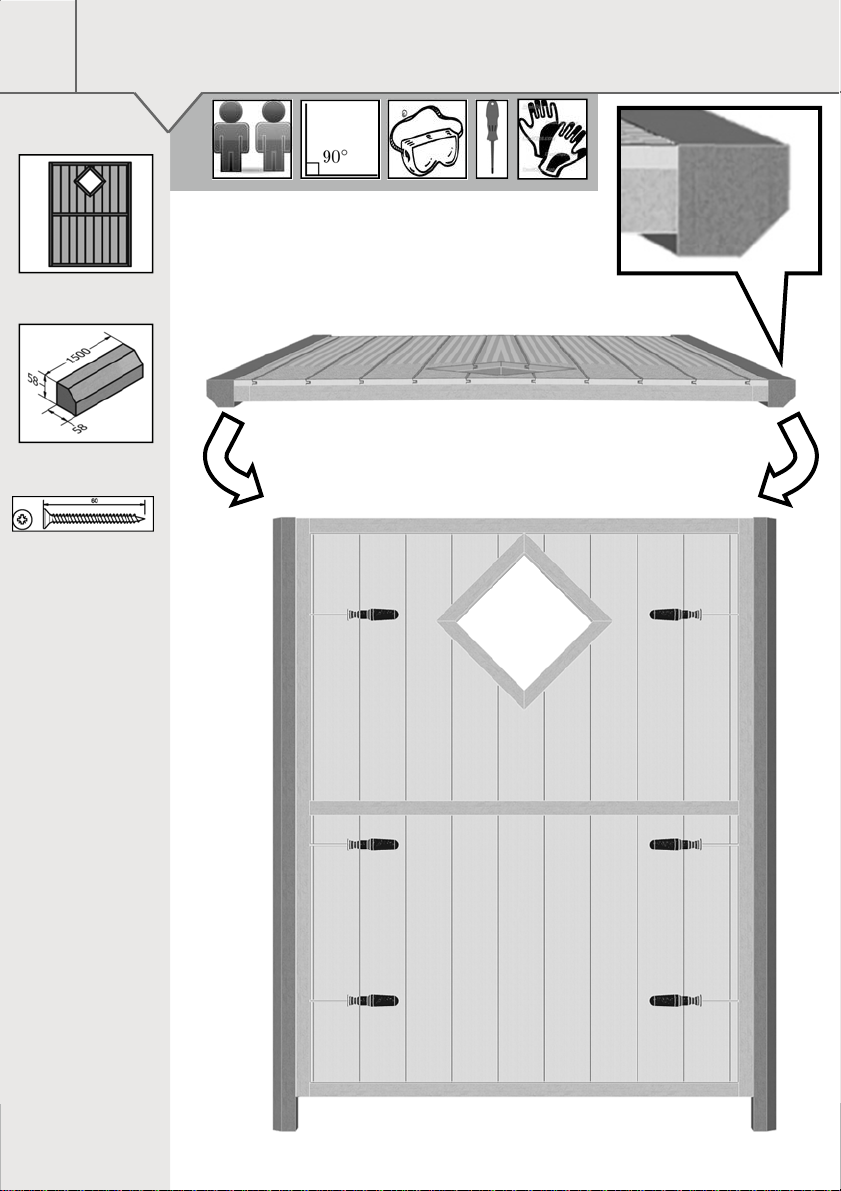

Lay the Large Window Panel (A5910) flat.
Screw two Corner Posts (A5921) to the sides as below, using 6x 60mm Screws (A0035)
and the pilot holes drilled in the previous step.
02
13
60mm Screws
(A0035)x06
Step 1
(A5910)x01
Corner Post
(A5921)x02
Flat edge sits flush with outside cladding.

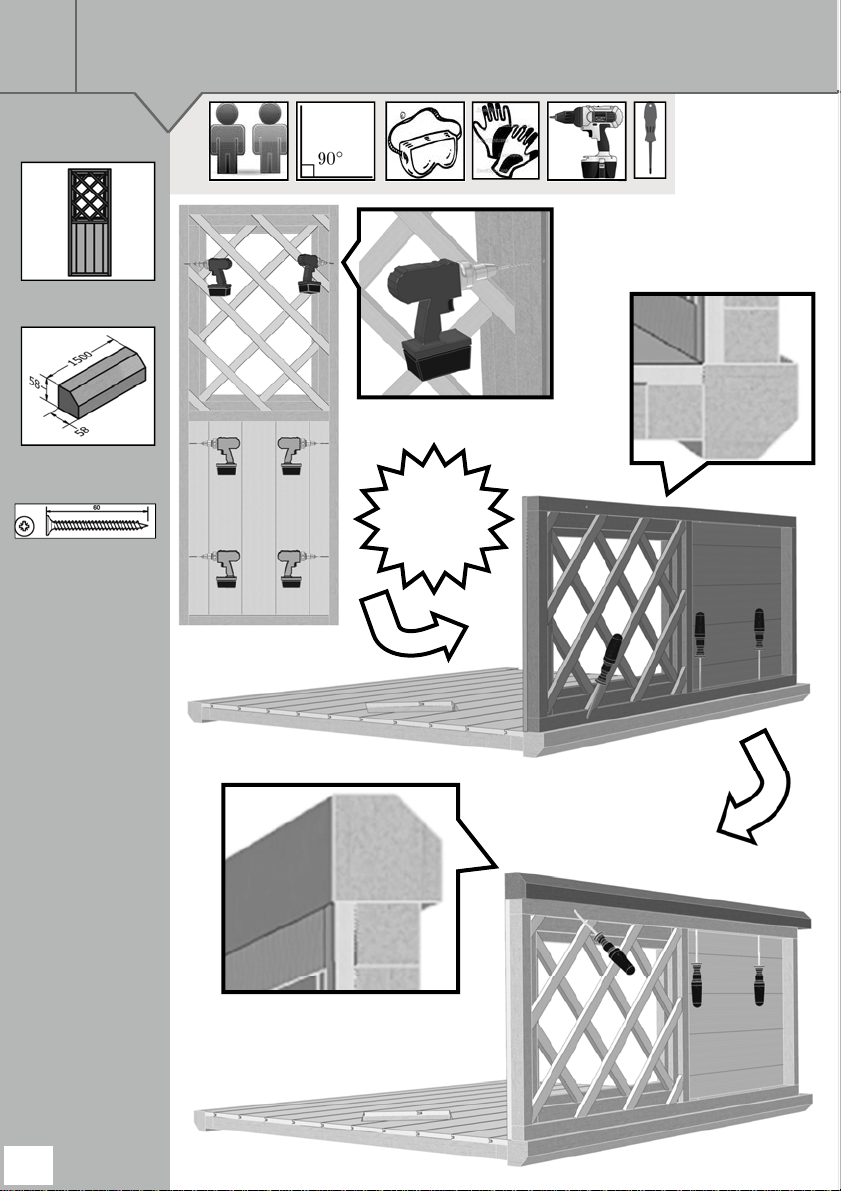

GB-IE Drill one Window Panel (A5911) as below. Drill top holes at an angle. Making sure the
outside cladding is facing inwards and flush with the flat face of the corner post, fix with 3x
60mm Screws (A0035) using the pilot holes previously drilled. Then screw another Corner
Post (A5921) as below, using the pilot holes.
14
03 5 mm
60mm Screws
(A0035)x06
Window Panel
(A5911)x01
Corner Post
(A5921)x01
Sits flush with cladding
Sits flush with post
NOTE
Some holes
drilled for
later use
Drill at an angle

Drill at an angle
GB-IE
Drill the other Window Panel (A5911) as below, making sure the cladding is facing inwards.
Then fix the last Corner Post (A5921) so that the flat face is flush with the cladding on the
Side Panel. Use 6x 60mm Screws (A0035).
04
15
60mm Screws
(A0035)x06
5 mm
Window Panel
(A5911)x01
Corner Post
(A5921)x01
Sits flush with
cladding
Sits flush with post

16

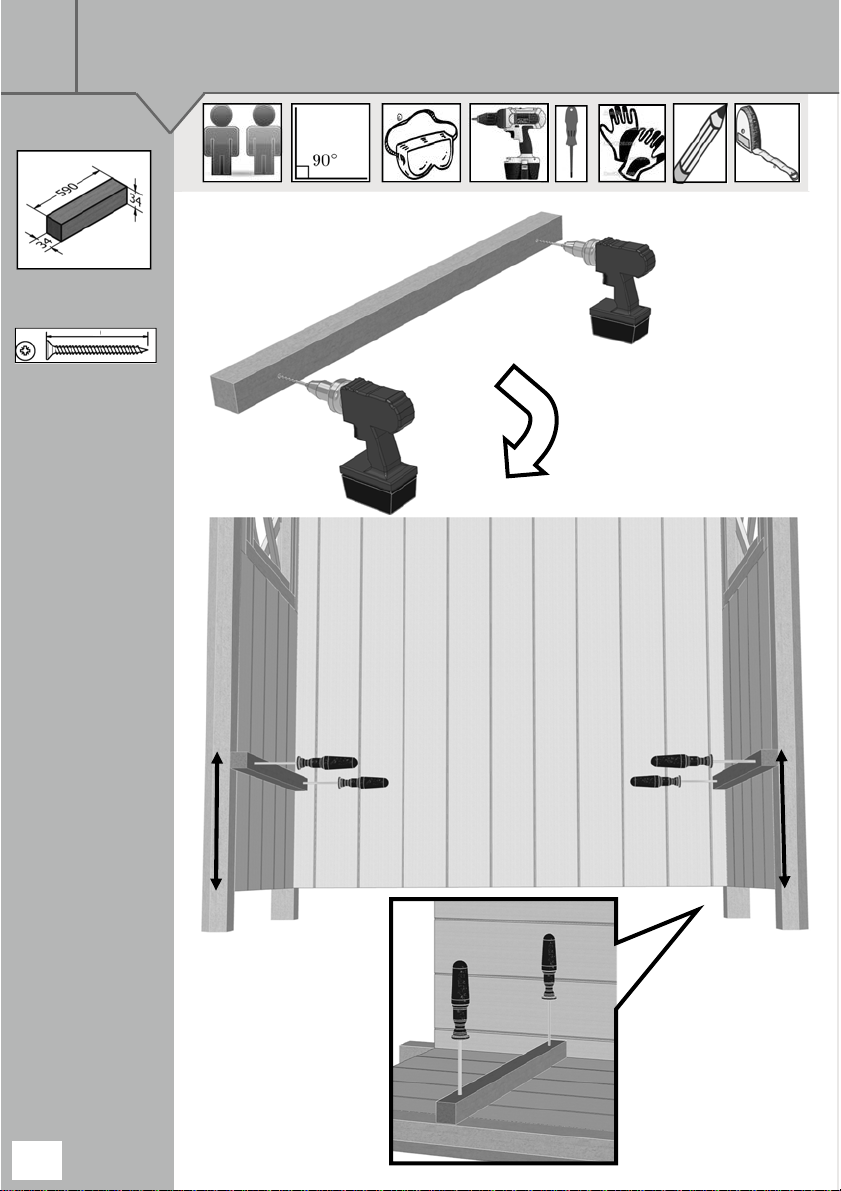

GB-IE Lay the building flat.
Drill two holes as below in each of the 34x34x590 (A5923).
Measure and mark from the bottom of the Window Panel up 368mm. Make sure the top of the
frame sits flush at the 368mm mark. Fix both with 40mm Screws (A0033).
05
34x34x590
(A5923)x02
5mm
368mm 368mm
View from above
40mm Screws
(A0033)x04
40 X2

17
GB-IE Drill the 34x34x1052 (A5922) as below.
Screw the frame to the Large Window Panel so that the top is flush with the frames screwed
in Step 5.
Fix with 40mm Screws (A0033).
06 5mm
34x34x1052
(A5922)x01
View from above
40mm Screws
(A0033)x05
40

18

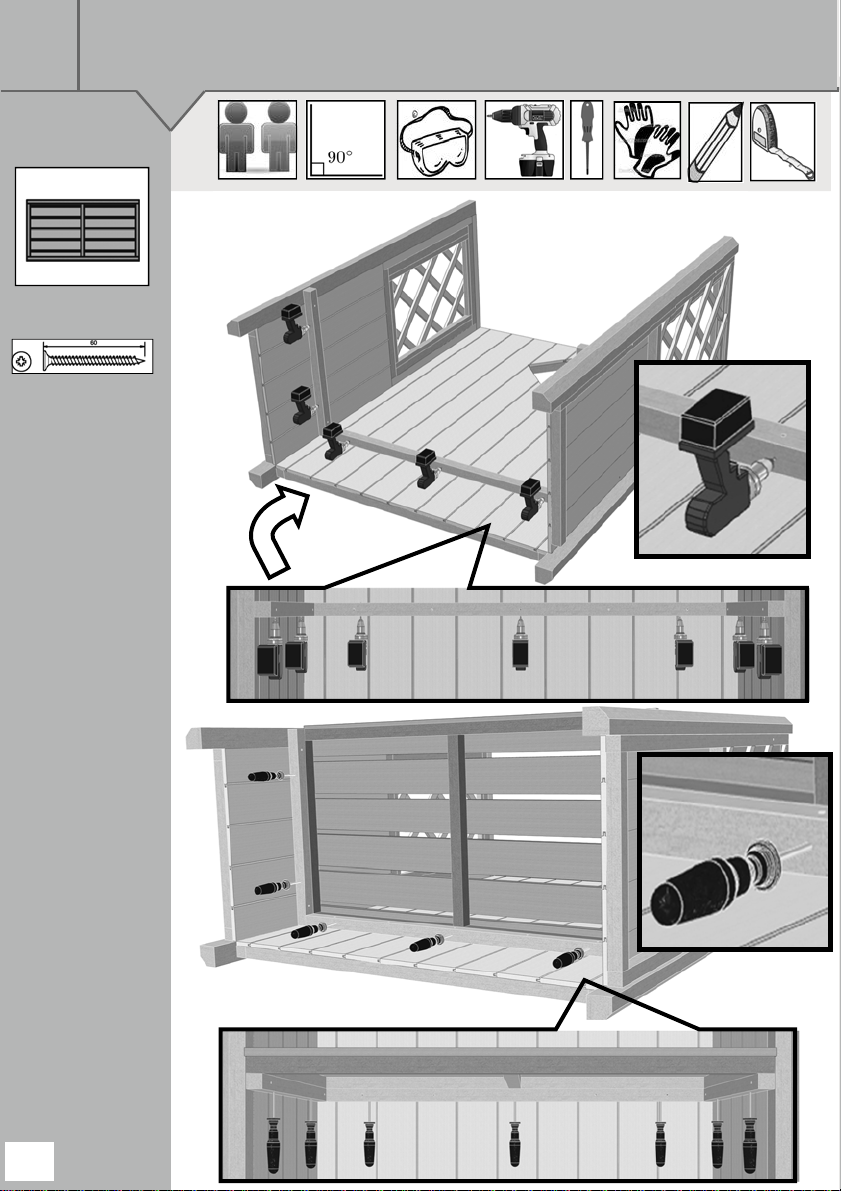

GB-IE Pre-Drill through the bottom of the seat frame bars as below. DO NOT DRILL THROUGH
THE SEAT BASE.
Place the Seat Base (A5912) onto the seat frame built in Steps 5+6.
Screw from underneath the seat with 60mm Screws (A0035) using the pilot holes.
07
Seat Base
(A5912)x01
60mm Screws
(A0035)x07
5mm

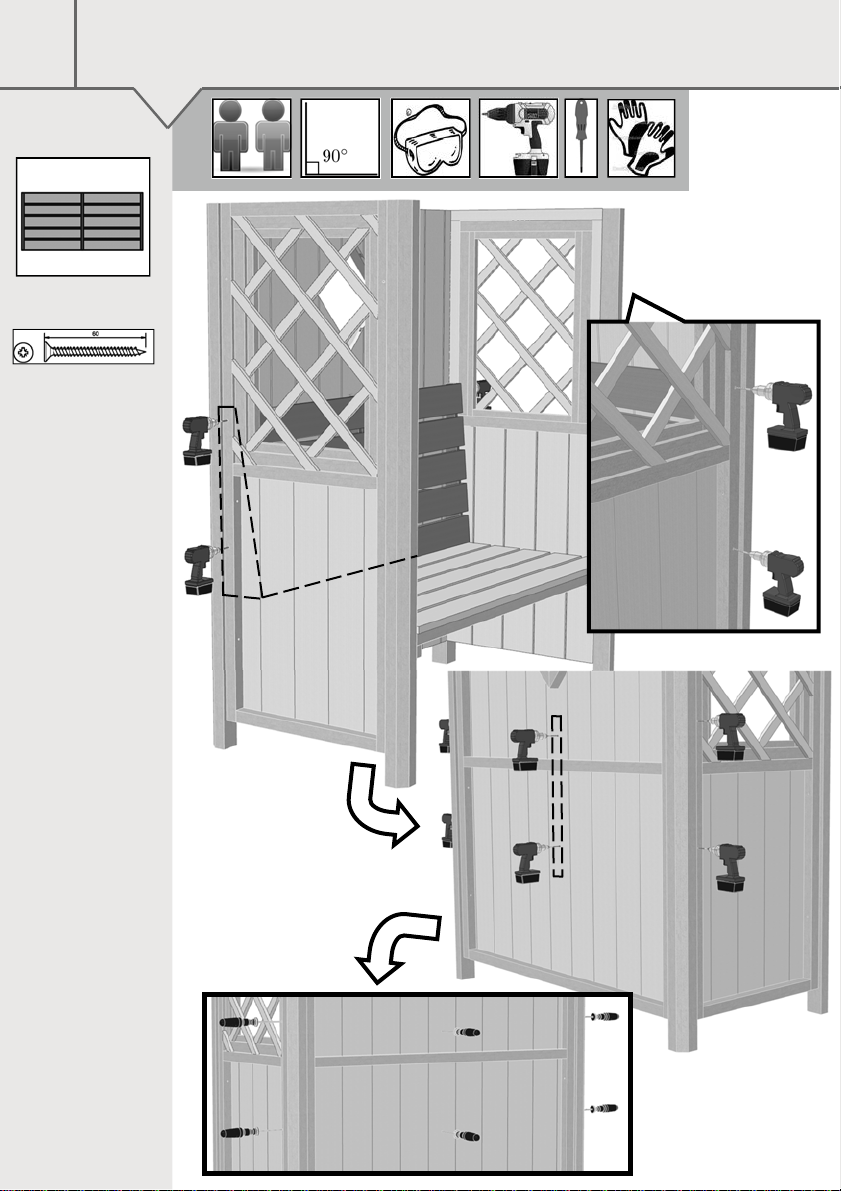

GB-IE Place the RH Seat Back (A5889) onto the Seat Base as below. Drill and screw through the
Window Panel so the screws go into the side bar of the Seat Backing.
Measure and mark on the Large Window Panel where the middle bar of the seat back sits.
Then drill and screw using 2x 60mm Screws (A0035).
08
19
5mm
RH Seat Back
(A5889)x01
60mm Screws
(A0035)x06
Drill and Screw
through the
window panel
into the side bar
of the Seat Back
Drill and Screw
through the large
window panel
into the middle
bar of the Seat
Back

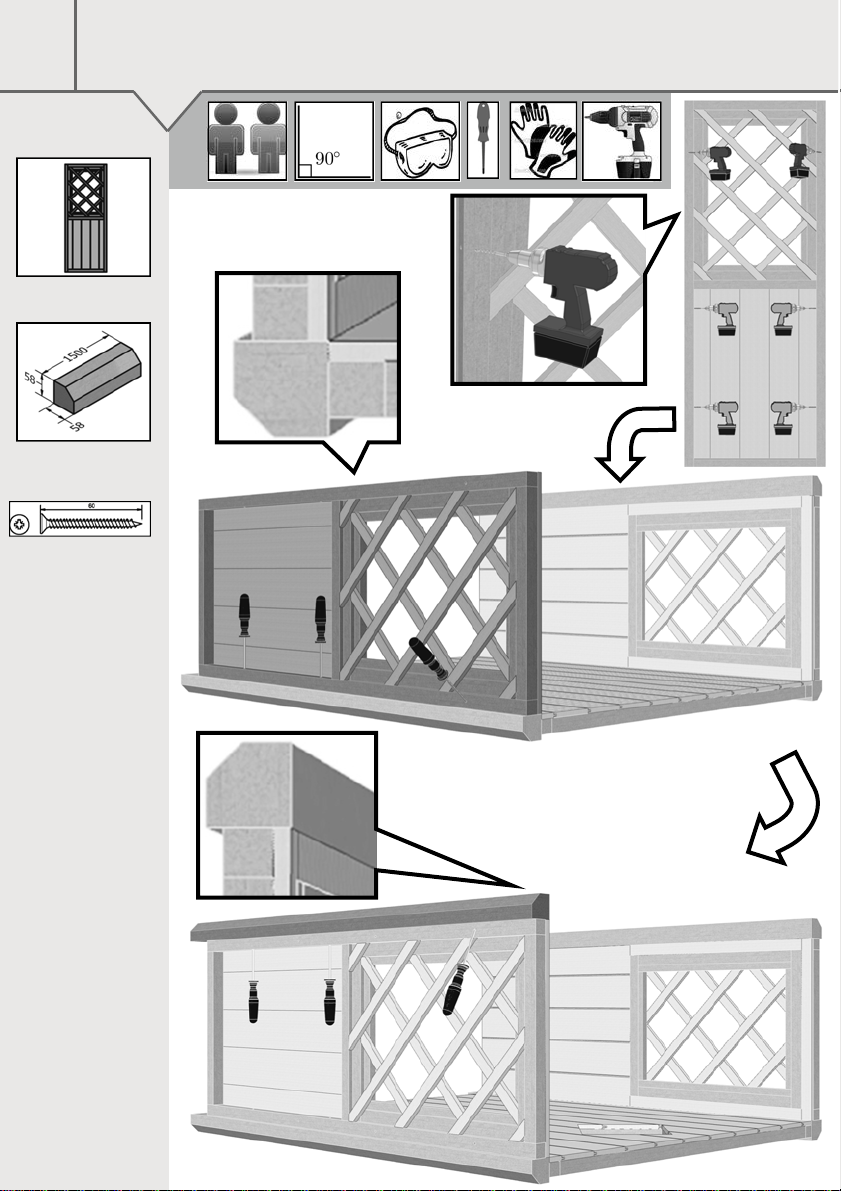

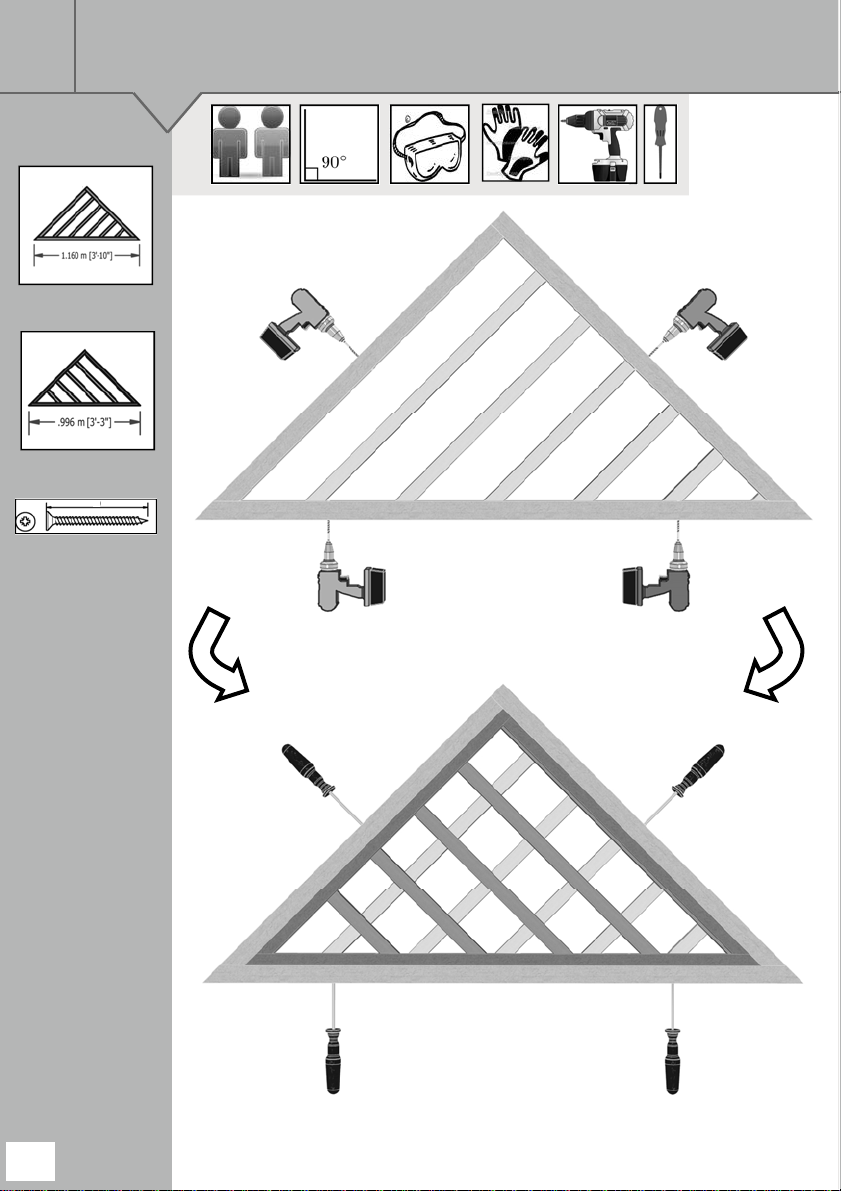

Drill the Outer Trellis (A5916) as below. Drill two holes along the 1160mm edge.
Place the Inner Trellis (A5915) inside the Outer Trellis so that the back framework of both
Trellises are flush. (Hatching is facing inwards).
Screw together with 40mm Screws (A0033) using the pilot holes.
09
GB-IE
20
Outer Trellis
(A5916)x01
40mm Screws
(A0033)x04
5mm
Inner Trellis
(A5915)x01
Frame work is flush
40
