Show Atelier Terbly FS300 User manual

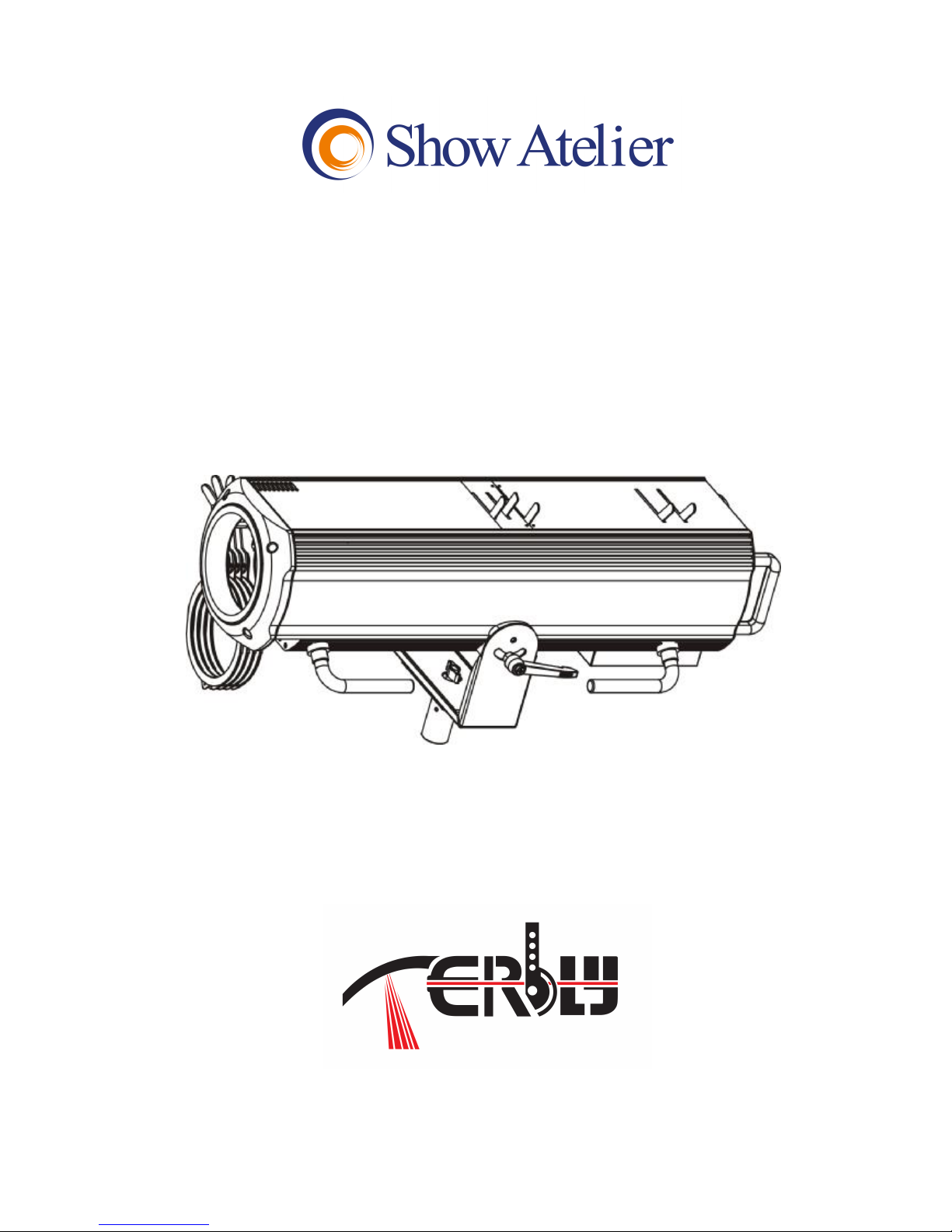

Terbly FS300 Follow Spot
USER MANUAL

1
KEEPTHISMANUALFORFUTURENEEDS
Contents
1. FEATURES......................................................................................................................................................2
2. FIXTUREOVERVIEW.................................................................................................................................3
3. GENERALGUIDELINES.............................................................................................................................3
3.1)Importantsafety warns.......................................................................................................................3
3.2)GENERALGUIDELINES..................................................................................................................4
4. INSTALLATIONINSTRUCTIONS..............................................................................................................5
4.1)Installing orreplacing thelamp..........................................................................................................5
5. Instructions......................................................................................................................................................7
5.1 Dimming/colortemperatureadjustmentinstruction.........................................................................7
6. CLEANINGANDMAINTENANCE.............................................................................................................8
7. TECHNICALSPECIFICATIONS................................................................................................................9

2
Thankyouforyourpatronage. Weareconfidentthatourexcellentproductsandservicecan
satisfyyou. Foryourownsafety, pleasereadthisusermanualcarefullybeforeinstalling the
device.
Inordertoinstall,operate,andmaintainthelightingsafetyandcorrectly.We suggestthatthe
installationandoperationshouldbedonebytheverifiedtechnicianandfollowtheinstruction
strictly.
Unplug mainslead beforeopening thehousing.
CAUTION!
Everypersoninvolvedwiththeinstallation, operationandmaintenanceofthisdevice hasto:
-bequalified
-followcarefullytheinstructionsofthismanual
INTRODUCTION:
Thankyouforhaving chosenthisprofessional FollowspotLighting.
Youwill see youhaveacquiredapowerfulandversatiledevice.
Unpackthedevice. Insidetheboxyoushouldfind:
1. Onepowercables
2. Manual
3. Onewarrantycardandcertification
Pleasecheckcarefullythatthereisnodamagecausedbytransportation. Shouldtherebeany,
consultyourdealeranddon tinstallthisdevice.
1. FEATURES
Lamp:PhilipsPLATINUM15R.
ColorFilters:4pcsmanualcolorfilters
Dimmerintensityfrom0%~100%
Colortemperature:linearadjustmentfrom3200Kto6800K

3
2. Fixture Overview
3.GENERALGUIDELINES
3.1)Importantsafetywarns
Thisdevice hasleftthefactoryinperfectcondition. Inordertomaintainthisconditionandto
ensureasafeoperation, itisabsolutelynecessaryfortheusertofollowthesafetyinstructionsand
warning noteswritteninthisusermanual.
Important:
Damagescausedbythedisregardofthisusermanualarenotsubjecttowarranty.The
dealerwill notacceptliabilityforanyresultingdefectsorproblems.
1:Dimming
2:ColorTemperature
3: Iris
4: Frost
5: Framing
6: Adjustbeamangle
7:Coloredpapers
8:Fuse
9:Powersupply
10:Powerswitch
11:Hand
12:Lampbracketrearmetalpanel
13:Lens

4
Ifthedevice hasbeenexposedtotemperaturechangesduetoenvironmentalchanges, donot
switchitonimmediately. Thearising condensationcoulddamagethedevice. Leavethedevice
switchedoffuntilithasreachedroomtemperature.
Thisdevice fallsunderprotection-classI.Thereforeitisessentialthatthedevice beearthed.
Ifprotectionscreen,lensorultravioletscreeninthefixtureisapparentlydamagedorisdamaged
toexceedtheirowneffectivedegree, suchascrackedandgashed,itmustbereplaced.
Theelectricconnectionmustcarryoutbyqualifiedperson.
Makesurethattheavailablevoltageisnothigherthanstatedattheendofthismanual.
Makesurethepowercordisnevercrimpedordamagedbysharpedges. Ifthiswouldbethecase,
replacementofthecablemustbedonebyanauthorizeddealer.
Alwaysdisconnectfromthemains, whenthedeviceisnotinuseorbeforecleaning it. Only
handlethepowercordbytheplug. Neverpull outtheplug bytuggingthepowercord.
Duringinitialstart-upsomesmokeorsmellmayarise. Thisisanormalprocess anddoesnot
necessarilymeanthatthedevice isdefective,itshoulddecreasegradually.
Pleasedon'tprojectthebeamontocombustiblesubstances.
Iftheexternalflexiblecableorcordofthisluminaireisdamaged,itshall beexclusivelyreplaced
bythemanufacturerorhisserviceagentorasimilarqualifiedpersoninordertoavoidahazard.
Pleasebeawarethatdamagescausedbymanualmodificationstothedevice arenotsubject
towarranty.Keepawayfromchildrenand non-professionals.
3.2)GENERALGUIDELINES
Thisdevice isalightingeffectforprofessionaluseonstages, indiscotheques, theatres, etc.,the
device wasdesignedforindooruseonly.
Thisfixtureisonlyallowedtobeoperatedwiththemaxalternatingcurrentwhichstatedinthe
technicalspecificationsinthelastpageofthismanual.
Lightingeffectsarenotdesignedforpermanentoperation. Consistentoperationbreaksmay
ensurethatthedevice willserveyouforalongtimewithoutdefects.

5
Donotshakethedevice.Avoidbruteforce wheninstalling oroperatingthedevice.
Whilechoosingtheinstallation-spot,pleasemakesurethatthedevice isnotexposedtoextreme
heat, moistureordust.Pleasedon'tprojectthebeamontocombustiblesubstances.Theminimum
distance betweenlight-outputfromtheprojectorandtheilluminatedsurfacemustbemorethan3
meter.
Ifyouusethequicklockcaminhanging up thefixture, pleasemakesurethequicklockfasteners
turnedinthequicklockholescorrectly.
Operatethedevice onlyafterhaving familiarizedwithitsfunctions. Donotpermitoperationby
personsnotqualifiedforoperatingthedevice. Mostdamagesaretheresultofunprofessional
operation.
Pleaseusetheoriginalpackaging ifthedevice istobetransported.
Forsafetyreasons, pleasebeawarethatall modificationsonthedevice areforbidden.
Ifthisdevice willbeoperatedinanywaydifferenttotheonedescribedinthismanual, the
productmaysufferdamagesandtheguarantee becomesvoid. Furthermore, anyotheroperation
mayleadtoshort-circuit, burns, electricshock, lampexplosion, crash, etc.
4. INSTALLATIONINSTRUCTIONS
4.1)Installing orreplacingthelamp
BecauseofthenatureoftheextremeheatassociatedwiththePlatinum15Rlampand
thetightnatureoftheinternalopticalsystemitisimperativethatthelampbe
replacedevery2000 hours. This isdonetoprotecttheinternalopticalsystemaswell
as preventaccidentallampexplosion, whichcouldleadtohotglass particles falling
fromthefixture.Failuretochangethelampwithin300 hoursofoperationwillresult
inautomaticshutdownofthefixture s electronics.
Onlyinstallthelampwiththedeviceunpluggedfromthemains.
Thelamphastobereplacedwhenitisdamagedordeformed.

6
Beforereplacingthelampletthelampcooldown,becauseduringoperation,thelampcan
reachveryhightemperature.
Duringtheinstallationofhalogenlampsdonottouchtheglass bulbsbarehanded.Alwaysusea
clothtohandlethelampsduringinsertionandremoval.
Donotinstall lampswithahigherwattage.Theygeneratehighertemperaturesthanwhichthe
device wasdesignedfor.
Fortheinstallation,youneedone:PLATINUM15R
Procedures:
1) Unscrewthe3screws(A, B, C)onthebottomofthehousing, holding theplatewherethe
lampisunderneath. Carefullyremovethemetalplate.
2) Insertthelampcounter-clockwise35 degree intothelampholder,thenturnclockwise35
degree toputitintotherightposition. Attention:pleasewrapthelampwiththesoftcloththat
comeswiththepacking, avoidnakedhandcontacttothelampdirectly.
3) Putthelampholderbackpositionafterinstallthelamp, tightenthescrewandcompletethe
installation.
Pleaserememberthelampisnotahot-restriketype, youmustwaitforapproximately10
minutesafterhaving turnedoffthelampbeforeyoucanturnitbackonagain.
Donotoperatethisdevicewithopencover

7

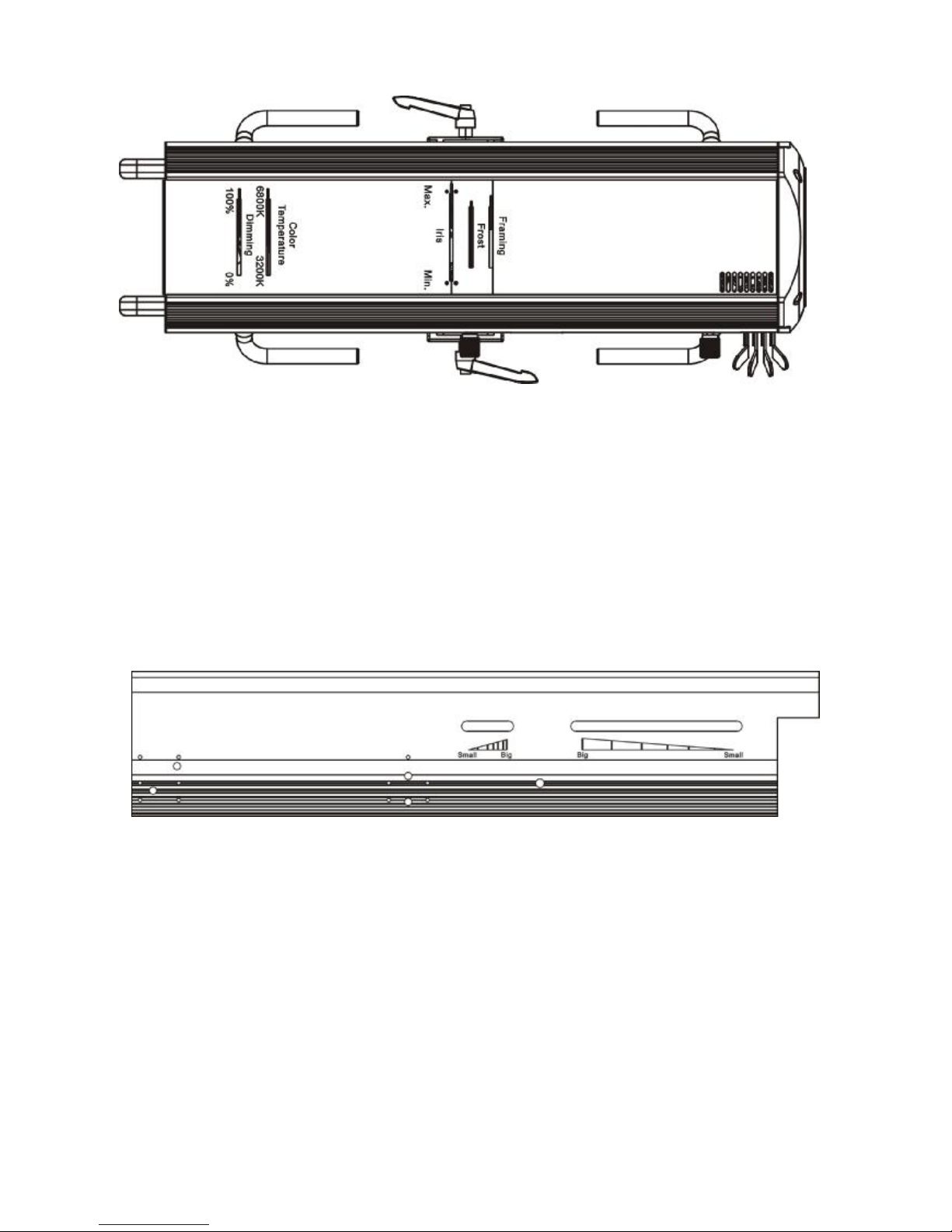

Layout Drawings:
5. Instructions
5.1Dimming/colortemperatureadjustmentinstruction
1）Dimming:lineardimming-Intensity0%to100%.
Instruction:dimming accordingtosilkscreeninstructionbyslider.
2）Colortemperature:linearadjustmentfrom3200Kto6800K.
Instruction:adjustcolortemperatureaccordingtosilkscreeninstructionbyslider.
3）Iris:adjustMin. toMaxlinearly.
Instruction:adjustirisaccordingtosilkscreeninstructionbyslider.
4）Frost：softentheedgeofspot
Instruction:pushtheadjustinglever,pleaseadjustthefrosteffectaccordingtothefixed
positionofthesilk-screen.
5）Framing:profilefromup todown.
Instruction:profileaccordingtosilkscreeninstruction.

8
5.2Beamangeladjustmentinstruction
adjustbeamangle:linearlyadjustingbeamangelfromsmalltobig
Instruction:moveslidersonbothsidestofocusand zoom.
(Attn:mustkeepbothsidesmovetosamevalue)
6. CLEANINGAND MAINTENANCE
Thefollowing pointshavetobeconsideredduringtheinspection:
1)All screwsforinstalling thedevicesorparts ofthedevice havetobetightlyconnectedand
mustnotbecorroded.
2)Theremustnotbeanydeformationsonthehousing, colorlenses,fixationsandinstallation
spots(ceiling, suspension, trussing).
3)Theelectricpowersupplycablesmustnotshowanydamage,materialfatigueorsediments.
Furtherinstructionsdepending ontheinstallationspotandusagehavetobeadheredbyaskilled

9
installerandanysafetyproblemshavetoberemoved.
Inordertomakethelightsingoodconditionandextendthelifetime, wesuggestaregular
cleaning tothelights.
1)Cleantheinsideandoutsidelenseachweektoavoidtheweaknessofthelightsdueto
accumulationofdust.
2)Cleanthefaneachweek.
3)Adetailedelectriccheckbyapprovedelectricalengineereachthree month,makesurethat
thecircuitcontactsareingoodcondition, preventthepoorcontactofcircuitfrom
overheating.
Werecommendafrequentcleaningofthedevice. Pleaseuseamoist, lint-free cloth. Neveruse
alcoholorsolvents.
Therearenoserviceablepartsinsidethedevice exceptforthelamp. Pleaserefertothe
instructionsunder “Installationinstructions”.
Shouldyouneedanyspareparts, pleaseordergenuinepartsfromyourlocaldealer.
7. TECHNICALSPECIFICATIONS
Powersupply: AC100-240V~，50/60Hz
Powerconsumption:380W
Lamp: PLATINUM15R
Lamppower: 300W
Packingcartondimensions: 101x44x53cm
Flightcasedimensions: 117.5x69x50cm
Netweight: 23.5KGS
Gross weight: 29 KGS(cartonpacking)82.5KGS(Packageinflightcase:includingtripod andlens,
lenscircleweight)
Remark: errorsandomissionsforeveryinformationgiveninthismanualexcepted. All
informationissubjecttochangewithoutpriornotice.
