Lightway 872-S-S User manual

®
®
®
®
SOLAR-POWERED
SPOTLIGHT
User Manual

2 3
Scope of delivery ............................................................ 4
General information ....................................................... 8
Reading and storing the user manual........................... 8
Proper use........................................................................... 8
Explanation of symbols .................................................... 9
Safety..............................................................................10
Explanation of notes ........................................................10
General safety notes .........................................................11
First use ..........................................................................16
Checking the product and scope of delivery ..............16
Charging the rechargeable batteries
for the first time................................................................. 17
Selecting the installation location.................................18
Assembly ........................................................................19
Mounting the spot light.................................................. 20
Mounting the solar panel............................................... 20
Operation ....................................................................... 21
Configuring the sensor area........................................... 21
Setting the lighting duration .........................................22
Setting the sensitivity......................................................22
Adjusting the spotlight heads........................................23
Aligning the solar panel ..................................................23
Switching the product on and off.................................23
Troubleshooting ........................................................... 24
Cleaning..........................................................................27
Storage .......................................................................... 28
Technical data ............................................................... 28
Declaration of conformity ............................................ 30
Disposal ......................................................................... 30
Disposing of the packaging........................................... 30
Disposing of the product................................................. 31
Contents

Scope of delivery Scope of delivery
4 5
A
17 18
5
1
2 3
4
67
8
9
10
11
12
16
14 13
15
Scope of delivery B
C
2 - 3 m 12 m
8
13
16
6
6

Scope of delivery Scope of delivery
6 7
G
E
F
D
2 - 3 m 12 m
90°60°
90°
1

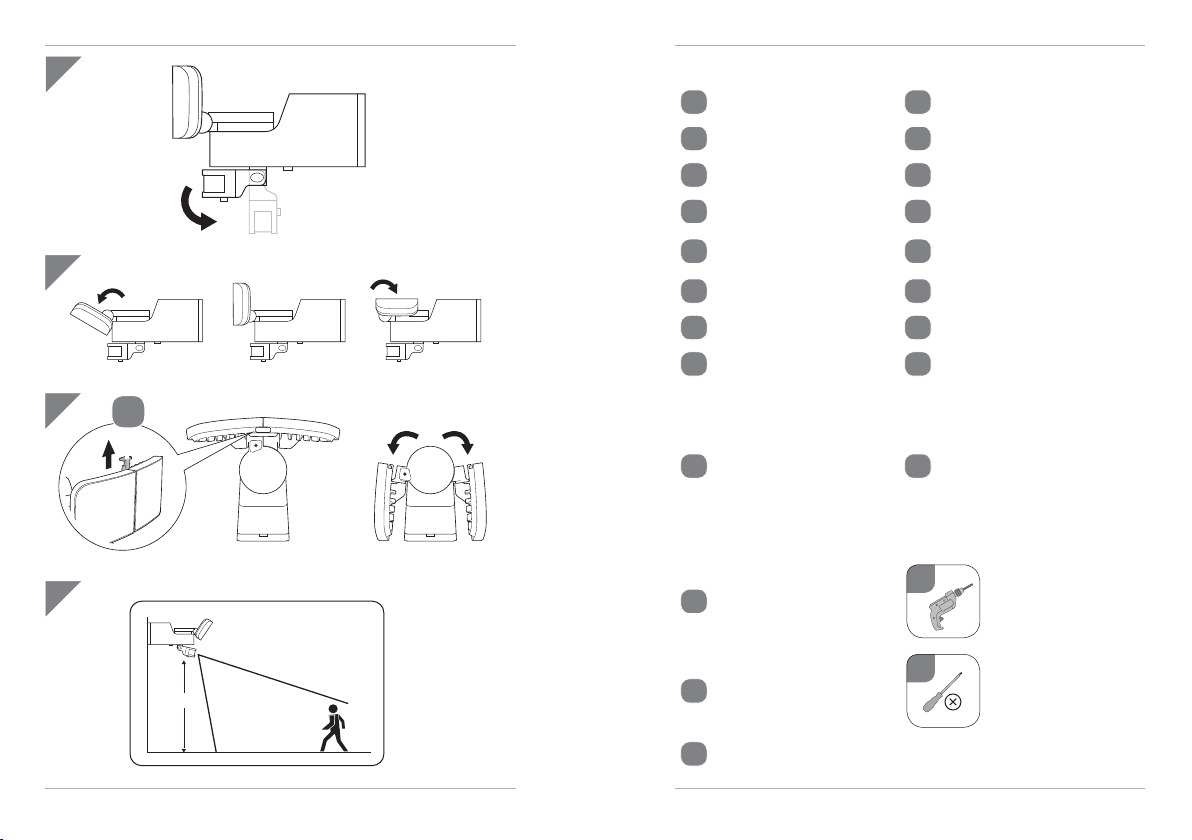

Components
1Tab 9Charging slot
2LUX controller 10 Sensor housing
3SENS controller 11 Motion sensor
4TIME controller 12 Spotlight head, 2×
5Power switch 13 Wall bracket (spotlight)
6Fixing screw 14 Plug with charging cable
7Spotlight 15 Solar panel
8Rear panel 16 Wall bracket (solar panel)
Connecting elements supplied
17 Wall plug, 4× 18 Screw, 4×
Required tools (not included)
19 Electric drill
19
20 Cross-head
screwdriver
20
21 Garantie Card

General information General information
8 9
Explanation of symbols
The following symbols are used in this user manual, on the
product or on the packaging.
This symbol provides you with useful
additional information about start-up or
operation.
Declaration of conformity (see chapter
“Declaration of conformity”): Products
marked with this symbol meet all applicable
Community regulations for the European
Economic Area.
The product’s type of protection is IP44. This
means it is protected against splashing water
and against ingress of solid foreign objects
with a diameter of more than 1 mm.
This symbol identifies electric devices
corresponding to protection class III. This
means the product operates at low voltage
and is operated with a safety extra low
voltage (SELV).
Any cracked protective cover must be
replaced.
Products marked with this symbol
meet all applicable regulations and
requirements in the economic area
of Great Britain.
General information
Reading and storing the user manual
This user manual accompanies this solar-powered
spotlight (referred to below only as the ‘product’).
It contains important information on start-up and
handling.
Before using the product, read the user manual carefully. This
particularly applies to the safety instructions. Failure to follow
this user manual may result in serious injury or damage to the
product.
The user manual is based on the standards and rules in force
in the European Union. When abroad, you must also observe
country-specific guidelines and laws.
Store the user manual for future use. Make sure to include this
user manual when passing the product on to third parties.
Proper use
The product is designed for permanent installation in a
location protected against rain and is intended only for
temporary lighting outdoors, e.g. to light building entrances,
garages or pathways and as a deterrent against burglary.
Do not use it for indoor lighting or for accent lighting. It is only
intended for private use and is not suitable for commercial
purposes.
Use the product only as described in this user manual. Any
other use is considered improper and may result in damage to
property.
The manufacturer or vendor accepts no liability for damage
caused by improper or incorrect use.

Safety Safety
10 11
Safety
Explanation of notes
The following symbols and signal words are used in this user
manual.
WARNING!
This signal symbol/word designates a hazard with moderate
degree of risk which may lead to death or severe injury if not
avoided.
CAUTION!
This signal symbol/word designates a hazard with low risk
that, if not avoided, may result in minor or moderate injury.
NOTICE!
This signal word warns against potential damages to property.
General safety notes
WARNING!
Risk of explosion and fire!
Improper handling of the product can cause
an explosion or a fire.
− Keep children away from the product.
− Keep the product away from water,
other liquids, open flames and hot
surfaces.
− Do not hang any objects over the
product and do not cover it. Maintain a
distance of 1m between the spot light
and easily flammable materials.
− Do not use the product anymore if
it exhibits damages. Only replace
damaged parts with corresponding
original spare parts.
− Do not open the housing and do not
make any modifications to the product.
Have only qualified professionals
perform repairs.
− Do not position the product over

Safety Safety
12 13
bathtubs, sinks or other objects filled
with water.
− Only charge the rechargeable batteries
using the solar panel supplied.
− Protect the rechargeable batteries
against mechanical damage.
− Do not throw rechargeable batteries in
fire. They could explode or release toxic
vapours.
− Do not expose rechargeable batteries to
unrestricted sunshine or heat. Increased
risk of leaking!
− Do not take rechargeable batteries apart
and do not short-circuit them. Danger of
explosion!
− The non-replaceable rechargeable
batteries are located inside the housing.
WARNING!
Risk of chemical burns!
Leaked fluid from the rechargeable batteries
could cause burns if it comes into contact
with skin or other body parts. Swallowing
rechargeable batteries may result in severe
internal injuries or even death.
− If battery acid leaks out, avoid contact
with skin, eyes and mucus membranes.
In the event of contact, immediately
rinse the affected areas with plenty of
clean water and consult a physician.
− In the event that battery acid leaks out,
protective gloves must be worn and
the leaked acid removed using a dry,
absorbent cloth.
− Store both new and used rechargeable
batteries so that they are not accessible
to children.
− If you are no longer able to securely
close the battery compartment, do
not use the product. Remove the
rechargeable batteries and store them
in a location that is inaccessible to
children.
− If you suspect that a rechargeable
battery has been swallowed or has
otherwise entered the body, promptly
consult a physician.

Safety Safety
14 15
CAUTION!
Risk of injury!
The light emitted by the LEDs is very bright
and can damage the eyes if looked at directly.
− Never look directly into the light of the
product’s LEDs.
− Ensure not to shine the light into
the eyes of people or animals when
inspecting or assembling/installing the
product.
WARNING!
Danger for children and persons with
impaired physical, sensory or mental
capacities (e.g. partially disabled
persons, older persons with reduced
physical and mental capacities) or lack
of experience and knowledge (e.g. older
children).
− This product may be used by persons
with impaired physical, sensory or
mental capacities or those lacking
experience and knowledge if they are
supervised or have been instructed in
how to safely use the product and have
understood the risks associated with
operating it. Children may not play with
the product.
− Cleaning and user maintenance must
not be performed by children.
− Keep children away from the product.
− Do not let children play with the
packaging wrapper. Children may get
caught in it when playing and suffocate.
NOTICE!
Risk of damage!
Improper handling of the product can
damage the product.
− Protect the product against drastic
temperature fluctuations, e.g. those
near ventilators, air conditioning units
and heaters.
− The LEDs are permanently installed
and cannot be replaced. Once the

First use First use
16 17
light source has reached the end of its
service life, the entire product has to be
replaced.
− Stop using the product if any plastic
parts of the product exhibit cracks or
deformation. Only replace damaged
parts with corresponding original spare
parts.
− Do not make any modifications to the
product.
First use
Checking the product and scope of delivery
NOTICE!
Risk of damage!
If you do not take care when opening the
packaging with a sharp knife or other
pointed object, the product can quickly
become damaged.
− Be very careful when opening the
packaging.
1. Take the product out of the packaging. Before start-up,
remove all protective films.
2. Check to make sure that the delivery is complete (see Fig. A).
3. Check whether the product or the individual parts are
damaged. If this is the case, do not use the product.
Contact the manufacturer at the service address specified
on the warranty card.
Charging the rechargeable batteries for the
first time
WARNING!
Danger of explosion!
Improper handling of the rechargeable
batteries can cause an explosion or a fire.
− Only expose the solar panel to
direct sunlight. Never expose the
rechargeable batteries to direct
sunlight.
Before you can use the product, you must fully charge the
rechargeable batteries. If there is sufficient sunlight on the
solar panel, this usually takes 6–8 hours.
1. Insert the plug 14 into the charging slot 9.
2. Expose the solar panel 15 to direct sunlight. To achieve
quick and optimal charging, place the solar panel in a
place where it can absorb as much sunlight as possible.
Positioning it so that it is south-facing and therefore
exposed to direct sunlight is the best way of achieving this.

First use Assembly
18 19
Selecting the installation location
Ideal installation location for the product
Motion sensors are electronic sensors that recognise
movement in their environment and work as electrical
switches, responding to this movement. Heat sources are
sensed using the lens. If a heat source in the product’s sensor
area changes or moves, the product will switch on for the
preconfigured time. In order to ensure that the product
functions optimally, please note the following requirements:
• Affix the product to a stable, vibration-free wall.
• Choose a location for installation that is protected against
wind and rain (e.g. under the eaves of a roof). The
installation surface must be free from shocks or vibrations.
• To avoid unwanted triggering of the motion sensor, no
moving objects such as trees or bushes should be in the
range of the motion sensor. If the sensor’s range is on a
street, vehicles driving past may switch the spotlight on
unintentionally.
• To avoid disturbing the proper functioning of the spot
light, the motion sensor should be protected against
direct sunlight and from light from halogen lamps or light-
reflective surfaces such as swimming pools or ponds.
• Only intended for installation outside arm’s length:
The optimum height for installation is approx. 2–3m or
above. If the product is installed lower than this, the sensor
area may be reduced (see Fig.G).
• The spotlight works best if the sensor area of the motion
sensor is crossed horizontally. As far as possible, install the
motion sensor in such a way that the main direction of
approach is not straight in front of the sensor.
Ideal installation location for the solar panel
The solar panel is the main source of current for the product.
It absorbs sunlight, converts it into electricity and then uses
this to charge the rechargeable batteries. The longer the
solar panel is subjected to direct sunlight, the quicker the
rechargeable batteries will charge. In order to ensure that
the product functions optimally, please note the following
requirements:
• Position the solar panel 15 in a place where it can
absorb as much sunlight as possible throughout the day.
Positioning it so that it is exposed to direct sunlight is the
best way of achieving this.
• Avoid shade of any kind and ensure that it is not covered
(e.g. by dirt, foliage or snow).
• Do not mount the solar panel behind a pane of glass, as
this will filter out infrared rays necessary to charge the
rechargeable batteries.
• When choosing an installation location, note the length of
the charging cable (3m).
Assembly
WARNING!
Risk of electric shock!
Improper installation may result in an
electric shock.
− Ensure that there are no cables or
other electrical lines behind the location
where the spotlight is attached.

Assembly Operation
20 21
3. Hold the wall bracket on the installation surface and mark
the three locations for fastening.
4. Drill two holes into the wall using a drill 19 and insert the
wall plugs 17 .
5. Screw the wall bracket to the fastening points with the
screws 18 as based on the properties of the installation
surface (see Fig.C). Use a cross-head screwdriver 20 for
this purpose. Do not apply excessive force in the process.
6. Slide the solar panel 15 and back cover from above
onto the wall bracket until you hear it click into place
(see Fig.C).
7. Completely unfold the charging cable and insert the
plug 14 into the charging slot 9on the spotlight 7.
Operation
Configuring the sensor area
1. If necessary, turn the motion sensor housing 10 to reach
the SENS controller 3.
2. Select the required sensor area:
− Turning the SENS controller clockwise increases the
sensor area range and the motion sensor will already
react from a distance of approx. 12 m.
− Turning the SENS controller anticlockwise decreases
the sensor area range. With the lowest setting, the mo-
tion sensor only reacts starting at a distance of approx.
1 m.
To further adjust the sensor area, turn the motion sensor
housing 10 . The motion sensor housing can be turned by 90°
(see Fig.D). The sensor angle of approx. 110° (+/-10°) does not
change in the process.
To avoid triggering the product unintentionally,
the product must be installed firmly. If the product
moves, this has the same effect as moving heat
sources in the sensor area.
Mounting the spot light
1. Choose a suitable surface for installation (see chapter
section “Selecting the installation location”).
2. Remove the rear panel 8from the spotlight 7by
unscrewing the fixing screw 6.
3. Hold the rear panel (for wall installation) or wall bracket
13 (for corner installation) to the installation surface and
mark the installation locations.
4. Drill two holes into the wall using a drill 19 and insert the
wall plugs 17 .
5. Screw the rear panel or the wall bracket to the fastening
points with screws 18 as based on the properties of
the installation surface (see Fig.B). Use a cross-head
screwdriver 20 for this purpose. Do not apply excessive
force in the process.
6. Attach the spotlight to the rear panel or wall bracket.
7. Use the fixing screw to fasten the spotlight and the rear
panel or wall bracket.
8. Tighten the fixing screw.
Mounting the solar panel
1. Choose a suitable surface for installation (see chapter
section “Selecting the installation location”).
2. Remove the wall bracket 16 from the back cover.
Press the plastic tab up slightly to do this.

Operation Switching the product on and off
22 23
− Select the required sensor area by turning the motion
sensor housing.
Setting the lighting duration
1. If necessary, turn the motion sensor housing 10 to reach
the TIME controller 4.
2. Select the desired lighting duration between approx.
10 and 60 seconds by turning the controller in the
corresponding direction:
− Turning the TIME controller clockwise increases the
lighting duration.
− Turning the TIME controller anticlockwise decreases
the lighting duration.
Setting the sensitivity
You can specify at what brightness (e.g. from dusk) the motion
sensor reacts and switches on the product.
1. If necessary, turn the motion sensor housing 10 to reach
the LUX controller 2.
2. Choose the desired sensitivity by turning the controller in
the corresponding direction:
− Turning the controller clockwise increases the sensi-
tivity so that the motion sensor 11 will react even in a
bright environment. If the controller is on the sun sym-
bol, the motion sensor reacts 24 hours a day, regardless
of the ambient light.
− Turning the controller anticlockwise decreases the
sensitivity so that the motion sensor will only react in a
darker environment. If the controller is on the crescent
moon symbol, the motion sensor only reacts when it is
night.
• Whether the motion sensor reacts depends on
the speed at which the object is moving.
The sensor will not react to movements that
are too fast or too slow.
• Electrical sensors are more sensitive in cold,
dry weather conditions than in warm, humid
climates.
Adjusting the spotlight heads
You can rotate the spotlight heads 12 90° to the left and to
right. You can also move each of the spotlight heads approx.
60° downwards and approx. 90° upwards (see Fig.E).
− If necessary, remove the tab 1if you want to align the
two spotlight heads individually. Then align the spotlight
heads as you like (see Fig.F).
Aligning the solar panel
− Align the solar panel 15 so that optimum charging is
ensured (see chapter “Selecting the installation location”).
Switching the product on and off
To switch the product on, set the power switch 5to the
different setting possibilities:
Position Function
I
The spotlight switches on at full luminosity once
the motion sensor is activated. The spotlight
then switches off automatically afterwards.
OSwitch off the spotlight. The rechargeable
batteries can be recharged.

Troubleshooting Troubleshooting
24 25
II The spotlight switches on at full luminosity
once the motion sensor is activated.
Afterwards, the spotlight decreases in
luminosity (night light function) and continues
to illuminate until the motion sensor is
reactivated.
Troubleshooting
Fault Possible cause Solution
The product
does not
switch on
despite
movement
in the sensor
area.
The rechargeable
batteries are
discharged.
Remove any dust, dirt
or snow from the solar
panel 15 and re-
position it if necessary.
The rechargeable
batteries are faulty.
Contact the After Sales
Support.
The lighting in the
immediate vicinity
is too bright.
Re-configure the
LUX controller 2or
find a more suitable
installation location.
The sensor area
is not correctly
configured.
To correctly set up the
sensor area, turn the
motion sensor housing
10 .
The product is
defective.
Have the product
repaired by a
professional.
Fault Possible cause Solution
The LEDs
shine less
brightly.
The rechargeable
batteries could not
charge sufficiently
because the
solar panel is
not receiving
enough direct
solar radiation or
daylight.
Select another
installation location
for the solar panel 15
(see chapter “Selecting
the installation
location”).
Note that there is
generally less sunlight
in the winter months.
Wait for a sunny day if
necessary.
The rechargeable
batteries could not
charge sufficiently
because the solar
panel is dirty.
Remove any dust, dirt
or snow from the solar
panel and re-position
it if necessary.
The sensor
area is too
small.
Sunlight can cause
faults when setting
the sensitivity.
Test the settings
again in the evening
and re-configure the
sensitivity if necessary.

Troubleshooting Cleaning
26 27
Fault Possible cause Solution
The product
turns off for
no obvious
reason.
The following
movements or
heat sources can
activate the sensor:
Air conditioning
units, chimneys,
barbecues, street
lights, people,
animals or moving
vehicles.
Find a more suitable
location for mounting
the spotlight or change
the sensor area by
turning the motion
sensor housing 10 .
Reflections from
a swimming pool,
a pond or other
reflective surfaces
are registered as
movement.
Re-configure the
LUX controller or
find a more suitable
installation location.
The product
switches on
throughout
the day.
The LUX controller
is set too high.
Reduce the sensitivity
by turning the
LUX controller
anticlockwise.
Cleaning
NOTICE!
Risk of damage!
Improper handling of the product can
damage the product.
− Do not clean the product and
accessories under running water, and
do not spray the product with a garden
hose or a high-pressure cleaner.
− Do not use any aggressive cleaners,
hard brushes and sharp, metallic or
scratchy cleaning utensils such as
knives, hard or scrapers or similar.
They could damage the surfaces.
− Ensure that you do not exert too much
pressure on the solar panel when
cleaning it.

Storage Technical data
28 29
Remove dust and dirt from the solar panel regularly, as this
will otherwise reduce its ability to charge.
1. Remove dust and dirt from the spotlight with a soft,
slightly moist cloth. For more stubborn dirt, use a mild
rinsing agent as required.
2. Clean the solar panel 15 with a damp cloth.
3. Let all parts dry completely afterwards.
Storage
All parts must be completely dry before being stored.
− Always store the product in a dry location.
− Protect the product from direct sunlight.
− Store the product in an light-free location that inaccessible
to children.
Technical data
Model: 872-S-S, 872-S-G, 872-S-W
Article number: 811642
Spotlight dimensions
Wall installation:
Corner installation:
226 × 149 × 179mm
226 × 149 × 211mm
Solar panel dimensions: 182 × 157 × 66 mm
Rechargeable battery
Rechargeable battery type: 2× Li-Ion rechargeable
battery, 1,500mAh
Charging time for a full charge: 6–8 hours
Product
Protection class: III
Illuminant: 24× 0.5 W LED
Output: 12W (+/- 1 W)
Supply voltage: 3.7V
Luminous flux: Approx. 900 lm
Colour temperature: Approx. 6,500 K (+/- 500 K)
Dimmable: No
Minimum distance to
illuminated objects: 1m
Type of protection: IP44
Motion sensor
Sensor angle: Approx. 110° (+/- 10°)
Rotation: 90°
Sensor range: Max. 12 m
Sensitivity: 15 to 1,000 lux (adjustable)
Lighting duration: Approx. 10 to 60 seconds
(adjustable)
Solar panel
Power supply: 5 V , 500mA
Output: 2.5 W
Cable length: approx. 3m

Declaration of conformity Disposal
30 31
Declaration of conformity
The EU declaration of conformity can be
requested from the address specified on the
enclosed warranty card.
We, AHG Wachsmuth & Krogmann mbH, Lange
Mühren 1, 20095 Hamburg, Germany declare in
sole responsibility that the product mentioned
above meet all applicable regulations and
requirements in the economic area of Great
Britain. The UKCA Declaration of Conformity can
be requested from the address provided above.
Disposal
Disposing of the packaging
Dispose of the packaging separated into single
type materials. Dispose of cardboard and carton
as waste paper and film via the recyclable
material collection service.
Disposing of the product
(Applicable in the European Union and other European states
with systems for the separate collection of reusable waste
materials)
Old devices must not be disposed of with household
waste!
If the product can no longer be used, every user is
required by law to dispose of the device
separately from household waste, e.g. at a
collection point in their community/borough. This
ensures that old devices are recycled in a
professional manner and also rules out negative
consequences for the environment. For this reason, electrical
equipment is marked with the symbol shown here.
Batteries and rechargeable batteries must not be disposed
of in the household waste!
As the end user you are required by law to bring all
batteries and rechargeable batteries, regardless of
whether they contain harmful substances* or not, to
a collection point run by the community/borough or
to a retailer, so that they can be disposed of in an
environmentally friendly manner.
Dispose of the entire product (including the battery) at your
collection point in a discharged state only!
*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

Great care has gone into the manufacture of this product and it should
therefore provide you with years of good service when used properly.
In the event of product failure within its intended use over the course of the
first 3 years after date of purchase, we will remedy the problem as quickly
as possible once it has been brought to our attention. In the unlikely event
of such an occurrence, or if you require any information about the product,
please contact us via our helpline support services, details of which are to
be found both in this manual and on the product itself.
Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
IEGB
PRODUCED IN CHINA FOR:
ALDI STORES LTD. PO BOX 26, ATHERSTONE
WARWICKSHIRE, CV9 2SH
ALDI STORES (IRELAND) LTD.
PO BOX 726, NAAS, CO. KILDARE.
Visit us at www.aldi.com 50000480 03/2022
YEAR
WARRANTY
3
AFTER SALES SUPPORT
MODEL:
872-S-S, 872-S-G, 872-S-W 03/2022
GB
811642
[email protected]om
01909 517672 012 475 437
IE
