Showersave QB1-21 User manual

1
Showersave QB1-21
Installer Quick Guide & Registration
Building Products Distributors Ltd
Unit 21 Avondale Business Park,
Ballyclare, Co Antrim, BT39 9AU
T. [phone]
E. [email protected]om
www.showersave.com
Important
•Failure to install the Showersave QB1-21 as specified may impact on the Energy Performance
Certificate at the end of construction.
•Failure to correctly register this installation with the Showersave Installation App (see page 10) may
invalidate product warranty and result in financial loss.

2
Contents
Introduction
2
System A, B & C
3-4
Installation guidance and photos
5-6
QB1-21 Specification
7
Boxing off detail
8
Showersave Registration App
9
Showersave QB1-21 Waste Water Heat Recovery (WWHR)
This document is designed as a “Quick Guide”.
Detailed instructions are contained in the Showersave QB1-21 Installation Manual dispatched with each unit, or
available at www.showersave.com
The Showersave QB1-21 included in the design SAP calculation is the highest performing WWHR unit in its
category. Substitution with a “generic” alternative from another manufacturer will impact on the Energy
Performance Certificate at the end of construction.

3

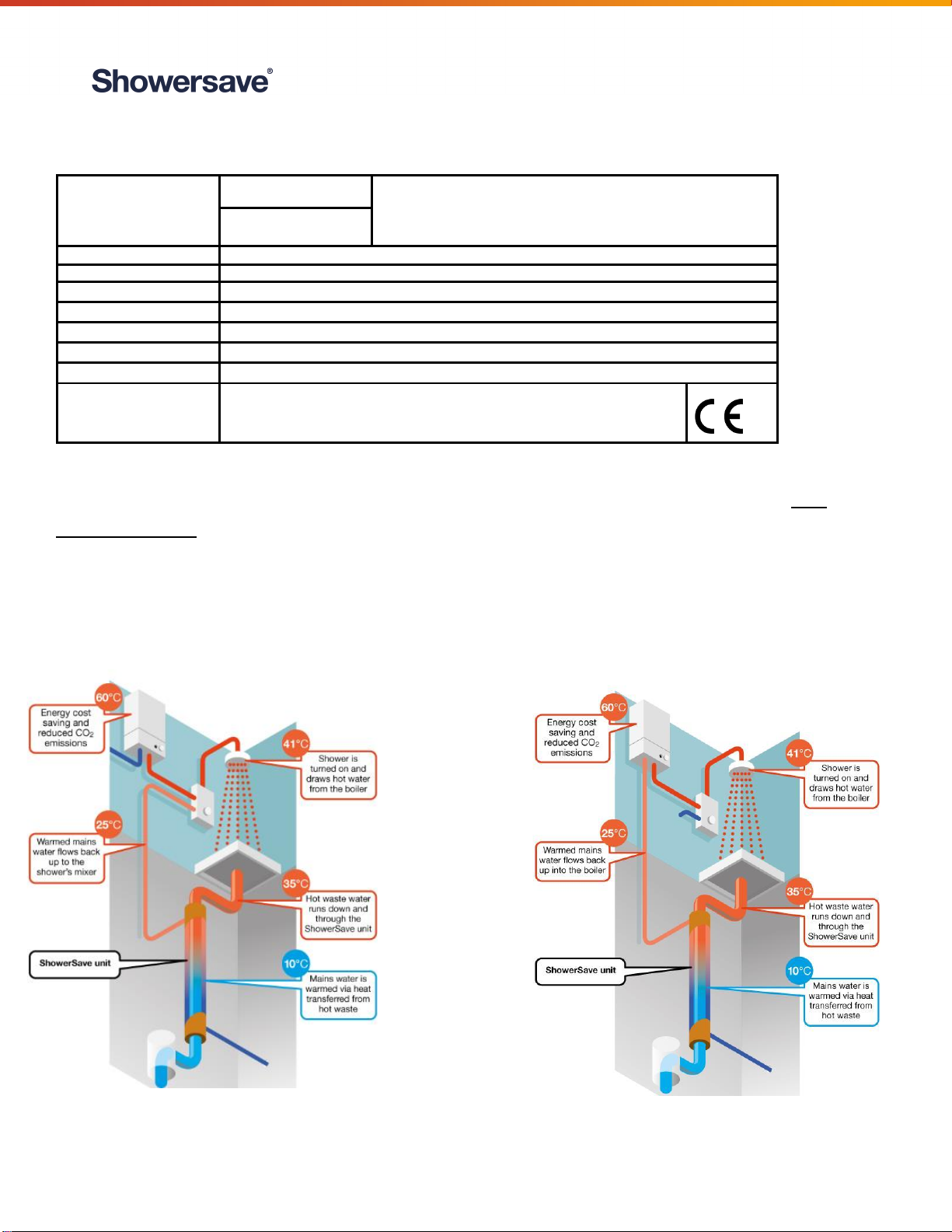

Each Showersave QB1-21 is labelled as follows:
Optimum performance is achieved when the Showersave QB1-21 is installed as per these instructions. Your
SAP Assessor will usually have specified the installation of the Showersave QB1-21 in System A (See
Diagram overleaf).
Please Note –if either System B or C has been specified, please contact BPD Ltd on 028 9334 4488 to discuss.
System B System C
NCM (SAP) Identifier:
(Delete as appropriate)
Showersave QB1-21
Building Products Distributors Ltd
Unit 21 Avondale Business Park, Ballyclare, Co. Antrim, BT39 9AU
Showersave QB1-21C
Technology type
Waste Water Heat Recovery System (WWHRS)
Technology category
Instantaneous Shower Heat Recovery
Manufacturer
BPD Ltd
Brand name
Showersave
Serial no.
2.15101226
Model name
QB1-21 / QB1-21C (delete as appropriate)
Model Qualifier
System A/ System B/ System C (delete as appropriate)
Notes
This dwelling is fitted with a Waste Water Heat Recovery System (WWHRS)
which is recognized by the Governments Standard Assessment Procedure (SAP)
for Energy Rating of Dwellings. Note: One label should be permanently affixed to
the WWHRS unit and another to a nearby Boiler or Service cupboard.

4

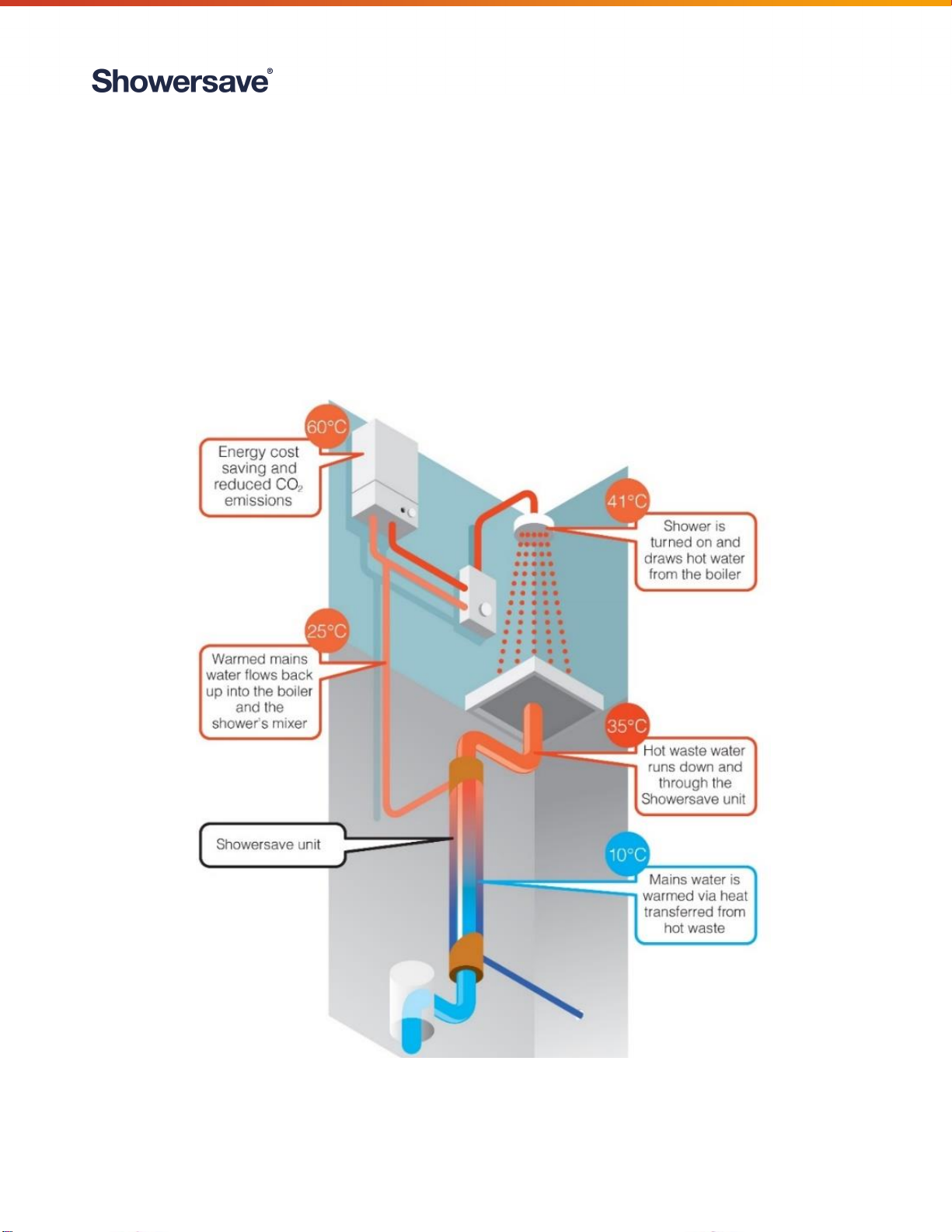

For System A, connect the Showersave QB1-21 to the waste outlet of the shower tray (or bath) after the waste
trap and before the soil vent pipe (SVP). The incoming cold main then enters the bottom of the outer water
jacket, with the “warmed” water from the top of the water jacket being fed to the cold inlet of the shower
thermostatic mixer tap and the cold inlet of the boiler (or cylinder).
System A

5

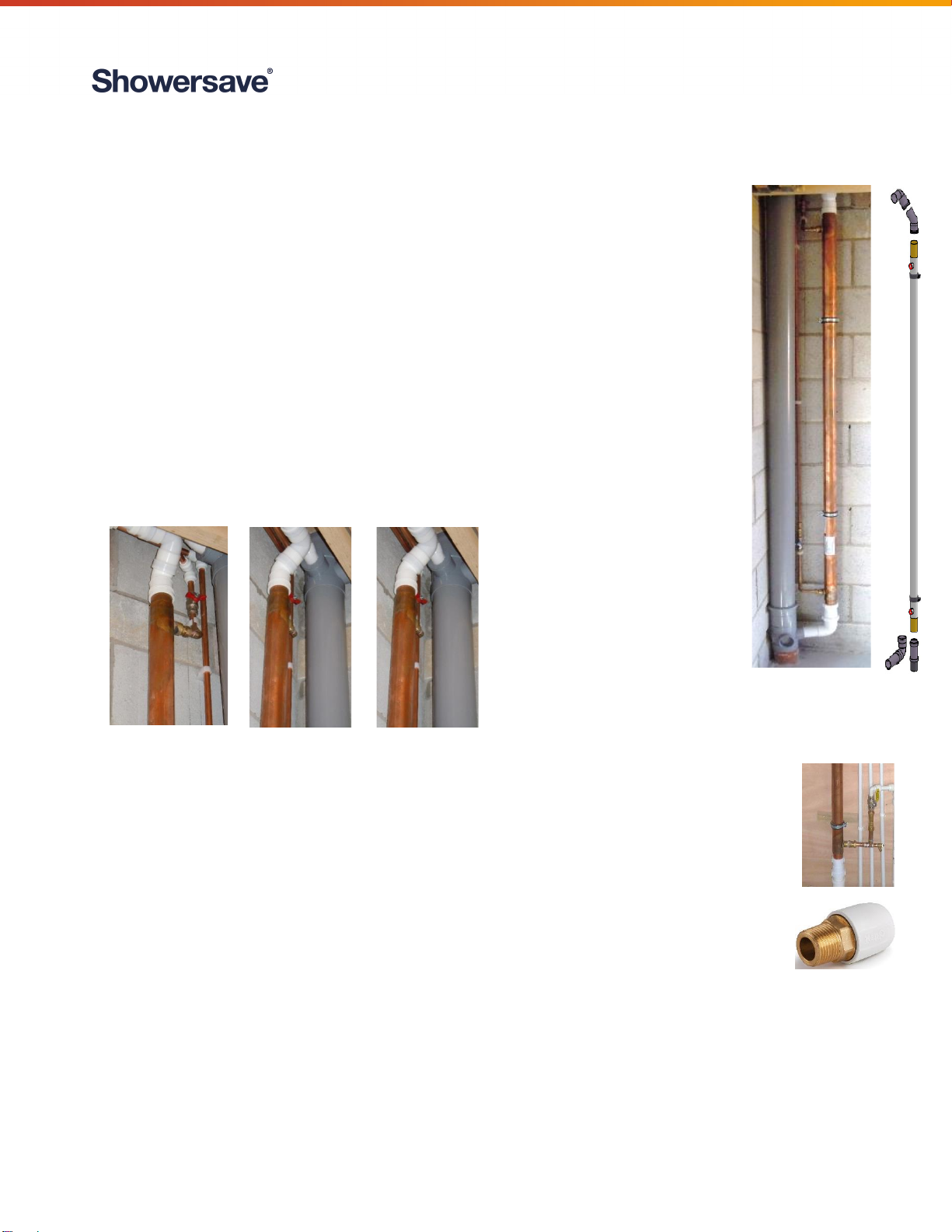

Installation guidance & photos
1) Install the Showersave QB1-21 vertically to a solid surface, using the 2 brackets and
10mm studs supplied.
2) Ensure the 2 push fit connectors on the waste pipe (1 x 45° and 1 x 90°) are
positioned as per the photos below, with the 45⁰attached to the copper waste pipe,
and the 90⁰onto the 45⁰elbow.
The following pictures show the correct installation of the 45° and 90° connectors
on the waste. Correctly fitting these connectors will ensure the best energy
recovery performance.
3) Using the straight through push fit connector supplied, connect the waste from the bottom
of the Showersave QB1-21 to the SVP.
4) The mains water supply is connected to the bottom of the heat exchanger using ½” BSP
parallel male fittings or 22mm adapter kit if required.
5) Only use PTFE tape to seal the thread, DO NOT USE HEMP.
6) Install an isolator to both top and bottom mains water supply. Where possible consider siting this
isolation valves in an accessible location to avoid the need for access hatches to the boxing.
7) Install a drain tap to bottom supply.

6
8) Connect to 1/2” BSP parallel male fitting at the top of the heat exchanger to the cold side of the
thermostatic mixer tap on the shower and the cold inlet of the boiler / cylinder (this is system A).
9) Do not wrap the Showersave QB1-21 with insulation.
10) Important –It is a SAP requirement that the
2nd SAP Identifier label supplied is applied
inside of the boiler cabinet so it is easily
visible to an energy assessor should the
home owner commission a Home Buyers
EPC report. Failure to do this can invalidate
the installation.
Once installed, the QB1-21 installation must be registered via the
Showersave App. Follow guidance on page 9.
NCM (SAP) Identifier:
(Delete as appropriate)
Showersave QB1-21
Building Products Distributors Ltd
Unit 21 Avondale Business Park, Ballyclare, Co. Antrim, BT39 9AU
Showersave QB1-21C
Technology type
Waste Water Heat Recovery System (WWHRS)
Technology category
Instantaneous Shower Heat Recovery
Manufacturer
BPD Ltd
Brand name
Showersave
Serial no.
2.15101226
Model name
QB1-21 / QB1-21C (delete as appropriate)
Model Qualifier
System A/ System B/ System C (delete as appropriate)
Notes
This dwelling is fitted with a Waste Water Heat Recovery System (WWHRS)
which is recognized by the Governments Standard Assessment Procedure (SAP)
for Energy Rating of Dwellings. Note: One label should be permanently affixed to
the WWHRS unit and another to a nearby Boiler or Service cupboard.

7

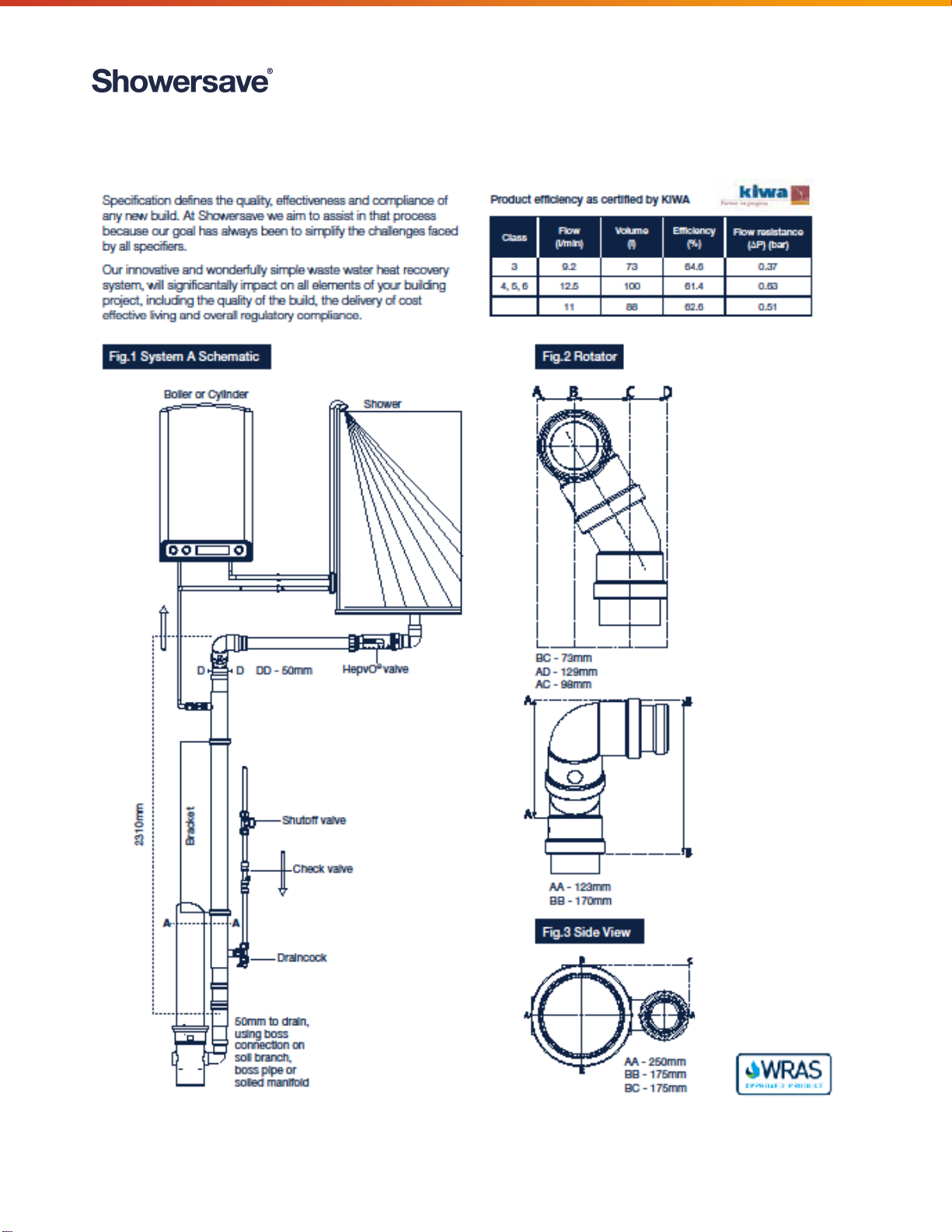

QB1-21 Specification

8

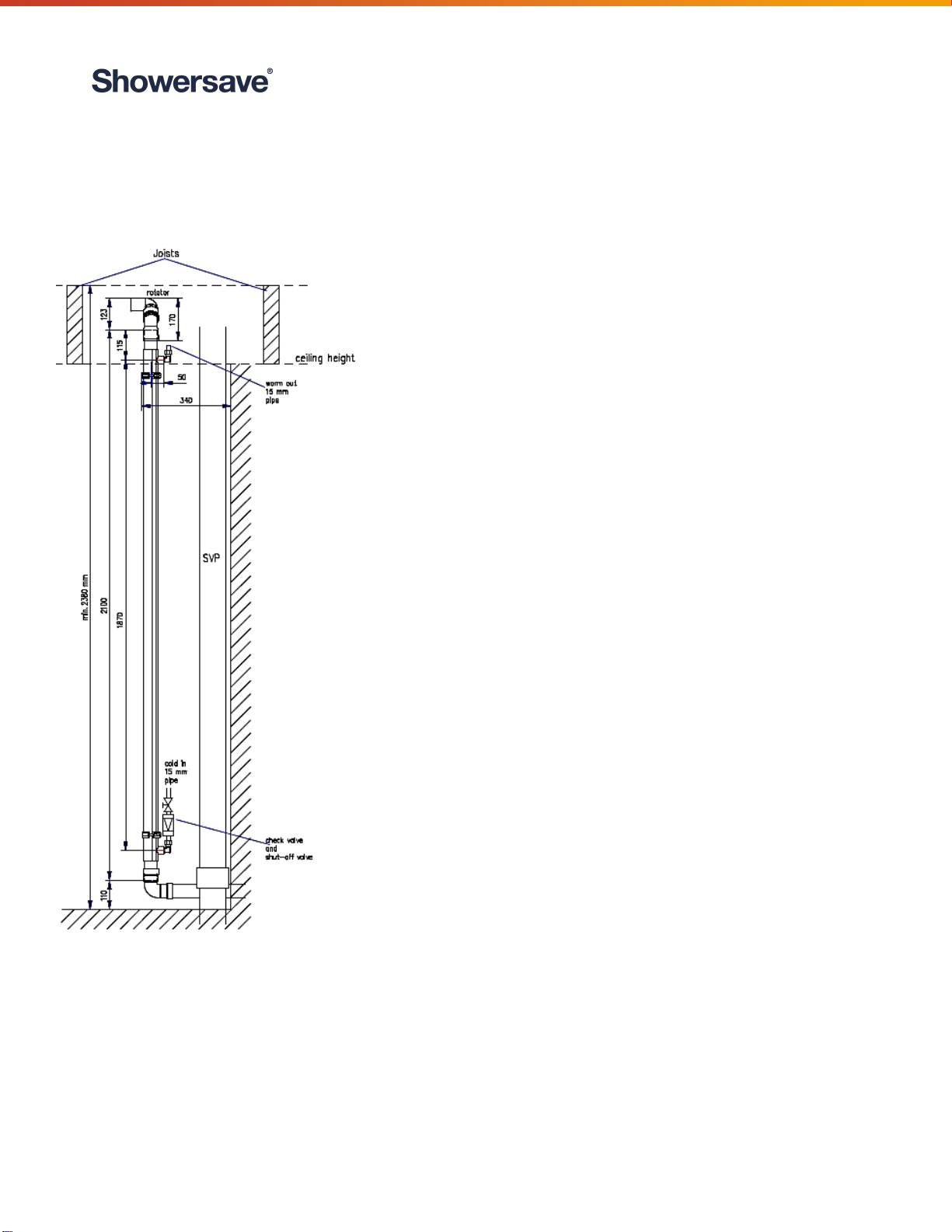

Boxing off detail
1) The top rotator of the QB1-21 must be
installed as per the photos on page 6, and
may be located in the ceiling void, depending
on the height of the room.
2) The size of the boxed off unit will be no more
than 2,400mm in height into the joist void by
340mm in width and 240mm in depth.
3) The boxing off needs to be in accordance
with the NHBC standards AD part E.
4) The Showersave QB1-21 is considered a
device. The space it is installed in should be
large enough so that inspection can be
carried out. Access should be possible
without too much work.
5) The cold to the base of the QB1-21 can come
from above or from a location on the same
floor.

9
How to register the Showersave
QB1-21 Installation
The Showersave App allows installers to register installations onsite and should take less
than one minute per registration. It is a requirement of the Building Regs Part L (2021)
that the installation of the Showersave QB1-21 must be registered. Failure to comply
may result in financial loss.
Please follow the guidelines below:
1. Open Play store / App store
2. Search for “Showersave”
3. Install & Open App
4. Select “Register” and complete user details.
5. Choose “Manual Registration” option (QR code scan will soon be available).
6. Complete fields as requested:
a. Unit Model: Select relevant model from dropdown menu
b. Serial number: Available from label affixed to Showersave unit
c. Date & time: Automatically populated
d. Name of development: Enter development name
e. Name of developer: Select from dropdown menu, if not listed contact Showersave
f. Plot / House number: Enter relevant house number
g. Name of main installation Company: Enter name of Installation company
h. Latitude/ Longitude: Select pointer icon, which will automatically populate latitude/longitude
fields. Once this information is complete, select “Done”
7. Uploading photographs
a. Select “Take photographs” and follow on-screen guidance to ensure that correct photos are
taken. Note: Two photographs must be uploaded (serial number and full length photo of
installation)
8. Select “Back to unit details”
9. Complete registration by selecting “Register unit”
