Showgear RainDome 60 cm User manual

RainDome 40 cm
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Product code: 71325
USER MANUAL
ENGLISH
V1

1
RainDome 40 cm
Product code: 71325
Preface
Thank you for purchasing this Showgear product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be
stored at an easily accessible location.
This user manual contains information concerning:
●Safety instructions
●Installation and operation of the device
●Intended and non-intended use of the device
●Maintenance procedures
●Troubleshooting
●Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of
property.
©2022 Showgear. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written
consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document or other language versions, please visit our website
www.highlite.com or contact us at [e-mail].
Highlite International and its authorized service providers are not liable for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or
reliance on the information contained in this document.

2
RainDome 40 cm
Product code: 71325
Table of contents
1. Introduction..........................................................................................................................................................3
Before Using the Product ..................................................................................................................................3
Intended Use .......................................................................................................................................................3
Product Lifespan.................................................................................................................................................3
Text Conventions ................................................................................................................................................3
Symbols and Signal Words................................................................................................................................4
Symbols on the Information Label ..................................................................................................................4
2. Safety ....................................................................................................................................................................5
Warnings and Safety Instructions ....................................................................................................................5
Requirements for the User.................................................................................................................................7
3. Description of the Device ...................................................................................................................................8
Top Plate View ....................................................................................................................................................8
Side View .............................................................................................................................................................8
Bottom Plate View..............................................................................................................................................9
Product Specifications ......................................................................................................................................9
3.5. Accessories........................................................................................................................................................10
Dimensions.........................................................................................................................................................10
4. Installation ..........................................................................................................................................................11
Safety Instructions for Installation ..................................................................................................................11
Personal Protective Equipment .....................................................................................................................11
Installation Site Requirements ........................................................................................................................11
4.3. Rigging ...............................................................................................................................................................11
5. Setup and Operation ........................................................................................................................................14
Warnings and Precautions .............................................................................................................................14
Compatibility of the Device...........................................................................................................................15
Setup...................................................................................................................................................................16
Connecting a Stage Luminaire to the Device ...........................................................................................16
Installing the Plastic Sleeve.............................................................................................................................17
Connecting to Power Supply.........................................................................................................................18
Power Linking of Multiple Devices.................................................................................................................18
Operation ..........................................................................................................................................................19
Using the Bypass Function ..............................................................................................................................19
6. Troubleshooting .................................................................................................................................................20
7. Maintenance .....................................................................................................................................................20
Safety Instructions for Maintenance.............................................................................................................20
Preventive Maintenance................................................................................................................................20
Basic Cleaning Instructions ...................................................................................................................21
Corrective Maintenance................................................................................................................................21
8. Deinstallation, Transportation and Storage ....................................................................................................21
Instructions for Deinstallation..........................................................................................................................21
Instructions for Transportation ........................................................................................................................21
Storage...............................................................................................................................................................21
9. Disposal ..............................................................................................................................................................22
10. Approval.............................................................................................................................................................22

3
RainDome 40 cm
Product code: 71325
1. Introduction
Before Using the Product
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your
Highlite International dealer.
Your shipment includes:
Showgear RainDome 40 cm
Schuko to pro power True1 power cable (1,5 m)
User manual
Fig. 01
Intended Use
This device is intended for professional use as a rain cover platform for stage luminaires. This device shall
be used only in combination with the recommended plastic sleeves. It is suitable for outdoor use only
when in operation and with the plastic sleeve installed. The device is not suitable for households.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Product Lifespan
This device is not designed for permanent operation. Disconnect the device from the electrical power
supply when the device is not in operation. This will reduce the wear and will improve the device’s
lifespan.
Text Conventions
Throughout the user manual the following text conventions are used:
Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)”
0–255: Defines a range of values
Notes: Note: (in bold lettering) is followed by useful information or tips

4
RainDome 40 cm
Product code: 71325
Symbols and Signal Words
Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the
product.
Important
Read and observe the instructions in this document.
Electrical hazard
Provides important information about the disposal of this product.
Symbols on the Information Label
This product is provided with an information label. The information label is located on the backside of the
device.
The information label contains the following symbols:
This device shall not be treated as household waste.
This device is designed for indoor use.
Read and observe the instructions in the user manual.
This device falls under IEC protection class I.

5
RainDome 40 cm
Product code: 71325
2. Safety
Important
Read and follow the instructions in this user manual before installing, operating or
servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual.
Warnings and Safety Instructions
DANGER
Danger for children
For adult use only. The device must be installed beyond the reach of children.
Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER
Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage may be present.
●Do not open the device or remove any covers.
●Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER
Electric shock caused by short-circuit
This device falls under IEC protection class I.
Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
Do not cover the ground (earth) connection.
Do not bypass the thermostatic switch or fuses.
●Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
●Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
●Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
●Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.
Keep the connectors sealed with the rubber caps when the connectors are not in use.
Do not connect the cables from above the connectors, if the device is installed outdoors. Make a
‘drip loop’ in the cable so that rain water cannot enter the device.

6
RainDome 40 cm
Product code: 71325
Attention
Power supply
Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the
device.
Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention
General safety
●Do not insert objects into the air vents.
●Do not shake the device. Avoid brute force when installing or operating the device.
●If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be
damaged by the formed condensation.
If the device fails to work properly, discontinue the use immediately.
Attention
For professional use only
This device shall be used only for the purposes it is designed for.
This device is intended for professional use as a rain cover platform for stage luminaires. This device shall
be used only in combination with the recommended plastic sleeves. It is suitable for outdoor use. The
device is not suitable for households.
Any incorrect use may lead to hazardous situations and result in injuries and material damage.
●This device is not suitable for households.
●This device is not designed for permanent operation.
This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention
Before each use, examine the device visually for any defects.
Make sure that:
All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
The safety devices are not damaged.
There are no deformations on housings, fixations and installation points.
The power cables are not damaged and do not show any material fatigue.

7
RainDome 40 cm
Product code: 71325
Attention
Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater
than 12 mm, such as fingers, and no protection against harmful ingress of water.
When the device is fitted with the plastic sleeve and in operation, the top part of the device is IP54. IP54
class means that the device is protected against dust and harmful effect of water splashes from any
direction. The ingress protection of the bottom part of the device remains IP20 class.
Requirements for the User
This product may be used by ordinary persons. Maintenance may be carried by ordinary persons.
Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite
dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled
person, for specific tasks and work activities associated with the installation, service and maintenance of
this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards
associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons
include not only users of the product but also any other persons that may have access to the device or
who may be in the vicinity of the device.

8
RainDome 40 cm
Product code: 71325
3. Description of the Device
The Showgear RainDome 40 cm is a rain cover platform for stage luminaires with a maximum diameter of
40 cm. The device protects stage luminaires from rainfall which makes it possible to use indoor stage
luminaires outdoors. The device has a built-in pressure sensor which turns the device off when the inner
pressure decreases. The device is equipped with IP-rated True1 power input and output connectors. It is
possible to power stage luminaires by connecting them to one of the 3 output connectors (pro power,
pro power True1 and Schuko).

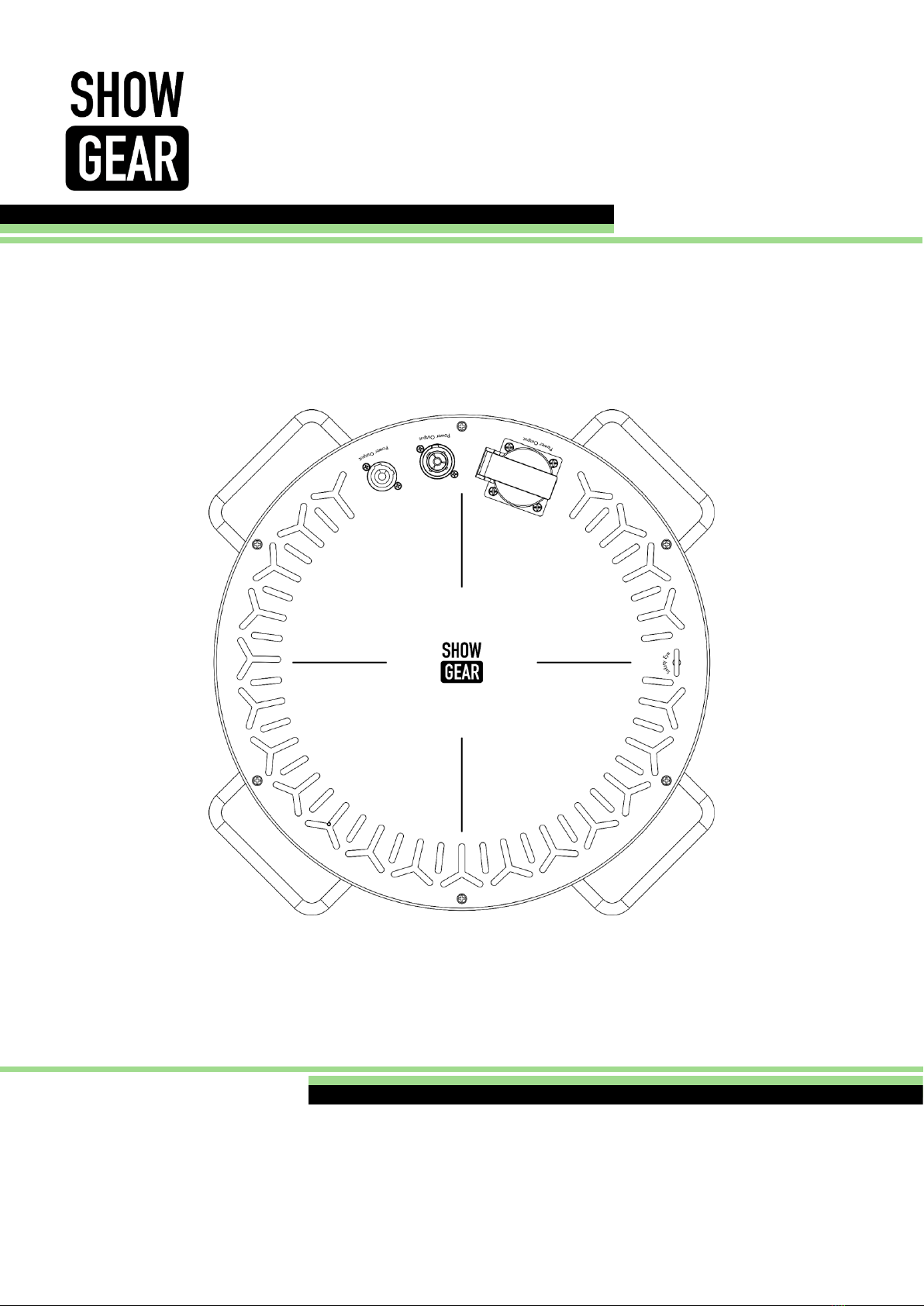

Top Plate View
Fig. 02
Pro power connector OUT (Gray): to power stage luminaires
Pro power True1 connector OUT: to power stage luminaires
Schuko power connector OUT: to power stage luminaires
Air outlets
4 x carrying handles
Safety eye for stage luminaires
Side View
Fig. 03
IP-rated pro power True1 connector IN: to power the device
IP-rated pro power True1 connector OUT: to daisy-chain the device
Hook-and-loop fastener

9
RainDome 40 cm
Product code: 71325
Bottom Plate View
Fig. 04
4 x mounting holes (M12)
Air intake
Bypass switch (See 5.9. Using the Bypass Function on page 19)
2 x safety eyes
4 x rubber feet
Product Specifications
Model:
RainDome 40 cm
Electrical:
Input voltage:
220–240 V AC, 50 Hz
Power consumption:
126 W
Power connector IN:
IP-rated pro power True1 connector IN
Power connector OUT:
IP-rated pro power True1 connector OUT
Stage luminaire power connectors OUT:
●Pro power connector OUT (Gray)
●Pro power True1 connector OUT
●Schuko power connector OUT
Physical:
Maximum load:
40 kg
Dimensions:
476 x 476 x 184 mm (LxWxH)
Weight:
9,3 kg
Construction:
Housing:
Steel
Color:
Black
IP rating:
IP54 (with plastic sleeve); IP20 (without plastic sleeve)
Thermal:
Maximum ambient temperature ta:
40 °C
Maximum housing temperature tc:
40 °C

10
RainDome 40 cm
Product code: 71325
3.5. Accessories
Attention
The device is designed to be operated with the plastic sleeve installed.
The device is delivered without a plastic sleeve. Refer to 5.2. Compatibility of the Device on page 15.
There is 1 plastic sleeve available for this device:
●Product code: 71326 (Cylindric Sleeve for RD40; Max. height: 52 cm)
The device can be mounted to a totem truss. To mount the device to the totem truss, you need to
purchase 4 connectors. Use the connectors suitable for your truss. Choose one out of the following
connector sorts:
●Product code: CON63 (Half Connector Male PQ + pin)
●Product code: CON63F (Half Connector Male FQ + pin)
●Product code: CON63U (Half Connector Male GQ + pin)
Dimensions
Fig. 05

11
RainDome 40 cm
Product code: 71325
4. Installation
Safety Instructions for Installation
WARNING
Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.
Personal Protective Equipment
During installation and rigging wear personal protective equipment in compliance with the national and
site-specific regulations.

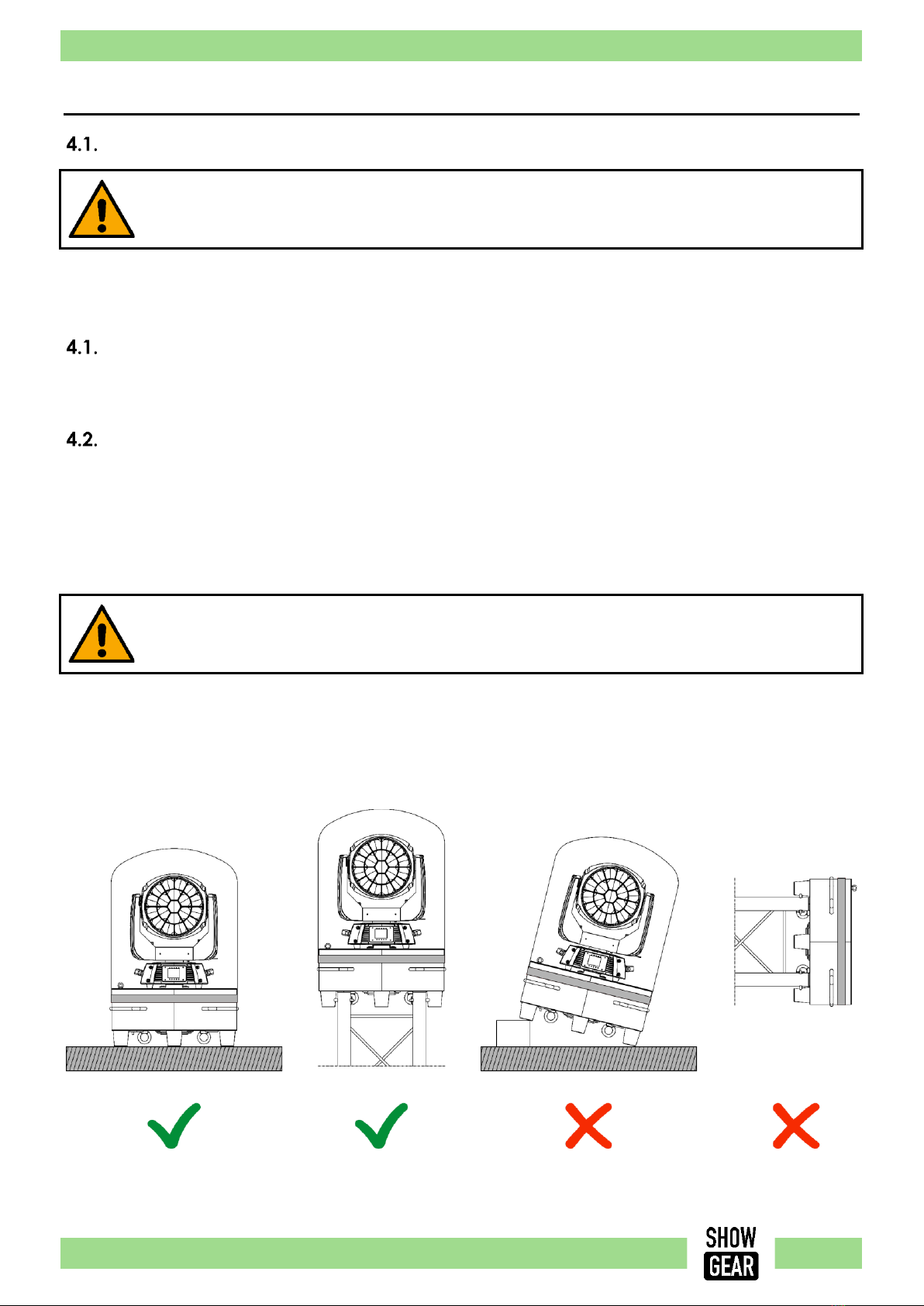

Installation Site Requirements
●The device can be used outdoors only when in operation and with the plastic sleeve installed.
●The device can only be positioned on a flat surface or mounted to a totem truss in horizontal
orientation, with the top side facing up.
●The maximum ambient temperature ta= 40 °C must never be exceeded.
4.3. Rigging
CAUTION
Restrict the access under the work area during rigging and/or derigging.
The device can be positioned on a flat surface or mounted to a truss in horizontal orientation. The device
is suitable for mounting to a vertically positioned totem truss. Make sure that all loads are within the pre-
determined limits of the supporting structure.
●Do not install the device in a position that is not recommended in this user manual.
●Make sure that the device is installed on a levelled surface.
Fig. 06

12
RainDome 40 cm
Product code: 71325

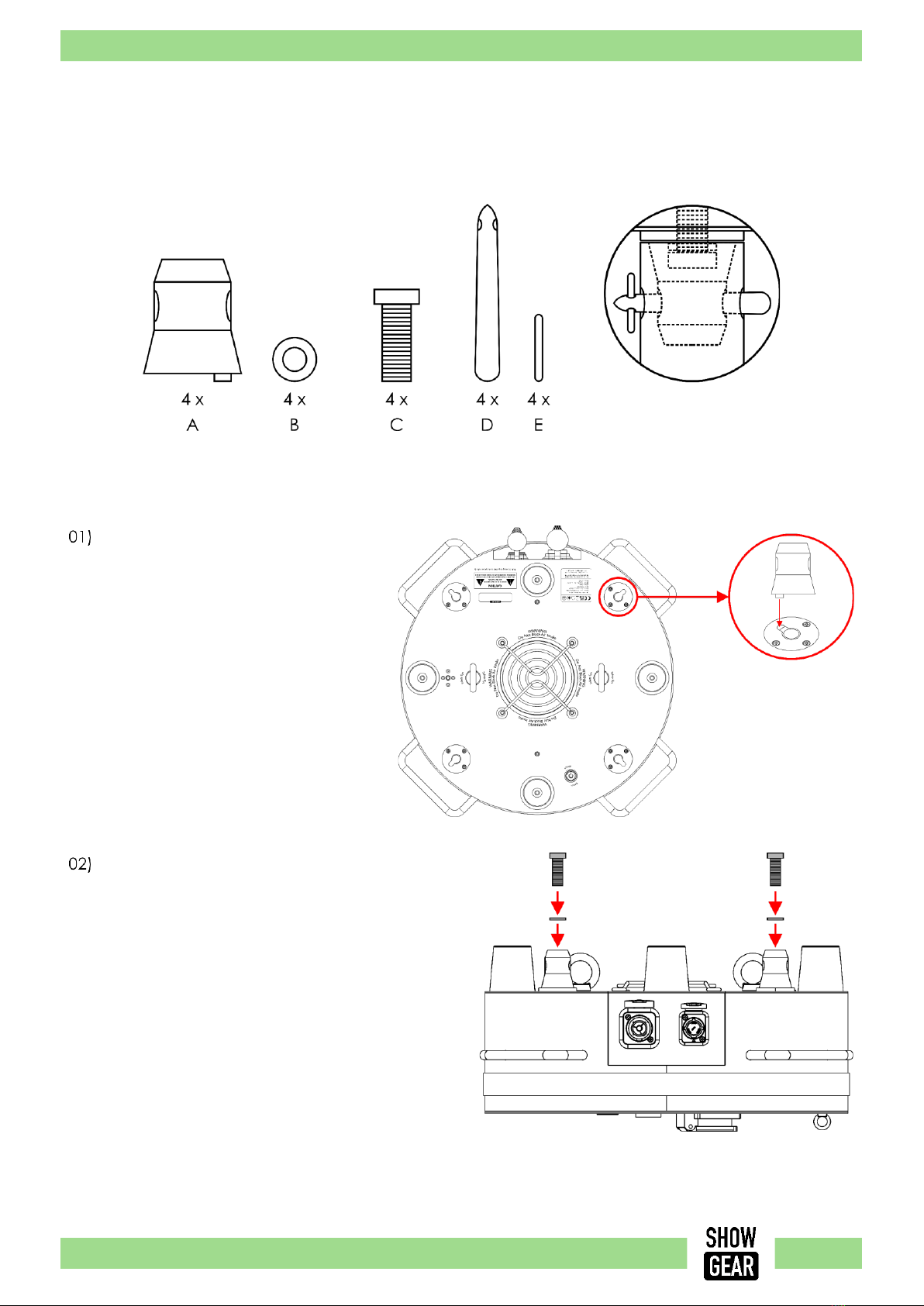

To mount the device to a totem truss you need the following items:
●4 x half connectors (A) (including washers (B) and bolts (C)). See 3.5. Accessories on page 10, for
more information.
●4 x conical pins (D) (Not included. Refer to your totem truss dealer for availability.)
●4 x safety springs (E) (Not included. Refer to your totem truss dealer for availability.)
Fig. 07
To mount the device to a truss, follow the steps below:
Put the 4 half connectors (A)
into the mounting holes (10)
as shown in Fig. 08.
Fig. 08
Put the washers (B) and the
bolts (C) into the half
connectors (A), as shown in
Fig. 09.
Fig. 09

13
RainDome 40 cm
Product code: 71325
Tighten the bolts with a hex
key (8 mm) as shown in
Fig. 10.
Fig. 10
Put the device on the truss, so
that the half connectors (A)
fit in the tubes of the truss, as
shown in Fig. 11.
Fig. 11
Put the conical pins (D) into
the openings on the truss and
through the half connectors
(A), as shown in Fig. 12.
Put the safety pins (E) into the
opening on the conical pins
(D) to secure the device to
the truss, as shown in Fig. 12.
Fig. 12

14
RainDome 40 cm
Product code: 71325
Secure the device with a
secondary suspension, for
example a safety cable as
shown in Fig. 13. Put the
safety cable through the
safety eye (13).
Note:
Make sure that the secondary
suspension can hold 10 times the
weight of the device. If possible,
the secondary suspension should
be attached to a supporting
structure independent of the
primary suspension.
Fig. 13
5. Setup and Operation
Warnings and Precautions
Attention
This device must be used only for the purposes it is designed for.
This device is intended for professional use as a rain cover platform for stage luminaires. This device shall
be used only in combination with the recommended plastic sleeve. It is suitable for outdoor use, only
when in operation and with the plastic sleeve installed.
●Do not operate the device oudoors without the plastic sleeve installed. If you operate the device
without the plastic sleeve, the device has an IP20 class.
●Do not operate the device if the plastic sleeve is not fully inflated.
●Do not operate the device in setups that are not recommended in this user manual.
Fig. 14

15
RainDome 40 cm
Product code: 71325
Attention
Connect all cables before supplying power.
Disconnect power supply before connecting or disconnecting cables.
Compatibility of the Device
This device can be used only with stage luminaires that have:
●a maximum diameter of 40 cm
●a maximum height of 52 cm (in combination with the Cylindrical Sleeve for Rain Dome 40 (71326)).
See Fig. 15 on page 15 for more information.
●a total weight of 40 kg
●a LED light source
Fig. 15
Do not use the device with:
●lasers
●moving heads equipped with lasers
●moving heads with discharge lamps

16
RainDome 40 cm
Product code: 71325
Setup
To complete the setup of the device, follow the steps below:
Install the device. See 4. Installation on page 11 for more information.
Connect a stage luminaire. See 5.4. Connecting a Stage Luminaire to the Device on page 16 for
more information.
Install the plastic sleeve. See 5.5. Installing the Plastic Sleeve on page 17 for more information.
Connect the device to power supply. See 5.6. Connecting to Power Supply on page 18 for more
information.

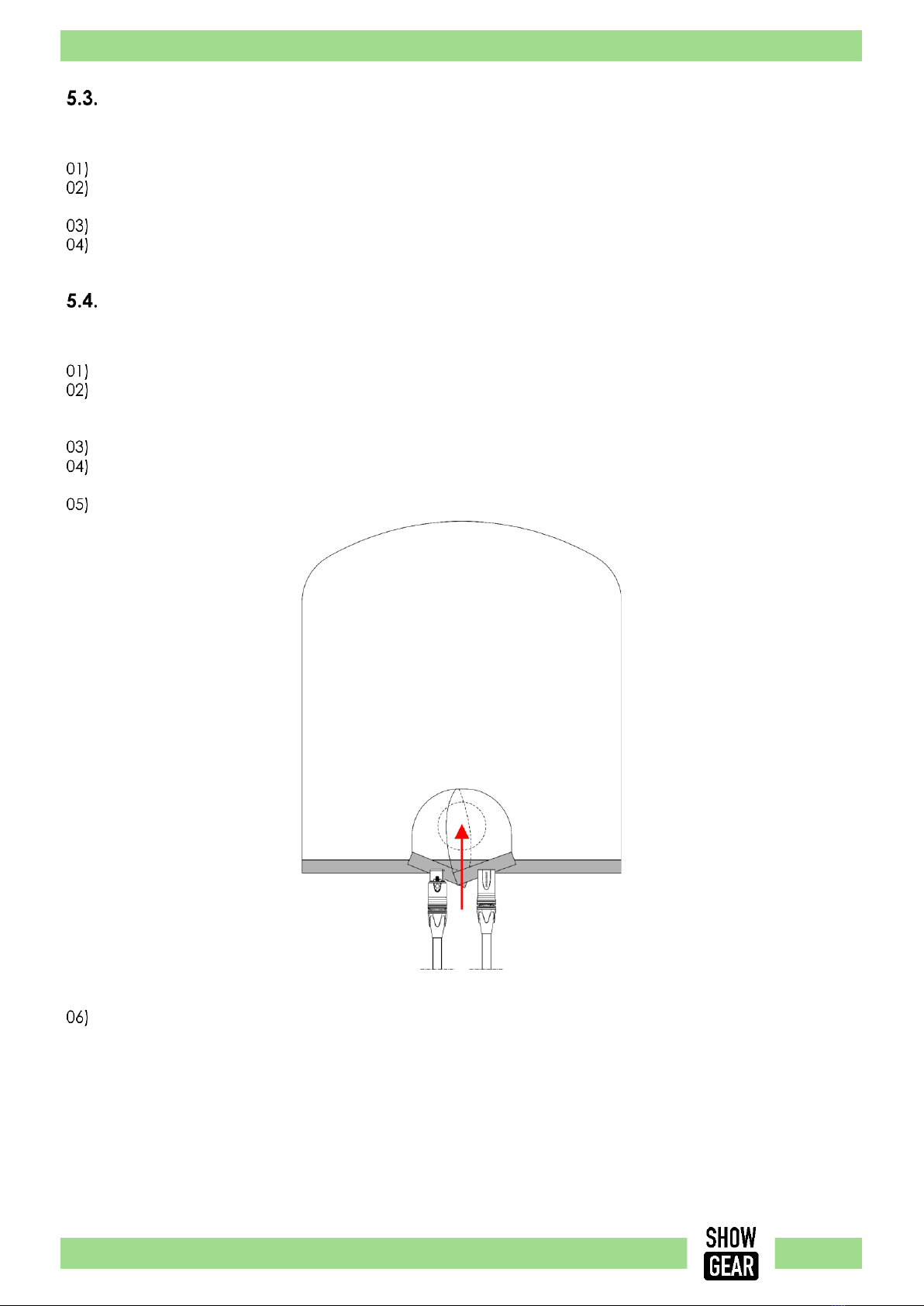

Connecting a Stage Luminaire to the Device
To connect a stage luminaire, follow the steps below:
Put the stage luminaire in the middle of the top plate of the RainDome.
Secure the stage luminaire with a secondary suspension, for example a safety cable. Make sure that
the secondary suspension can hold 10 times the weight of the device. Put the safety cable through
the safety eye (06).
Install the plastic sleeve. See 5.5. Installing the Plastic Sleeve on page 17 for more information.
Put DMX cables through the hook-and-loop fastener opening on the plastic sleeve, so that the DMX
connectors are protected from ingress of water (Fig. 16).
Connect the DMX cables to the input and output connectors of the stage luminaire.
Fig. 16
Connect the stage luminaire to the device with a power cable.

17
RainDome 40 cm
Product code: 71325

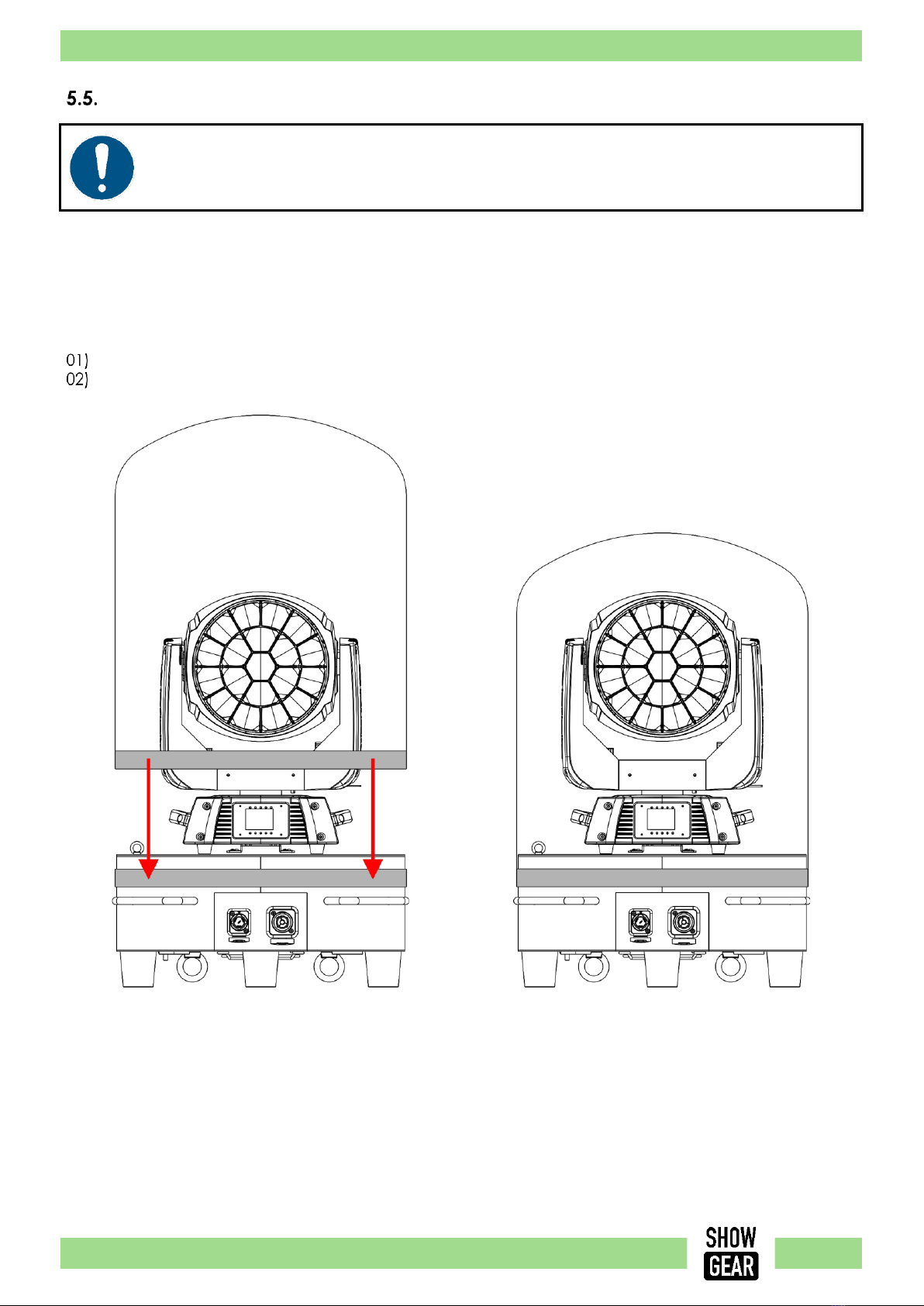

Installing the Plastic Sleeve
Attention
The device is designed to be operated only with the plastic sleeve installed.
This device can be fitted with the Cylindrical sleeve for Rain Dome 40 (71326), for stage luminaires with a
maximum height of 52 cm.
See 3.5. Accessories on page 10, for more information.
To install the plastic sleeve, follow the steps below:
Put the plastic sleeve over the device (Fig. 17).
Attach the hook-and-loop fastener of the plastic sleeve to the hook-and-loop fastener (09) of the
device and press it tightly (Fig. 18).
Fig. 17
Fig. 18
Note:
Make sure that the hook-and-loop fastener of the plastic sleeve is attached tightly to the hook-and-loop
fastener (09) on the device. If there is an opening along the attached hook-and-loop fasteners, the
sleeve will not inflate correctly.

18
RainDome 40 cm
Product code: 71325
Connecting to Power Supply
When the device is connected to power supply, the device is in operation. The fan starts rotating and the
installed plastic sleeve becomes inflated.
DANGER
Electric shock caused by short-circuit
The device accepts AC mains power at 220–240 V and 50 Hz. Do not supply power at any other voltage
or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected
to the ground (earth).
Before connecting the device to the socket-outlet:
Make sure that the power supply matches the input voltage specified on the information label on
the device.
Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with the power plug.
When the device is fitted with the plastic sleeve and in operation, the top part of the device is IP54. Do
not expose the device to conditions that exceed the rated IP class conditions.
Keep the connectors sealed with the rubber caps when the connectors are not in use.
Do not connect the cables from above the connectors, if the device is installed outdoors. Make a
‘drip loop’ in the cable so that rain water cannot enter the device.
Make sure that the cable run is not too heavy. A heavy cable run can cause damage to the
connectors. If the connectors are damaged, their ingress protection (IP) can deteriorate.
Power Linking of Multiple Devices
This device supports power linking. Power can be relayed to another device and to the connected stage
luminaire via the power OUT connectors. Note that the input and the output connectors have different
designs: one type cannot be connected to the other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING
Incorrect power linking may lead to overload of the electrical circuit and result in serious
injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
suitable for power linking of multiple device.
Keep the connectors sealed with the rubber caps when the connectors are not in use.
Make sure that the total current draw of the device and all connected devices does not exceed the
rated capacity of the power cables and the circuit breaker.
Do not link more devices on one power link than the maximum recommended number.
The maximum recommended number of devices depends on the total load of all linked RainDomes and
stage luminaires. The total load of all linked RainDomes and stage luminaires shall not exceed 3000 W.

19
RainDome 40 cm
Product code: 71325
Operation
When the device is connected to power supply, the device is in operation. The fan starts rotating and the
installed plastic sleeve becomes inflated.
●To turn the device on, connect the device to power supply. See 5.6. Connecting to Power Supply on
page 18 for more information.
●To turn the device off, disconnect the device from power supply.
Using the Bypass Function
The device has a built-in pressure sensor. If the pressure decreases in the inflated plastic sleeve during
operation, the sensor disconnects the 3 power output connectors: pro power connector OUT (01), pro
power True1 connector OUT (02) and Schuko power connector OUT (03). The stage luminaire powered by
one of those connectors turns off.
To adjust the settings of the connected stage luminaire, you can use the bypass switch (12). The bypass
switch (12) temporarily deactivates the built-in air pressure sensor.
Attention
Risk of damage to property
If the stage luminaire has a moving head, the plastic sleeve and the stage luminaire may become
damaged if the stage luminaire moves when the plastic sleeve is not fully inflated.
Make sure that the stage luminaire is not moving while you are adjusting its settings. If the plastic sleeve is
not fully inflated it can be caught by the moving head of the stage luminaire.
To use the bypass function, follow the steps below:
Press and hold down the bypass switch (12).
Adjust the settings on the stage luminaire through the plastic sleeve. Do not remove the plastic
sleeve.
Wait until the plastic sleeve is fully inflated again.
Release the bypass switch (12).
