ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
Barn door 1 Set
Clamp 1 Pc
Safety cord 1 Pc
XLR cable 1 Pc With male and female sockets
Power cord 1 Pc
User’s manual 1 Pc

3/14
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there
be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector can be used indoors and outdoors, IP20.
The projector is not designed or intended to be mounted directly on to inflammable surfaces.
The projector is only intended for installation, operation and maintenance by qualified personnel.
Do not project the beam onto inflammable surfaces, minimum distance is 2m. 2m
Avoid direct exposure to the light from the lamp. The light is harmful to eyes.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact with other cables.
Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
When the projector is hanged to a high place, please use a safety cord provided to pass through the projector handles as a secondary
safety fixing for safety seasons. For details, refer to “INSTALL THE PROJECTOR “section.
Fresnel lens shall be changed if it has become visibly damaged to such an extent than their effectiveness is impaired, for example by
cracks or deep scratches.
Exterior surface temperatures of the projector after 5 minutes’ operation is 45℃, when achieving steady state it is 55℃.
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the covers
removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Warning: Always disconnect a fixture from the power mains before cleaning or any maintenance or
installation !

4/14
INSTALL THE PROJECTOR

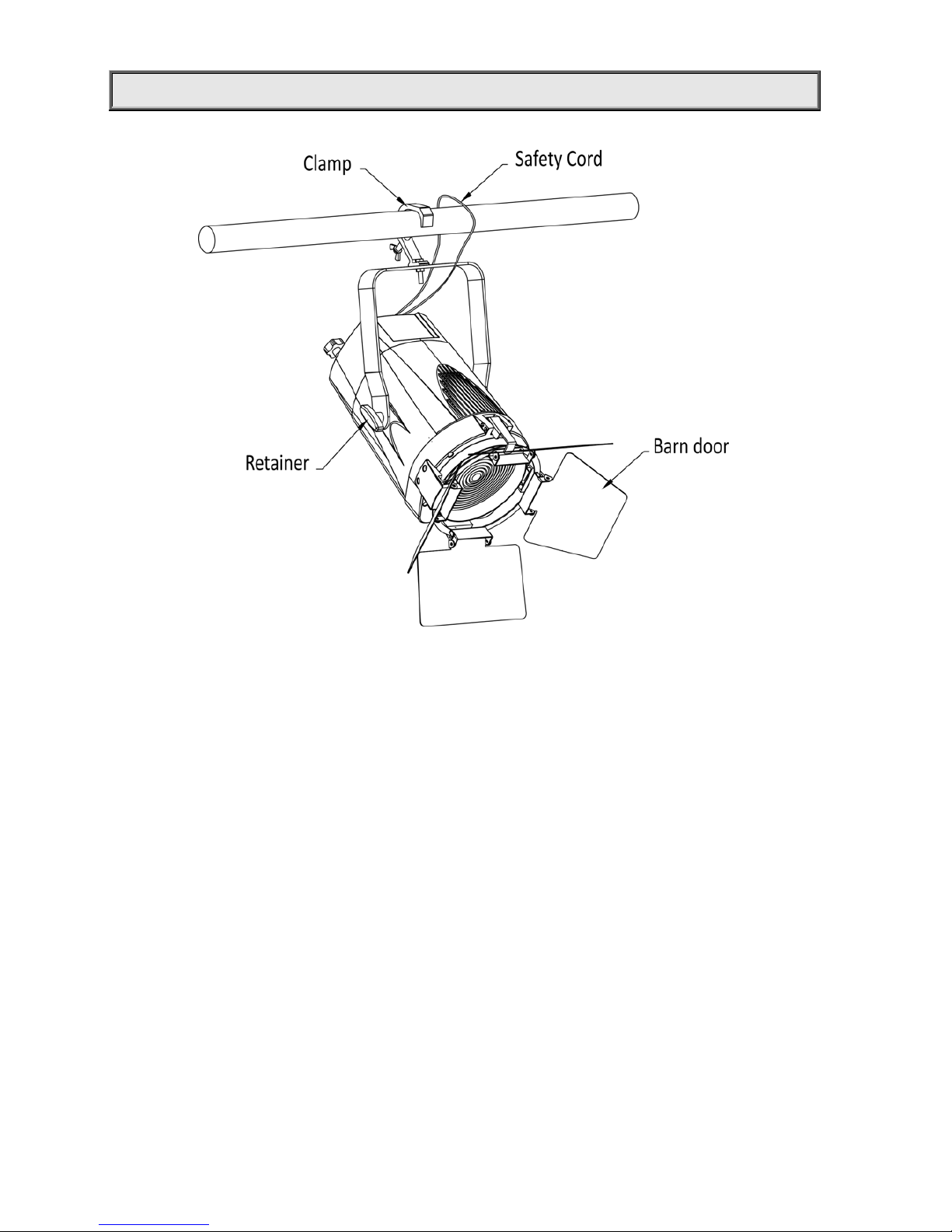

The unit was designed to make installation easy: The fixture’s head can be rotated within 240°manually, before it
rotates, two side retainers are loosened with care; after the head at a desired angle, tighten two side retainers..
Take 1 clamps and 1 safety cord out from the package and mount 1 clamps on the handle of fixture with 1 retainer attached to the
clamp. Hang the fixture on the structure and fasten the screw attached to the clamp. Always ensure that the projector is firmly
anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure to which you are
attaching the projector is secure and strong enough to support the weight of the fixture. For safety the projector should
have a secondary fixing with a safety cord through the handle of the unit to ensure safe mounting.
Warning:
1. The projector MUSTbe lifted or carried by the HANDLES instead of clamps.
2. For safetythe safety cord should afford 10 times of the unit’s weight.

5/14
CONTROL CONNECTION
Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable,
with each core having at least a 0.5mm diameter. Please use the projector’s cannon 5- pin signal input and output cables as connection.
The 5-pin signal connections are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of the plug is not
connected in any way. The projector accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input and connect
the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown in the figure below.
Not more than five units can be connected to power supply in series. The units can be connected to power supply in parallel. i the
voltage and frequency of the power supply should match those indicated on its nameplate.
DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω(ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.

6/14
SETUP OPTIONS-PROJECTOR CONFIGURATION
To browse through or change a projector’s configuration, push ENTER for about 3seconds to unlock it, after which the DMX
Address is shown meaning the menus have been entered into. TO set or browse through its functions, push the button of UP or
DOWN. After the button ENTER is pushed, the sub-menus are entered into and parameters for the currently displayed
function shown with the LCD display flickering. Push UP or DOWN button to change values(pus or minus)
Push ENTER button to save your settings and go back to the upper level menu with the display not flickering.
Push FUNC button to go back to the upper level menu with settings saved or browse through level 1 menus.
Push FUNC for 1 second or after neither button is pushed within 1minute, the menus are exited with the display’s current
brightness value shown.
If there is any DMX signal, the current DMX address will be shown ,otherwise the projector’s name and current brightness
value are shown.
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The projector has 2 DMX channel, so set the No. 1 projector’s address 001, No. 2 projector’s address 003, No. 3 projector’s
address 005, and so on..
Launch the projector. Press button ENTER for more than 3 seconds to unlock the panel to show DMX Address.
Push button ENTER to show DMX Address.
Push button UP or DOWN to set DMX address.
Push button ENTER to confirm and it means the setting has been automatically saved and after power-on next time, this
setting will be used.
Push button FUNC, it will return to the main menu..

7/14
OPERATION MENU
Level 1 menu Level 2 menu Level 3 menu Remarks
DMX Address 001 - 512 DMX Address
Config Setup
LED Dimmer
LED Lamp brightness 000 - 255 Value saved
Display Inversion Yes
No
Language Setup English
Chinese Language Options
LCD Light Setup
LCD backlight off
No Always on
1 minutes Backlight off 1 minutes after neither button is
pushed after the menus are exited
2 minutes Backlight off 2 minutes after neither button is
pushed after the menus are exited
3 minutes Backlight off 3 minutes after neither button is
pushed after the menus are exited
LCD Dimmer
LCD backlight’s brightness 1 - 10 From dark to bright
Information
Fixture use Time XXXX Fixture’s use time
Temperature 000 - 127 LED temperature
Software Version V. X . X Software version No.
DMX PROTOCOL
CHANNEL FUNCTION DMX DESCRIPTION
1 Dimmer
000 - 255
2 Strobe
000 - 007 No strobe
008 - 255 Strobe speeds from slow to fast

8/14
MAINTENANCE
To prolong the life of the projector, it is very important to do the maintenance work. If the projector is idle for a long time, damp,
smoke or particularly dirty surroundings can cause greater accumulation of dirt on its cover and housing. So it should be cleaned to
maintain an optimum light output and at the same time to prevent it from corrupted by acid gas.
Cleaning frequency depends on the environment in which the fixture operates. Soft cloth and typical glass cleaning products should be
used for cleaning. It is recommended to clean projector at least once every 20 days.
Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on
¾Power Cord is not corrected well.
¾Power supply is damaged or abnormal. Call a qualified personnel to fix
it.
¾Connection of control board is not correct. Call a qualified personnel to
fix it.
The projector can be turned on, but LEDs do not
emit light and are out of control.
¾Connection of LED board is not correct. Call a qualified personnel to fix
it.
The lamp comes on but the projector doesn’t
respond to the controller
¾Make sure that the projector DMX address is properly set.
¾Make sure the XLR cable is in good condition
The beam appears dim
¾The projector is too hot because of ambient temperature is too high. Take
ventilation measures to make it cool.

9/14
TECHNICAL DATA
VOLTAGES:
100~240V AC, 50/60Hz
POWER CONSUMPTION:
120W@220V
LED:
Power consumption 150W
Quantity 1pcs
Manufacturers Rated LED Life 50000 Hours
COLOURTEMPERATURE:
PR-3201D 5600K
PR-3201T 3200K
CRI
Ra≥93
Luminous Flux:
PR-3201D 22°：4500lm 85°：6800lm
PR-3201T 22°：3600lm 85°：6100lm
DIMMER:
0-100% linearly adjustable
BEAMANGLE:
Spot Light
Field angle(one-tenth-peak) θ：22°
Soft light
Field angle(one-tenth-peak) θ：85°
CONTROL:
International standard protocol for DMX512 signal, 5 pin interfaces
OTHER FUNCTIONS:
fixture usage time display
LED lamps’ temperature display
Software version number display
Disconnect the signal cable, the projector automatically switch off .
HOUSING:
High-intensity injected PC housing , IP20

10/14
WORK ENVIRONMENTTEMPERATURE:
-20°C~40°C
WEIGHT:
6kg

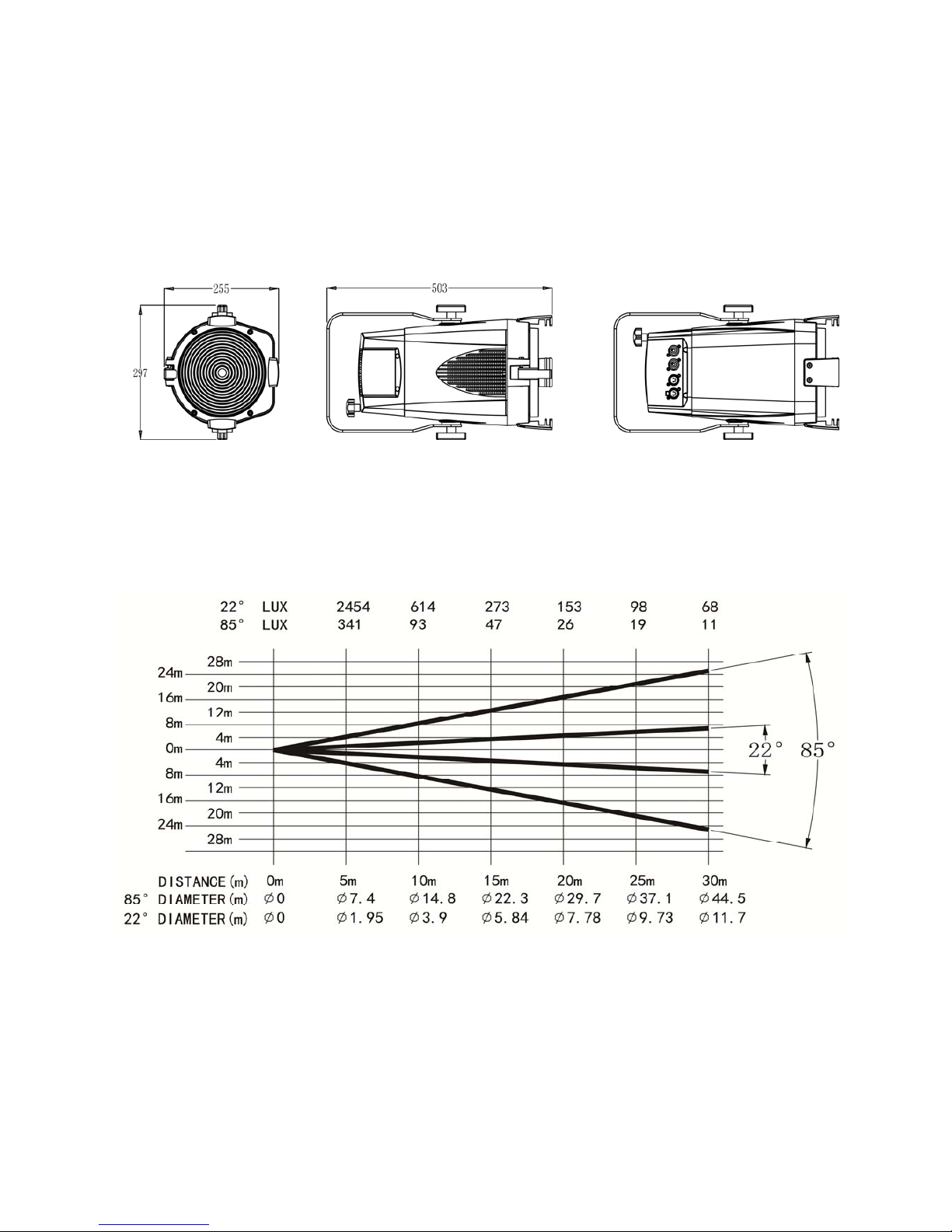

SIZES:
LIGHT OUTPUT:

11/14

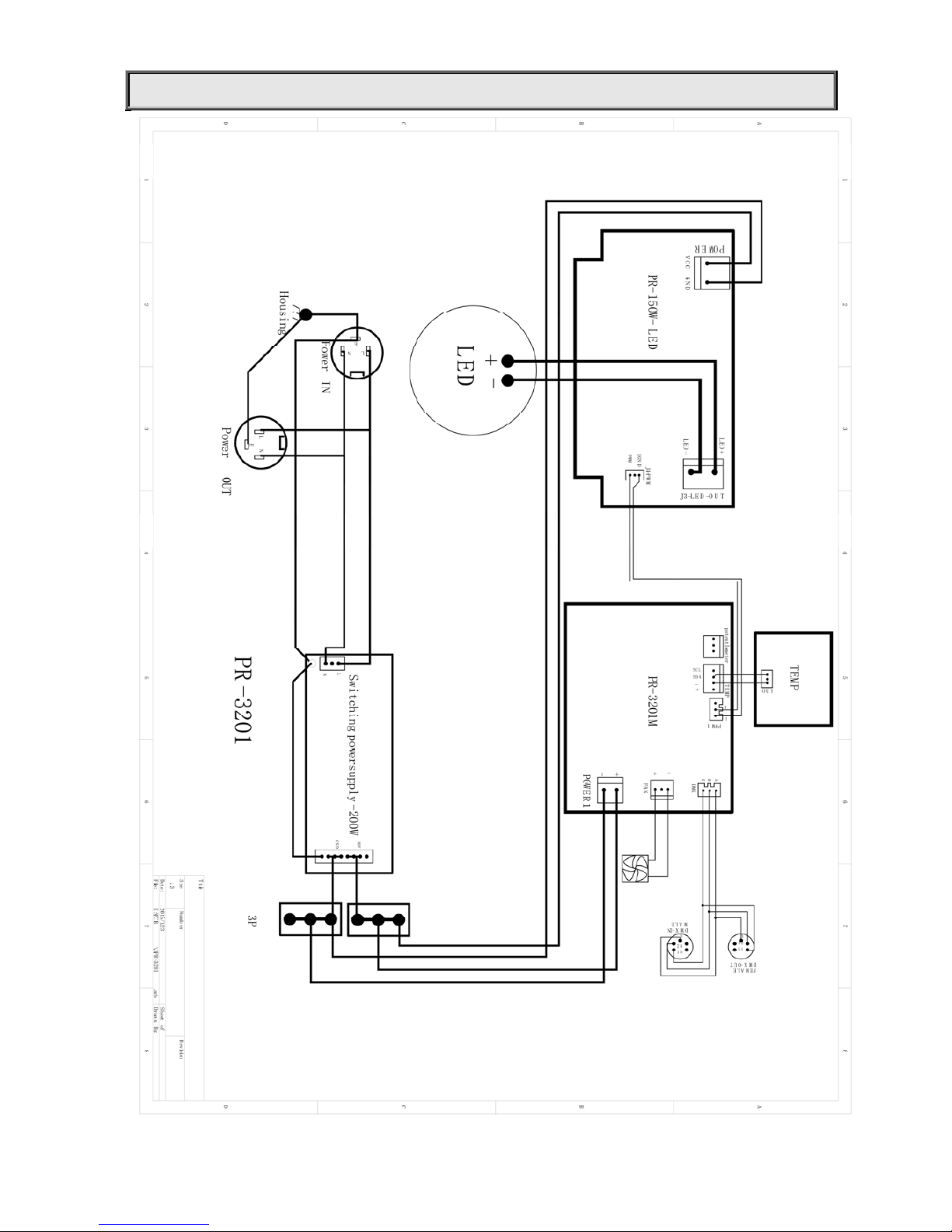

ELECTRICAL DIAGRAM

12/14
COMPONENT ORDER CODES
NAME PART NO. QUANTITY REMARK
SIGNAL CABLE 230090003 1 5m
POWER CORD 120080070 1 1.5m
POWER SUPPLY 192010190 1 200W 48V
DRIVER BOARD 230060367 1
LCD DISPLAY 230060364 1
LED LAMP 150020282 1 PR-3201T 3200K
LED LAMP 150020283 1 PR-3201D 5600K
FRESNEL LENS 070050080 1 DIN15560
FAN 030060085 1 ￠135X25

13/14

14/14
