showtech LEDPRO130 User manual

LED PROFILE SPOT - HIGH POWER

2
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.
•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
- in places subject to vibrations or bumps;
- in places with a temperature of over 40 °C.
an inspection or contact the manufacturer directly.
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Always additionally secure the projector with the safety rope. When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
11
2-CHANNEL MODE
3-CHANNEL MODE
6-CHANNEL MODE
DMX CHARTS
1 Dimmer000-255 0嗣100%
LED Frequency2See chart below
Channel Function Value Description
1 Dimmer000-255 0嗣100%
000-010No Function
Strobe2
011-255 Slow to Fast
3LED Frequency See chart below
Auto Programs
Program Speed
Dimmer curve
3
4
5
1Dimmer
Strobe2
000-255
000-010
011-255
000-010
011-070
071-130
131-190
191-255
000-255
000-051
052-101
102-152
153-203
204-255
0嗣100%
No Function
Slow to Fast
No Function
Auto Program 1
Auto Program 2
Auto Program 3
Auto Program 4
0 ~ 100%
Preset dimmer speed from display menu
Dimmer curve o
Dimmer curve mode 1 (fast speed)
Dimmer curve mode 2 (medium speed)
Dimmer curve mode 3 (slow speed)
Channel Function Value Description
LED Frequency6
000-010
011-050
051-100
101-150
151-200
201-255
Use frequency set via onboard menu
600Hz
1200Hz
2000Hz
4000Hz
25KHz

3
Packing content EPROFILE HP
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
General information
Introduction
Features
Specications
Maintenance
Cleaning the unit
Fuse replacement
• Mounting bracket
•Warranty card
• User manual
Overview
Dimensions
Operation
Trouble shooting
Display menu functions
DMX functions
DMX pin diagram
Menu Function Chart
Photometrics
DMX Function Chart
•Power cord
10
Beam Angle: 19°
Luminance (lux)
Distance (m)
Full
1m 3m 5m 7m 10m
0
187650 20850 7550 3830 1877
Beam Angle: 26°
Luminance (lux)
Distance (m)
Full
1m 3m 5m 7m 10m
0
148500 16500 5940 3031 1485
Beam Angle: 36°
Luminance (lux)
Distance (m)
Full
1m 3m 5m 7m 10m
0
72450 8050 2950 1479 725
Beam Angle: 50°
Luminance (lux)
Distance (m)
Full
1m 3m 5m 7m 10m
0
35460 3940 1580 724 355
PHOTOMETRICS

4
INTRODUCTION
The EPROFILE HP is a high-output LED prole.
FEATURES
- Crisp gobo image projection, even at close range
- Extremely at eld projection
- Higher output than traditional 750W ellipsoidal reector spotlights
- 200W LED with extremely high light output
- Flawless dimming with consistent color temperature throughout the dimming curve
- Flicker-free output with selectable PWM frequencies for worry-free video
- Quiet operation suitable for studio use
- Power linking (PowerCon In/Out)
- Rugged die-cast body and low-maintenance design
- Master/Slave mode, Auto Shows
- Manual control via onboard menu
- Selection of four dimming curves
- DMX control
- Available lens tubes: 19° - 26° - 36° or 50° (not included)
SPECIFICATIONS
Light Source: 200W COB 3000K (CRI: 93)
Beam Angle: 19° / 26° / 36° / 50°
Output: 7232 / 5115 / 3330 / 1415 LUX @ 5 meters
Focus: Manual
Strobe: 0-30 Hz
Dimming: 4 dimming curve modes
Control: DMX
DMX Channels: 2 / 3 / 6
Built-in Programs: Yes
Display: OLED function menu with 4 touch buttons
Mains: 100V-240V, 50/60 Hz
Consumption: 205W
Power connections: Neutrik PowerCon In/Out
Data connections: 5-pin XLR In/Out for DMX
Housing: Diecast aluminium
Finish: Matte black
IP rating: IP20
Cooling: Active (variable speed fan)
Operating temperature: 0°C to 40°C
Max. Housing: 54°C
Dimensions: 528 x 342 x 526 mm
Weight: 7.11 KG
9
MENU FUNCTIONS
MENU UP DOWN ENTER
Used to access the menu or
to return a previous menu
option
Navigates downwards through
the menu list and increases
the numeric value when in a
function
Navigates upwards through
the menu list and decreases
the numeric value when in
a function
Used to select and store the
current function value or
option within a menu
UP
ENTER
MENU
DOWN
DMX Address
DMX Mode
Static
Auto Show
Master/Slave
Dimmer Mode
LED Frequency
Fan Mode
Back Light
Information
Function Options Values Notes
Default001
Default6CH
DefaultAuto 4 / Speed: 100
DefaultSlave
DefaultO
Sets dimmer curve
Default1200Hz
Default: Auto
Default
Dimmer: 255 / Strobe: 0
DefaultOn
Sets delay (in seconds)
<0-255>
<0-255>
<1-100>
<1-100>
<1-100>
<1-100>
<001 ~ 512>
2Ch
3Ch
6Ch
Dimmer
Strobe
Auto1
Auto2
Auto3
Auto4
Master
Slave
O
Dimmer1
Dimmer2
Dimmer3
600Hz
1200Hz
2000Hz
4000Hz
25KHz
Auto
High
On
10S
20S
30S
Fixture Hours
UID: 030F00600001
<9999>
Version <v1.0>

8
OPERATION
DISPLAY MENU FUNCTIONS
- DMX Address: Assign DMX starting address to the EPROFILE HP
- DMX Mode: Select either 2-, 3- or 6-channel mode
- Static: Manually set dimming level and strobe rate
- Auto Show: Select one of four preprogrammed shows
- Master/Slave: Set the EPROFILE HP to function either as a master or slave when linking multiple units
- Dimmer Mode: Select the preferred dimming curve (1 = fast, 2 = medium, 3 = slow)
- LED Frequency: Select the preferred frequency (for achieving icker-free video playback)
- Fan Mode: Select either variable speed (Auto) or always on (High)
- Back Light: Set display to darken after 10, 20 or 30 seconds, or set to always on (On)
- Information: View operating hours, sofware version and unit ID
DMX FUNCTIONS
- 2-Channel Mode: Controls dimming from 0 ~ 100% and LED frequency selection
- 3-Channel Mode: Adds strobe function
- 6-Channel Mode: Controls dimming, strobe, auto program selection, program speed,
dimming curve selection and LED frequency selection
DMX PIN DIAGRAM
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug

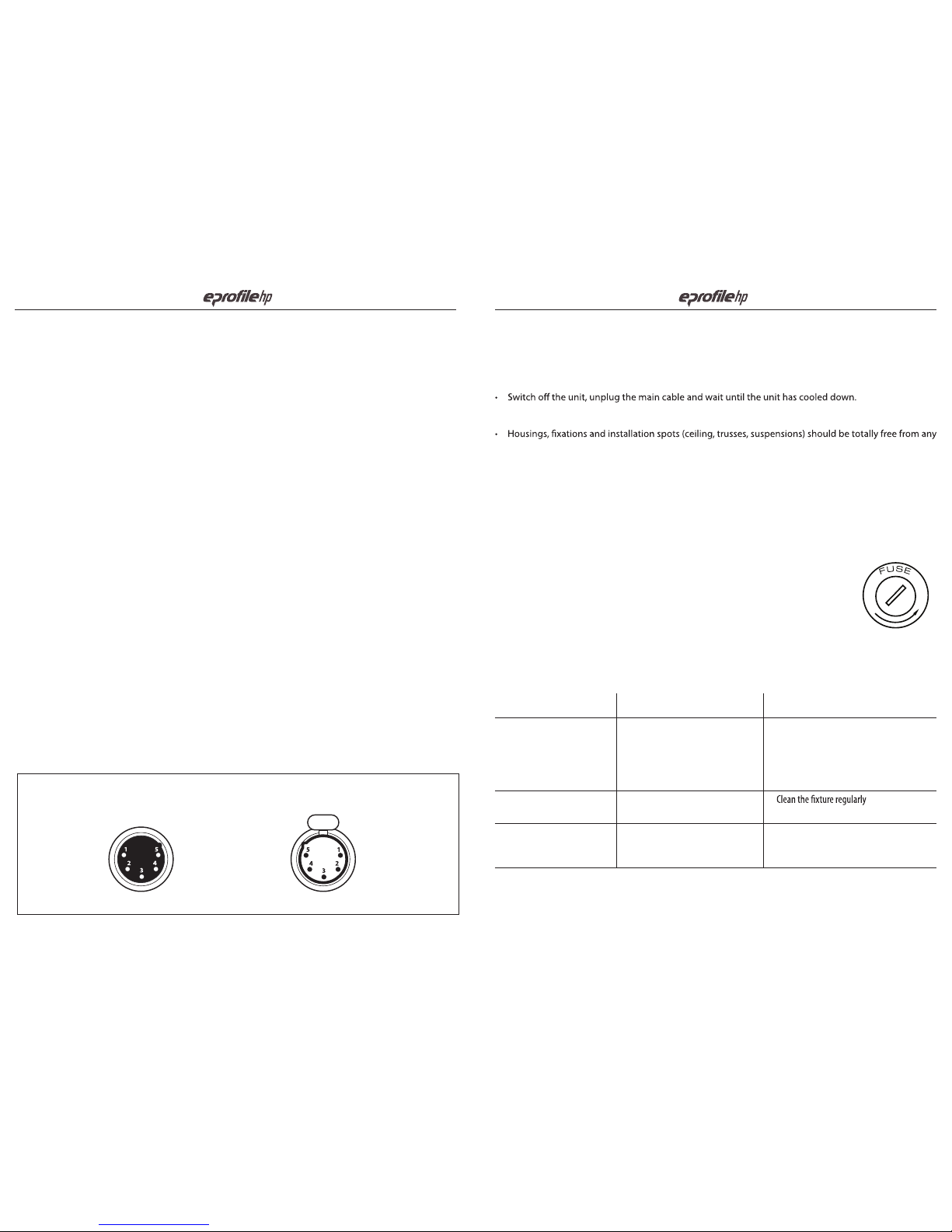

Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Pin4 : N/C
Pin5 : N/C
5
MAINTENANCE
MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent.Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
TROUBLESHOOTING
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
•
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.
FUSE REPLACEMENT
1. Disconnect this product from the power outlet.
2. Using a screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the same type and rat-
ing (250V/T3.15A).
4. Screw the fuse holder cap back in place and reconnect power.

6
OVERVIEW
Barrel
rotation
knob
Mounting
bracket
Framing
shutter (x 4)
Gobo
holder
slot
Lens tube
(sold separately)
Focus
knob
Bracket
tightening
knob
PowerCon In & Out DMX In & Out
Menu display
Menu
navigation
buttons
Accessory
holder
slot
Handle
7
DIMENSIONS



