ACME ORION XP-260 BEAM User manual

CONTENTS
1. Safety Instructions ................................................................................. 2
2. Technical Specifications ......................................................................... 3
3. Description............................................................................................. 5
3.1 Control Panel ................................................................................... 5
4. Gobo/Color and Lamp............................................................................ 7
4.1 Gobo/Color ...................................................................................... 7
4.2 Light Source ..................................................................................... 7
4.3 Changing the Lamp .......................................................................... 8
5. How To Set The Unit............................................................................... 9
5.1 Main Function.................................................................................. 9
5.2 Home Position Adjustment ............................................................ 16
6. Control By Universal DMX Controller ................................................... 18
6.1 Connection..................................................................................... 18
6.2 Address Setting .............................................................................. 19
6.3 DMX 512 Configuration.................................................................. 20
7. Error Information ................................................................................. 24
8. Troubleshooting ................................................................................... 26
9. Fixture Cleaning ....................................................................................27
1C

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Unpack and check carefully that there is no transportation damage before using the unit.
The unit is for indoor use only. Use only in a dry location.
DO install and operate by qualified operator.
DO NOT allow children to operate the fixture.
Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces.
Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
Maximum ambient temperature TA: 40℃，Minimum ambient temperature TA: 0℃.
DO NOT connect the device to any dimmer pack.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.
Make sure there are no flammable materials close to the unit while operating to avoid fire hazard.
Examine the power wires carefully; replace them immediately if there is any damage.
Unit’s surface temperature may reach up to 70℃. DO NOT touch the housing bare-handed during
its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or
maintenance as it could be very hot.
Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off
Please read the instruction carefully which includes important information about
the installation, usage and maintenance.
2C

the mains power immediately.
DO NOT operate in dirty or dusty environment, do clean fixtures regularly.
DO NOT touch any wire during operation as there might be a hazard of electric shock.
Avoid power wires together twist other cables.
The minimum distance between light output and the illuminated surface must be more than 12
meters.
Disconnect mains power before fuse/lamp replacement or servicing.
Replace fuse/lamp only with the same type.
In the event of serious operating problem, stop using the unit immediately.
Never turn on and off the unit time after time.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
DO NOT open the unit as there are no user serviceable parts inside.
Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center if needed.
Disconnect the mains power if the fixture is has not been used for a long time.
DO use the original packing materials before transporting it again.
Cautions:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
Hot lamp explosion hazard. DO NOT open the unit within 15 minutes after switching off.
DO replace the bulb once it is damaged, deformed or life-expired.
DO NOT look directly at the light while the bulb is on.
Never touch bulb with bare fingers, as it is very hot after using.
DO NOT start on the unit without bulb enclosure or when housing is damaged.
2. Technical Specifications
Power supply
AC 100~240V 50/60Hz
Power Consumption
375W
Light Source
Philips MSD Platinum 12R LL
3C

Color Temperature
7800K
Beam Angle
2°
Display
LCD Color Display
Protection Rating
IP20
Movement
Pan: 540°
Tilt: 270°
Pan/Tilt Resolution
16bit
Automatic Pan/Tilt correction
Dimmer/Shutter
0~100% smooth dimming, various strobe speeds
Color wheel
14 fixed colors plus open with rainbow effect
Gobo wheel
16 fixed gobos plus open
Prism
8 facets Prism+24 facets Prism, rotation in both directions and overlay each other
Protocols
DMX Channel: 13/16 Channels
Control Mode: DMX512, Master/Slave, RDM
Firmware Upgrade: Update via DMX link & USB
Data In/Out: 3-pin XLR (5-pin XLR is optional)
Power In/Out: Power cord out, Powercon out
4C

Features
6000 hours long life light source
Motorized focus
Outstanding color macro effect
Independent frost effect
Dimension/Weight
350 × 253 × 565mm, 18Kgs
13.8" x 10" x 22.2"in, 39.7lbs
3. Description
3.1 Control Panel
Wire Version:
5C

POWERCON Version:
1. Monitor: To show the various menus and the selected function
2. Button:
MENU
To enter into move backward or leave the menu
UP
To go backward to move up in the menu
DOWN
To go forward to move down in the menu
ENTER
To perform the desired functions
3. DMX IN:
DMX 512 link, use 3 XLR cable to link the unit and DMX controller
4. DMX OUT:
DMX 512 operation, use 3 XLR cable to link the next units
5. Power Switch:
Turns on/ off the power
6. Power Cable:
To connect to the mains supply
7. Firmware Upgrade
8. Fuse (T 6.3A):
Protect the unit from damage of over current
9. POWER IN:
To connect to supply power
10. POWER OUT:
To connect to the next fixture
6C

4. Gobo/Color and Lamp

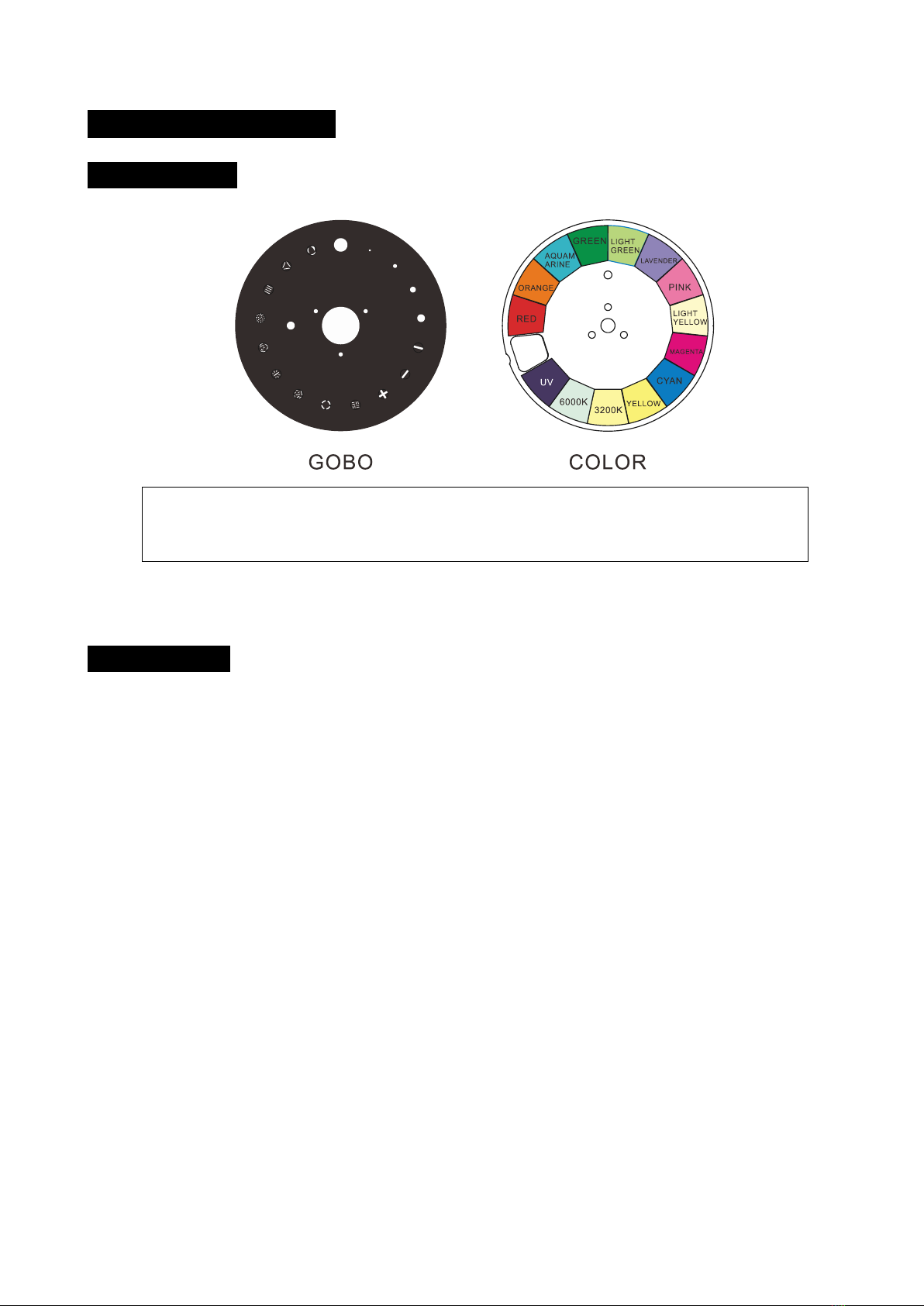

4.1 Gobo/Color
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
CAUTION: Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be
opened!
4.2 Light Source
Philips MSD Platinum 12R LL
Because of its high internal pressure, there might be a risk that the Discharge lamp would
explode during operation. The lamp emits intense UV radiation which is harmful to the
eyes and skin. The high luminance of the arc can cause severe damage to the retina if you
take a close look at the lamp.
To protect the lamp, always turn off the lamp first (via control panel or DMX controller)
and let the unit run at least five minutes to cool down before switching off the mains
supply. Never handle the lamp or luminary when it is hot.
Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured
alcohol and wipe it with a lint free cloth before installation.
The lamp generates UV radiation. Never operate the lamp without appropriate shielding.
When lighting up, the lamp operates at high pressure and there is a slight risk of arc tube
rupture. The risk increases with age, temperature and improper handling of the lamp. Do not
use the lamp longer than its lifespan.
Make sure the lamp is located in the center of the reflector for the best projection.
7C

4.3 Changing the Lamp
Do not use this lamp more than 6000 hours, using the lamp any longer than its set life could seriously
damage your unit. Periodically checking the lamp running time, when the lamp reaches the 6000 hour
mark, or close to it, we strongly suggest you switch the lamp out. Clear the RESET TIME after you have
replaced the lamp.
To replace the lamp:
1. Ensure that the fixture is detached from power and has cooled down completely. It is a good idea
to allow the fixture to run for 10 minutes after the lamp has been turned off, so that the cooling
fans have time to works.
2. Loosen the screws on the head of the fixture and open the fixture head covers.
3. Loosen the screw that holds the lamp in place. Unplug the leads of the lamp and lift the lamp out
of its recess, disconnect the lamp and connect a new lamp that must be the same type with the
old one. And then place the new lamp into the lamp recess.
8C

Finally reinstall the head cover, fastening it securely before reapplying power.
Warning:
The installing direction of lamp:
5. How To Set The Unit
5.1 Main Function
Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the
required function is shown on the monitor. Select the function by the ENTER button. Use the
UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return
to the last menu. Press the MENU button or let the unit idle one minute to exit menu mode.
The main functions are shown below（the grayed boxes are preset settings）:
9C

10C

DMX Settings
To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX
Address,DMX Channel Mode, No DMX Status or View DMX Value.
DMX Address —DMX512 address setting
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 500/4 9 7, press the ENTER button to store. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
DMX Channel Mode — DMX channel mode
To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to
select Mode1 (13) channels mode or Mode2 (16) channels mode, press the ENTER button to store.
Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
No DMX Status —fixture status while DMX single stops
To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select
BlackOut(fixture blacks out if DMX signal stops) or Hold(fixture continues to obey the last
command it received Via DMX if DMX signal stops), press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
View DMX Value
To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view
the DMX channel value. Press the MENU button back to the last menu or let the unit idle one
minute to exit menu mode.
Fixture Settings
To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select Pan
Invert, Tilt Invert or P/T Feedback.
11C

Pan Invert
To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal) or Yes(pan invert), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Tilt Invert
To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select
No(normal) or Yes(tilt invert), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
P/T Feedback
To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
No(Pan or tilt’s position will not feedback while out of step) or Yes(Feedback while pan/tilt out of
step), press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Lamp Settings
To select Lamp Settings, press the ENTER button to confirm, use the UP/DOWN button to select Lamp
On/Off or Lamp ON with Power.
Lamp On/Off —Turn on/off the lamp
To select Lamp On/Off, press the ENTER button to confirm. Use the UP/DOWN button to select
Off(lamp off) or On(lamp on), press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
Lamp ON with Power — Lamp state while power on
To select Lamp ON with Power, press the ENTER button to confirm. Use the UP/DOWN button to
select Off(Lamp off while power on) or On(Lamp on while power on), press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
12C

Display Settings
To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select
Display Invert, Backlight Intensity or Temperature Unit.
Display Invert
To select Display Invert, press the ENTER button to confirm, present mode will blink on the display,
use the UP/DOWN button to select No(normal display) or Yes(invert display), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Backlight Intensity
To select Backlight Intensity, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to adjust backlight intensity from 001(dark) to 010(bright),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Temperature Unit
To select Temperature Unit, press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select
℃
or
℉
, press the ENTER button to store. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
F ixture Test
To select Fixture Test, press the ENTER button to confirm, use the UP/DOWN button to select Auto
Test or Manual Test.
Auto Test
To select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to
automatically test pan, tilt, P/T speed, color, gobo, prism, prism2, rprism, shutter, dimmer, focus,
frost and spe. func. Press the MENU button back to the last menu or exit menu mode after auto
test.
13C

Manual Test
To select Manual Test, press the ENTER button to confirm, the present channel will show on the
display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use
the UP/DOWN button to adjust the value, press the ENTER button to store, the fixture will run as
the channel value indicates. Press the MENU button back to the last menu or exit menu mode
idling one minute.
(All channels value will become 0 after exiting Manual Test menu)
Fixture Information
To select Fixture Information, press the ENTER button to confirm, use the UP/DOWN button to select
Fixture Hour Use, Lamp Use Time, Lamp Time Reset, Temperature, USB Updrade File, Fan State or
Firmware Version.
Fixture Hour Use
To select Fixture Hour Use, press the ENTERbutton to confirm, fixture use hour will show on the
display, press the MENU button to exit.
Lamp Use Time
To select Lamp Use Time , press the ENTER button to confirm, present mode will blink on the
display, use the UP/DOWN button to select Full Power Hour or Half Power Hour, press the ENTER
button to confirm. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Lamp Time Reset
To select Lamp Time Reset, press the ENTERbutton to confirm, fixture reset time will show on the
display, press the MENU button to exit.
Temperature
To select Temperature, press the ENTERbutton to confirm, fixture temperature will show on the
display, press the MENU button to exit.
14C

USB Upgrade File
To select USB Upgrade File,press the ENTERbutton to confirm, USB upgrade file will show on the
display, press the MENU button to exit.
Fan State
To select Fan State, press the ENTERbutton to confirm, fan state will show on the display, press
the MENU button to exit.
Firmware Version
To select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
To select Reset Functions, press the ENTER button to confirm, use the UP/DOWN button to select Pan
& Tilt Reset, Effect Reset or All Reset.
Pan & Tilt Reset—Reset Pan/Tilt
To select Pan & Tilt Reset, press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes (the unit will run built-in program to reset pan and tilt to their home positions),
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
Effect Reset—Reset Effect
To select Effect Reset,press the ENTER button to confirm, use the UP/DOWN button to select No
or Yes(the unit will run built-in program to reset effect to their home positions), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
All Reset— Reset All
To select All Reset,press the ENTER button to confirm, use the UP/DOWN button to select No or
Yes(the unit will run built-in program to reset all motors to their home positions), press ENTER
button to store. Press the MENU button to exit.
15C

Special Function
Factory Settings
To select Factory Settings, press the ENTER button to confirm, use the UP/DOWN button to select
No(normal) or Yes(the fixture will reset to factory settings), press ENTER button to store. Press the
MENU button to exit.
RDM FUNCTIONS
Select the MANUFACTURER menu to display the manufacturer of the fixture.
Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed.
Select the DMX START ADDRESS menu to change the DMX 512 address (001-512).
Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
Select the DEVICE LABEL menu to change the model of the fixture.
Select the DMX PERSONALITY menu to set the channel mode of the fixture (13/1 6 channel).
Select the DMX PERSONALITY DESCRIPTION menu to display the current channel mode of the fixture.
Select the DEVICE HOURS menu to display the running time of the fixture.
Select the LAMP HOURS menu to display the running time of the lamp.
Select the LAMP STATE menu to turn on/off the lamp.
Select the PAN INVERT menu and the fixture will run the pan invert mode.
Select the TILT INVERT menu and the fixture will run the tilt invert mode.
Select the RESET DEVICE menu, the WARM RESET/COLD RESET option will be displayed. When WARM
RESET is selected, the fixture will start a warm reset, and exit when COLD RESET is selected.
5.2 Home Position Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN
button to choose the submenu, press the ENTER button to store and automatically return to the last
menu. Press MENU button to exit.
16C

Pan—Pan home position adjustment
Enter offset mode, select Pan, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Tilt—Tilt home position adjustment
Enter offset mode, select Tilt, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Shutter—Shutter home position adjustment
Enter offset mode, select Shutter, press the ENTER button to confirm, the present position will blink
on the display, use the UP/DOWN button to offset the value from 000 to 255, press the ENTER button
to store. Press the MENU button to exit.
Color—Color home position adjustment
Enter offset mode, select Color, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Gobo—Gobo home position adjustment
Enter offset mode, select Gobo, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
17C

Prism—Prism home position adjustment
Enter offset mode, select Prism, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Prism2—Prism home position adjustment
Enter offset mode, select Prism2, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Frost—Frost home position adjustment
Enter offset mode, select Frost, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from 000 to 255, press the ENTER button to
store. Press the MENU button to exit.
Focus—Focus home position adjustment
Enter offset mode, select Focus, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
6. Control By Universal DMX Controller
6.1 Connection
18C

1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor
between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last unit.
2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the
input of the next unit. The cable cannot be branched or split to a “Y” cable. DMX 512 is a very
high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily
distort the signal and shut down the system.
3. The DMX output and input connectors are pass-through to maintain the DMX circuit, when one of
the units’ power is disconnected.
4. Each lighting unit needs to have a DMX address to receive the data by the controller. The address
number is between 0-511 (usually 0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal errors.
6. 3 pin XLR connectors are more popular than 5 pins XLR.
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
6.2 Address Setting
If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512
so that the units can receive DMX signal.
Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm,
use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present
address will blink on the display, use the UP/DOWN button to adjust the address from 001 to 512,
press the ENTER button to store. Press the MENU button back to the last menu or idling let the unit
idle one minute to exit menu mode.
Please refer to the following diagram to address your DMX512 channel for the first 4 units.
ATTENTION
Termination reduces signal errors and to avoid signal transmission problems and
interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W
between pin2 (DMX-) and pin3 (DMX+) of the last fixture).
19C
