SHS AUDIO SPM Series User manual

IMPORTANT SAFETY INSTRUCTIONS
-Read these instructions.
-Keep these instructions.
-Heed all warnings
-Follow all instructions
-Water & Moisture / Power Supply
This unit should be protected from moisture and rain... It should not be used near water. i.e. bathtubs,
kitchen sink, pools or sprinkler systems etc...This unit should only be connected to a power supply of the
type indicated on the unit or described in this manual. Failure to comply could result in damage to this
product and/or injury to the user. Unplug this unit during electrical storms or when not being used for pro-
longed periods
-Heat
This unit should be located away from heat sources such as radiators, stoves or other appliances that
produce heat. To prevent the risk of fire, damage to this unit or personal injury, please use only the rec-
ommended fuse type as indicated in this manual.
-Fuse
Before replacing the fuse, make sure that the unit is turned off and disconnected from the AC power sup-
ply.
-Ventilation
Do not block areas of ventilation (i.e. cooling fins on heat sink) on this unit. Failure to comply could result
in overheating or fire.
-Electrical Connection
Always use in accordance with the manufacturers instructions. Improper electrical wiring will void the
product warranty
-Object and Liquid Entry
Please insure that foreign objects and/or liquids are not placed/spilled into the inside of the unit or into
various input and output openings for the unit
-Cleaning
Clean only with a dry cloth. Do not use solvents of any kind such as benzol, alcohol or gasoline to clean
this unit.
-Power Cord and Plug Only use accessories or parts recommended by the manufacturer.
-Servicing Do not attempt any service to this unit other than those described in this manual. Refer all
service issues to qualified service personnel only.
-Warning
Please remember that high sound pressure levels may not only temporarily damage hearing, but can
also cause permanent hearing loss. Please be careful to select appropriate volume levels.

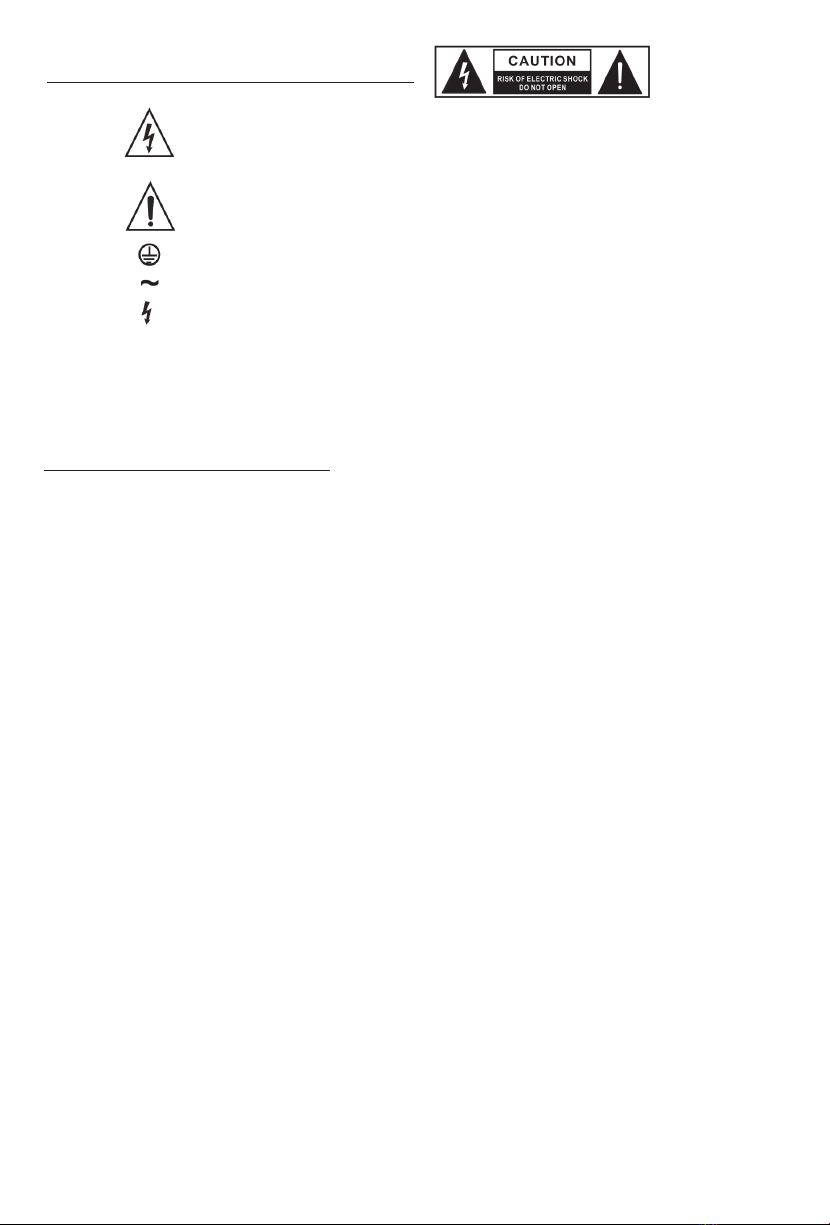

IMPORTANT SAFETY SYMBOLS
This symbol is used to indicate that some hazardous live terminals are
involved with this apparatus, which even under normal operating conditions
may be sufficient to constitute a risk of electric shock or death.
This symbol is used in the service documentation to indicate that a specific
component shall be replaced only by the component specified in that docu-
mentation for safety reasons.
ON: Denotes the unit is turned on.
OFF:Denotes the unit is turned off.
WARNING: Describes precautions that should be observed to prevent the danger of injury or
death to the operator.
CAUTION: Describes precautions that should be observed to prevent damage to the unit.
Protective grounding terminal.
Alternating Current
Hazardous live Terminal

3
shsaudio.com

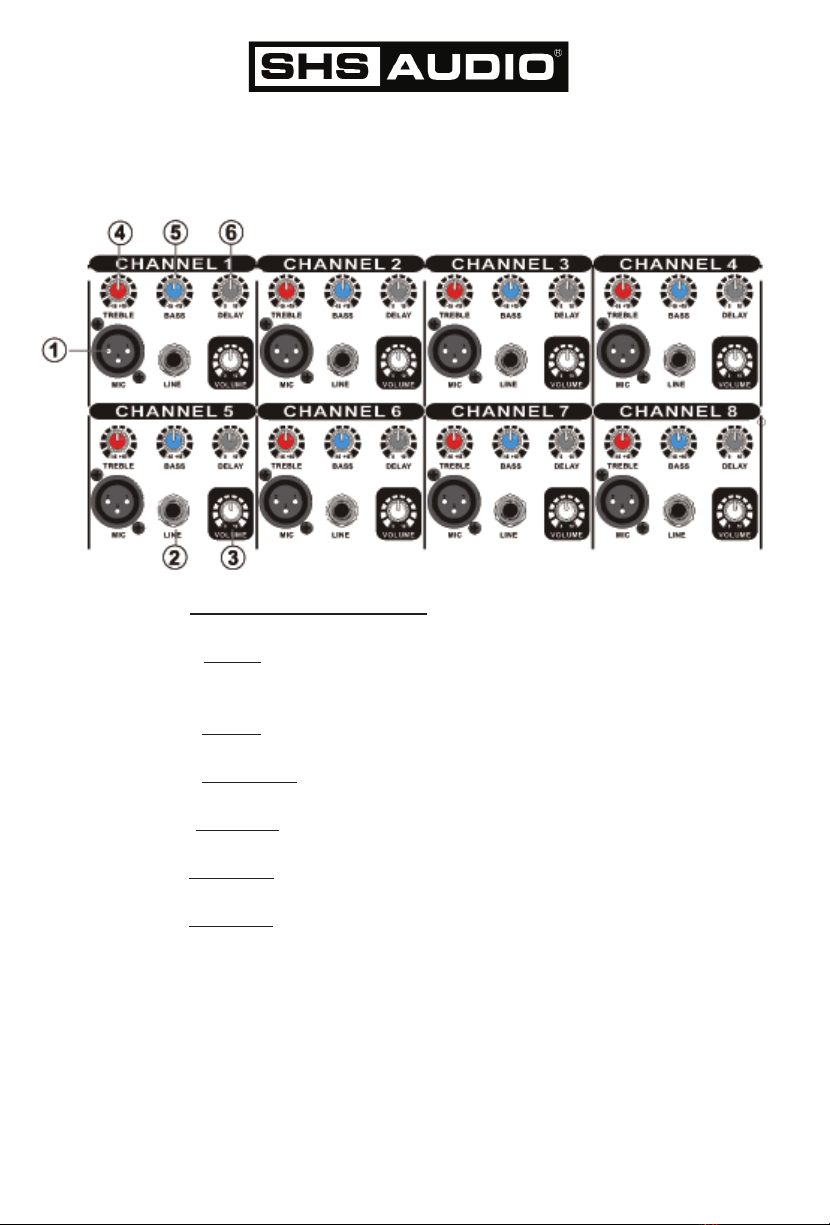

(1) Mic
XLR balanced input. Connect microphones
here.
(2)Line
1/4” unbalanced hi impedance input.
(3) Volume
Controls volume of just that channel.
(4) Treble
High frequency control rated +/- 15db at 15Khz
(5) Bass
Low frequency control rated at +/- 15db at 80Hz
(6) Delay
Controls the amount of delay going to the chan-
nel. Turn off delay control when not using.
Input Section Controls

4
shsaudio.com
(1) Master Equalization
Controls equalization on main output. Adjustment range:
100Hz, 330Hz, 1Khz, 3.3kHz
+ / - 12db
(2) Master Volume
Controls volume output of all channels.
(3) Delay Level
Controls overall amount of delay effect on all channels.
(4) Delay Time
Controls delay effect from short to long.
(5) Aux In Master Control
Controls the amount of incoming signal going to the AUX IN.
(6) Aux In
Connect output of external device with RCA cable here.
(7) Aux Out
Connect input of external device with RCA cable here.
(8) Headphone Input
Input for headphone connection.
(9) Headphone Volume
Controls the overall headphone volume.
(10) Power Light
Indicates AC current to powered mixer.
Master Section Controls

5
shsaudio.com
(1) AC and Fuse
Power cord and fuse for powering the unit. ALWAYS make
sure unit is powered off before replacing fuse! Only use rec-
ommended fuses for replacement.
(2) Power
Main power on/off control
(3) Speaker Outputs
1/4” outputs for connection to cabinets. It is recommended
only using speaker cables for this connection.
(4) Effect Send
Used for hooking up an external effect such as outboard
reverbs or delays. Its the output that sends signal to your
external processor’s input.
(5) Effect Return
Used for hooking up an external effect such as outboard
reverbs or delays. Its the input that receives signal from your
external processor’s output.
Rear Panel Controls

6
shsaudio.com

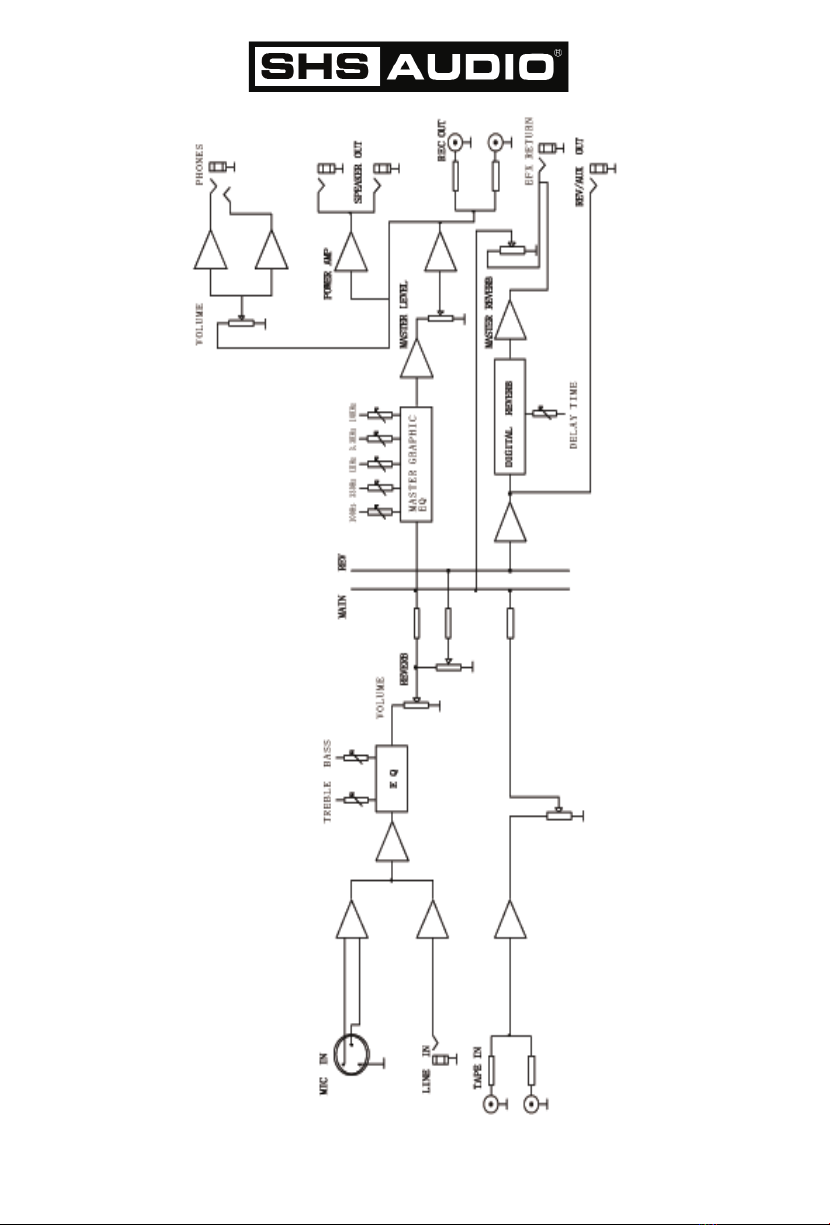

DETAILED SPECIFICATIONS

7
shsaudio.com

SHS Audio is a division of SHS International.
SHS Audio warrants this powered mixer solely to the original retail purchaser to be free of
defects in materials and workmanship for a period of 5 Years under normal use.
Warranty must be registered online at www.shsint.net within 15 days of purchase.
You must retain a copy of the sales receipt and it must accompany the powered mixer
in the event of future warranty coverage.
TERMS AND CONDITIONS
The following is not covered by this warranty.
1) Any SPM mixer that has been subject to extremes of temperature and/or humidity.
2) Shipping damages of any kind.
3) Normal wear and tear (Covering, Knobs, Feet, Chassis, Jacks, Speaker issues)
4) Issues that are considered standard maintenance.
5) Any modifications or alterations to the mixer voids the warranty.
6) Improper hookup and/or usage.
7) Mixers that are not purchased by an authorized SHS Audio dealer.
8) Warranty repairs by anyone other than a SHS Audio authorized service center.
9) Misuse and/or abuse.
10) Subjective matters such as tone, perceived volume and power.
CLAIM PROCEDURES
In the event that there is warranty claim, the original purchaser of the cabinet must contact a
SHS service center for authorized work. If there is no service center nearby, you must contact
SHS Audio for a return authorization number and the cabinet must be shipped freight and insur-
ance prepaid along with a sales receipt of proof of purchase for validation of a warranty repair.
A quotation will be given for any non-warranty repairs and will be valid for a period of 10 days.
All repaired cabinets and/or parts will be returned prepaid by SHS Audio.
Any unauthorized repairs done to the mixer will void the warranty.
WARRANTY INFORMATION
