SI Zen Roll User manual

Zen Roll
Owner’s Manual
INSTALLERS: PLEASE LEAVE THIS MANUAL WITH THE OWNER.
with Cable Guides

Screen Innovations warrants its products, to the original purchaser only, to be free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original
purchaser provided they are properly operated according to Screen Innovations' instructions and are
not damaged due to improper handling or treatment after shipment from the factory.
This warranty does not apply to equipment showing evidence of misuse, abuse, or accidental damage,
or which has been tampered with or repaired by a person other than authorized Screen Innovations
personnel.
Screen Innovations’ sole obligation under this warranty shall be to repair or to replace (at Screen
Innovations’ option) the defective part of the merchandise. Returns for service should be made to
your Screen Innovations' dealer. If it is necessary for the dealer to return the screen or part to Screen
Innovations, transportation expenses to and from Screen Innovations are payable by the purchaser and
Screen Innovations is not responsible for damage in shipment. To protect yourself against damage or
loss in transit, insure the product and prepay all transportation expenses.
This warranty is in lieu of all other warranties, express or implied, including warranties as to tness
for use and merchant ability. Any implied warranties of tness for use, or merchantability, that may be
mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives
you specic legal rights, and you may also have other rights, which vary from state-to-state. No liability
is assumed for expenses or damages resulting from interruption in operation of equipment, or for
incidental, direct, or consequential damages of any nature.
In the event that there is a defect in materials or workmanship of a Screen Innovations product, you
may contact our Sales Partners at 9715-B Burnet Road Suite 400, Austin, TX 78758, [phone].
Important: this warranty shall not be valid and screen innovations shall not be bound by this warranty if
the product is not operated in accordance with screen innovations' written instructions.
Keep your sales receipt to prove the date of purchase and your original ownership.
Limited 1 year warranty
on Screen Innovations products
Technical Support: 512.832.6939 screeninnovations.com
Hours of Support: 7:30am - 5pm CST [email protected]
Please use this QR Code
to access the updated
installation instructions
and related documents.

Operating And Maintaining Your Shade � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Before Proceeding � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5
Specifying Your Shade Dimensions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6 - 7
Parts in the Box � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
Install Brackets � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Install Material Roll � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 10 - 11
Cable Mount Options� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
Installing Cable Guides � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 13 - 16
Power (Motorized only) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17
Set Limits (Motorized only) � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 18 - 20
Troubleshooting� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
TABLE OF CONTENTS

4
• Operation of the shade systems should only be completed by qualied person(s)
• Always monitor the operation of the Shade Systems to ensure proper operation and that furniture or
other obstacles cannot prevent normal deployment or retraction of the shade system
• DO NOT lower shade during high wind conditions (gusts over 20 mph). Doing so will result in
damage that will need to be repaired by a qualied technician. If the shade system is currently in the
down position, it is usually okay to operate the shade and retract it. However, avoiding operation at
any time when High Wind conditions are present is considered proper operation.
OPERATING AND MAINTAINING YOUR SHADE

5
• Measure the opening carefully and make sure that the correct shade width is ordered.
• Make sure that the shade boxes can all be installed securely level. Add appropriate blocking or
carpentry work before installing shades.
• SI will not cover any warranty on systems that are installed without original brackets. Warranty will
be null & void if installation is performed by drilling directly through the box, both on ceiling and wall
mount.
• Electrical work should be performed using appropriate electrical codes and regulation, by a licensed
electrical professional.
• Source fasteners appropriate for the location of the cable guide mount and shade boxes will be
mounted to.
• Before removing the screen from the packaging, check for damage and to make sure all parts are
included.
• Do not use any sharp blades when opening the screen packaging. Open by hand.
• Care in mounting and correct operation will result in long and satisfactory service from the SI
screen.
• Make sure to acquire appropriate mounting hardware for your installation as mounting hardware is
not provided due to the need for the installer to identify mounting surface requirements.
Preparing for your installation: It is crucial that all installations are planned out carefully
before specifying a shade order.
Read the instructions in their entirety before proceeding. Actions contrary to the
instructions invalidate the warranty and may result in serious damage and/or injury.
BEFORE PROCEEDING

6
Bottom opening width
Top opening width
Middle opening width
Total unit width
= Middle opening width - 1/4''
Total unit height = Total opening height
23
8"
Weight bar and Gasket
Open roll
7" MIN
10" MIN
37
8"
41
2"

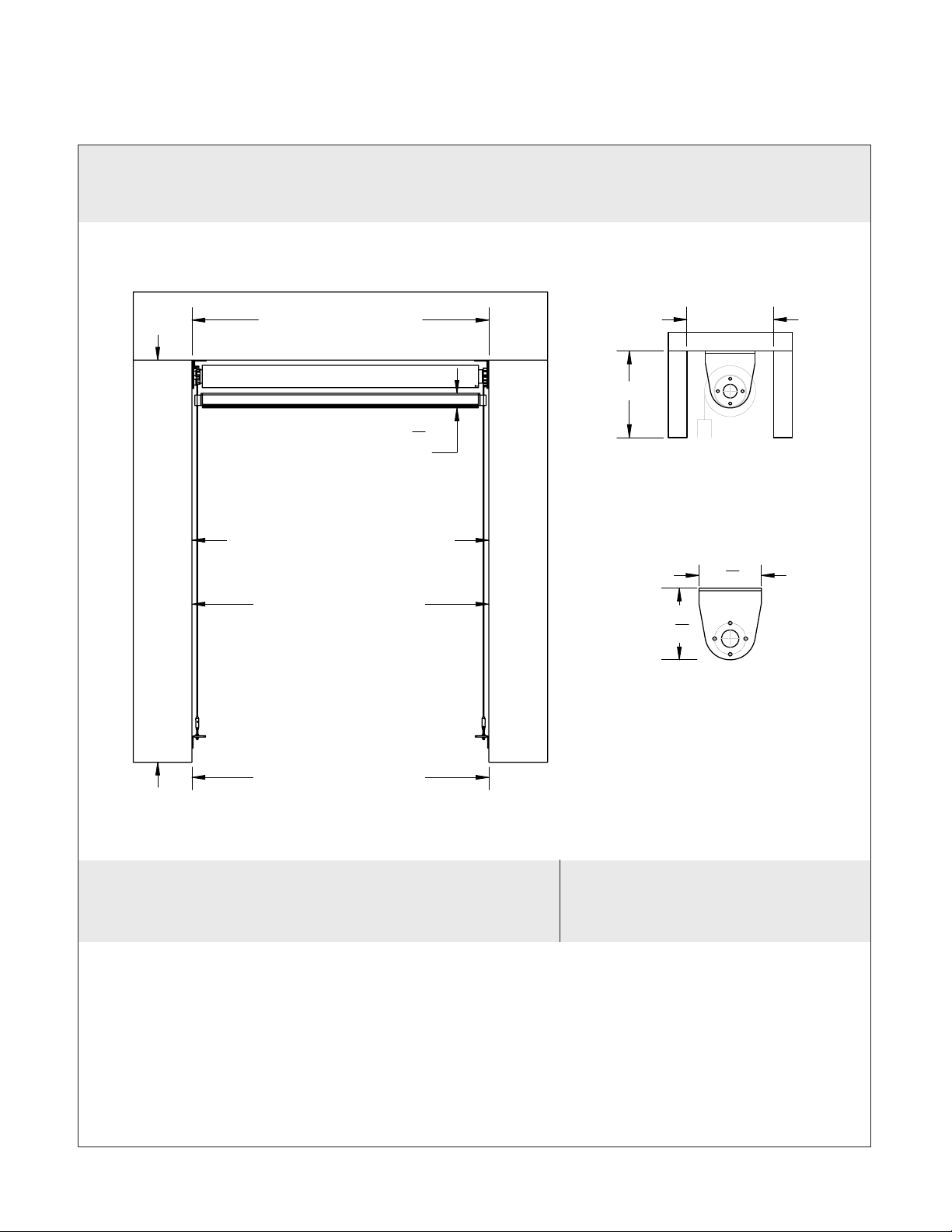

SPECIFYING YOUR SHADE DIMENSIONS
Use this formula for specifying shades were the roll and cable guide can be seen from the inside of
the installation opening.
Width - Measure the total width at the top, middle, and bottom of your opening. Take the smallest
measurement of the three and deduct a total of 1/4". This will give you the TOTAL UNIT WIDTH of
your shade.
Drop - Measure the total height of your opening. That will be your TOTAL UNIT DROP for your shade.
We do manufacture the tracks or guides for your system 5" longer than your TOTAL UNIT HEIGHT so
you can have a little adjustment on site.
The measurements written on the order form
will be the measurements produced. No
deductions are taken on submitted order form.
MINIMUM OPENING WIDTH - 1/4'' = TOTAL UNIT WIDTH = W
TOTAL HEIGHT OF OPENING = TOTAL UNIT HEIGHT = H

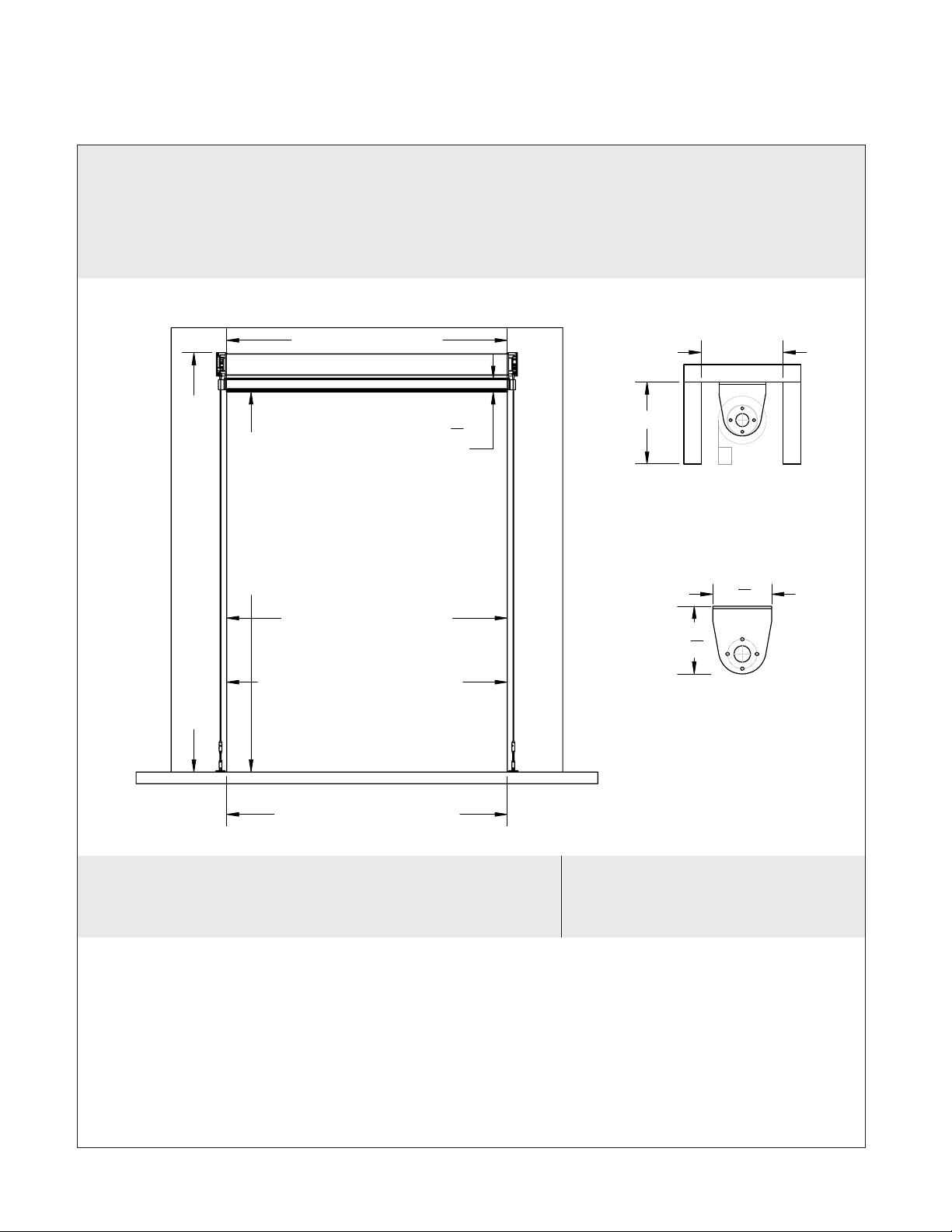

Between Columns Ceiling Mount

7
SPECIFYING YOUR SHADE DIMENSIONS
Wall Surface Mount
Middle opening width
Bottom opening width
Top opening width
Total opening height
Total unit height = Total opening height = 10”
23
8
”
Weight bar and Gasket
Total unit width
= Largest opening width
= 3 1/2’’
Open roll 7" MIN
10" MIN
37
8"
41
2"
The measurements written on the order form
will be the measurements produced. No
deductions are taken on submitted order form.
Use this formula for specifying shades where the roll and cable guide can NOT be seen from the
inside of the opening.
Ensure opening is plumb & parellel. If not, order extra width to keep cable guide out of view from
the inside.
LARGEST OPENING WIDTH + 3 1/2'' = TOTAL UNIT WIDTH = W
TOTAL HEIGHT OF OPENING +10'' = TOTAL UNIT HEIGHT = H
Width - Measure the total width at the top, middle, and bottom of your opening. Take the largest
measurement and add 3 1/2''. This will give you the TOTAL UNIT WIDTH of your shade and allow only
the fabric to be seen from inside your opening.
Drop - Measure the total height of your opening. If you don't want the cassette and bottom bar to be
visible when the unit is completely retracted, please add 10" inches to your opening's height. We do
manufacture the tracks or guides for your system 5" longer than your TOTAL UNIT HEIGHT. So you
can have a little adjustment on site.

8
PARTS IN THE BOX
Material Roll Assembly
my my
Shades
Or
Motor Bracket Idler Bracket
Cables (2) Cable Tensioners (2)
Floor Mounts (2) Wall Mounts (2)
Cable Mounting Options Mounting Bracket Options
Telis Remote (1)Foldable Crank Handle
For Manual Shades only For Motorized Shades only

9
INSTALL BRACKETS
Mount the motor and idler brackets to structural supports as shown. Refer to your order or
the packaging to get the UNIT WIDTH = W and make sure the brackets measure the same
UNIT WIDTH dimension from outside to outside. Also make sure the motor bracket is on the
correct side as specied on the order. The brackets must be mounted on a level line as well
as plumb. The brackets can be mounted to the ceiling or a vertical wall face. Make sure that
they are mounted such that the weight bar will align with the location of the cable guide.
Level
Plumb
Unit Width
2
25”
1
42”
1
42”
9
310 ”
7
38”
2
25”

10

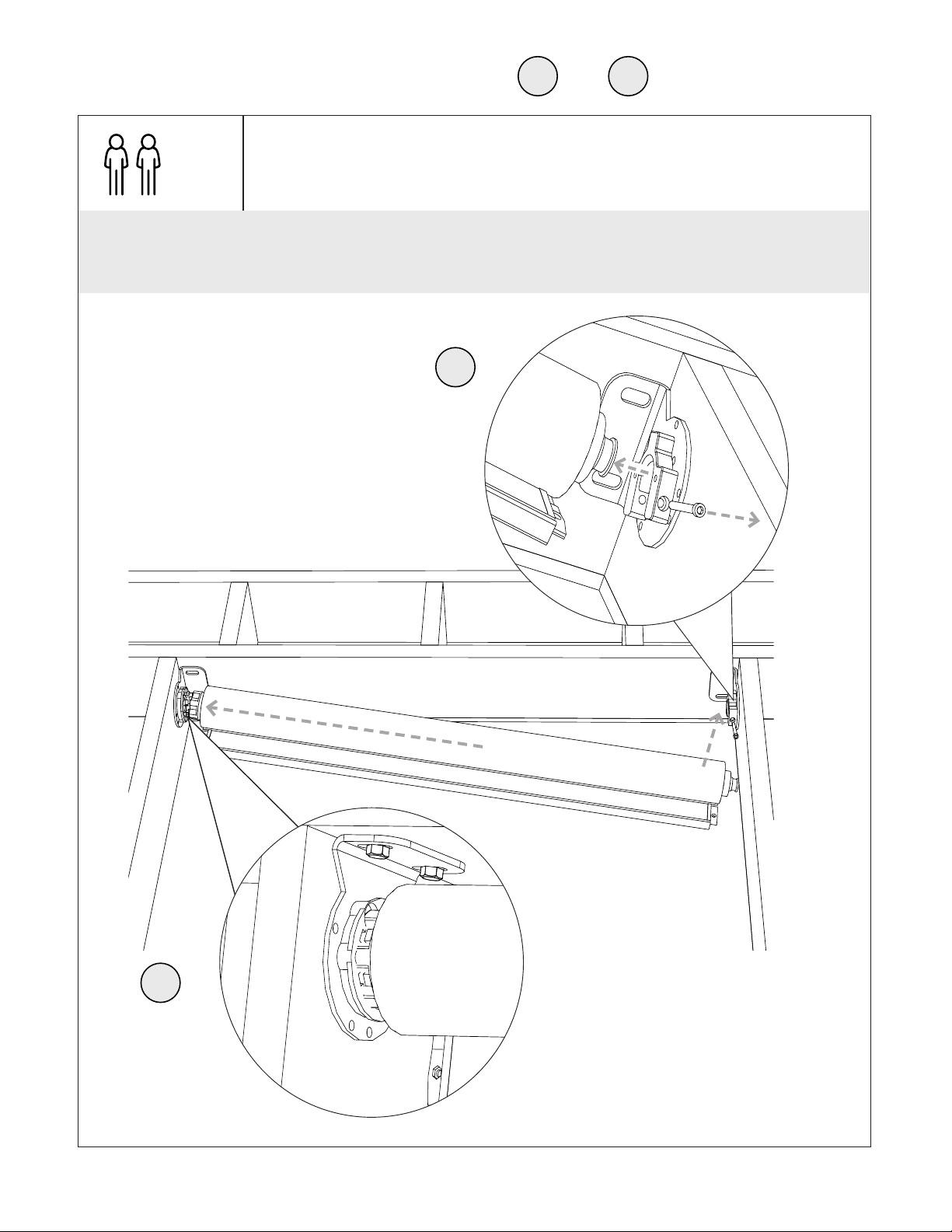

Remove the screw from the idler side bracket, then remove the idler bushing and install on the
material roll idler shaft.
Use 2 people to lift up the material
roll and guide the motor into the
star bracket. Make sure the power
and control cables exit the desired
direction.
Installation requires two or more people. Please use safe lifting and
rigging techniques.
2+
INSTALLING MATERIAL ROLL -
2
1
1 2

11

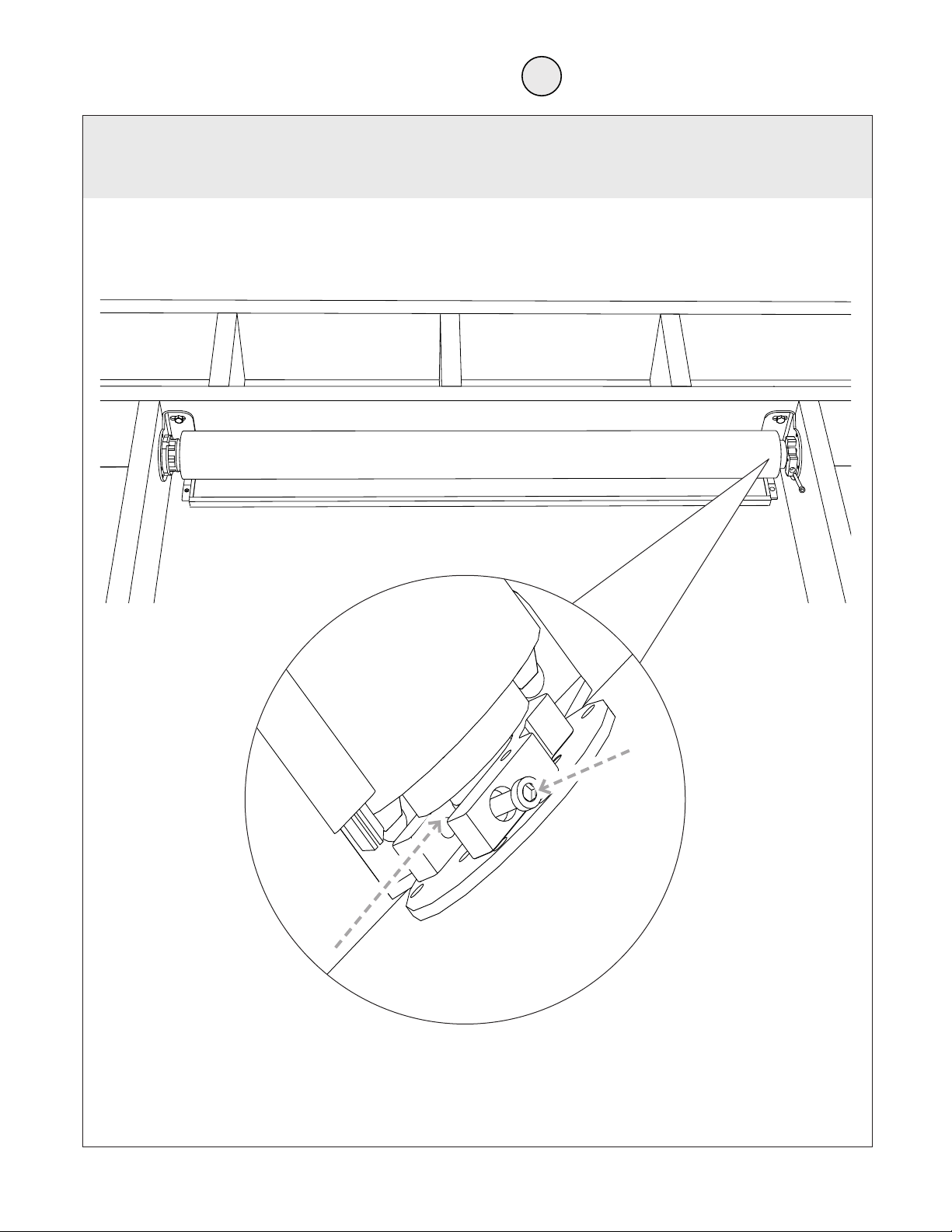

Lift the idler end with bushing already installed up into the idler housing. Then secure with the screw
removed in step 1.
INSTALLING MATERIAL ROLL 3

12
1.77
.47
1.60
1.12
.18 thru
.36 x 82º
2.20
.19
.27
.70
1.60
1.00
.70
1.70
.27
2
Floor Mount
CABLE MOUNT OPTIONS
Wall Mount

13

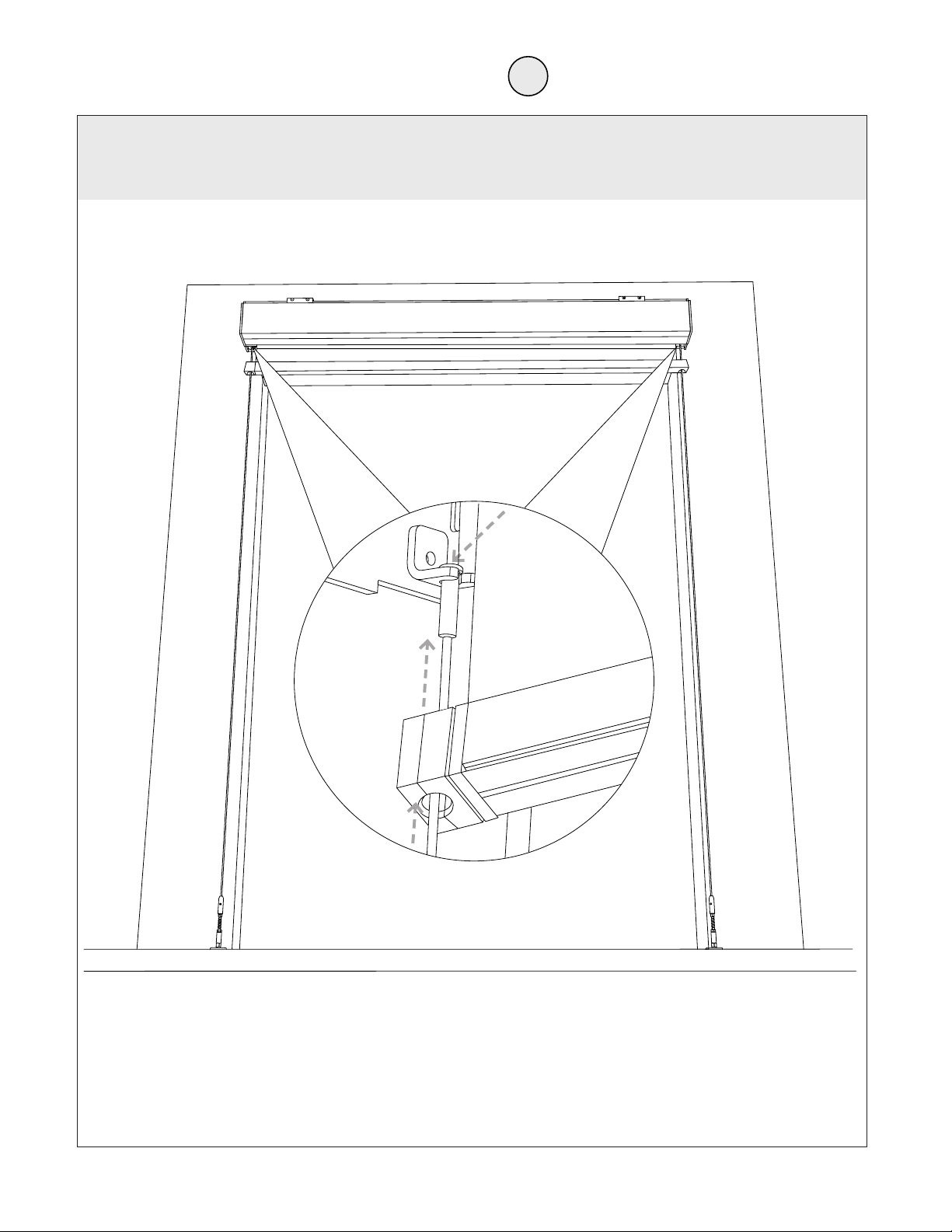

Run the larger crimped end of the Cable Guide up through the hole in the weight bar. Then slide over
the guide cable bracket in the case or attached to the motor end plate.
INSTALLING CABLE GUIDES - 1

14

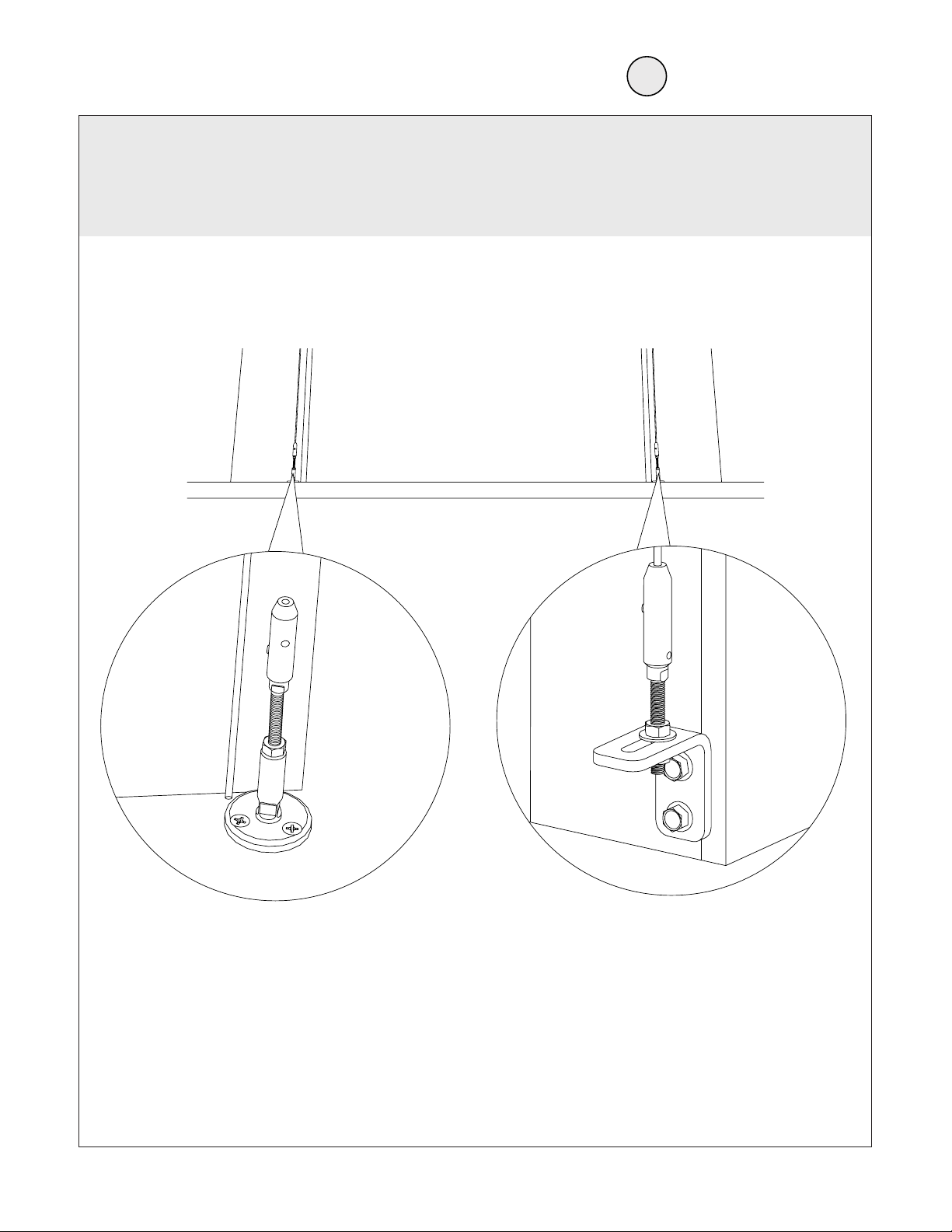

INSTALLING CABLE GUIDE MOUNTS - 2
Or
Secure either the cable guide floor mount brackets or the cable guide wall mount brackets using
appropriate fasteners. Make sure that they are secured at a location such that the cables will be
plumb in both directions and parallel to each other. Note that the wall mount bracket can be installed
either on the wall or inside the columns as well as be flipped upside down if desired.

15
INSTALLING THE TENSIONERS AND CUTTING CABLES - 3
Install the tensioners onto the mounts making sure that they are threaded out as much as possible
so that there will be thread available to tension the cables. Cut the cables such that they are the
same length so that they will just extend to the bottom of the hole in the tensioner.
Cut Here

16

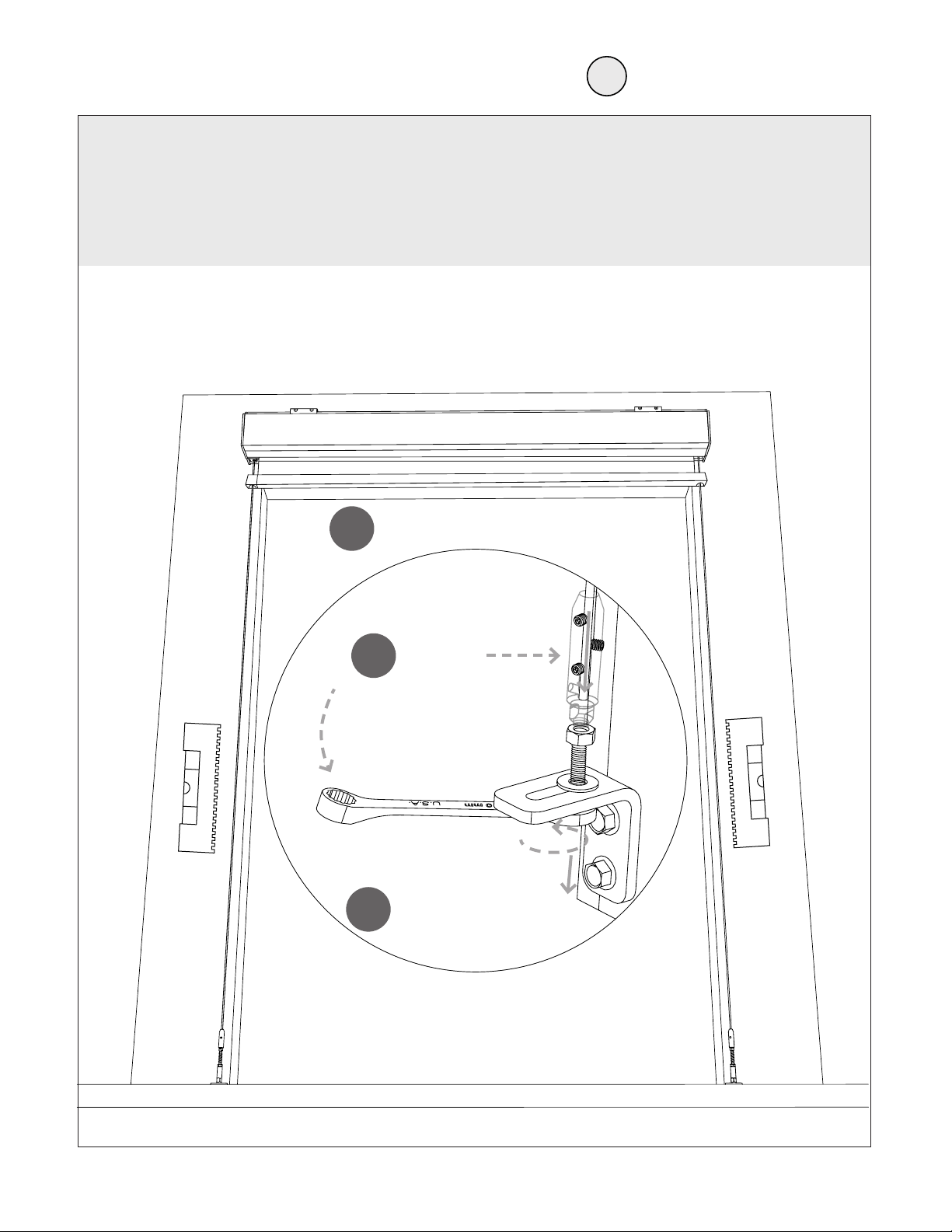

TENSIONING THE GUIDE CABLES - 4
Insert the cable into the tensioner all the way to the bottom of the tensioner and secure with the set
screws. Then tension the cable by tightening the nut for wall mount brackets or the tensioner itself
for floor mount. Finally lock in the tensioners with the locknut. Make sure that the cables are mounted
level and plumb in all directions. As a nal check make sure that the left and right cables are the same
distance apart from top to bottom within 1/4’’.
NOTE: Cables may lose tension over time. In that case simply
tighten the tensioners and lock in with the lock nut.
PLUMB
PLUMB
Insert cable and bottom out
into the tensioners
4A
Secure with
set screws
4B
Turn bottom nut to
tension cable
4C

17

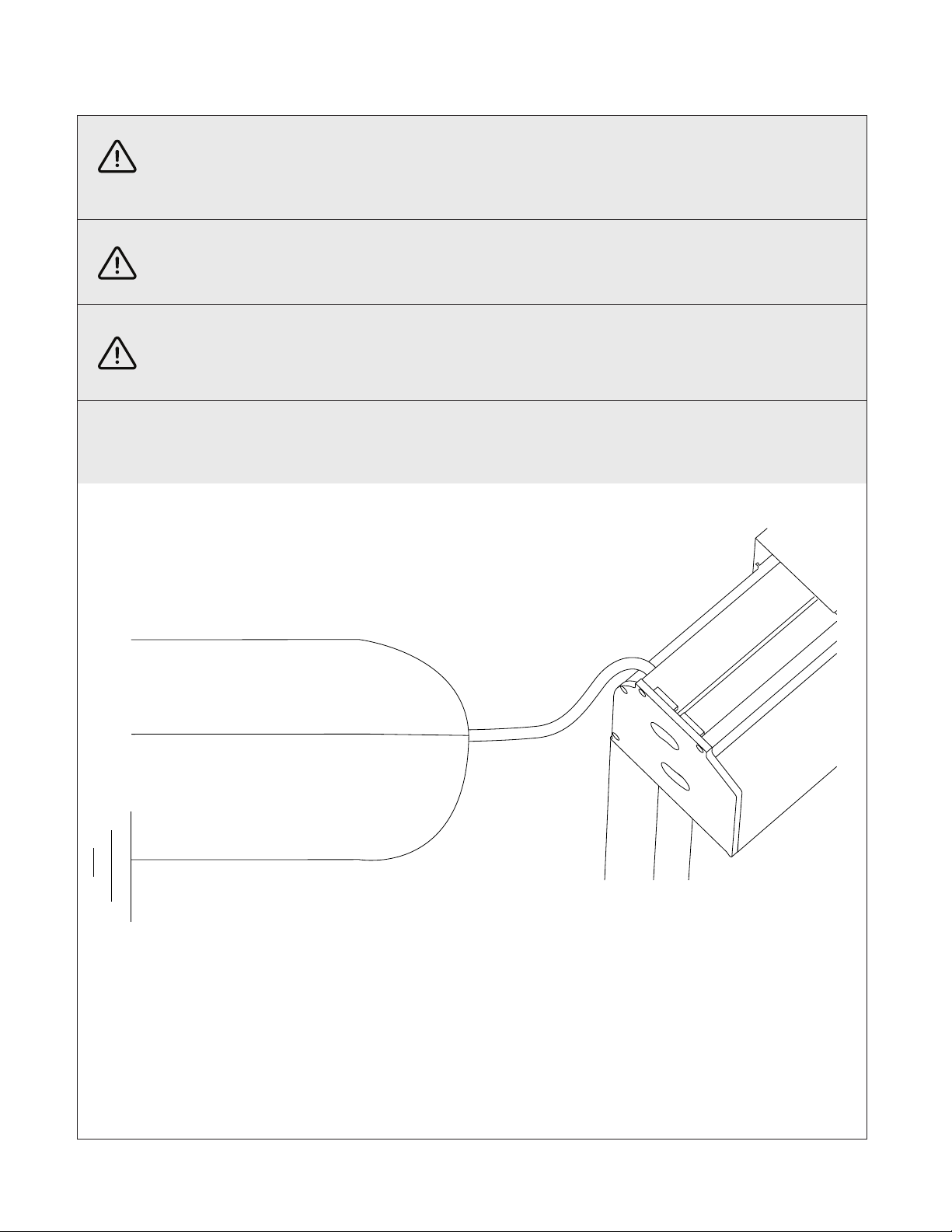

Power connection exits out of the back of the box on the side specied when ordered. Use
appropriate building codes and run and connect the power cable to an appropriate outlet.
Hot Black
Neutral White
Ground Green
To be installed and/or used in accordance with the appropriate electrical codes and
regulations by a licensed electrical professional. Do not connect power with the circuit
breaker on.
Before connecting power to multiple units be aware that the limits must be set with power
connected to only one unit at a time. Plan accordingly.
Power Cable Termination! If a power cable is cut to t, leave a minimum of 18” as the
portion of this cable contains the shade antennae.
POWER (MOTORIZED ONLY)

18

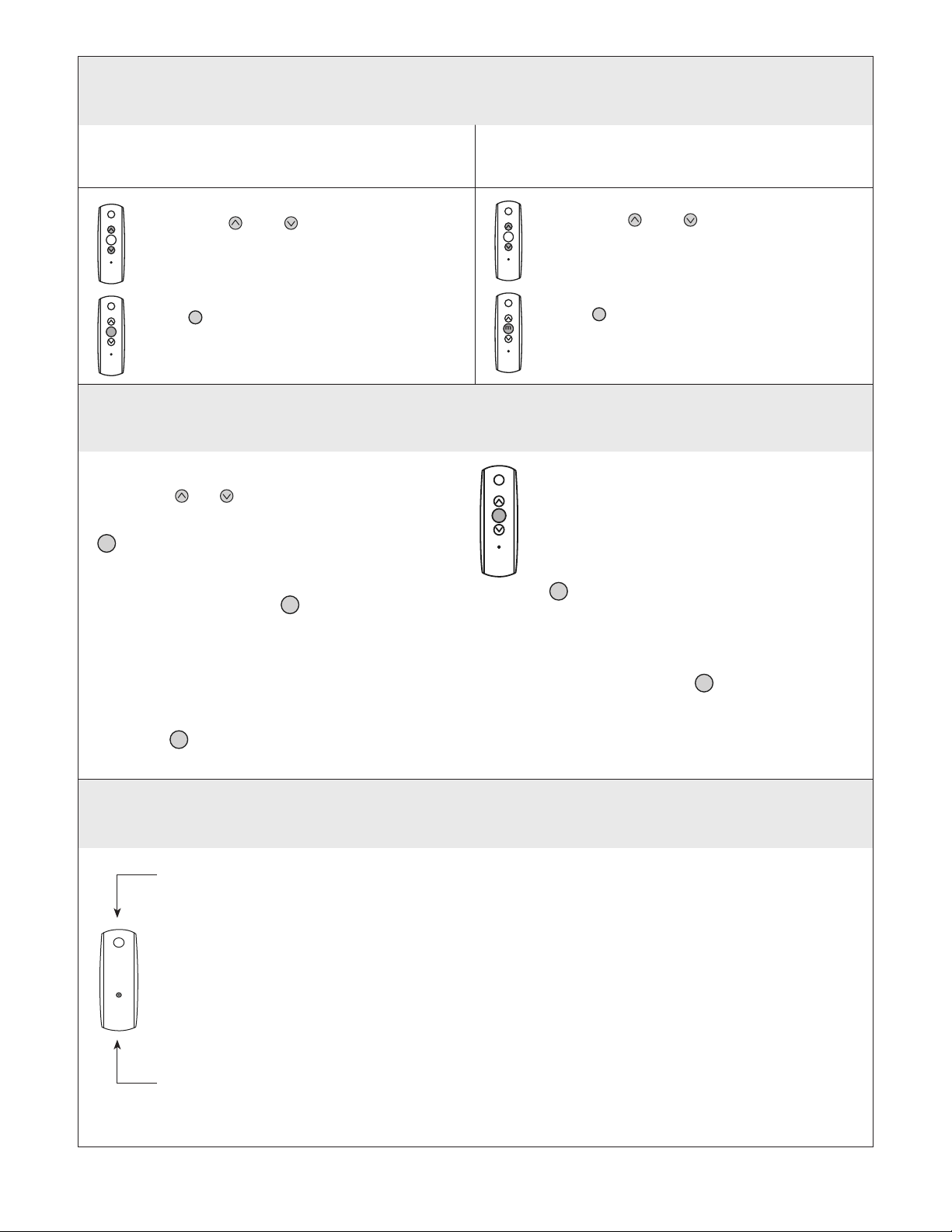

Step 1. Connect Power
With the motor installed in shade, connect power to the motor 110v
Step 3. Check Directions
Press or . While pressing product should go down or out. To change direction press
and hold (Stop) until shade jogs. A jog is a brief up and down motion.
Step 2. Initiate Programming
Press both and at the same time until the shade jogs. A jog is a brief up and down
motion. In Programming Mode, the shade will move only when the or is held.
Step 4. Set the Limits
Bring the shade to desired upper limit stop point. Press both (Stop) and until the
motor moves, then release. (If the shade stops when the buttons are released take it back to
the upper limit and repeat). Stop the motor when reaching the desired lower limit. You can
adjust by pressing or .
Step 7. Set user mode
Press and hold the programming button on the back of the transmitter until the shade jogs.
The shade is now in User Mode. In User Mode, the shade will operate with a brief press on
or . Double check limit settings as a precaution.
Step 5. Set the Limits
Press both (Stop) and at the same time until the shade moves, then release. The
shade will stop at the original upper limit.
Step 6. Conrm limit settings
Press and hold (stop) unitl the shade jogs to conrm the limit settings. A jog is a brief up
and down motion.
my
my
my
my
my my
my
my
my
Programming mode
Before you begin
Motors are shipped without limit settings and transmitter ID’s. Steps 1 to 7 must be completed to
ensure proper shade programming and functionality. Power should ONLY be connected to current
shade being programmed. All other shades should be disconnected from their respective power
while programming.
SET LIMITS (MOTORIZED ONLY)

19
Adjusting the limits in User mode
To change the lower limit
Send the shade to it’s current lower limit.
my
my
Press both and at the same time
until the shade jogs. Adjust to a new lower
limit position.
Press until shade jogs.
my
To change the upper limit
Send the shade to it’s current upper limit.
my
my
Press both and at the same time
until the shade jogs. Adjust to a new lower
limit position.
Press until shade jogs.
my
Adding or deleting a Transmitter or a Channel
Programmed Transmitter
Step 1: Using already programmed transmitters select the transmitter (single channel)
or the channel, (1- 5) of a multi-channel transmitter.
Step 2: Press and hold the programming button of that transmitter until the shade jogs.
Transmitter to add or delete
Step 3: Select the transmitter (single channel) or the channel, (1-5) of a multi-channel
transmitter, to be added or deleted.
Step 4: Press and hold the programming button of that transmitter until the shade jogs.
Setting an Intermediate Position (Preferred Position)
Setting
Press the or to operate shade. At the
desired intermediate (preferred) position press
(Stop) to stop the shade.
Once the desired Intermediate position is
reached, Press and hold (stop) until the shade
jogs. The intermediate position is now added to
memory.
my
my
my
my
my
my
Note
- Shade should be stationary prior to
activating intermediate position function.
- If shade is actively moving (in - motion)
Should be pressed twice.
To Delete:
Activate shade to intermediate position,
then press and hold (stop) for 5
seconds. Shade will jog to conrm
deletion.
Using
Send the shade to the intermediate position by
pressing (stop) from ANY shade position.

20
When Programming, all button presses must be completed within 2 seconds of the previous press.
This function gives the possibility to deactivate the obstacle detection or increase the sensitivity up
from the default level during the downward movement.
1. Enter the Obstacle Setting Mode
Move the screen to half-way position, press MY
and UP briefly and again MY and UP until the
screen jogs.
2. Change the Obstacle Detection Level
If the actuator goes back to USER MODE (short jog) repeat Step 1.
To De-activate:
Press UP briefly within 2
seconds and then press UP
briefly again. The sceen will jog
slowly and is now deactivated.
If the jog is short you’ve
reached the default setting. To
deactivate press up again.
To Increase Sensitivity:
Press DOWN briefly within 2
seconds and then press DOWN
briefly again. The sceen will jog
slowly and is now more sensitive.
If the jog is short you’ve reached
the default setting. To increase
sensitivity press down again
Press MY /STOP until the screen jogs to conrm the new setting.
The registered level of Obstacle Detection will be reached when entering Step 1 again.
3. Conrm the New Setting & Exit the Setting mode
Long Jog Long Jog
Short JogHoldBrieflyScreen Halfway
Then
Obstacle Detection - Change the level of Detection or Deactivate
