Siemens Energy SpecTRON 45 User manual

Unrestricted
siemens-energy.com
SpecTRON
45
Installation, Operation Manual
Document No: 10051285

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
2 of 56
Unrestricted
Foreword
Thank you for purchasing a Siemens Energy SpecTRON 45 product. The information that follows is
an overview of the protection, storage, shipment, unpacking, deployment, and maintenance
instructions for SpecTRON 45 products.
Siemens Energy recommend the termination and installation of all equipment only be undertaken
by suitably trained and qualified personnel.
Revision Summary
This page records the revision status of the entire document and its authorisation for issue. When a
page or pages of the document are revised, the number of the page(s) affected will be entered in the
Page(s) Affected/Remarks column and a vertical margin line will appear against the latest amended
text.
Rev
Compiled by
Approved by
Issue Date
Page(s) Affected/Remarks
01
C. Plant
N. Knight
08/10/2020
•
First Issue
02 C. Plant N. Williamson 07/01/2022
•
Changed to Siemens Energy Template
•Section 3 – Added definition of CMI (Common Module
Interface)
•Section 4.2 - Clarified misalignment capabilities
•Section 4.3 – Update jumper weights in air/water and
add hose coupler weights.
•Section 7.3 – New section to clearly define hose routing
•Section 7.8 – Added guidance on management of heat-
shrink cable test terminations
•Section 9.1 – Add details of connector cleaning and
drying procedure

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
3 of 56
Unrestricted
Contents
1PRODUCT SCOPE............................................................................................ 6
1.1 Permeguard™ Wet Mate Receptacle Connector ................................... 6
1.2 Product Certification.............................................................................. 6
1.3 Contact details....................................................................................... 6
1.4 Product advice label .............................................................................. 7
1.5 Product marking .................................................................................... 8
1.6 CE label/marking.................................................................................... 8
2PRODUCT SAFETY .......................................................................................... 9
2.1 Action-related warnings........................................................................ 9
2.2 Intended use.......................................................................................... 9
2.3 General safety information ................................................................. 10
2.4 Related documents.............................................................................. 13
3ABBREVIATIONS........................................................................................... 14
4SPECIFICATION AND RESIDUAL HAZARDS................................................... 16
4.1 Connector General Specification......................................................... 16
4.2 Misalignment capability of wet mate connectors............................... 17
4.3 Hose Specifications ............................................................................. 18
4.4 Cable Specifications ............................................................................ 18
4.5 Other specifications............................................................................. 19
5HEALTH AND ENVIRONMENTAL INFORMATION.......................................... 20
5.1 Environmental, disposal and recycling ............................................... 20
5.2 Personal protective equipment (PPE).................................................. 20
6PREPARING PRODUCT FOR USE ................................................................... 21
6.1 Before installation ............................................................................... 21
6.2 Unpacking............................................................................................ 21
6.3 Safe disposal of packaging.................................................................. 22
6.4 Lifting................................................................................................... 23
6.5 Installation and assembly.................................................................... 25
6.6 Storage and protection........................................................................ 30
6.7 Repackaging to prevent damage in transport .................................... 31
7OPERATION OF PRODUCT ............................................................................ 32
7.1 Energising Wet Mate Pair .................................................................... 32
7.2 Deployment ......................................................................................... 32
7.3 Hose Management and Routing.......................................................... 33

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
4 of 56
Unrestricted
7.4 Hose Buoyancy Subsea........................................................................ 39
7.5 Umbilical Power Core Management and Termination........................ 39
7.6 Connecting Wet Mate Pair Subsea ...................................................... 41
7.7 Temporary Connection of Wet Mate Pair ............................................ 41
7.8 Quick Connect (Dry Mate) ................................................................... 45
7.9 Testing ................................................................................................. 46
7.10 Disposal of waste products.................................................................. 49
7.11 Quick references.................................................................................. 49
8USER INFORMATION.................................................................................... 50
8.1 Normal and faulty/dangerous operation............................................. 50
8.2 Cathodic Protection ............................................................................. 50
8.3 Troubleshooting (FAQ’s)...................................................................... 50
9PRODUCT MAINTENANCE............................................................................ 52
9.1 Connector Cleaning and Drying .......................................................... 52
9.2 Product maintenance (skilled persons)............................................... 54
10 CUSTOMER COMMENTS/FEEDBACK ............................................................ 55
Tables
Table 1 - SpecTRON 45 Product Certification.....................................................................6
Table 2 - Contact Details ...................................................................................................6
Table 3 - SpecTRON 45 Connectors General Specification...............................................16
Table 4 – SpecTRON 45 Connector Misalignment Capability........................................... 17
Table 5 - SpecTRON 45 Hose Specifications..................................................................... 18
Table 6 - SpecTRON 45 Cable Specifications....................................................................18
Table 7 - Troubleshooting product contact details..........................................................51
Illustrations
Figure 1 - Product Advice Label......................................................................................... 7
Figure 2 - Example Etching for SpecTRON 45 Products .....................................................8
Figure 3 - Example harness marking................................................................................. 8
Figure 4 - SpecTRON 45 Rated Current Curves ................................................................16
Figure 5 - Definition of misalignment directions.............................................................17
Figure 6 - AquaTRON hose at minimum bend radius.......................................................33
Figure 7 - Incorrectly routed AquaTRON hose ................................................................. 34
Figure 8 - Immediate fall in routing ................................................................................ 34
Figure 9 - Hose kink due to immediate fall in routing and weight application................34
Figure 10 - Plate Former ................................................................................................. 35
Figure 11 - ‘U’ Former...................................................................................................... 35

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
5 of 56
Unrestricted
Figure 12 - ‘L’ Former ..................................................................................................... 36
Figure 13 - Permanent fixed ‘U’ former ...........................................................................36
Figure 14 - Minimum clamp spacing from fixed mount connector..................................37
Figure 15 - Clamping of hose on compliant connector....................................................37
Figure 16 - Example of temporary hose support during SIT ............................................37
Figure 17 - Example of support for immediate fall in hose routing.................................38
Figure 18 - Fabricated stand with former used for hose support ....................................38
Figure 19 – Typical (SpecTRON 10 shown) Umbilical Receptacle Side on Termination
(outside UTA)39
Figure 20 - Umbilical clamping position.......................................................................... 40
Figure 21 - SpecTRON 45 Test Jumper Configurations (without protective caps)............46
Figure 22 - SpecTRON 45 Test Termination Support and HV Clearances .........................47
Figure 23 - Disassembled receptacle protective cap .......................................................52
Figure 24 – Receptacle Components for drying and cleaning .........................................53
Figure 25 - Receptacle pin contact area as supplied........................................................53

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
6 of 56
Unrestricted
1PRODUCT SCOPE
This manual includes information on the following SpecTRON 45 connector types:
- SpecTRON 45 Jumpers
- SpecTRON 45 Wet Mate Pair
- SpecTRON 45 Common Module Interface
- SpecTRON 45 Shallow Water/Test Jumpers
1.1 Permeguard™ Wet Mate Receptacle Connector
SpecTRON 45 wet mate receptacle connectors use Siemens Energy’s Permeguard™ wet mate
receptacle connector to provide industry leading robustness and reliability by preventing direct
seawater contact with insulation.
1.2 Product Certification
Standard
Description
SEPS SP-1001
Power connectors,penetrators and jumper assemblies with rated voltage
from 3 kV (Umax = 3,6 kV) to 30 kV (umax = 36 kV)
Note: Self-certified via in-house testing.
Table 1 - SpecTRON 45 Product Certification
1.3 Contact details
For additional information or questions regards the products visit the Siemens Energy website
www.siemens-energy.com/subsea or contact the following:
Department
E-mail address
Product Safety Officer
[e-mail]
Technical Support
[e-mail]
Service (Site Team)
[e-mail]
Sales
[e-mail]
Table 2 - Contact Details

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
7 of 56
Unrestricted
1.4 Product advice label
The following product advice label is supplied with all Siemens Energy subsea connector products.
Figure 1 - Product Advice Label

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
8 of 56
Unrestricted
1.5 Product marking
1.5.1 Connectors and Penetrators
Figure 2 - Example Etching for SpecTRON 45 Products
Siemens Energy SpecTRON 45 connectors and penetrators are laser marked on the gland body with
the Siemens Energy part number, unique serial number, and product rating information.
Additionally, connector front-ends are also marked with their part number and unique serial number
to aid traceability during manufacturing.
1.5.2 Harnesses
Harnesses are also marked with the Siemens Energy part number and unique serial number as shown
in Figure 3. Client and project specific information is also usually added to these labels. Labels are
typically black text on a yellow background underneath clear heat shrink. Typically, labels are located
at each end of the harness and centrally.
Figure 3 - Example harness marking
1.6 CE label/marking
SpecTRON 45 is exempt from any current requirement for CE marking. Siemens Energy continue to
monitor European and International requirements for applicability to the SpecTRON 45 product
range.

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
9 of 56
Unrestricted
2PRODUCT SAFETY
Siemens Energy Subsea recommends the termination of all equipment shall only be undertaken by
trained, suitably qualified and experienced personnel (SQEP) i.e. competent person.
2.1 Action-related warnings
Classification of action-related warnings
The action related warnings are classified in accordance with the severity of the possible danger using
the following warning signs and signal words:
Warning symbols and signal words
Danger!
Imminent danger to life or risk of severe personal injury
Danger!
Risk of death from electric shock
Warning.
Risk of minor personal injury
Caution.
Risk of material or environmental damage
2.2 Intended use
Following installation, commissioning, and deployment of product, please complete and return the
Customer Comments/Feedback form (Section 10). Please e-mail completed form to the Product
Safety Officer at [e-mail].
There is a risk of injury or death to the user or others, or of damage to the product and other property
in the event of improper use or use for which it is not intended.
The product is intended as a subsea high voltage electrical connector, for use by suitably trained
personnel in industrial applications only.
Intended use includes the following:
- Observance of the installation and operating instructions included for the product and any other
system components.
- Compliance with all inspection and maintenance conditions listed in the instructions.
- Use of all recommended tooling appropriate for specific tasks.
- All activities to be undertaken by a competent person (see 2.3.1 for definition).
Any other use that is not specified in this document or covered in installation and operating
instructions, or beyond that specified in this document shall be considered improper use.

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
10 of 56
Unrestricted
2.3 General safety information
2.3.1 Installation by competent persons only
The installation, inspection, maintenance and repair of the product shall be undertaken by trained,
suitably qualified and experienced personnel (SQEP) i.e. competent person, to carry out a specified
activity. Installation, inspection, maintenance and repair of products by untrained and deemed non-
competent persons could invalidate the product warranty.
For further information contact Service (Site Team) [e-mail].
2.3.2 Danger caused by improper operation and foreseeable misuse
Improper operation and foreseeable misuse may present a danger to you and others and cause
material damage. Carefully read the enclosed instructions and all other applicable documents,
particularly the “Safety” section and the warnings.
Danger! Risk of death from electric shock if user dismantles/incorrectly re-
assembles/incorrectly re-terminates product (foreseeable misuse).
- Maintenance, disassembly, re-assembly and termination activities must only be carried
out by a competent person.
Danger! Risk of death from electric shock if shuttle pins are depressed e.g. with a
screwdriver when plug is live (foreseeable misuse).
- Maintenance and testing activities must only be carried out by a competent person.
- Correct tools must always be used.
Danger! Risk of imminent danger to life, risk of severe personal injury caused by a shuttle
pin projectile due to damage caused to shuttle pins e.g. with a screwdriver (foreseeable
misuse).
- Maintenance and testing activities must only be carried out by a competent person.
- Correct tools must always be used.
2.3.3 Risk of death due to electrocution
Danger! Risk of death from electric shock due to exposed live pins, e.g. factory or top-side
system test and unmated receptacle is energised, e.g. by diver subsea.
- Ensure all test procedures are followed.
- Communication channels and protocols are observed.
Danger! Risk of death from electric shock due to unscreened HV cables in Jumpers.
- Ensure all test procedures are followed.
Danger! Risk of death from electric shock from any exposed conductors due to stored
electrical energy, e.g. capacitance of cable or elsewhere in the system.
- Ensure all procedures are followed.

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
11 of 56
Unrestricted
Danger! Risk of death from electric shock from test connectors. Live parts accessible with
standard finger test, also live parts can be exposed by disassembly without a tool (e.g.
termination sleeves are accessible and can be removed). Also exposed cable conductors at
free end and cables unscreened.
- Ensure all connectors are assembled correctly with termination sleeves in position prior
to conducting standard finger test.
Danger! Risk of death from electric shock if product is terminated incorrectly by 3rd party
e.g. loose conductor touching metal body, or live wire terminated to metal body in error.
- Installation/termination activities must be carried out by a competent person.
Danger! Risk of death from electric shock due to metal body of connector not being earthed
during test and connector having earth fault (e.g. conductor touching metalwork) during
electrical testing.
- Ensure all testing of products both factory and deployed in-field have been completed
by competent persons.
Danger! Risk of death from electric shock or severe personal injury through burning from
de-mating live conductors by hand.
- Ensure all procedures are followed for mating/de-mating connectors.
2.3.4 Risk of injury and material damage due to maintenance and repairs carried out
incorrectly or not at all
Maintenance work or repairs on the products should only be carried out by a competent person.
Faults and damage should be immediately rectified by a competent person. Adhere to the
maintenance intervals specified.
Danger! Risk of imminent danger to life, risk of severe personal injury from burning and
material damage from ohmic heating in short-circuit condition or high over-currents.
- Ensure all testing of products both factory and deployed in-field have been completed
by competent persons.
Danger! Risk of imminent danger to life, risk of severe personal injury caused by released
pressure and or projectile due to incorrectly installed pressure retaining product, e.g.
during system pressure test (e.g. SpecTRON 45 penetrator fitted with wrong/insufficient
screws or seals).
- Ensure all product assembly and testing activities are completed by competent persons.
Danger! Risk of imminent danger to life, risk of severe personal injury to persons with
pacemakers or implantable cardioverter-defibrillators
(ICDS) from electromagnetic
interference (EMI) e.g. high frequency testing with large load currents.
- Ensure all testing of products both factory and topside are not conducted by or in the
presence of persons with pacemakers or ICDS.
Danger! Risk of severe personal eye injury due to pressurised oil squirting out of damaged
hose or removal of fill/vent screw.
Ensure all testing of products both factory and deployed in-field have been completed by
competent persons.

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
12 of 56
Unrestricted
Warning. Risk of eye/bodily injury caused by released pressure during product disassembly,
in the event of retrieval from subsea with a fault that causes depth pressure to be trapped
inside the product.
- Ensure all product disassembly activities are completed by co
mpetent persons in
accordance with relevant procedures and using relevant personal protective equipment
(PPE).
Warning. Risk of bodily injury caused by pressure retaining parts becoming projectile due
to user over-pressurising the system, e.g. during Site Installation Test (SIT).
- Ensure all product SIT activities are completed by competent persons in accordance
with relevant procedures.
2.3.5 Risk of injury and material damage due to manual handling
Manual handling, lifting and carrying are known to be one of the largest contributors to occupational
ill-health. Ensure mechanical handling aids are used wherever possible to avoid manual handling.
Where manual handling is considered appropriate for the task, safe lifting guidelines must be
followed, e.g. adopt correct posture, consider team lifting, employ safe lifting technique, etc. Only
competent persons are permitted to perform tasks without supervision, if in doubt ask.
Warning. Risk of musculoskeletal injury from hand-mating connectors with high mate/de-
mate force and/or connector rapidly fires out during de-mate due to high shuttle spring
force, e.g. factory/topside testing.
- Ensure all product testing activities are completed by competent persons in accordance
with relevant procedures.
- Ensure mechanical handling aids are used wherever possible to avoid manual handling.
- Where manual handling is considered appropriate for the task, safe lifting guidelines
must be followed, e.g. adopt correct posture, consider team lifting, employ safe lifting
technique, etc.
Warning. Risk of musculoskeletal injury from manual handling of heavy products.
- Ensure mechanical handling aids are used wherever possible to avoid manual handling.
- Where manual handling is considered appropriate for the task, safe lifting guidelines
must be followed, e.g. adopt correct posture, consider team lifting, employ safe lifting
technique, etc.
- Only competent persons are permitted to perform tasks without supervision, if in doubt
ask.
Warning. Risk of bodily injury from heavy product falling during lift with machinery.
- Ensure machinery/slings used have been tested and are within their expiry date.
- Safe lifting guidelines must be followed, e.g. lifting plan, banksman, etc.
- Correct lifting points must be identified and used.
- Only competent persons are permitted to perform tasks without supervision, if in doubt
ask.
Warning. Risk of minor personal injury to persons with sensitivities to silicone or synthetic
ester based oils.
- Wear appropriate hand protection when handling products or silicone or synthetic ester
based oils.

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
13 of 56
Unrestricted
Warning. Risk of minor personal injury and material damage due to slips, trips and falls.
-Good housekeeping avoids slips, trips and falls, keep all work areas clean and tidy.
Warning. Risk of minor personal injury and/or material or environmental damage during
assembly.
-
Caution shall be exercised during assembly to ensure that fittings and
hydraulic/pneumatic equipment are correctly installed.
2.4 Related documents
Installers shall perform a full site risk assessment and put into place all necessary steps and
procedures to comply with applicable area, regional, national and international health and safety
legislation, e.g. The Health and Safety at Work Act (HASAWA) in the United Kingdom (UK) and ensure
safety of themselves and others regarding manual handling and working at height requirements.
During the product installation (and any subsequent work) it will be necessary to employ caution. All
installers and operatives involved from unloading the product until it is deployed in its final installed
location must exercise a full duty of care for themselves and others regarding safety. When lifting
and handling this product, operatives should employ assistance if required. In certain situations, it
may be necessary to use mechanical handling aids. Take care to avoid trip hazards, slippery or wet
surfaces.
Employers and installers should refer to the Health and Safety Executive (HSE) web site in the UK for
full advice and manual handling assessment charts (MAC) tool.
In addition, where no specific instructions are given then reference shall be made, but not restricted
to, where applicable, British Standards and codes of practice such as the following:
- The Health and Safety at Work Act.
- COSHH Control of substances hazardous to health.
- BS 7671 Requirements for electrical installations. IEE Wiring Regulations.
- The Electricity at Work Regulations.
It is the operator’s and installers responsibility to comply with current Company, area, regional,
national and international health and safety legislation.
Following installation, commissioning and deployment of product, please complete and return the
Customer Comments/Feedback form (Section 9). Please e-mail completed form to the Product Safety
Officer at [e-mail].

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
14 of 56
Unrestricted
3ABBREVIATIONS
A Ampere
ac Alternating Current
Assy Assembly
API American Petroleum Institute
AWG American Wire Gauge
BOM Bill of Material
°C Degree Celsius
CE Community European
CMI Common Module Interface, a penetrator which presents a common interface to a dry-
mate gland, regardless of the interface to a customer module
Comms Communication Signal
COSHH Control of substances hazardous to health
CP Cathodic Protection
dc Direct Current
DWG Drawing
EFL Electrical Flying Leads
EMF Electrical Magnetic Field
EMI Electromagnetic Interference
FAT Factory Acceptance Test
IR Insulation Resistance
ICDS Implantable Cardioverter-Defibrillators
ISO International Organization for Standardization
ITP Inspection Test Plan
IWIS Intelligent Well Interface Standardisation
K Kelvin
LTC Long Term Cover
M Metres
Max. Maximum
MFG Manufacturer
Min. Minimum
NACE National Association of Corrosion Engineers
No. Number
PPE Personal Protective Equipment
ROV Remotely Operated Vehicle

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
15 of 56
Unrestricted
SI Standard International
SIT Site Installation Test
SRT Site Received Test
SST Stainless Steel
TBD To Be Defined
TSP Twisted Screened Pair
UNS Unified Numbering System for Metals and Alloys
V Volt

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
16 of 56
Unrestricted
4SPECIFICATION AND RESIDUAL HAZARDS

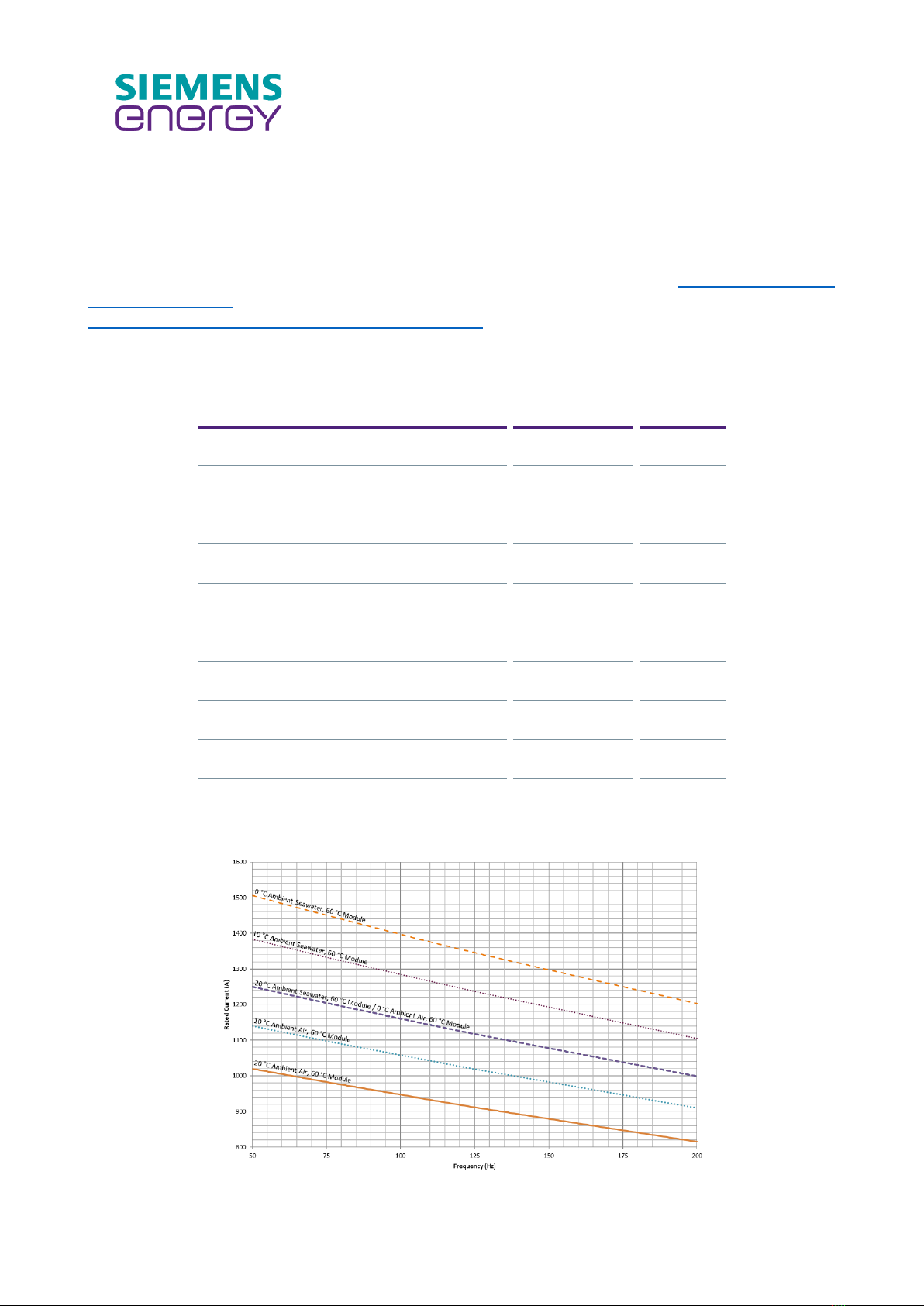

The following is the typical specification for SpecTRON 45 connectors and penetrators with 630 mm²,
26/45(52) kV jumper cable and will differ for connectors terminated to umbilical power cores or
internal pigtails, and in other situations. For connector specific information, please refer to product
specific datasheets. These are available via the Siemens Energy website http://www.siemens-
energy.com/subsea or Siemens Energy Connectors Technical Support
[e-mail].
4.1 Connector General Specification
Value
Unit
Design Life
30
years
Number of ways / phases
1
-
Maximum Water Depth
3 000
m
Maximum Differential Pressure (Penetrator)
10
bar
Operating Temperature
-5 to 20
°C
Storage Temperature
-25 to 60
°C
Number of Mates (Wet Mate Pair)
100
-
Rated Voltage
26/45(52)
kV
Rated Current
See Graph
-
Rated Frequency
5 – 200
Hz
Table 3 - SpecTRON 45 Connectors General Specification
Figure 4 - SpecTRON 45 Rated Current Curves

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
17 of 56
Unrestricted
4.2 Misalignment capability of wet mate connectors
For any wet mate pair, one connector must be rigidly mounted using a fixed mount kit, and the other
half compliantly mounted. Siemens Energy Subsea offer two compliant kits which differ in the
amount of compliance they offer. Allowable misalignments are defined relative to the mounting
mounts in the plates in the mating/stab tool, rather than the connectors themselves. This is to
simplify designing mating interfaces and remove the requirement for calculation of connector
positions.
Figure 5 - Definition of misalignment directions
The radial misalignment and angular misalignment are interdependent, any increase in angular
misalignment reduces the allowable radial misalignment, and vice-versa. With no angular
misalignment, a standard kit offers 17,5 mm maximum radial compliance, and an extended kit offers
35 mm maximum radial compliance. This relationship is shown in the graph below.
Table 4 – SpecTRON 45 Connector Misalignment Capability
The recommended design points for maximum combined misalignment for the compliant mount kits
are:
•Standard Kit, 5 mm radial, 1° angular
•Extended Kit, 10 mm radial, 2° angular

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
18 of 56
Unrestricted
Both kits offer a maximum of 10 mm allowable axial offset relative to the “ideal” position.
4.3 Hose Specifications
AquaTRON 350
Unit
630 mm²
Outside Diameter
112,5
mm
Minimum Bend Radius
680
mm
Storage Temperature Range
-25 to +60
°C
Min. Manipulation Temperature
-25
°C
Maximum Snag Load
5
kN
Weight in air
17,0
kg/m
Weight in water
6,9
kg/m
Max Length without coupler
35
m
Hose Coupler Weight in air
6,3
kg
Hose Coupler Weight in water
5
kg
Table 5 - SpecTRON 45 Hose Specifications
4.4 Cable Specifications
630 mm²
Unit
Outside Diameter
68
mm
Minimum Bend Radius
680
mm
Storage Temperature Range
-25 to +60
°C
Minimum Manipulation Temperature
-25
°C
Max Pull Force
5
kN
Weight in air
9,1
kg/m
Resistance @ 20 °C
0,0292
mΩ/m
Capacitance (Core to Ground)
0,41
nF/m
Table 6 - SpecTRON 45 Cable Specifications

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
19 of 56
Unrestricted
4.5 Other specifications
For all other specifications not included in the above tables, refer to product/project specific data
sheet(s), alternatively contact Technical Support connectortechnicalsupport.gb@Siemens-
energy.com.

Document No:
10051285
Issue Date:
22/10/2021
Revision:
02
Page:
20 of 56
Unrestricted
5HEALTH AND ENVIRONMENTAL INFORMATION
5.1 Environmental, disposal and recycling
Safe disposal or recycling of waste packaging and/or end of life product is recommended by correctly,
observing and complying with area, regional, national or international environmental legislation
where applicable.
To return waste packaging and/or end of life product to the manufacturer, contact the Product Safety
Officer at [e-mail].
Hazardous substances, Control of substances hazardous to health (COSHH) Assessments regards to
materials such as elastomers and oils, etc. used in SpecTRON 45 products are available on request
from the Product Safety Officer at [e-mail].
5.2 Personal protective equipment (PPE)
Personal Protective Equipment (PPE) is legally defined as ‘all equipment (including clothing affording
protection against the weather) which is intended to be worn or held by a person at work and which
protects the user against one or more risks to their health or safety’.
In the hierarchy of risk control, PPE is considered to rank lowest and represent the option of last
resort. PPE is only appropriate where the hazard in question cannot be totally removed or controlled
in such a way that harm is unlikely (for example by isolating the hazard or reducing the risk at source
to an acceptable level).
All company personnel and operators should wear appropriate Personal Protective Equipment (PPE)
defined as a result of relevant risk assessments in accordance with the Personal Protective Equipment
(PPE) Regulations.
Warning. Risk of minor personal injury to persons with sensitivities to mineral, silicone, or
synthetic based oil
s.
-
Wear appropriate hand protection when handling products, mineral, silicone,
or synthetic
based oils.
