Siemens 300 Series User manual

s
Convenience mobile
unit 1000C
for Hicom 300 / 300E
Hicom cordless E
Operating
instructions

2

3
Contents
Safety notes 6
Notes on mobile unit use........................................................................6
Notes on battery use ..............................................................................6
Meaning of symbols: ..............................................................................6
General 7
Operating elements, unit parts ...............................................................7
Explanation of display, display keys.......................................................8
Hicom cordless E ...................................................................................9
Features .................................................................................................9
Environmental conditions.....................................................................10
General notes on operation..................................................................10
Radio range.......................................................................................... 11
Leaving the radio network .................................................................... 11
Fitting the attachment clip.................................................................... 11
Cleaning your mobile unit ....................................................................12
Lending/disposing ................................................................................12
User guidance, selecting functions.......................................................12
Function selection – via menus (local functions) .................................13
Function selection – telephone switching functions .............................14
Putting into service 15
Inserting batteries in the mobile unit ....................................................15
Charging the batteries ..........................................................................16
Logging mobile units onto a telephone system ....................................17
Activating/deactivating mobile units.....................................................19
Activating/deactivating keypad protection............................................19
Telephone functions 21
Internal dialling.....................................................................................21
Dialling the Switchboard.......................................................................21
External dialling ...................................................................................22

4
Contents
Answering calls ....................................................................................23
Call Pickup ...........................................................................................24
Second Call Waiting.............................................................................25
Timed Reminder ..................................................................................26
Number redial - last 3 numbers............................................................27
System Abbreviated Dialling................................................................28
Night service ........................................................................................29
Switching functions 30
Automatic callback ...............................................................................30
Transfer ................................................................................................30
Consultation during a call.....................................................................31
Toggle - switching between 2 users......................................................31
Conference...........................................................................................32
Call forwarding .....................................................................................34
Service menu .......................................................................................36
Telephone book 37
Saving numbers ...................................................................................37
Entering letters/characters and digits ...................................................38
Dialling a number from the telephone book .........................................39
Storing numbers from redial.................................................................39
Modifying/deleting an entry ..................................................................40
Deleting the telephone book ................................................................41
PIN Features 42
Electronic Telephone Lock ...................................................................42
Mobile Class of Service .......................................................................43
Saving/modifying the mobile unit PIN..................................................44
Settings 45
Overview - settings ..............................................................................45
Setting the language ............................................................................46

5
Contents
Settings - handset, tone ringing... ........................................................46
Setting the station ................................................................................48
Tones - keys, battery, range... ..............................................................49
Overview - Tones .................................................................................50
Appendix 51
Fault clearance.....................................................................................51
Acoustic signals ...................................................................................52
Add-ons ................................................................................................53

6
Safety notes
Notes on mobile unit use
lDo not use mobile units in damp environments (bathroom/shower). The
units are not splash proof.
lDo not use the mobile unit in environments where there is danger of
explosion.
lMake sure that the telephone is at least one meter away from any
medical equipment.
lThe mobile unit is not suitable for people with hearing aids since the
radio signals interfere with hearing aids, producing a very unpleasant
humming sound if the volume is turned up high enough.
Recommendation: Gigaset 1000H headset,
see page 53.
Notes on battery use
lOnly use approved nickel-cadmium batteries (NiCad batteries), see
page 15.
lNever use other batteries or normal (non-rechargeable) batteries.These
batteries can cause short-circuit and may be subject to damage
(dangerous). Read the labels in the mobile unit and charging shell
battery compartments.
Meaning of symbols:
lWarning! Please read safety note
in the instructions.
lUse rechargeable batteries only
and observe polarity.
lAvoid contact with water and fire.
lDo not use non-Siemens charging devices. This could damage the
batteries.
lSuitable add-on charging shells are available from Siemens.

7
General
Operating elements, unit parts
Front Rear
1 Receiver inset 13 Attachment clip
2 Display 14 Ringer loudspeaker
3 Display key (under attachment clip)
4 Display key 15 Battery compartment/lid
5 Function key 16 Connection for handset
6 Star key
7 Hash key
8 Consultation key, Recall key
9 On/Off key
10 INT key– for service functions
(internal key in Gigaset)
11 Line key
12 Microphone

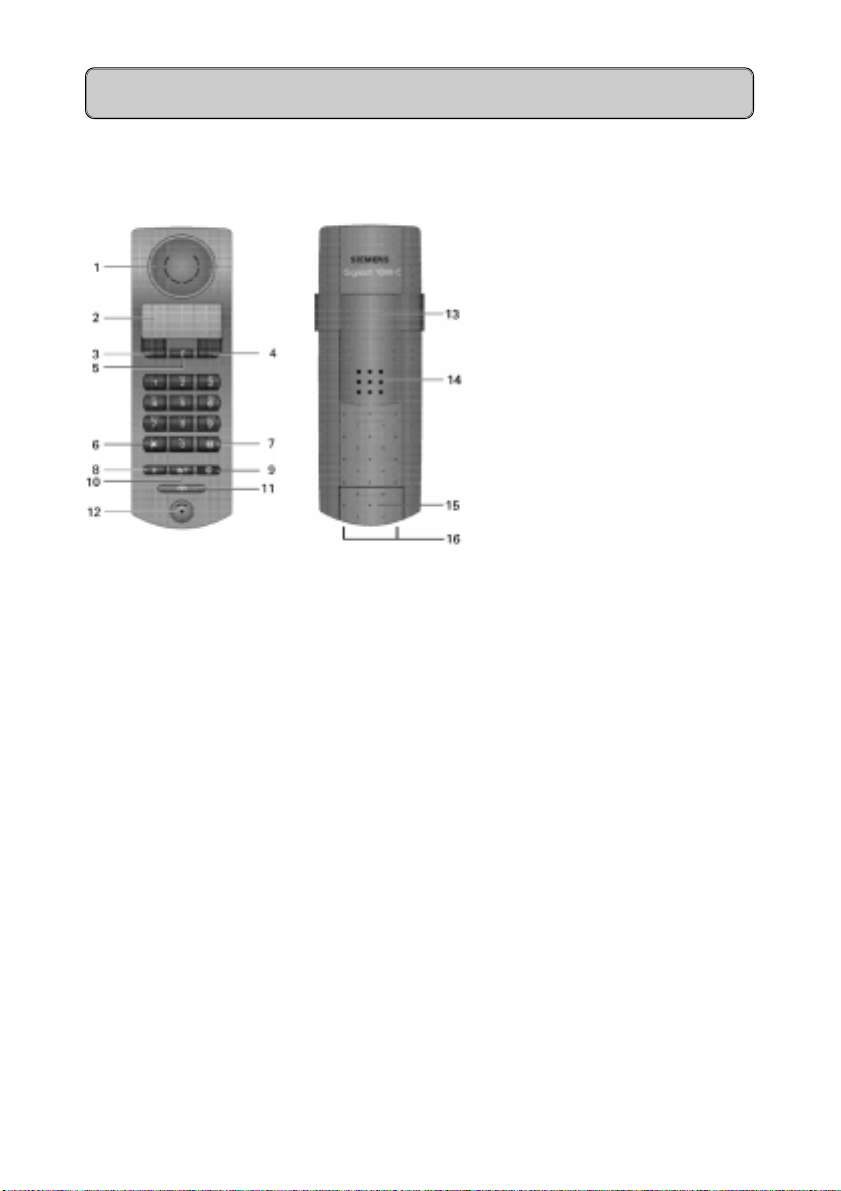

Figure 1: Operating elements, unit parts

8
General
Explanation of display, display keys
The mobile unit features a 4-line display with 16 characters per line. Depend-
ing on the situation, the display shows:
ldigits, e.g. dialled numbers,
ltext, e.g. the current station (system),
lsymbols, e.g. ringing or battery symbol
land in the last line the current functions of the two display keys.
Note:
The display texts are displayed in German (default setting), English,
French, Italian, Spanish or Dutch.
Setting the language, see page 46.

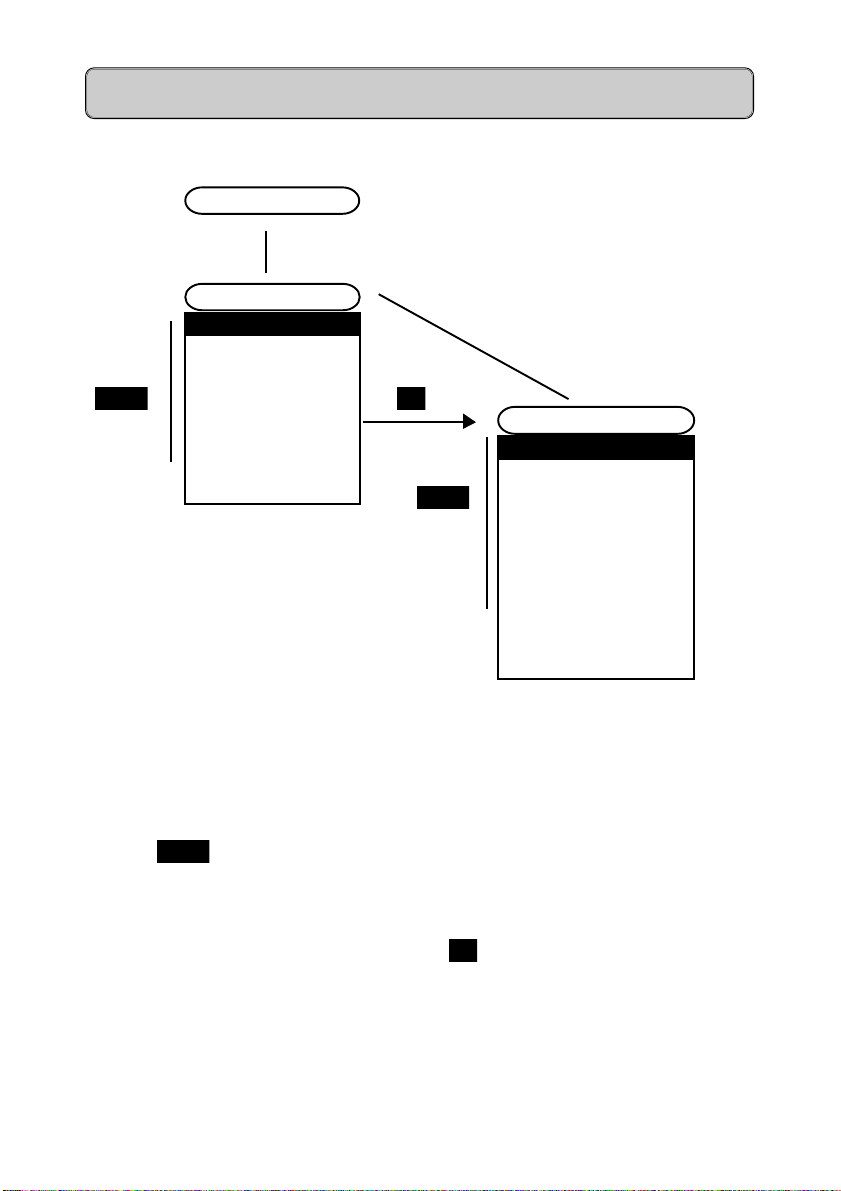

Display when mobile unit is on (example)
Display of current station
Current function of right display key: Redial
Current function of left display key:
Telephone book entries
Right display key
Function key ß
Left display key
Display when call is in progress (example)
Internal call number of user
Name of user
Use the right* display key to indicate the
“consult” function
Use the left* display key to scroll to the
next function
* system dependent arrangement!
Station 1
TEL.BOOK REDIAL
F
36078 Miller
> CONSULT
F

9
General
Hicom cordless E
The Hicom® cordless E DECT* telephone system comprises
lthe radio switching module for the Hicom 300/300E system,
lbase stations (transmitter/receiver),
l1000C or 1000S mobile units (cordless telephones),
land the Gigaset 1000L charging shell (optional).
Features
Each mobile unit can log on to and be used by up to 4 DECT systems, e.g.
Hicom cordless E and Gigaset** 1000. This allows you to employ all the
features of the system in question. The features offered by Hicom cordless E
1000C include:
lmobile unit with 4-line, illuminated display, e.g. for displaying
– the dialled call number,
– the current applicable functions,
– the operating status and settings.
lStatus-dependent functions
lNumber redial for the last three numbers dialled
lTelephone book in the mobile unit for 100 entries
lInternal and external calls in the entire Hicom cordless E radio network
lRoaming (the user can roam throughout the entire radio network and
still receive all internal and external calls under one call number)
lAutomatic call transfer from base station to base station (handover)
lEnhanced user guidance with displays in German, English, French,
Italian, Spanish or Dutch (can be set)
lAutomatic callback for internal calls
lCall transfer to internal users
lConsultation during a call
lUse of all important Hicom functions that do not require a system-
specific telephone
lProtection against inadvertent key activation
lLong-lasting batteries:
– batteries last for up to 4 hours when phone is in use
– batteries last for up to 36 hours in stand-by mode.

10
General
Environmental conditions
lPlease read the safety notes on page 6.
lMake sure that the mobile unit is at least one meter away from medical
equipment, fire alarm equipment and other radio equipment (e.g. radio
telephones or radio pagers), otherwise its performance may be im-
paired, e.g. by interference.
lThe mobile unit and charging shell should not be placed near other
electronic devices, such as Hi-fi, office or microwave devices, as this
may adversely affect operation of your telephone and/or the electronic
equipment.
lDo not expose the mobile unit or charging shell to direct sunlight or
other sources of heat.
lUse the mobile unit at temperatures between 0°C and +45°C.
lDo not expose the mobile unit to damp environments.
lAvoid using the mobile unit and charging shell in rooms where there is
a lot of dust.
General notes on operation
lWhen operating the mobile unit a basic distinction is made between
– telephone/switching functions, e.g. when a call is in progress
and
– local functions, display when mobile unit is on.
lAn incoming call cancels the local functions.
lLocal functions can be cancelled before saving with the function key
ßor the line key.
lLocal functions can also be performed in the charging shell.
lDisplay texts from the system are shown without muted vowels and
special characters.
lThe display of call charges at the mobile unit depends on the Hicom
setting.
lYour telephone book entries, all settings and your PIN are not lost,
even if you remove the batteries.
lThe mobile unit can be used as a second executive telephone with
limited functions.

11
General
lThe device offers a high level of privacy. No protection can be guaran-
teed against illegal bugging using other radio receivers.
Radio range
lDepending on the environment, the range in the open is up to 300 m.
lIn buildings the range extends to up to 50 m (depending on the room
and building layout and construction).
lIf you leave the system’s base station radio range during a call, you will
hear the range tone. The quality of the voice connection drops, espe-
cially if you move. For a better voice connection, move back into the
base station range.
lThe radio connection is lost if you exceed the range. This is identified
by the display Search station .
lPlease consult your system administrator in the case of on-going range
problems.
Leaving the radio network
lIntegrated power saving function: if you leave the base station radio
range when the mobile unit is switched on, the interval between
synchronisation attempts gradually increases – this increases the
battery life in stand-by mode.
lTo ensure that the mobile unit can be used as soon as you return to the
radio network, you should immediately log it on again:
lPress the On/Off key until the display is blank, press the On/Off key
again when the mobile unit is on.
lIf you intend to leave the radio network and take your mobile unit with
you, we recommend that you turn the mobile unit off in order to save
the batteries.
Fitting the attachment clip
An attachment clip is supplied with your mobile unit to facilitate portability.
To use this clip, simply attach it to the rear of the mobile unit.
Slot the protrusions on the attachment clip into the holes on the sides of the
mobile unit (at display level).

12
General
Cleaning your mobile unit
Tocleanthemobileunitandthechargingshell,simplywipethemwithadamp
or antistatic cloth. Never use a dry cloth (since this can generate electrostatic
charges and discharges) or abrasive cleaning agents.
Lending/disposing
lIf you lend your mobile unit to someone else, please make sure you
include the operating instructions with it.
lPlease dispose of defective batteries, mobile units and charging shells
in accordance with legal requirements.
User guidance, selecting functions
The user-friendly display system guides the user quickly and effectively
through the entire range of features available with this telephone system.
For information on setting the language to German, English, French, Italian,
Spanish or Dutch, see page 46.
Differentfunctionscan beselecteddependingonthestatus of themobileunit,
e.g. "on" or if a call is in progress. Only functions applicable to the relevant
status are displayed.

13
General
Function selection  via menus (local functions)
Whenthetelephoneison(fordisplayseepage8),thefunctionoverview(main
menu)isdisplayedonceyoupressthefunctionkeyß.Thefunctioninthe
1st line is always selected (marked) and is displayed against a dimmed
background.
Usethe
NEXT
displaykey to scrolltothe next function–the display movesup
one line. A dotted line indicates the end of the function overview. If you scroll
further, the first function in the overview is selected once more.
Once you have selected "Line" press the
OK
display key to jump back to the
higher-level function overview (menu) or to the "on" status display.
You can cancel every operation and return to the current or higher-level
function overview (menu) or to the "on" status by pressing the function key
ß.
On Status
s
ß
d
Main menu d
Phone book ß
Number redial
Telephone lock
NEXT
Tones
OK
Settings Settings
Search Station Handset volume
dService Tone ringing
- - - - - - -
NEXT
Display contrast
Registrate
Language
Autom.backlight
Aut.call accept.
dMulticell config
Initialisation
- - - - - - -

14
General
Function selection  telephone switching functions
You can use the
>
display key to scroll to the next function, for example, if a
call is in progress. When the required function is displayed, simply press the
display key, e.g.
CONSULT
, and follow the user guidance. The other user is
unaware that your are "scrolling". The functions offered by display keys are
only activated or executed when the key has been pressed.

15
Putting into service
Inserting batteries in the mobile unit
lRead the safety notes on page 6 first!
lHold the mobile unit with the dialling keypad facing downwards. A
battery compartment for 2 batteries is located in the lower part of the
mobile unit.
lTo open the battery compartment, slide the lid upwards in the direction
of the arrow (see Figure 2).
lInsert the two batteries supplied in the battery compartment as shown
in Figure 2.
Ensure that the batteries are inserted correctly (polarity illustrated on
the label in the battery compartment).
The battery compartment cannot be closed if batteries are inserted
incorrectly.
lSlide the lid of the battery compartment downwards into the grooves on
the mobile unit (see Figure 2) until the compartment is closed.
Figure 2: Rear of mobile unit, battery compartment open

16
Putting into service
Charging the batteries
Batteries supplied are not charged.
Note:
lNew batteries should be initially charged for a minimum period of 16
hours without interruption – irrespective of any messages on the
display.
lIn order to maintain max. battery storage capacity for as long as
possible, the mobile unit should only ever be inserted in the charging
shell when the batteries are empty.
lThe batteries warm up during charging.
lYou can also use the charging shells or base stations of a Gigaset 900/
1000 for charging the mobile unit.
lOnly the following spare batteries are permitted:
Panasonic P-60 AA, Philips R6 NC-P, Saft RC6, UCAR RC6, DAIMON
ACCU 1000, Varta 751RS, Sanyo N-3UN and N-3UC.
lInsert the mobile unit in the Gigaset 1000L charging shell to charge the
batteries. The mobile unit can be inserted with the display facing
upwardsor downwards.
The left LED Bon the charging shell lights up while the batteries
are charging.
Charging times:
– Batteries in the mobile unit: 4 - 5 hours
– Replacement batteries in the reserve compartment of the
charging shell: 20 - 24 hours
Battery life:
These times are only achieved after several charging and discharging
cycles.
– 36 hours in stand-by mode
– 4 hours when phone is in use.

17
Putting into service
Logging mobile units onto a telephone system
Before you can telephone with the mobile unit, you must first open a "logon
window" at Hicom 300 and log on the mobile unit. This is only necessary the
first time the unit is put into service!
lAsk your Hicom 300 system administrator for the following information:
– code no. (PIN E1) of the Hicom 300 system,
e.g. "∗∗
∗∗
∗82", and check if code no. applies network-wide
– code no. (PIN E1) of the mobile unit (e.g. 6-digit)
– mobile unit call number
– system code of the mobile unit (8-digit)
lOpen the Hicom 300 logon window – at a mobile unit that is already
logged on or at a Hicom telephone with display (at the same network
node):
Code no. Enter the code no. (PIN E1) at Hicom telephone, e.g.
"∗∗
∗∗
∗82".
e.g. ∗∗
∗∗
∗82 Enter the number of the Hicom telephone also if the
code no. applies network-wide.
Enter code no.
e.g. 123 Enter the code no. (PIN E1) of the mobile unit, e.g.
"123456" – "*" are displayed instead of digits.
e.g.
Id 34567
e.g. 345... Enter the mobile unit call number displayed for
confirmation purposes, e.g. "34567" – the ring tone is
briefly audible. When the ring tone ceases, the Hicom
logon window is "open" for 10 minutes.
Note:
The logon window is automatically closed if the mobile unit logon procedure
is not performed within 10 minutes as described below. If this happens you
must repeat the operation.

18
Putting into service
lLogging the mobile unit onto Hicom 300:
uActivate the mobile unit with the On/Off key -
Registrate! is displayed the first time the unit is
logged on or Search Station 1* the second time it is
logged on.
ßx2 Pressthefunctionkeytwice(firstlogononly)–themain
menu is displayed.
NEXT
Use the left display key
NEXT
to scroll until Settings
Settings
is marked (in upper display line) and press the right
OK
display key
OK
to confirm.
NEXT
Scroll to Registrate withthe display key and confirm.
Registrate
OK
Station 1
e.g. confirm Station 1* for logon as system1 – Enter
OK
system code is displayed.
Ifnecessary,selectotherstations/systemsbypressing
NEXT
.
e.g.
123... Enter the system code (8-digit) and confirm with
OK
If necessary, press úto correct entry.
OK
OK
Confirm Registrate at Station 1* with the display
key – if logon is successful, Station 1* is displayed
and the ring symbol also flashes.
lOff status: display clear – calls are not received!
lOn status: e.g. Station 1 is displayed – prerequisite for all telephone
features. This is the normal operating status.

19
Putting into service
Note:
lIn the case of Hicom cordless E, the mobile units are not logged on to
stations (base stations), but rather to the Hicom 300 telephone system.
In this case, Station always means system.
lAn error tone is audible if the logon operation was not successful.
Activating/deactivating mobile units
Activating the mobile unit:
uPressthe On/Off key - youhear the acknowledgement
tone.
Display when telephone is "on" status, see page 8.
Deactivating the mobile unit:
uPresstheOn/Offkeyuntilthedisplayisclear–youhear
the acknowledgement tone.
Activating/deactivating keypad protection
This allows you to protect your mobile unit against inadvertent key activation,
e.g. when carrying it in your bag. Call are signalled even if keypad protection
is on and can be answered as in the same way as when the telephone is
switched on.
Prerequisite: mobile unit is activated.
Activating keypad protection:
uPress the On/Off key for less than 1 second.
Keyboard Display when keypad protection is on.
protected
Deactivating keypad protection:
uPress the On/Off key briefly – display when telephone
is "on", see page 8.

20
Putting into service
Note:
The mobile unit switches off completely if you press the On/Off key for too
long.
Thetelephonemustbe"on"and"Station1"displayed
in order to activate any of the features. Station2, 3
or4canalsobedisplayed,dependingonthecurrent
station (system).
Note:
Allfunctionsconfirmedwiththe line key can also beexecutedbyreplacingthe
mobile unit in the charging shell.
Station 1
TEL.BOOK REDIAL
