Siemens HiPath 3000 V3.0 or later Gigaset M1... User manual

Siemens Enterprise Communications
www.siemens-enterprise.com
Documentation
HiPath 3000
OpenStage M3 / M3 Plus
OpenStage M3 Ex / M3 Ex Plus
on HiPath Cordless Office
Operating Instructions

Safety notes
2
Safety notes
Using the OpenStage M3 Ex and
OpenStage M3 Ex Plus handsets in potentially
explosive working environments
This handset fulfils the requirements of the ATEX Directive and meets the
required EN and IEC standards (see the appendix in the operating manual).
See also the notes in the declaration of conformity.
OpenStage M3 Ex and OpenStage M3 Ex Plus were designed for use in
potentially explosive working environments (Ex zones) and in compliance
with fire prevention regulations. Local and operational factors may lead to
an explosive atmosphere in an Ex zone. Therefore, please observe the
following Ex safety notes:
Handset:
• The handset may only be operated in Ex zones where it is
certified. Refer to the appendix in the operating manual, the
device identification and the EC type examination certificate. A
copy of the prototype verification certificate ZELM 08 ATEX
0379 X can be found in the appendix of this operating manual.
• Users must check the handset for damage and verify that it is
operating correctly before using it in the Ex zone. A damaged
handset or a handset that is not fully functional may not be
brought into or used in the Ex zone.
• The following requirements must be met to satisfy the Ex
protection and IP rating IP 65 (casing protection) in an Ex zone:
– The battery compartment seal must not be damaged.
– The cover of the battery compartment must be tightly
screwed on.
• Deactivate the handset immediately and remove it from the Ex
zone if the following situations occur:
– You notice damage to the handset.
– If liquids have seeped into the handset.
• Repair a damaged handset immediately.
• Only service employees with Ex zone training and authorisation
should repair and service the handset.
• When swapping out a malfunctioning device/battery, the
technician must return the malfunctioning device/battery to the
manufacturer while specifying the customer data.
• Inappropriate use of the handset will result in revocation of its
certification for use in Ex zones.

Safety notes
3
Battery pack:
• Only use the approved battery pack (see page 167). Ex
authorisation is only valid and the handset can only be operated
if this battery pack is installed. Other battery packs are strictly
prohibited. If they are used, Ex protection is no longer valid.
• Never open the handset battery compartment in an Ex zone.
Battery pack removal, charging or transportation is not permitted
in these zones.
Charging the battery pack:
• The battery pack may only be charged:
– Outside the Ex zone
– While inside the handset
– Using the supplied charging unit.
• The charging unit should only be used outside the Ex zone.
Headset:
• A corded headset may not be used in the Ex zone. Only Ex
authorised Bluetooth headsets may be used. For more
information, consult your system administrator.
USB cable connection:
• Data may not be transferred via USB cable in the Ex zone.

Safety notes
4
Using OpenStage M3, OpenStage M3 Plus,
OpenStage M3 Ex and OpenStage M3 Ex Plus
Using the battery pack for OpenStage M3 and
OpenStage M3 Plus
Attention:
• Do not use OpenStage M3 and OpenStage M3 Plus handsets
in potentially explosive environments!
• Please observe local safety regulations when using the handset.
• The ringer, signal tones and handsfree talking (speakerphone
mode) are played over the loudspeaker. Do not hold the handset
to your ear when it rings, when a signal tone is emitted or if
speakerphone mode is switched on. Otherwise you may
seriously and permanently impair your hearing.
• A transmitter signal is emitted by your handset. Please observe
local safety regulations.
• Handsets can interfere with the operation of medical
equipment. Please observe the technical requirements of the
relevant environment (hospital, for instance).
• The handset can cause unpleasant humming in hearing aids.
Caution:
• To avoid mutual interference, do not operate the handset in the
vicinity of electronic equipment.
• Only use the charging shell provided to charge the handset.
• If you give your handset to someone else, remember to include
the operating manual with it.
Attention:
• Only use the original battery pack from the manufacturer of the
OpenStage M3/OpenStage M3 Plus!
• Do not use a standard rechargeable battery pack. This can result
in serious injury and material damage (risk of explosion,
degradation of battery pack cladding, functional interference and
handset damage).
• Avoid contact with fire and water.

Safety notes
5
Compliance with BGR 139 (personal alarm
functionality)
Only for OpenStage M3 Plus and OpenStage M3 Ex Plus!
Notes:
• For BGR-compliant operation as a personal alarm signal device
with a voice communication capability (PNG-S), the handset
must operate in conjunction with an alarm server. Handset
operation without an alarm server is not BGR-compliant.
• The alarm functionality cannot be deactivated by the user.
Deactivation is only possible via a control call from the alarm
server.
• For compliance with BGR 139, the handset may only be
configured by specially qualified technicians. The PNG
configuration menu is PIN-protected to prevent unauthorised
configuration changes. The PIN should be kept secret.
Attention:
• The pre-alarm volume starts low and gradually rises until it
becomes very loud. Users should be aware of this.
• The battery pack must always be sufficiently charged for the
anticipated period of operation. The battery pack’s charging
capacity diminishes over its life. It should therefore be replaced
by specially qualified technicians when capacity levels become
insufficient (discharging accelerates over time). If necessary,
consult your safety officer.

Safety notes
6
WEEE mark
Notes:
• All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities
appointed by the government or the local
authorities.
• The correct disposal and separate collection of
your old appliance will help prevent potential
negative consequences for the environment and human health.
It is a precondition for reuse and recycling of used electrical and
electronic equipment.
• For more detailed information about disposal of your old
appliance, please contact your city office, waste disposal
service, the shop where you purchased the product or your
sales representative.
The statements quoted above are only fully valid for equipment
which is installed and sold in the countries of the European Union
and is covered by the European Directive 2002/96/EC. Countries
outside the European Union may have other regulations regarding
the disposal of electrical and electronic equipment.

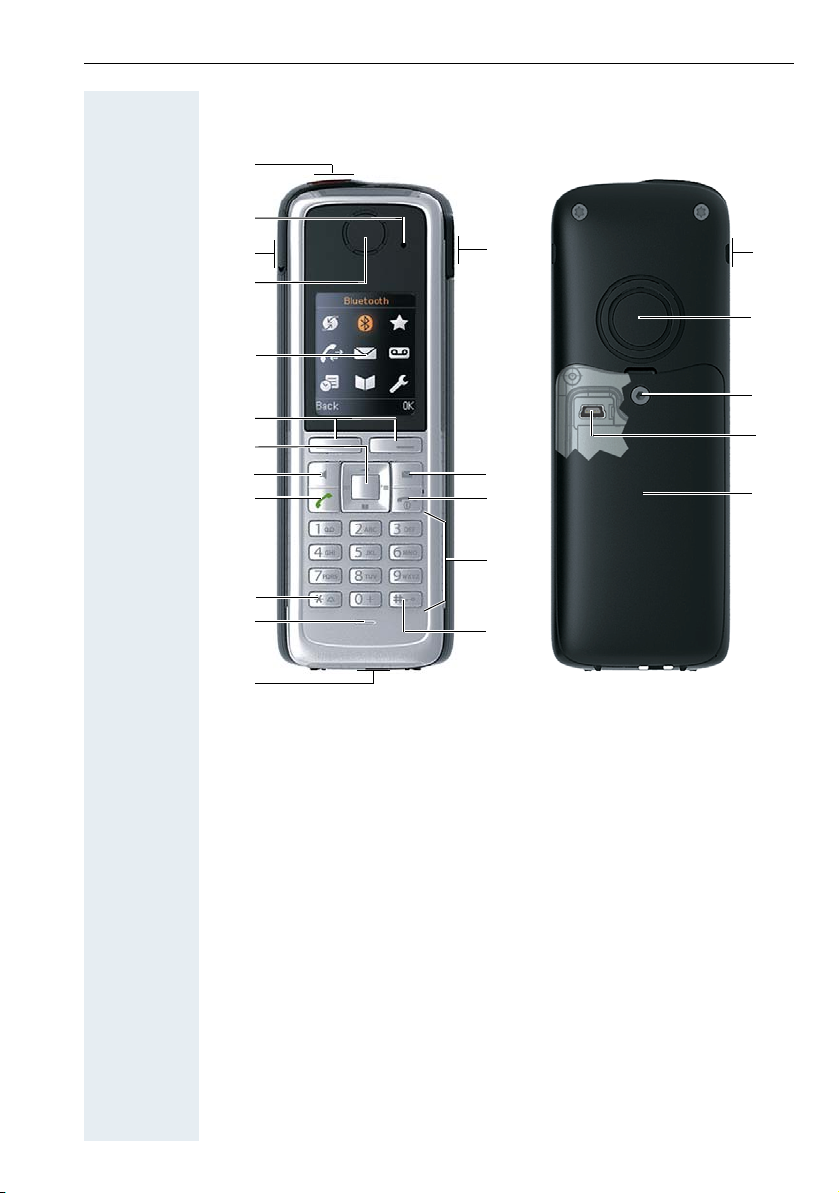

Controls, parts of the device
7
Controls, parts of the device
How to use the keys: page 24
1 Alarm and emergency call
key (red)
12 Jack for pull cord or dummy
connector
2 LED for indicating mode
activation and alarm status
13 Hash key
3 Example of a 2.5 mm jack
for headset (not for
OpenStage M3 Ex/
OpenStage M3 Ex Plus)
14 Number keys
4 Earpiece 15 On-hook and on/off key
5 Display 16 Message key
6 Display keys 17 Volume key (+/-)
7Controlkey 18Batterycover
8 Speakerphone key 19 Mini USB connection (under battery
cover)
9 Talk key 20 Screw for battery cover
10 Star key 21 Tone ringing/speakerphone
loudspeaker
11 Microphone 22 Notch for attachment clip (both sides)
5
6
7
816
915
10
12
14
18
21
2
4
11
17
13
20
1
322
19

Inhaltsverzeichnis
8
Contents
Safety notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Using the OpenStage M3 Ex and OpenStage M3 Ex Plus handsets in
potentially explosive working environments . . . . . . . . . . . . . . . . . . . . . . 2
Using OpenStage M3, OpenStage M3 Plus, OpenStage M3 Ex and
OpenStage M3 Ex Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using the battery pack for OpenStage M3 and OpenStage M3 Plus . . . 4
Compliance with BGR 139 (personal alarm functionality) . . . . . . . . . . . . 5
WEEE mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls, parts of the device . . . . . . . . . . . . . . . . . . . .7
Operating instructions . . . . . . . . . . . . . . . . . . . . . . . .13
Alarm functionality . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Putting the handset into service . . . . . . . . . . . . . . . .14
Checking the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Removing the protective cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fitting the attachment clip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Inserting the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Charging and using the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Inserting the dummy plug or connector . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting a corded headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting a USB data cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting the handset display language . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting the system display language. . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Description of controls . . . . . . . . . . . . . . . . . . . . . . . .24
Function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Control key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Display keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Menu icons in the main menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Inhaltsverzeichnis
9
Conducting calls – the basic functions . . . . . . . . . . 29
Activating/deactivating the handset. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
First seize the line, then dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dial first, then seize the line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Manual redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Consultation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Answering or rejecting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Picking up a call in a call pickup group. . . . . . . . . . . . . . . . . . . . . . . . . . 36
Ending a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Forwarding calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Activating or deactivating the keypad lock . . . . . . . . . . . . . . . . . . . . . . 38
After leaving the radio network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Conducting calls – enhanced functions . . . . . . . . . 39
Speakerphone mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Conducting calls with the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Corded headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cordless headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Number redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Automatic redial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Deleting a redial entry or list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adding a telephone number to the redial list. . . . . . . . . . . . . . . . . . 44
System speed dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
System speed dialling, individual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
System phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Telephone database (LDAP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
The handset's phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Saving an entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Finding and dialling an entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Dialling an entry with the speed dialling digit. . . . . . . . . . . . . . . . . . 53
Viewing an entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Changing an entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Marking a VIP (Very Important Person) entry. . . . . . . . . . . . . . . . . . 55
Deleting an entry or phonebook. . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Displaying available memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Sending an entry or phonebook to the handset or system . . . . . . . 56
Directed assignment of an MSN (multiple subscriber number) . . . . . . 58
Making calls using identification codes . . . . . . . . . . . . . . . . . . . . . . . . . 59
Using the handset as a second line. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Deactivating the phone number display . . . . . . . . . . . . . . . . . . . . . . . . 61
Directed call transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Activating/deactivating do not disturb . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Call charge display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Call tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Entrance telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Inhaltsverzeichnis
10
TDS telephone data service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Activating control relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Sending a signal to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
External call forwarding with a multiple subscriber number . . . . . . . . . 69
Using night service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Using dual-tone multifrequency signalling. . . . . . . . . . . . . . . . . . . . . . . 72
Parking/activating calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Conducting calls – with multiple users . . . . . . . . . .74
Call waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Call waiting tone off/on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Disabling/enabling automatic call waiting . . . . . . . . . . . . . . . . . . . . . . . 76
Busy override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Transferring a call (joining) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Placing a call on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Toggling (switching between calls) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Conducting a conference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Using the second call function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Group functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Activating/deactivating group calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Ringing group on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
UCD (Universal Call Distribution) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Mulap group (Multiple Line Application) . . . . . . . . . . . . . . . . . . . . . . . . 94
Message functions . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Leaving a message/advisory message . . . . . . . . . . . . . . . . . . . . . . . . . 96
Sending/calling text messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Answering a message or voicemail message . . . . . . . . . . . . . . . . . . . . 99
Caller list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Additional functions . . . . . . . . . . . . . . . . . . . . . . . . .104
Handset alarm clock function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Handset appointment reminder function. . . . . . . . . . . . . . . . . . . . . . . 106
System appointment function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Selecting a base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Setting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Speed dialling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Changing display key assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Data communication with the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Inhaltsverzeichnis
11
Bluetooth interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Activating/deactivating Bluetooth mode . . . . . . . . . . . . . . . . . . . . 116
Registering Bluetooth devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Editing the list of known (trusted) devices. . . . . . . . . . . . . . . . . . . 118
Phonebook transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Setting the handset . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Setting the speaker volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
During a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
In idle status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Setting advisory tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Activating/deactivating the vibration alert . . . . . . . . . . . . . . . . . . . . . . 124
Setting the ringer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Setting ringing tones and pictures with resource directory. . . . . . . . . 127
Viewing screensavers and caller pictures / Playing sounds . . . . . . 127
Renaming and deleting screensavers/caller pictures/sounds . . . . 128
Checking the available memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Activating or deactivating the ringer . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Activating or deactivating the alerting tone . . . . . . . . . . . . . . . . . . . . . 130
Activating/deactivating automatic call answering . . . . . . . . . . . . . . . . 131
Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Setting the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Setting the conversion list for vCard transfer . . . . . . . . . . . . . . . . . . . 137
Setting the menu view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Resetting the defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Telephone blocking. . . . . . . . . . . . . . . . . . . . . . . . . . 141
Handset telephone lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Telephone lock code programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Locking/unlocking the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Central telephone lock / Locking/unlocking other handsets . . . . . . . . 144
System functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Calling functions via the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Calling functions via codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Functions and codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Inhaltsverzeichnis
12
Personal alarm functionality . . . . . . . . . . . . . . . . . .149
Alarm statuses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Alarm types (overview) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Activating monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Prealarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Technical warning on the handset . . . . . . . . . . . . . . . . . . . . . . . . . 156
Sending an emergency alarm signal/calling for assistance . . . . . . 158
Deactivating monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Function test when activating Alarm Mode and PNG Mode . . . . . . . . 161
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .163
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Cleaning the handset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
General specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Handset operating times/charging times. . . . . . . . . . . . . . . . . . . . 167
Charging shells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
EU directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Writing and editing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Setting upper/lower case or digits . . . . . . . . . . . . . . . . . . . . . . . . . 168
Writing names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Accessing additional functions via the PC interface . . . . . . . . . . . . . . 169
Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Operating instructions
13
Operating instructions
These operating instructions describe your handset and its functions on
your communications system.
All functions that can be performed via your handset are described here. If
some of the required functions are not available on your handset, it may be
due to one of the following:
• The function is not configured for you or your handset - please contact
your system administrator.
• Your communications platform does not feature this function - please
contact your contract partner for the communications system.
Alarm functionality
OpenStage M3 Plus and OpenStage M3 Ex Plus offer personal alarm
functionality with voice communication capability. A device with this
functionality is also described in abbreviated form as PNG (personal alarm
device) or as PNG-S (personal alarm device with voice communication
capability).
A manual alarm can be triggered via an alarm key. Sensors detect non
movement, man down and escape states, which can be signalled as
automatic alarms.
An integrated time alarm function is used to determine whether the
person being monitored is still responsive. A pull cord is used to check
whether the OpenStage M3 Plus is still on the monitored person.
OpenStage M3 Plus and OpenStage M3 Ex Plus optionally monitor the
following operating functions:
• Battery charging
• Synchronicity with DECT base
• Communication with an alarm server
A technical warning is reported on the handset in the event of a
malfunction.
For more information on the alarm functionality please refer to Kapitel ,
“Personal alarm functionality”.
Only for OpenStage M3 Plus and OpenStage M3 Ex Plus!

Putting the handset into service
14
Putting the handset into service
Checking the package contents
•Handset
• Battery pack
• Accessory pack containing the following:
– Battery cover
– Screw for battery cover
– Allen key
– Attachment clip
– Holder for attachment clip
– Dummy plug (OpenStage M3 and OpenStage M3 Ex only)
– Connector with cord for man down alarm (OpenStage M3 Plus and
OpenStage M3 Ex Plus only)
• Document "Information on Handset"
• Document "Safety Notes"
Removing the protective cover
Installing the charger
The charger is designed for operation in closed, dry rooms within a
temperature range of +5 °C to +45 °C.
Position the charger on a level, non-slip surface.
The phone's feet do not usually leave any marks on surfaces. However,
due to the multitude of different varnishes and polishes used on today's
furnishings, the occurrence of marks on the surfaces cannot be completely
ruled out.
1. Connect the flat plug from the power adapter to the charger.
2. Plug the power adapter into the plug socket.
Remove the protective cover from the display before
putting the handset into service.
Please note:
• Never expose the telephone to the influence of heat sources,
direct sunlight or other electrical devices.
• Protect your handset from moisture, dust, corrosive liquids and
fumes.

Putting the handset into service
15
To disconnect the flat plug from the charger, press the release button and
disconnect the flat plug.
Fitting the attachment clip
1. Press the attachment clip pin on the back of the handset until the tabs
on the sides engage audibly in the recesses on the phone.
2. Slide the attachment clip onto the pin as it clicks audibly into place.
1
2

Putting the handset into service
16
3. Secure the handset with the attachment clip to the belt. To do this,
open the brackets by squeezing the free end and attach it to the belt.
To remove the handset, press the opener on the attachment clip and slide
the handset from the pin.
While you are wearing the handset on the belt you will be able to
read the display without having to remove the handset, see
page 135.

Putting the handset into service
17
Inserting the battery
The handset is supplied with an approved battery. The battery is not
charged when supplied. It is first charged in the handset.
Opening the battery compartment
1. Loosen and remove the screw from the battery cover with the Allen
key.
2. Insert a suitable screwdriver into the recess between the housing and
battery cover, turn it and then raise the battery cover.
3. Lift up the battery cover from the housing.

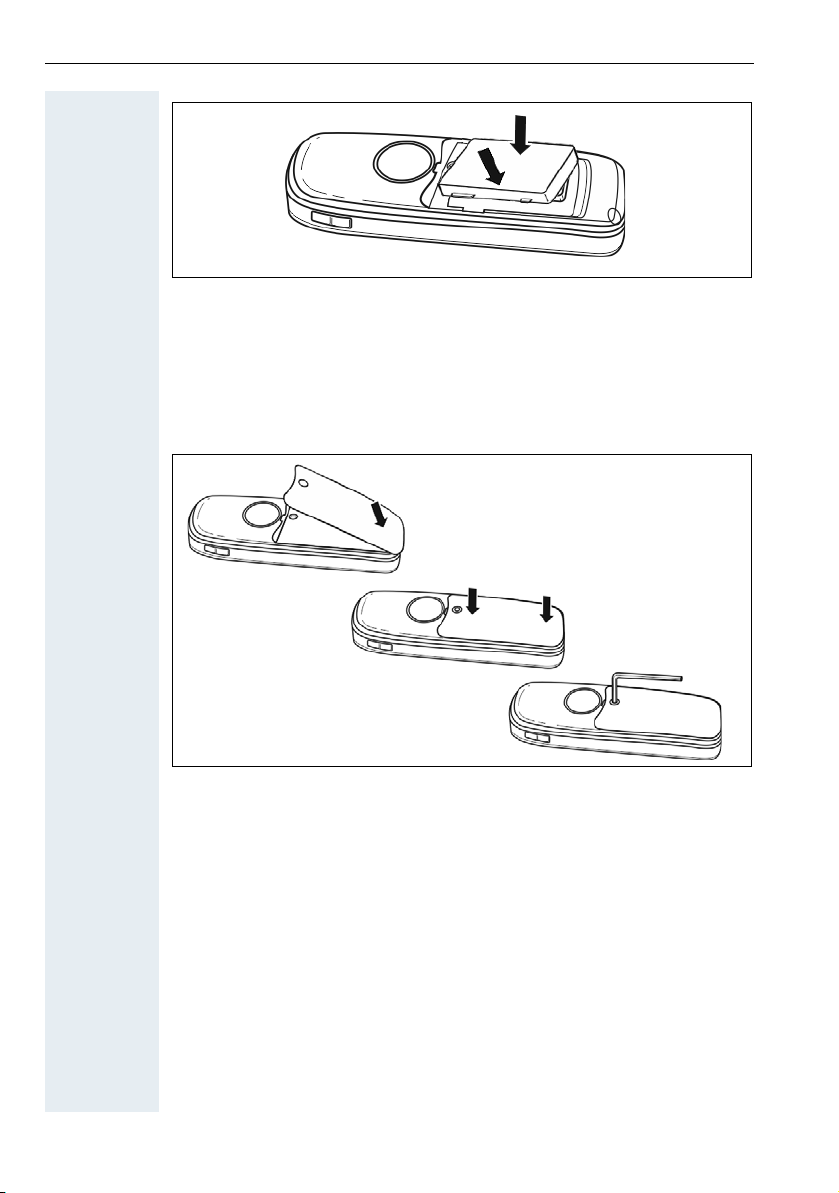

Inserting the battery
Insert the battery pack (at an angle, nose first and the contacts facing
down). Then press it down into the compartment until the battery pack's
positioning clip firmly snaps into place.
• Do not remove the battery in Ex zones.
• Please observe the safety notes page 2.
• Only use approved batteries page 167.
• Open the battery compartment in a dust-free environment only.
• Your phonebook entries and all settings remain stored even if
you remove the battery. The date and time settings will be
reset.
• Only remove the battery if it is defective. The battery's life
diminishes each time it is removed.
1
2
3

Putting the handset into service
18
Closing the battery compartment
1. Replace the battery cover at the bottom of the housing into the
recesses.
2. Then press down the battery cover until it rests firmly on the seal.
3. Insert and tighten the Allen screw.
1
2
3

Putting the handset into service
19
Charging and using the battery
To charge the battery, insert the handset into the charging shell with the
keypad facing forwards.
The charging status is indicated by the charge status LED.
Important:
Only place the handset in the designated charger. (For order
numbers see page 167).
{lighting white: charged over 66%
{lighting white: charged between 34 % and 66 %
ylighting white: charged between 11% and 33%
ylighting red: charged below 11%
yflashing red: battery almost empty (less than 10 minutes talktime)
xyxy x{x{ lighting white: battery being charged
• Initial charging: Charge the battery for at least 10 hours without
a break, regardless of the charging status icon.
• For future charging: you can replace your handset in the
charging shell each time it has been used. Charging is
electronically controlled which ensures that the battery is
charged optimally.
• The capacity of the Ex battery pack can diminish due to ageing
to the extent that it is no longer sufficient (increasingly faster
discharge) for the intended operating life. The Ex battery pack
must then be replaced by appropriately trained service
personnel.

Putting the handset into service
20
Inserting the dummy plug or connector
Insert the dummy connector (1) / connector with cord (2) into the recess
provided. Make sure the dummy connector is positioned correctly.
If you do not require the man down alarm function on the
OpenStage M3 Plus or OpenStage M3 Ex Plus you can also use the
connector without a cord as a dummy connector.
Connecting a corded headset
You can connect a headset with a 2.5 mm jack plug to the left side of your
handset.
1. To do this, open the rubber cover using your finger nail and bend it
outward.
2. Insert the jack plug into the socket.
The headset volume corresponds to the setting for the earpiece volume
page 121.
Regardless of whether or not a cord is used, the handset can be
placed with the connector inserted in the charger. Run the cord out
from the front of the charger.
1
2
Not for OpenStage M3 Ex and OpenStage M3 Ex Plus!
1
2
