Siemens LC97FVW62S/01 User manual

LC37I…, LF31I…, LC97F…, LC91K…, LC98K…
Extractor hood
EN User manual and installation instructions
Siemens Home Appliances
Register your appliance on My Siemens and
discover exclusive services and offers.

en Safety
2
Table of contents
INFORMATION FOR USE
1 Safety...................................................................2
2 Avoiding material damage..................................4
3 Environmental protection and saving en-
ergy ......................................................................5
4 Operating modes ................................................5
5 Familiarising yourself with your appliance .......7
6 Before using for the first time ............................7
7 Basic operation ...................................................8
8 HomeConnect ....................................................9
9 Hob-based hood control...................................11
10 Cleaning and servicing.....................................11
11 Troubleshooting................................................13
12 Disposal.............................................................14
13 Customer Service..............................................14
14 Accessories.......................................................15
15 Declaration of Conformity ................................15
16 INSTALLATION INSTRUCTIONS ......................16
16.4 Secure installation ............................................17
1 Safety
Observe the following safety instructions.
1.1 General information
¡Read this instruction manual carefully.
¡Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡For extracting cooking vapour.
¡in private households and in enclosed
spaces in a domestic environment.
¡up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡With an external timer.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶Keep small parts away from children.
▶Do not let children play with small parts.

Safety en
3

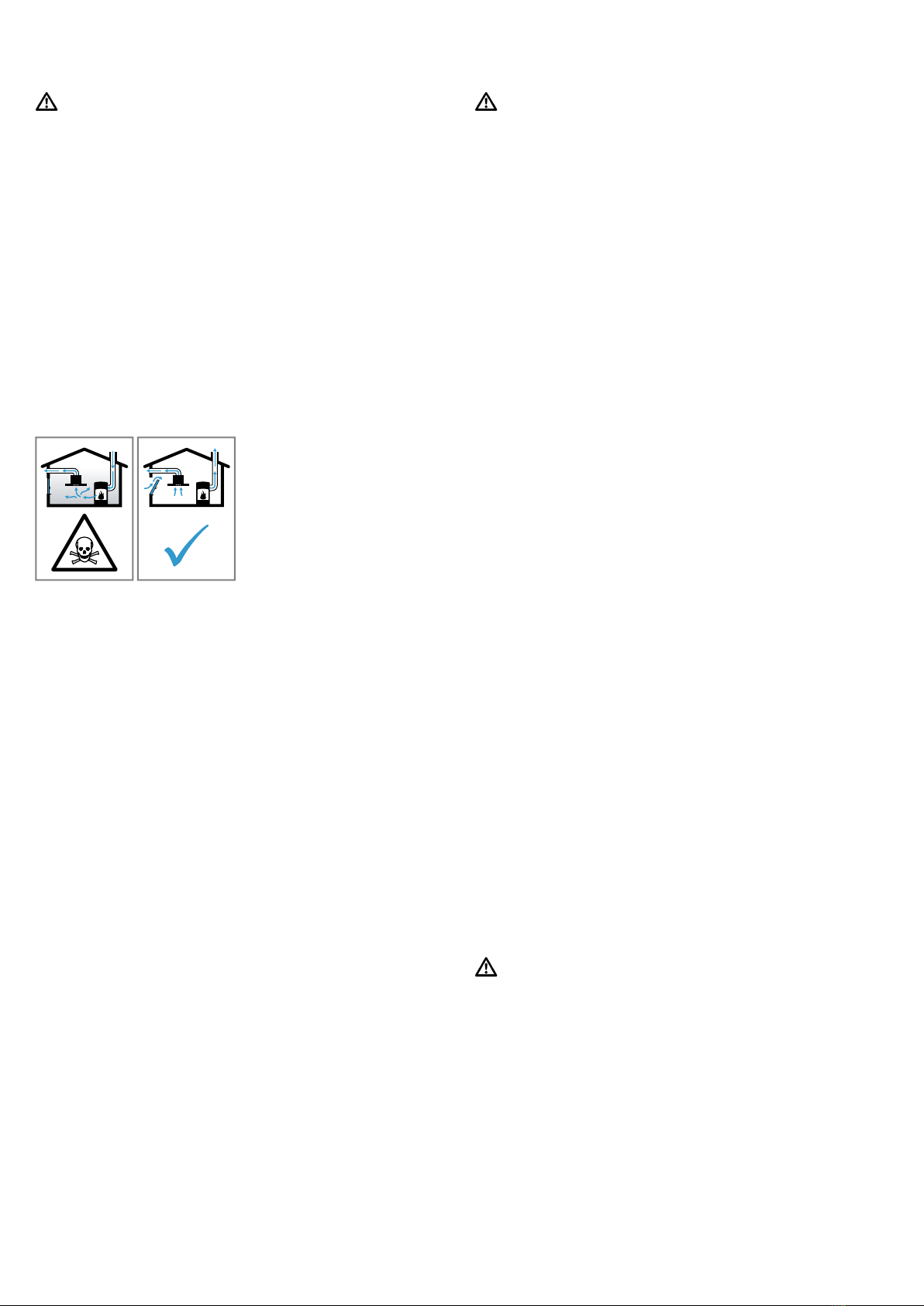

WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being
drawn back in. Room-air-dependent heat-pro-
ducing appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and dis-
charge the exhaust gases into the open
through an exhaust gas system (e.g. a chim-
ney). With the extractor hood switched on, air
is extracted from the kitchen and the adjacent
rooms. Without an adequate supply of air, the
air pressure falls below atmospheric pressure.
Toxic gases from the chimney or the extrac-
tion shaft are sucked back into the living
space.
▶Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
▶It is only possible to safely operate the ap-
pliance if the pressure in the room in which
the heating appliance is installed does not
fall below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means. An in-
coming/exhaust air wall box alone is not
sufficient to ensure compliance with the
limit.
▶In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures
to you.
▶Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulat-
ing-air mode.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶Never operate the appliance without a
grease filter.
▶Clean the grease filters regularly.
▶Never work with naked flames close to the
appliance (e.g. flambéing).
▶Do not install the appliance near a solid
fuel heating appliance (e.g. wood- or coal-
burning) unless the heating appliance has
a sealed, non-removable cover. There must
be no flying sparks.
Hot oil or grease ignites very quickly.
▶Always supervise hot oil and fat.
▶Never extinguish burning oil or fat with wa-
ter. Switch off the cooking zone. Extinguish
flames carefully using a lid, fire blanket or
something similar.
When gas burners are in operation without
any cookware placed on them, they can build
up a lot of heat. A ventilation appliance in-
stalled above the cooker may become dam-
aged or catch fire.
▶Only operate the gas burners with cook-
ware on them.
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
appliance installed above the cooker may be-
come damaged or catch fire.
▶Only operate the gas hobs with cookware
on them.
▶Select the highest fan setting.
▶Never operate two gas hobs simultan-
eously on the highest flame for longer than
15 minutes. Two gas hobs correspond to
one large burner.
▶Never operate large burners of more than
5kW with the highest flame for longer
than 15minutes, e.g. a wok.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
▶Never touch these hot parts.
▶Keep children at a safe distance.
The appliance becomes hot during operation.
▶Allow the appliance to cool down before
cleaning.

en Avoiding material damage
4
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶Carefully clean the appliance interior.
Items placed on the appliance may fall off.
▶Do not place any objects on the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
▶Open the filter cover slowly.
▶Take hold of the filter cover after opening
until it no longer swings out.
▶Close the filter cover slowly.
Risk of injury when opening and closing the
hinges.
▶Keep your hands away from the hinges.
The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1).
▶Do not look directly into the switched-on
LED lights for longer than 100seconds.
If the appliance is operated by another person
via the HomeConnect app during cleaning,
this increases the risk of injury.
▶Before cleaning, disconnect the appliance
from the HomeConnect app.
WARNING‒Danger: Magnetism!
The appliance contains permanent magnets.
They may affect electronic implants, e.g.
pacemakers or insulin pumps.
▶Persons with electronic implants must
stand at least 10cm away from the appli-
ance.
WARNING‒Risk of electric shock!
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page14
Improper repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by trained spe-
cialist staff.
An ingress of moisture can cause an electric
shock.
▶Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
▶Do not use steam- or high-pressure clean-
ers to clean the appliance.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
▶Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning
agents in conjunction with aluminium parts,
e.g. grease filter on extractor hoods.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶Clean the grease filters regularly.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶If the appliance is defective, call Customer
Service.
→"Customer Service", Page14
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric
shock.
▶Do not use wet sponge cloths.
Avoiding material damage
2 Avoiding material damage
Avoiding material damage
ATTENTION!
Condensate may cause corrosion damage.
▶To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in
damage.
▶Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
▶Follow the cleaning instructions.

Environmental protection and saving energy en
5
▶Do not use harsh or abrasive detergents.
▶Clean stainless steel surfaces in the direction of the
finish only.
▶Never clean controls with stainless steel cleaners.
Condensation that flows back in may damage the ap-
pliance.
▶The air extraction duct must be installed with a
gradient of at least 1° from the appliance.
If you put incorrect stress on the design elements, they
may break off.
▶Do not pull design elements.
▶Do not place objects on the design elements or
hang objects from them.
There is a risk of surface damage if you do not peel off
the protective film.
▶Remove the protective film from all parts of the ap-
pliance before using for the first time.
Painted surfaces are easily damaged.
▶Follow the cleaning instructions.
→"Cleaning the appliance", Page11
▶Ensure that the painted surfaces are not scratched.
Environmental protection and saving energy
3 Environmental protection and saving energy
Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compat-
ible and can be recycled.
▶Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Adjust the fan speed to the amount of steam pro-
duced during cooking.
¡The lower the fan speed, the less energy is con-
sumed.
Only use the intensive mode as required.
If cooking produces large amounts of steam, select a
higher fan speed in good time.
¡The odours are distributed around the room less.
Switch off the lighting if it is no longer required.
¡When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
¡The effectiveness of the filter is retained.
Put the cooking lid on.
¡The cooking vapours and condensation are re-
duced.
Only use the additional functions if required.
¡Switching off additional functions reduces power
consumption.
Operating modes
4 Operating modes
Operating modes
You can use your appliance in air extraction mode or
circulating-air mode.
4.1 Air extraction mode
The air which is drawn in is cleaned by the grease fil-
ters and conveyed to the exterior by a pipe system.
The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels (not applicable to appliances that
only discharge the air back into the
room).
¡If the exhaust air is to be conveyed
into a non-functioning smoke or ex-
haust gas flue, you must obtain the
consent of the heating engineer re-
sponsible.
¡If the exhaust air is conveyed
through the external wall, a tele-
scopic duct should be used.
4.2 Air recirculation
The air which is drawn in is cleaned by the grease fil-
ters and an odour filter, and conveyed back into the
room.

en Operating modes
6
To bind odours in air recirculation
mode, you must install an odour filter.
The different options for operating the
appliance in air circulation mode can
be found in our catalogue. Alternatively,
ask your dealer. The required accessor-
ies are available from specialist retail-
ers, from our after-sales service or from
the online shop.
→"Accessories", Page15

Familiarising yourself with your appliance en
7
Familiarising yourself with your appliance
5 Familiarising yourself with your appliance
Familiarising yourself with your appliance

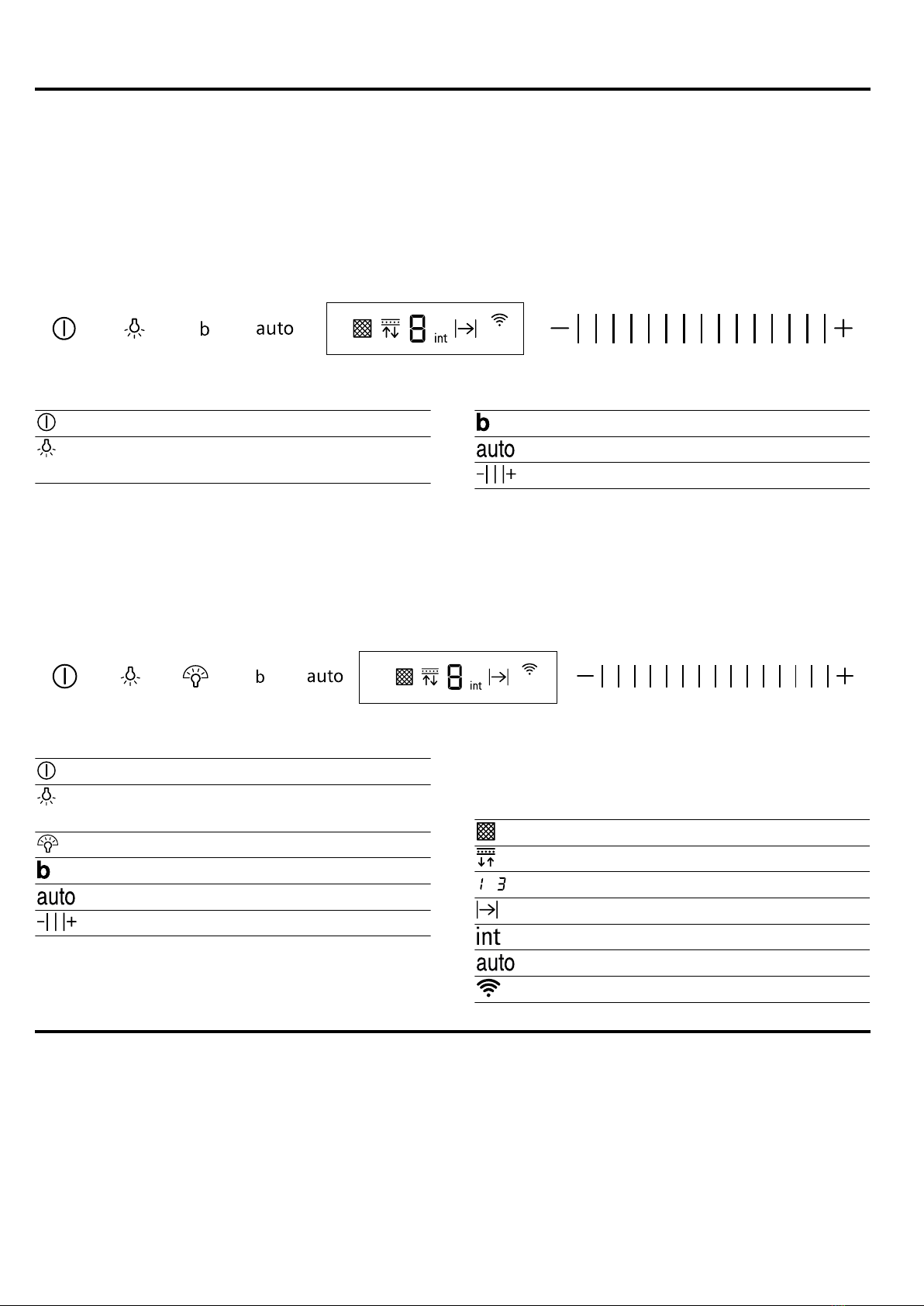

5.1 Control panel, variant 1
You can use the control panel to configure all functions of your appliance and to obtain information about the operat-
ing status.
Switching the appliance on or off
Switching the lighting on or off
Setting the brightness
Switching on the boost function
Switching automatic mode on or off
Fan settings/intensive modes settings area
5.2 Control panel, variant 2
You can use the control panel to configure all functions of your appliance and to obtain information about the operat-
ing status.
Switching the appliance on or off
Switching the lighting on or off
Setting the brightness
Switching emotionLight Pro on or off
Switching on the boost function
Switching automatic mode on or off
Fan settings/intensive modes settings area
5.3 Display
You can see the current setting values in the display.
Grease filter saturation indicator
Odour filter saturation indicator
- Fan settings
Fan run-on
Intensive mode
Automatic mode
HomeConnect
Before using for the first time
6 Before using for the first time
Before using for the first time
Configure the settings for initial start-up. Clean the ap-
pliance and accessories.
6.1 Setting an operating mode
Your appliance is set to air extraction mode by default.
Note:When using it in circulating-air mode, you require
additional accessories.
▶When using it in circulating-air mode, set the operat-
ing mode.

en Basic operation
8
Basic operation
7 Basic operation
Basic operation
7.1 Switching on the appliance
▶Press ⁠.
aThe appliance starts at fan setting2.
7.2 Switching off the appliance
▶Press ⁠.
7.3 Setting a fan setting
▶Slide your finger over the settings area ⁠.
7.4 Switching on intensive mode
If particularly strong odours or vapours develop, you
can use intensive mode.
▶Slide your finger to the right over the settings area
until appears on the display.
aAfter approx. 6 minutes, the appliance automatically
switches to fan setting 3.
7.5 Switching off intensive mode
▶Slide your finger to the left over the settings area
⁠.
7.6 Switching on the boost function
The boost function is a short-term maximum power set-
ting which can be activated in any fan setting.
▶Press ⁠.
aAfter approx. 20 seconds, the fan automatically
switches back to the fan setting that was previously
set.
7.7 Switching on the fan run-on
During the fan run-on, the appliance continues to run
for a short time and then switches off automatically.
Note:If the intensive mode is activated, the fan run-on
cannot be switched on.
▶Press until appears on the display.
aThe fan run-on starts at fan setting1.
aThe appliance switches off automatically after ap-
prox. 10 minutes.
7.8 Switching off the fan run-on
▶Slide your finger to the right over the settings area
⁠.
7.9 Switching on automatic mode
The optimum fan setting is set automatically using a
sensor.
▶Press ⁠.
7.10 Switching off automatic mode
▶Press ⁠.
aThe ventilation is automatically ended when the
sensor detects no further change in the room air
quality.
aAutomatic mode runs for a maximum of four hours.
7.11 Sensor sensitivity
In automatic mode, a sensor in the appliance detects
the intensity of the cooking and roasting fumes. De-
pending on the setting of the sensor sensitivity, the op-
timum fan setting is automatically switched on. If the
sensor control system reacts too weakly or too
strongly, the setting for the sensor sensitivity may
change.
¡Factory setting:3
¡Lowest setting:1
¡Highest setting:5
7.12 Setting the sensor sensitivity
Requirement:The appliance is switched off.
1. Press and hold ⁠.
aThe setting is displayed after approx. onesecond.
2. Slide your finger over the settings area ⁠.
3. Release to save the setting.
7.13 Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
Note:Colour temperature settings are available in the
HomeConnect app provided the appliance has this
function.
▶Press ⁠.
7.14 Setting the brightness
▶Press and hold until the required brightness is
reached.
7.15 Switching on emotionLight Pro
You can switch on the emotionLight Pro independently
of the ventilation system.
▶Press ⁠.

HomeConnect en
9
7.16 emotionLight Pro - Setting the
brightness
▶Press and hold until the required brightness is
reached.
7.17 emotionLight Pro - adjusting the colour
Requirement:The appliance is switched off.
1. Press ⁠.
2. Press ⁠or repeatedly until the required colour is
set.
7.18 Setting the PowerBoost position
On some appliances, the filter cover can be adjusted to
an intermediate position. The intermediate position can
be used to eliminate particularly strong cooking smells
and large amounts of steam.
▶Take hold of the filter cover in the centre and open it
carefully.
7.19 Saturation indicator
If the grease filters or odour filters are saturated, cor-
responding symbols flash after the appliance is
switched off.
Note:You can set the saturation indicator in the Home
Connect app depending on the filter used.
Clean the saturated grease filters and, in doing so, ob-
serve the cleaning instructions in these instructions.
Change the saturated odour filters and observe the in-
structions in the accompanying instructions.
If odour filters can be regenerated, follow the instruc-
tions in the accompanying instructions.
7.20 Resetting the saturation indicator
After cleaning the grease filter or after changing the
odour filter, the saturation indicator can be reset.
Requirements
¡After the appliance has been switched off, ap-
pears in the display for the grease filter.
¡After the appliance has been switched off, ap-
pears in the display for the odour filter.
▶Slide your finger to the left over the settings area
⁠.
aThe saturation indicator is reset.
7.21 Switching on the audible signal
Requirement:The appliance is switched off.
▶Press and hold and at the same time for ap-
prox. three seconds.
a appears on the display.
HomeConnect
8 HomeConnect
HomeConnect
This appliance is network-capable. Connecting your ap-
pliance to a mobile device lets you control its functions
via the HomeConnect app, adjust its basic settings
and monitor its operating status.
The HomeConnect services are not available in every
country. The availability of the HomeConnect function
depends on the availability of HomeConnect services
in your country. You can find information about this at:
www.home-connect.com.
The HomeConnect app guides you through the entire
login process. Follow the instructions in the HomeCon-
nect app to configure the settings.
Tips
¡Please consult the documents supplied by
HomeConnect.
¡Please also follow the instructions in the HomeCon-
nect app.
Notes
¡Please note the safety precautions in this instruction
manual and make sure that they are also observed
when operating the appliance via the HomeCon-
nect app.
→"Safety", Page2
¡Operating the appliance on the appliance itself al-
ways takes priority. During this time it is not possible
to operate the appliance using the HomeConnect
app.
¡In networked standby mode, the appliance requires
a maximum of2W.
¡If you need your device's MAC address to connect
to your home network, you can find this next to the
rating plate. →Page14
8.1 Setting up HomeConnect
Requirements
¡The appliance is connected to the power supply and
is switched on.
¡You have a mobile device with a current version of
the iOS or Android operating system, e.g. a smart-
phone.
¡The mobile device and the appliance are within
range of your home network's Wi-Fi signal.
1. Download the HomeConnect app.

en HomeConnect
10
1
1Apple App Store und the Apple App Store logo are
trademarks of Apple Inc. Google Play and the
Google Play logo are trademarks of Google LLC.
2. Open the HomeConnect app and scan the follow-
ing QR code.
3. Follow the instructions in the HomeConnect app.
8.2 Resetting the connection
▶To reset the saved connections to the Wi-Fi and to
HomeConnect, press and hold and at the
same time until goes out.
8.3 Software update
Your appliance's software can be updated using the
software update function, e.g. for the purposes of op-
timisation, troubleshooting or security updates.
To do this, you must be a registered HomeCon-
nectuser, have installed the app on your mobile device
and be connected to the HomeConnectserver.
As soon as a software update is available, you will be
informed via the HomeConnectapp and will be able to
start the software update via the app. Once the update
has been successfully downloaded, you can start in-
stalling it via the HomeConnectapp if you are in your
home network (Wi-Fi). The HomeConnectapp informs
you once installation is successful.
Notes
¡The software update consists of two steps.
–The first step is the download.
–The second step is the installation on your appli-
ance.
¡You can continue to use your appliance as normal
while updates are downloading. Depending on your
personal settings in the app, software updates can
also be set to download automatically.
¡Installation takes a few minutes. You cannot use
your appliance during installation.
¡We recommend that you install security updates as
soon as possible.
8.4 Remote diagnostics
Customer Service can use Remote Diagnostics to ac-
cess your appliance if you contact them, have your ap-
pliance connected to the HomeConnect server and if
Remote Diagnostics is available in the country in which
you are using the appliance.
Tip:For further information and details about the avail-
ability of Remote Diagnostics in your country, please
visit the service/support section of your local website:
www.home-connect.com.
8.5 Data protection
Please see the information on data protection.
The first time your appliance is registered on a home
network connected to the Internet, your appliance will
transmit the following types of data to the
HomeConnect server (initial registration):
¡Unique appliance identification (consisting of appli-
ance codes as well as the MAC address of the Wi-Fi
communication module installed).
¡Security certificate of the Wi-Fi communication mod-
ule (to ensure a secure data connection).
¡The current software and hardware version of your
appliance.
¡Status of any previous reset to factory settings.
This initial registration prepares the HomeConnect
functions for use and is only required when you want to
use the HomeConnect functions for the first time.
Note:Please note that the HomeConnect functions
can only be utilised with the HomeConnect app. In-
formation on data protection can be retrieved in the
HomeConnect app.

Hob-based hood control en
11
Hob-based hood control
9 Hob-based hood control
Hob-based hood control
You can connect your appliance to a suitable hob and,
in this way, control the functions of your appliance via
the hob.
If the hob and the extractor hood are HomeConnect-
compatible, connect the appliances in the HomeCon-
nectapp. To do this, connect the two appliances to
HomeConnect and follow the instructions in the app.
Notes
¡Please note the safety precautions in the instruction
manual for your appliance and ensure that they are
also observed when operating the appliance via the
hob-based hood control.
¡Operating your appliance always takes priority. It is
not possible to use the hob-based hood control dur-
ing this time.
¡You can only connect to the extractor hood via the
HomeConnect app. Other connection routes are no
longer supported.
Cleaning and servicing
10 Cleaning and servicing
Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
10.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Before cleaning, pull out the mains plug or switch
off the fuse in the fuse box.
▶Do not use steam- or high-pressure cleaners to
clean the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶Allow the appliance to cool down before cleaning.
ATTENTION!
Unsuitable cleaning products may damage the sur-
faces of the appliance.
▶Do not use harsh or abrasive detergents.
▶Do not use cleaning products with a high alcohol
content.
▶Do not use hard scouring pads or cleaning
sponges.
▶Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
▶Wash sponge cloths thoroughly before use.
10.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are
not damaged by incorrect cleaning or unsuitable clean-
ing products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
▶Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commer-
cial or industrial cleaning agents in conjunction with
aluminium parts, e.g. grease filter on extractor
hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Before cleaning, pull out the mains plug or switch
off the fuse in the fuse box.
▶Do not use steam- or high-pressure cleaners to
clean the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
▶Allow the appliance to cool down before cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶Carefully clean the appliance interior.
If the appliance is operated by another person via the
HomeConnect app during cleaning, this increases the
risk of injury.
▶Before cleaning, disconnect the appliance from the
HomeConnect app.
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page11
2. Clean as follows, depending on the surface:
‒Clean stainless steel surfaces in the direction of
the finish using a sponge cloth and hot soapy
water.
‒Clean painted surfaces using a damp sponge
cloth and hot soapy water.
‒Clean aluminium using a soft cloth and glass
cleaner.

en Cleaning and servicing
12
‒Clean plastic using a soft cloth and glass
cleaner.
‒Clean glass using a soft cloth and glass cleaner.
3. Dry with a soft cloth.
4. Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft
cloth.
You can obtain stainless steel cleaning products
from the after-sales service or the online shop.
10.3 Cleaning controls and lights
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
▶Do not use wet sponge cloths.
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page11
2. Clean using a damp sponge cloth and hot soapy
water.
3. Dry with a soft cloth.
10.4 Cleaning the magnetic mounting
bracket
ATTENTION!
Magnetic mounting brackets may come loose due to
improper cleaning.
▶Do not use any sharp or pointed objects for the
cleaning.
▶Do not use cleaning fluids that contain adhesives.
▶
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page11
2. Clean using a damp sponge cloth and hot soapy
water.
3. Dry with a soft cloth.

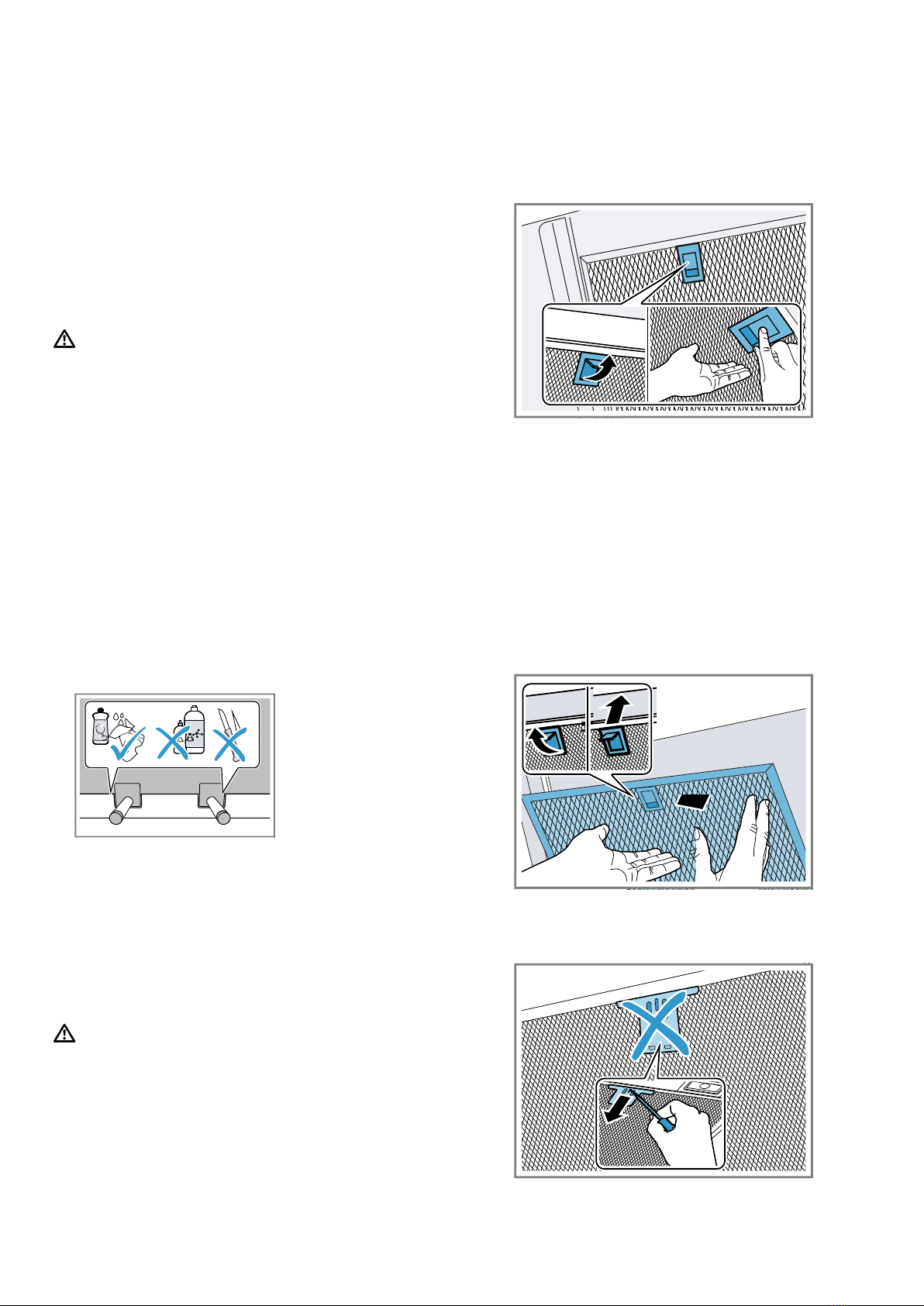

10.5 Removing the grease filter
WARNING‒Risk of injury!
Risk of injury when opening and closing the hinges.
▶Keep your hands away from the hinges.
The filter cover may swing out.
▶Open the filter cover slowly.
▶Take hold of the filter cover after opening until it no
longer swings out.
▶Close the filter cover slowly.
1. Take hold of the filter cover in the centre and open it
fully.
2. ATTENTION!
Falling grease filters may damage the hob below.
▶Grip below the grease filter with one hand.
Open the lock on the grease filter and fold down the
grease filter.
3. Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
10.6 Fitting the grease filters
1. ATTENTION!
Falling grease filters may damage the hob below.
▶Grip below the grease filter with one hand.
Note:Note the correct position of the grease filter.
Insert the grease filter.
2. The lock on the grease filter clicks into place.
3. If the grease filter has been inserted incorrectly,
carefully push the lock forwards, remove the grease
filter and insert it correctly.

Troubleshooting en
13
10.7 Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶Clean the grease filters regularly.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page12
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page11
2. Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from customer service
or the online shop.
3. Use a brush to clean the grease filters.
4. Rinse the grease filters thoroughly.
5. Allow the grease filters to drain.
10.8 Cleaning grease filters in the
dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶Clean the grease filters regularly.
ATTENTION!
The grease filters may become damaged if they are
squeezed in the dishwasher.
▶Do not squeeze the grease filters.
Note:When cleaning the grease filter in the dish-
washer, light discolouration may occur. This discoloura-
tion has no effect on the performance of the metal
grease filters.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page12
1. Observe the information regarding the cleaning
agents.
→"Cleaning products", Page11
2. Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with
utensils.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from customer service
or the online shop.
3. Start the dishwasher.
Select a temperature of no more than 70°C.
4. Allow the grease filters to drain.
Troubleshooting
11 Troubleshooting
Troubleshooting
You can rectify minor faults on your appliance yourself.
Read the troubleshooting information before contacting
after-sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶If the appliance is defective, call Customer Service.
→"Customer Service", Page14
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶Only use genuine spare parts when repairing the
appliance.
▶If the power cord of this appliance is damaged, it
must be replaced by trained specialist staff.
11.1 Malfunctions
Fault Cause and troubleshooting
The appliance is not
working.
The mains plug of the power cord is not plugged in.
▶Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
▶Check the circuit breaker in the fuse box.
There has been a power cut.
▶Check whether the lighting in your room or other appliances are working.

en Disposal
14
Fault Cause and troubleshooting
The LED lighting
does not work.
Different causes are possible.
▶Defective LED lights may be replaced by the manufacturer, their customer service or a
qualified technician (electrician) only.
▶Call
→"Customer Service", Page14.
The button illumina-
tion does not work.
The control unit is faulty.
▶Call
→"Customer Service", Page14.
HomeConnect is not
working properly.
Different causes are possible.
▶Go to www.home-connect.com.
The hob-based hood
control is not working
properly.
It may be necessary to change the settings.
▶Read the instruction manual for the hob.
▶Go to www.home-connect.com.
Disposal
12 Disposal
Disposal
12.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are
available from your specialist dealer or local author-
ity.
This appliance is labelled in accord-
ance with European Directive
2012/19/EU concerning used elec-
trical and electronic appliances
(waste electrical and electronic equip-
ment - WEEE).
The guideline determines the frame-
work for the return and recycling of
used appliances as applicable
throughout the EU.
Customer Service
13 Customer Service
Customer Service
Function-relevant genuine spare parts according to the
corresponding Ecodesign Order can be obtained from
Customer Service for a period of at least 10 years from
the date on which your appliance was placed on the
market within the European Economic Area.
Note:Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information on the warranty period and terms
of warranty in your country is available from our after-
sales service, your retailer or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number
(FD) of your appliance.
The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our
website.
13.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Depending on the model, the rating plate can be found:
¡Inside the appliance (remove grease filters for ac-
cess).
¡On top of the appliance.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.

Accessories en
15
Accessories
14 Accessories
Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact
product number (E no.) of your appliance. →Page14
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
siemens-home.bsh-group.com
Accessories Order number
Standard circulated air
set (flat hood)
LZ10AFU00
Standard no-flue circu-
lated air set (flat hood)
LZ10AFT00
Standard odour filter (re-
placement, flat hood)
LZ10AFA00
Standard circulated air
set (angled canopy hood)
LZ10AKU00
Standard no-flue circu-
lated air set (angled can-
opy hood)
LZ10AKT00
Standard odour filter (re-
placement, angled can-
opy hood)
LZ10AKA00
Long Life circulated air
set (flat hood)
LZ10AFS00
Accessories Order number
Long Life circulated air
set (angled canopy hood)
LZ10AKS00
Long Life no-flue circu-
lated air set (flat hood)
LZ10AFR00
Long Life no-flue circu-
lated air set (angled can-
opy hood)
LZ10AKR00
Long Life odour filter (re-
placement)
LZ00XXP00
Clean Air Plus circulated
air set (flat hood)
LZ11AFI16
Clean Air Plus no-flue cir-
culated air set (flat hood)
LZ11AFV16
Clean Air Plus circulated
air set (angled canopy
hood)
LZ11AKI16
Clean Air Plus no-flue cir-
culated air set (angled
canopy hood)
LZ11AKV16
Clean Air Plus circulated
air set, external
LZ11AXC56
Clean Air Plus odour filter
(replacement)
LZ11AKB16
Clean Air Plus odour filter
(replacement, flat hood)
LZ11AFB16
Clean Air Plus odour filter
(replacement, angled can-
opy hood)
LZ31XXB16
Declaration of Conformity
15 Declaration of Conformity
Declaration of Conformity
BSH Hausgeräte GmbH hereby declares that the appli-
ance with Home Connect functionality conforms to the
basic requirements and other relevant provisions of Dir-
ective 2014/53/EU.
A detailed RED Declaration of Conformity can be found
online at siemens-home.bsh-group.com among the ad-
ditional documents on the product page for your appli-
ance.
Hereby, BSH Hausgeräte GmbH declares that the ap-
pliance with HomeConnect functionality is in compli-
ance with relevant statutory requirements.1
A detailed Declaration of Conformity can be found on-
line at siemens-home.bsh-group.com/uk/ among the
additional documents on the product page for your
appliance.1
2.4 GHz band (2400–2483.5MHz): Max. 100mW
5-GHz band (5150–5350MHz + 5470–5725MHz):
max. 50mW
1Only applies to Great Britain

en Installation instructions
16
BE BG CZ DK DE EE IE EL ES
FR HR IT CY LI LV LT LU HU
MT NL AT PL PT RO SI SK FI
SE NO CH TR IS UK (NI)
5GHz WLAN (Wi-Fi): For indoor use only.
AL BA MD ME MK RS UK UA
5GHz WLAN (Wi-Fi): For indoor use only.
Installation instructions
16 Installation instructions
Installation instructions
Observe this information when installing the appliance.
16.1 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
16.2 Appliance dimensions

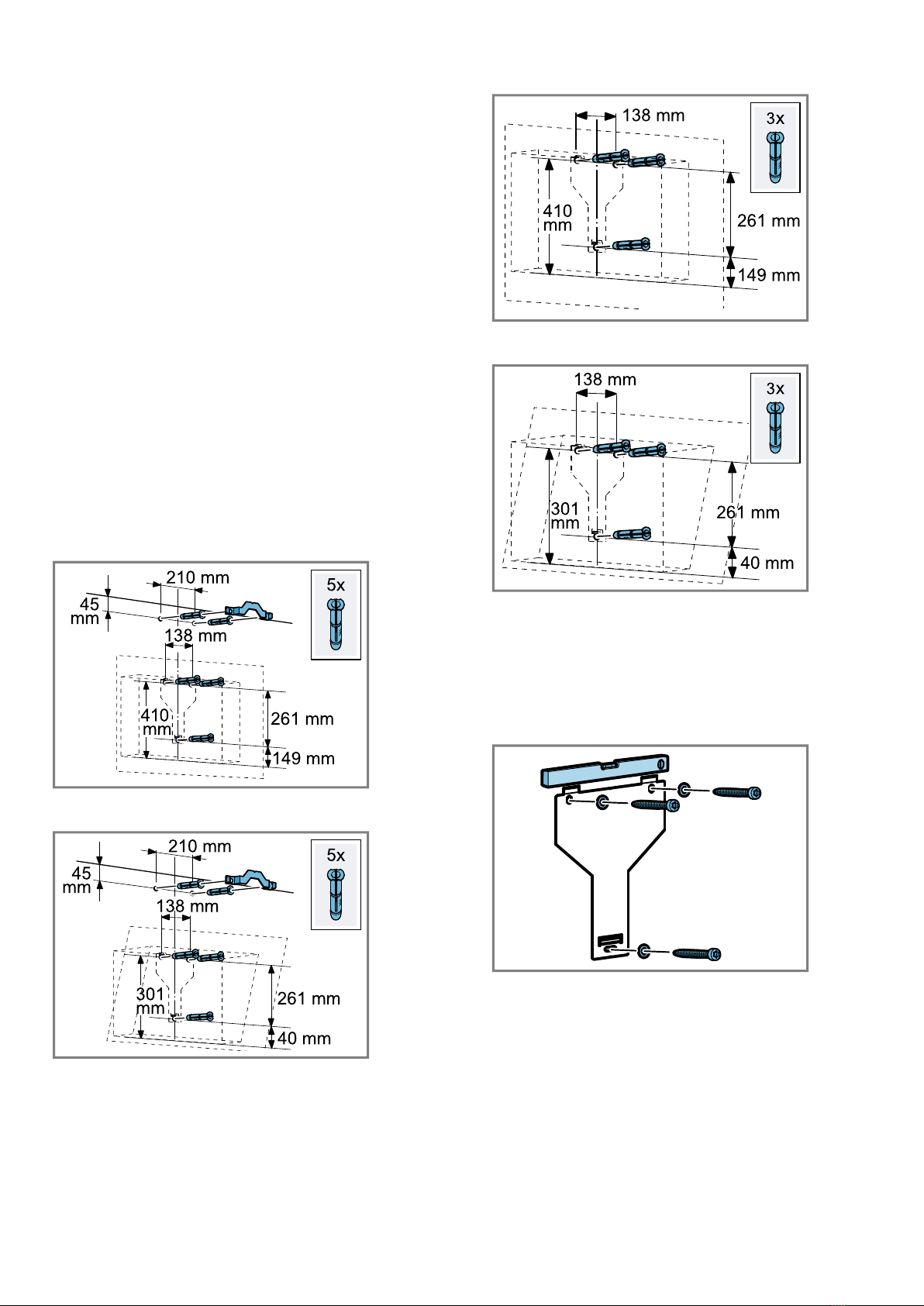

You will find the dimensions of the appliance here
16.3 Safety clearances
Comply with the safety clearances for the appliance.

Installation instructions en
17
For Australia and New Zealand the minimum safety
clearance above electrical cooktops must be 600 mm.
16.4 Secure installation
Follow these safety instructions when in-
stalling the appliance.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being
drawn back in. Room-air-dependent heat-pro-
ducing appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and dis-
charge the exhaust gases into the open
through an exhaust gas system (e.g. a chim-
ney). With the extractor hood switched on, air
is extracted from the kitchen and the adjacent
rooms. Without an adequate supply of air, the
air pressure falls below atmospheric pressure.
Toxic gases from the chimney or the extrac-
tion shaft are sucked back into the living
space.
▶Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
▶It is only possible to safely operate the ap-
pliance if the pressure in the room in which
the heating appliance is installed does not
fall below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means. An in-
coming/exhaust air wall box alone is not
sufficient to ensure compliance with the
limit.
▶In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures
to you.
▶Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulat-
ing-air mode.
Risk of poisoning from flue gases being
drawn back in.
▶If an extractor hood with an open-flued heat
production source is installed, the power
supply for the extractor hood must be
provided with a suitable safety switch.
Risk of poisoning from flue gases being
drawn back in.
▶Do not emit the exhaust air into a smoke or
exhaust gas flue that is in operation.
▶Do not emit the exhaust air into a shaft that
is used to ventilate installation rooms for
heat-producing appliances.
▶If the exhaust air is to be conveyed into a
smoke or exhaust gas flue, you must obtain
the consent of the heating engineer re-
sponsible.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
WARNING‒Risk of fire!
The grease deposits in the grease filter may
catch fire.
▶Never work with naked flames close to the
appliance (e.g. flambéing).
▶Do not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-remov-
able cover is present. There must be no fly-
ing sparks.
▶The specified safety clearances must be
complied with in order to prevent a build-up
of heat.

en Installation instructions
18
▶Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must al-
ways be provided for. If gas hobs and elec-
tric hobs are operated together, the largest
specified clearance applies.
▶The appliance must be installed with no
more than one side directly next to a tall
unit, an upper cabinet or a wall. The dis-
tance between the appliance and the tall
cabinet, an upper cabinet or the wall must
be at least 50mm.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
▶All fastening components must be fixed
firmly and securely in place.
Risk of injury from glass splinters.
▶Protect the filter cover against impact.
▶Do not drop the filter cover.
▶Wear protective goggles during installation.
The appliance is heavy.
▶To move the appliance, twopeople are re-
quired.
▶Use only suitable tools and equipment.
The appliance is heavy.
▶The appliance must not be fitted directly
onto plasterboard or similar lightweight ma-
terials.
▶To ensure correct installation, you must use
a material which is sufficiently stable and
suitable for both the structural conditions
and the weight of the appliance.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
▶Open the filter cover slowly.
▶Take hold of the filter cover after opening
until it no longer swings out.
▶Close the filter cover slowly.
Risk of injury when opening and closing the
hinges.
▶Keep your hands away from the hinges.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appli-
ance may damage the connecting cable.
▶Do not kink or trap the connecting cable.
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page14
Improper repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by trained spe-
cialist staff.
Incorrect installation is dangerous.
▶Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
▶Connect the appliance to a power supply
with alternating current only via a properly
installed socket with earthing.
▶The protective conductor system of the do-
mestic electrical installation must be prop-
erly installed.
▶Never equip the appliance with an external
switching device, e.g. a timer or remote
control.
▶When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
▶When installing the appliance, check that
the power cable is not trapped or dam-
aged.
16.5 General information
Follow these general instructions during the installation.
¡For the installation, observe the currently valid build-
ing regulations and the regulations of the local elec-
tricity and gas suppliers.

Installation instructions en
19
¡When discharging the exhaust air, the official and
legal regulations, such as the regional building
code., must be observed.
¡In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
¡The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
16.6 Installation recommendation
We recommend fitting the appliance such that the
lower edge of the glass screen is in line with the lower
edges of the adjacent wall-hung cabinets.
B
B
Maintain the safety clearances to the hob. →Page16
16.7 Instructions for the electrical
connection
In order to safely connect the appliance to the elec-
trical system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
▶The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
▶If this is not possible, an all-pole isolating switch
must be integrated into the permanent electrical in-
stallation according to the conditions of overvoltage
category III and according to the installation regula-
tions.
▶The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB)
in the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
▶Do not kink or trap the connecting cable.
¡The connection data can be found on the rating
plate. →Page14
¡The connecting cable is approx.1.30m long.
¡This appliance complies with the EC interference
suppression regulations.
¡The appliance corresponds to protection class 1.
You should therefore only use the appliance with a
protective earth connection.
¡Do not connect the appliance to the power supply
during installation.
¡Ensure that the protection against contact is guaran-
teed during installation.
16.8 Information on the installation situation
¡Install this appliance on the kitchen wall.
¡To install additional special accessory parts, ob-
serve the enclosed installation instructions.
¡The appliance must be installed with no more than
one side directly next to a tall unit, an upper cabinet
or a wall. The distance between the appliance and
the tall cabinet, upper cabinet or the wall must be at
least 50mm.
¡The width of the extractor hood must correspond at
least with the width of the hob.
¡To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
Air extraction mode
¡If you operate the appliance in air extraction mode,
a flue cover must be installed.
Circulating-air mode
¡If you are operating the appliance in circulating-air
mode, an optional accessory must be fitted. To do
this, refer to the installation instructions provided.
¡For operation in circulating-air mode, the installation
of the flue cover is optional.
16.9 Installation
Checking the wall
1. Check whether the wall is horizontal and adequately
load-bearing.
The maximum weight of the appliance is 40kg.
2. Drill the hole depth in accordance with the length of
the screws.
3. Use the enclosed screws and wall plugs.
The enclosed screws and wall plugs are suitable for
use with solid brickwork. Use suitable fixing material
for other structures, e.g. plasterboard, porous con-
crete, poroton bricks.
4. Install the appliance with a fixing material which is
sufficiently stable and has been adjusted accord-
ingly for both the structural conditions and the
weight of the appliance.
5. Check the cut-out area for existing cables of other
appliances.
Preparing the wall
1. Observe the information on the installation situation.
→Page19

en Installation instructions
20
2. Ensure that there are no electrical wires, gas pipes
or water pipes in the area where holes are to be
drilled.
3. Cover the hob to prevent damage.
4. Determine the position of the extractor hood and
lightly mark where the lower edge of the appliance
should be on the wall.
‒Determine the centre of the hob.
‒Comply with the safety clearances for the hob.
→Page16
We recommend fitting the extractor hood such that
the lower edge of the glass screen is in line with the
lower edges of the adjacent wall-hung cabinets.
5. Place the template against the line drawn on the
wall and secure it in place.
6. Mark the positions for the screws.
7. For the installation with the flue cover, separate the
template along the marked cut line.
8. Drill the 8mmdiameter holes to a depth of 80mm
for the fastenings.
9. Remove the template.
10. Insert the wall plugs flush with the wall.
Variant A: Flat extractor hood with flue cover
Variant B: Sloped extractor hood with flue cover
Variant A: Flat extractor hood without flue cover
Variant B: Sloped extractor hood without flue cover
Installing the appliance bracket
1. Screw on the appliance bracket for the extractor
hood hand-tight.
2. Use a spirit level to align the appliance bracket hori-
zontally and screw it firmly in place.
Installing the appliance
1. Remove the protective film from the rear.
‒Once the appliance is installed, fully remove the
protective film.
2. Hook the appliance into the appliance bracket in
such a way that it clicks firmly into place.
3. To align the appliance, slide the appliance to the
right or to the left as required.
