Computer Controlled Slimline Frontloader
Operating and Installation Instructions en
S
Silver 2205Silver 2205
This Manual: http://www.manuallib.com/file/2488819

Please read this specification carefully before you use the product.
Any failure and losses caused by ignoring the above mentioned items and cautions
mentioned in the operation and installation instruction are not covered by our warranty
and any liability. Please keep all documents in a safety place for future reference. If
you have any doubt, please contact our local service center of dealer.
If you need an English user manual, please download it from siemens web. Or you
can send the E-mail to service department, or you can call up service hot line for free
supply. Thanks!
http://www.siemens-ha.com.cn
[email protected]
4008899999
This Manual: http://www.manuallib.com/file/2488819

1
Table of Contents
Operating
Instructions
Installation
Instructions
Disposal Information . . . . . . . . . . . . . . . . . . . . . .
Environmental Protection/Conservation Issues . .
Safety Precautions and Warnings . . . . . . . . . . . .
Your New Washing Machine . . . . . . . . . . . . . . . .
Programmes and Functions . . . . . . . . . . . . . . . .
Laundry Detergents and Additives . . . . . . . . . . .
First Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . .
Preparing, Sorting and Loading the Laundry . . .
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
When the Programme has Ended. . . . . . . . . . .
Special Applications . . . . . . . . . . . . . . . . . . . . .
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Minor Faults . . . . . . . . . . . . . .
Customer Service . . . . . . . . . . . . . . . . . . . . . . .
Programme Table . . . . . . . . . . . . . . . . . . . . . .
Installation, Connection and Transport . . . . . . .
3
8
15
17
18
23
26
27
29
34
38
39
40
2
4
6
This Manual: http://www.manuallib.com/file/2488819

Disposal Information
Your old machine
Dispose of packing materials in a responsible
manner.
Keep packing materials out of the reach of
children. Packing materials are not toys.
Reprocessing and re-using materials saves
raw materials and reduces waste.
All packing materials used are environment
friendly and re-usable.
Cardboard boxes consist of 80% to 100%
recycled paper.
Plastic wrappings are made from polythene(PE),
the tapes are made from polypropylene(PP) and
the CC-free packing is made from foamed
polystyrene (PS).
These materials are pure hydrocarbon compounds
and can be recycled.
Render the machine inoperable when it can no
longer be used. Remove the plug from the socket
and cut off the power cable.
Destroy the catch on the porthole door. Prevent
children at play from being locked in and risking
death by suffocation.
The old machine contains valuable materials which
should be recycled.
Please make your contribution to the environment
by assisting with proper disposal or recycling.
The new machine s
packaging
,
2
This Manual: http://www.manuallib.com/file/2488819

Environmental Protection
Conservation Issues
Through the economical use of energy, water
and detergent, your appliance is kind to the
environments as well as your household budget.
You can increase the economy and environ-
mental friendliness of your machine by
washing maximum loads:
Cottons/coloureds: 5.2kg
Easy-Care: 2.6kg
Delicates/Wool: 2.0kg
Single Wash: 3.5kg
0 C
60 C programme achieves
How to save energy:
For small amounts of laundry, the automatic
control system reduces the consumption of both
water and energy.
Where possible, use the Cottons/coloureds
Intensive programme and set the
temperature 60 C instead of the Cottons/
coloureds Prewash with 9 programme.
This a cleaning
result comparable to that of the 90 C programme
using considerably less energy.
How to save water, energy and detergent:
Avoid using the Prewash function when washing
lightly normally soiled laundry.
How to save energy and time:
For lightly soiled laundry, select the short
programme appropriate to the type of textile.
How to save detergent:
Add detergent according to the degree of soiling,
amount of laundry and water hardness, and
observe the detergent manufacture s instructions.
3
Hints and tips
This Manual: http://www.manuallib.com/file/2488819

Safety Precautions and Warnings
Before using for the
first time:
The washing machine must be installed and
operated in a room with the drain.
Install the machine in accordance with the
instructions(page 40-50). Remove the transit
bolts and keep them in a safe place.
Please keep all documents in a safe place for
future reference.
The manufacturer does not accept liability if
these instructions are not followed.
Please contact an authorized technician to
install the machine and instruct the using method.
Please read the enclosed documents carefully
before using the washing machine for the first
time. They contain important information on the
installation, use and safety of the machine.
This machine complies with all relevant safety
regulations.
When heating, the maximum current of the
washing machine is 10A,so please make sure
that the power supply system(voltage; current
and the cable) is applicable to the load of the
applied appliance.
In order to ensure your safety, you must plug
the cable into a socket which connected to
earth. And please check your socket to make
sure that it is connected with reliable earth
correctly.
If the washing machine is visibly damaged, do
not connect it up. If you are in doubt, contact
your customer service representative or dealer.
This machine use thread connection water inlet
hose, connect it to the water tap together with
the machine according to the require of page 37.
(carry out by an authorized technician)
4
This Manual: http://www.manuallib.com/file/2488819

Taking care of your
machine:
Your washing machine is designed for domestic
use only, i.e. for washing machine-washable
textiles in a detergent solution.
Never use flammable; explosible and/or poison-
ous solvents, such as gasoline; alcohol etc. As
the washing lotion. Please only use the lotions
suitable for using in washing machine available
in the market.
Operate the machine with cold tap water only.
When washing:
5
Never let children play with the washing machine.
Never wash the carpet in the washing machine.
Keep pets away from the washing machine.
Exercise caution when pumping out hot deterg-
ent solution.
Do not fill water during washing cycle manually.
When the program
has ended:
When the programme has ended:
The Spin/End indicator light flashes, LED
displays (if Rinse hold was selected,
see page 10). The buzzer works to remind the
end of the programme.
Open the loading door after cutting the power
of machine.
,,
,,
After the program has ended, please cut the
supply of power and water immediately.
Do not lean against the door.
Do not climb onto the washing machine.
Do not expose the machine in the place with
causticity or explosibility gas.(e.g. dust, steam
and gas, etc.)
Do not install the washing machine in a bath-
room or a room very wet.
When transporting
the machine:
Insert the transit bolts by technician.
Drain any water left in the machine.
Take care when moving the machine.
Do not lift the machine by any of the protruding
parts,and the loading door.
Please close the loading door correctly, if it is
difficult to close it, please check if the laundry
is distributed evenly in the drum.
,,
,,
,,
,,
This Manual: http://www.manuallib.com/file/2488819

6
Your New Washing Machine
Adding detergent/cleaning
product
Dispenser I:
Detergent for pre-wash or starch.
Dispenser II:
Detergent for main wash,
soaking agent, water softener,
blench or stain remover.
Dispenser :
Additives, e.g. fabric softener or
former. (Fill at least to lower edge
of insert 1. )
Open the loading door and close it Drain washing solution
if necessary.
This Manual: http://www.manuallib.com/file/2488819

Control Panel
7
“开始／暂停”
Programme selector
For switching the machine on and off and
for selecting the programme.
Can be rotated in either direction.
The programme selector does not rotate
while the programme is running the
programme sequence is electronically
controlled.
Start/Pause button
For starting/pausing the wash cycle
(programme must have been selected).
,,
,,
Indicatolr lights
Indicate the status of the washing machine:
“准备／洗涤”
Ready/Wash Indicate light flashes, if the
programme is selected; is on, the programme
is running.
“漂洗”
Rinse indicator light is on, the rinsing cycle
is running.
“脱水／结束”
Spin/End indicator light is on, the spinning
cycle is running; flashes, if the selected pro-
gramme is ended.
Press buttons for additional functions
(Where required to supplement the
programme)
额外漂洗 Extra Rinse：Additional rinse
cycle.
Additional options can be combined before
the programme is started.
The indicator lights of the buttons come on,
if the additional options are active.
Switch off additional option: press button
again.
脱水键
温度键
时间键

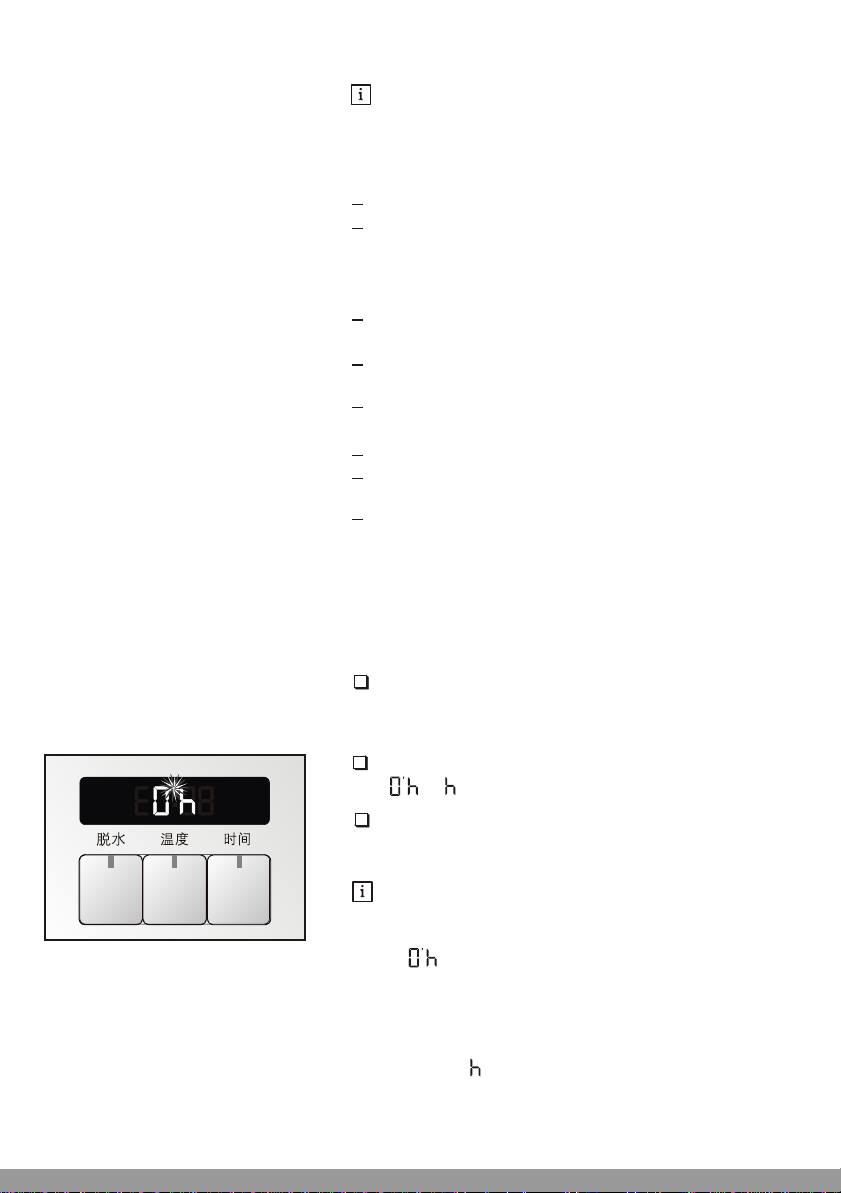

LED display and functions
Indicate the data of programmes, show the Error
information.
Spin button: select desired spin speed
Temperature button: select desired washing
temperature.
Start in time button: select desired start in
time if required. The programme will start auto-
matically after this time.
This Manual: http://www.manuallib.com/file/2488819

8
Programmes and functions
Programme selector
Basic programme
Select the desired programme (refer also to
separate Programme Table ).
Quick , Eco , Normal
Cottons/coloureds
For hard-wearing fabrics.
Prewash Cottons/coloureds
An energy-intensive programme for heavily
soiled hard-wearing textiles made from cotton
or linen.
Intensive Cottons/coloureds
Long time washing programme, for heavily soiled
textiles hard-wearing textiles made from cotton or
linen. Recommend washing temperature 60~90 C.
Quick , Normal , Intensive
Easy-care
For easy-care fabrics made from cotton,
synthetics or blended fabrics.
Delicates
For delicate, washable textiles, e.g. Silk, satin,
synthetic materials or blended fabrics(e.g.
curtains). No subsequent spin cycle with rinsing
period.
Wool
For hand or machine-washable fabrics made
from wool or wool blend.
,,
,,
+
Set washing temperature as required, if a high
temperature was selected, such as 90 C, for the
protection of the drainage pipe, the hot washing
solution is mixed with approx.5 liters of cold water
before being drained.
This Manual: http://www.manuallib.com/file/2488819

Programme options Single wash
Single wash cycle without subsequent drain and
spin cycle.
Rinse
Rinse cycle with subsequent spin cycle for rinsing
hand-washed items or for starching.
Reduced spin speed.
Spin
Spin cycle for spinning hand-washed items after
selection of required speed. Washing water or
rinsing water is drained before the spin cycle.
Double Rinse
Two rinse cycle, to remove the residual washing
solution completely.
Drain
Water is drained after a programme that the water
is still in the drum, such as Rinse hold, for gentle
treatment of delicate laundry.
9
Additional function
buttons
Extra Rinse
An additional rinsing cycle performed; the washing
duration will be prolonged 10 minutes.
Observe the maximum load for each type of fabric;
Remove the laundry immediately after the spin
cycle.(depend on different models)
Spin speed
For your clothes, there are different spin speeds
in different washing programme of SIEMENS
washing machines. (see Maximum spin speed )
ogra
Pr mme
Ma imum spin
x
eep
spd(rm)
model
Cottons Easy-
care
Delicates Wool Rinse SpinSingle
wash
Silver 2205
1000 800 800600 800 800 800 800
Double
Rinse
This Manual: http://www.manuallib.com/file/2488819

10
LED display
Spin
Press this button to select required spin speed.
With addition function Rinse hold .
Temperature
Press this button to select required washing
temperature for selected programme, for the
selectable range, see page 40 Programme
Table .
Time
Selectable start in time range is from 0 to 24
hours, this time will be cancelled when press the
button again. Programme will start automatically
after the setting start in time.
The LED display shows the data of programme
which need to be setup alternately before the
programme starts, such as remaining time, washing
temperature, spin speed etc; only remaining time is
displayed after the programme starts; displays
when the programme has ended; if
was selected, display to remind there is
still washing solution in the washing machine.
,,
,,
,,
,,
,,
,,
,,
,,
,,
,,
Remaining time
Turn the programme selector to desired
programme. Ready/Wash indicator light flashes.
LED display shows remaining time (programme
duration), e.g. 1:18 = 1 hour and 18 minutes.
When the programme has ended, it displays .
If was selected, it displays after
the programme ends.
When the programme has been selected,the
expected programme duration is displayed.
,,
,,
,,
,,
,,
,,
This Manual: http://www.manuallib.com/file/2488819

11
While the programme is running, the programme
duration may be extended or reduced for the
following reasons.
Reductions in time occur because of :
small loads,
reduced heating times, e.g. If the water is very
hot.
Increases in time occur because of:
additional rinse cycle if excessive foam is in the
laundry,
multiple spinning if the laundry is distributed
poorly in the drum,
increased heating times, e.g. When the water
is too cold,
water pressure too low,
selection of an additional option, e.g. Extra
Rinse function after the programme has started.
Very absorbent washing extends the heating
duration.
,,
,,
Start in time Before a programme starts, you can specify by how
many hours the start of the programme is to be
delayed.
Turn the programme selector to desired
programme. Ready/Wash indicator light flashes.
LED display shows remaining time.
,,
,,
Press Time button. The LED display shows
( =hour).
,,
,,
,,
,,
Press Time button again to select required
start in time.
,,
,,
The start in time can be set in 1-hour steps.
The time can be delayed up to a maximum of
24h. If a start in time of 24h has been set, the
can be accessed by pressing the Time
button again.
,,
,,
,,
,,
The start in time starts woring after the Start/
Pause button is pressed. The cursor between
number and flashes until the start in time
finishes and the programme starts.
,,
,,
This Manual: http://www.manuallib.com/file/2488819

12
The start in time is counted down by hour.
When the start in time has elapsed, the
programme starts automatically and the
remaining time is displayed.
If the programme was changed, the start in time
was terminated also. The LED will displays
remaining time. If required, reset the start in time.
The start in time can be changed at any
time before the programme starts. Press the
Time button until the required time appears.
The selected programme will not be changed.
,,
,,
You can add/remove laundry during the start
in time works. Close the loading door immediate-
ly after finishing loading/removing.
Buzzer
The acoustic signal indicates:
that the Start/Pause button and additional
functions (buttons) has been switched on or off,
individual programme statuses (e.g. start of
programme, end of programme), operating
errors and faults.
,,
,,
Signal for switching
buttons on and off
Press the Start/Pause button and set the
programme selector to Cottons+Lines Quick.
Hold down the Start/Pause button until the
signal is emitted. The selected setting is stored.
When the additional functions is switched on,
the long signal is emitted; when the additional
function is switched off, the signal is short.
This function can be switched off by the same
way as switching on it.
,,
,,
,,
,,
Signal for programme
status and Start/Pause
button
,,
,,
Set the programme selector to Cottons+Lines
Quick,press the Extra Rinse button and hold
on, you will hear the acoustic signal on and off
alternately, release the function button when the
signal is on, the buzzer of Start/Pause button
and programme status has been switched on.
,,
,,
,,
,,
This Manual: http://www.manuallib.com/file/2488819

13
When the programme is started by pressing the
Start/Pause button, a short signal is emitted;
when the programme is paused, no signal is
emitted.
When the programme has ended, the acoustic
signal is emitted for 10 minutes to remind the
end of programme. If operating errors and faults
occurs, the buzzer will emit signal for caution.
Make sure that the signal for switching buttons
is not on or has been switched off. Set the
programme selector to Cottons+Lines Quick,
press the Extra Rinse button and hold on,
you will hear the acoustic signal on and off
alternately, release the function button when the
signal is off, the buzzer of Start/Pause button
and programme status has been switched off.
,,
,,
,,
,,
Childproof lock
You can secure your washing machine to prevent
selected functions from being inadvertently changed.
If the childproof lock has been selected:
No changes can be made while the program is
running,
the symbol flashes if a program setting is
inadvertently changed,
should the appliance be switched off and on
while a program is running the program will
continue at the point at which it was interrupted.
,,
,,
4秒
Activating the
childproof lock
Set the programme selector to the required
programme. If required, select other settings.
Load the laundry and close the loading door.
Press the Start/Pause button.
The programme starts.
Press the Start/Pause button and hold down
(for approx. 4 seconds) until the symbol is
displayed after the appears for a while.
,,
,,
,,
,,
,,
,,
,,
,,
This Manual: http://www.manuallib.com/file/2488819

Release the Start/Pause button, the
childproof lock is activated, the symbol is
displayed. The LED display shows remaining
time and symbol during the washing cycle.
14
,,
,,
,,
,,
The childproof lock must be deactivated before
making programme changes or ending programmes
with setting (Rinse hold).
Press the Start/Pause button and hold down
(for approx.4 seconds)until the symbols
goes out.
Deactivate the
childproof lock
If you have accidentally changed the running
programme, the childproof lock will ensure the
machine work with original programme. LED
displays symbol only.
,,
,,
,,
,,
,,
,,
,,
,,
Caution!
The childproof lock cannot be deactivated
if you have accidentally changed the
programme.
This Manual: http://www.manuallib.com/file/2488819

Laundry Detergents and
Additives
Amount of
detergent
!Risk of explosion
not use solvent-based cleaning agents in
fully automatic washing machines. Explosion
hazard.
Do
Keep detergents and additives out of the reach
of children.
You can use any standard powder or liquid de-
tergent which is suitable for automatic washing
machines.
Do not use any detergent boosters containing
solvents or dirt and stain-removing spraying
near the machine, as these could damage the
machine.
Do not use non-automatic detergent as these
produce too much foam.
The best washing results will only be achieved
if you add the correct amount of detergent.
Observe the instructions for use shown on the
detergent packing.
When using liquid detergents, you can use any
measuring aids provided with the detergent,
such as dosage balls of bags.
Please put the liquid detergents into correct
chamber.
The amount of detergent depends on:
- water hardness
- degree of soiling
- laundry load
- amount of detergent to be added according to
its manufacturer.
15
This Manual: http://www.manuallib.com/file/2488819

Dispensing the correct amount of detergent
relieves the strain on the environment and ensures
optimum washing results.
Frequent use of insufficient detergent will eventually
become noticeable as follows:
- washing appears grey or not properly clean
- grey-brown stains(grease marks) form on the
washing
- scale builds up on the heating elements
Too much detergent results in:
- unnecessarily high environmental pollution
- due to the generation of too much foam, the
washing is hardly agitated which leads to
poor washing results.
The amount of detergent indicated on its packaging
refers to a full machine load.
For small loads or less soiling, reduce the amount
of detergent.
Filling laundry
detergent and/or
additive dispensers
Chamber I:
Detergent for prewash, starch or pre-soaking
agent.
Chamber II:
Detergent for main wash, water softener, bleach
and stain removal product.
Chamber :
Additives, e.g. fabric softener of former.
- Do not fill beyond the MAX mark, otherwise
will be flushed into the machine together with
the detergent at the start of the program.
- If the liquid additive is thick, mix with a little
water before dispensing(prevents clogging of
the overflow).
Pull out the detergent dispenser up to the end
stop.
Add the detergent and/or additive.
Close the detergent dispenser.
,,
,,
16
This Manual: http://www.manuallib.com/file/2488819

The Spin/End indicator light flashes if the
selected programme is ended. Start/Pause
indicator light goes out, LED display shows
the buzzer emit the signal.
Turn the programme selector to O off .
First Wash Cycle
The installation of the washing machine is
finished.(see page 40-50)
All machines are all tested in the factory. So, it
maybe left a bit little of water in the drum.
Please carry out the first wash cycle without
laundry to remove any water.
Pour half a measuring cup of detergent into
chamber II.
Do not use a special detergent for delicates or
wollens as these will create too much foam.
Input about 1 liter of water in chamber II.
Pull the detergent drawer out as far as it will go.
Turn the tape ON.
Do not load any laundry.
Turn the programme selector to Cottons/
coloureds Prewash and set the temperature
to 90 C, Ready/Wash indicator light flashes.
,,,,
,,
Press the Start/Pause button.
Ready/Wash and Start/Pause indicator lights
are on. The programme starts.
,,,,
,,
,,,,
,,
,,,,
,,
,,,,
,,
,,,,
,,
17
+
,,
,,
This Manual: http://www.manuallib.com/file/2488819
