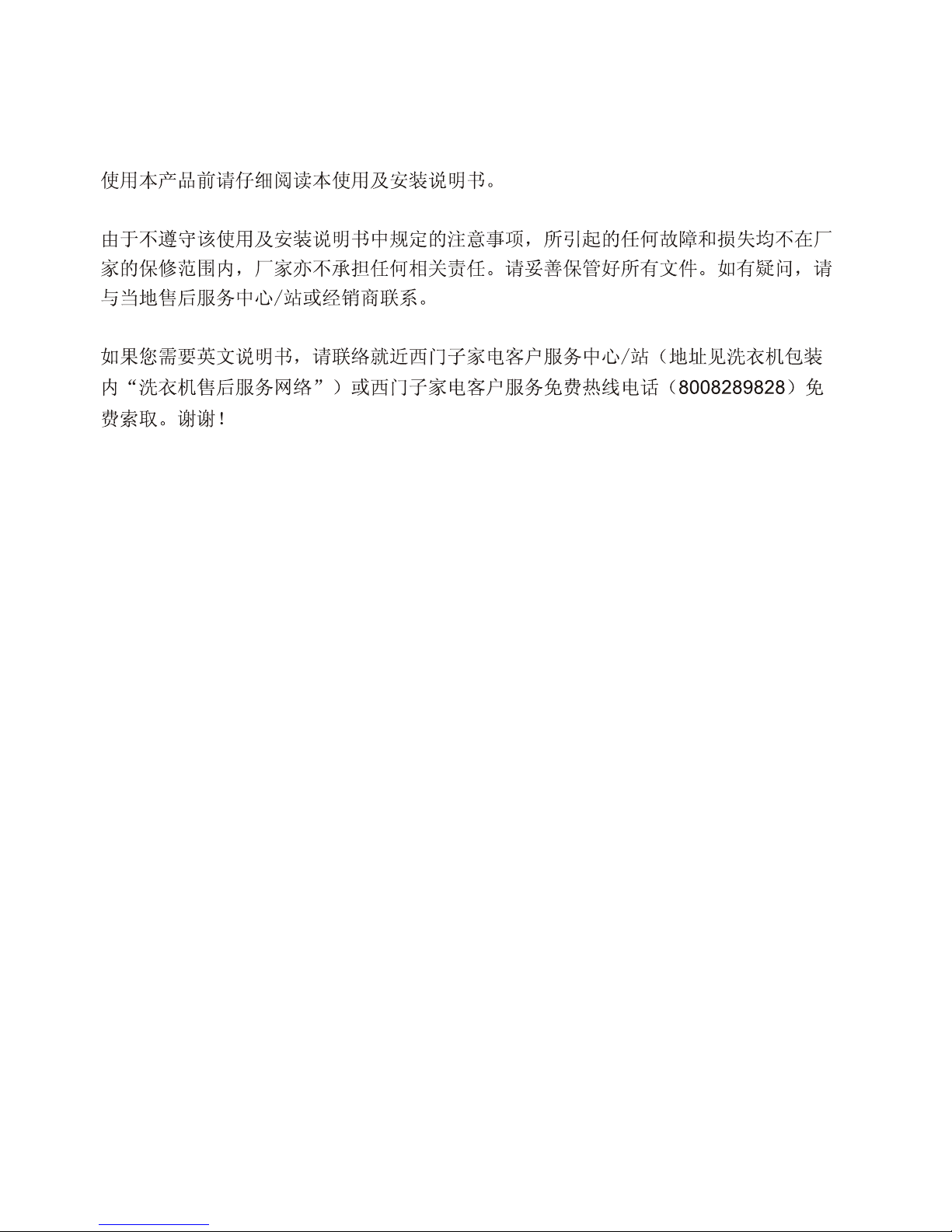

If you need an English user manual, please contact our local CS center/station
specified in the "Washing Machine CS network" in your washing machine package
or call our customer service free hotline [phone]) for free supply. Thanks.
http://www.siemens - ha.com.cn
[email protected]
Address:
66. Wang Zhuang Road, Wuxi 214028,
Jiangsu Province, P. R. China
Web site:
Email:

Disposal Information . . . . . . . . . . . . . . . . . . . . . .
Environmental Protection/Conservation Issues . .
Your New Washing Machine . . . . . . . . . . . . . . . .
First Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . . .
Laundry Detergents and Additives . . . . . . . . . . .
Washing with standard settings. . . . . . . . . . . . .
Washing with individual settings . . . . . . . . . . . . .
When the Program has Ended. . . . . . . . . . . .
Special Applications . . . . . . . . . . . . . . . . . . . . . .
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Minor Faults . . . . . . . . . . . . . .
Customer Service . . . . . . . . . . . . . . . . . . . . . . . .
Program Table . . . . . . . . . . . . . . . . . . . . . . .
Installation, Connection and Transport . . . . . . . .
Adjust the Volume of Buzzer and
audible feedback of Start button. . . . . . . . . .
Audible Feedback of Function Button . . . . . . .
Safety Precautions and Warnings . . . . . . . . . . . .
Preparing, Sorting and Loading the Laundry . . .
．
．．
．．
1
Operating Instructions
Table of Contents
Installation Instructions
2
3
4
6
13
14
19
21
23
27
29
31
36
39
40
41
Appendix 50
51
,,
,,

Disposal Information
Your old machine
Dispose of packing materials in a responsible manner.
Keep packing materials out of the reach of children.
Packing materials are not toys.
Reprocessing and re-using materials saves raw mat-
erials and reduces waste.
All packing materials used are environment friendly
and re-usable.
Cardboard boxes consist of 80% to 100% recycled
paper.
Plastic wrappings are made from polythene(PE), the
tapes are made from polypropylene(PP) and the CC-
free packing is made from foamed polystyrene (PS).
These materials are pure hydrocarbon compounds a-
nd can be recycled.
Render the machine inoperable when it can no long-
er be used. Remove the plug from the socket and
cut off the power cable.
Destroy the catch on the porthole door. Prevent chil-
dren at play from being locked in and risking death
by suffocation.
The old machine contains valuable materials which
should be recycled.
Please make your contribution to the environment by
assisting with proper disposal or recycling.
2
The new machine s
packaging
,

Environmental Protection
Conservation Issues
Through the economical use of energy,water and
detergent,your appliance is kind to the environ-
ments as well as your household budget.
You can increase the economy and environm-
ental friendliness of your macnine by washing
maxium loads:
refer to page 39 program table
℃
℃
℃
How to save energy:
For small amounts of laundry,the automatic cont-
rol system reduces the consumption of both water
and energy.
Where possible,use the 60 Cottons/coloureds
program with additional function Intensive Stains
instead of the 90 Cottons/coloureds program.
The extended washing duration means that a cle-
aning result comparable to that of the 90 pro-
gram is achieved using considerably less energy.
How to save water,energy and detergent:
Avoid using the Prewash function when washing
lightly normally soiled laundry.
How to save energy and time:
For lightly soiled laundry,select the short program
appropriate to the type of textile.
How to save detergent:
Add detergent according to the degree of soiling,
amount of laundry and water hardness, and obs-
erve the detergent manufacture s instructions.
,,
,,
3
,

Safety Precautions and Warnings
The washing machine must be installed and op-
erated in a room with the drain.
Install the machine in accordance with the instru-
ctions(page 41-49). Remove the transit bolts and
keep them in a safe place.
Please keep all documents in a safe place for fu-
ture reference.
The manufacturer does not accept liability if these
instructions are not followed.
Please contact an authorized technician to install
the machine and instruct the using method.
Please read the enclosed documents carefully
before using the washing machine for the first
time. They contain important information on the
installation, use and safety of the machine.
Before using for the
first time:
This machine complies with all relevant safety
regulations.
When heating, the maximum current of the was-
hing machine is 10A,so please make sure that
the power supply system(voltage; current and
the cable) is applicable to the load of the applied
appliance.
In order to ensure your safety, you must plug the
cable into a socket which connected to earth. And
please check your socket to make sure that it is
connected with reliable earthcorrectly.
If the washing machine is visibly damaged,do not
connect it up. If you are in doubt,contact your
customer service representative or dealer.
This machine use thread connection water inlet
hose, connect it to the water tap together with
the machine according to the require of page 44.
(carry out by an authorized technician)
4

Taking care of your
machine:
When the program
has ended:
When transporting
the machine:
Do not lean against the door.
Do not climb onto the washing machine.
After the program has ended, please cut the su-
pply of power and water immediately.
When the program has ended:
The End is indicated(If you select no final spin
function,see page 27).The buzzer of machine s-
ounds(the duration is 10 minutes) to remind the
user that the washing program has ended.Open
the loading door after cutting the power of machine.
Exercise caution when pumping out hot detergent
solution.
Keep pets away from the washing machine.
Never let children play with the washing machine.
Never wash the carpet in the washing machine.
Your washing machine is designed for domestic
use only, i.e. for washing machine-washable tex-
tiles in a detergent solution.
Never use flammable; explosible and/or poison-
ous solvents, such as gasoline; alcohol etc. As
the washing lotion. Please only use the lotions
suitable for using in washing machine available
in the market.
Do not expose the machine in the place with cau-
sticity or explosibility gas.(e.g. dust, steam and
gas, etc.)
Do not install the washing machine in a bathroom
or a room very wet.
Insert the transit bolts by technician.
Drain any water left in the machine.
Take care when moving the machine.
Do not lift the machine by any of the protruding
parts,and the loading door.
Operate the machine with cold tap water only.
When washing:
,,
,,
5
,,
,,

Your New Washing Machine
Filling laundry detergent
and/or additive dispensers.
Chamber I:
Detergent for pre-wash,starch,
or pre-soaking agent.
Chamber II:
Detergent for main washing period,
water softener, blench and stain-
removing salt.
Chamber :
Additives, e.g. fabric softener or
former(Do not exceed Max )
Open the loading door and close it Drain washing solution
if necessary.
,,
,,
6

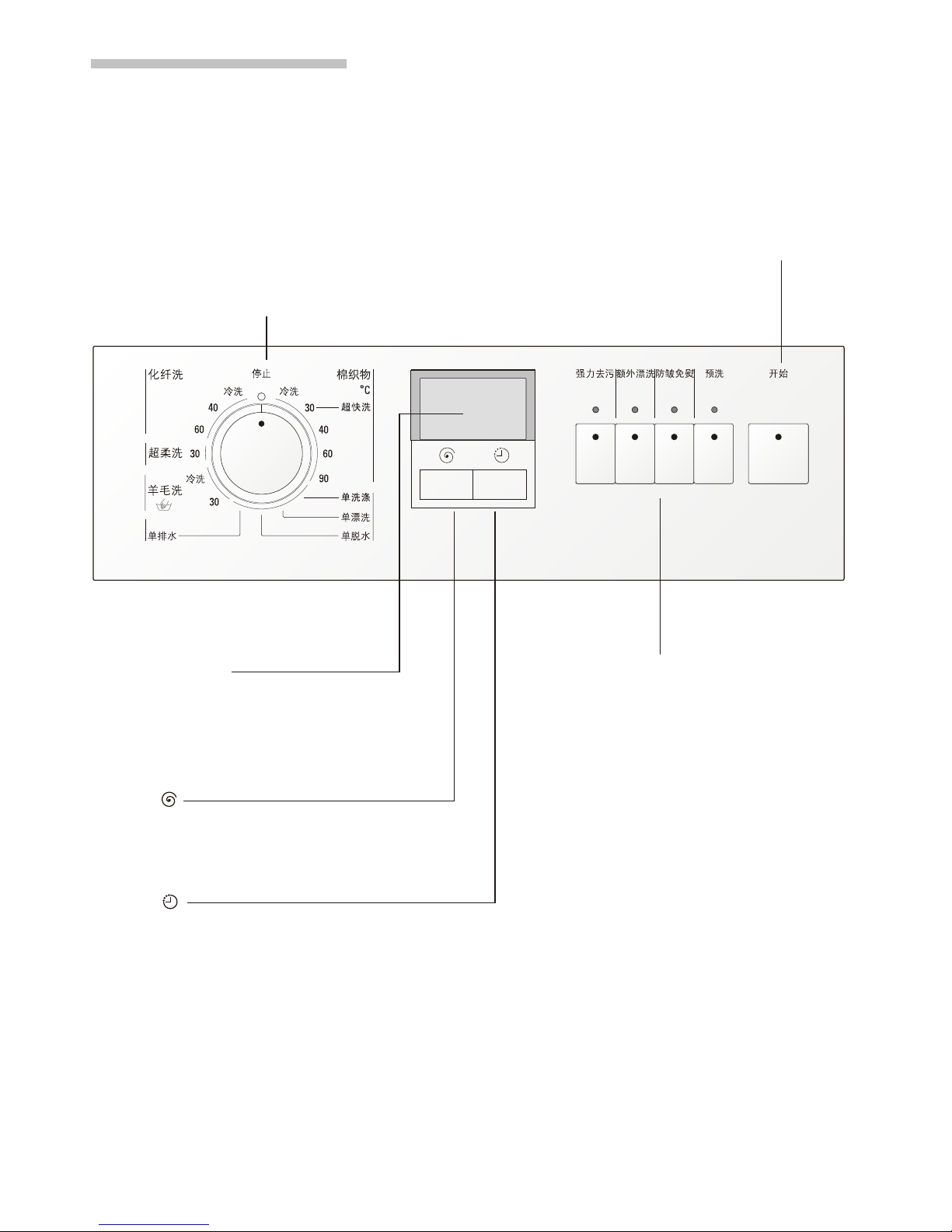

Control Panel
7
For starting the wash cycle
(program must have been selectd).
Program selector
For switching the machine on and off and
for selecting the program.Can be rotated
in either direction.If rotate it during the
washing,the program will be stoped.The
program sequence is electronically controlled.
Start button
,,
,,
Display panel
Indicates the settings which have
been selected(e.g. Spin speed,
Time delay,Childproof lock,
Maximum load)
Button
Selects the spin speed or no final spin.
Button
Selects the the start time(delays the
start of the program).
Buttons for additional options
(In addition to the program if required)
Intensive Stains:extend the washing
duration
Extra Rinse: additional rinsing cycle
Less Ironing: gentle spin
Prewash: actuate prewash
Additional options can be combined.
The indicator lights of the buttons
come on if the additional options
are active.
Switching off the additional option:
Press the button again.Indicator
light goes out.

Z
q
q
－－－
Display panel
Display Notes
Prewash On if selected
Washing Not on if rinse,spin or
drain additional program
was selected
Rinse Not on if spin or drain
additional program was
selected
Final spin/Empty Not on if a program with
the --- setting(without
final spin)
Progress bar For the program status
Overdosage On if too much detergent
dispensed
Childproof lock On if selected
Maximum load Not on if rinse,spin or
drain additional program
was selected
Spin speed or
no final spin
Maximum spin speed of the
program or selected speed
Program duration Expected program duration
Other displays at this location:
Start time
End of program or
end of program
without final spin or
Fault displays
Selected start time
See page 36
* Examples of the display, it will be changed
according to your selected program.
Program status
display
,,
,,
8
2.0KG*
800*
---*
1:00*
1 h*
,
F02*

ｉ
Program status
display
The first row of symbols and the progress bar below
form the program status display. The progress bar
consists of a frame and several segments.
When the program has been selected,the symbols
for the individual program sections are displayed.
The frame of the progress bar flashes and requests
the program to start.
When the program has started,the almost empty
bar is displayed which fills up with segments from
left to right while the program is running.The sym-
bols indicate the program sections which have not
yet run and go out when the particular program
section has run.
At the end of the program all symbols have gone
out and the progress bar is full.
Overdosage The automatic safety system detects excessive fr-
oth in the appliance due to a highly frothing dete-
rgent or an overdosage.At the end of the program
this is indicated in the display field by the
symbol.Dispense less detergent for the next wash
with similar items of washing(same degree of soi-
ling and wash load).
Overdosage of detergent may cause excessive fr-
oth formation and impair the washing and rinsing
results.A rinse cycle is automatically run.
The symbol goes out when the appliance
switches off at the end of the program or if the
program is changed.
The activated childproof lock prevents the selected
program from being changed while the program
is running,see page 25.
Childproof lock
Maximum load The maximum wash load is displayed depending
on the selected program and additional functions,
see page 40.
Spin speed The maximum spin speed is displayed depending
on the selected program and additional functions.
9

Program duration When the program has been selected,the expected
program duration(time after which the program is
expected to end) is displayed.
The program duration is displayed in hours and
minutes,e.g.
01:17 1 hour and 17 minutes
00:35 35 minutes.
When the program has started,the colon : flashes
between hours and minutes and the program
duration counts down in minutes.
When the program ends,the displays shows
(if select no final spin function,see page27).
While the program is running,the program
duration may be extended or reduced for the
following reasons.
Reductions in time occur because of :
small loads,
reduced heating times,e.g. If the water is very hot.
Increases in time occur because of:
additional rinse cycle if excessive foam is in the
laundry,
multiple spinning if the laundry is distributed
poorly in the drum,
increased heating times,e.g. When the water
is too cold,
water pressure too low,
selection of an additional option,e.g. Intensive
Stains function after the program has started.
Very absorbent washing extends the heating
duration.
Start time
10
model
program
maximum spin
speed(rpm)
cottons easy-care delicates wool rinsing
washing spinning
WM 3008XS
Silver 3208XS
,,
,,
,,
,,
,,
,,
ｉ
You can delay the start time,see page 24
1000
1200
800
800
800 800 800 800
800800800800
600
600

Basic program

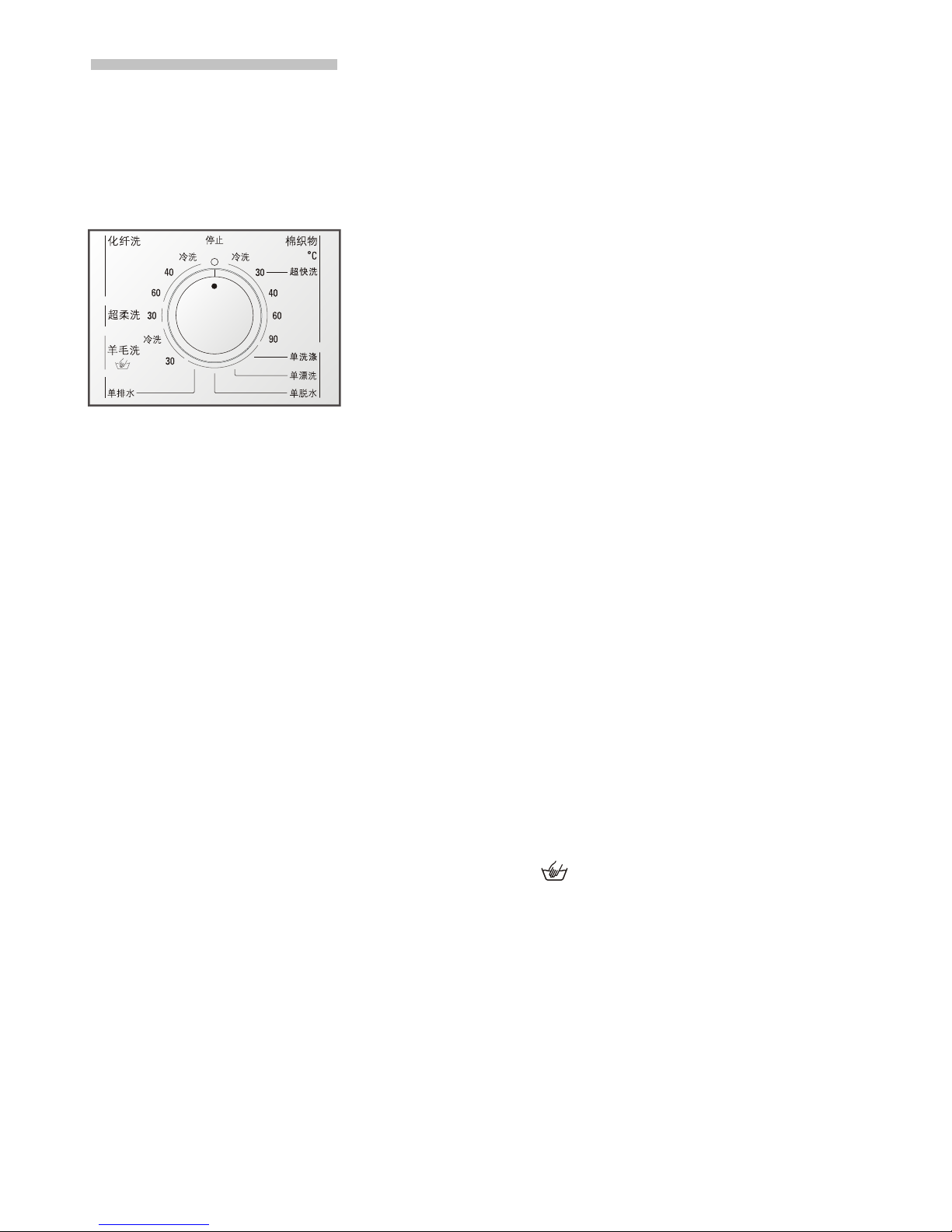

Selecting Program
Select the desired program(refer also to separate
Program Table ).
Cold,30 ,40 Cottons/coloureds
For hard-wearing fabrics.
30 quick washing Cottons/coloureds
For less soiling fabrics made from cottons or linen.
This duration is shorter.
60 Cottons/coloureds
For very dirty ,hard-wearing fabrics.
Select this program can remove stain as protein
and so on.
90 Cottons/coloureds
An energy-intensive program for heat-resistant
fabrics made from cotton or linen.
For the protection of the drainage pipe,the hot
washing solution is mixed with approx.5 liters
of cold water before being drained.
Cold,40 ,60 Easy-care
For easy-care fabrics made from cotton,synthetics
or blended fibres.
30 Delicates
For sensitive,easy-care fabrics made from cotton,
synthetics or blended fibres,and net curtain.No
spinning between rinsing cycles.
Cold,30 Wool
For hand or machine-washable fabrics made
from wool or wool blend.
,,
,,
11
℃℃
℃
℃
℃
℃℃
℃
℃

Special programs Washing
Separate washing cycle.
Rinsing
Separate rinsing cycle with subsequent spin cycle
for easy care fabrics.
Spin
Separate spin cycle. Washing solution or rinsing
water is drained prior to the spin cycle.
Drain
Draining of the rinsing water after a wash program
with the without drain setting for the gentle tre-
atment of delicate laundry.
,,
,,
12
Intensive stains
For very dirty clothes, the washing duration will be
prolonged 20 to 60 minutes after pressing this
button, and this is decided by the program that
you selected.
Extra rinse
An additional rinsing cycle performed; the washing
duration will be prolonged 10 minutes.
Less Ironing
Special spin cycle with post-spin loosening cycle.
The laundry is left lying loosely in the drum,thus
reducing creasing.After pressing this button,the
washing duration and max spin speed will be changed.
Prewash
For very dirty fabrics,washing duration will be
prolonged 20 minutes.
Observe the maximum load for each type of fabric;
Remove the laundry immediately after the spin
cycle.
Additional function
washing prolonged time
maximum spin speed
cottons
30℃otherseasy-care delicates wool rinsing spinning
800rpm 600rpm
10 min 5 min 5 min 5 min no 5 min 5 min

The program ends when all symbols in the upper
row of the display field go out,the progress bar is
completely filled and the program duration is on
,the buzzer sounds.

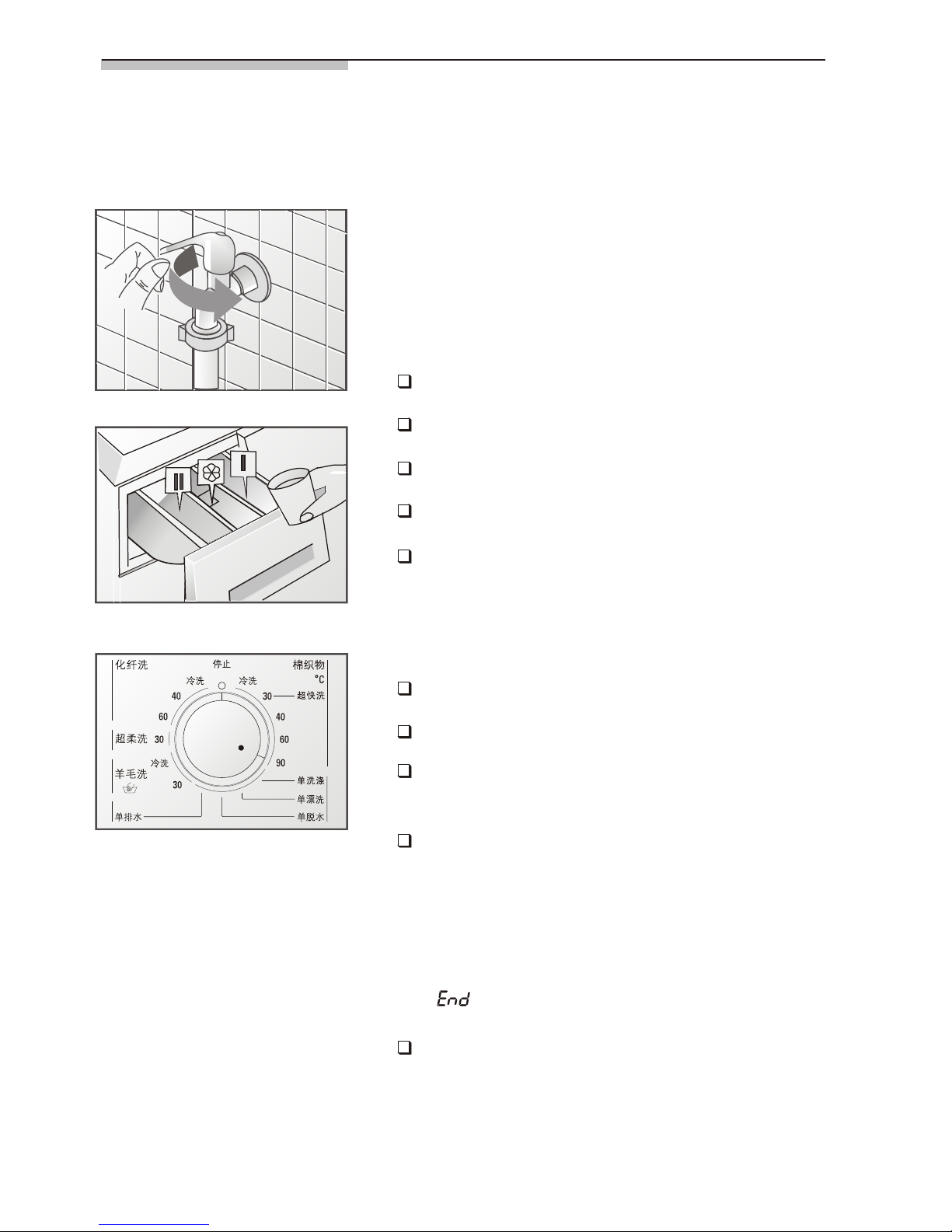

Press the Start button
The washing program starts.
Do not use a special detergent for delicates or
wollens as these will create too much foam.
Pour half a measuring cup of detergent into
chamber II.
Input about 1 liter of water in chamber II.
Pull the detergent drawer out as far as it will go.
Turn the tape ON.
Each machine has been tested in the factory.A
little bit of water can be left in the drum during the
test. Please carry out the first wash cycle without
laundry to remove any water left over from the
factory tests.
The installation of the washing machine is
finished.(see page 41-49)
Turn the program selector to 90 Cottons/
coloureds.
First Wash Cycle
,,
,,
,,
,,
Do not load any laundry.
13
Turn the program selector to off position.
Close the detergent drawer.
Close the washing machine door.
℃

Preparing, Sorting and Loading
the Laundry
Preparing the
laundry
Make sure that wire-cup bras in a pillow case
which can be securely closed with a zip or
buttons. If the wire works itself out of the cup it
may fall through the holes of the drum and
cause extensive damage.
Make sure that the wire-cup bras are machine
washable.
Some items are best turned inside out. These
included knitwear, trousers, T-shirts and swe-
atshirts.
Particularly delicate items, such as tights or lace
curtains, or smaller items, such as tiny socks or
handkerchiefs, should only be washed in a net
bag or pillow case.
Remove curtain runners, or secure them in a
net bag.
Close zips and button up cushion covers, duvet
covers, etc.
Brush sand, coins, etc. out of pocket and cuffs.
Remove any loose items or metal objects, such
as safety pins, paper clips, etc. from the laundry.
!
14

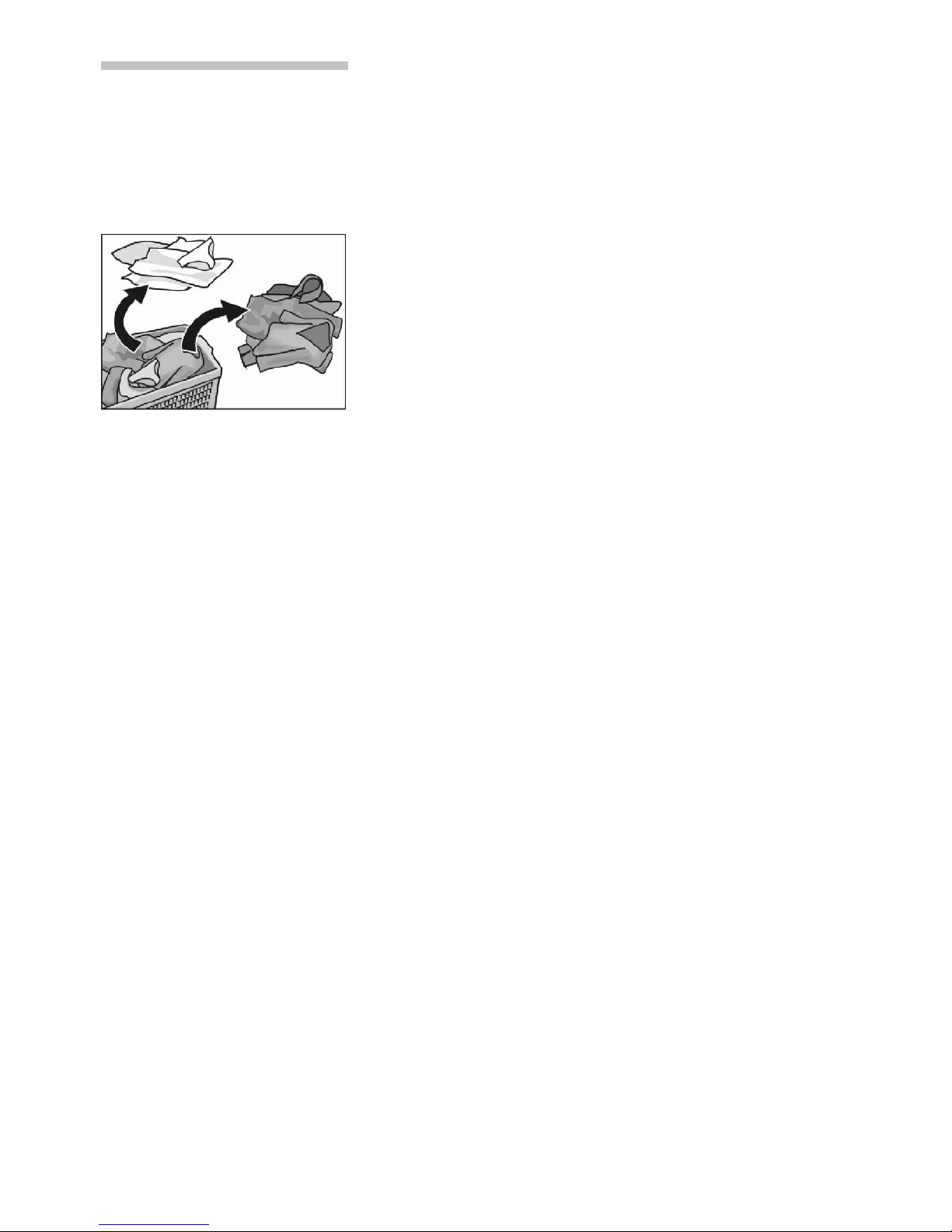

According to colour and
degree of dirt
Sorting the laundry
Degree of dirt
White items may become grey. Always wash
white and coloured items separately.
Items of clothing can become discoloured.
Never wash new multi-coloured items together
with other items.
Caution
Normal dirt
- Light summer clothing and sportswear that
No recognizable dirt or staining. Laundry may
have some body odour.
Slight dirt
has only been worn for a few hours.
- T-shirts, shirts and blouses that have been
used for one day.
- Bed linen and guest towels that have been
used for one day.
Visible dirt and/or some light staining recognizable.
- T-shirts, shirts and blouses that are very sweaty
or have been worn several times.
- Underwear that has been worn for one day.
- Tea towels, hand towels and bed linen that have
been used for up to one week.
- Net curtains (without nicotine staining) that have
not been washed for up to 1/2 year.
15

Intensive dirt
Dirt and/or staining reconizable.
- Kitchen hand towels that have been used for
up to one week.
- Fabric napkins.
- Children's outer clothing or football shirts and
shorts with grass and soil stains.
- working clothes such as overalls or baker's
and butcher's coats.
Typical stains
- Skin fat, cooking oils/fat, sauces, mineral oil,
wax(containing fat/oil)
- Tea, coffee, red wine, fruit, vegetables(blea-
chable).
- Blood, egg, milk, starch(containing protein/
carbohydrate).
- Soot, soil, sand(pigments), red sand on tennis
clothes.
Removing stains
Wherever possible, remove/pretreat stains
whilst they are still fresh.
First, dab soapy water onto the stain. Do not
rub.
Subsequently wash the items of clothing using
the appropriate program.
Several washing cycles may sometimes be
required in order to remove stubborn/dried in
stains.
16

Sorting laundry
according to their
care label
specifications
Loading the laundry
Only wash laundry that is labelled with the
following care symbols:
95
60
60
90
40
40
30
30
40 40 30 30
40 40 30 30
= do not wash
Risk of explosion
Caution
!
Items of clothing that have been pretreated
with solvent-based cleaning agents, e.g. stain
remover and dry cleaning spirit, represent an
explosion hazard once loaded into the washi-
ng machine.
Therefore, these items must be rinsed thoroughly
by hand.
Loose debris in the washing machine drum can
damage the laundry. Before loading the laundry,
check that there is no debris in the drum.
90 Cottons + lines
40 , 30 Delicates
40 , 30 Wollens
(hand and machine-washable)
60 , 40 , 30 Cottons + lines
60 , 40 , 30 Easy-care
Laundry that is labelled with the following care
symbol must not be washed in the washing
machine.
17
℃
℃ ℃ ℃
℃℃ ℃
℃ ℃
℃ ℃

Close the loading door.
Take care not to trap any items of clothing
between the loading door and rubber seal.
When washing a small amount of laundry, the
washing machine automatically reduces the
amount of the water and energy used.
Do not exceed the maximum load: Overloading
will cause poor wash results and encourage
creasing.
Unfold the sorted items of clothing and place
them loosely into the drum. Mix up large and
small items. Items of varying size will distribute
better during the spin cycle.
Open the loading door.
klack
18
