Siemens WD 7105 User manual

en
S
Operating and Installation Instructions
Silver WD7025 (XQG52-7025)Silver WD7025 (XQG52-7025)
Silver WD7125 (XQG52-7125)Silver WD7125 (XQG52-7125)
Silver WD7225 (XQG52-7225)Silver WD7225 (XQG52-7225)
WD 7105 (XQG52-7105)WD 7105 (XQG52-7105)

Please read this specification carefully before you use the product.
Any failure and losses caused by ignoring the above mentioned items and cautions
mentioned in the operation and installation instruction are not covered by our warranty
and any liability. Please keep all documents in a safety place for future reference. If
you have any doubt, please contact our local service center of dealer.
If you need an English user manual, please download it from siemens web. Or you
can send the E-mail to service department, or you can call up service hot line for free
supply. Thanks!
在使用本产品前，请您仔细阅读本使用说明书。
由于不遵守该使用及安装说明书中规定的注意事项，所引起的任何故障和损失均不在
厂家的保修范围内，厂家亦不承担任何相关责任。请妥善保管好所有文件。如有疑问，
请与当地的客户服务中心或经销商联系。
如果您需要英文说明书，请登陆西门子家电网站下载。或您可发送电子邮件，或拨打
服务热线向客户服务部门免费索取。谢谢！
http://www.siemens-ha.com.cn
[email protected]
Manufacturer: BSW Household Appliances Co., Ltd.
Address: 66.Wang Zhuang Road, Wux, Jiangsu Province, P.R.Chinai
Post code: 214028
4008899999
Uniform customer service number in China:
Email:
Website:

1
Table of Contents
Operating
Instructions
Installation
Instructions
Disposal Information . . . . . . . . . . . . . . . . . . . . ..
Environmental Protection/Conservation Issues ..
Safety Precautions and Warnings . . . . . . . . . . . .
Your New Washer-Dryer . . . . . . . . . . . . . . . . . .
Laundry Detergents and Additives . . . . . . . . . . .
First Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . .

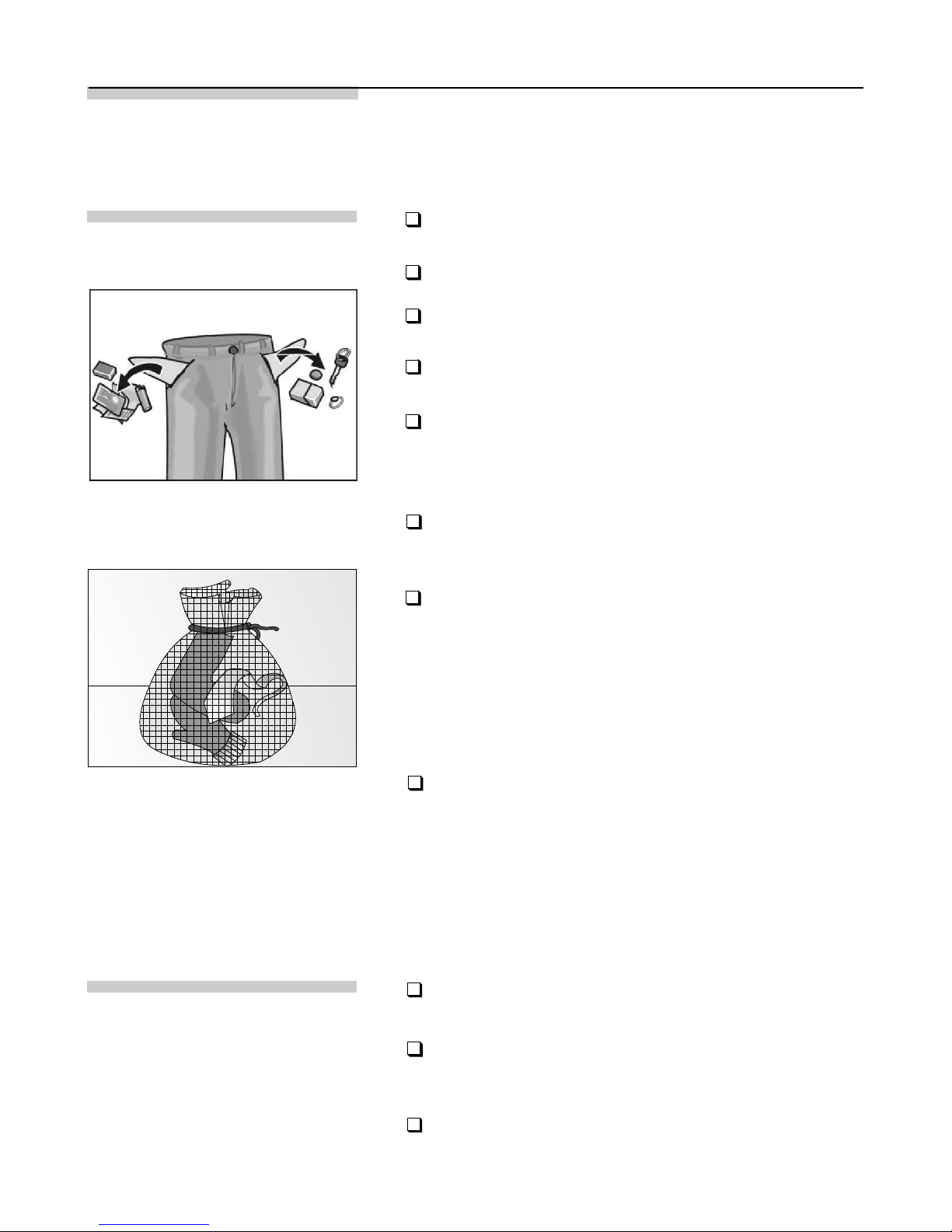

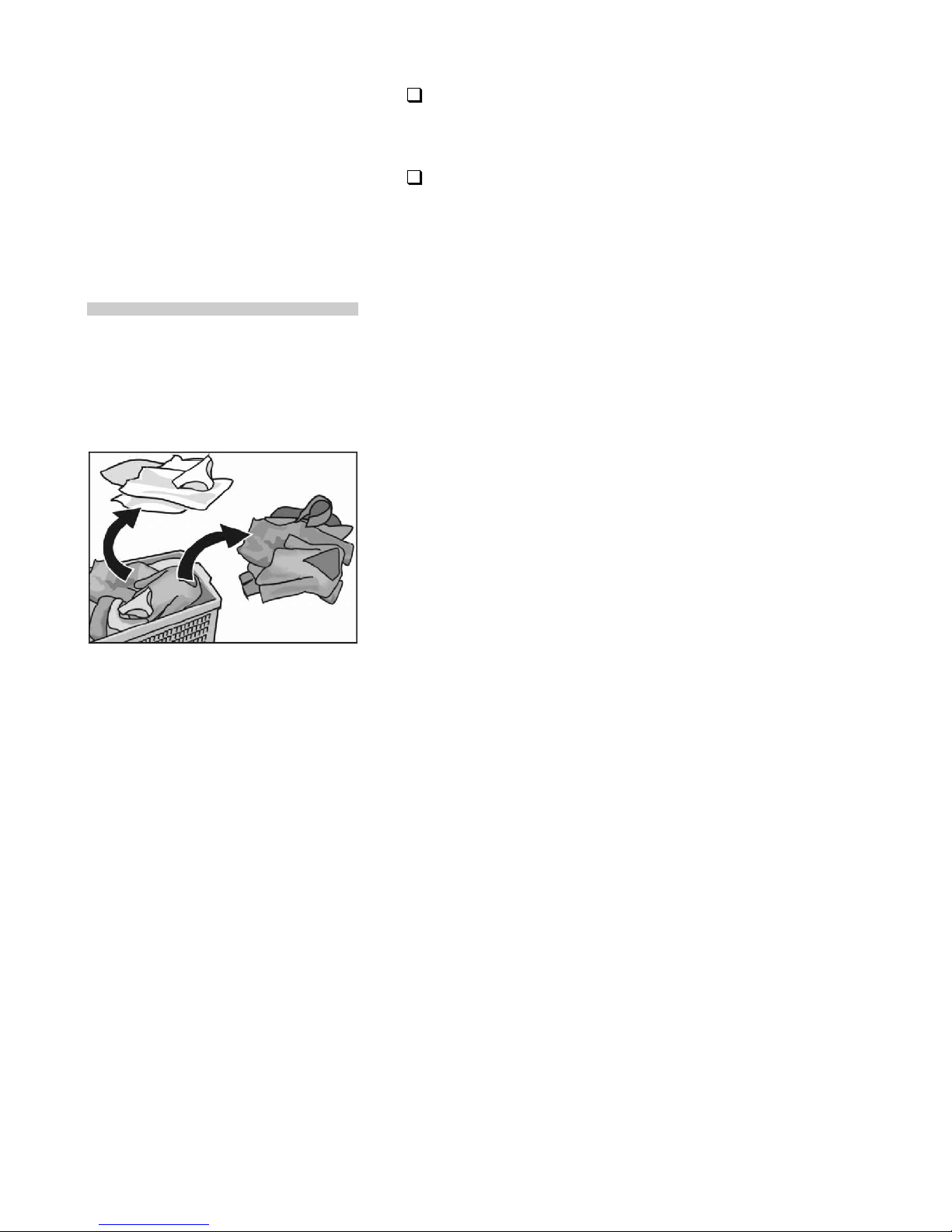

Preparing, Sorting and Loading the Laundry . . .
Washing/Drying(Standard settings) . . . . . . . . . .
Washing/Drying(Individual settings) . . . . . . . . .
During Washing/Drying . . . . . . . . . . . . . . . . . . .
When the Programme has Ended. . . . . . . . . . .
Special Applications . . . . . . . . . . . . . . . . . . . . .
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Minor Faults . . . . . . . . . . . . . .
Customer Service . . . . . . . . . . . . . . . . . . . . . . .
Programme Table . . . . . . . . . . . . . . . . . . . . . .
Installation, Connection and Transport . . . . . .
3
14
16
17
21
24
29
30
32
33
38
41
42
2
4
6
44

2
Your old machine
Dispose of packing materials in a responsible
manner.
Keep packing materials out of the reach of
children. Packing materials are not toys.
Reprocessing and re-using materials saves
raw materials and reduces waste.
All packing materials used are environment
friendly and re-usable.
Cardboard boxes consist of 80% to 100%
recycled paper.
Plastic wrappings are made from polythene(PE),
the tapes are made from polypropylene(PP) and
the CC-free packing is made from foamed
polystyrene (PS).
These materials are pure hydrocarbon compounds
and can be recycled.
Render the machine inoperable when it can no
longer be used. Remove the plug from the socket
and cut off the power cable.
Destroy the catch on the porthole door. Prevent
children at play from being locked in and risking
death by suffocation.
The old machine contains valuable materials which
should be recycled.
Please make your contribution to the environment
by assisting with proper disposal or recycling.
The new machine’s
packaging
Disposal Information

3
Environmental Protection
Conservation Issues
Through the economical use of energy, water
and detergent, your appliance is kind to the
environments as well as your household budget.
You can increase the economy and environ-
mental friendliness of your washer-dryer by
washing/drying maximum loads:
Cottons: 5.2/2.6kg
Easy-Care: 2.6/1.5kg
Delicates/Wool: 2.0kg
Individuation: see P42 “Programme Table”
Single Wash: 3.5kg
0 C
The extend washing time achieves
a cleaning result comparable to that of the 90 C
programmes, but uses considerably less energy.
How to save energy:
For small amounts of laundry, the automatic
control system reduces the consumption of
both water and energy.
Where possible, in Cottons programmes, select
“ intensive ” programme and set the
temperature of 60 C instead of the 9
programme.
How to save water, energy and detergent:
Avoid using the Prewash function when washing
lightly normally soiled laundry.
How to save energy and time:
For lightly soiled laundry, select the short
programme appropriate to the type of textile.
How to save detergent:
Add detergent according to the degree of soiling,
amount of laundry and water hardness, and
observe the detergent manufacture s instructions.
Hints and tips
强洗
Save energy:
If washing is then to be dried in the appliance,
select the higher spin speed - because the more
water that is spun out of the appliance, the less
time and energy is required to dry it.

4
Safety Precautions and Warnings
Before using for the
first time:
The washing machine must be installed and
operated in a room with the drain.
Install the machine in accordance with the
instructions(page 44-51). Remove the transit
bolts and keep them in a safe place.
Please keep all documents in a safe place for
future reference.
The manufacturer does not accept liability if
these instructions are not followed.
Please contact an authorized technician to
install the machine and instruct the using method.
Please read the enclosed documents carefully
before using the washing machine for the first
time. They contain important information on the
installation, use and safety of the machine.
This machine complies with all relevant safety
regulations.
When heating, the maximum current of the
washing machine is 10A,so please make sure
that the power supply system(voltage; current
and the cable) is applicable to the load of the
applied appliance.
In order to ensure your safety, you must plug
the cable into a socket which connected to
earth. And please check your socket to make
sure that it is connected with reliable earth
correctly.
If the washing machine is visibly damaged, do
not connect it up. If you are in doubt, contact
your customer service representative or dealer.
This machine use thread connection water inlet
hose, connect it to the water tap together with
the machine according to the require of page 47.
(carry out by an authorized technician)
Operation conditions:
1). Ambient temperature 0~40 C.
2). Relative humidity of air: under 95% (tested
at 25 C).

5
Taking care of your
machine:
Your washer-dryer is designed for domestic
use only, i.e. for washing machine-washable
textiles in a detergent solution.
Never use flammable; explosible and/or poison-
ous solvents, such as gasoline; alcohol etc. As
the washing lotion. Please only use the lotions
suitable for using in washer-dryer available in
the market.

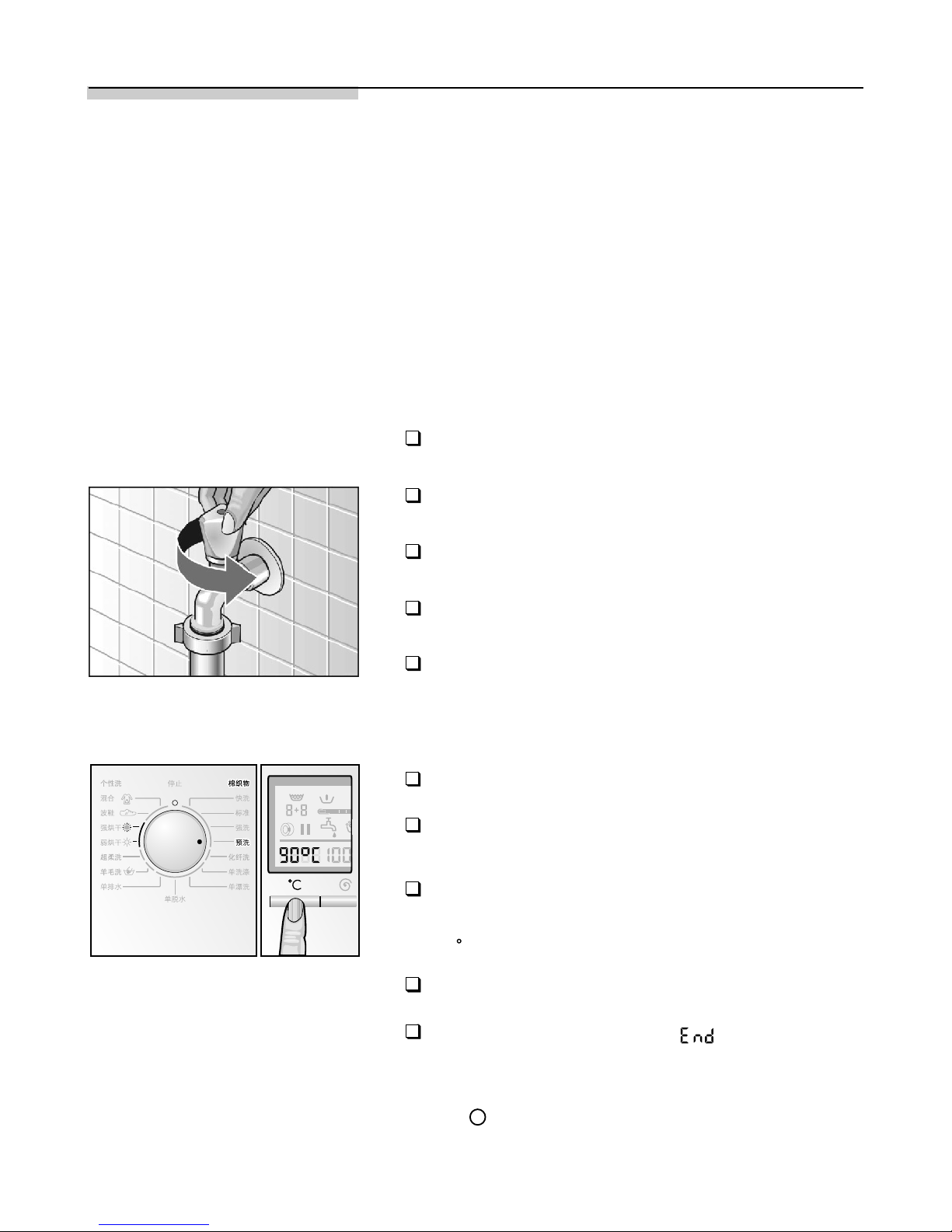

Operate the machine with cold tap water only.
When washing and drying:
Never let children play with the washer-dryer.
Never wash the carpet in the washer-dryer.
Keep pets away from the washer-dryer .
Exercise caution when pumping out hot deterg-
ent solution.
Do not fill water during washing cycle manually.
When the programme
has ended:
When the programme has ended:
LCD screen displays “ ” (if “ Rinse hold ”
was selected, see Page 30). A
remind the end of the programme.
Open the loading door after cutting the power
of machine.
coustic signals of
the buzzer
After the programme has ended, please cut the
supply of power and water immediately.
Do not lean against the door.
Do not climb onto the washer-dryer.
Do not expose the machine in the place with
causticity or explosibility gas.(e.g. dust, steam
and gas, etc.)
Do not install the washer-dryer in a bathroom
or a room very wet.
When transporting
the machine:
Insert the transit bolts by technician.
Drain any water left in the machine.
Take care when moving the machine.
Do not lift the machine by any of the protruding
parts,and the loading door.
Please close the loading door correctly, if it is
difficult to close it, please check if the laundry
is distributed evenly in the drum.
Never open the door when drying.
Due to the use of the condensation principle in
drying, please keep the connected water tap
open during the drying process.

6
Your New Washer-Dryer
Adding detergent/cleaning
product
Dispenser I:
Detergent for pre-wash or starch.
Dispenser II:
Detergent for main wash,
soaking agent, water softener,
blench or stain remover.
Dispenser :
Additives, e.g. fabric softener or
former. (Fill at least to lower edge
of insert 1. )
Open the loading door and close it Drain washing solution
if necessary.

7
Control Panel
“开始/暂停”
“Start/Pause” touch control pushbutton
For starting/pausing the wash cycle
(programme must have been selected).
Pause function cannot be used during
drying cycle.
ii
All pushbuttons implements as Touch Control pushbuttons, you can select the desired options by touching the
buttons gently. Do not touch two or more buttons in the same time except special requirments. There’s “auto-
repeat” function for display buttons (*). Keep pressing the button until the required option is displayed.

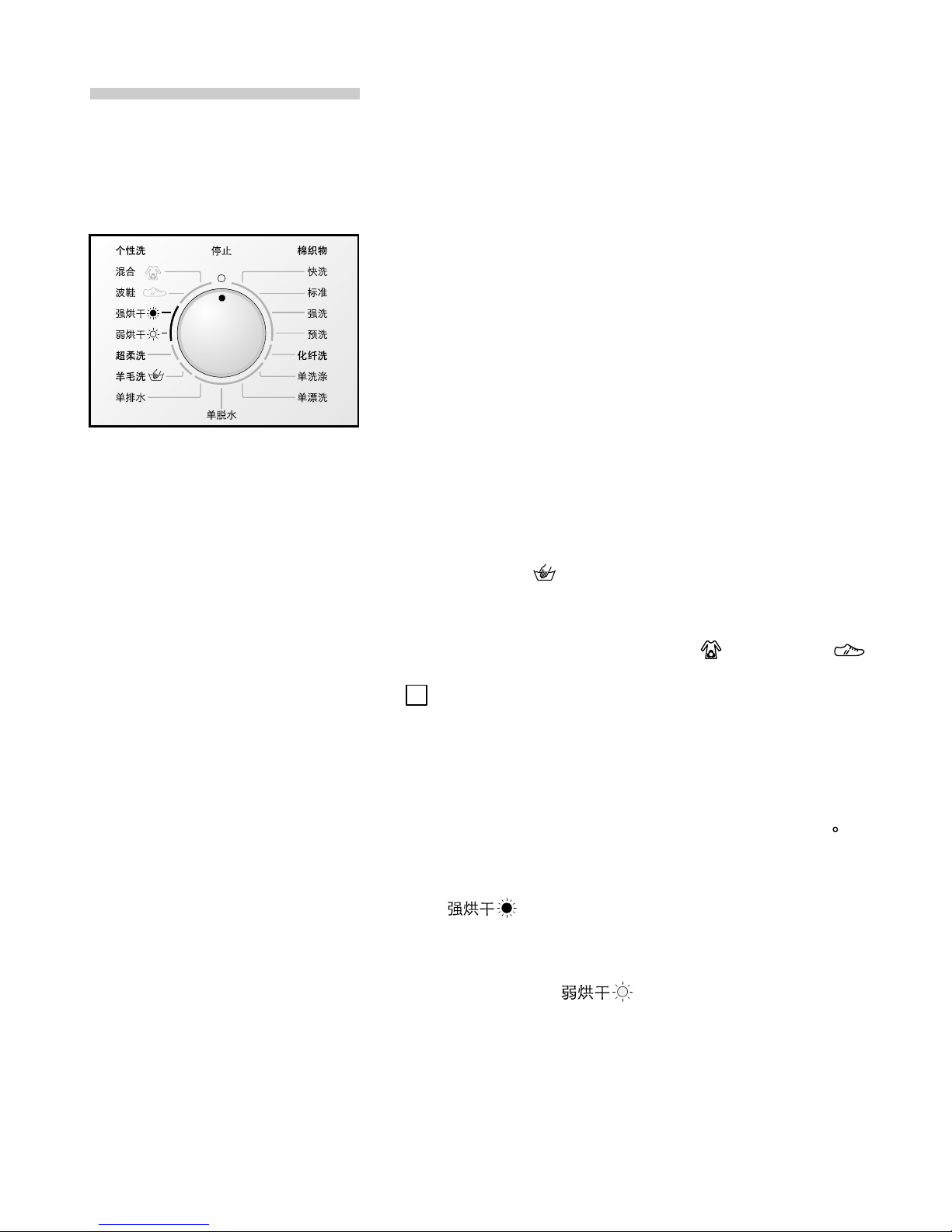

Programme selector
For switching the machine on and off and for
selecting the programme.
Can be rotated in either direction.
The programme selector is the main switch of the
washer-dryer, if it be rotated while the programme
is running, the programme is terminated.
Touch control buttons for additional
functions
(Where required to supplement the programme)
加漂洗 Extra Rinse: Additional rinse cycle.
高水位 Water plus: Greater volume of water,
improve the rinsing
performance.
免熨烫 Easy Iron: Reduce the crease of the
laundry.
Additional options can be combined before
the programme is started.
The indicator lights of the buttons come on,
if the additional options are active.
Switch off additional option: touch button
again until the indicator light goes out.
Display panel
Indicates the settings which have
been selected(e.g. Spin speed,
Washing temperature, End in Time,
Childproof lock, Maximum load, etc)
Touch control button *
Select the washing temperature.
Touch control button *
Select the spin speed or Rinse hold.
Touch control button *
Select the drying mode and drying time.
Touch control button *
Select the End in time (programmes
will end in this time).

Control Panel
Programme status
display
5.2kg*
1000*
---*
1:30*
1 h*
---
E:16*
60 C*
8
AUTO*
1:00*
Display Notes
Prewash
Washing
Rinsing
Final spin/Drain
Drying
Progress bar
On if selected
Not on if Rinse, Spin or Drain
additional programme was selected
Not on if Spin or Drain additional
programme was selected
Not on if a programme with the
“ ” setting(Rinse hold)
For the programme status
On if drying programme selected
Low water
pressure
Overdosage
Childproof lock
Maximum load
Fan
On if the water pressure is low
On if too much detergent dispensed
On if selected
Not on if Rinse, Spin or Drain
additional programme was selected
On during the cool down phase of
drying programme
Default washing temperature,
selected temperature or cold wash
Spin speed or
Rinse hold
Maximum spin speed of the
program or selected speed
Auto drying or
Drying time
Auto drying programme or
Selected drying time
Programme
duration
Expected programme duration
Other displays at this location:
End in time Selected end in time
End of programme
Error display
or
End of programme
with Rinse hold or
See page 38
Pause
Door can be opened
Rinsing cycles
Loading door
Pause
Not on if there is no Rinse cycle or
Rinse cycle is not selected.
On if the door can be opened
during “ Pause” period
On if the programme in pause.
* Examples of the display, it will be changed according to your
machine and selected programme.

ii
9
Programme status
display
Overdosage
Childproof lock
Maximum load
Low water
pressure
The first row of symbols and the progress bar below
form the programme status display. The progress bar
consists of a frame and several segments.
When the programme has started, the almost empty
bar is displayed which fills up with segments from left
to right while the programme is running. The symbols
indicate the programme sections which is running.
At the end of the programme all symbols have gone
out and the progress bar is full.
Overdosage of detergent may cause excessive froth
formation and impair the washing and rinsing results.
A rinse cycle is automatically run.
The automatic system detects the pressure of water
supply and displays if the pressure is low. The
“ Pause” function cannot be activated in this detecting
period.
The automatic safety system detects excessive froth
in the appliance due to a highly frothing detergent or
an overdosage. At the end of the programme this is
indicated in the display field by the symbol.
Dispense less detergent for the next wash with similar
items of washing(same degree of soiling and wash
load).
The symbol goes out when the appliance
switches off at the end of the programme or if the
programme is changed.
The activated childproof lock prevents the selected
programme from being changed while the programme
is running, see page 27.
The maximum wash/dry load is displayed depending
on the selected programme and additional functions,
see Page 42.
ii
The fan works at the last 10 minutes of drying
duration for cooling the laundry.
Do not interrupt this cooling process.
Fan

ii
Default washing temperature is displayed after select-
ing the programme, and it can be changed by touching
the button . See Page 42 “Programme Table” for
detail temperature range for each programme.
10
Washing temperature
Programme duration When the programme has been selected, the expected
programme duration(time after which the programme
is expected to end) is displayed.
When the programme ends, the displays shows
(if select “Rinse hold” function, see Page30).
The programme duration is displayed in hours and
minutes, e.g.
1:17 = 1 hour and 17 minutes
0:35 = 35 minutes.
When the programme starts, the programme
duration counts down in minutes.
While the programme is running, the programme
duration may be extended or reduced for the
following reasons.
Reductions in time occur because of :
small loads,
reduced heating time, e.g. If the water is hot,
reduce the washing temperature after the
programme has started.
the laundry is dry during autodrying programme
Increases in time occur because of:
additional rinse cycle if excessive foam is in the
laundry,
multiple spinning if the laundry is distributed
poorly in the drum,
increased heating times, e.g. when the water is
too cold or “high water level” was selected,
water pressure too low,
very absorbent washing extends the heating
duration.
the laundry is wet during autodrying programme
Max. noise of spinning 66dB(A).
The default spin speed is displayed after selecting
the programme, you can get required max. spin
speed by touching the button.
Spin speed
Cottons Easy-care Delicates Wool Single
wash
Single
rinse
Single
spin
rogram e
Pms
Model
Max. Spin speed
(r/mi )
n
Individu-
ation
WD 7105 1000
Silver 7125
800 600 800 800 800 1000
1200 800
800
800 600 800 800 800 1200
Silver 7125 1200 800 800 600 800 800 800 1200
Silver 7025 1200 800 800 600 800 800 800 1200

On if there is(are) rinse cycle(s) in the selected
programme or “ Rinse plus” function was selected,
such as “ ” the number on the left of the “+”
sign means the default rinse cycles of the selected
programme, and the number on the right will appear
only if the you select the additional function “Extra
Rinse” by touching the buttons for desired times.
(Maximum 3 rinsing cycles)
Rinsing cycles
End in time Selectable end in time, see Page 26.
ii
ii
Drying mode and time If you want to dry laundry in the washer-dryer, you
can select the drying mode or drying time by touching
the button.
Automatic drying:
During drying, the temperature determines the residual
moisture. The drying time is modified according to the
machine load and the type of laundry. During the
drying cycle, the remaining time is constantly updated
in the display.
Time-controlled drying:
The drying duration is the drying time you have set
by touching the button. Please see Page 43
“ Drying programme tabel ”.
In the continuous wash+dry programme, default
drying duration will add in programme duration
automatically. The washing programmes will
prolong 5~15 minutes for good drying
performance.
Time-controlled drying-15 minutes is the cooling
down programme. If a drying process is
interrupted, please select this programme to
cool the laundry before you open the loading
door.
11

Basic programme
Programme selector
Select the desired programme (see “Programme
Table”).
Cottons 棉织物 Quick快洗, Standard标准
For hard-wearing fabrics.
Cottons 棉织物 Prewash+ 预洗
An energy-intensive programme for heavily
soiled hard-wearing textiles made from cotton
or linen.
Cottons 棉织物 Intensive 强洗
Long time washing programme, for heavily soiled
textiles hard-wearing textiles made from cotton or
linen.
Easy-care 化纤洗
For easy-care fabrics made from cotton, synthetics
or blended fibres.
Delicates 超柔洗
For delicate, washable textiles, e.g. Silk, satin,
synthetic materials or blended fabrics(e.g.
curtains). No subsequent spin cycle with rinsing
period.
Wool 羊毛洗
For hand or machine-washable fabrics made
from wool or wool blend.
Individuation个性洗 mixed混合 , shoes 波鞋
Programmes for individual requirements.
You can select the desired washing temperature,
if a high temperature was selected, such as 90 C
for the protection of the drainage pipe, the hot
washing solution is mixed with approx.5 liters of
cold water before being drained.
Only canvas shoes and netlike sport shoes(less
than 2 pairs) are machine washable. Use liquid
detergent to achieve better washing performance.
Do not wash shoes made of leather, it may
causes damage to shoes and drum.
ii
Dry
White and coloured cottons and linens. High
temperature drying.
Delicate drying
Reduced drying temperature.
Easy-Care laundry, such as synthetics and fabric
blends, as well as cotton with drip-dry finish, e.g.
viscose rayon, modern acrylic and polyester.
Programme options Single wash 单洗涤
Single wash cycle without subsequent rinse cycle,
you can select the rinse cycle by touching the
additional function button “ Extra Rinse” if desired..
12

Drain 单排水
Water is drained after a programme that the water
is still in the drum, such as Rinse hold, for gentle
treatment of delicate laundry.
Extra Rinse 加漂洗
Touch this button once, an additional rinsing cycle
is activated, programme duration will be prolonged
6~10 min., it depends on the selected programme.
The max. selectable rinsing cycles is in the table
as below:
Less Iron
高水位
High water level for achieving good rinse performance.
Reduce the influence of low water pressure.
免熨烫
Special spin cycle with post-spin loosening cycle.
The laundry is left lying loosely in the drum, thus
reducing creasing. After pressing this button, the
washing duration and max spin speed will be
changed.
High water level
Observe the maximum load for each type of fabric;
Remove the laundry immediately after the spin cycle.
Cotton
Easy-Care
Mix
Sport shoes
Delicates
Wool
Single Wash
Single Rinse
Default rinse
cycle(s) Max. Selectable rinse cycle(s)
2
3
3
3
3
3
2
2
2
1
3
3
3
3
3
3
3
3
3
3
Additional function
quick
standard
anti-bacteria
prewash
Individu-
ation
Cotton
Easy-Care Delicate Single
Wash
Single
Rinse
Single
Spin
Indivi-
duation
Mix
Quick Intensive Others
Max. Spin Speed
Duration change
/
/
Rinse 单漂洗
Rinse cycle with subsequent spin cycle for rinsing
hand-washed items or for starching.
Reduced spin speed.
Spin 单脱水
Spin cycle for spinning hand-washed items after
selection of required speed. Washing water or
rinsing water is drained before the spin cycle.
+9
800 600
+4 +6+5+6
600
cold-60
-1 +6 +6+4
800
13

!
Laundry Detergents and
Additives
Amount of
detergent
Risk of explosion
not use solvent-based cleaning agents in
fully automatic washing machines. Explosion
hazard.
Do
Keep detergents and additives out of the reach
of children.
You can use any standard powder or liquid de-
tergent which is suitable for automatic washing
machines.
Do not use any detergent boosters containing
solvents or dirt and stain-removing spraying
near the machine, as these could damage the
machine.
Do not use non-automatic detergent as these
produce too much foam.
The best washing results will only be achieved
if you add the correct amount of detergent.
Observe the instructions for use shown on the
detergent packing.
When using liquid detergents, you can use any
measuring aids provided with the detergent,
such as dosage balls of bags.
Please put the liquid detergents into correct
chamber.
The amount of detergent depends on:
- water hardness
- degree of soiling
- size of the load
- amount of detergent to be added according to its
manufacturer.
Dispensing the correct amount of detergent relieves
the strain on the environment and ensures optimum
washing results.
14

Frequent use of insufficient detergent will eventually
become noticeable as follows:
- washing appears grey or not properly clean
- grey-brown stains(grease marks) form on the
washing
- scale builds up on the heating elements
Too much detergent results in:
- unnecessarily high environmental pollution
- due to the generation of too much foam, the
washing is hardly agitated which leads to
poor washing results.
The amount of detergent indicated on its packaging
refers to a full machine load.
For small loads or less soiling, reduce the amount
of detergent.
Filling laundry
detergent and/or
additive dispensers
Chamber I:
Detergent for prewash, starch or pre-soaking
agent.
Chamber II:
Detergent for main wash, water softener, bleach
and stain removal product.
Chamber :
Additives, e.g. fabric softener of former.
- Do not fill beyond the MAX mark, otherwise
will be flushed into the machine together with
the detergent at the start of the program.
- If the liquid additive is thick, mix with a little
water before dispensing(prevents clogging of
the overflow).
Pull out the detergent dispenser up to the end
stop.
Add the detergent and/or additive.
Close the detergent dispenser.
,,
,,
15

First Wash Cycle
The LCD screen displays “ ” after the
programme finished, the buzzer sounds the
acoustic signal. Turn the programme selector
to “ Off” .
Touch “Start/Pause” button. The programme starts.
Turn the programme selector to “ Cotton
prewash” and set the washing temperature
90 C, “Start/Pause” indicator flashes.
Each machine has been tested in the factory. A
little bit of water can be left in the drum during the
test. Please carry out the first wash cycle without
laundry to remove any water left over from the
factory tests.
The installation of the washing machine is finished.
(see page 44-50)
Do not load any laundry.
Turn the tape ON.
Pull the detergent drawer out as far as it will go.
Input about 1 liter of water in chamber II.
Pour half a measuring cup of detergent into
chamber II. Do not use a special detergent
for delicates or wollens as these will create
too much foam.
Close the detergent drawer.
Close the washer-dryer door.
16

Preparing, Sorting and Loading
the Laundry
Make sure that wire-cup bras in a pillow case
which can be securely closed with a zip or
buttons. If the wire works itself out of the cup it
may fall through the holes of the drum and
cause extensive damage.
Make sure that the wire-cup bras are machine
washable.
Some items are best turned inside out. These
included knitwear, trousers, T-shirts and swe-
atshirts.
Particularly delicate items, such as tights or lace
curtains, or smaller items, such as tiny socks or
handkerchiefs, should only be washed in a net
bag or pillow case.
Remove curtain runners, or secure them in a
net bag.
Close zips and button up cushion covers, duvet
covers, etc.
Brush sand, coins, etc. out of pocket and cuffs.
Remove any loose items or metal objects, such
as safety pins, paper clips, etc. from the laundry.
!
Make sure that the sand, dirt at the underside
and upper of the shoe has been removed before
putting it into the drum. It may blocks the outlet
pipeline, influence the washing performance or
causes damage to the washing machine.
Make sure that the sport shoes are machine
washable. Remove the shoelace and insole,
put the shoes in the drum transversely.
Preparing the
laundry
!
Only tumble-dry textiles which have been washed,
rinsed and spun.
Remove as much water as possible from the
laundry. Do not touch the button for reducing the
spin speed.
Preparing the
laundry for drying
Before tumble-dring, ease-care items should also
be spun using the appropriate spin programme
(see P42 programme table) 17

According to colour and
degree of dirt
Sorting the laundry
White items may become grey. Always wash
white and coloured items separately.
Items of clothing can become discoloured.
Never wash new multi-coloured items together
with other items.
Caution
Degree of dirt
Normal dirt
- Light summer clothing and sportswear that
No recognizable dirt or staining. Laundry may
have some body odour.
Slight dirt
has only been worn for a few hours.
- T-shirts, shirts and blouses that have been
used for one day.
- Bed linen and guest towels that have been
used for one day.
Visible dirt and/or some light staining recognizable.
- T-shirts, shirts and blouses that are very sweaty
or have been worn several times.
- Underwear that has been worn for one day.
- Tea towels, hand towels and bed linen that have
been used for up to one week.
- Net curtains (without nicotine staining) that have
not been washed for up to 1/2 year.
In order to ensure uniform drying, sort the items
according to fabric type and degree of drying
required.
Items which require ironing do not have to be
ironed immediately after being tumble-dried. It
is a good idea to fold or roll them together for a
while, so that any remaining moisture is evenly
distributed.
Intensive dirt
Dirt and/or staining recognizable.
- Kitchen hand towels that have been used for
up to one week.
18
