Siemens Silver WD7205 User manual

en
WD7005
Silver WD7205
WD7005
Silver WD7205
Operating and installation instructions

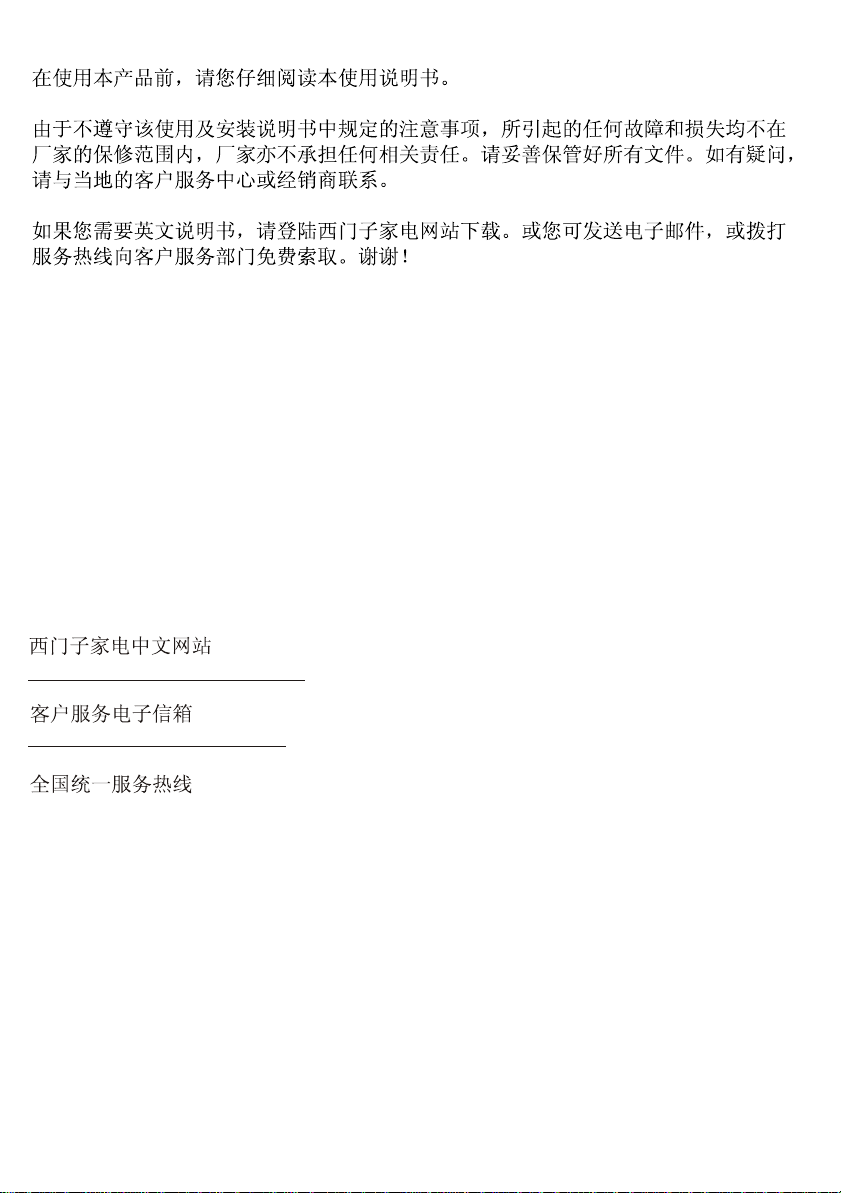

Please read this specification carefully before you use the product.
Any failure and losses caused by ignoring the above mentioned items and cautions
mentioned in the operation and installation instruction are not covered by our warranty
and any liability. Please keep all documents in a safety place for future reference. If
you have any doubt, please contact our local service center of dealer.
If you need an English user manual, please download it from siemens web. Or you
can send the E-mail to service department, or you can call up service hot line for free
supply. Thanks!
http://www.siemens-ha.com.cn
[email protected]
生产厂家： 中德合资 博西威家用电器有限公司
厂 址： 中国江苏省无锡市高新技术开发区旺庄路６６号
邮 编： 214028
4008899999

1
Disposal Information. . . . . . . . . . . . . . . . . . . . . . .
Environmental Protection/Conservation Issues. .
Your New Washing Machine. . . . . . . . . . . . . . . . .
First Wash Cycle. . . . . . . . . . . . . . . . . . . . . . . . .
Laundry Detergents and Additives. . . . . . . . . . . .
Washing/drying with standard settings. . . . . . . . .
Washing/drying with individual settings. . . . . . . .
When the Programmme has Ended. . . . . . . . . . .
Individual programme. . . . . . . . . . . . . . . . . . . . . .
Cleaning and Care. . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Minor Faults. . . . . . . . . . . . . . . .
Customer service. . . . . . . . . . . . . . . . . . . . . . . . .
Programme table. . . . . . . . . . . . . . . . . . . . . . . . .
Installation, Connection and Transport. . . . . . . . .
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . .
Package Sheet. . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions and Warnings. . . . . . . . . . . . .
Preparing, Sorting and Loading the Laundry. . . .
Operating Instructions
Installation Instructions
Table of Contents
Appendix
2
6
3
4
13
14
18
20
23
27
29
31
35
38
39
41
50
51

3
Environmental Protection
Through the economical use of energy, water and de-
tergent, your appliance is kind to the environments as
well as your household budget.
You can increase the economy and environmental
friendliness of your washer-dryer by washing ma-
ximum loads:
refer to page 39 program table
How to save energy:
For small amounts of laundry, the automatic control
system reduces the consumption of both water and
energy. Where possible, use the 60 C Cottons/co-
loureds programme with additional function Inten-
sive Stains instead of the 90 C Cottons/coloureds
programme. The extended washing duration means
that a cleaning result comparable to that of the
90 C programme is achieved using considerably
less energy.
How to save water, energy and detergent:
Avoid using the Pre-wash function when washing
lightly normally soiled laundry.
How to save energy and time:
For lightly soiled laundry, select the short
programme appropriate to the type of textile.
How to save detergent:
Add detergent according to the degree of soiling,
amount of laundry and water hardness, and
observe the detergent manufacture s instructions.
Save energy:
If washing is then to be dried in the appliance, select
the higher spin speed - because the more water that
is spun out of the appliance, the less time and
energy is required to dry it.

2
Disposal Information
Dispose of packing materials in a responsible manner.
Keep packing materials out of the reach of children.
Packing materials are not toys. Reprocessing and re-
using materials saves raw materials and reduces wa-
ste. All packing materials used are environment frien-
dly and reusable. Cardboard boxes consist of 80% to
100% recycled paper. Plastic wrappings are made
from polythene(PE), the tapes are made from polyp-
ropylene(PP) and the CC-free packing is made from
foamed polystyrene (PS). These materials are pure
hydrocarbon compounds and can be recycled.
The new machine s
packaging
Render the washer-dryer inoperable when it can
no longer be used Remove the plug from the so-
cket and cut off the power cable. Destroy the catch
on the porthole door. Prevent children at play from
being locked in and risking death by suffocation.
The old machine contains valuable materials which
should be recycled. Please make your contribution
to the environment by assisting with proper dispo-
sal or recycling.
Your old machine

4
Precautions and Warnings
Please read the enclosed documents carefully
before using the Washer-dryer for the first time.
They contain important information on the insta-
llation, use and safety of the machine.
Before using for the first time:
The manufacturer does not accept liability if these
instructions are not followed.
Please contact an authorized technician to install
the machine and instruct the using method.
Please keep all documents in a safe place for
future reference.
Install the Washer-dryer in accordance with the
instructions (page 41-49). Remove the transit bolts
and keep them in a safe place.
The washing machine must be installed and
operated in a room with the drain.
When heating, the maximum current of the wash-
ing machine is 10A,so please make sure that the
power supply system(voltage; current and the
cable) is applicable to the load of the applied
appliance.
In order to ensure your safety, you must plug the
cable into a socket which connected to earth. And
please check your socket to make sure that it is
connected with reliable earth correctly.
If the Washer-dryer is visibly damaged, do not
connect it up. If you are in doubt, contact your
customer service representative or dealer.
This Washer-dryer use thread connection water
inlet hose, connect it to the water tap together with
the machine according to the require of page 45.
(carry out by an authorized technician)

5
When washing
and drying:
Operate the Washer-dryer with cold tap water only.
Your Washer-dryer is designed for domestic use
only, i.e. For washing machine-washable textiles
in a detergent solution.
Never use flammable; explosible and/or poisonous
solvents such as gasoline; alcohol etc. As the wa-
shing lotion. Please only use the lotions suitable
for using in washing machine available in
the market.
Never wash the carpet in the washing machine.
Kepp children and pets away from the washing
machine.
Due to the use of the condensation principle in
drying, please keep the connected water tap open
during the drying process.
Exercise caution when pumping out hot detergent
solution.
Never open the door when drying.
When the program
has ended: When the program has ended:
The End is indicated(If you select no final spin
function, see page 27).The buzzer of machine
sounds(the duration is 10 minutes) to remind the
user that the programme has ended. Open the
loading door after cutting the power of machine.
After the program has ended, please cut the supply
of power and water immediately.
Taking care of your
machine:
When transporting
the machine:
Do not lean against the door.
Do not climb onto the washing machine.
Do not expose the machine in the place with
causticity or explosibility gas.(e.g. dust, steam
and gas, etc.)
Do not install the washing machine in a bath-
room or a room very wet.
Insert the transit bolts by technician.
Drain any water left in the machine.
Take care when moving the machine.
Do not lift the machine by any of the protruding
parts,and the loading door.
Please close the door gently, if the door can not be
closed, please check if the laundry are balanced.

6

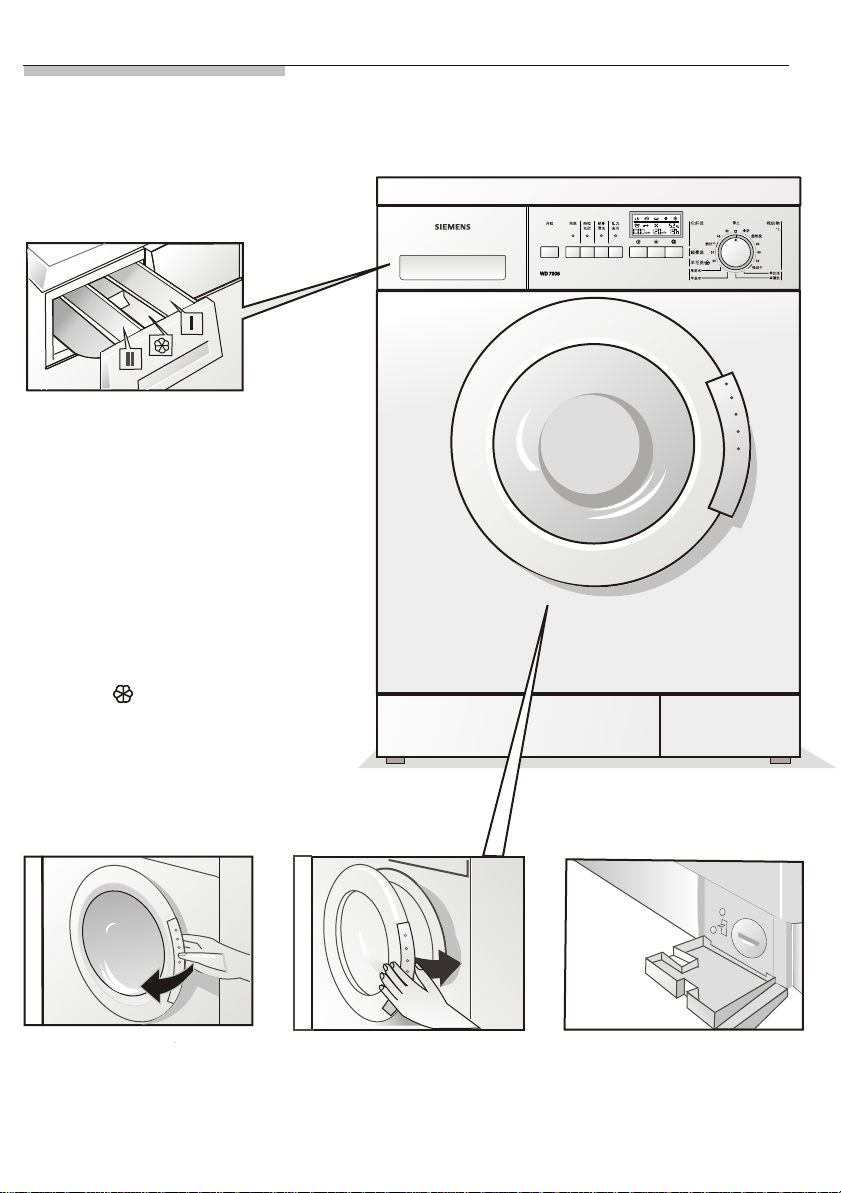

Open the loading door and close it Drain washing solution
if necessary.
Filling laundry detergent
and/or additive dispensers.
Chamber I:
Detergent for pre-wash,starch,
or pre-soaking agent.
Chamber II:
Detergent for main washing period,
water softener, blench and stain-
removing salt.
Chamber :
Additives, e.g. fabric softener or
former(Do not exceed Max )
Your new washer-dryer

7
Control Panel
For starting the wash/dry cycle
(program must have been
selectd).

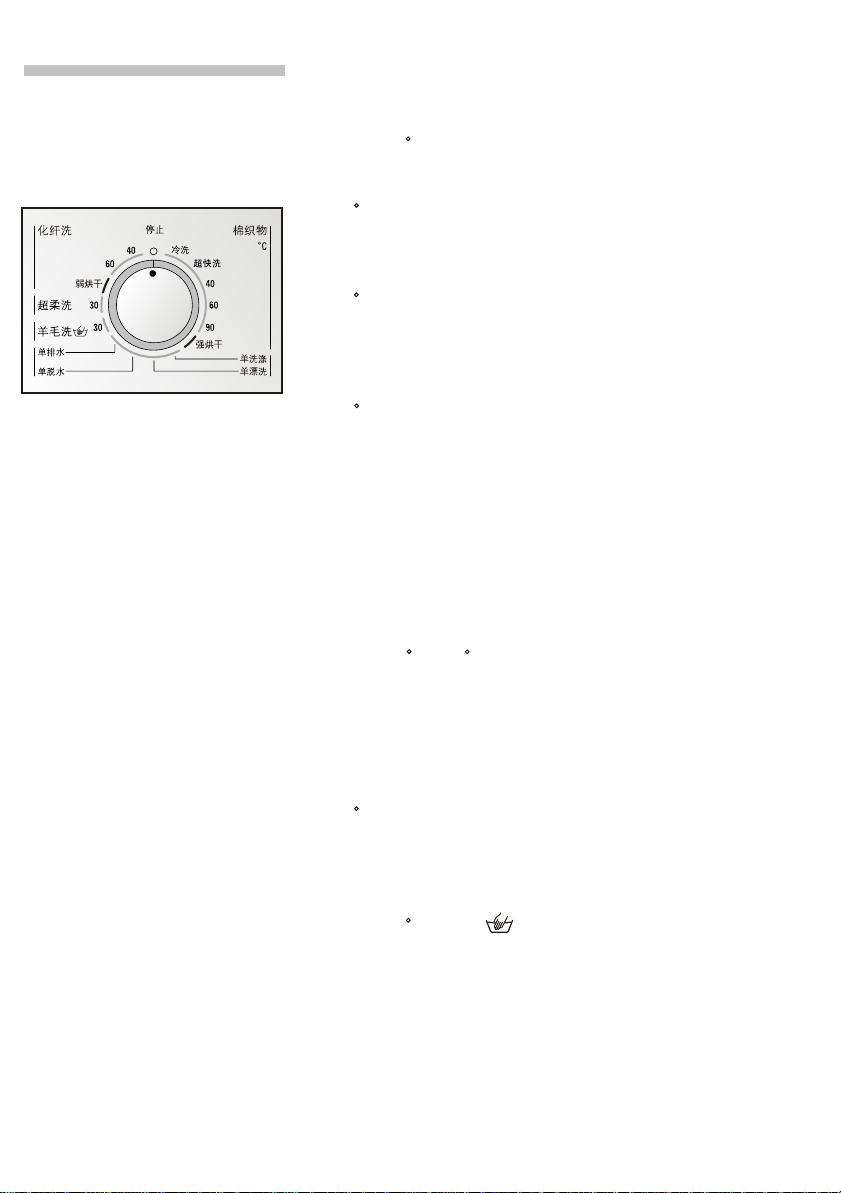

Start button Programme selector
For switching the washer-dryer on and off and for
selecting the program. Can be rotated in either
direction. If rotate it during the washing/drying,
the program will be stopped. The program
sequence is electronically controlled.
Buttons for additional options
(In addition to the programme if
required)
Intensive Stains: extend the
washing duration
Extra Rinse: additional rinsing cycle
Less Ironing: gentle spin
Prewash: actuate prewash
Additional options can be combined.
The indicator lights of the buttons
come on if the additional options
are active.
Switching off the additional option:
Press the button again. Indicator
light goes out.
Button
Button
Button
Selects the the start time(delays the
start of the program).
Selects the spin speed or no final spin.
Display pannel
Indicates the settings which have
been selected(e.g. Spin speed, Time
delay, Childproof lock, Maximum load)
Select the drying time

Z
q
5.2kg*
1000rpm*
－－－*
1:00*
1 h*
－－－
E02*
120min*
8
,

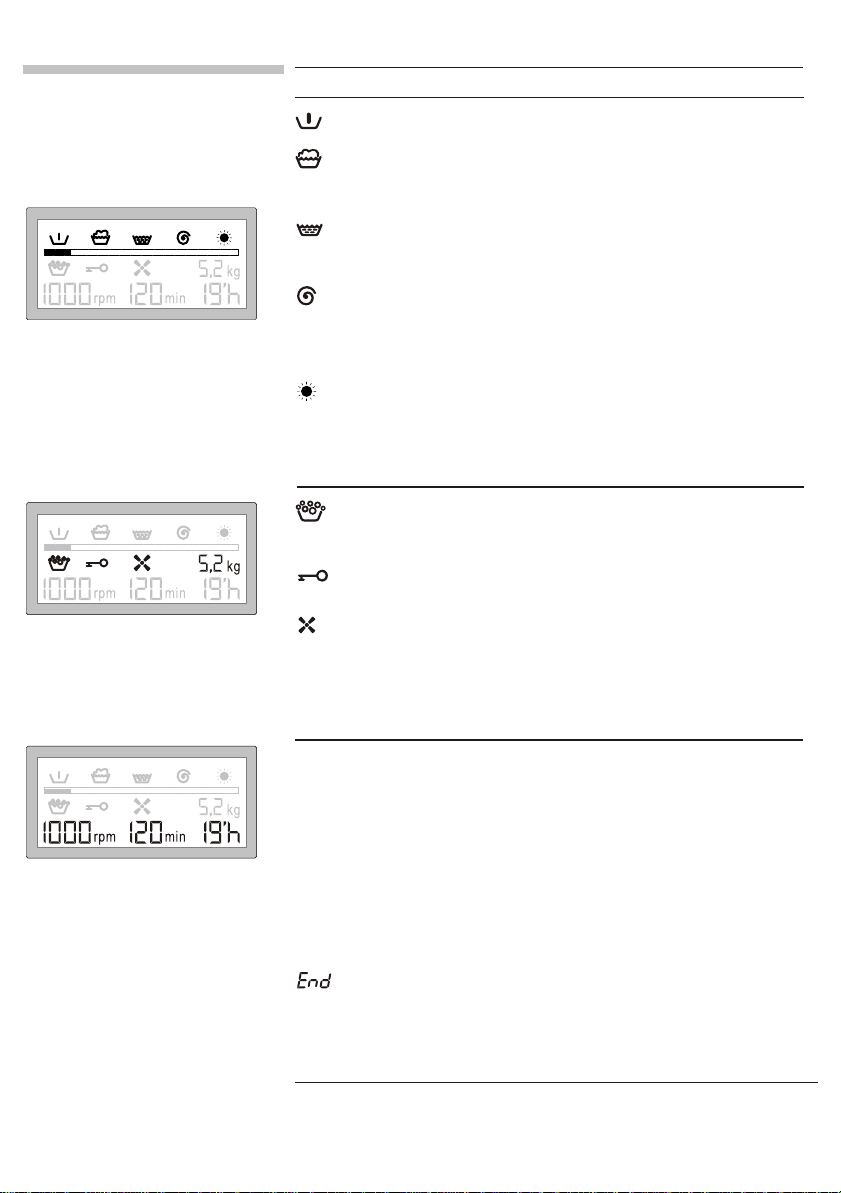

Display panel Display Notes
Prewash On if selected
Washing Not on if rinse, spin or
drain additional programme
was selected
Rinse Not on if spin or drain
additional programme was
selected
Final spin/Empty Not on if a programme with
the --- setting(without
final spin)
,,
,,
Progress bar For the programme status
Drying Not on if dry programme
or dry time was selected.
On if too much detergent
dispensed
On if selected
Not on if rinse,spin or
drain additional programme
was selected
Overdosage
Childproof lock
Maximum load
Fan Not on if dry programme or
dry time was selected
Spin speed or
no final spin
Maximum spin speed of the
programme or selected speed
Spin speed or
no final spin
Drying time
Start time
Selected drying time
Selected start time
Other displays at this location:
Programme duration Expected programme duration
End of programme or
See page 33
End of programme without final spin or
Fault display
* Examples of the display, it will be changed
according to your selected programme.
programme status

9
WD7005 1000
1200
Silver WD7205
800
800
600
600
800
800
800
800
800
800
800
800
ｉ
ｉ
The first row of symbols and the progress bar below form
the program status display. The progress bar consists of
a frame and several segments.
Overdosage The automatic safety system detects excessive froth in the
appliance due to a highly frothing detergent or an overdo-
sage At the end of the programme this is indicated in the
display field by the symbol. Dispense less detergent for
the next wash with similar items of washing(same degree
of soiling and wash load).
Programme status
display
The symbol goes out when the appliance switch-
es off at the end of the programme or if the programme
is changed.
Childproof lock The activated childproof lock prevents the selected prog-
ram from being changed while the programme is running,
see page 25.
Maximum load
When the programme has been selected, the symbols
for the individual programme sections are displayed.
The frame of the progress bar flashes and requests
the programme to start.
When the programme has started, the almost empty bar
is displayed which fills up with segments from left to right
while the programme is running. The symbols indicatethe
programme sections which have not yet run and go out
when th e particular programme section has run.
At the end of the programme all symbols have gone out
and the progress bar is full.
Overdosage of detergent may cause excessive froth forma-
tion and impair the washing and rinsing results. A rinse
cycle is automatically run.
The maximum wash/dry load is displayed depending on
the selected programme and additional functions,
see page 39.
Spin speed The maximum spin speed is displayed depending on the
selected programme and additional functions.
The fan works at the last 10 minutes of drying duration for
cooling the laundry.
Do not interrupt this cooling process.
Fan
cottons easy-care delicates wool rinsing
washing spinning
model
Progra
-mme
Ma. S inx p
sp e (rpm)e d

10
ｉ
Programme duration When the programme has been selected, the expected
programme duration(time after which the programme is
expected to end) is displayed.
The programme duration is displayed in hours and
minutes, e.g.
01:17 1 hour and 17 minutes
00:35 35 minutes.
When the programme has started, the colon : flashes be-
tween hours and minutes and the programme duration
counts down in minutes.
When the programme ends, the displays shows
(if select no final spin function, see page27).
While the programme is running,the programme duration
may be extended or reduced for the following reasons.
Reductions in time occur because of :
small loads,
reduced heating times,e.g. If the water is very hot.
Increases in time occur because of:
additional rinse cycle if excessive foam is in the laun-
dry,
multiple spinning if the laundry is distributed poorly
in the drum,
increased heating times,e.g. When the water is
too cold,
water pressure too low,
selection of an additional option,e.g. Intensive Stains
function after the programme has started.
Very absorbent washing extends the heating duration.
You can delay the start time,see page 24
Start time
You can set the drying duration.
When the washing and drying without a break was
selected, drying duration will add in programme du-
ration automatically. Cotton quick washing progra-
mmes will prolong 10 minutes and other cotton
programmes will prolong 5 minutes for good washing
performance.
Drying duration

11
Programme buttons
Basic program
Select the desired programme(refer also to separate
Programme table ).
Cold, 40 C Cottons/coloureds
For hard-wearing fabrics.
30 C quick washing Cottons/coloureds
For less soiling fabrics made from cottons or linen.
This duration is shorter.
60 C Cottons/coloureds
For very dirty ,hard-wearing fabrics.
Select this program can remove stain as protein and
so on.
90 C Cottons/coloureds
An energy-intensive program for heat-resistant fabrics
made from cotton or linen.
For the protection of the drainage pipe, the hot wash-
ing solution is mixed with approx. 5 liters of cold water
before being drained.
Intensive dry
For cottons/coloured textiles, dry at normal heat setting.
Cold, 40 C, 60 C Easy-care
For easy-care fabrics made from cotton, synthetics or
blended fibres.
Gentle dry
For easy-care textiles, dry at low heat setting.
30 C Delicates
For sensitive, easy-care fabrics made from cotton,
synthetics or blended fibres, and net curtain. No spinn-
ing between rinsing cycles.
Cold, 30 C Wool
For hand or machine-washable fabrics made from
wool or wool blend.
,,

12
Additional function Washing
Separate washing cycle.
Rinsing
Separate rinsing cycle with subsequent spin cycle for
easy care fabrics.
Spin
Separate spin cycle. Washing solution or rinsing water
is drained prior to the spin cycle.
Drain
Draining of the rinsing water after a wash programme
with the without drain setting for the gentle treatment
of delicate laundry.
Additional function
(You can select an additional function if necessary)
Intensive stains
For very dirty clothes, the washing duration will be
prolonged 20 to 60 minutes after pressing this bu-
tton, and this is decided by the programme that you
selected.
Extra rinse
An additional rinsing cycle performed; the washing
duration will be prolonged 10 minutes.
Less Ironing
Special spin cycle with post-spin loosening cycle.
The laundry is left lying loosely in the drum, thus
reducing creasing. After pressing this button, the
washing duration and max spin speed will be chan
ged.
Prewash
For very dirty fabrics,washing duration will be
prolonged 20 minutes.
Observe the maximum load for each type of fabric;
Remove the laundry immediately after the spin cycle.
cottons
30 C
800rpm
5 min
Easy
-care delicates wool rinsing spinning
5 min 5 min no 5 min 5 min
600rpm
others
washing prolonged time
maximum spin speed
10 min

13
First Wash Cycle The installation of the washer-dryer is finished.
(See page 41-49)
Each washer-dryer has been tested in the factory.
A little bit of water can be left in the drum during the
test. Please carry out the first wash cycle without
laundry to remove any water left over from the
factory tests.
Do not use a special detergent for delicates or
wollens as these will create too much foam.
Pour half a measuring cup of detergent into
chamber II.
Input about 1 liter of water in chamber II.
Pull the detergent drawer out as far as it will go.
Turn the tape ON.
Turn the programme selector to 90 C Cottons/
coloureds.
,,
,,
Do not load any laundry.
Close the detergent drawer.
Close the washer-dryer door.
The programme ends when all symbols in the upper
row of the display field go out, the progress bar is
completely filled and the programme duration is on
,the buzzer sounds.
Press the Start button. The washing programme
starts.
,,
,,
Turn the programme selector to off position.

！
14
Preparing/sorting and loading
the laundry

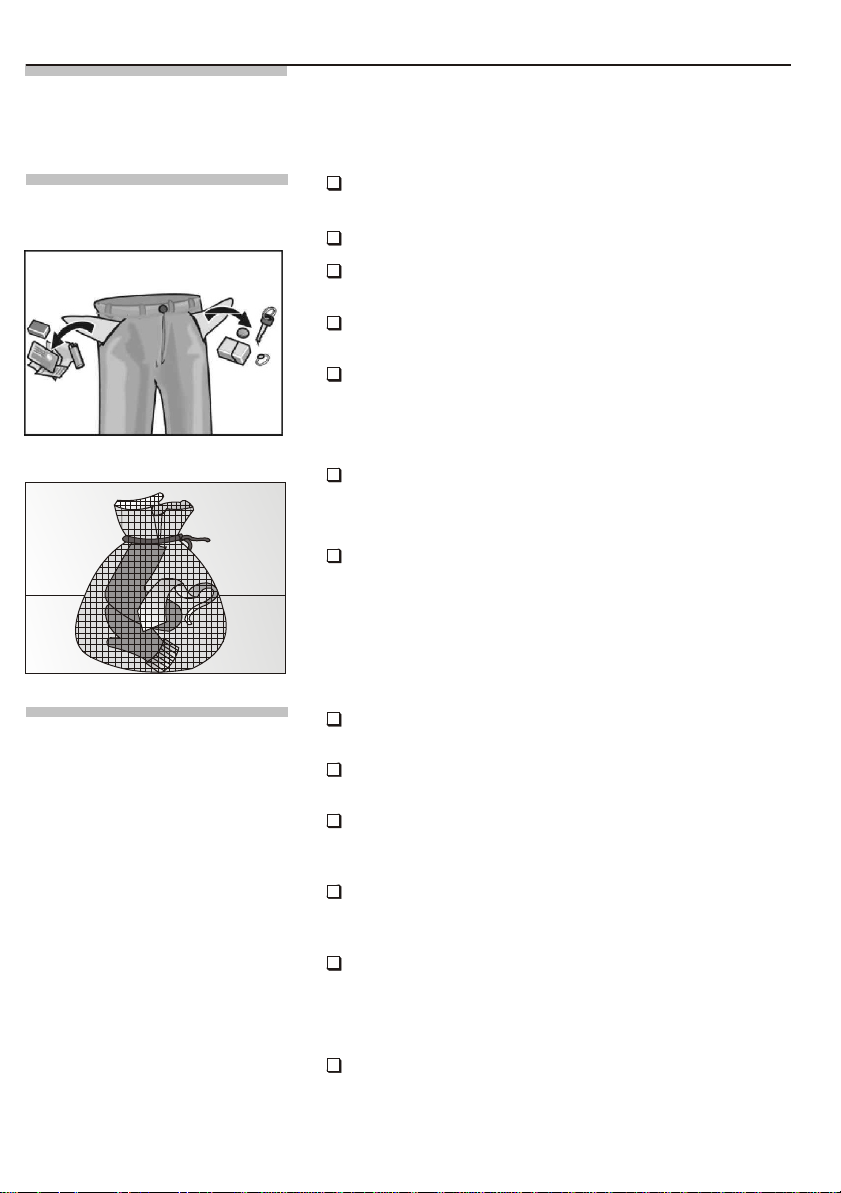

Preparing the laundry
Particularly delicate items, such as tights or lace
curtains, or smaller items, such as tiny socks or
handkerchiefs, should only be washed in a net
bag or pillow case.
Remove curtain runners, or secure them in a net
bag.
Close zips and button up cushion covers, duvet
covers, etc.
Brush sand, coins, etc. out of pocket and cuffs.
Remove any loose items or metal objects, such as
safety pins, paper clips, etc. from the laundry.
Some items are best turned inside out. These
included knitwear, trousers, T-shirts and
sweatshirts.
Make sure that the wire-cup bras are machine
washable.
Make sure that wire-cup bras in a pillow case which
can be securely closed with a zip or buttons. If the
wire works itself out of the cup it may fall through
the holes of the drum and cause extensive damage.
Preparing laundry for
drying
Only tumble-dry textiles which have been washed,
rinsed and spun.
Remove as much water as possible from the laundry.
Do not press the button for reducing the spin speed.
Before tumble-dring, ease-care items should also be
spun using the appropriate spin programme (see
programme table)
In order to ensure uniform drying, sort the items
according to fabric type and degree of drying
required.
Easy-care items should if possible be removed from
the washer-dryer while still slightly damp and allowed
do continue drying in the open air. Overdrying may
cause excessive creasing.
Items which require ironing do not have to be ironed
immediately after being tumble-dried. It is a good
idea to fold or roll them together for a while, so that
any remaining moisture is evenly distributed.

According to colour
and degree of dirt
Sorting the laundry
Caution
Items of clothing can become discoloured. Never wash
new multi-coloured items together with other items.
White items may become grey. Always wash white and
coloured items separately.
Slight dirt
- Light summer clothing and sportswear that has only
been worn for a few hours.
No recognizable dirt or staining. Laundry may have
some body odour.
- T-shirts, shirts and blouses that have been used for
one day.
- Bed linen and guest towels that have been used for
one day.
Normal dirt
Visible dirt and/or some light staining recognizable.
- T-shirts, shirts and blouses that are very sweaty or
have been worn several times.
- Underwear that has been worn for one day.
- Tea towels, hand towels and bed linen that have
been used for up to one week.
- Net curtains (without nicotine staining) that have
not been washed for up to 1/2 year.
Intensive dirt
Dirt and/or staining reconizable.
- Kitchen hand towels that have been used for up to
one week.
- Fabric napkins.
- Children's outer clothing or football shirts and shorts
with grass and soil stains.
- Working clothes such as overalls or baker's and
butcher's coats.
15

16
Typical stains
- Skin fat, cooking oils/fat, sauces, mineral oil,
wax(containing fat/oil)
- Tea, coffee, red wine, fruit, vegetables(blea chable).
- Blood, egg, milk, starch(containing protein/
carbohydrate).
- Soot, soil, sand(pigments), red sand on tennis
clothes.
Removing stains
Wherever possible, remove/pretreat stains whilst
they are still fresh. First, dab soapy water onto the
stain. Do not rub. Subsequently wash the items of
clothing using the appropriate programme.
Several washing cycles may sometimes be required
in order to remove stubborn/dried in stains.
95
60
60
90
40
40
30
30
40 40 30 30
40 40 30 30
Only wash laundry that is labelled with the following
care symbols:
Sorting laundry according
to their care label
specifications
90 C Cottons + lines
60 C, 40 C, 30 C Cottons + linens
60 C, 40 C, 30 C Easy-care
40 C, 30 C Delicates
40 C, 30 C Wollens (hand and machine-washable)
Laundry that is labelled with the following care symbol
must not be washed in the washing machine.
= do not wash
Only dry laundry that is labelled with the following care
symbols
=Tumble-dry at normal heat setting (intensive dry)
=Tumble-dry at lowl heat setting (gentle dry)

咔嗒
17
The following textiles should not be tumble-dried:
=Do not tumble-dry
Laundry marked with the care symbol:
- Wollens or items containing wool. Risk of shrinking!
- Delicate fabric (silk, synthetic net curtains).
Risk of creasing.
- Items containing foam rubber or similar material.
- Items which have been treated with inflammable
solvents, such as stain removes, petrol, paint
thinners. Explosion hazard!
- Items still containing hair lacquer or similar
substances. Dangerous vapors!
- Dripping-wet laundry. Waste of energy!
！
Loading the laundry Risk of explosion
Items of clothing that have been pretreated with
solvent-based cleaning agents, e.g. Stain remover
and dry cleaning spirit, represent an explosion
hazard once loaded into the washer-dryer.
Therefore, these items must be rinsed thoroughly
by hand.
Caution:
Loose debris in the washer-dryer drum can damage
the laundry. Before loading the laundry, check that
there is no debris in the drum.
Open the loading door.
Unfold the sorted items of clothing and place them
loosely into the drum. Mix up large and small items.
Items of varying size will distribute better during
the spin cycle..
Do not exceed the maximum load: Overloading
will cause poor wash/dry results and encourage
creasing.
When washing/drying a small amount of laundry,
the washer-dryer automatically reduces the
amount of the water and energy used.
Close the loading door.
Take care not to trap any items of clothing between
the loading door and rubber seal.

18
Laundry Detergents and Additives
Amount of detergent
Do not use solvent-based cleaning agents in fully
automatic washer-dryer. Explosion hazard.
Keep detergents and additives out of the reach
of children.
You can use any standard powder or liquid detergent
which is suitable for automatic washer-dryer.
Do not use any detergent boosters containing solve
-nts or dirt and stain-removing spraying near the ma
-chine, as these could damage the machine.
Do not use non-automatic detergent as these prod-
uce too much foam.
The best washing results will only be achieved if
you add the correct amount of detergent. Observe
the instructions for use shown on the detergent
packing
When using liquid detergents, you can use any
measuring aids provided with the detergent, such
as dosage balls of bags.
Please put the liquid detergents into correct chamber.
The amount of detergent depends on:
- water hardness
- degree of soiling
- size of load
- amount of detergent to be added according to its
manufacturer.
Dispensing the correct amount of detergent relieves
the strain on the environment and ensures optimum
washing results.
！Risk of explosion
Caution:
