en ,QVWUXFWLRQ0DQXDODQG,QVWDOODWLRQ,QVWUXFWLRQV
Washing machine
WM16W549DN

2
Your new washing machine
You have chosen a Siemens washing
machine.
Please take a few minutes to read and
become familiar with the advantages of
your washing machine.
To meet the high quality demands
required by Siemens, every washing
machine that leaves our factory is
carefully checked to ensure that it
functions correctly and is in perfect
condition.
For more information on our products,
accessories, replacement parts and
services, see our website www.siemens-
home.bsh-group.com or contact our
after-sales service centres.
If the operating and installation
instructions describe different models,
any differences will be pointed out at the
relevant points in the text.
Read these operating and installation
instructions before switching on the
washing machine.
Display rules
:Warning!
This combination of symbol and signal
word indicates a possibly dangerous
situation. Not heeding the warning can
cause death or injuries.
Caution!
This signal word indicates a possibly
dangerous situation. Not heeding the
caution can cause property and/or
environmental damage.
Note/tip
Information about the optimum use of
the appliance/any other useful
information.
1. 2. 3. / a) b) c)
The steps are represented by numbers
or letters.
■/ -
Lists are represented by a small box or
a dash.

en
3
Contents enInstruction Manual and Installation Instructions
8Intended use. . . . . . . . . . . . . . . . .5
(Safety instructions . . . . . . . . . . .6
Children/people/pets . . . . . . . . . . . . . 6
Installation. . . . . . . . . . . . . . . . . . . . . . 7
Operation . . . . . . . . . . . . . . . . . . . . . 10
Cleaning/Maintenance . . . . . . . . . . . 11
7Environmental protection . . . . .13
Packaging/used appliance . . . . . . . . 13
Tips on economical use . . . . . . . . . . 13
5Positioning and connecting . . .14
Included with the appliance . . . . . . . 14
Safety instructions. . . . . . . . . . . . . . . 15
Installation surface . . . . . . . . . . . . . . 15
Installation on a base
or a wooden joist floor . . . . . . . . . . . 15
Installation on a platform
with drawer . . . . . . . . . . . . . . . . . . . . 15
Installing the appliance
in a kitchenette . . . . . . . . . . . . . . . . . 16
Removing the transport locks . . . . . . 16
Hose and cable lengths . . . . . . . . . . 17
Water inlet. . . . . . . . . . . . . . . . . . . . . 18
Water outlet . . . . . . . . . . . . . . . . . . . 19
Levelling . . . . . . . . . . . . . . . . . . . . . . 20
Electrical connection. . . . . . . . . . . . . 20
Before washing for the first time . . . . 21
Transportation. . . . . . . . . . . . . . . . . . 22
YMain points in brief . . . . . . . . . .23
*Getting to know the appliance 24
Washing machine . . . . . . . . . . . . . . . 24
Control panel . . . . . . . . . . . . . . . . . . 25
Display panel . . . . . . . . . . . . . . . . . . 26
ZLaundry. . . . . . . . . . . . . . . . . . . .27
Prepare the laundry . . . . . . . . . . . . . 27
Sorting laundry . . . . . . . . . . . . . . . . . 27
CDetergent . . . . . . . . . . . . . . . . . . 28
Correct selection of detergent . . . . . .28
Saving energy and detergent . . . . . .28
/Overview of programmes . . . . . 29
Programmes on the programme
selector . . . . . . . . . . . . . . . . . . . . . . .29
Starching . . . . . . . . . . . . . . . . . . . . . .34
Dyeing/bleaching . . . . . . . . . . . . . . .34
Soaking . . . . . . . . . . . . . . . . . . . . . . .34
0Programme default settings. . . 35
Temperature . . . . . . . . . . . . . . . . . . .35
Spin speed . . . . . . . . . . . . . . . . . . . .35
Ready in . . . . . . . . . . . . . . . . . . . . . .36
\Additional programme
settings. . . . . . . . . . . . . . . . . . . . 37
speedPerfect (. . . . . . . . . . . . . . . .37
ecoPerfect ¦. . . . . . . . . . . . . . . . . . .37
Prewash . . . . . . . . . . . . . . . . . . . . . .37
Power rinse . . . . . . . . . . . . . . . . . . .37
Less ironing . . . . . . . . . . . . . . . . . . .37
Stains . . . . . . . . . . . . . . . . . . . . . . . .37

en
4
1Operating the appliance. . . . . . 38
Preparing the washing machine . . . 38
Switching on the appliance/
selecting a programme . . . . . . . . . . 38
Placing laundry into the drum . . . . . 38
Measure and add detergent
and care products . . . . . . . . . . . . . . 39
Change the programme
default settings . . . . . . . . . . . . . . . . 40
Select additional programme
settings . . . . . . . . . . . . . . . . . . . . . . 40
Start the programme . . . . . . . . . . . . 40
Child lock . . . . . . . . . . . . . . . . . . . . 41
Adding laundry . . . . . . . . . . . . . . . . 41
Changing the programme . . . . . . . . 41
Cancel the programme . . . . . . . . . . 41
Programme end during rinse hold. . 42
Programme end. . . . . . . . . . . . . . . . 42
Removing laundry/
switching off the appliance . . . . . . . 42
QAppliance settings . . . . . . . . . . 42
Activating the setting mode . . . . . . . 43
Changing the signal volume . . . . . . 43
Selecting/deselecting the
appliance automatic switch-off. . . . . 43
Switching the drum-care
information signal on/off . . . . . . . . . 43
Exiting setting mode . . . . . . . . . . . . 43
HSensors . . . . . . . . . . . . . . . . . . . 44
Automatic load sensing . . . . . . . . . . 44
Unbalanced load detection system . 44
AquaSensor . . . . . . . . . . . . . . . . . . . 44
2Cleaning and maintenance . . . 44
Machine housing/control panel . . . . 45
Drum . . . . . . . . . . . . . . . . . . . . . . . . 45
Descaling. . . . . . . . . . . . . . . . . . . . . 45
Detergent drawer and housing . . . . 45
The drain pump is blocked,
emergency draining. . . . . . . . . . . . . 46
The drain hose at the
siphon is blocked . . . . . . . . . . . . . . 47
Filter in the water supply blocked . . 47
3Faults and
what to do about them. . . . . . . 48
Emergency release. . . . . . . . . . . . . . 48
Information on the display panel . . . 49
Faults and what to do about them.. . 50
4After-sales service . . . . . . . . . . 52
[Consumption rates . . . . . . . . . 53
Energy and water consumption,
programme duration and residual
moisture for the main washing
programmes. . . . . . . . . . . . . . . . . . . 53
Efficiency test programmes
for cotton fabrics . . . . . . . . . . . . . . . 54
JTechnical data . . . . . . . . . . . . . 54
rAqua-Stop warranty . . . . . . . . . 55

Intended use en
5
8Intended use
Intendeduse ■This appliance is intended for private
domestic use only.
■Do not install or operate this
appliance anywhere that is liable to
experience frost and/or outdoor
conditions. There is a risk that the
appliance will be damaged if
residual water in it freezes. If hoses
freeze up, they may crack/burst.
■This appliance must only be used for
washing domestic laundry,
consisting of machine-washable
items and hand-washable woollens
(see label on item). Using the
appliance for any other purpose is
outside of the scope of its intended
application and is forbidden.
■This appliance is suitable for
operation with mains water and
commercially available detergents
and care products (must be suitable
for use in washing machines).
■This appliance is intended for use up
to a maximum height of
4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to
the appliance. Do not operate the
appliance if it is damaged. Should you
have any problems, please contact your
specialist dealer or our customer
service.
Read and follow the operating and
installation instructions and all other
information provided with this appliance.
Retain the documents for subsequent
use or for subsequent owners.

en Safety instructions
6
(Safety instructions
Safetyinstructions The following safety information
and warnings are provided to
protect you from injury and to
prevent material damage to
your surroundings.
It is nevertheless important to
take the necessary precautions
and to proceed with care when
installing, maintaining, cleaning
and operating the appliance.
Children/people/pets
:Warning
Risk of death!
Children and other people who
are unable to assess the risks
involved when using the
appliance may injure
themselves or may find
themselves in life-threatening
situations. Therefore please
note:
■The appliance may be used
by children over the age of 8
years and by persons with
reduced physical, sensory or
mental capacity or by
persons with a lack of
experience or knowledge as
long as they are supervised
or have received instruction
on how to use the appliance
safely and they have
understood the potential
risks of using the appliance.
■Children must not play with
this appliance.
■Do not allow children to
clean or maintain this
appliance unsupervised.
■Keep children under 3 years
and pets away from this
appliance.
■Do not leave the appliance
unattended when children or
other people who are unable
to assess the risks are in the
vicinity.
:Warning
Risk of death!
Children may lock themselves
inside appliances and find
themselves in a life-threatening
situation.
■Do not position the
appliance behind a door, as
this may obstruct the
appliance door or prevent it
from opening completely.
■Once an appliance has
reached the end of its life,
pull the mains plug from the
socket before severing the
mains cable, and then
destroy the lock on the
appliance door.

Safety instructions en
7
:Warning
Risk of suffocation!
If allowed to play with the
packaging/plastic film or
packing components, children
may become caught in these or
pull them over their heads and
suffocate.
Keep packaging, plastic film
and packing components away
from children.
:Warning
Risk of poisoning!
Detergents and care products
may result in poisoning if
consumed.
If accidentally swallowed, seek
medical advice. Keep
detergents and care products
out of the reach of children.
:Warning
Risk of burns!
When washing at high
temperatures, the glass in the
appliance door becomes hot.
Stop children from touching the
appliance door when it is hot.
:Warning
Eye/skin irritation!
Contact with detergents or care
products may cause eye/skin
irritation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. Keep detergents and
care products out of the reach
of children.
Installation
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance is not installed
properly, this may lead to a
dangerous situation. Ensure
the following:
■The mains voltage on your
power socket must match
the rated voltage specified
on the appliance
(identification plate). The
connected loads and the
required fuse protection are
specified on the identification
plate.
■The appliance must only be
connected to alternating
voltage via a protective
contact socket that has been
correctly installed. This plug
socket must be freely
accessible at all times.
■The mains plug and the
protective contact socket
must match and the earthing
system must be correctly
installed.
■The installation must have an
adequate cross section.

en Safety instructions
8
■The mains plug must be
freely accessible at all times.
If this is not possible, in
order to comply with the
relevant safety regulations, a
switch (all pole
disconnection) must be built
into the permanent
installation in accordance
with electrical installation
regulations.
■If using a residual current
circuit breaker, only use one
that bears the following
mark: z. The presence of
this mark is the only way to
be sure that it fulfils all the
applicable regulations.
:Warning
Risk of electric shock/fire/
material damage/damage to
the appliance!
If the appliance's mains cable is
altered or damaged, this may
result in electric shock, short
circuiting or fire due to
overheating.
The mains cable must not be
kinked, crushed or altered, and
must not come into contact with
any heat sources.
:Warning
Risk of fire/material damage/
damage to the appliance!
The use of extension cords or
power strips may result in fire
due to overheating or short
circuiting.
Connect the appliance directly
to an earthed socket that has
been correctly installed. Do not
use extension cords, power
strips or multi-way couplers.
:Warning
Risk of injury/material
damage/damage to the
appliance!
■The appliance may vibrate or
move when in operation,
potentially resulting in injury
or material damage.
Place the appliance on a
clean, even, solid surface
and, using a spirit level to
guide you, level it with the
screw-in feet.
Risk of injury/material damage/damage to the appliance!
■If you take hold of any of the
appliance's protruding parts
(e.g. the appliance door) in
order to lift or move it, these
parts may break off and
cause injury.
Do not take hold of any of
the appliance's protruding
parts in order to move the
appliance.

Safety instructions en
9
:Warning
Risk of injury!
■The appliance is very heavy.
Lifting it may result in injury.
Do not lift the appliance on
your own.
Risk of injury!
■The appliance has sharp
edges on which you could
cut your hands.
Do not take hold of the
appliance by its sharp
edges. Wear protective
gloves to lift it.
Risk of injury!
■If the hoses and mains
cables are not correctly
routed, they may constitute a
tripping hazard, which may
result in injury.
Route hoses and cables
such that they do not
constitute a tripping hazard.
Caution!
Material damage/damage to
the appliance
■If the water pressure is too
high or too low, the
appliance may not be able to
operate properly, and it may
also result in material
damage or damage to the
appliance.
Make sure that the water
pressure in the water supply
facility is at least
100 kPa (1 bar), and does
not exceed
1000 kPa (10 bar).
Material damage/damage to the appliance
■If the water hoses are altered
or damaged, this may result
in material damage or
damage to the appliance.
The water hoses must not be
kinked, crushed, altered or
severed.
Material damage/damage to the appliance
■The use of hoses supplied
by other brands to connect
to the water supply may
result in material damage or
damage to the appliance.
Use the hoses supplied with
the appliance or genuine
spare part hoses only.
Material damage/damage to the appliance
■The appliance is secured for
transportation by transport
locking devices. If the
transport locking devices are
not removed before the
appliance is operated, this
may result in damage to the
appliance.
It is important to completely
remove all transport locking
devices before using the
appliance for the first time.
Make sure that you retain
these transport locking
devices separately. It is
important to refit the
transport locking devices if
the appliance is to be
transported, in order to
prevent the appliance from
being damaged in transit.

en Safety instructions
10
Operation
:Warning
Risk of explosions/fire!
Laundry that has been
pretreated with cleaning agents
that contain solvents, e.g. stain
remover/cleaning solvent, may
cause an explosion in the drum.
Rinse the laundry thoroughly
with water before washing it in
the machine.
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of injury!
■If you support your weight/sit
on the appliance door when
it is open, the appliance may
tip over, which may result in
injury.
Do not support your weight
on the appliance door when
it is open.
Risk of injury!
■If you climb onto the
appliance, the worktop may
break, which may result in
injury.
Do not climb onto the
appliance.
Risk of injury!
■If you reach into the drum
while it is still rotating, you
risk injuring your hands.
Wait until the drum has
stopped rotating.
:Warning
Risk of scalding!
When washing at high
temperatures, there is a risk of
scalding if you come into
contact with hot detergent
solution (e.g. when draining hot
detergent solution into a
washbasin).
Do not reach into the hot
detergent solution.
:Warning
Eye/skin irritation!
Detergent and care products
may spray out if the detergent
drawer is opened while the
appliance is in operation.
Rinse eyes/skin thoroughly if
they/it come(s) into contact
with detergents or care
products. If accidentally
swallowed, seek medical
advice.

Safety instructions en
11
Caution!
Material damage/damage to
the appliance
■If the amount of laundry in
the appliance exceeds its
maximum load capacity, it
may not be able to operate
properly, or this may result in
material damage or damage
to the appliance.
Do not exceed the maximum
load capacity of dry laundry.
Make sure you comply with
the maximum load capacities
specified for each of the
programs. ~Page 29
Material damage/damage to the appliance
■If you pour the wrong
quantity of detergent or
cleaning agent into the
appliance, this may result in
material damage or damage
to the appliance.
Use detergents/care
products/cleaning agents
and softeners in accordance
with the manufacturers'
instructions.
Cleaning/Maintenance
:Warning
Risk of death!
The appliance is powered by
electricity. There is a risk of
electric shock if you come into
contact with live components.
Therefore please note:
■Switch off the appliance.
Disconnect the appliance
from the power supply (pull
out the plug).
■Never take hold of the mains
plug with wet hands.
■When removing the mains
plug from the socket, always
take hold of the plug itself
and never the mains cable,
otherwise this may damage
the mains cable.
■Do not make any technical
modifications to the
appliance or its features.
■Repairs and any other work
on the appliance must only
be conducted by our
customer service or by an
electrician. The same applies
for replacing the mains cable
(when necessary).
■Spare mains cables can be
ordered from our customer
service.

en Safety instructions
12
:Warning
Risk of poisoning!
Poisonous fumes may be given
off by cleaning agents that
contain solvents, e.g. cleaning
solvent.
Do not use cleaning agents that
contain solvents.
:Warning
Risk of electric shock/material
damage/damage to the
appliance!
If moisture penetrates the
appliance, this may cause it to
short circuit.
Do not use a pressure washer,
steam cleaner, hose or spray
gun to clean your appliance.
:Warning
Risk of injury/material
damage/damage to the
appliance!
The use of spare parts and
accessories supplied by other
brands is dangerous and may
result in injury, material damage
or damage to the appliance.
For safety reasons, use
genuine spare parts and
accessories only.
Caution!
Material damage/damage to
the appliance
Cleaning agents and agents for
pretreating laundry (e.g. stain
removers, prewash sprays, etc.)
may cause damage if they
come into contact with the
surfaces of the appliance.
Therefore please note:
■Do not allow these agents to
come into contact with the
surfaces of the appliance.
■Clean the appliance with
nothing but water and a soft,
damp cloth.
■Remove any detergent,
spray or other residues
immediately.

Environmental protection en
13
7Environmental
protection
Environmentalprotecti on Packaging/used appliance
Tips on economical use
■Always fill the appliance with the
maximum amount of laundry for the
relevant programme.
Overview of programmes
~Page 29
■Wash normally soiled laundry
without a prewash.
■Save energy and detergent when
washing lightly and normally soiled
laundry. ~Page 28
■The selectable temperatures apply
to the care labels on the textiles. The
temperatures in the machine may
deviate from this so that you get the
optimum mix of energy-saving and
washing results.
■Information on energy and water
consumption: ~Page 26
The displays provide information
about the relative level of energy and
water consumption in the selected
programmes.
The more indicator lights light up,
the higher the programme's
consumption.
This enables you to compare the
consumption levels of the different
programmes when choosing your
programme settings and decide on
an energy- and water-saving
programme setting.
■Energy-saving mode: The display
panel lighting goes out after a few
minutes and the Übutton flashes.
Press any button to activate the
lighting.
Energy-saving mode is not activated
if a programme is running.
■Automatic switch off: If the
appliance is not operated for a
prolonged period, it may
automatically switch off before the
programme starts and when the
programme has ended to save
energy. Press the main switch again
to switch on the appliance.
Switching the ~Page 42 function
on/off
■If the laundry is subsequently dried
in a tumble dryer, select the spin
speed according to the tumble dryer
manufacturer's instructions.
)Dispose of packaging in an
environmentally-responsible
manner.
This appliance is labelled in
accordance with European
Directive 2012/19/EU
concerning used electrical and
electronic appliances (waste
electrical and electronic
equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances
as applicable throughout the
EU.

en Positioning and connecting
14
5Positioning and
connecting
Positioningandconnecti ng Included with the appliance
Note: Check the machine for transport
damage. Never use a damaged
machine. If you have any complaints,
contact the dealer from whom you
purchased the appliance or our
customer services. ~Page 52
In addition, a hose clamp (24 - 40 mm
diameter, available from specialist
dealers) is required to connect the
water drain hose to a siphon.
Useful tools
■Spirit level for aligning
■Spanner with:
– WAF13 for loosening the
transport braces, and
– WAF17 for aligning the appliance
feet
3
+

#


(Mains cable
0Bag:
■Installation and operating
instructions
■Customer services location
directory*
■Warranty*
■Cover caps for openings after
the transport braces have
been removed
■Adaptor with sealing washer
from 21 mm = ½" to
26.4 mm = ¾" *
8Water supply hose on Aqua-Stop
models
@Water drain hose
HElbow for securing the water
drain hose*
PWater supply hose on standard/
Aqua-Secure models
* depending on the model

Positioning and connecting en
15
Safety instructions
:Warning
Risk of injury!
■The washing machine is very heavy.
Be careful when lifting/transporting
the washing machine.
■When the washing machine is lifted
by its protruding parts (e.g. the
washing machine door), the
components may break off and
cause injuries.
Do not lift the washing machine by
protruding parts.
■If the hose and mains cables are not
routed properly, there is a risk of
tripping and injury.
Lay hoses and cables in such a way
that there is no risk of tripping.
Caution!
Damage to the appliance
Frozen hoses may rip/burst.
Do not install the washing machine in
areas exposed to frost or outdoors.
Caution!
Water damage
The connection points for the water
supply hose and water drain hose are
under high water pressure. To prevent
leaks and water damage, you must
follow the instructions in this section.
Notes
■In addition to the safety information
listed here, the local water and
electricity supplier may have special
requirements.
■If in doubt, have the appliance
connected by a specialist.
Installation surface
Note: The washing machine be stable
so that it does not move around.
■The installation surface must be firm
and level.
■Soft floors/floor coverings are not
suitable.
Installation on a base or a
wooden joist floor
Caution!
Damage to the appliance
The washing machine may "wander"
and tip/topple from the base when
spinning.
The feet of the appliance must be
secured with holding brackets.
Order no. WMZ 2200, WX 9756,
Z 7080X0
Note: On wooden joist floors, install the
washing machine:
■In a corner, if possible,
■On a water-resistant wooden board
(min. 30 mm thick) which is screwed
tightly to the floor.
Installation on a platform with
drawer
Platform order no.: WMZ 20490,
WZ 20490, WZ 20510, WZ 20520

en Positioning and connecting
16
Installing the appliance in a
kitchenette
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
Do not remove the appliance covering
plate.
Notes
■Recess width of 60 cm required.
■Only install the washing machine
underneath a continuous worktop
that is securely connected to
adjacent cabinets.
Removing the transport locks
Caution!
Damage to the appliance
■The machine is secured for
transportation using transport locks.
If the transport locks are not
removed, the drum, for example,
may become damaged when the
machine is operated.
Before using the appliance for the
first time, make sure that you
completely remove all four transport
locks. Keep the locks in a safe
place.
■To prevent transport damage from
occurring if the appliance is moved
at a later date, you must refit the
transport locks before transporting
the appliance.
Note: Keep the screws and sleeves in
a safe place.
1. Take the hoses out of the holders.
2. Unscrew and remove all four
transportation securing bolts with a
wrench (WAF 13).
Remove the sleeves. Remove the
mains cable from the holders.
3. Insert the covers. Lock the covers
firmly in place by applying pressure
to the snap-in hooks.

Positioning and connecting en
17
Hose and cable lengths
■Left-hand connection
■Right-hand connection
Tip: The following are available from
specialist dealers/customer services:
■Extension for Aqua-Stop and cold
water supply hose (approx. 2.50 m);
order no. WM Z2380, WZ 10130,
CZ 11350, Z 7070X0
■A longer supply hose (approx. 2.20
m) for standard models; individual
component number for customer
services: 00353925
PD[FP
aFP
aFP
aFP
aFP
PD[FP
aFP
aFP

en Positioning and connecting
18
Water inlet
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
Do not immerse the Aqua-Stop safety
valve in water (it contains an electric
valve).
Notes
■Only operate the washing machine
using cold mains water.
■Do not connect the machine to the
mixer tap of an unpressurised hot-
water boiler.
■Do not use a used supply hose. Only
use the supply hose supplied or one
that was purchased from an
authorised specialist retailer.
■Do not kink or squash the water
supply hose.
■Do not alter (shorten, cut through)
the water supply hose (otherwise its
strength is no longer guaranteed).
■Only tighten the screw connections
by hand. If the screw connections
are tightened too much with a tool
(pliers), the thread may become
damaged.
■When connecting to a 21 mm = ½"
tap, first fit an adapter* with a sealing
washer from 21 mm = ½" to
26.4 mm = ¾".
*supplied depending on the model
Optimum water pressure in the supply
network
At least 100 kPa (1 bar)
Maximum 1000 kPa (10 bar)
When the tap is open, the water flow
rate is at least 8 l/min.
If the water pressure is higher than this,
a pressure-reducing valve must be
installed.
Connection

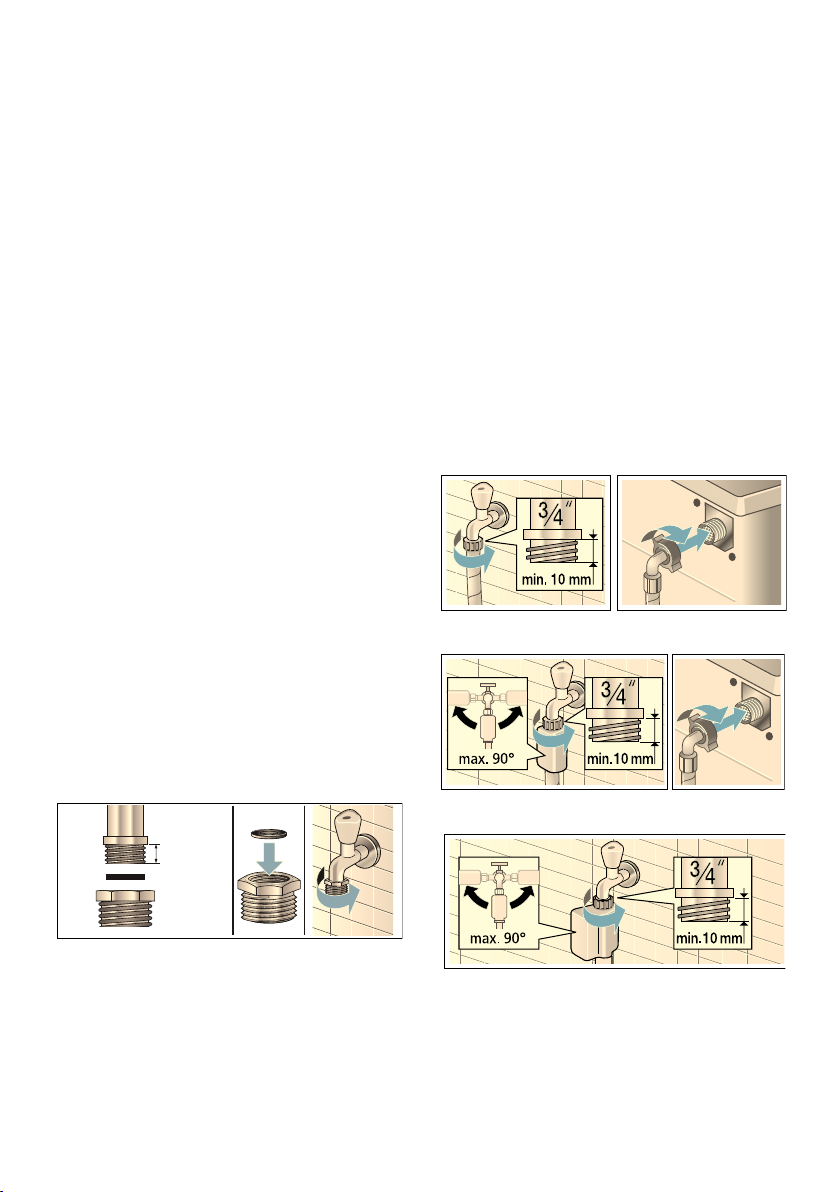

Connect the water supply hose to the
tap (26.4 mm = ¾") and to the
appliance (not necessary for Aqua-Stop
models as this is permanently installed):
■Model: Standard
■Model: Aqua-Secure
■Model: Aqua-Stop
Note: Turn on the tap carefully,
checking the leak tightness of the
connection points. The screw
connection is under mains water
pressure.
PLQPP
ê
ë

Positioning and connecting en
19
Water outlet
:Warning
Risk of scalding!
When you are washing at high
temperatures, there is a risk of scalding
if you come into contact with hot water
(e.g. when draining hot water into a
washbasin).
Do not reach into the hot water.
Caution!
Water damage
If the drain hose slips out of the
washbasin or the connection point
during draining due to high water
pressure, any escaping water may
cause water damage.
Secure the drain hose so that it cannot
slip out.
Caution!
Damage to the appliance/fabrics
If the end of the drain hose is immersed
in the drained water, water may be
sucked back into the appliance and
may damage the appliance/fabrics.
Make sure that:
■The plug does not block drainage
from the washbasin.
■The end of the drain hose is not
immersed in the drained water.
■The water drains away quickly
enough.
Note: Do not kink the water drain hose
or put strain on it lengthways.
Connection
■Drainage into a washbasin
■Drainage into a siphon
The connection point must be
secured using a hose clamp with a
diameter of 24 - 40 mm (available
from specialist dealers).
■Drainage into a plastic pipe with
rubber bushing or into a drainage
pit

en Positioning and connecting
20
Levelling
Align the appliance using a spirit level.
Incorrect alignment may result in loud
noises, vibrations and machine
"movement".
1. Loosen the lock nuts using a WAF17
spanner, by turning it in a clockwise
direction.
2. Check the alignment of the washing
machine with a spirit level, and
adjust it if necessary. Change the
height by turning the appliance feet.
All four appliance feet must stand
firmly on the ground.
3. The lock nuts on all four appliance
feet must be screwed tightly against
the housing using a suitable WAF17
spanner. In doing so, hold the foot
tight and do not adjust its height.
Electrical connection
:Warning
Danger of death!
There is a risk of electric shock if you
touch live components.
■Never touch or hold the mains plug
with wet hands.
■Only pull out the mains cable by the
plug and never by the cable, as this
could damage it.
■Never unplug the mains plug during
operation.
Observe the following information and
ensure that:
Notes
■The mains voltage and voltage
indicated on the washing machine
(rating plate) are the same.
The connected load and fuse
required are specified on the rating
plate.
■The washing machine is only
connected to an alternating current
supply via a properly installed
earthed socket.
■The mains plug fits the socket.
■The cable cross-section is adequate.
■The earthing system is properly
installed.
■The mains cable is only replaced by
a qualified electrician (if this is
necessary). Replacement mains
cables are available from customer
services.
■No multiple plugs/couplings or
extension cables are used.
■If an earth-leakage circuit breaker is
used, only a type which displays the
zsymbol is used.
Only this symbol guarantees
compliance with the currently
applicable regulations.
■The mains plug can be accessed at
all times. If this is not possible, in
order to comply with the relevant
safety regulations, a switch (2-pole
switch-off) must be built into the
permanent installation in accordance
with electrical installation regulations.
■The mains cable is not kinked,
squashed, altered or cut through.
■The mains cable does not come into
contact with heat sources.
