Sierra Wave® 14-Watt Power Hub #9614
IMPORTANT SAFEGUARDS
Read all instructions before operating
WARNING: (to reduce the risk of electric shock, injury, or damage to this product)
• Do Not submerge the unit or its accessories in any liquid
• Do Not short circuit, expose to heat, fire, cause damage to the batteries, or reverse polarity (+/-) as
they may explode or leak
• Do Not carry loose batteries in your pocket or purse
• Do Not disassemble due to risk of injury
• Do Not use in flammable or explosive areas
• Discontinue use if electronic components or wires are exposed
• Keep batteries away from children
• If swallowed, consult a doctor immediately
• Store in a clean dry place when not in use
• Administer close supervision when using around children
PARTS IDENTIFICATION
14-WATT POWER HUB
The 14-Watt Power Hub is a battery charger and power distribution center that provides up to 12.5 watt
hours of power. Comes with 4 high capacity rechargeable AA NiMH batteries. Once batteries are charged,
the Power Hub may also be used to discharge the power into small handheld devices such as cell phones,
smart phones, and MP3/iPods. Will also distribute power from non-rechargeable AA batteries. Alternatively,
remove charged batteries and install in other devices using AA batteries.
CHARGE BATTERIES BEFORE USING.
CHARGING RECHARGEABLE BATTERIES
120V AC or 12V DC Charging (adapters included):
1. Slide the BATTERY COMPARTMENT COVER open and install 2 or 4 rechargeable AA batteries into the
Power Hub. Match the positive (+) and negative (-) indicators located in the bed of the Power Hub to
the battery label.
2. Plug the male DC output plug from either charger into the INPUT PORT of the Power Hub and then
plug the 120V AC WALL CHARGER or the 12V DC VEHICLE CHARGER into the appropriate electrical
socket (depending on which charger is being used).
3. The LED INDICATOR LIGHT will illuminate red to show that the batteries are charging. Once a full
charge has been achieved it will change to green.
4. When using the 12V DC VEHICLE CHARGER, keep your vehicle’s engine running to protect the battery.
5. Recharge batteries every 90 days.
USING STORED POWER
CAUTION: Before use, user must confirm that their electronic device is compatible to the Power Hub using
the listed specifications. Failure to follow these instructions could result in damage to your device. Use
included adapters or other adapters matching these specifications.
1. With charged batteries installed in the Power Hub, connect the USB plug on the MULTIFUNCTION USB
CABLE to the USB OUTPUT PORT of the Power Hub. Plug the appropriate TIP into your device.
2. Your device should immediately start charging. Once charging is complete, unplug it from the Power
Hub.
3. If you have a specific USB charging cable for your device, connect the USB plug to the USB OUTPUT
PORT and the other end to your device.
4. Or remove charged batteries from the Power Hub and install them into any AA battery powered device.
5. Some Apple products may display the error message “this device is not supported.” Apple devices
require specific power requirements and may be due to inadequate stored power in the Power Hub.
Check that batteries are fully charged and retry.
USING NON-RECHARGEABLE AA BATTERIES
Non-rechargeable batteries like common Alkaline batteries may be used in the Power Hub to charge devices
from the Power Hub. CAUTION: Do not attempt to recharge these batteries as fire, explosion, injury and
damage to the Power Hub may occur.
CAUTION
ONLY CHARGE BATTERIES LABELED AS NIMH RECHARGEABLE. FIRE,
EXPLOSION, AND INJURY CAN RESULT FROM TRYING TO CHARGE
NON-RECHARGEABLE BATTERIES.

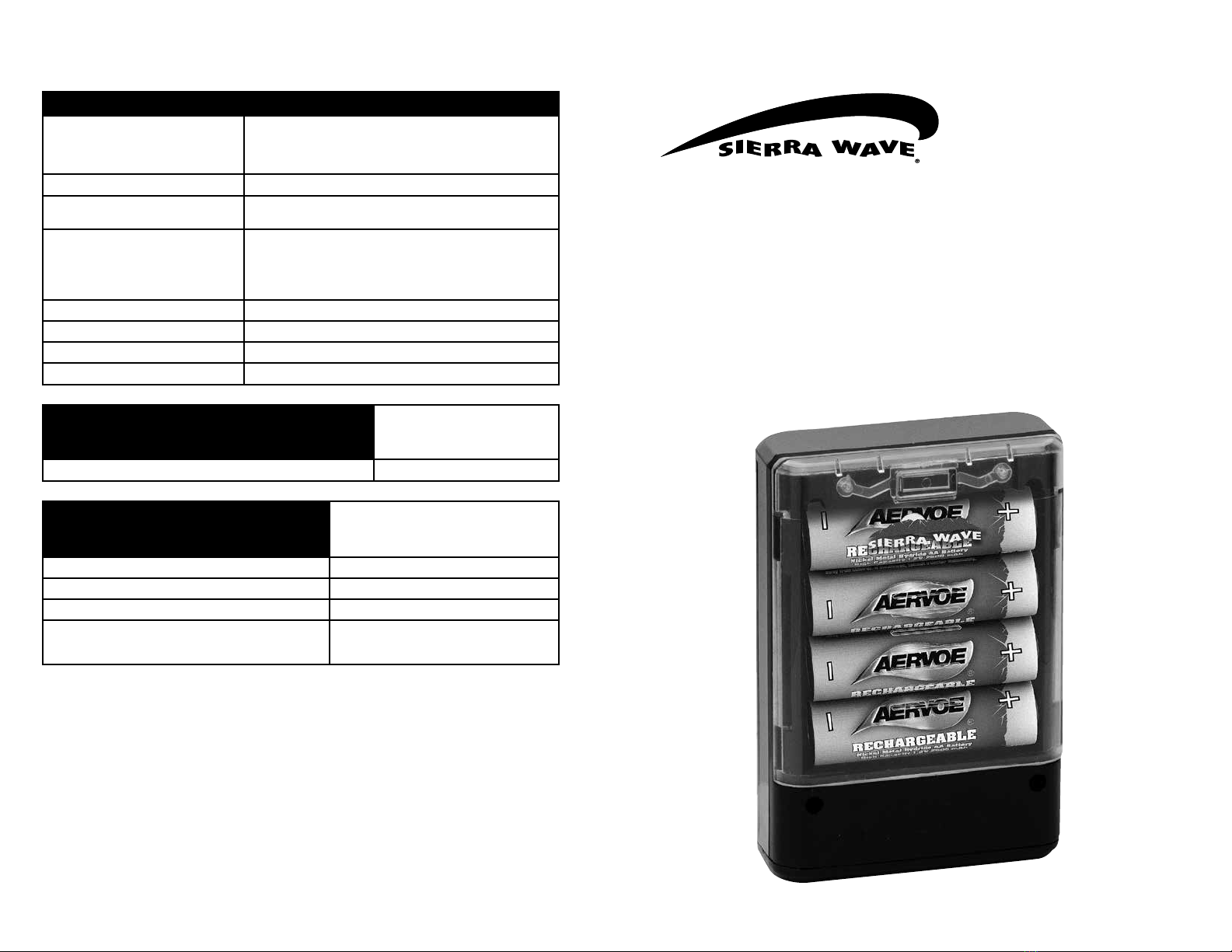

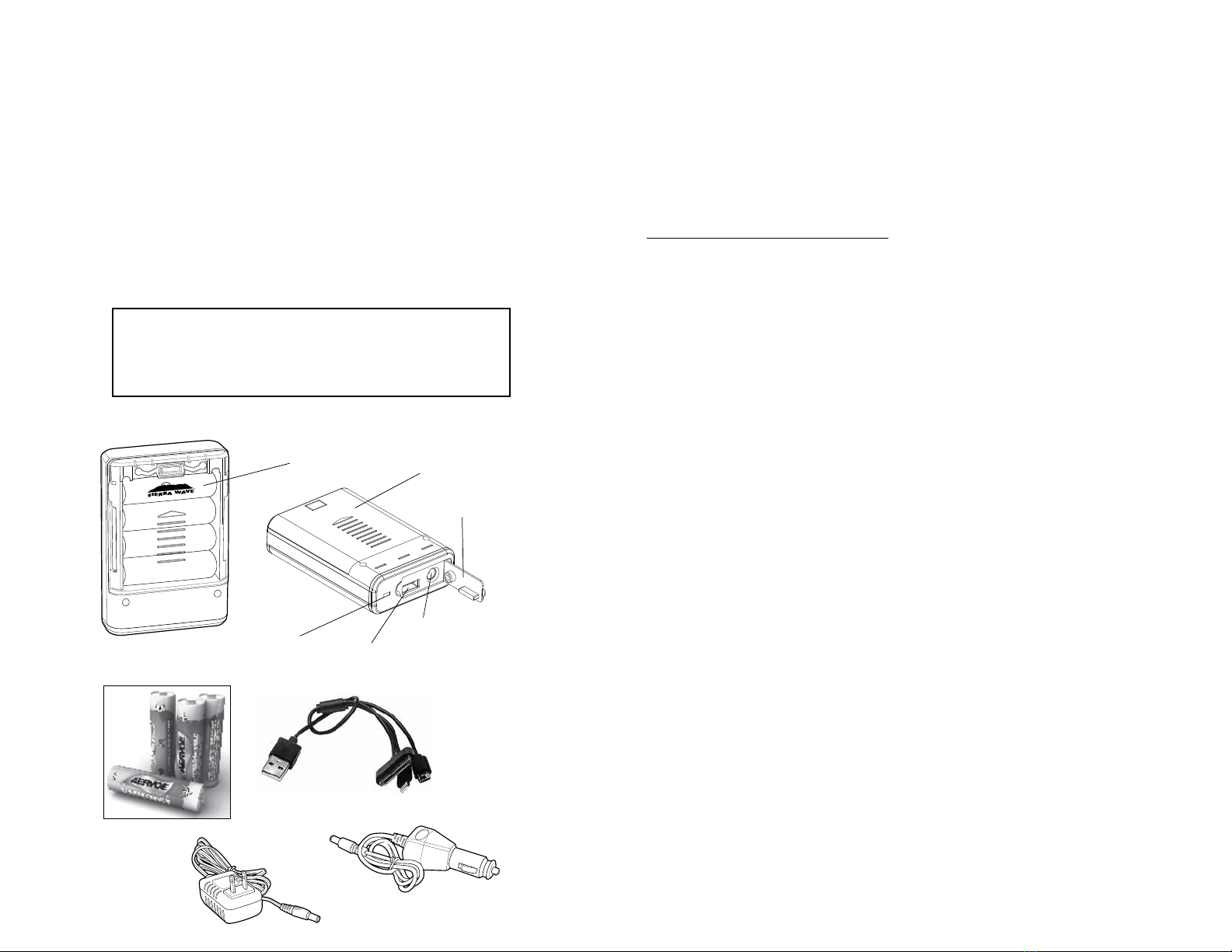

Power Hub shown
with batteries installed
LED Indicator Light
USB Output Port
Input Port
Rubber Port Cover
Battery Compartment
120V AC
Wall Charger
12V DC
Vehicle Charger
Included
Multifunction USB Cable
Standard USB iPhone
32-pin iPhone
Lightning
Micro
USB
OPERATING INSTRUCTIONS
TECHNICAL INFORMATION
SPECIFICATIONS
INCLUDED BATTERY SPECIFICATIONS
Other rechargeable batteries may be
used. We recommend matching these
specifications for best results.
4 - rechargeable AA 2500 mAh NiMH batteries
Additional batteries are available at your local retailer or on www.
aervoe.com (P/N #1400 Rechargeable AA Batteries)
DC INPUT 3.5V/2A DC
DC OUTPUT 5V USB 500 mAh - 1.2A, 12.5 watt hours max (depends on battery
quality, capacity and charge level)
120V AC WALL CHARGER (included)
12V DC VEHICLE CHARGER (included)
Input: 100-240V AC 50/60 Hz 0.2A
Output: 3.5V DC/1.2A
Input: 12-24V DC
Output: 3.5V DC/1.2A
ADAPTERS (included) Multifunction USB cable
OPERATING TEMPERATURE 32ºF - 120ºF
WEIGHT 1 lb. (0.5 kg)
DIMENSIONS 3.7” x 2.52” x 1” (94mm x 64mm x 26mm)
POWER HUB CHARGING TIME
Charge times listed are guidelines. Actual times will vary depending on the AA
battery type, capacity available and your device’s charging rate. Use same style
batteries.
Approximate time based on using
4 NiMH 2500 mAh rechargeable
batteries.
Using either the 12V or 120V charger to fully charge 6-8 hours
DEVICE CHARGING TIME
Only charge 5V USB compatible devices (check your device’s owner’s
manual). Times vary depending on device charge rate and battery
capacity.
Approximate time based on using 4 fully
charged NiMH 2500 mAh rechargeable
batteries.
Cell phone/Smart phone 3-6 hours depending on model
iPod/MP3 players and portable gaming devices 2-4 hours depending on model
GPS or digital camera 6-8 hours depending on model
eReader/Tablet computer (rated under 1.2A charge input)
NOTE: not compatible with Apple iPad and other devices requiring USB
2.0. Larger power centers are available at www.aervoe.com
8-14 hours depending on model
