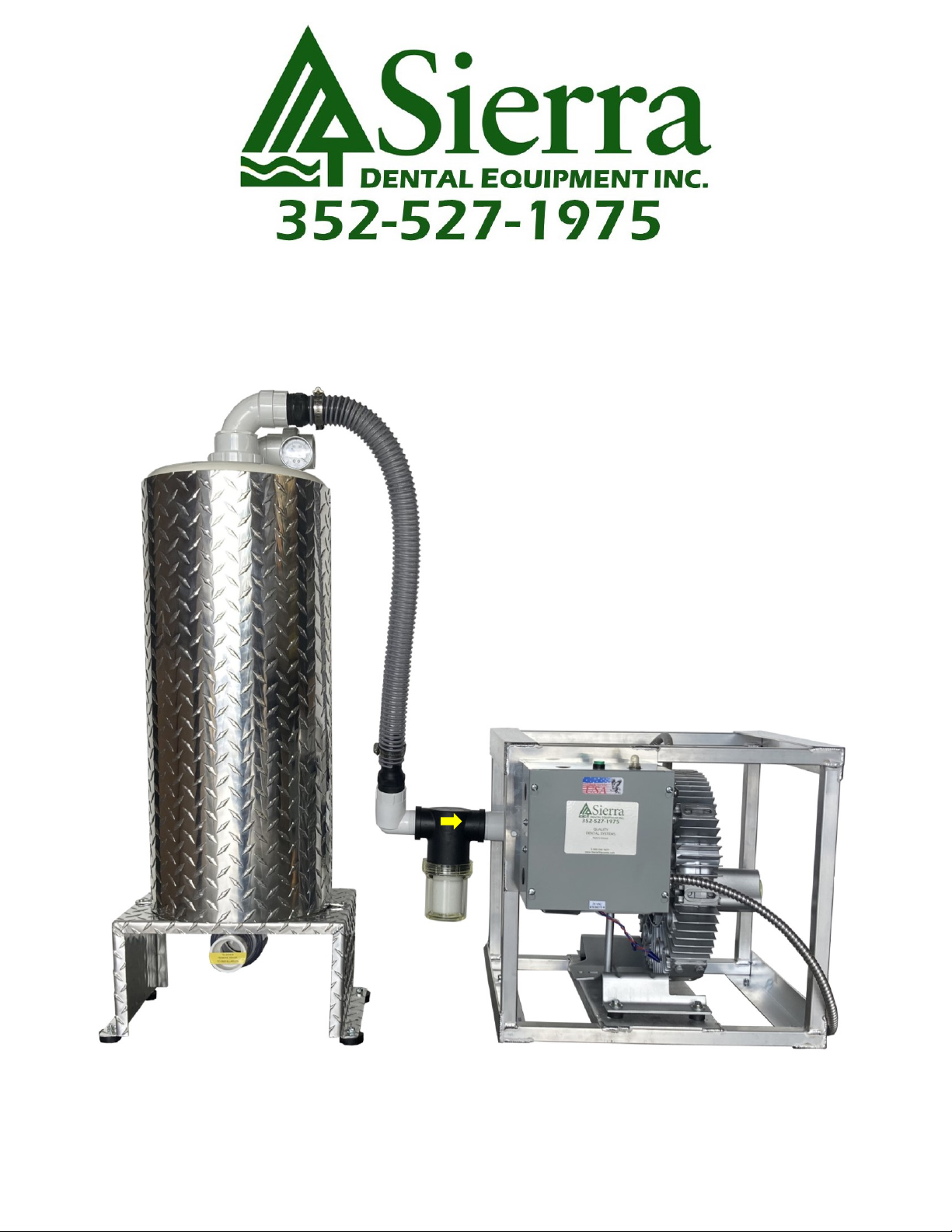

Sierra TV-10 User manual

[e-mail] www.Dentalvacuums.com
TV-10 Dry Vacuum System
2022 USER MANUAL/Installation Instructions
1953 W. Gulf To Lake Hwy, Lecanto, FL 34461
Phone: [phone] FAX: [phone]

TABLE OF CONTENTS
Cover
Congratulations
Customer support
Warranty Policy
Safety
Sub Assemblies
What’s Included
Specifications
-Site requirements
-Product Specifications
-Tank Specifications
-Chassis Specifications
System Layout
Installation
Operation
Maintenance
Troubleshooting
Accessories
1
2
3
4
5
6
7
8
8
9
10
11
12
13
17
18
19
20
On the Purchase of your TRU-VAC dry vacuum system. This state-of-the-art dry vacuum is a
very powerful, high volume, efficient system. 230-volt motor provides the HP necessary to
handle high demands while maintaining multiple operatories. Equipped with a Vortex Action
Separator(VAS) Tank, your TRU-VAC dry vacuum system will ensure efficiency and reliability.
We are certain you will love your new product!
If you are not satisfied 100% with this products please reach out and let us know,
we are successful because of your FEEDBACK!
352-527-1975
Email: sierradentalequip[email protected]om
2
Congratulations!

CUSTOMER SUPPORT
“We are happy to help you with any questions or
concerns you may have about your equipment”
Contact Us at 352-527-1975.
We’re here to help!
Sierra Dental Equipment Inc.
1953 W. Gulf to Lake Hwy
Lecanto, FL 34461
[email protected]
DentalVacuums.com
Look for us… on social media!
3

WARRANTY POLICY
Sierra Dental Equipment Limited Warranty
Warranty for the TRU-VAC Dry Vacuum System is limited to the original purchaser
of the unit. Sierra Dental Equipment is only obligated under this warranty to the
repair or replacement of defective parts or materials. The defect(s) must be
reported to Sierra Dental Equipment within the valid warranty period.
Sierra Dental Equipment will examine the product to determine if the parts are
defective. Equipment that has been abused, neglected, or damaged by being
improperly installed/maintained are not covered by this warranty. We are not
responsible for work performed on the unit by any unauthorized service agents.
Warranty Period
Warranty is valid only with the return of the warranty card within 30 days of
purchase for a period of 10 years.
Warranty Service and Return Policy
To obtain warranty service, product must be returned to Sierra Dental Equipment
for examination at the purchaser’s expense. All returns must be authorized, and a
return material authorization (RMA#) number must be obtained from Sierra Dental
Equipment. Returned units must be properly packaged for shipping. We are not
responsible for shipping damages or shipping charges. Sierra Dental Equipment
will, at their discretion, repair or replace defective parts.**PLEASE NOTE** there is
a 25% re-stocking fee on all returns.
4

SAFETY
WARNING
To prevent fire or electrical shock, do
not expose this unit to rain or
moisture, excessive heat or improper ventilation.
ATTENTION USERS
Alerts users of important operating
and maintenance instructions. Read
carefully to avoid any problems
Warns users of a potentially hot
surface, and a danger of burns
Warns users that uninsulated voltage
is present and can cause electric
shock
5
Use of the TRU-VAC not in compliance with the
instructions specified in this manual may result in
permanent failure / voided warranty of the unit.

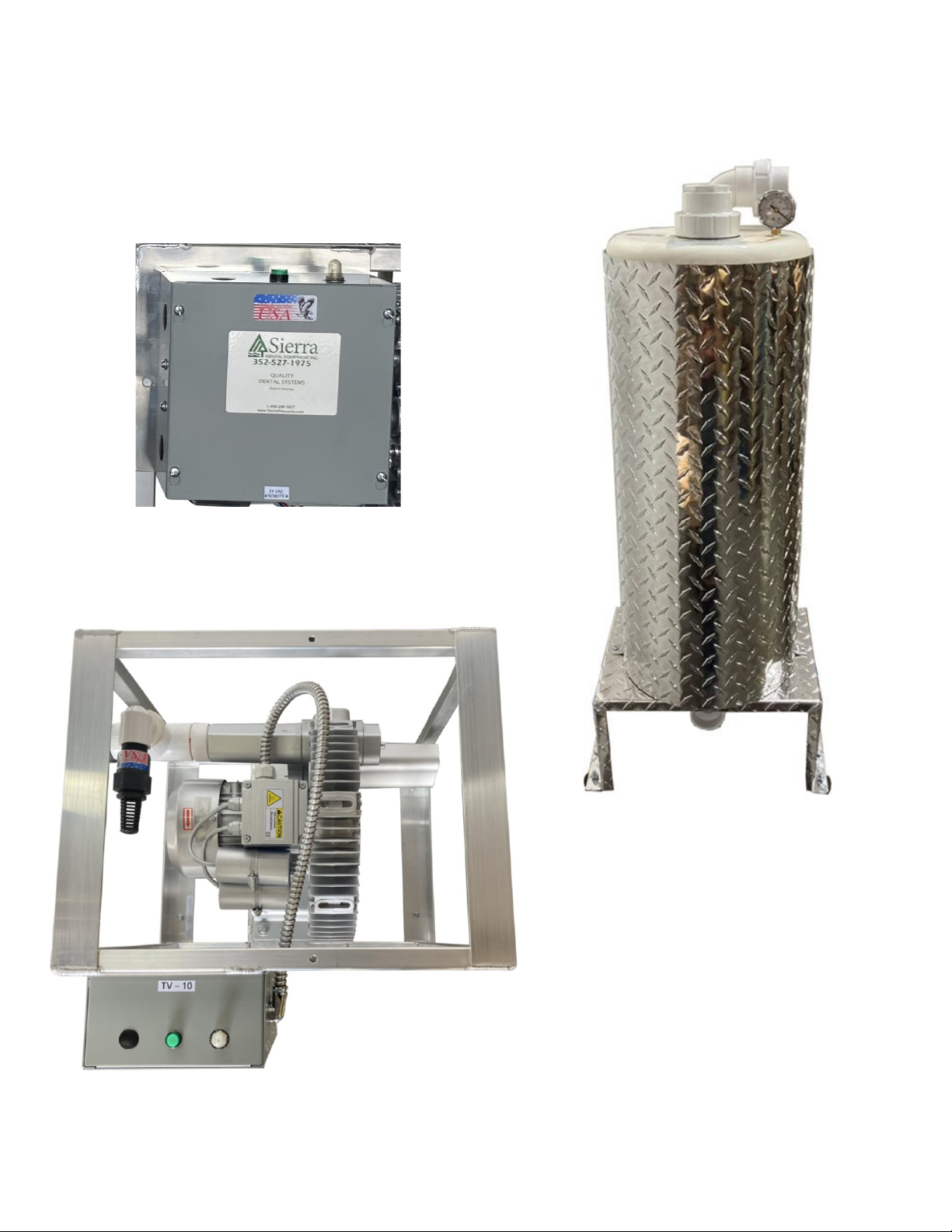

SUB ASSEMBLIES
Low Voltage Control Box
Vortex Action
Separator Tank
Motor Assembly
6

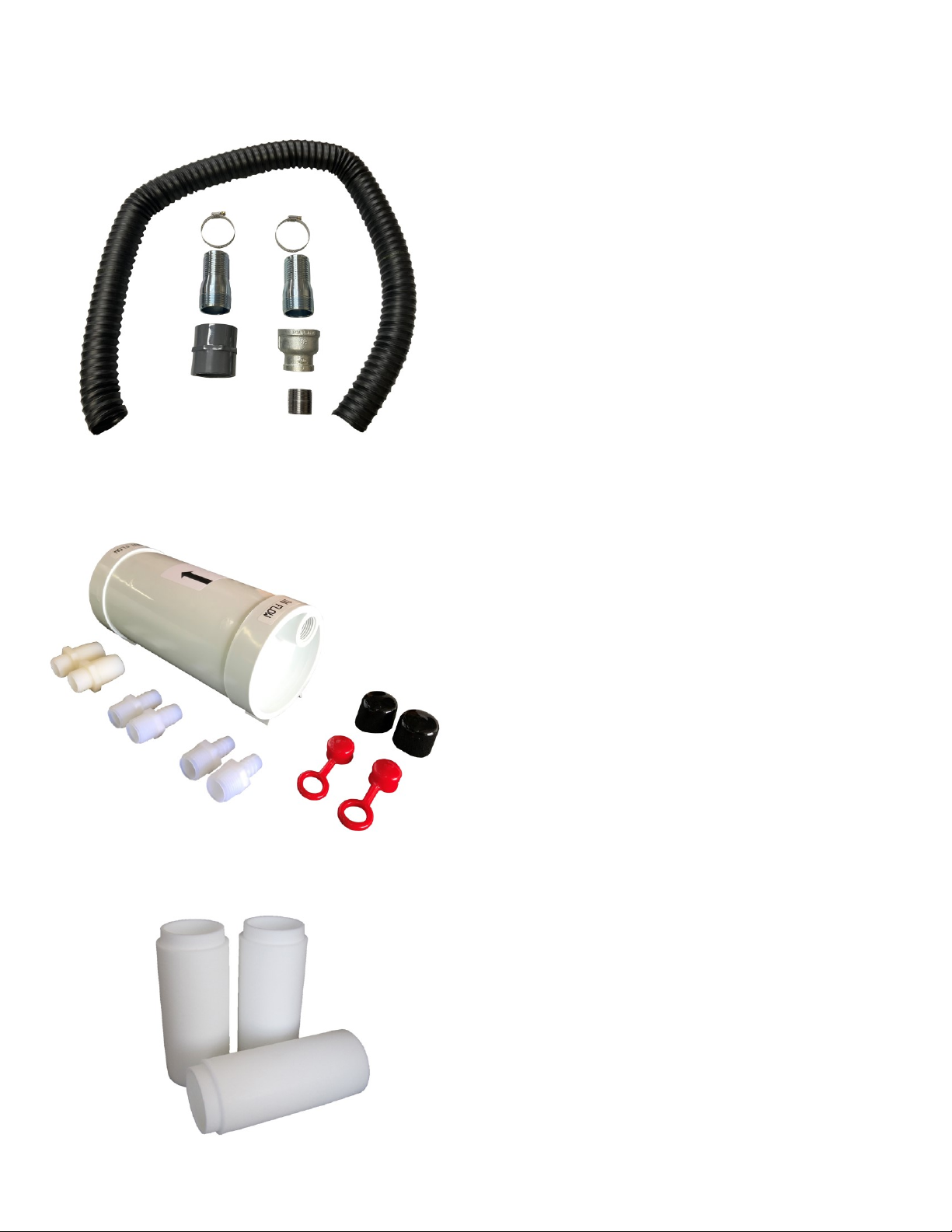

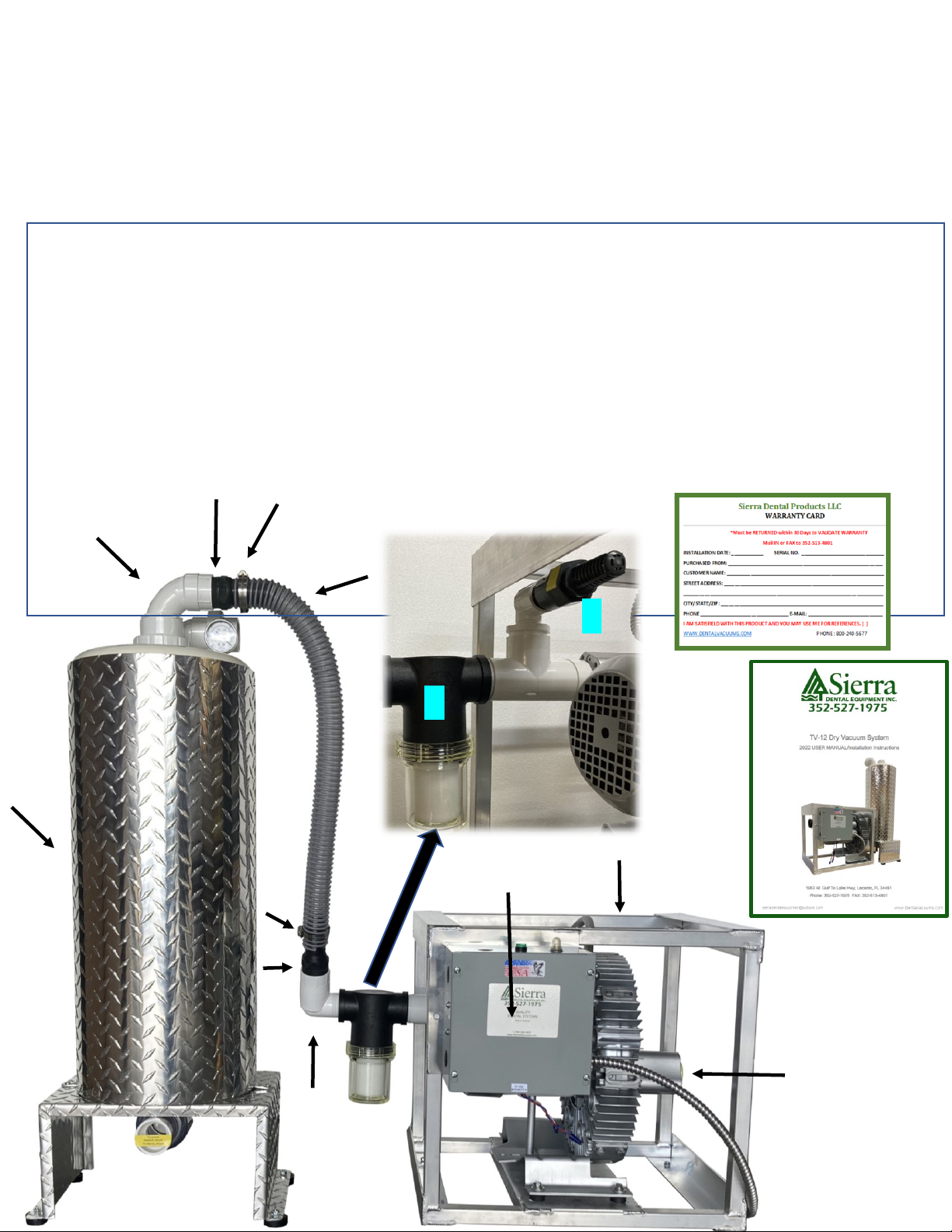

WHAT’S INCLUDED
7
a) X1 90 Degree Elbow…………………….………………..….......................................……..(1 ½” mpt x 1 ½” fpt)
b) X1 90 Degree Elbow………………………………..………………..................….…...(1 ½” male slip x 1 ½” fpt )
c) X2 Black Nipple..……….....……………….….. ….......................................................(1 ½” mpt x 1 ½” Barbed)
d) X2 Stainless Steel Hose Clamps………..…….……..……………………......………….....….…..(1 13/16” -2 ¾”)
e) X1 Vacuum Flex Hose………….……………………………..…………....…..…..…………(1 ½” dia. x 5’ Length)
f) X1 Low Voltage Controller…….…………………...…….……………….....…...…….(24 Volt, Remote Capability)
g) X1 VAS Collection Tank……………..………....…………......…….....(12 Gallon, 1 ½” Female Slip connections)
h) X1 Motor Assembly….............….......................................……(1.75 HP, 1 ½” fpt inlet. 2" fpt Outlet “Exhaust”)
i) X1 Vacuum Relief Valve/Tee........................................................................(1 ½" Male Slip x 1 ½" Female Slip)
j) X1 Filter.......................................................................................................................(1 ½" fpt x 1 ½" male slip)
k) X1 TV-10………………………...…..……………………………………......….……………….…….USER MANUAL
l) X1 Warranty Card…………….….………………………………….….....……(Fill Out And Return within 30 days)
k.
l.
a.
b. c.
d.
e.
f.
g.
h.
c.
d.
i.
j.
1 ¼" fpt x 2" fpt
galv. bushing
included for
exhaust.

SPECIFICATIONS
Description Specification
(TV-10)
Circuit breaker rating 15 Amp
(230 Volts)
Minimum
wire size 14 Gauge
Vacuum piping 2” trunk -1 ½’ branch
(PVC)
Minimum exhaust vent pipe
2” High temperature flex
hose, 2" SCH. 80 Gray PVC,
2" galvanized, 2" copper,
3"
CPVC.
(DO NOT USE 90 DEGREE
ELBOWS)
(Over 50 feet requires 3-4")
Minimum drain line 1 ½” flex pipe
1 ½” Sch. 40 PVC
SITE REQUIREMENTS
8

SPECIFICATIONS
PRODUCT SPECIFICATIONS
Description Specification
(TV-10)
Voltage 230 V AC
Operating load 8.3 Amps
Start-up load 14 Amps
Frequency 50 –60 Hz
Low voltage remote 24 V AC
Max operators 5 users (5 HVE) or (10 SE)
Tank capacity 12 Gallons
Air flow 62 cfm
Ambient temp 41°-104°F
Max operating temp 214°F
Decibels 61 decibels
Thermal Safety Switch YES
*DO NOT store flammable liquids & mixtures
near this dry vacuum system 9

SPECIFICATIONS
TANK SPECIFICATIONS
TANK
Weight
Length
Width Height Capacity
V.A.S.
43 lbs.
15” 17” 40”
12 Gal.
10
17"
15"
40"

SPECIFICATIONS

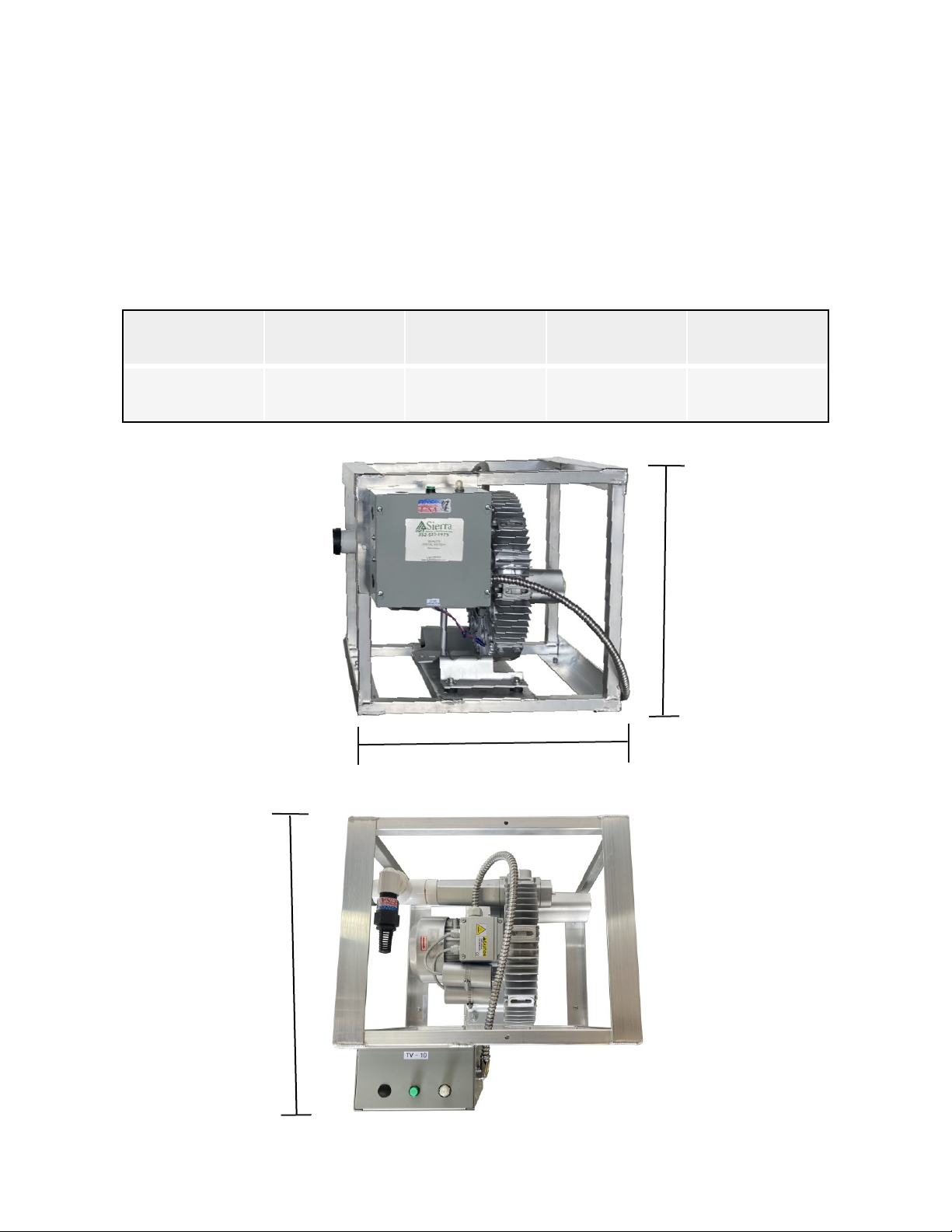

CHASSIS SPECIFICATIONS
CHASSIS
Weight Length Width Height
TV-10 94 lbs. 20 ½” 20 ¼” 19 ½"
11
20 ¼ "
19 ½"
(including rubber feet,
not pictured)
20 ½"

SYSTEM LAYOUT
Vacuum gauge
From
operatories
Vortex action
separator tank
Check valve
drain 1 ½” PVC
1.74 HP
pump
Power cord
230 V AC
Low voltage
control box
Motor assembly
Inlet vacuum
filter cartridge
Exhaust
24-volt
remote wires
12

INSTALLATION
Tank placement is all according to your specific location requirements.
-You can place your (VAS) tank beside the motor assembly (Figure A)
-You can stack the tank on top of the chassis(Figure B).
-You have the option to install the intake filter on top of the tank (Figure C.)
The VAS tank can be installed in an alternate area of the practice if necessary.
13
Figure A Figure C
Figure B
13

INSTALLATION
Figure 2
14
1. Find a location that fits the required
site specification.
2. Wherever you plan to mount motor
assembly, be sure that the 230 volt
power source is readily available.
3. Place your motor assembly on the
ground, if the (VAS) tank is going to
be mounted on top of the motor
chassis do so now. Align the 2
holes on tank base to the 2 holes
on motor chassis and secure with
included hardware
4. Run PVC or provided flex hose from
the top of the tank (Fig. 1) into the
motor inlet. (Fig. 2)
5. Connect proper drain to the bottom
of the tank and route this to the
sewer. (Fig. 3) Assure that the tank
drain is at a higher elevation than
the sewer inlet to allow the tank to
drain properly. (1 ½” Schedule 40
PVC or flexible hose is
recommended) We highly recommend
installing a ball valve on the drain to for
easier cleaning/soaking of the inside of the
tank (annually)
Figure 3
Figure 1

6. Connect the pre-existing operatory lines
to the tank. (Fig. 4) Unless you plan to
run all new lines.
7. We provide a 2" FPT steel pipe exhaust.
(Fig. 5) Route exhaust with this same
material or similar high temp flex pipe to
an outside vent. DO NOT USE 90°
FITTINGS. 45°FITTING REQUIRED.
8. Routing the exhaust to an outside vent is
necessary, this reduces the heat
significantly. This will ensure that any
odor will leave the building. Wherever
the exhaust leaves the building assure
that outside elements such as
rain/snow or foreign objects cannot
make its way into the exhaust. This could
potentially cause harm to the motor. The
easier the exhaust can flow out of the
motor with minimum restriction, the
cooler the system will run. This will
prolong the life of the motor. Keep in
mind when routing the exhaust,
excessive length and multiple turns will
create more restriction.
INSTALLATION
Figure 4
Figure 5
15

INSTALLATION
9. Route and connect the motor assembly
power cord to a dedicated *230 volt source.
Maximum circuit breaker rating: 15 AMPS per
motor. *Box supplied by customer.

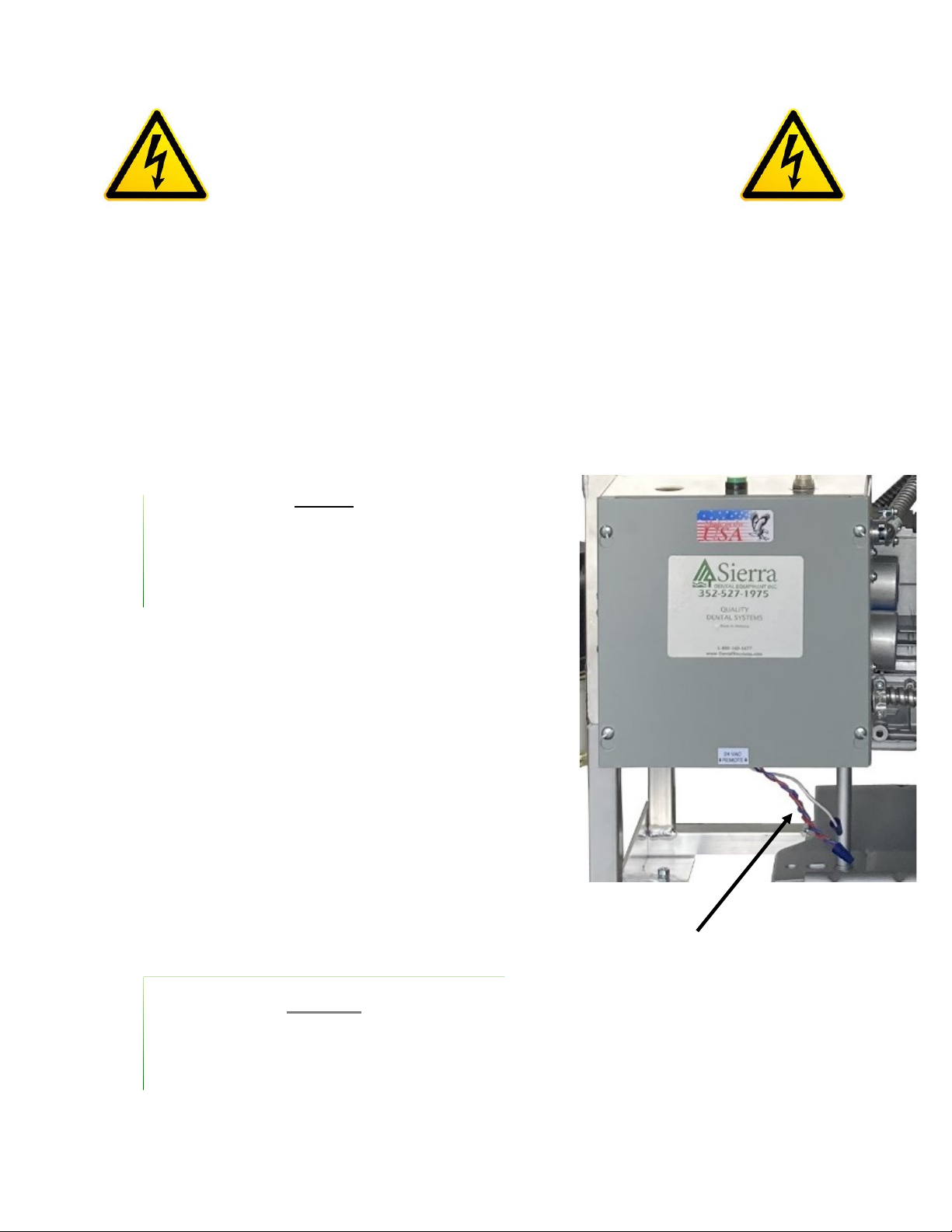

10. (Optional) On the underside of the low
voltage controller you will find three remote
wires. (Fig. 6) Route these wires to a
location where you will be mounting the
remote operation switch panel to control
the system. Figure 6
24VAC
Red = 24 Volt power
Blue = Return
White = Illumination (lamp)
230V
Green = Ground
Blue = L1
Red = L2
*Connections are to be made
by a certified electrician*
16

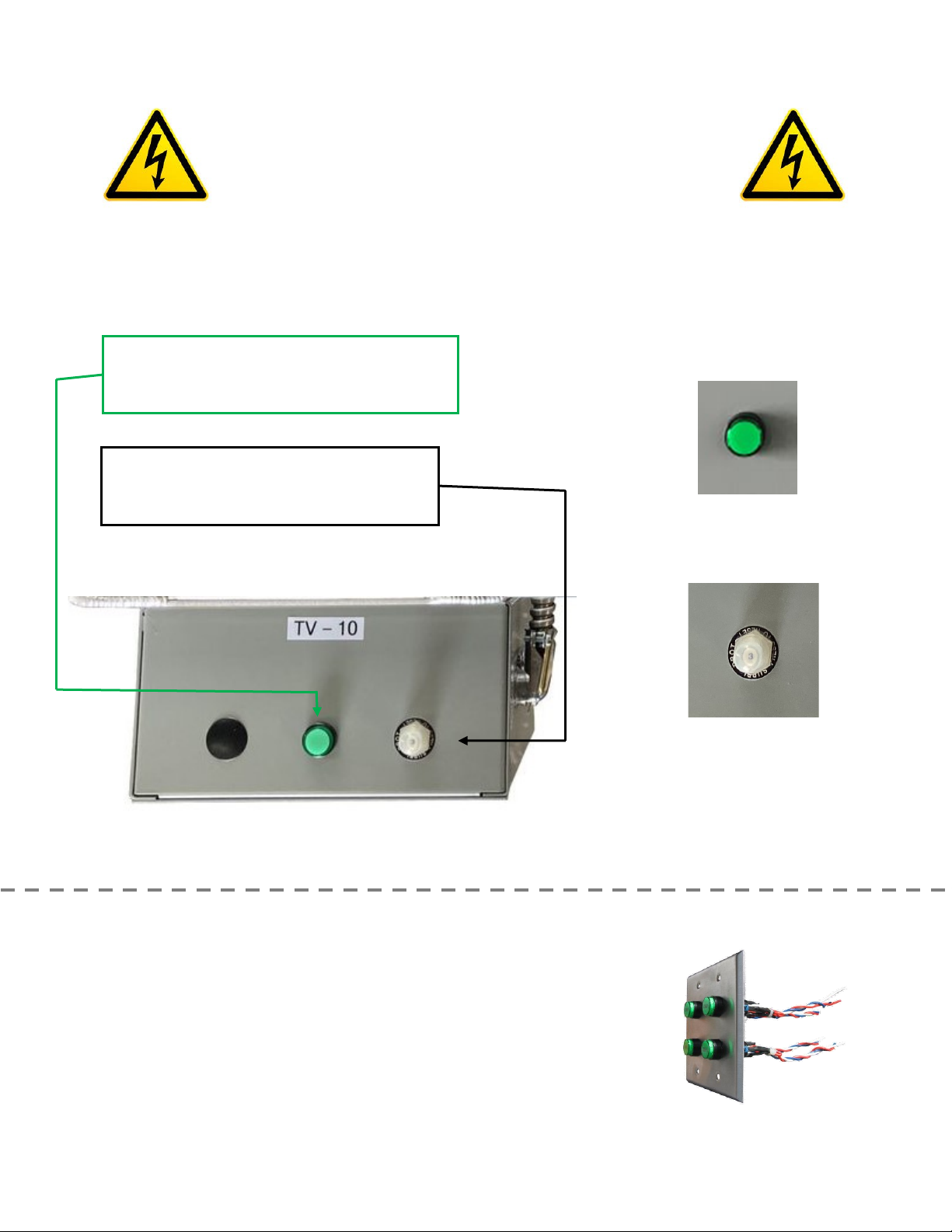

OPERATION
Green light indicates 24 volts ON
(Fig.7)
If the system will not turn on.
Always check the circuit breaker
(Fig. 8)
For use with an alternate remote switch, the remote switch
is wired correctly to the 24 volt remote wires. This Feature
will allow you to control your system with a remote switch
(Fig 9).
Figure 7
Figure 8
Acessory, not
included
Figure 9
17

18

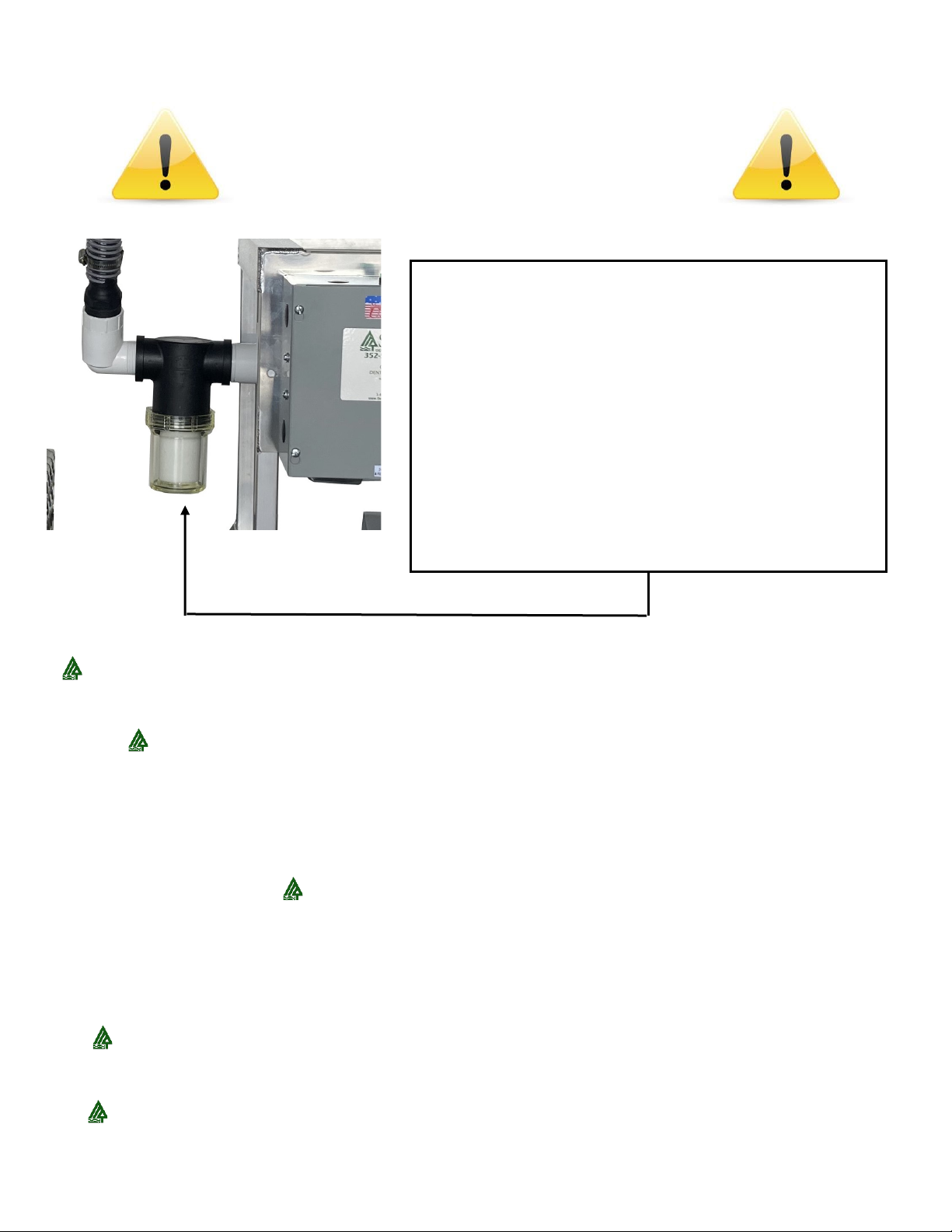

MAINTENANCE
*ALWAYS make sure that your filter is WHITE &
CLEAN, a bi weekly check for discoloration and
moisture is highly recommended. These filters are
not reusable, do not attempt to clean or alter the
filter in any way. Dirty filters should always be
replaced every 3-6 months #RMC-10 New
filters are purchased thru Sierra Dental. (Contact
us via phone, email, or visit us on the web)
Other than filter replacement, your new TRU-VAC has a separation tank that should be
inspected/cleaned annually to confirm operation of the float mechanism.
Your TRU-VAC should be mounted in a clean environment, dust and debris can
potentially harm your unit and cause malfunction not covered under warranty. (The
Vacuum relief valve pulls air from the environment, so dust and debris can freely enter
the motor if it is mounted incorrectly.)
DO NOT ATTEMPT TO ADJUST THE VACUUM RELIEF VALVE
The vacuum relief valve is a preset part @ 8" HG, Sierra Dental Equipment Inc.
has set the standard for this valve according to many variables. Adjusting the vacuum
relief valve, will void your warranty.
DO NOT INSTALL WITHOUT THERMAL MANAGEMENT 5000+
Btu's per hour
Intermittently check your drain connection on the bottom of the (VAS) tank to ensure
that it is dry and not leaking.

19
TROUBLESHOOTING
ISSUE POSSIBLE CAUSE POSSIBLE SOLUTION
No suction
a)
Pump not turned on
b)
Pump not running
c)
VAS tank is full
d)
Drain check valve
clogged
e)
Kinked or collapsed hose
a) Turn pump on
b) Contact Sierra Dental
c) Shut unit off for 20
seconds then turn unit
back on
d) Contact Sierra Dental
e) Call your local plumber
f) Call Sierra Dental
Poor or low
suction
a) Restricted air exhaust
b) Restricted air suction
a) Ensure that exhaust is ran
according to installation
procedure, call Sierra
Dental
b)
Dirty filter, contact Sierra
Dental
c)
Cogged amalgam
Seperator, contact Sierra
Dental
Pump does
not run
a) 230 V circuit breaker is
OFF
b)
Remote switch is OFF or
not correctly connected
c) Electrical issue
a)
Turn the circuit breaker
ON
b) Make sure remote switch
is ON, call Sierra Dental
c)
Call Sierra Dental

20
ACCESSORIES
We recommend adding the EASY Exhaust Kit to
your order to make the installation easier than
ever! This kit comes equipped with 5' of high
temperature flexible hose and all the fittings
you'll need to ensure set up is a breeze! This
accessory is compatible with the TV-10 and TV-
12. We also have a model available for the TV-
20 and TV-22.
We’ve helped doctors everywhere find their
solution to amalgam in the wastewater! Want
to become amalgam compliant and reduce
your environmental impact? Call us to find
out how we can help you with our simple and
easy options. From becoming compliant all
the way through the recycling process,
Sierra has your back every step of the way!
REPLACEMENT FILTERS –available in
packs of 3. (Filters are a very important factor
with your TRU-VAC.)
A dirty filter will cause loss of vacuum and
motor damage. Inspecting and replacing
these filters regularly ensures proper
maintenance procedures and avoids down
time or costly repairs.
Amalgam separator
Replacement filters
RMC-10
Easy Exhaust Kit
EKTV-12
