Signature SKSCF1801P User manual

OWNER'S MANUAL
BUILT-IN FREEZER
Read this owner's manual thoroughly before operating the appliance and keep
it handy for reference at all times.
ENGLISH
SKSCF1801P, SKSCF2401P, SKSCF3001P
MFL70339814
Rev.08_062923
www.signaturekitchensuite.com
Copyright © 2019-2023 Signature Kitchen Suite. All Rights Reserved.

TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 READ ALL INSTRUCTIONS BEFORE USE
3WARNING
6CAUTION
7 PRODUCT OVERVIEW
7 Product Features
9 OPERATION
9BeforeUse
10 Control Panel
12 Sabbath Mode
12 Automatic Icemaker
13 Storing Food

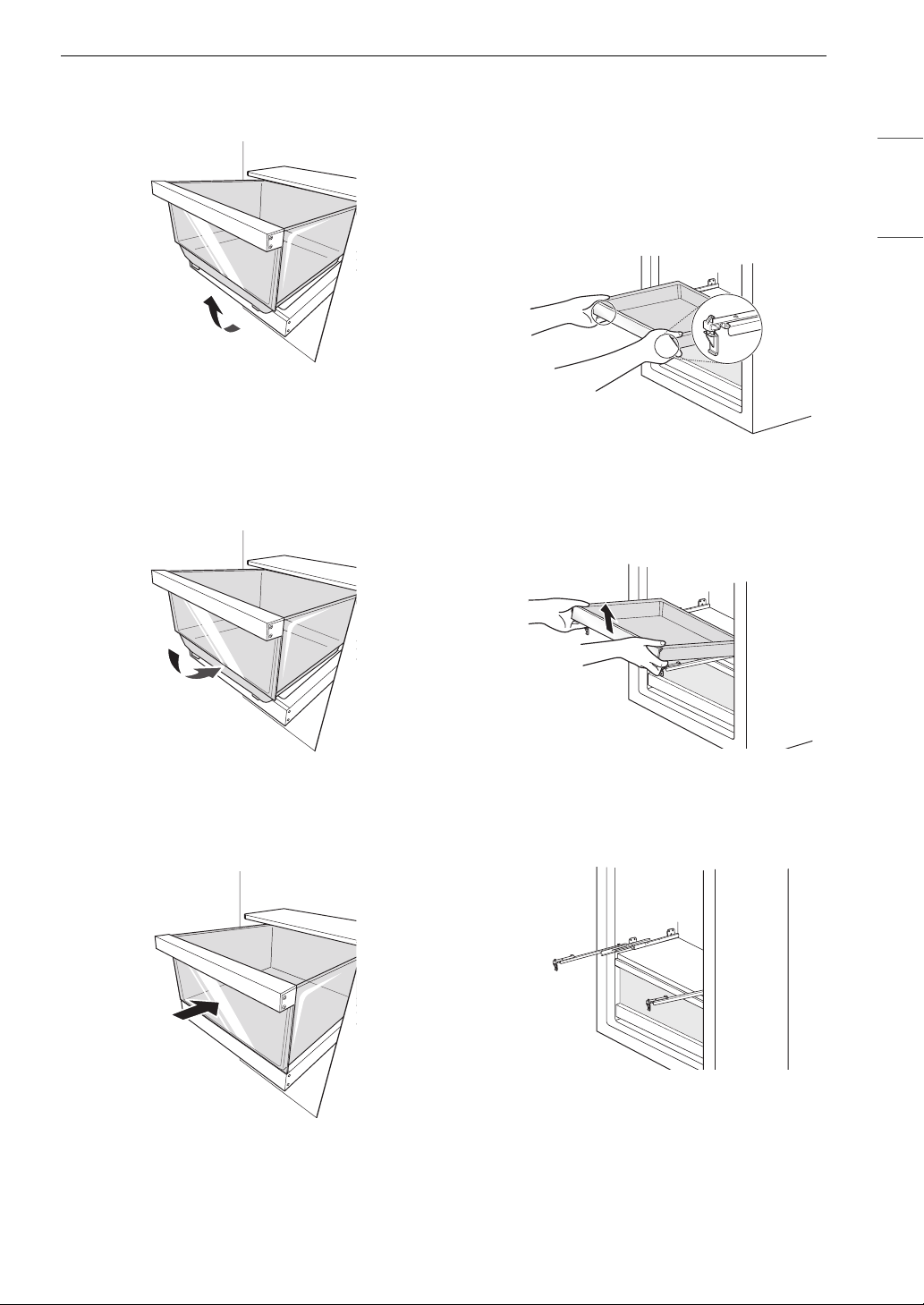

14 Drawers
16 Shelves
17 Door Bins
19 SMART FUNCTIONS
19 LG ThinQ Application
21 Smart Grid Function
22 Smart DiagnosisTM Feature
24 MAINTENANCE
24 Cleaning
24 Water Filter
29 TROUBLESHOOTING
29 FAQs
30 Before Calling for Service
37 LIMITED WARRANTY
37 USA
39 Canada

3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this
product, follow basic precautions, including the following:
Installation
• To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
Operation
• This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• This product is not to be used for special purposes such as the storage of medicine or test materials or
for use on ships, etc.
• DO NOT allow children to climb, stand, or hang on the appliance doors or on the shelves in the freezer.
They could damage the appliance and seriously injure themselves.
• Do not allow children to climb into the appliance. They could be trapped and suffocated.
• Children should be supervised to ensure that they do not play with the appliance.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.

4IMPORTANT SAFETY INSTRUCTIONS
• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small.
Be careful closing doors when children are nearby.
• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing
so may cause frostbite.
• Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
• Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• Do not operate the appliance or touch the power cord with wet hands.
• Do not modify or extend the power cord.
• Do not use an uncertified power outlet. Do not plug the appliance into a damaged wall outlet.
• Do not put hands, feet or other objects into the air vents or bottom of the appliance. Doing so could
result in personal injury or electric shock.
• In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the appliance or power button of the
appliance.
• Turn off power to the appliance immediately and contact an authorized service center if there is a
strange noise, odor, or smoke coming from the appliance.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Do not place or use an electrical appliance inside the freezer, unless it is of a type recommended by the
manufacturer.
• Do not put animals inside the appliance.
• Do not place heavy or fragile objects, liquid filled containers, combustible substances, or flammable
objects (such as candles and lamps) on the appliance.
• If connected to a circuit protected by fuses, use time delay fuse.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are
of a type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not damage the refrigerant circuit.
• An individual properly grounded branch circuit or circuit breaker must be used in case of a required
disconnect after installation.
• This appliance incorporates an earth connection for functional purposes.
• Fill with potable water only.
- If using an icemaker, make sure to fill it with potable water only.
Maintenance
• Do not use a hair dryer to dry the inside of the appliance.
• Do not light a candle to remove odors in the appliance.
• In the event of a refrigerant leak, move flammable objects away from the appliance. Ensure the area is
adequately ventilated and contact an authorized service center.
• Keep flammable materials and vapors, such as gasoline, away from the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.

5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Turn off power before cleaning or repairing the appliance.
• The freezer compartment lights are interior LED lighting, and service should be performed by a qualified
technician.
• Turn off power immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the appliance. Call a service agent.
• Do not store glass containers or soda in the freezer compartment. Contents may expand when frozen,
break the container and cause injury.
• Do not store, disassemble or repair the appliance yourself or allow unqualified personnel to do so.
• Do not damage the refrigerant circuit.
Disposal
• Risk of child entrapment. Junked or abandoned appliances are dangerous, even if they are sitting for
only a few days. When disposing of the appliance, remove the packing materials from the door or take
off the doors but leave the shelves in place so that children may not easily climb inside.
• If disposing of an appliance, make sure the refrigerant and insulation foam are removed for proper
disposal by a qualified servicer. If you release the refrigerant or throw away the insulation foam, you
may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains
flammable blowing gas.
• When discarding the appliance, remove the door gasket while leaving the shelves and bins in place, and
keep children away from the appliance.
Grounding Instructions
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service personnel if you are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
• Have a certified electrician check the wall outlet and wiring for proper grounding.
• An individual properly grounded branch circuit or circuit breaker must be used in case of requiring
disconnect after installation.
Risk of Fire and Flammable Materials
This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible.
When transporting and installing the appliance, care should be taken to ensure that no parts
of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of
ignition and air out the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the appliance may be sited depends on the
amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for
every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identification plate inside the appliance. Never start up an
appliance showing any signs of damage. If in doubt, consult your dealer.

6IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION
CAUTION
• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or
property when using this product, follow basic precautions, including the following:
Installation
• Do not install the appliance where there may be a danger of the unit falling.
• The appliance must be properly installed in accordance with the Installation Instructions.
• This appliance does not require changes in installation or use based on altitude.
Operation
• Do not use aerosols near the appliance.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are
cracked or broken.
• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or
personal injury if items are removed with excessive force.
• Do not overfill the appliance with food. Doing so may cause personal injury or property damage.
Maintenance
• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the appliance.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to
sudden temperature changes.

7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
Interior
aWater filter
Purifies water.
NOTE
• The water filter should be replaced every 6 months.
•SeetheReplacing the Water Filter section in this manual for details.
bControl Panel
Sets the freezer temperature and the water filter condition.

8PRODUCT OVERVIEW
cLED Interior Lighting
Lights up the inside of the refrigerator.
dAdjustable Refrigerator Shelf
The refrigerator shelves are adjustable to meet individual storage needs.
eMovable Door Bin
Store chilled food or drinks.
fAutomatic Icemaker
Dispenses ice automatically.
gIce Storage
hFreezer Drawer
Store long-term frozen items.
CAUTION
• The door alarm will sound every 30 seconds if the door remains open longer than one minute.
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model Description Net weight
SKSCF1801P Built-in, Freezer 304 lb (138 kg)
SKSCF2401P Built-in, Freezer 346 lb (157 kg)
SKSCF3001P Built-in, Freezer 403 lb (183 kg)

9OPERATION
ENGLISH
OPERATION
Before Use
Checklist
Clean the freezer.
Clean the freezer thoroughly and wipe off all dust that accumulated during
shipping.
CAUTION
• Do not scratch the freezer with a sharp object or use a detergent that
contains alcohol, a flammable liquid or an abrasive when removing any
tape or adhesive from the freezer. Remove adhesive residue by wiping it off
with your thumb or dish detergent.
• Do not peel off the model or serial number label or the technical
information on the rear surface of the freezer.
Open freezer door to ventilate the interior.
The inside of the freezer may smell like plastic at first. Remove any adhesive
tape from inside the freezer and open the freezer door for ventilation.
Connect the power supply.
Check if the power supply is connected before use.
Turn off the icemaker.
Turn off the icemaker if the freezer is not yet connected to the water supply.
NOTE
• The icemaker water valve may buzz if the icemaker is turned on while the
freezer is not connected to the water supply.
Wait for the freezer to cool.
Allow the freezer to run for at least two to three hours before putting food in
it.
CAUTION
• Putting food in the freezer before it has cooled could cause the food to
spoil, or a bad odor to remain inside the freezer.
The freezer makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature decreases.

10 OPERATION
Control Panel
Depending on the model, some of the following functions may not be available.
The actual control panel may differ from model to model.
Control Panel Features
aWater Filter Reset
Replace the water filter when the gicon turns on. After replacing the water filter, press and hold the
Water Filter Reset button for three seconds to turn the icon light off. Replace the water filter
approximately every six months.
bIce Plus
This function increases both ice making and freezing capabilities.
Press the Ice Plus button to illuminate the icon and activate the function for 24 hours. The function
automatically shuts off after 24 hours. Stop the function manually by pressing the button once more.
cIce On/Off
Press the Ice On/Off button for three seconds to turn the icemaker on/off.
dFreezer
Indicates the set temperature of the freezer compartment in Celsius (°C) or Fahrenheit (°F). The default
freezer temperature is 0 °F (-18 °C). Press the Freezer button repeatedly to select a new set
temperature from - 6 °F to 8 °F (-21 °C to -13 °C).
NOTE
• To change the temperature mode from °F to °C (or vice versa) press the Freezer button first to wake the
display. Press and hold the Freezer and Smart Grid buttons simultaneously for approximately five
seconds until you hear a beep sound. The temperature indicator on the display window switches
between Celsius and Fahrenheit.
eSmart Grid
Press the Smart Grid button to turn the function On/Off. When the function is on, the icon illuminates.
The function automatically turns on when the freezer is connected to the Wi-Fi network.
When the freezer is responding to a Demand Response (DR) message from the electric company, the
Grid text illuminates.
fWi-Fi
The Wi-Fi button, when used with the LG ThinQ app, allows the freezer to connect to a home Wi-Fi
network. Refer to Smart Functions for information on the initial setup of the application.
The ficon shows the status of the freezer's network connection. The icon illuminates when the freezer
is connected to the Wi-Fi network.
Press and hold the Wi-Fi button for 3 seconds to connect to the network. The icon blinks while the
connection is being made, then turns on once the connection is successfully made.

11OPERATION
ENGLISH
gPOWER
The POWER button turns off all electrical power to the unit.
Press and hold the POWER button for 3 seconds to turn off the power. When the power is off, the t
icon light is off. There is no need to turn off power at the circuit breaker or wall receptacle. Use this
function for service or extended vacations.
CAUTION
Display Mode (For Store Use Only)
• The Display Mode disables all cooling in the freezer sections to conserve energy while on display in a
retail store. When activated, OF is displayed on the control panel and the display remains on for 20
seconds.
• To deactivate / activate:
- With the door opened, press and hold the Freezer and Water Filter Reset buttons at the same time for
five seconds. The control panel beeps and the temperature settings display to confirm that Display
Mode is deactivated. Use the same procedure to activate Display Mode.
NOTE
• When the freezer is in the Power Saving Mode, the display remains off until a door is opened or a button
is pressed. Once on, the display remains on for 20 seconds.

12 OPERATION
Sabbath Mode
This feature is only available on some models.
Using the Sabbath Mode
Sabbath mode is used on the Jewish Sabbath and
Holidays.
• To turn Sabbath mode on, touch the display to
activate it, then press and hold the Freezer and
POWER buttons for 3 seconds until sb appears in
the display.
• To turn Sabbath mode off manually, press and
hold the Freezer and POWER buttons for 3
seconds.
NOTE
• Sabbath mode automatically turns off after 96
hours.
• Once turned on, Sabbath mode is maintained
even after a power outage.
• Selecting Sabbath mode automatically turns off
the Light and Alarm functions. The icemaker is
also disabled.
• The interior display stays on during Sabbath
mode, but only sb and the Freezer and POWER
buttons are displayed.
• The freezer temperature is set to 0°F (-18°C) and
cannot be changed until Sabbath mode is turned
off.
• The Smart Grid function is automatically turned
off in Sabbath mode. When Sabbath mode ends,
the Smart Grid function must be activated again
manually.
Automatic Icemaker
WARNING
• DO NOT place fingers in the automatic icemaker
when the refrigerator is plugged in.
• Avoid contact with any moving parts of the
ejector mechanism or with the heater that
releases the ice cubes.
• Connect to a potable water supply only.
Before Using the Freezer Icemaker
CAUTION
• Keep hands and tools out of the ice
compartment. Failure to do so may result in
damage or personal injury.
• Throw away the first few batches of ice after
installation. This is also necessary if the freezer
has not been used for a long time.
• Never store beverage cans or other items in the
ice bin for the purpose of rapid cooling. Doing so
may damage the icemaker or the containers
may burst.
NOTE
• The icemaker begins producing ice
approximately 12 hours after the appliance is
initially installed.
• Throw away the first few batches of ice after
installation.
• The sound of ice dropping into the ice bin is
normal.
• If the ice bin is completely filled with ice, ice
production will stop.
• The amount and shape of ice may vary according
to the environment (ambient temperature
around the appliance, frequency of the door
being opened, amount of food stored in the
appliance, water pressure, etc.).
• In the event of a power outage, throw away the
ice stored in the ice bin.
Freezer Icemaker (Cubed Ice)
This feature is only available on some models.
aFeeler Arm
bPower Switch
NOTE
• This automatic freezer icemaker produces 12
cubes at a time. This amount may vary according
to the environment (ambient temperature
around the appliance, frequency of the door
being opened, amount of food stored in the
appliance, etc.).
• Ice cubes which are stored in the ice bin for a
long time may clump together and be difficult to
separate. If this happens, empty the ice bin
completely and clean it before reinstalling it.

13OPERATION
ENGLISH
• Occasionally shake the ice bin to level the ice. If
the ice cubes pile up on the side nearest the
shutoff sensor, ice production will stop.
• To increase ice production, use the Ice Plus
function. The function increases both ice making
and freezing capabilities.
Turning the Icemaker On/Off
To turn the automatic icemaker On/Off, press and
hold the Ice On/Off button on the control panel
for three seconds.
CAUTION
• There is a risk of damage if the icemaker cover is
overturned by more than 90 degrees.
Normal Sounds You May Hear
• Keeping the power turned on to the icemaker
before the water line is connected can damage
the icemaker.
• The icemaker water valve buzzes as the
icemaker fills with water. If the Ice On/Off icon
iis illuminated, it will buzz even if it has not yet
been hooked up to water. To stop the buzzing,
press the Ice On/Off button to turn off the icon
i.
• You will hear the sound of ice dropping into the
bin and water running in the pipes as the
icemaker refills.
Preparing for Vacation
If the ambient temperature will drop below
freezing, have a qualified technician drain the
water supply system to prevent serious property
damage due to flooding caused by ruptured water
lines or connections. Press the Ice On/Off button
on the display for 3 seconds to turn off the icon i
and shut off the water supply to the appliance.
NOTE
• The ice bin should be emptied any time if the Ice
On/Off icon iis turned off.
Storing Food
NOTE
• If you are leaving home for a short period, like a
short vacation, the refrigerator should be left on.
• If you are leaving the refrigerator turned off for
an extended period, remove all food and unplug
the power cord. Clean the interior, and leave the
doors open to prevent fungi from growing in the
refrigerator.
• If doors are opened or closed too often, warm
air may penetrate the refrigerator and raise its
temperature. This can increase the running costs
of the unit.
Food Storage Tips
Wrap or store food in the freezer in airtight and
moisture-proof material unless otherwise noted.
This prevents food odor and taste transfer
throughout the freezer. For dated products, check
date code to ensure freshness.
CAUTION
• Do not overfill or pack items too tightly into door
bins. Doing so may cause damage to the bin or
personal injury if items are removed with
excessive force.
• Do not store glass containers in the freezer.
Contents may expand when frozen, break the
container and cause injury.
How to Store Food
• Butter or Margarine
- Keep opened butter in covered dish or closed
compartment. When storing an extra supply,
wrap in freezer packaging and freeze.
•Fish
- Freeze fresh fish and shellfish if they are not
being eaten the same day purchased. Eating
fresh fish and shellfish the same day
purchased is recommended.

14 OPERATION
NOTE
• If you are leaving home for a short period, like a
short vacation, the freezer should be left on.
Refrigerated foods that are able to be frozen will
stay preserved longer if stored in the freezer.
• If you are leaving the freezer turned off for an
extended period, remove all food and unplug
the power cord. Clean the interior, and leave the
door open to prevent fungi from growing in the
freezer.
• If the freezer is kept in a hot and humid place,
frequent opening of the door or storing a lot of
vegetables in the freezer may cause
condensation to form. Wipe off the
condensation with a clean cloth or a paper towel.
• If the freezer door is opened or closed too often,
warm air may penetrate the freezer and raise its
temperature. This can increase the running costs
of the unit.
Storing Frozen Food
Check a freezer guide or a reliable cookbook for
further information about preparing food for
freezing or food storage times.
Freezing
Your freezer will not quick-freeze a large quantity
of food. Do not put more unfrozen food into the
freezer than will freeze within 24 hours (no more
than 2 to 3 pounds of food per cubic foot of freezer
space). Leave enough space in the freezer for air to
circulate around packages. Be careful to leave
enough room at the front so the door can close
tightly.
Storage times will vary according to the quality
and type of food, the type of packaging or wrap
used (how airtight and moisture-proof) and the
storage temperature. Ice crystals inside a sealed
package are normal. This simply means that
moisture in the food and air inside the package
have condensed, creating ice crystals.
NOTE
• Allow hot foods to cool at room temperature for
30 minutes, and then package and freeze.
Cooling hot foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
freezer and could also dry out frozen food.
Packaging Recommendations
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for
proper freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
Drawers
Removing/Assembling Drawers
CAUTION
• The drawers are heavy. Always use two hands
when removing or assembling the drawers to
avoid product damage or personal injury. Always
empty drawers before removing them.
• Always open the door completely before
removing or assembling the drawers.
Removing the Drawer
1 Pull the drawer out until it stops. Empty all
contents out of the drawer before removing
it.

15OPERATION
ENGLISH
2 Lift the empty drawer slightly to remove it
from the support.
Assembling the Drawer
1 Pull out the drawer support until it stops.
Angle the drawer into the space and set it on
the support.
2 Slide the drawer back until it lowers into place
on the support. Close the drawer.
Removing/Assembling the Drawer
Support
Removing the Drawer Support
1 Press the levers on either side of the drawer
support.
2 Keeping both levers pressed, lift the drawer
support slightly and remove it from the rail
system.
Assembling the Drawer Support
1 Pull both drawer rails out until they stop.
2 Line up the bottom edges on the sides of the
drawer support with the groove in each rail
and then lower the support until it clicks into
place.

16 OPERATION
Shelves
Detaching/Assembling the Shelf
The shelves in the refrigerator are adjustable to
meet individual storage needs.
Adjusting the shelves to fit items of different
heights will make finding the exact item you want
easier.
CAUTION
• Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf
falling or spilled food.
• Do not clean glass shelves with warm water
while they are cold. Shelves may break if
exposed to sudden temperature changes or
impact.
• Glass shelves are heavy. Use special care when
removing them.
1 To detach, tilt up the front of the shelf and lift
the shelf straight up.
2 Pull the shelf out.
3 To assemble, tilt the front of the shelf up and
guide the shelf hooks into the slots at a
desired height.
4 Lower the front of the shelf so that the hooks
drop into the slots.
NOTE
aTransmitter
bReceiver
• Foreign objects and dirt between the shelf and
the inner cabinet wall could prevent the shelf
light from turning on.
• The shelf light turns on when the door is
opened.
• The shelf light turns off after seven minutes or
when the door is closed.
Detaching/Assembling the Shelf
The shelves in the freezer are adjustable to meet
individual storage needs.
Adjusting the shelves to fit items of different
heights will make finding the exact item you want
easier.
CAUTION
• Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf
falling or spilled food.

17OPERATION
ENGLISH
• Do not clean glass shelves with warm water
while they are cold. Shelves may break if
exposed to sudden temperature changes or
impact.
• Glass shelves are heavy. Use special care when
removing them.
1 To detach, tilt up the front of the shelf and lift
the shelf straight up.
2 Pull the shelf out.
3 To assemble, tilt the front of the shelf up and
guide the shelf hooks into the slots at a
desired height.
4 Lower the front of the shelf so that the hooks
drop into the slots.
NOTE
aTransmitter
bReceiver
• Foreign objects and dirt between the shelf and
the inner cabinet wall could prevent the shelf
light from turning on.
• The shelf light turns on when the door is
opened.
• The shelf light turns off after seven minutes or
when the door is closed.
Door Bins
Using Door Bins
To adjust the bin position, hold the bottom of the
bin at both ends and flip it up and down.
Detaching/Assembling the Door
Bins
The door bins are removable for easy cleaning and
adjustment.
1 To detach the door bins, hold the guide so
that the bin can not move and tap the bottom
of the bin 2 or 3 times.

18 OPERATION
2 To assemble the door bin, align both sides of
the bin with the guides and push the bin
down until it snaps into place.
CAUTION
• Regularly detach and wash the storage bins and
shelves; they can become easily contaminated
by food.
• Do not apply excessive force while detaching or
assembling the storage bins.
• Do not use the dishwasher to clean the storage
bins and shelves.

19SMART FUNCTIONS
ENGLISH
SMART FUNCTIONS
LG ThinQ Application
This feature is only available on models with Wi-Fi.
The LG ThinQ application allows you to
communicate with the appliance using a
smartphone.
LG ThinQ Application Features
•Energy Monitoring
- This feature keeps track of the freezer’s power
consumption and the number of door
openings.
•Push Messages
- If the door remains open for more than ten
minutes, you will receive a push message.
When Ice Plus is finished, you will receive a
push message.
•Smart DiagnosisTM
- This function provides useful information for
diagnosing and solving issues with the
appliance based on the pattern of use.
•Settings
- Allows you to set various options on the
freezer and in the application.
NOTE
• If you change your wireless router, Internet
service provider, or password, delete the
connected appliance from the LG ThinQ
application and connect it again.
• This information is current at the time of
publication. The application is subject to change
for product improvement purposes without
notice to users.
Installing LG ThinQ Application and
Connecting an LG Appliance
Models with QR Code
Scan the QR code attached to the product using
the camera or a QR code reader application on
your smartphone.
Models without QR Code
1 Search for and install the LG ThinQ
application from the Google Play Store or
Apple App Store on a smartphone.
2 Run the LG ThinQ application and sign in with
your existing account or create an LG account
to sign in.
3 Touch the add (~) button on the LG ThinQ
application to connect your LG appliance.
Follow the instructions in the application to
complete the process.
NOTE
• To verify the Wi-Fi connection, check that the Wi-
Fi indicator on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks
only. To check your network frequency, contact
your Internet service provider or refer to your
wireless router manual.
•LG ThinQ is not responsible for any network
connection problems or any faults, malfunctions,
or errors caused by network connection.
• The surrounding wireless environment can
make the wireless network service run slowly.

20 SMART FUNCTIONS
NOTE
• If the distance between the appliance and the
wireless router is too far, the signal becomes
weak. It may take a long time to connect or fail
to install the application.
• If the appliance is having trouble connecting to
the Wi-Fi network, it may be too far from the
router. Purchase a Wi-Fi repeater (range
extender) to improve the Wi-Fi signal strength.
• The network connection may not work properly
depending on the Internet service provider.
• The Wi-Fi may not connect or the connection
may be interrupted because of the home
network environment.
• If the appliance cannot be connected due to
problems with the wireless signal transmission,
unplug the appliance and wait about a minute
before trying again.
• If the firewall on your wireless router is enabled,
disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a
combination of English letters and numbers. (Do
not use special characters.)
• Smartphone user interface (UI) may vary
depending on the mobile operating system (OS)
and the manufacturer.
• If the security protocol of the router is set to
WEP, network setup may fail. Change the
security protocol (WPA2 is recommended), and
connect the product again.
• To disable the Wi-Fi function, press and hold the
Wi-Fi button for 3 seconds. The Wi-Fi indicator
will be turned off.
• To reconnect the appliance or add another user,
press and hold the Wi-Fi button for 3 seconds to
temporarily turn it off. Run the LG ThinQ
application and follow the instructions in the
application to connect the appliance.
Wireless LAN Module Specifications
FCC Notice
The following notice covers the transmitter
module contained in this product.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules and also Part
18 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 and part 18 of
the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Any changes or modifications in construction of
this device which are not expressly approved by
the party responsible for compliance could void
the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized
modification to this device. It is the responsibility
of the user to correct such interference.
Frequency
Range
2412 MHz ~ 2462 MHz
Output Power
(Max)
< 30 dBm
Wireless Power Transfer Specifications
Frequency 330 kHz ~ 370 kHz
Rated voltage DC 12 V
Delivered power Less than and equal to 3 W per
shelf
Transmission
mode
Electromagnetic induction
Wireless Power Transfer Specifications
