Signature UPSXB2627 Series User manual

Installation Guide
BUILT-IN SXS REFRIGERATOR
UPSXB2627**
www.thesignaturekitchen.com

2
Contents
1. Precaution before installation ................................................................. 3
2. Product and Cutout dimension ............................................................... 4
3. Precaution when moving the product .................................................... 5
4. Cabinet diagram and maximum door opening ....................................... 5
5. Refrigerator/Freezer door opening and how to fix at 90 degrees ............. 6
6. Installation of part to prevent the product from falling over..................... 6
7. Connecting power and securing space for water supply pipe.................. 8
8. How to install the water supply pipe ...................................................... 9
9. Product detail dimension...................................................................... 10
10. Cabinet detail dimension.................................................................... 11
11. How to adjust the height of the refrigerator and freezer door .............. 12
12. How to adjust the height of the product.............................................. 13
13. How to disassemble/reassemble the top grill ...................................... 14
14. Left/Right door adjuster for refrigerator and freezer ............................ 15

3
Precaution
■ Install the product away from the heat of the heater, boiler or direct sunlight.
Install the product where air flows well and is well ventilated.
■ Refer to the dimension of the cabinet and prepare the cabinet with good air circulation.
Install the product so that air flows smoothly through the front air inlet. If the air circulation
structure is not ensured, it may interfere with the normal operation of the product.
■ Because the damage to the power cord from external animals (Rodents) can cause a
fire, install the product where there is no access from external animals.
■ If the cabinet is made of soft material (Ex: Plaster etc.), it can have week assembly force
or even can be damaged. Therefore use the cabinet made of firm strong material.
■ Use cabinet without any twisting from the heat emitted from the product or humidity from
the opening and closing of the refrigerator.
■ Install the product where it is leveled horizontally and vertically. (Within 1mm horizontally
and vertically) If the product is not leveled horizontally and vertically, it can be difficult to
install the product. (The cabinet must be made of material or must be in the structure not
to cause continuous deformation when 220.5 lb(100kg) of load is applied.)
■ Install the built-in refrigerator with a team of 2 people.
■ When installing the product, protect the children from the use of parts and installation
location.
■ During the installation, take out the screw from the plastic bag one by one to avoid any
injury from exposed parts.
■ Avoid the use of multi-tab as it can cause a fire.
■ Before installing the product, connect the product to make sure to check it is operating
normally.
WARNING
TIP-OVER HAZARD
Use two or more people to move and install the refrigerator.
To prevent the refrigerator from tipping over, install anti-tip brackets
(provided). Failure to follow the refrigerator installation instructions
can result in serious injury or death.
1. Precaution before installation

4
2. Product and Cutout dimension

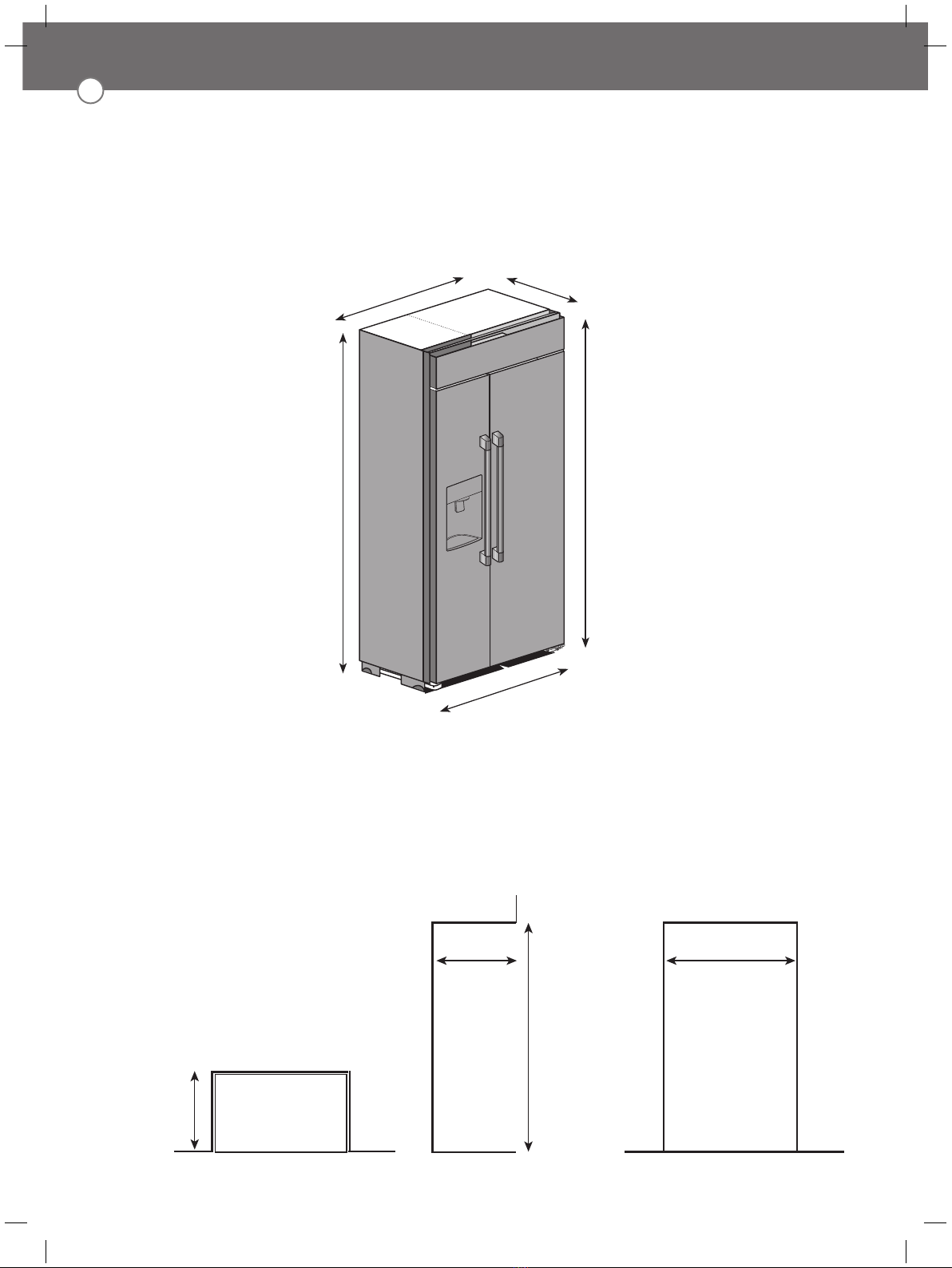

- Product dimension (In) : 42”(1,067mm) x 83-1/2”(2,121mm) x 25-3/8”(645mm) (W x H x D)
- Cutout dimension for product installation (In)
41-1/2”(1,054mm) X 83-3/4”(2,127mm) X 24”(610mm) (W x H x D)
Width of cutout
41-1/2”(1,054mm)
View from front
Depth of cutout
View from top
24”(610mm)
Depth of
cutout
24”(610mm) Height of cutout
83-3/4”(2,127mm)
View from side
Check the dimension of the cutout to install the product against the dimension stated in the
installation manual. The dimensions are the recommended dimensions to install the product. (If
the cutout dimension is smaller than the recommended dimension, the product cannot be
installed.)
Depth from back of product to door
25-3/8”(645mm)
Width of back of product
41”(1,041mm)
Height of back of product
83-3/8”(2,116mm)
Height from floor to very top of the
front of the product
83-1/2”(2,121mm)
Width of front of product (Including left and right wing)
42”(1,067mm)

5
■. Before moving the refrigerator, check the line of movement to the location to install.
(Refer to the product dimension and rotating radius.)
3. Precaution when moving the product
1) Request the installation to the specialized technician.
It can cause electric shock, fire, malfunction and explosion.
2) Due to the characteristics of the built-in product, the top is heavy and can easily fall over when not
installed. Therefore be careful when moving the product. Also because the product can be
dangerous if left on inclined surface, always keep the product fixed or held.

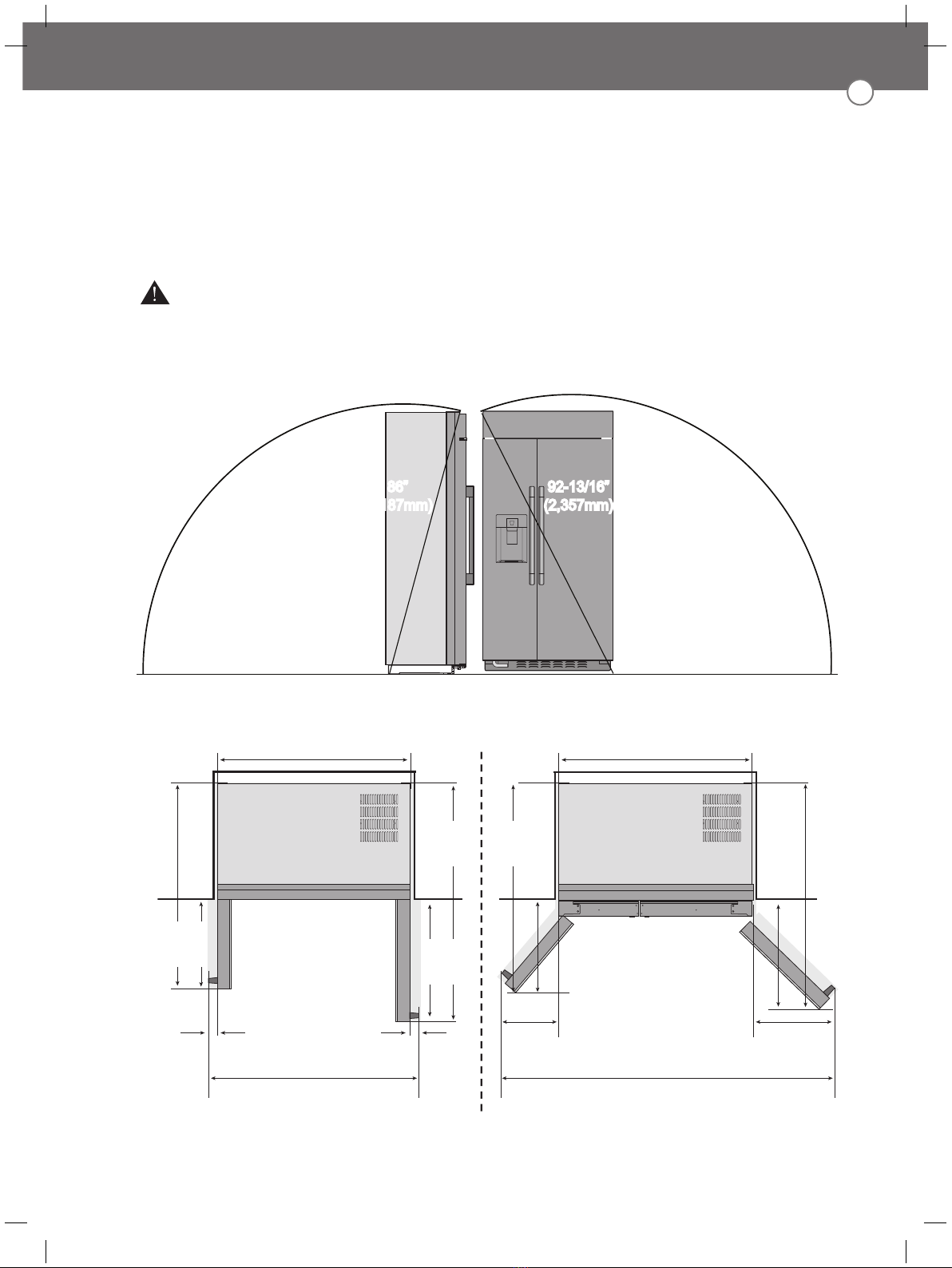

4. Cabinet diagram and maximum door opening
< Dimension when opening 90 degrees >
When installing the product on the wall near the corner, check the marked dimension to
keep minimum distance to avoid the handle hitting the wall.
< Dimension when opening 130 degrees >
41”(1,041mm) 41”(1,041mm)
45-3/5”(1158mm) 68-1/2”(1739mm)
2-1/2”
(63mm)
2-1/2”
(63mm)
41-9/16”
(1,056mm)
44-1/2”
(1,130mm)
19”
(485mm)
16”
(409mm)
11-1/2”
(293mm)
(Unit : In)
16-3/16”
(411mm)
48-5/16”
(1,227mm)
23”
(582mm)
39-3/8”
(1,000mm)
14”
(355mm)
86”
(2,187mm)
86”
(2,187mm)
92-13/16”
(2,357mm)
92-13/16”
(2,357mm)

6
5. Refrigerator/Freezer door opening and how to
fix at 90 degrees

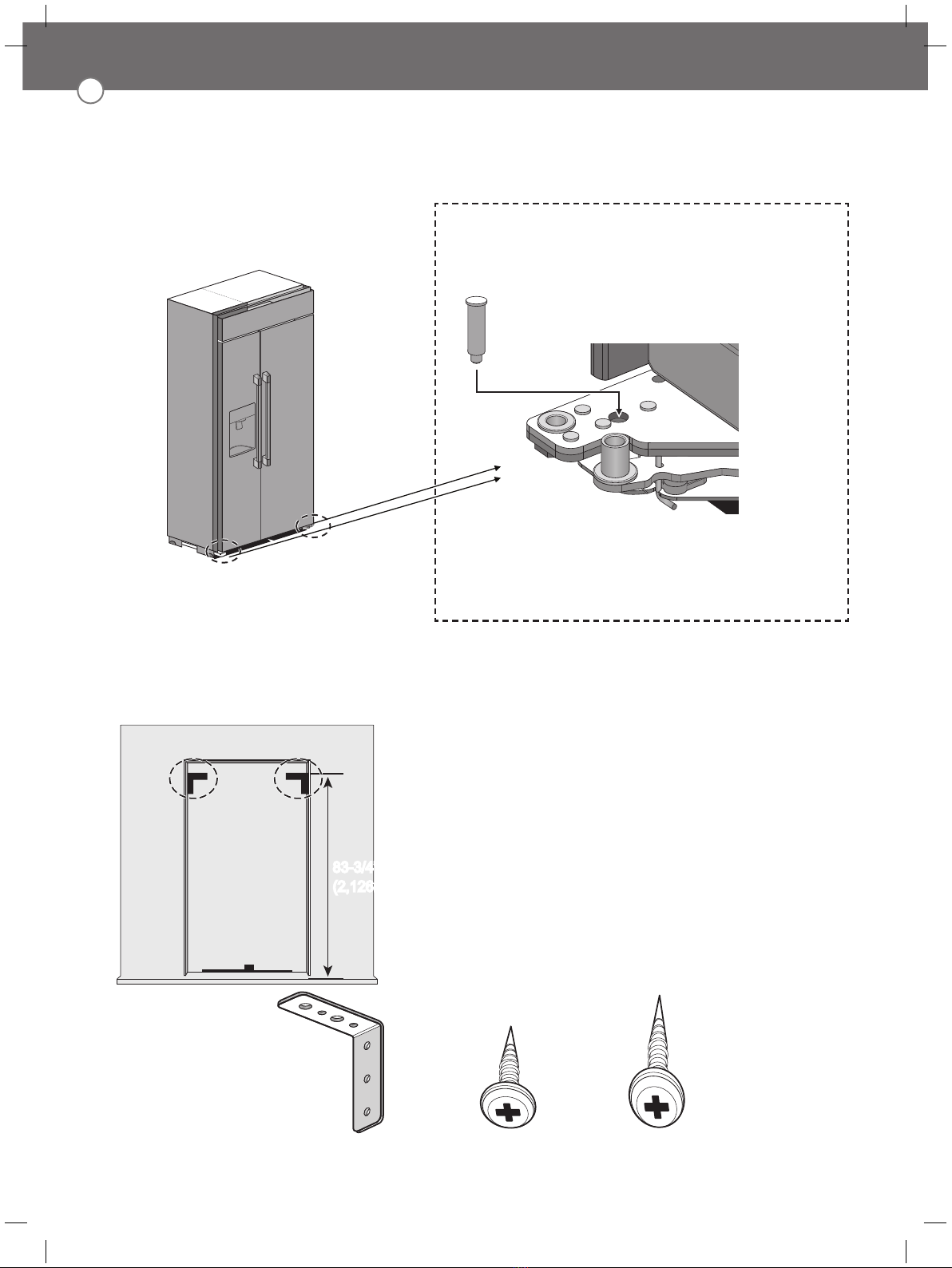

6. Installation of part to prevent the product from
falling over
※ Because the built-in product is heavy on the top, the
cabinet must be fixed firmly so that the product does not
move when using it.
• Fix the side of the cabinet to the building wall or side
of the furniture firmly.
• Use the part included in the accessory box as shown
in the picture to fix the cabinet to both sides of the
walls.
• If the part prevent the product from falling over is not
installed in the correct location, the product can fall
over to cause severe injury or death.
※ If the device to keep the refrigerator door
open and fixed cannot be inserted, move
the refrigerator door slowly in left and
right direction to push it in.
Part to prevent product
from falling over x 2
M4*L12 screw x 6 M4*L22 screw x 8
Push and install the device to keep the
refrigerator door open and fixed, included
in the accessory box, to the hole marked
on the picture completely.
The left and right side are installed in the
same method.
83-3/4”
(2,126mm)
83-3/4”
(2,126mm)

7
6. Installation of part to prevent the product from
falling over
1) Check if all the described parts are included in the accessory box.
2) Based on the recommended dimension on the picture, place the part to prevent the
product from falling over. (Same for both left and right side)
3) Use the M4*L12 screw included in the accessory box to tighten 3 locations respectively on
left and right side.
(Tighten the screws completely so that the part is not loose from the cabinet.)
4) Place the product on the cabinet and then use the M4*L22 screw included in the
accessory box to tighten 4 locations respectively on left and right side on the groove
marked on the picture after checking whether the product is leveled and checking the level
difference between the refrigerator and freezer door and the alignment between the front
part of the product against the cabinet etc.
(When inserting the refrigerator in the cabinet, be careful not to get the hand caught.)
Top groove Bottom groove
< Example of installation > < Example of installation >
4”
(100mm)
83-3/4”
(2,126mm)
< Use the M4*L12 Screw for xing
anti tip over bracket. >
< Use the M4*L22 Screw for xing Product. >

8
-. Power connection
The location of the 115V 60Hz power
connector must be located on the
rear side of the product as shown in
the picture.
When installing the product, make
sure to check whether the cord is
hung on the hook on the rear side
so that it is not pressed on the
refrigerator. Damaged power cord
can cause a fire.

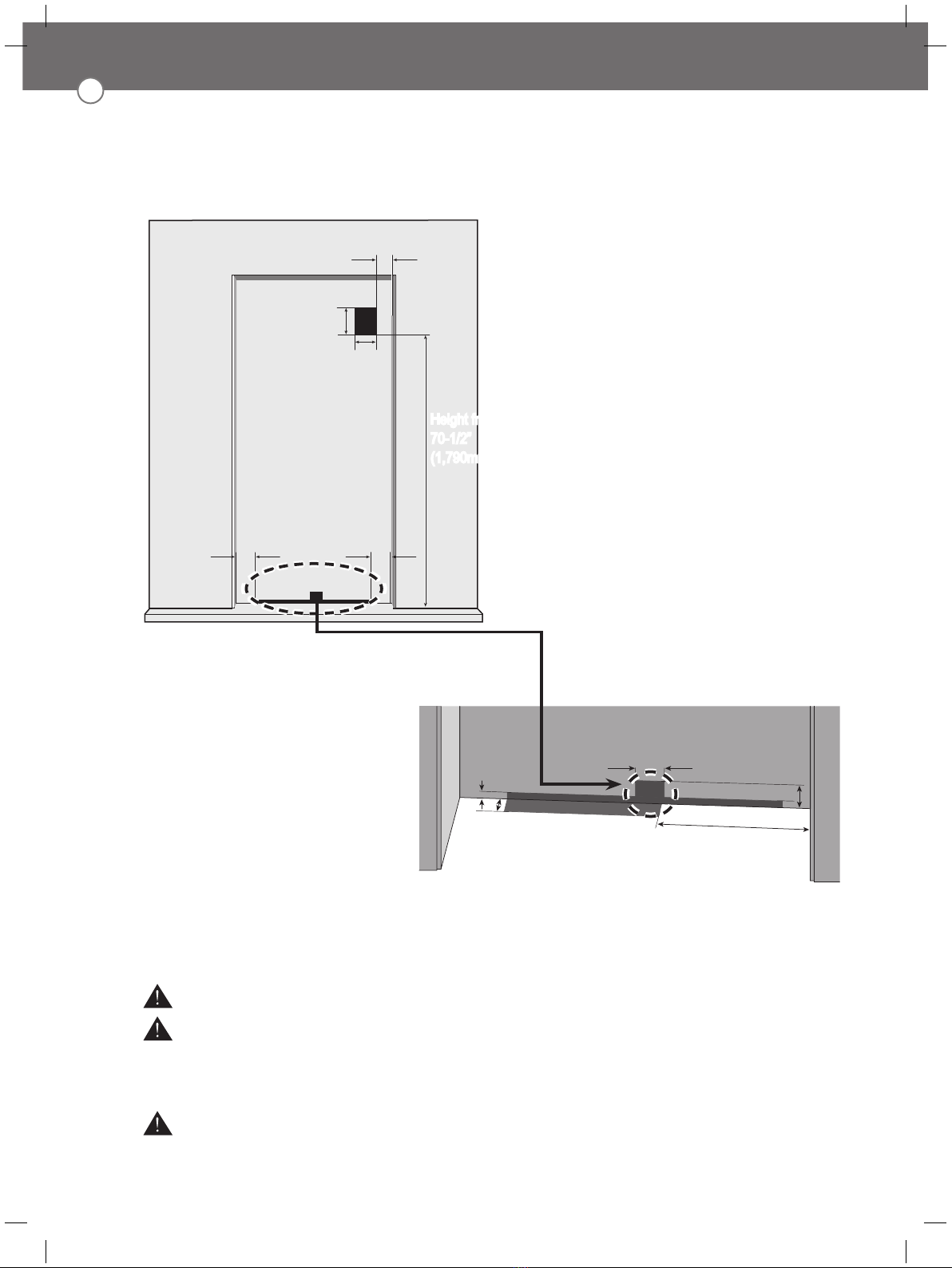

- Installation space for water supply pipe
Place the water hose for ice
maker and water dispenser as
shown in the picture, and
prepare hose to come up from
the floor.
(Copper pipe with diameter of
5/16”(8mm) is recommended
for the water hose.)
If the water pipe and water
hose is located far from the
product, bury the water hose
on the floor and provide
appropriate treatment.
7. Connecting power and securing space for
water supply pipe
1/2”
(10mm)
3-3/16”
(81mm) 2-3/4”
(70mm)
19-1/4”
(489.5mm)
6-1/8”
(155mm)
1”
(25.5mm)
(Unit : In)
8-1/2”(220mm)
6”
(152mm)
5-3/4”
(147mm)
5-3/4”
(147mm)
Recommended
space for power
connector
Exposed space for water
supply pipe
Make sure the location of the water supply pipe is within the marked range.
Before connecting the power, always make sure to ground the product. (If the product is
not grounded, the user may be able to feel the electricity due to the minute leakage
current when touching the refrigerator door handle or side corner even when there is no
issue with the product.)
Do not ground the product to gas pipe, plastic water pipe or telephone wire etc. It can
cause electric shock and explosion.
Height from floor
70-1/2”
(1,790mm)
Height from floor
70-1/2”
(1,790mm)

9
1) Disassemble the bottom grill.
(Both the left and right sides are disassembled and
reassembled in the same method.)
- Use the (+) driver to disassemble the bottom grill.
2) Pull out the water supply pipe from the bottom of the
product and prepare to disassemble/reassemble the
connecting part of the water service pipe.
4) Reassemble the bottom grill in the reverse order of 1).
5) Flush air from the system by running water through the dispenser
continuously for 5 gallon.
Note: Allow 1~2 minute delay in water dispersal to allow internal
water tank to fill.
8. How to install the water supply pipe
※ Check the location and installation detail of the water
service pipe on the previous page before connecting the
water supply pipe. Before inserting the product completely
into the cabinet, check if there is any water leakage.
3) After connecting the water supply pipe and the water service
pipe, tighten them with a spanner to avoid any leakage. After
installing the product within the cabinet, recheck for any
water leakage.
※ Prepare a bucket under the water service pipe connector before checking for any water
leakage to avoid ruining the flooring material and carpet etc.

10

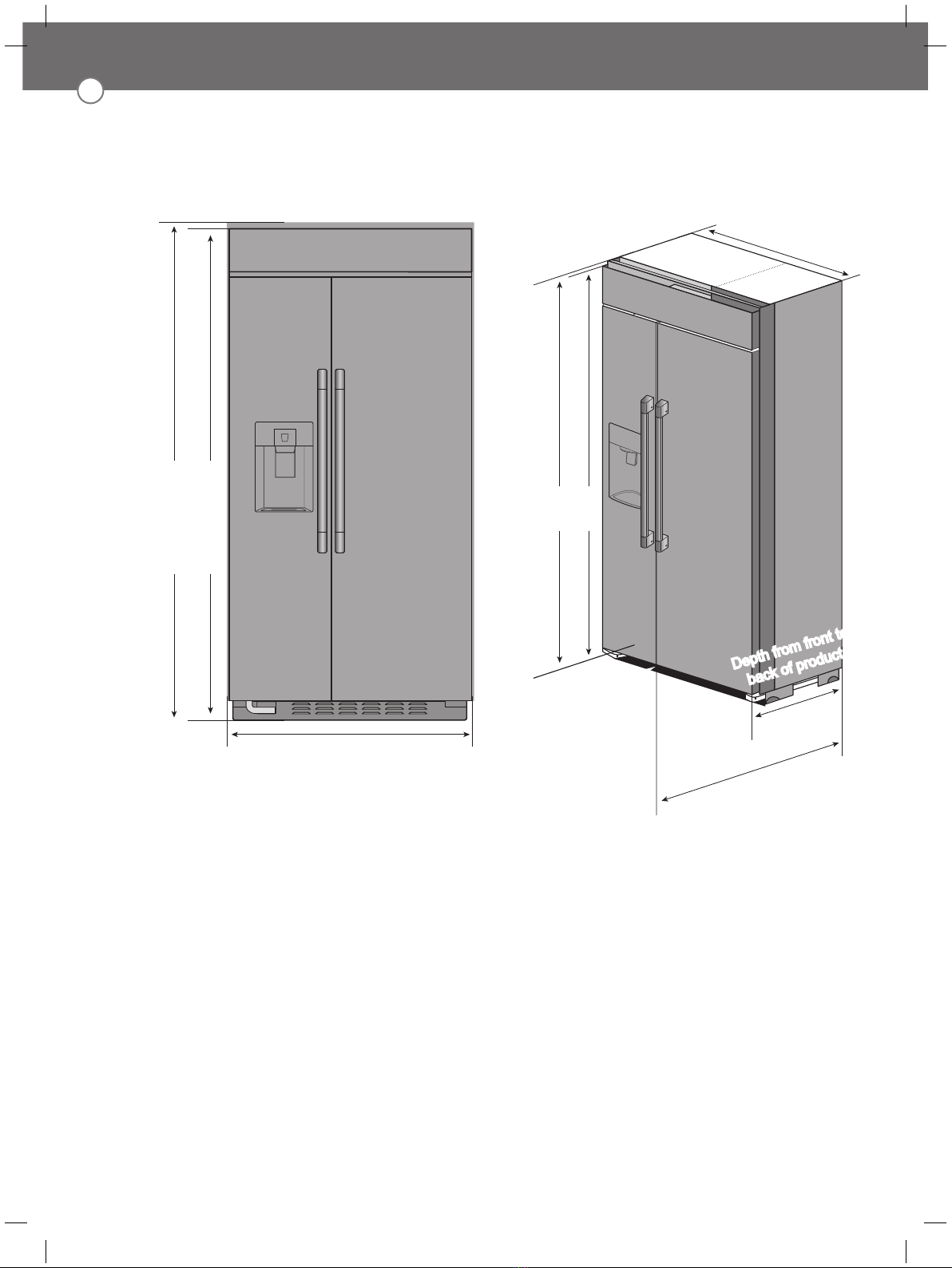

9. Product detail dimension
82-1/2”
(2,098mm)
83-1/2”
(2,121mm)
41”(1,041mm)
25-3/8”
(645mm)
27-7/8” (708mm)
Depth from front of
product to handle
Total height
of product
83-1/2”
(2,121mm)
Front width (Including wing)
42”(1,067mm)
Product height
excluding front
air inlet
82-1/2”
(2,098mm)
Depth from front to
back of product
Depth from front to
back of product

11

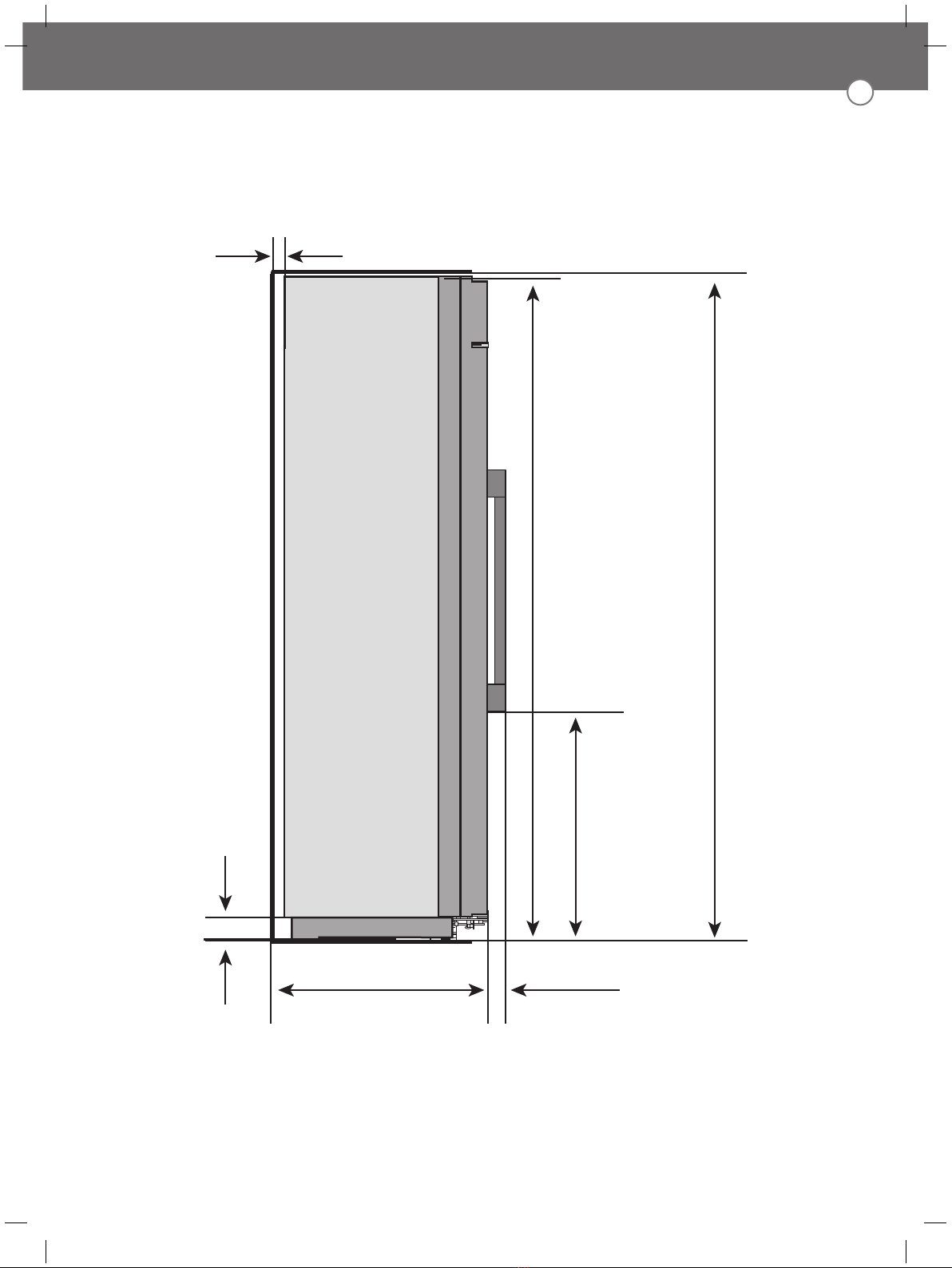

10. Cabinet detail dimension
Cabinet detail dimension
5/32”(4mm)
Height of
bottom part
3” (77mm)
Cabinet depth
24”(610mm)
Handle projection
2-1/2” (63mm)
Handle height
34-13/16”
(884mm)
Product height
83-1/2”(2,121mm)
Cabinet height
83-3/4”
(2,127mm)

12
※ It is convenient to use the small hole on the back
of the spanner included in the accessory box.

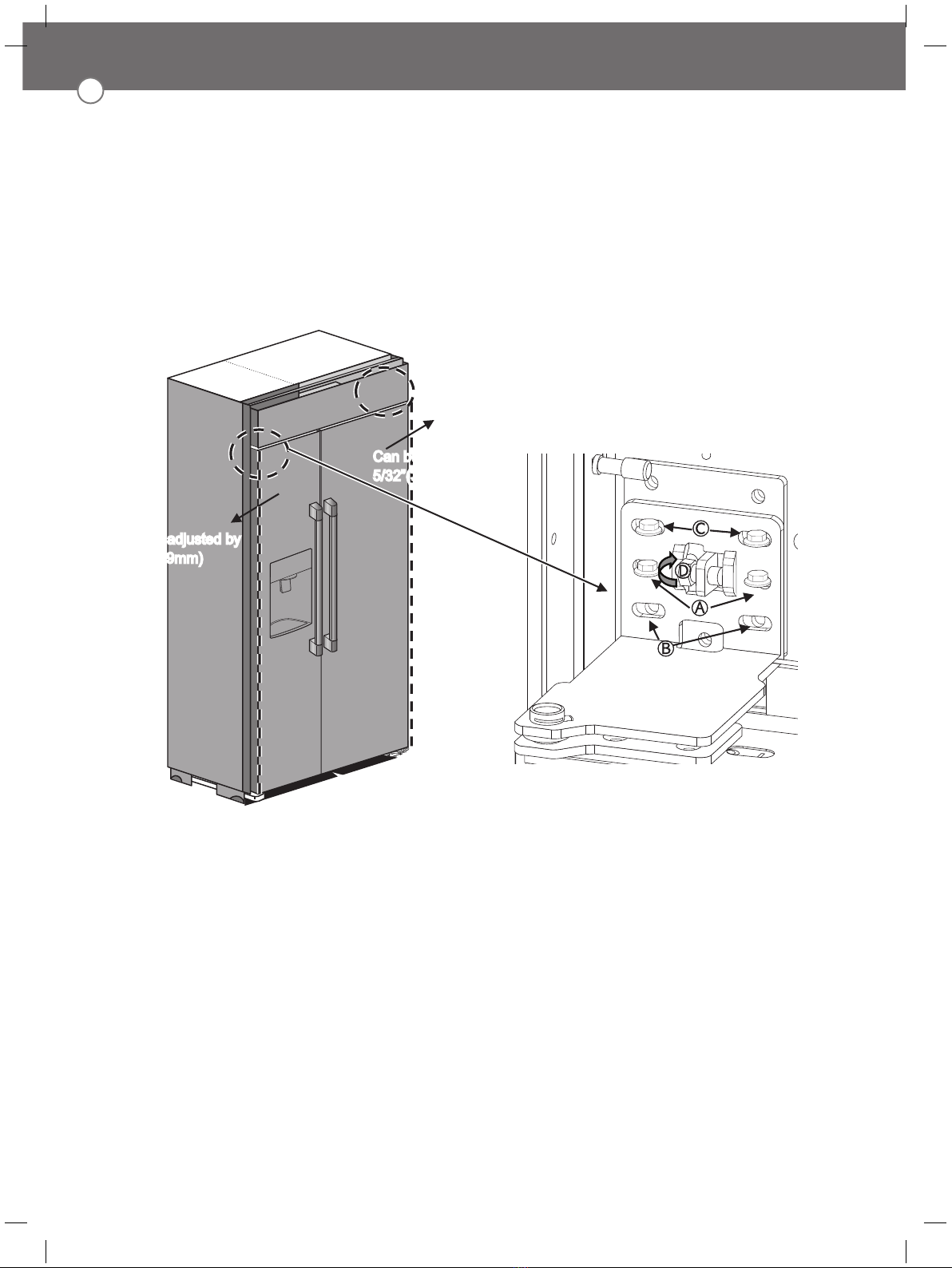

1) If the height of the refrigerator and freezer is different,
turn the bottom door height adjustment bolt to adjust the
height.
- The refrigerator and freezer door can be adjusted by
1/8”(3mm) respectively.
- M6 wrench to adjust the height of the door is not
included in the accessory box. (For accurate height
adjustment, it is recommended to contact the service
center.)
※ If the height of the door is adjusted excessively on left/
right side, the door close sensor may not recognize
well and the door may not be closed.
2) Adjustment order (Adjustment method is same for both
left and right side.)
- Loosen the nut to prevent it from loosening.
(Using Spanner.)
11. How to adjust the height of the refrigerator
and freezer door
- Use the M6 wrench to adjust the height. (Turn clockwise to raise the refrigerator door.)

13
12. How to adjust the height of the product
1) Use the height adjuster on the front/rear side to level
the product and adjust the height on both left and right
side.
※ For built-in product, adjust the height of and level the
product during the initial installation.
(For accurate height adjustment, it is recommended to
contact the service center.)
2) Adjustment order (Adjustment method is same for both left and right side.)
-. Disassemble the bottom grill using the (+) driver.
-. Use the front height adjuster to adjust the height. (Turn clockwise to raise the product.)
-. Use the M8 spanner to adjust the height adjuster on the rear side.
(Turn clockwise to raise the product.)
※ M8 spanner is not included in the accessory box.
3) After adjusting the height, always make sure to install the bottom grill.
※ It is convenient to use the
small hole on the back of the
spanner included in the
accessory box.

14
13. How to disassemble/reassemble the top grill
1) To adjust the left/right door, the top grill must be
disassembled first.
※ Because the corners can be sharp, make sure to be
careful during the task.
※ After disassembling the top grill, place it at a safe
location to avoid any scratch on the panel.
2) Top grill disassembly and reassembly
order
-. Loosen the indicated screws and
keep them safely.
(Left and right are symmetrical)
-. Lift up the top grill as shown in the
picture to pull it out to the front.
※ For the safety of the customer, there is
a hook on the left/right side of the top
grill. If the part is separated with
excessive force, it can cause an injury.
-. Reassembly can be done in the reverse order.
1
2
2
1

15
Refrigerator left/right door adjuster
14. Left/Right door adjuster for refrigerator and
freezer
1) The gap between the refrigerator and freezer is 5/16”(8mm) by factory default. If the gap
between the refrigerator and freezer door changes during the product installation, use the
left/right door adjuster to maintain the gap.
- The refrigerator and freezer door can be adjusted by 5/32”(3.9mm) respectively.
- M10 spanner for left/right adjustment is not included in the accessory box.
(For accurate left/right adjustment, it is recommended to contact the service center.)
2) Adjustment order

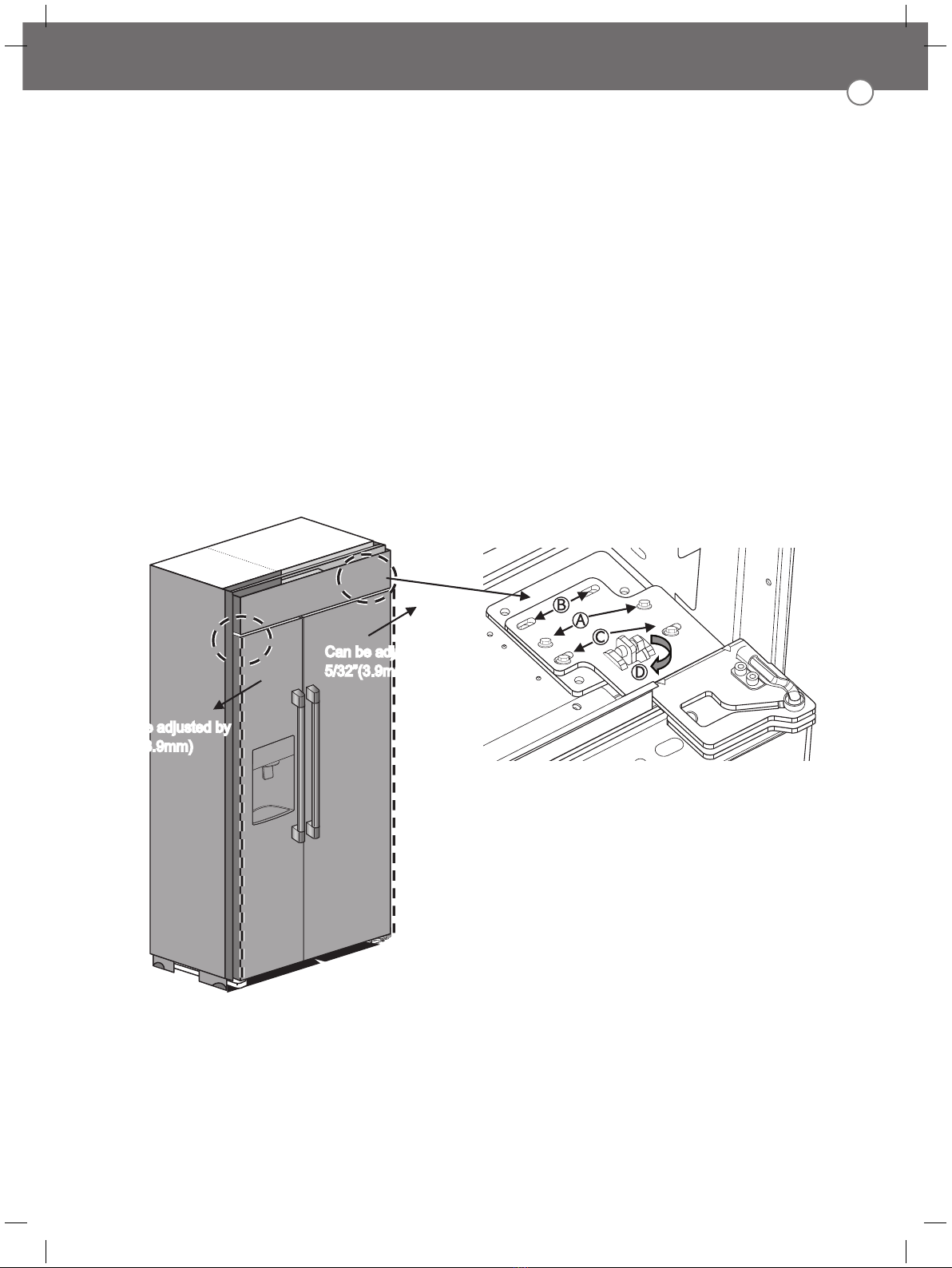

▶ Refrigerator left/right door adjuster
- Loosen 2 screws on part A and move to part B to
assemble about 3/8”(10mm).
- Loosen the bolt of part C by 3/8”(10mm).
- Use the M10 spanner to adjust the refrigerator
left/right for part D.
※ When part D is rotated 2 times, the refrigerator door
must move by 1/32”(1mm).
※ When part D is turned counterclockwise, the product
moves toward the outer side.
Can be adjusted by
5/32”(3.9mm)
Can be adjusted by
5/32”(3.9mm)
Can be adjusted by
5/32”(3.9mm)
Can be adjusted by
5/32”(3.9mm)

16
-. Loosen 2 screws on part A and move to part B to assemble about 3/8”(10mm).
-. Loosen the bolt of part C by 3/8”(10mm).
-. Use the M10 spanner to adjust the Freezer left/right for part D.
※ When part D is rotated 2 times, the Freezer door must move by 1/32”(1mm).
※ When part D is turned counterclockwise, the product moves toward the outer side.
14. Left/Right door adjuster for refrigerator and
freezer
Refrigerator left/right door adjuster
2) Adjustment order
▶ Refrigerator door left/right adjuster
Can be adjusted by
5/32”(3.9mm)
Can be adjusted by
5/32”(3.9mm)
Can be adjusted by
5/32”(3.9mm)
Can be adjusted by
5/32”(3.9mm)
